7 inch 1920 x 1200 IPS display, 500 cd/m², 1000:1 contrast, 16:10 aspect ratio 1x 3G-SDI and 1x HDMI 1.4 input and loop output, 4K passthrough (2160p 24/25/30) 405 g; 182 x 124 x 22 mm; compact design Shoe mount: 1/4 inch British Standard Whitworth (BSW) thread NP-F (F970) and LP-E6 battery compatible; F1/F2 user-definable (peaking, level meter, false colour, etc.) Centre marker, aspect marker, safety marker, peaking, false colour, exposure, histogram, level meter; optional VESA and V-Lock/Anton Bauer mounts

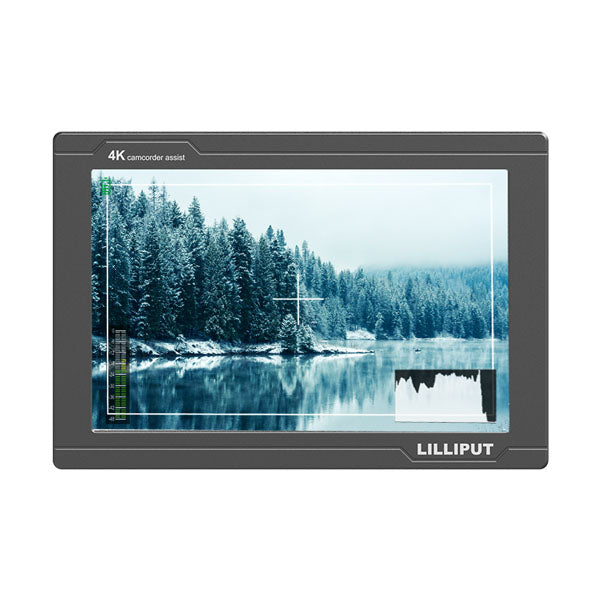

Display
Screen size
7 inch
Aspect ratio
16:10
Native resolution
1920 x 1200
Panel type
IPS
Brightness
500 cd/m²
Contrast
1000:1
Viewing angle
170°/170° (H/V)

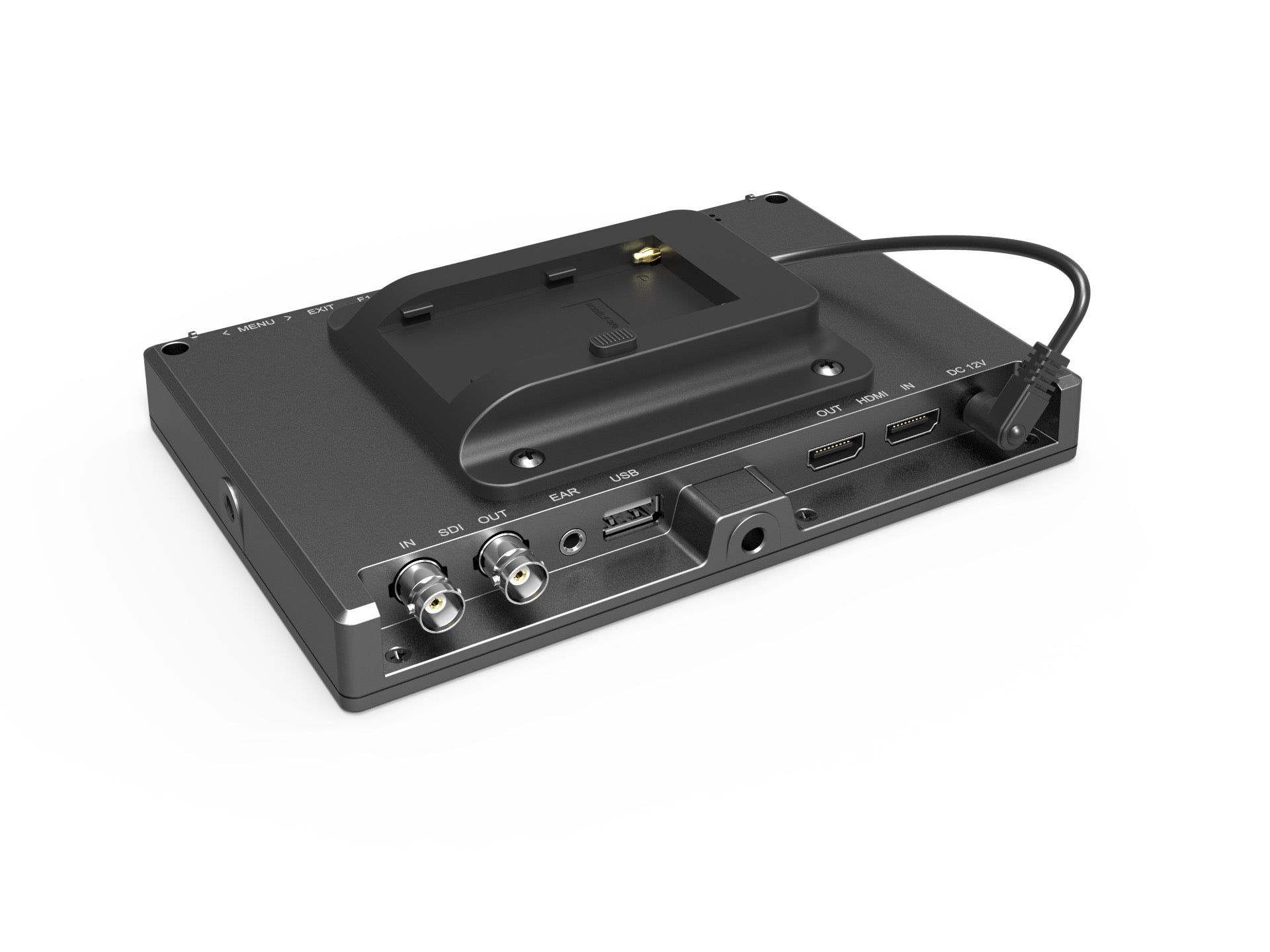

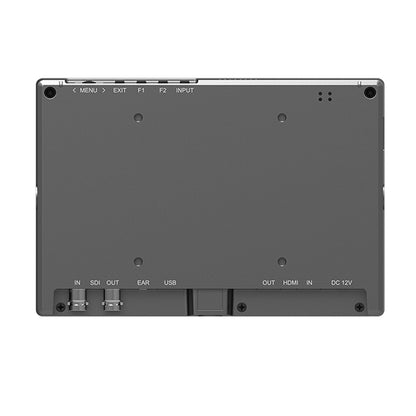

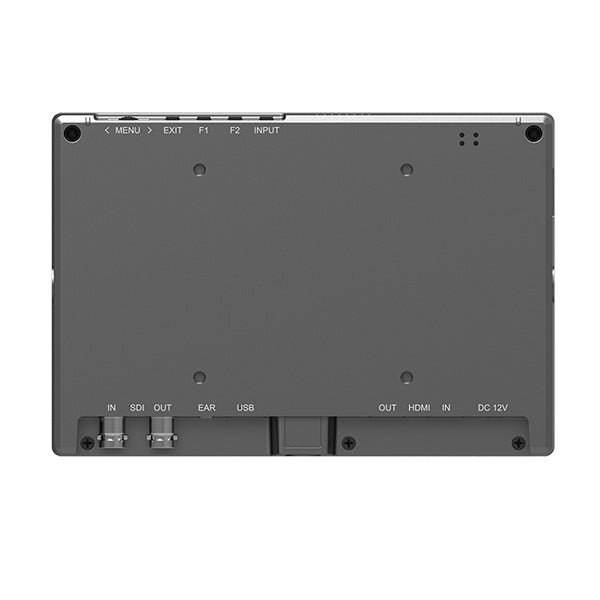

Connections
Video inputs
1x 3G-SDI, 1x HDMI 1.4
Video outputs
1x 3G-SDI, 1x HDMI 1.4
Audio
3G-SDI 12ch 48kHz 24-bit, HDMI 2ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), 1x Built-in speaker
Video Standards
3G-SDI
1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
HDMI 1.4
2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
Scopes
Video analysis
Peaking, False colour, Exposure, Histogram
Audio analysis
Level meter
Power
Input voltage
DC 7 to 24V
Power consumption
≤12 W

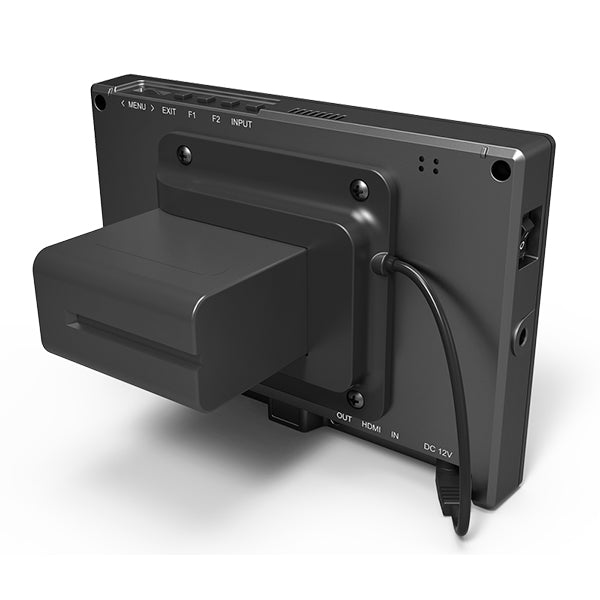

Compatible batteries
Sony NP-F (F970), Canon LP-E6
Input voltage (battery)
7.2V nominal
Environmental
Operating temperature
0°C to 50°C
Storage temperature
-20°C to 60°C
Mechanical
Dimensions
182 x 124 x 22 mm
Weight
405 g
Mounting
Shoe mount
3x 1/4 inch BSW
Operational Features
Function buttons
User-definable (peaking, level meter, centre marker, aspect marker, false colour, exposure, histogram, etc.)
Markers — Aspect markers
16:9, 1.85:1, 2.35:1, 4:3, 3:2
Markers — Safety marker
80%, 85%, 88%, 90%, 93%, 95%
Markers — Centre marker
On/Off
Accessories
Included

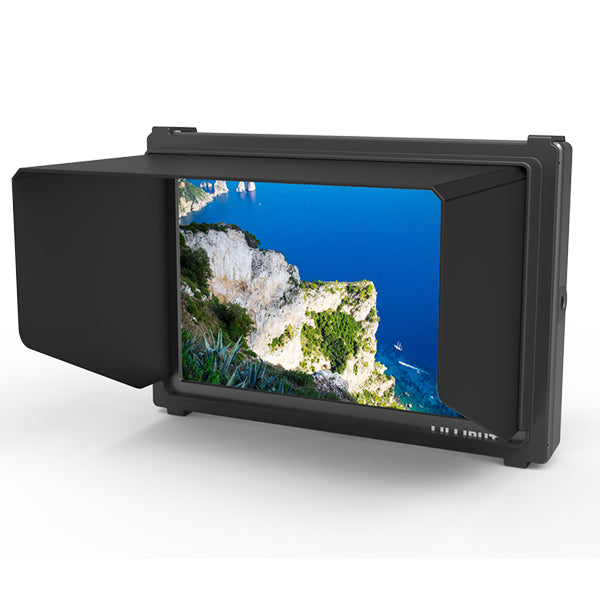

12V DC adapter, Sun shade, HDMI A/C cable, Shoe mount, NP-F series battery plate, User manual
Optional
VESA mount plate, V-Lock / Anton Bauer battery mount
