SC2030
SDI/HDMI up/down cross converter with dual SDI and HDMI outputs.
- SDI/HDMI up/down cross converter: 1x SD/HD/3G-SDI BNC in, 1x HDMI type A in, 2x SDI out, 1x HDMI out
- Up/down scaling and frame rate conversion with selectable SDI/HDMI output formats through 1080p60
- Analog audio embedding from 3.5 mm input, or pass-through from SDI/HDMI embedded audio
- Configuration via DIP switches or PC software over Micro USB
-
SC1221-12G
HDMI 2.0 to 12G-SDI 4K broadcast converter with HDMI loop out and dual SDI.
- HDMI 2.0 to 12G-SDI 4K broadcast converter: 1x HDMI 2.0 type A in, 1x HDMI 2.0 loop out, 2x HD/3G/6G/12G-SDI BNC out
- Converts 4K60 HDMI to professional 12G-SDI; selectable HD/3G/6G/12G-SDI output rate
- HDMI input: RGB 4:4:4 8-bit, YCbCr 4:2:2 8/10/12-bit, YCbCr 4:4:4 8-bit, YCbCr 4:2:0 8/10/12-bit (4K/HD); CTA-861-G compliant
- SDI output: YCbCr 4:2:2 10-bit; formats through 12G 4K60 and 6G 4K30, plus HD 1080p/i and 720p
-
SC2040
3G-SDI/HDMI bidirectional converter with optional fiber and scaling.
- 3G-SDI/HDMI bidirectional converter: 1x HDMI in, 1x SD/HD/3G-SDI or SFP fiber in (select 1 of 2), HDMI and SDI loop outs, 2x SDI out, 1x HDMI out, 1x SFP fiber out
- Up/down scaling and frame rate conversion with selectable SDI/HDMI output formats through 1080p60; 24 processing modes across HDMI, SDI, and fiber
- Optional bidirectional 3G video SFP (MSA Type) fiber transmission up to 20 km
- Analog audio embedding and de-embedding via 3.5 mm in/out; built-in test pattern and audio tone generator; horizontal and vertical image flip
-
SC7030
Multi-signal to HDMI/SDI cross converter with DVI, VGA, and analog inputs.
- Multi-signal to HDMI/SDI cross converter: 1x SD/HD/3G-SDI BNC in, 1x HDMI type A in, 1x DVI-I/VGA in, 1x S-Video/CVBS/YPbPr in, 2x SDI out, 1x HDMI out
- Up/down scaling and frame rate conversion with selectable SDI/HDMI output formats through 1080p60; 4:3 or 16:9 aspect conversion
- Analog audio embedding from 3.5 mm input, or pass-through from SDI/HDMI embedded audio
- 1080i hardware deinterlacing; HDMI output Full or Limited RGB; 3G-SDI Level A or Level B output
-

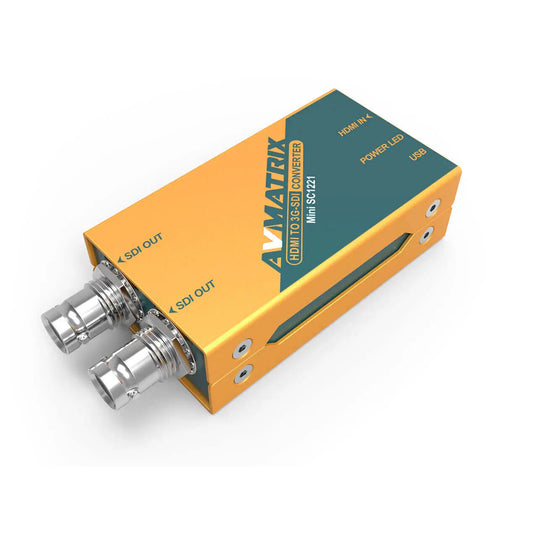

SC1221
HDMI to 3G-SDI mini converter with dual SDI outputs.
- HDMI to 3G-SDI mini converter: 1x HDMI type A in, 2x SD/HD/3G-SDI BNC out
- Pocket-size broadcast converter with full-size HDMI and SDI connectors for convenient field and studio use
- Converts full HD 1080p60 HDMI to professional SDI; selectable SD/HD/3G-SDI output rate
- HDMI input: YUV 4:2:2/4:4:4 and RGB 4:4:4; SDI output: YUV 4:2:2
-

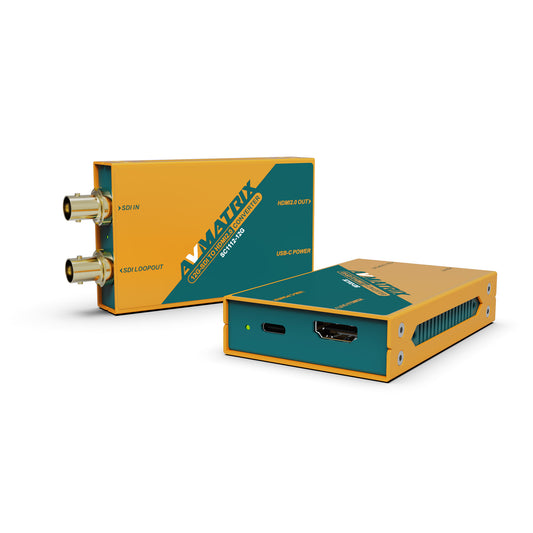

SC1112-12G
12G-SDI to HDMI 2.0 4K broadcast converter with SDI loop out.
- 12G-SDI to HDMI 2.0 4K broadcast converter: 1x HD/3G/6G/12G-SDI BNC in, 1x SDI loop out, 1x HDMI 2.0 type A out
- Auto-detects HD, 3G, 6G, and 12G-SDI Level A/B on input up to 4K60
- SDI: YCbCr 4:2:2 10-bit; HDMI: RGB 4:4:4 8-bit, YCbCr 4:2:2 8/10/12-bit, YCbCr 4:4:4 8-bit; CTA-861-G compliant
- SDI formats through 12G 4K60 and 6G 4K30; HDMI output through 4K60 and HD 1080p/i and 720p
-
SC2020-12G
12G-SDI to HDMI 2.0 bidirectional converter with optional fiber to 10 km.
- 12G-SDI to HDMI 2.0 bidirectional converter: 1x HDMI 2.0 in, 1x 12G-SDI or 12G SFP fiber in (select 1 of 2), HDMI and SDI loop outs, 2x HDMI 2.0 out, 2x 12G-SDI out, 1x 12G fiber out
- Up to 4K60 (2160p, 1080p, 1080i, 720p); 4K60 to 4K30 conversion via DIP; 3G-SDI Level A or Level B output
- Optional SFP module transceiver for fiber transmission up to 10 km; SFP 12G or 6G selectable
- HDMI colour space Full/Limited RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0; Rec.709 and Rec.2020
-

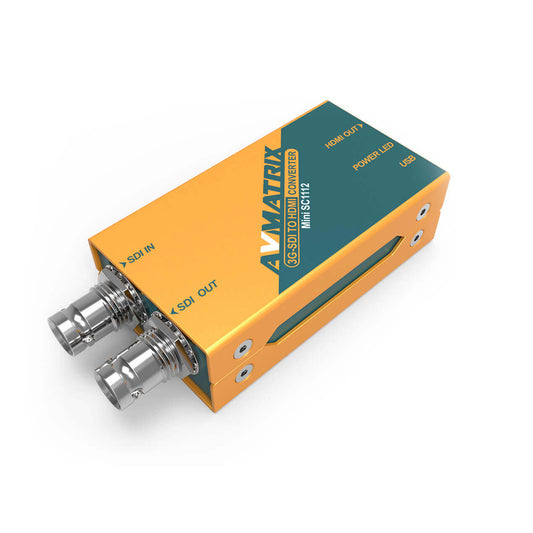

SC1112
3G-SDI to HDMI mini converter with SDI loop out and HDMI output.
- 3G-SDI to HDMI mini converter: 1x SD/HD/3G-SDI BNC in, 1x SDI loop out, 1x HDMI type A out
- Pocket-size broadcast converter with full-size SDI and HDMI connectors for convenient field and studio use
- Auto-detects SD, HD, and 3G-SDI Level A/B on input up to 1080p60; YUV 4:2:2 colour space on SDI and HDMI
- SDI formats: 525i/625i, 720p, 1080i, 1080pSF, and 1080p; HDMI output: 480i/576i, 720p, 1080i, and 1080p
-
SC1120
3G-SDI to HDMI scaling converter with SDI loop out, AV out, and AES/EBU audio.
- 3G-SDI to HDMI scaling converter: 1x SD/HD/3G-SDI BNC in, 1x alt/redundant SDI in, 1x SDI loop out, 1x HDMI type A out, 1x 3.5 mm AV out
- Pass-through or up/down scaling and frame rate conversion on HDMI; de-interlacing and seamless conversion
- AES/EBU and analog audio embedding to HDMI, and de-embedding of any SDI audio pair to AES/EBU and analog out
- Configuration via DIP switches or PC software over Micro USB; HDMI colour space RGB 4:4:4, YUV 4:2:2, YUV 4:4:4
-

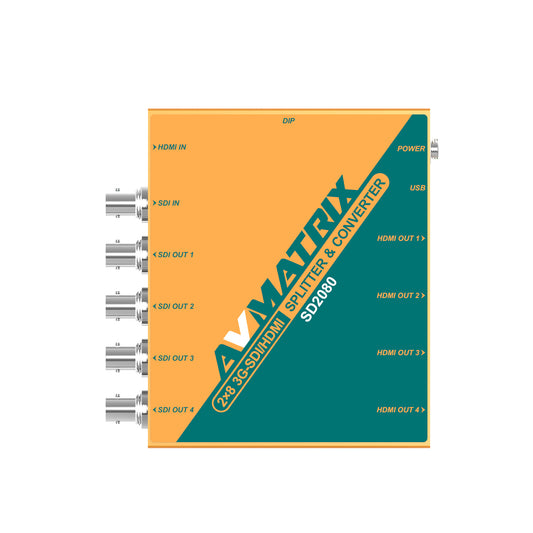

SD2080
2x8 3G-SDI/HDMI splitter and converter with 4x SDI and 4x HDMI outputs.
- 2x8 3G-SDI/HDMI splitter and converter: 1x HDMI type A in, 1x SD/HD/3G-SDI in, 4x HDMI out, 4x SDI out
- Distribute and convert between SDI and HDMI; selected input is sent to all eight outputs simultaneously, up to 1080p60
- Auto-detects HDMI and SD/HD/3G-SDI input; SDI equalization and re-clock; DIP SW1 selects HDMI or SDI input
- USB Type-C 5 V or threaded locking DC 6 to 28 V; 6.6 W (DC) / 7.5 W (USB); 12V 2A power supply included
-

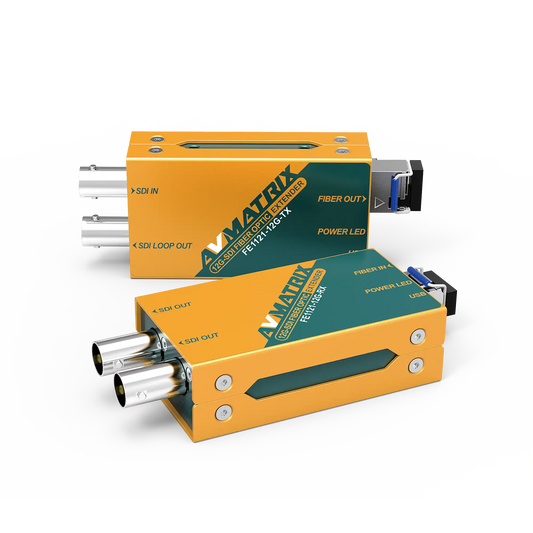

FE1121-12G
12G-SDI fiber optic extender kit with SDI loop out, to 10 km.
- 12G-SDI fiber optic extender kit (FE1121-12G-TX + FE1121-12G-RX): 1x SDI in and loop out on transmitter, 2x SDI out on receiver
- Hot-pluggable SFP modules with LC single-mode fiber; up to 10 km (6.2 miles) at 12G (4K60P); SMPTE 297M compliant
- Auto-detects SD, HD, 3G, 6G, and 12G-SDI/ASI on input; YUV and RGB colour space; 32/16 channel embedded audio pass-through
- SDI equalization and re-clocking on input and output; up to 60 m for 12G-SDI coax per link
-

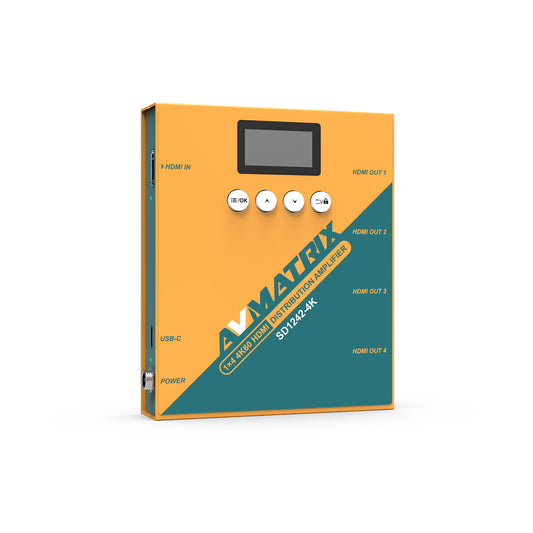

SD1242-4K
1x4 4K60 HDMI 2.0 distribution amplifier with EDID management.
- 1x4 4K60 HDMI distribution amplifier: 1x HDMI 2.0 type A in, 4x HDMI 2.0 type A out
- HDMI 2.0 through 4096 x 2160p60 and 3840 x 2160p60; RGB 4:4:4, YUV 4:2:2, and YUV 4:4:4 8-bit
- EDID management via LCD: Auto, Standard, Custom, Copy, and Pre-save; per-output enable; lockable front-panel buttons
- USB Type-C 5 to 5.5 V or DC 5.5 to 24 V, 6 W; 12V 2A universal power adapter included; USB-C for updates and PC software
-

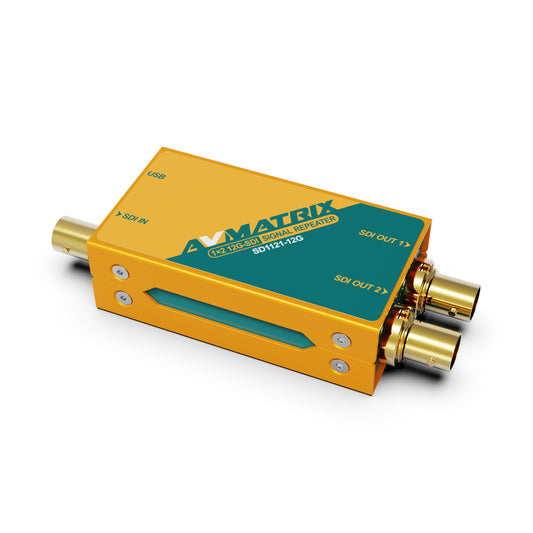

SD1121-12G
1x2 12G-SDI signal repeater with cable equalization and retiming.
- 1x2 12G-SDI signal repeater: 1x 12G-SDI BNC in, 2x 12G-SDI BNC out; automatically detects SD, HD, 3G, 6G, and 12G-SDI
- DVB-ASI compatible; automatic cable equalization and signal retiming (long-reach SDI up to 12G 60 m, 3G 120 m per Belden-class coax)
- Passes embedded audio and ancillary data on both outputs
- 5 V USB Type-C power (1 W typical); detachable wall-mount bracket included
-

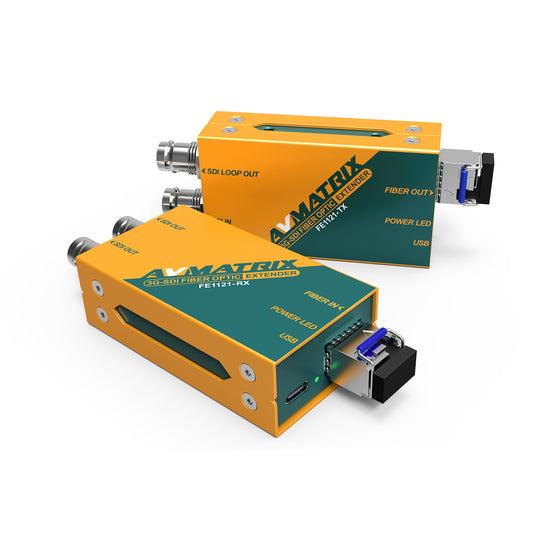

FE1121
3G-SDI fiber optic extender kit with SDI loop out, to 20 km.
- 3G-SDI fiber optic extender kit (FE1121-TX + FE1121-RX): 1x SDI in and loop out on transmitter, 2x SDI out on receiver
- Hot-pluggable SFP modules with LC single-mode fiber; up to 20 km (12.5 miles) at 3G (1080p); SMPTE 297M compliant
- Auto-detects SD, HD, and 3G-SDI Level A/B on input; YUV and RGB colour space; 16 channel embedded audio pass-through
- SDI equalization and re-clocking on input and output; up to 120 m for 3G-SDI coax per link
-
MSS0811
1U rack-mountable 8 x 8 3G-SDI matrix switcher.
- 8x SD/HD/3G-SDI/DVB-ASI inputs and 8x outputs, any-to-any matrix routing
- Supports 2K, 3G, HD, and SD-SDI with automatic format detection
- Passes all 3G-SDI embedded audio and ancillary data
- One-to-one, one-to-all, and multi-output routing presets
-

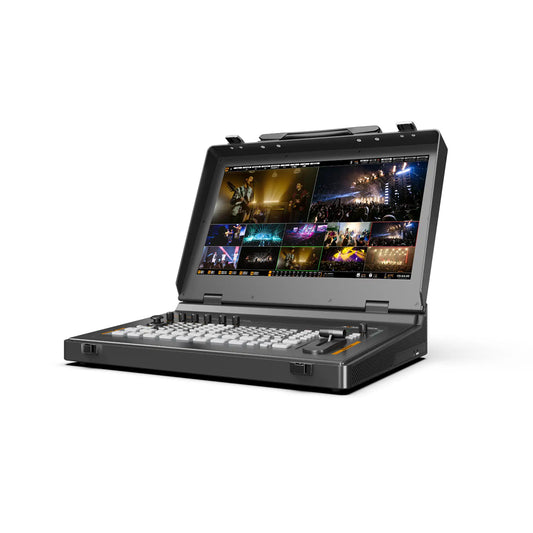

S8X Plus
8-channel 3G-SDI/HDMI live production video switcher with 17.3 inch display and streaming.
- Screen size: 17 inch
- Display resolution: 1920 x 1080
- 17.3 inch FHD IPS display with customisable multiview monitoring
- 8x 3G-SDI and 2x 4K HDMI inputs with frame sync; 4x 3G-SDI + 2x HDMI PGM outputs and multiview
- T-Bar, AUTO, and CUT transitions with WIPE (11 x 3), MIX, DIP, FTB, freeze
- Upstream keying (luma, chroma, 3x PIP) and downstream keying (DSK, logo); up to 6 layers
