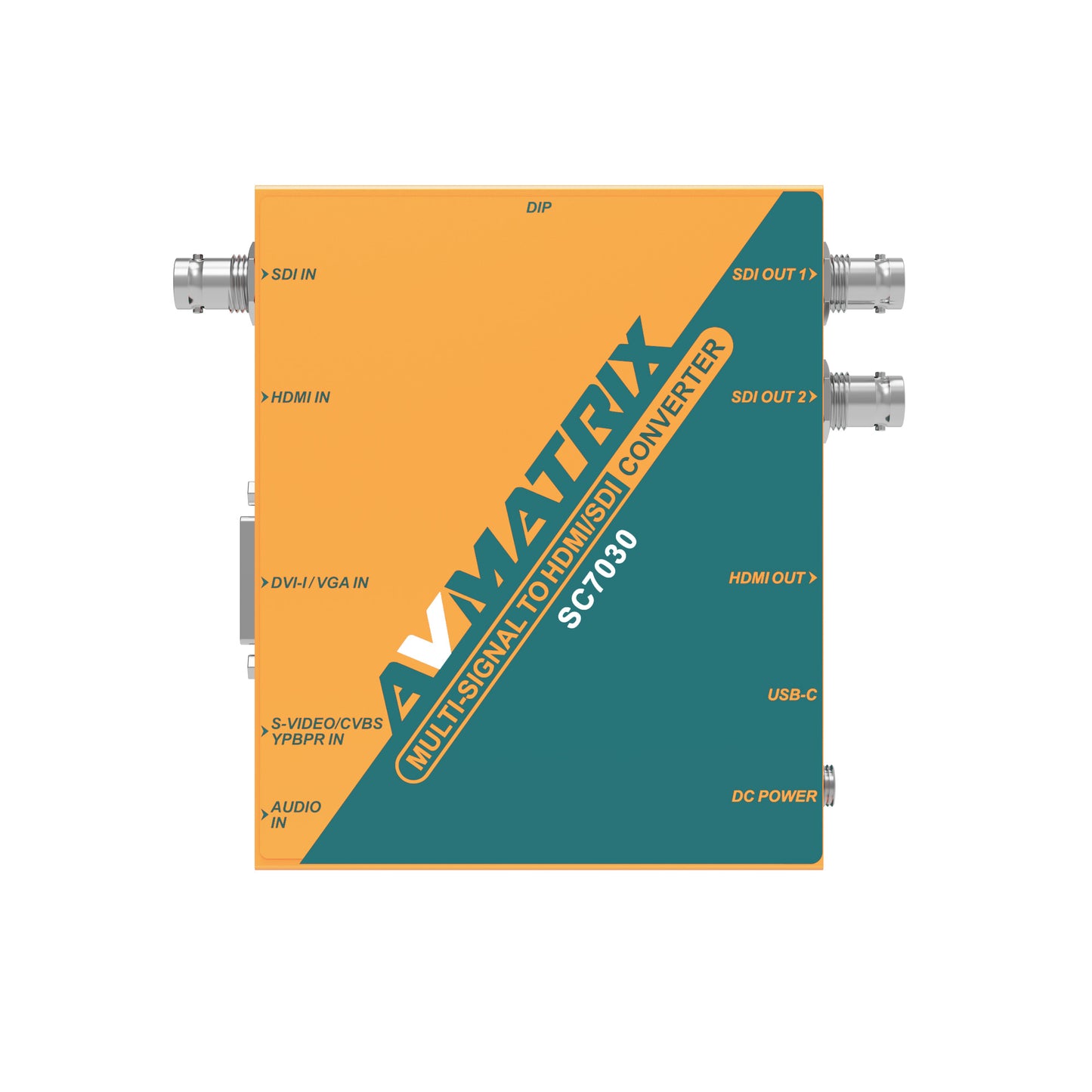

Multi-signal to HDMI/SDI cross converter. 1x SD/HD/3G-SDI, 1x HDMI, 1x DVI-I/VGA, and 1x S-Video/CVBS/YPbPr in, 2x SDI and 1x HDMI out, with analog audio embedding. Up/down scaling and frame rate conversion via DIP switches or PC software. DC 6 to 24 V plus USB-C 5 V, ≤5.5 W. 104 x 125.5 x 24.5 mm, 496 g.

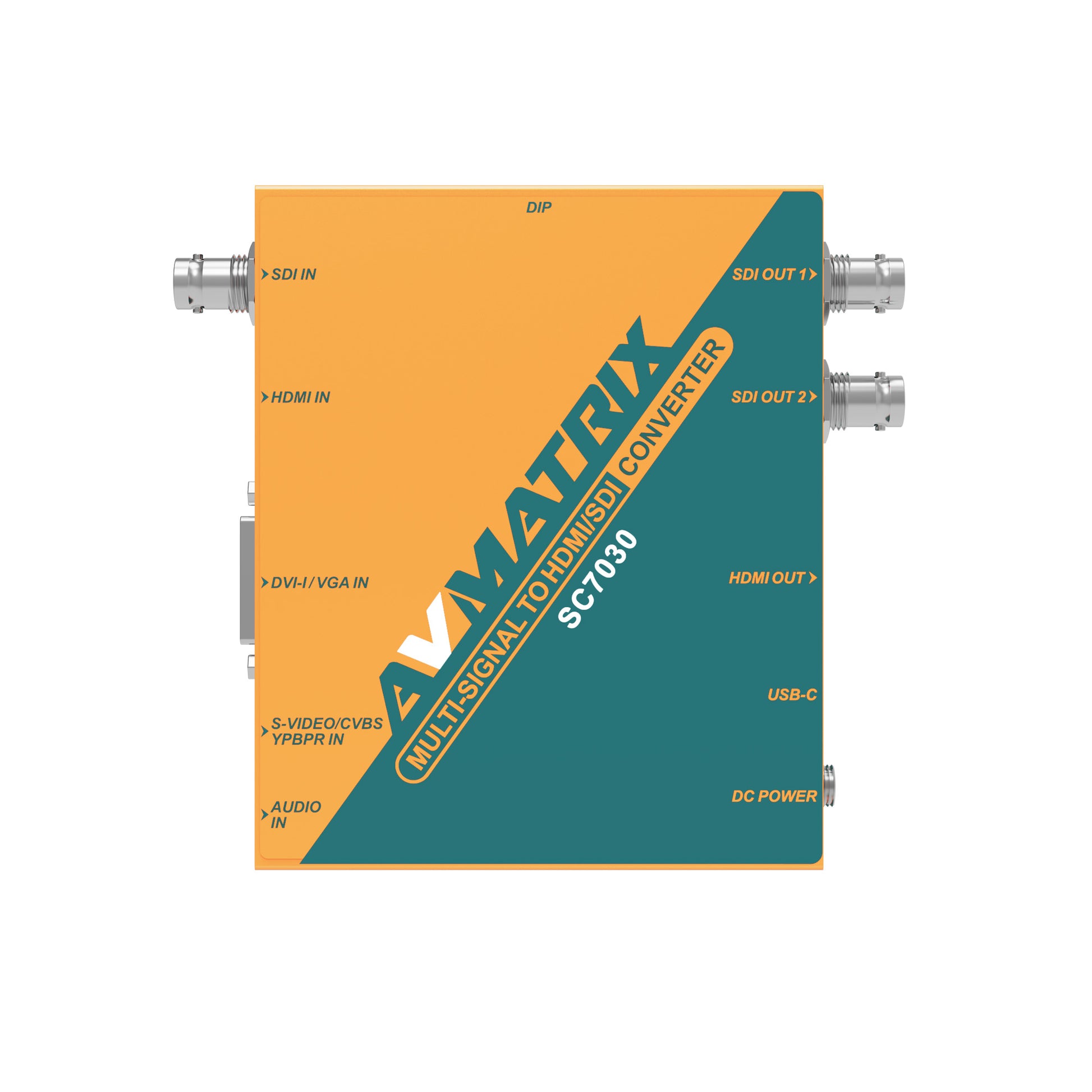

Multi-signal to HDMI/SDI cross converter: 1x SD/HD/3G-SDI BNC in, 1x HDMI type A in, 1x DVI-I/VGA in, 1x S-Video/CVBS/YPbPr in, 2x SDI out, 1x HDMI out
Up/down scaling and frame rate conversion with selectable SDI/HDMI output formats through 1080p60; 4:3 or 16:9 aspect conversion
Analog audio embedding from 3.5 mm input, or pass-through from SDI/HDMI embedded audio
1080i hardware deinterlacing; HDMI output Full or Limited RGB; 3G-SDI Level A or Level B output

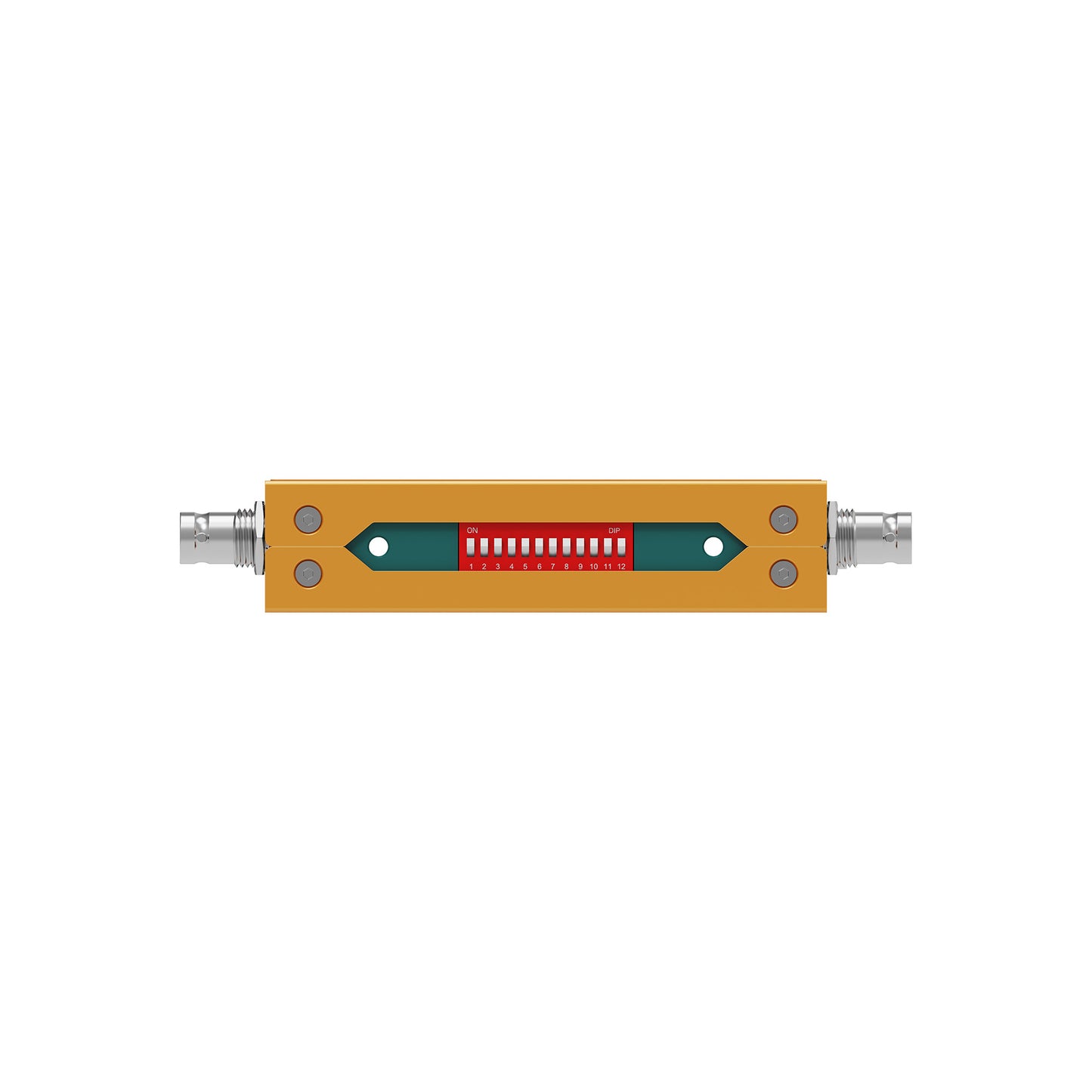

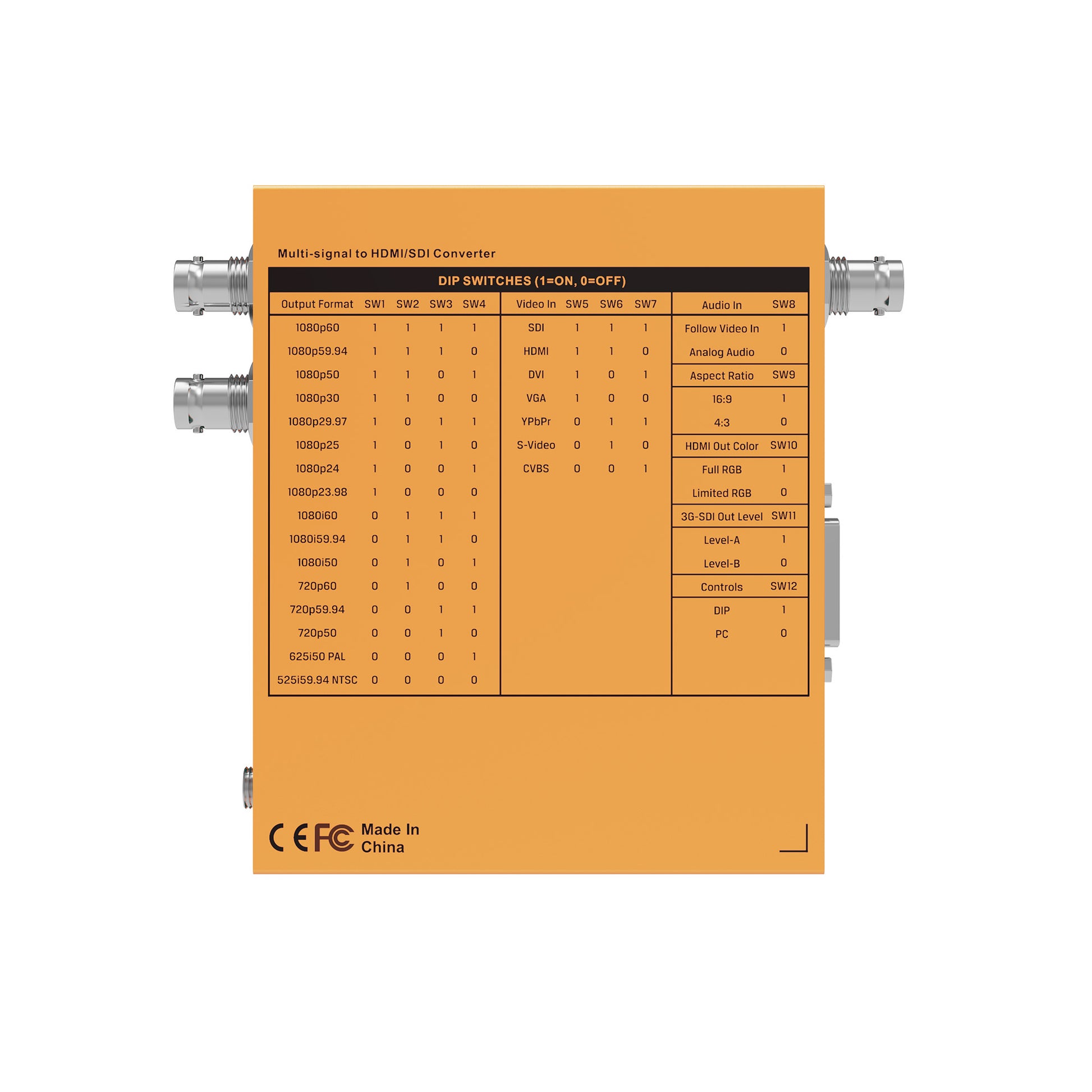

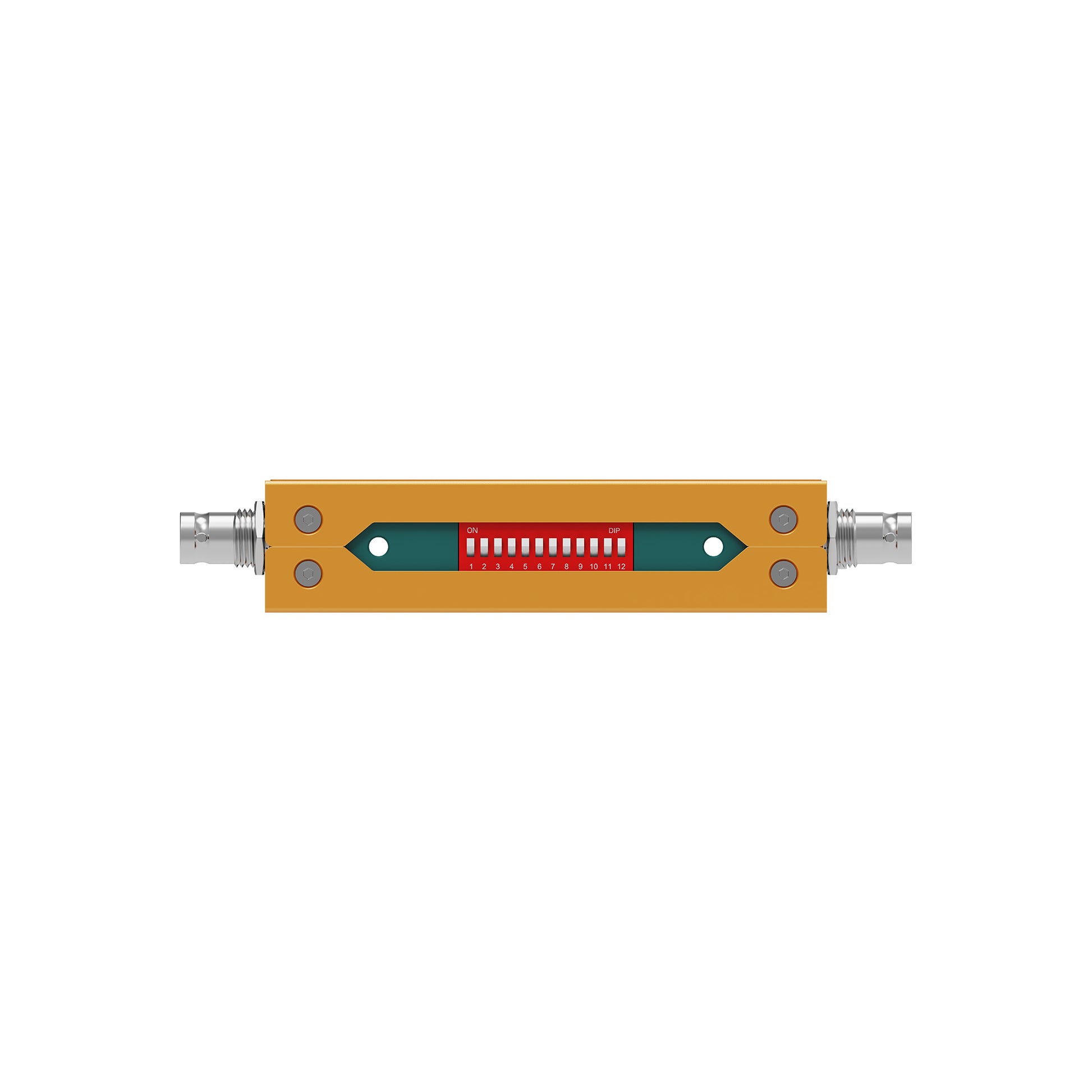

Configuration via 12x DIP switches or PC software over USB Type-C; DC 6 to 24 V and USB-C 5 V, ≤5.5 W; 12V 2A power supply included
104 x 125.5 x 24.5 mm, 496 g; DVI to VGA connector and S-Video/CVBS/YPbPr 3-in-1 cable included; mounting bracket optional; -20°C to 60°C operating, 3 year limited warranty
Connections
Video inputs

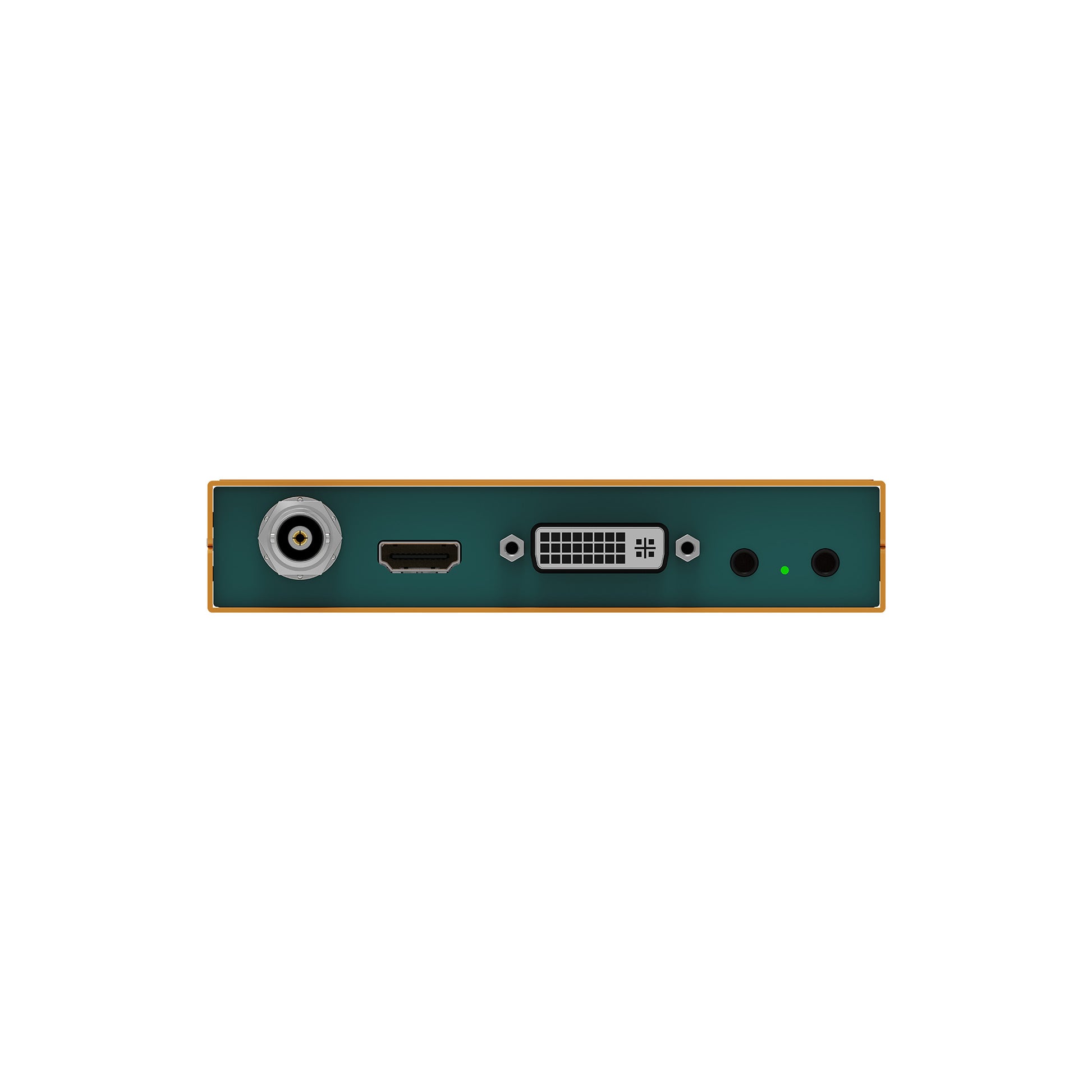

1x SD/HD/3G-SDI (75Ω BNC), 1x HDMI type A, 1x DVI-I/VGA, 1x S-Video/CVBS/YPbPr
Video outputs

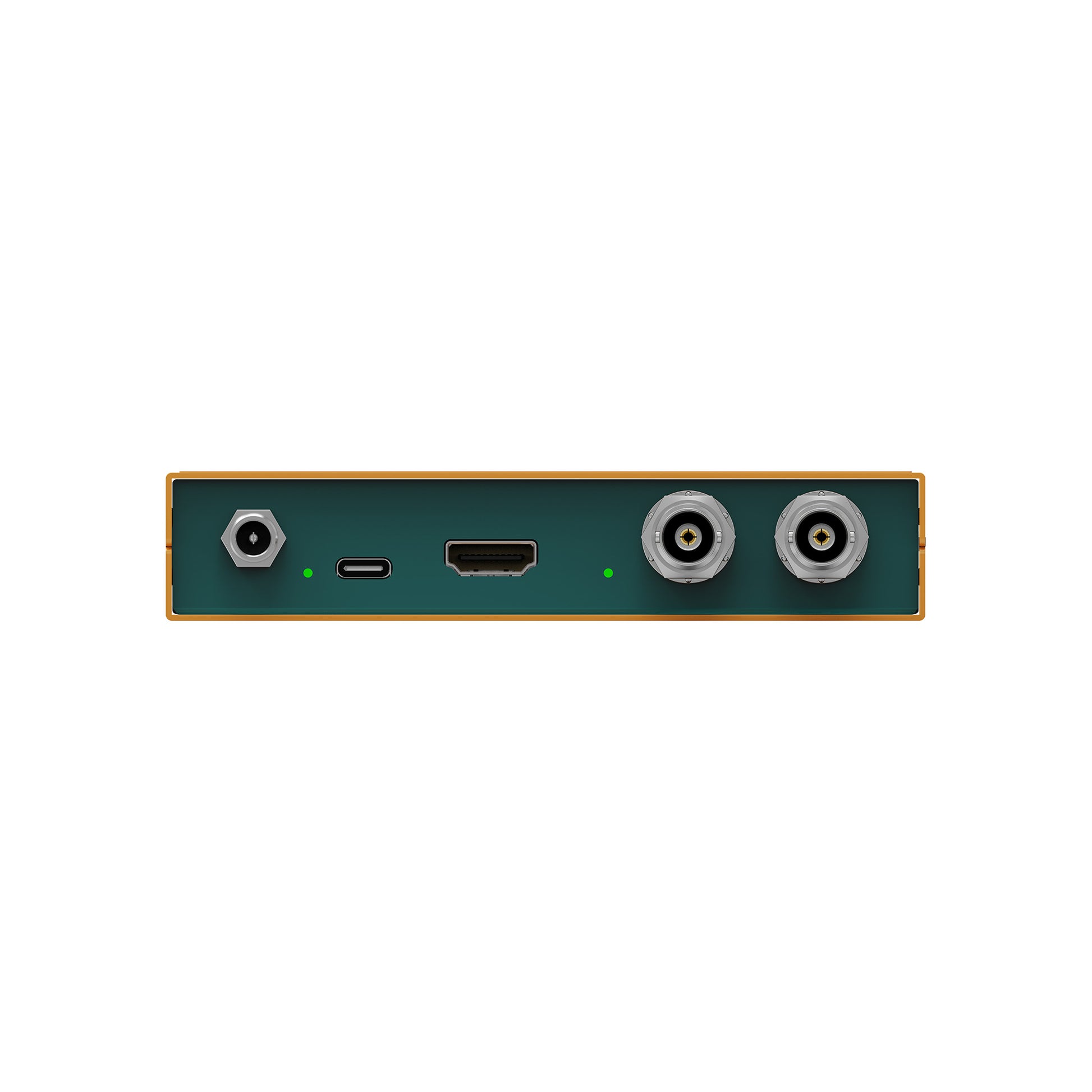

2x SD/HD/3G-SDI (75Ω BNC), 1x HDMI type A
Audio
1x 3.5 mm analog audio in
Power input
1x DC threaded locking connector (6 to 24 V), 1x USB Type-C (5 V; firmware update, power and control)
VGA: 1920 x 1080, 1680 x 1050, 1600 x 1200, 1600 x 900, 1400 x 1050, 1366 x 768, 1360 x 768, 1280 x 1024, 1280 x 960, 1280 x 800, 1280 x 768, 1280 x 720, 1280 x 600, 1152 x 864, 1024 x 768, 800 x 600, 640 x 480, 720 x 400 (up to 60 Hz); DVI: 1920 x 1080, 1280 x 720 (up to 60 Hz)
