3G-SDI to HDMI scaling converter: 1x SD/HD/3G-SDI BNC in, 1x alt/redundant SDI in, 1x SDI loop out, 1x HDMI type A out, 1x 3.5 mm AV out Pass-through or up/down scaling and frame rate conversion on HDMI; de-interlacing and seamless conversion AES/EBU and analog audio embedding to HDMI, and de-embedding of any SDI audio pair to AES/EBU and analog out Configuration via DIP switches or PC software over Micro USB; HDMI colour space RGB 4:4:4, YUV 4:2:2, YUV 4:4:4 DC threaded locking power (6 to 24 V), 6 W; DC 12V universal power supply, USB cable, AV cable, and mounting brackets included 125.5 x 104 x 24.5 mm, 465 g; -20°C to 60°C operating, 3 year limited warranty

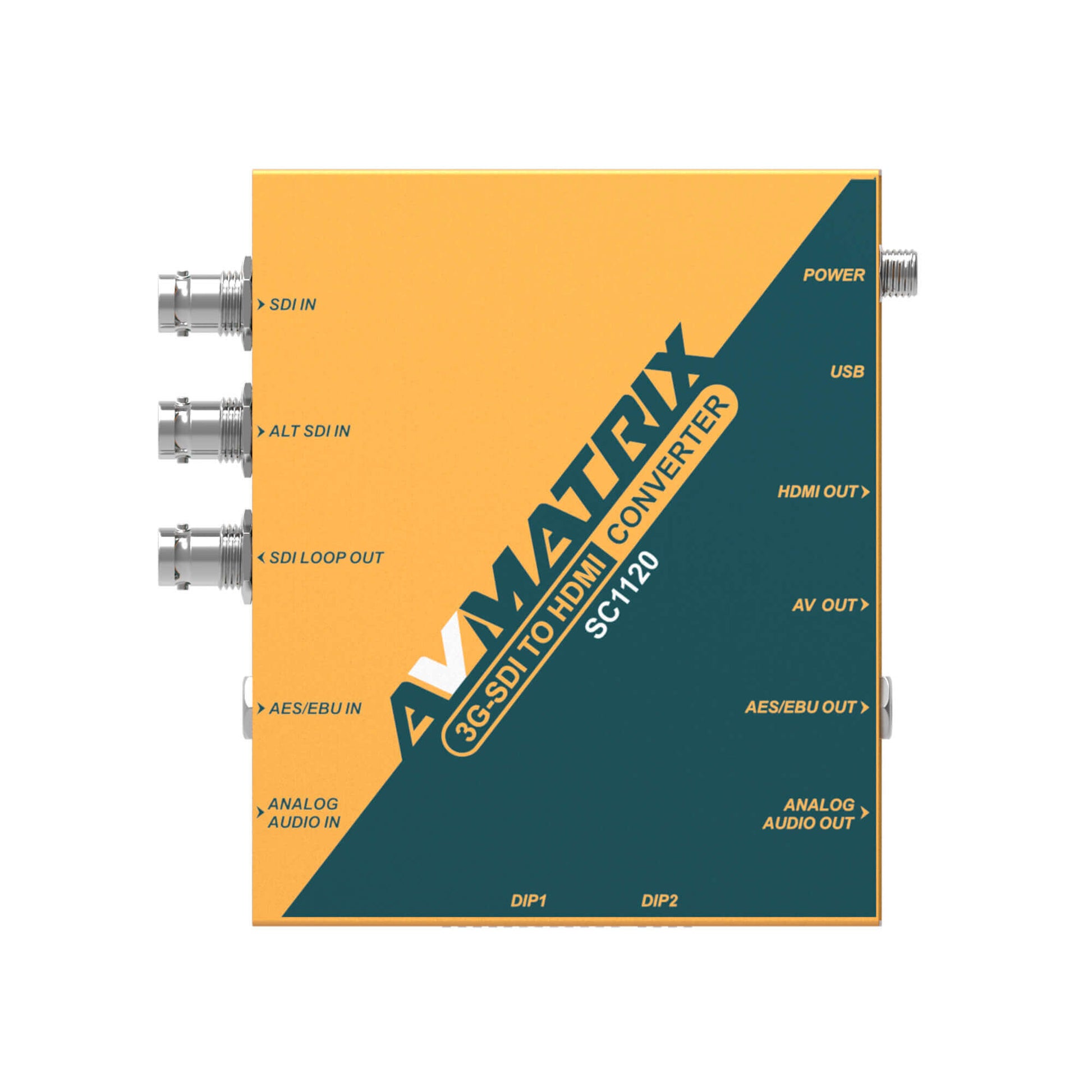

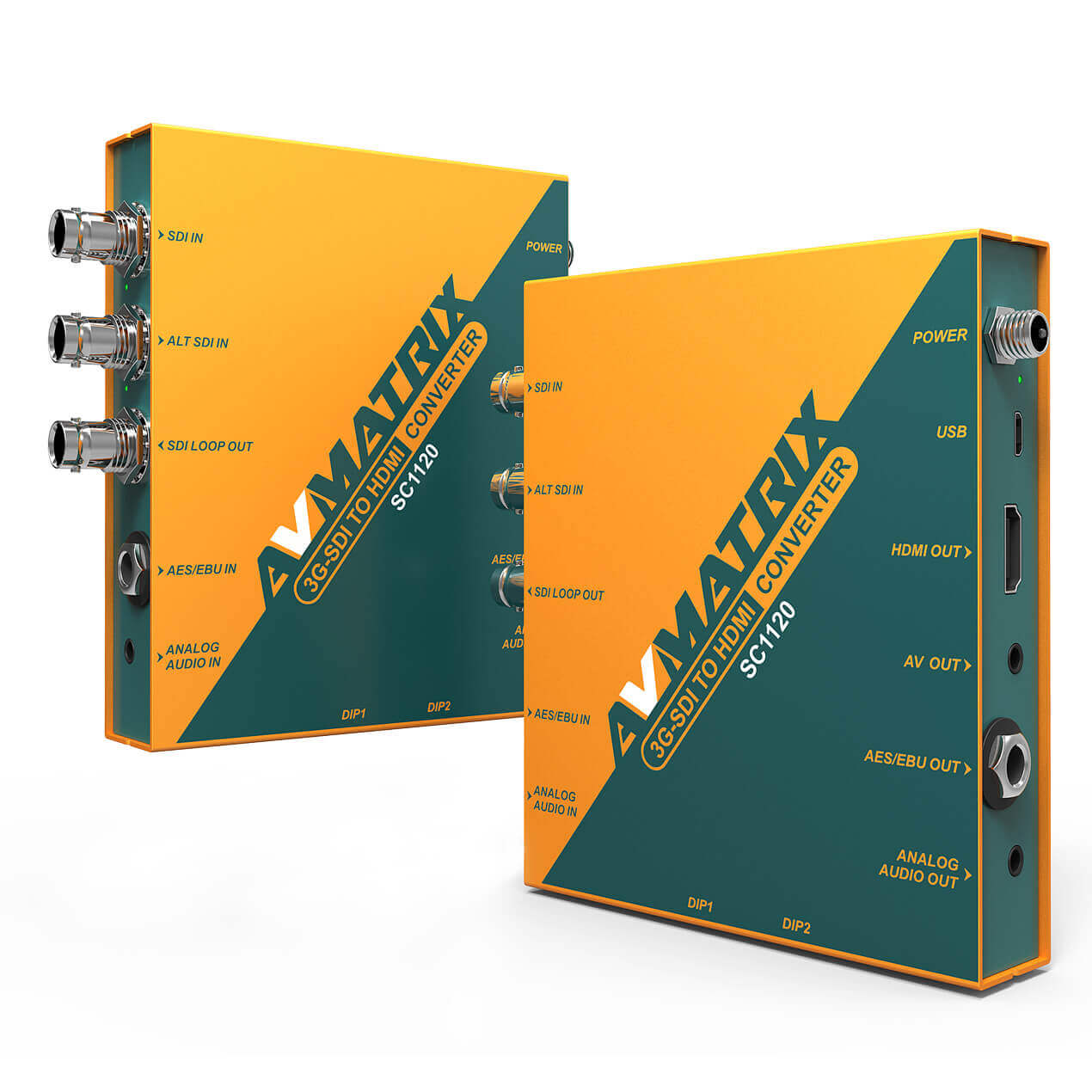

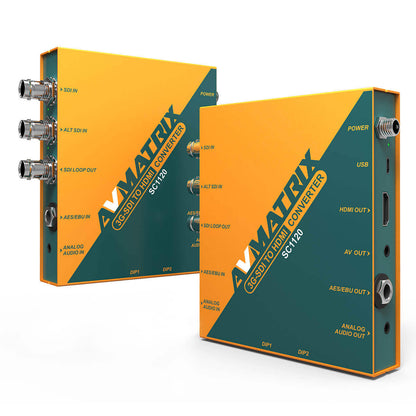

Connections
Video inputs
1x SD/HD/3G-SDI (75Ω BNC), 1x SD/HD/3G-SDI alt/redundant (75Ω BNC)
Video outputs
1x SD/HD/3G-SDI loop out (75Ω BNC), 1x HDMI type A, 1x 3.5 mm AV out
Audio
1x 6.35 mm AES/EBU digital audio in, 1x 6.35 mm AES/EBU digital audio out, 1x 3.5 mm analog audio in, 1x 3.5 mm analog audio out
Power input
1x DC threaded locking connector
Other interfaces
1x Micro USB (updates and configuration)
Video Standards
3G-SDI
1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 625i 50, 525i 59.94
HDMI
1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 720p 24/25/29.97/30/50/59.94/60, 576i 50, 480i 59.94/60
S-Video/CVBS
NTSC, PAL
3G-SDI compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 352M, SMPTE 424M
Colour space
YUV 4:2:2 (SDI); RGB 4:4:4, YUV 4:2:2, YUV 4:4:4 (HDMI)
Format auto-detection
Auto-detects SD, HD, and 3G-SDI on input
SDI output rate
SD/HD/3G-SDI (loop)
Deinterlacing
Yes
Switching
3G-SDI auto switching
Auto-detects SD, HD, and 3G-SDI on input; alt SDI input switches over if main is lost
Seamless switching
Seamless conversion to avoid jitter
Operational Features
Cross conversion
SDI → HDMI and AV; pass-through or up/down scaling and frame rate conversion; selectable HDMI output through 1080p60
Scaler
Up/down scaling with selectable HDMI output formats through 1080p60
Frame rate conversion
Yes — via DIP switches (pass-through or selectable HDMI output format)
Audio embedding
SDI CH1-8, SDI CH9-16, AES/EBU, or analog audio to HDMI
Audio de-embedding
Any pair of SDI 16-channel audio to AES/EBU and analog out

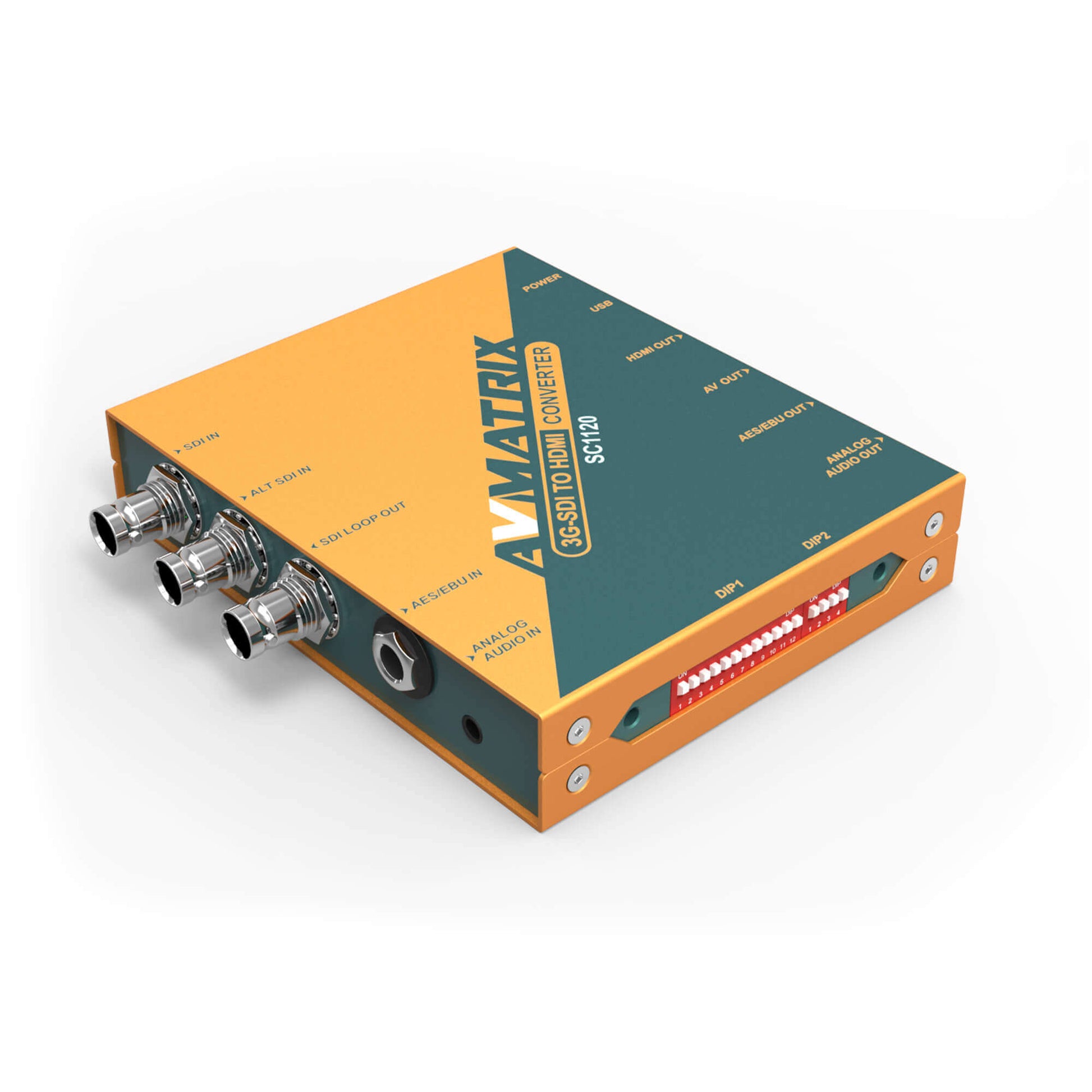

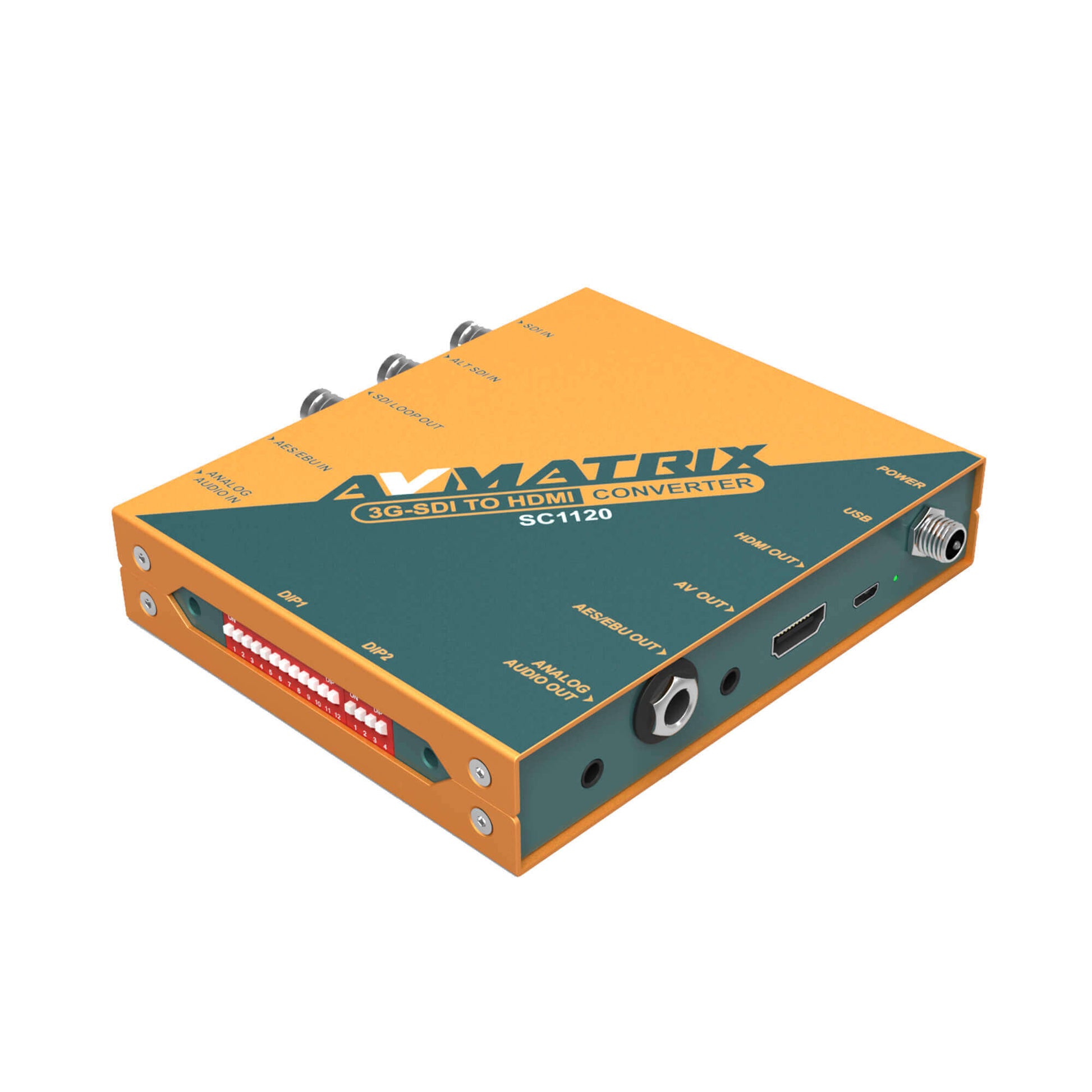

DIP switches
DIP1 (scaling, audio embed/de-embed, HDMI colour space) and DIP2 (AV NTSC/PAL, status overlay, PC custom settings)
OSD
Input/output format and audio embed/de-embed status overlay (DIP selectable)
Remote control
PC software via Micro USB
Front panel control
DIP switches; PC software via Micro USB
Power
Input voltage
DC 6 to 24 V
Power consumption
6 W
Environmental
Operating temperature
-20°C to 60°C
Storage temperature
-30°C to 70°C
Relative humidity
0% to 90% non-condensing
Mechanical
Dimensions
125.5 x 104 x 24.5 mm
Weight
465 g

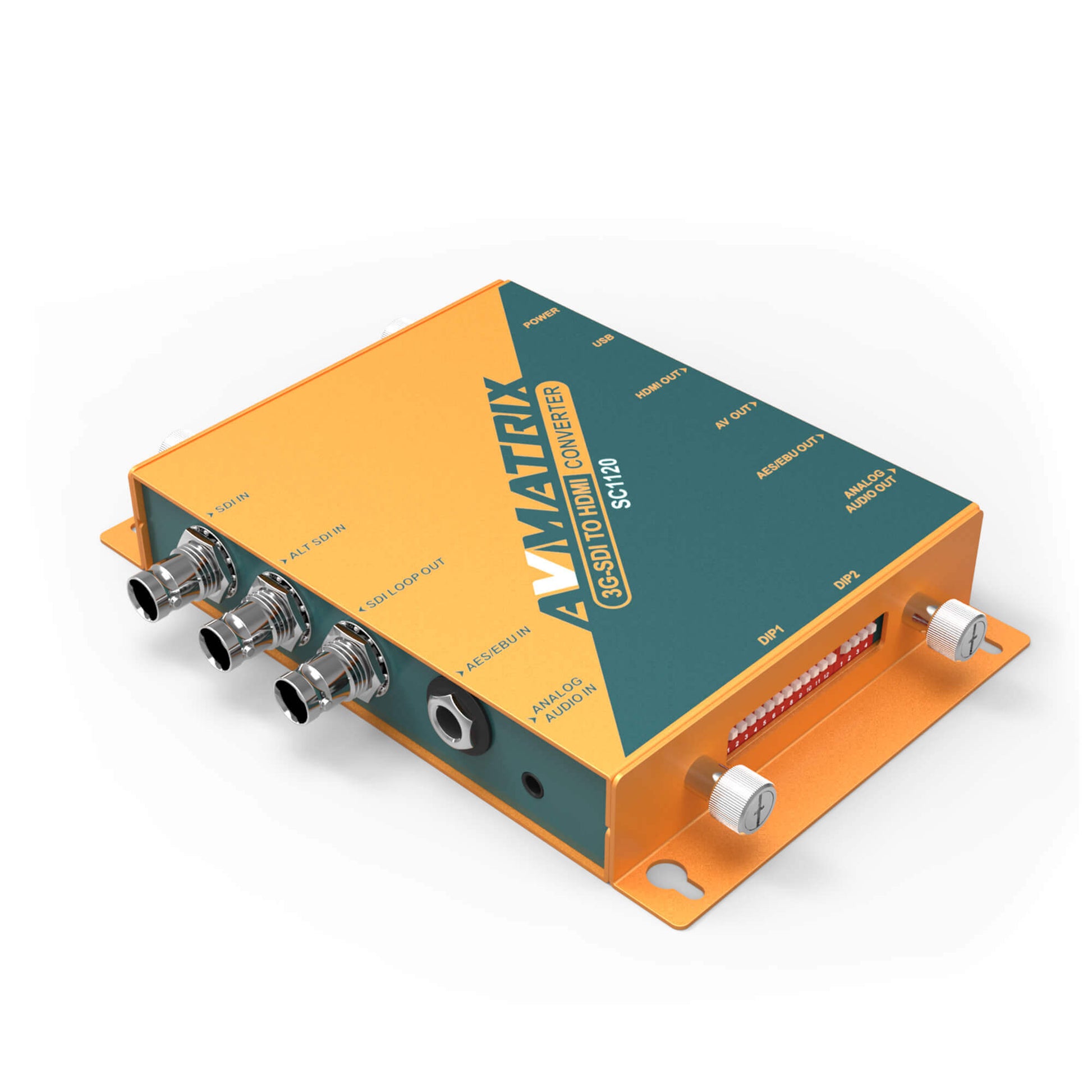

Mounting
Wall mount

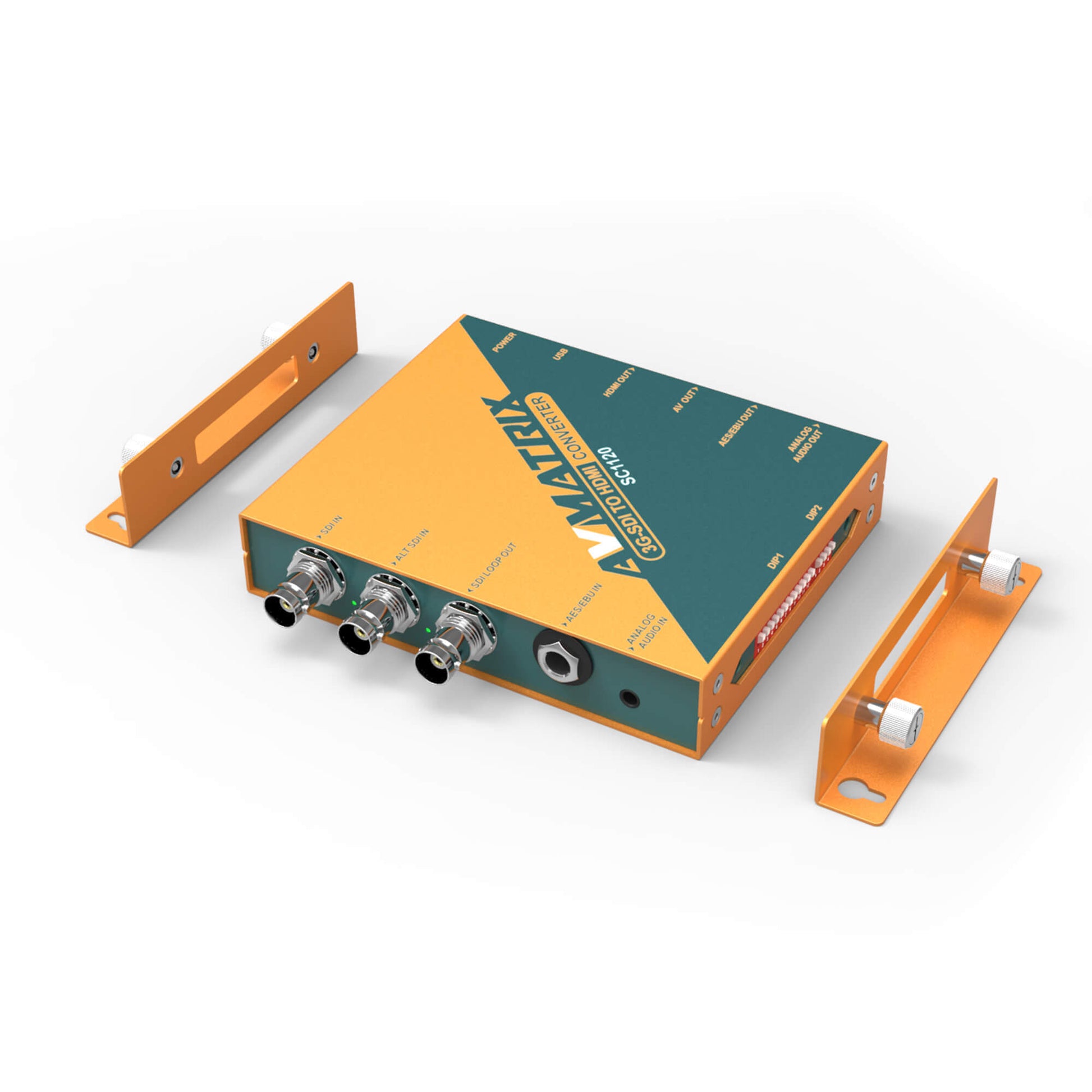

Detachable mounting brackets included
Accessories
Included
DC 12V Universal Power Supply with International Socket Adapters, USB Cable, AV Cable (RCA), 2x Mounting Brackets
