Lilliput PVM160S-H · 15.6 inch high-brightness broadcast monitor

Name: PVM160S-H
Brand: Lilliput
SKU: PVM160S-H
Price: 399.00 GBP
Availability: InStock

15.6 inch high-brightness broadcast monitor. 1200 cd/m², HDMI 2.0, 3G-SDI, HDR, 3D LUT, waveform/vector scopes, and VESA mounting for on-set monitoring.

1 3

£399.00 exc VAT £478.80inc VAT

Key Attributes

Display resolution 1920 x 1080
Aspect ratio 16:9
Contrast 1000:1
Brightness 1200 cd/m²
Screen size 15 inch

Optional extras

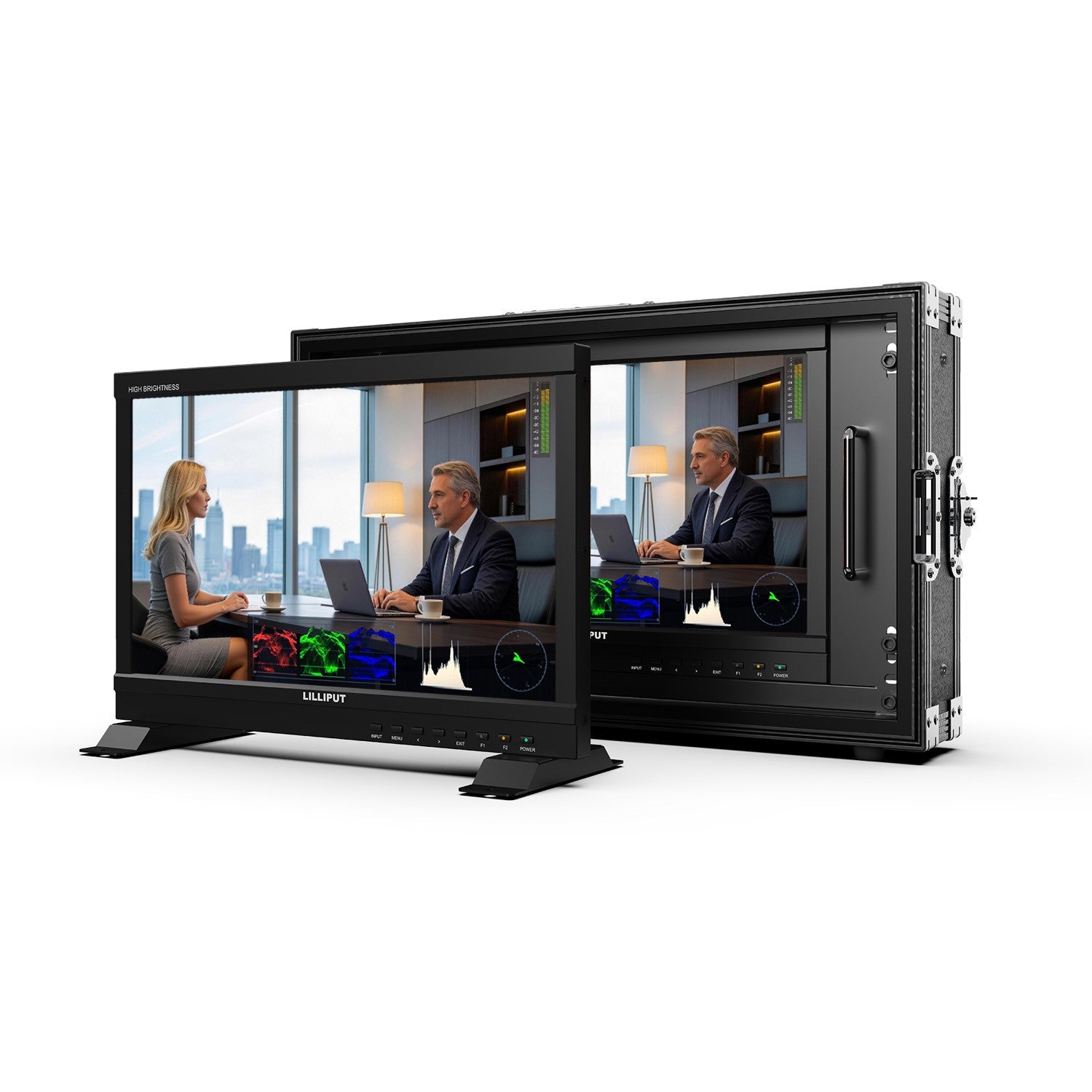

Carry case & Sunshade (£200.00 exc VAT) Protective carry case with sunshade for the PVM160S range (PVM160S-H, PVM160S-E).Monitor not included and shown for illustration purposes only. See more…
Gimbal Bracket (£15.00 exc VAT) Gimbal bracket for mounting the PVM160S.Monitor not included and shown for illustration purposes only. See more…

View full details

15.6 inch 1920 x 1080 display, 1200 cd/m², 1000:1 contrast
1x 3G-SDI, 1x HDMI 2.0, signal loop through
HDR: ST2084 300/1000/10000, HLG; 3D LUT (.cube); Rec.709 calibration
Log formats: SLog2/SLog3, CLog, NLog, ArriLog, JLog, user-defined
Waveform, Vectorscope, Histogram, Level Meter; False Color; Anamorphic de-squeeze
Color gamut SMPTE-C/Rec709/EBU; Gamma 1.8 to 2.8; V-Lock/Anton Bauer compatible
Versatile mounting: VESA 75 x 75 mm, base brackets included, optional gimbal bracket

Display

Screen size	15.6 inch
Aspect ratio	16:9
Native resolution	1920 x 1080
Brightness	1200 cd/m²
Contrast	1000:1
Viewing angle	160°/160° (H/V)
HDR	ST2084 300/1000/10000, HLG
Supported log formats	SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined
LUT support	3D-LUT (.cube format)

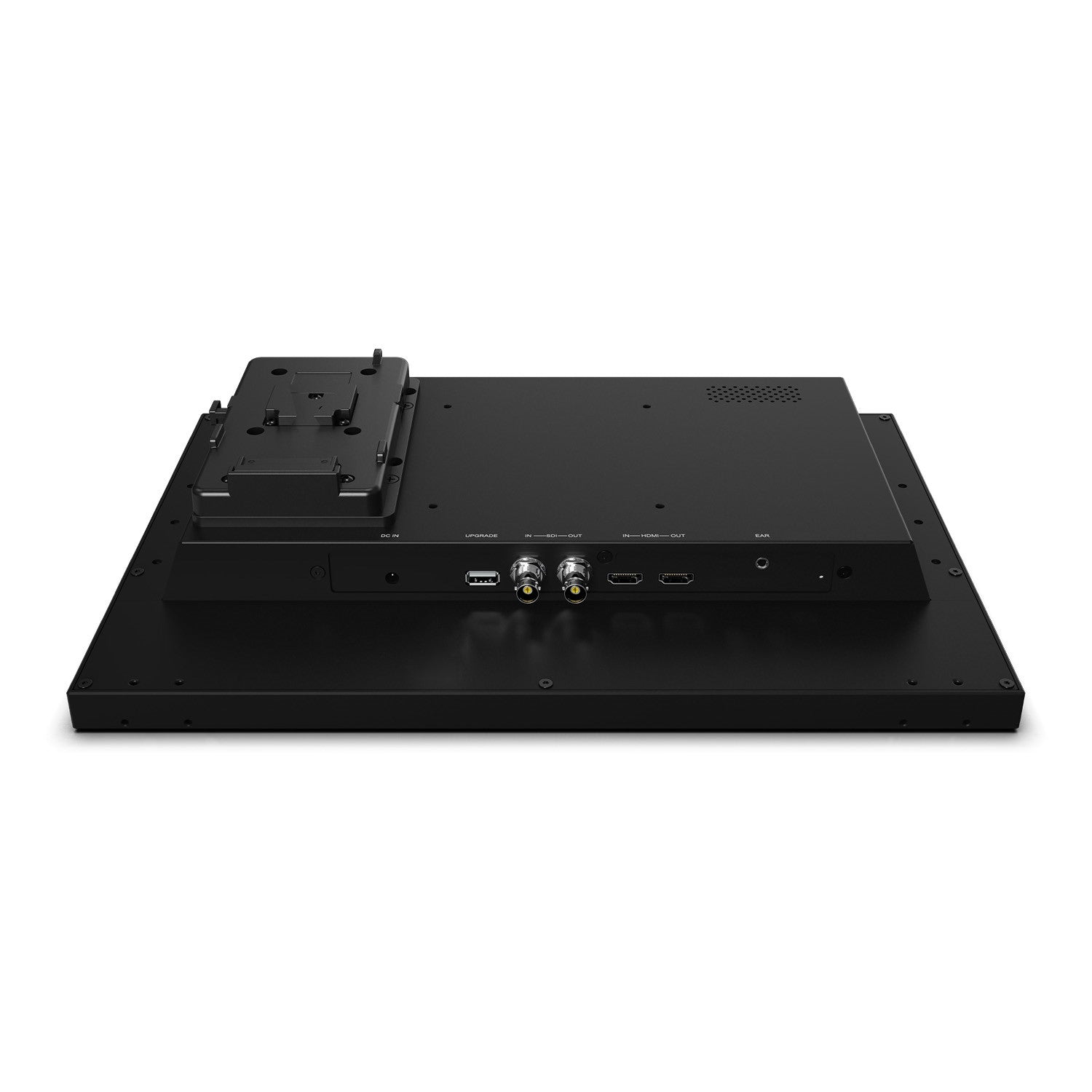

Connections

Video inputs	1x 3G-SDI, 1x HDMI 2.0
Video outputs	1x 3G-SDI, 1x HDMI 2.0
USB	LUT load and firmware update
Audio	3G-SDI 2ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 1x Built-in speaker

Video Standards

3G-SDI	1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
HDMI 2.0	2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60

Scopes

Video analysis	Waveform (Y, YCbCr, RGB), Vector, Histogram, Peaking, False colour (Default, Spectrum, ARRI, RED), Exposure, Check field, Freeze, Colour bar
Audio analysis	Level meter

Power

Input voltage	DC 9 to 24V
Power consumption	≤39 W (15V)
Compatible batteries	V-Lock or Anton Bauer mount (optional)

Environmental

Operating temperature	0°C to 50°C
Storage temperature	-20°C to 60°C

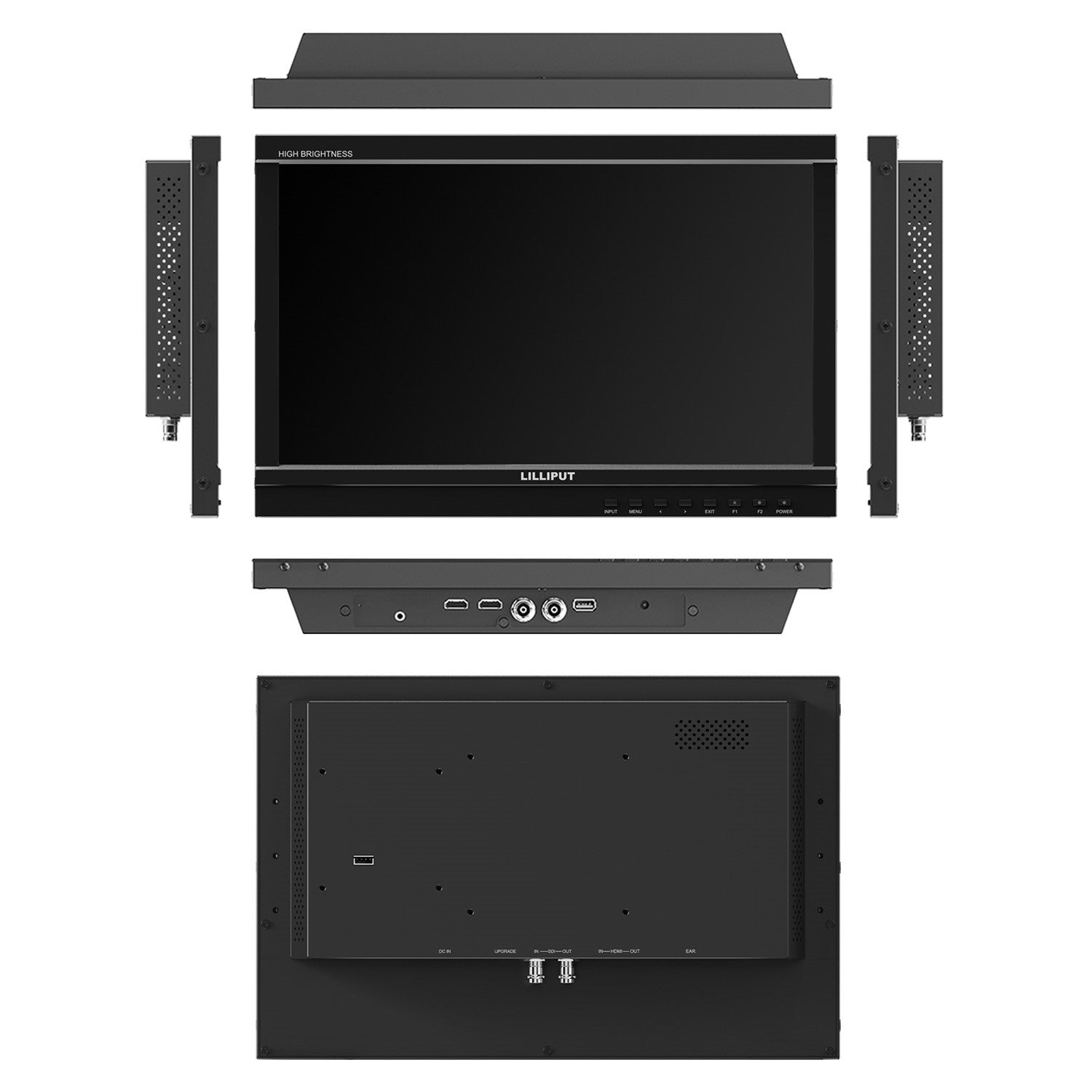

Mechanical

Dimensions	376 x 247.7 x 49.3 mm

Mounting

VESA mount	75 x 75 mm
Base brackets	Base brackets included
Rack mount	6U rack mount brackets (optional)

Operational Features

Markers — Aspect markers	16:9, 1.85:1, 2.35:1, 2.39:1, 4:3, 3:2, Grid, User
Markers — Safety marker	80%, 85%, 88%, 90%, 93%, 95%
Markers — Centre marker	On/Off
Function buttons	F1, F2 user-definable
Colour temperature	5500K, 6500K, 7500K, 9300K, User
Gamma	1.8 to 2.8
Selectable colour spaces	Native, SMPTE-C, Rec.709, EBU
Comparison	Gamma/HDR, Colour space, Camera LUT
Peaking	Red, Green, Blue, White, Black
Time code	LTC, VITC

Accessories

Included	15V/4A DC Adapter, Base Bracket, E-User Manual
Optional	Carry case & Sunshade, 19" rack mount brackets, V-Lock / Anton Bauer Mount, Gimbal Bracket
