Lilliput BM150-12G · 15.6 inch 12G-SDI 4K video monitor with carry-on case

Name: BM150-12G
Brand: Lilliput
SKU: BM150-12G
Price: 1329.00 GBP
Availability: InStock

15.6 inch monitor supplied with an enclosed carry-on case. Ideal for transportation between sets and venues. 12G-SDI, HDMI 2.0, 4K support for field broadcast and on-location production.

1 4

£1,329.00 exc VAT £1,594.80inc VAT

Key Attributes

Display resolution 3840 x 2160
Aspect ratio 16:9
Contrast 1000:1
Brightness 330 cd/m²
Screen size 15 inch

View full details

15.6 inch 4K display, 330 cd/m², 1000:1 contrast
2x 12G-SDI, 2x 3G-SDI (4K single/dual/quad link)
1x HDMI 2.0, 3x HDMI 1.4, multi-input flexibility
Video loop output: uncompressed true 10-bit or 8-bit 4:2:2

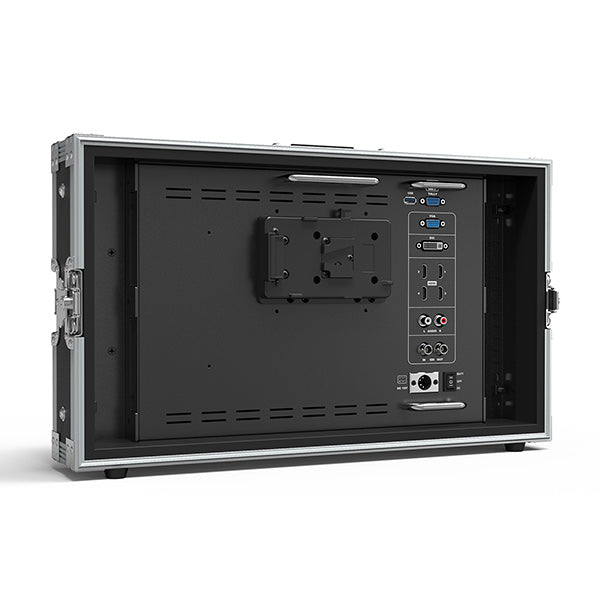

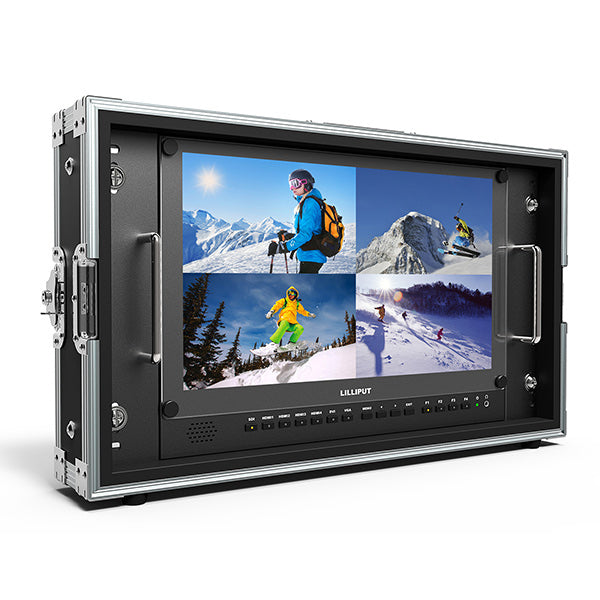

Supplied with enclosed carry-on case, ideal for transport between sets and venues
V-Lock or Anton Bauer battery compatible
TALLY connector; 12ch 3G-SDI audio, 2ch HDMI audio; Quad-View for multi-signal monitoring

Display

Screen size	15.6 inch
Aspect ratio	16:9
Native resolution	3840 x 2160
Panel type	LED
Brightness	330 cd/m²
Contrast	1000:1
Viewing angle	176°/176° (H/V)

Connections

Video inputs	2x 12G-SDI, 2x 3G-SDI (4K single/dual/quad link), 1x HDMI 2.0, 3x HDMI 1.4
Video outputs	2x 12G-SDI, 2x 3G-SDI (uncompressed 10-bit or 8-bit 4:2:2)
Audio	3G-SDI 12ch 48kHz 24-bit, HDMI 2ch 24-bit, 3.5 mm ear jack, 1x Built-in speaker

Video Standards

3G-SDI	2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
HDMI 2.0	2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
HDMI 1.4	2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60

Power

Input voltage	DC 12 to 24V
Power consumption	≤32 W
Compatible batteries	V-Lock or Anton Bauer mount
Input voltage (battery)	14.4V nominal

Environmental

Operating temperature	0°C to 50°C
Storage temperature	-20°C to 60°C

Mechanical

Dimensions	389 x 267 x 38 mm
Weight	3.4 kg
Dimensions (with case)	524 x 305 x 170 mm
Weight (with case)	12 kg

Mounting

VESA mount	VESA mount plate included
Base brackets	Base brackets included

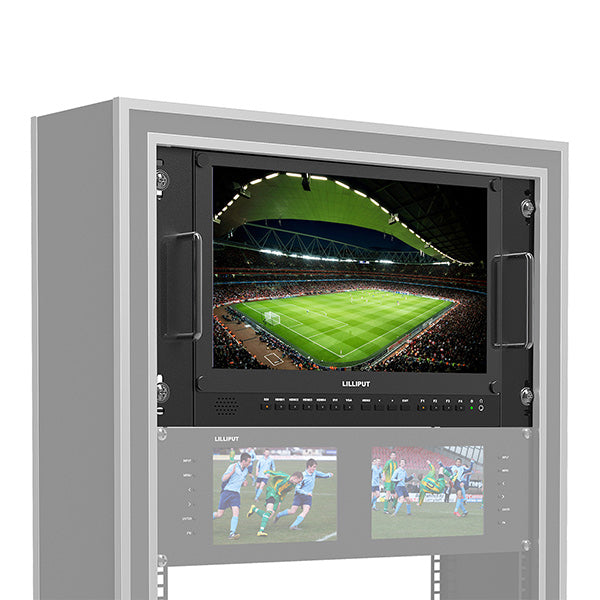

Rack mount	6U rack mount brackets included

Operational Features

Multi Viewer	Picture-by-Picture, Picture-in-Picture, Quad-View
Markers — Aspect markers	16:9, 1.85:1, 2.35:1, 4:3, 17:9
Markers — Safety marker	80%, 85%, 88%, 90%, 93%, 95%
Markers — Centre marker	On/Off

Accessories

Included	Carry case, Sun shade, VESA Mount Plate, V-Lock / Anton Bauer Mount, 15V DC Adapter, Base Bracket, 19" rack mount brackets, TALLY connector, Fixing belt, User manual
Optional	Acrylic Screen Protector, WHDI accessories
