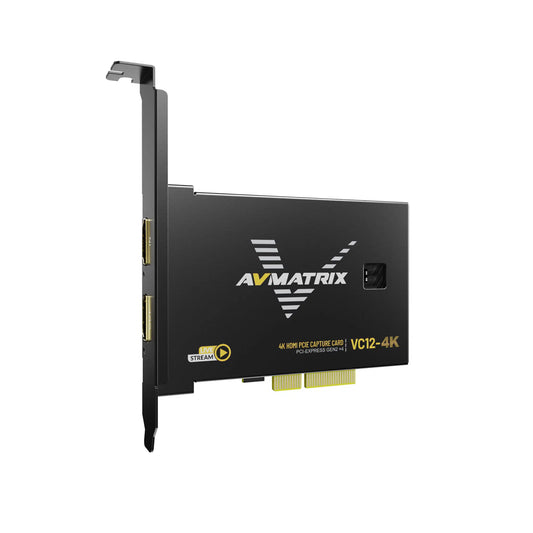

VC12-4K
Single-channel HDMI 2.0 PCIe video capture card up to 4K60.
- Single-channel HDMI 2.0 video capture PCI-E card, PCIe x4 Gen2, 2.5 GB/s
- 1x HDMI 2.0 input, 1x HDMI 2.0 loop-out. Up to 4K60Hz, 1440p144Hz, 1080p240Hz
- Capture: 4K, 1440p, 1080p at 25/30/50/60 fps; 1080p/720p up to 240 fps
- YUY2 uncompressed. 1x HDMI embedded audio, 16 bit PCM 48 kHz
-

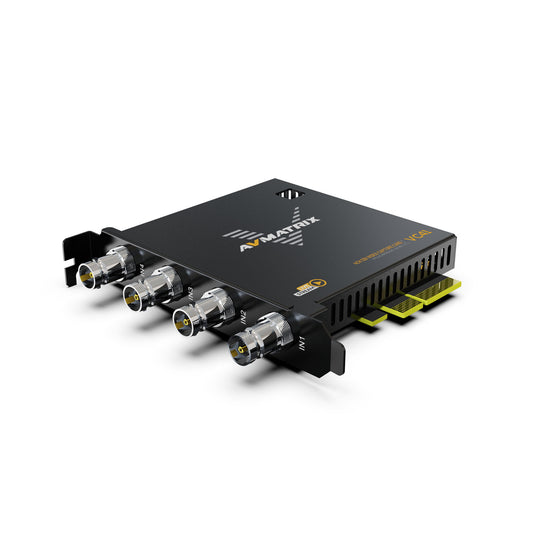

VC41
4-channel 3G-SDI PCIe video capture card up to 1080p60 per channel.
- 4-channel 3G-SDI video capture PCI-E card, PCIe x4 Gen2, 2.5 GB/s
- 4x SD/HD/3G-SDI inputs, up to 1080p60 per channel
- HD/3G/3Gb/3Gb-DL/3Gb-DS. YCbCr 4:4:4 and 4:2:2
- Capture: 1920x1080, 1280x720, 720x576, 720x480 at 25/30/50/60 fps
-

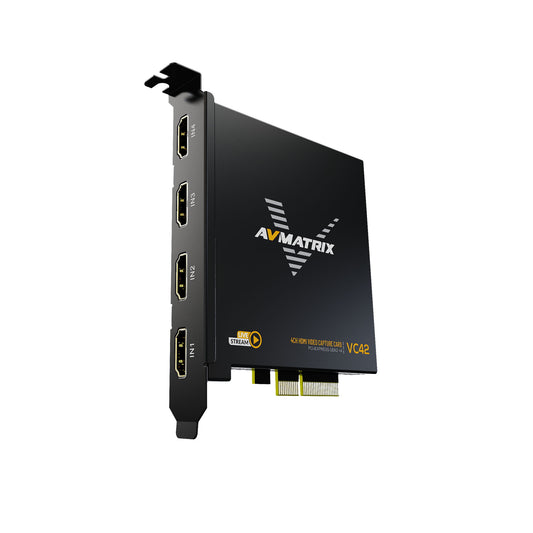

VC42
4-channel HDMI PCIe video capture card up to 1080p60 per channel.
- 4-channel HDMI video capture PCI-E card, PCIe x4 Gen2, 2.5 GB/s
- 4x HDMI 1.4 inputs, up to 1080p60 per channel
- Capture: 1920x1080, 1280x720, 720x576, 720x480 at 25/30/50/60 fps
- YUY2 uncompressed. 4x HDMI embedded audio, 16 bit PCM 48 kHz
-
-

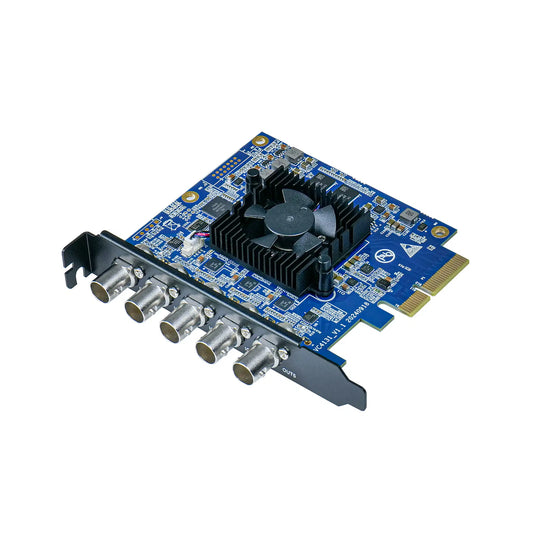

VP51
3G-SDI PCIe video capture and playback card with bidirectional I/O.
- 3G-SDI video capture and playback PCI-E card, PCIe x4 Gen3
- 1x 3G-SDI input, 1x 3G-SDI output, 3x 3G-SDI I/O (bidirectional)
- 3G: 1080p 50/60. HD: 1080p 24 to 30, 1080PsF, 1080i 50/60. SD: 525i, 625i
- YUV 4:2:2 8bit, REC 601, REC 709. Audio 48 kHz 24 bit embedded
