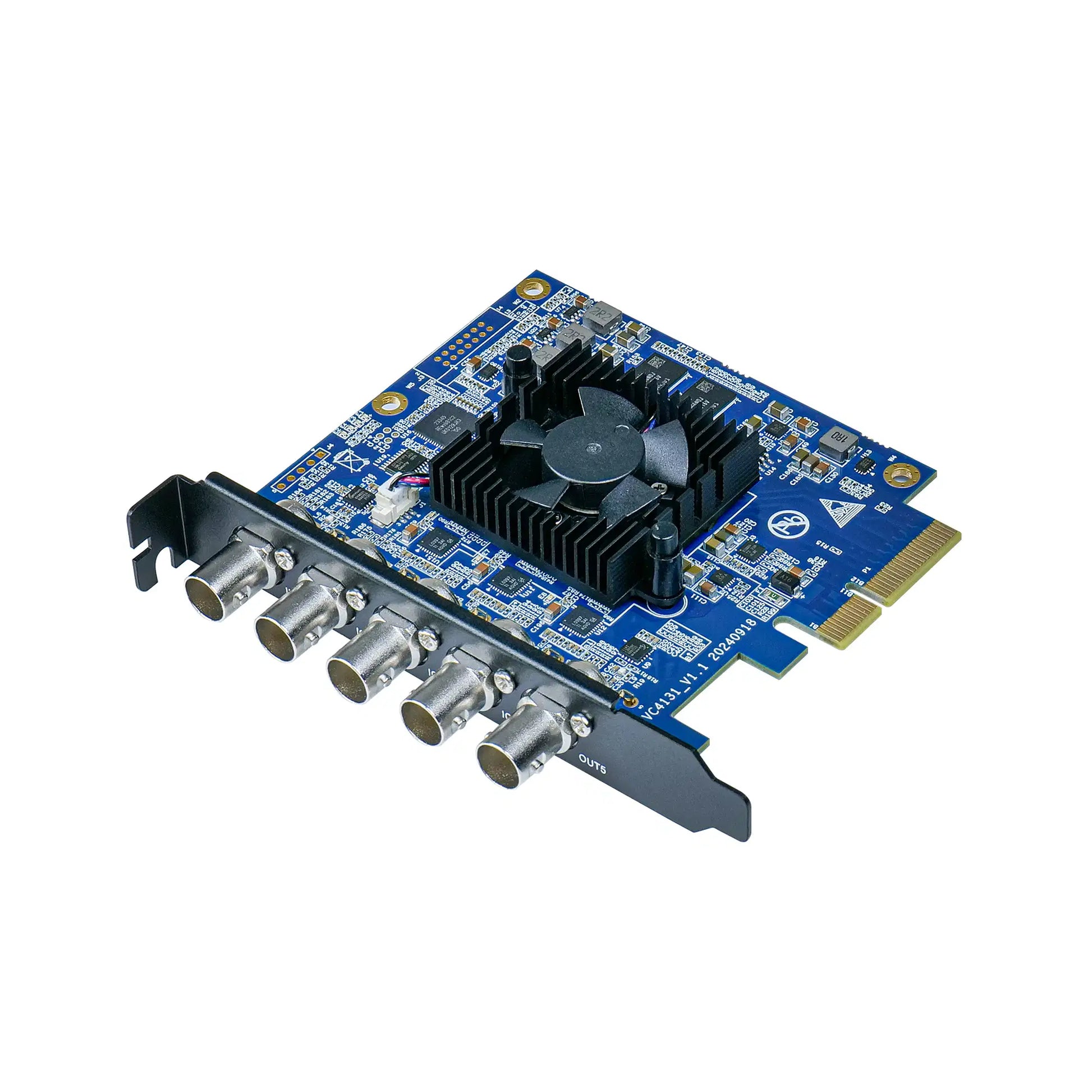

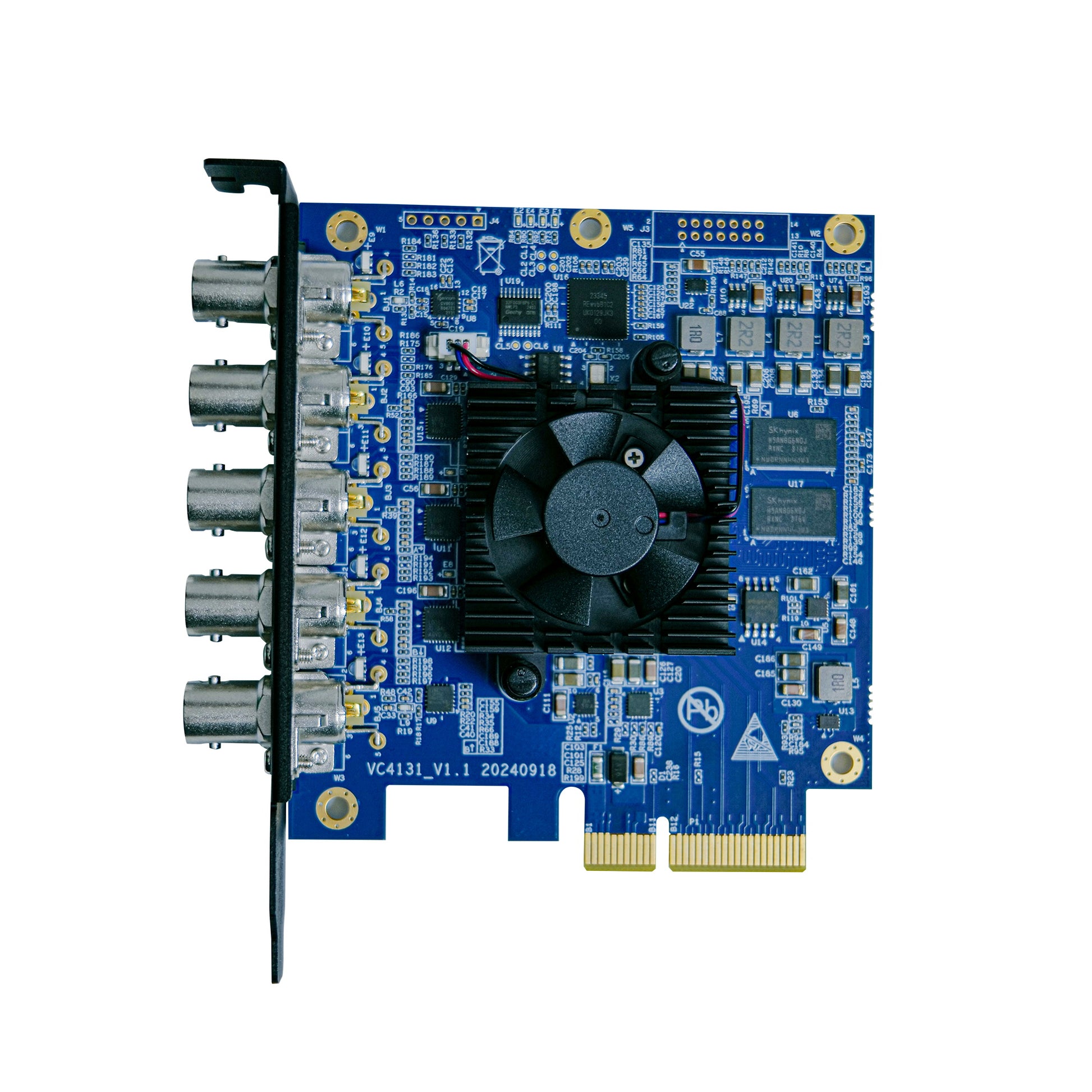

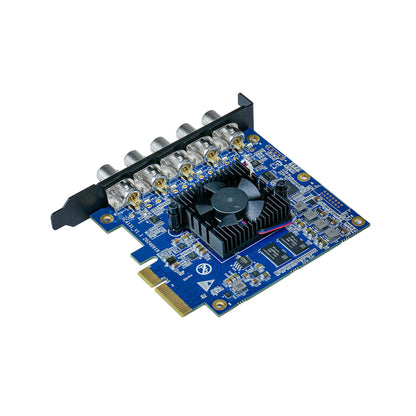

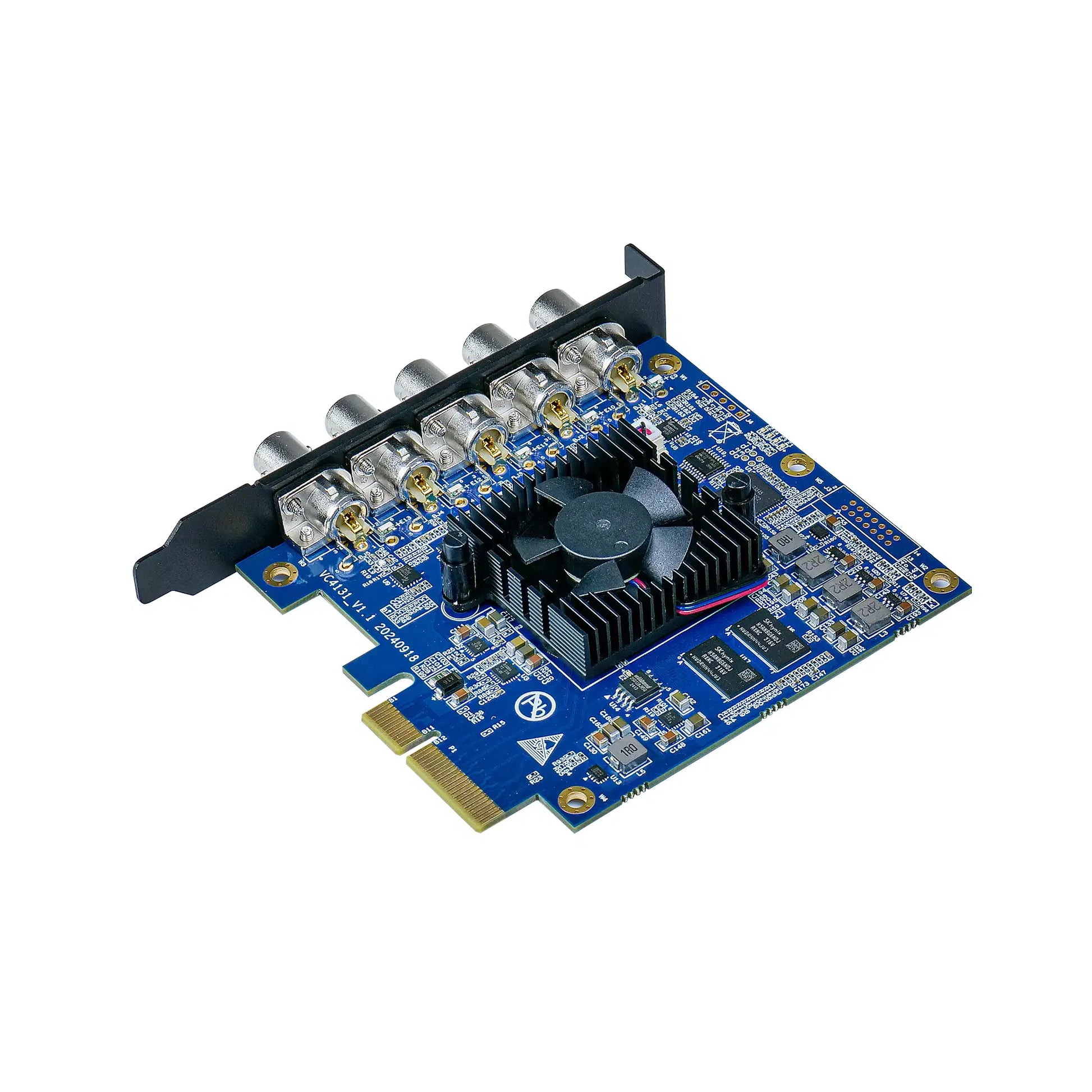

AV Matrix VP51 · 3G-SDI video capture and playback PCI-E card

Name: VP51
Brand: AV Matrix
SKU: VP51
Price: 429.00 GBP
Availability: InStock

AV Matrix VP51 · 3G-SDI video capture and playback PCI-E card

3G-SDI video capture and playback PCI-E card. PCIe x4 Gen3. 1x 3G-SDI in, 1x 3G-SDI out, 3x 3G-SDI I/O. 1080p 24 to 60, 1080i 50/60, 525i/625i. YUV 4:2:2 8bit, REC 601/709. 48 kHz 24 bit audio. SMPTE 259M to 425M. Windows 7/8/10/11, Linux. OBS, XSplit, VLC, VMix, Wirecast. 12 W, 102 x 90 mm, 120 g.

1 3

£429.00 exc VAT £514.80inc VAT

View full details

3G-SDI video capture and playback PCI-E card, PCIe x4 Gen3
1x 3G-SDI input, 1x 3G-SDI output, 3x 3G-SDI I/O (bidirectional)
3G: 1080p 50/60. HD: 1080p 24 to 30, 1080PsF, 1080i 50/60. SD: 525i, 625i
YUV 4:2:2 8bit, REC 601, REC 709. Audio 48 kHz 24 bit embedded
SMPTE 259M, 292M, 296M, 372M, 425M; ITU-R BT.656, BT.601
Windows 7/8/10/11, Linux 64-bit. OBS, XSplit, VLC, VirtualDub, VMix, VidBlaster, Wirecast

Connections

Host interface	PCIe x4 Gen3
Video interfaces	1x 3G-SDI input, 1x 3G-SDI output, 3x 3G-SDI I/O (bidirectional)

Video Standards

3G-SDI	1080p 24/25/30/50/60, 1080PsF 24/25/30, 1080i 50/60, 625i 50, 525i 60
Color precision	YUV 4:2:2 8bit
Color space	REC 601, REC 709
3G-SDI compliance	SMPTE 259M, 292M, 296M, 372M, 425M; ITU-R BT.656, BT.601
Audio sampling	48 kHz 24 bit

Operational Features

Power

Power consumption	12 W (from PCIe slot)

Environmental

Operating temperature	5°C to 40°C
Storage temperature	-20°C to 70°C
Relative humidity	0 to 90% non-condensing

Mechanical

Dimensions	102.21 x 89.51 mm (PCB)
Weight	120 g

Support

System	Windows 7/8/10/11, Linux 64-bit
Software	OBS, XSplit, VLC, VirtualDub, VMix, VidBlaster, Wirecast, Microsoft Media Encoder, Adobe Flash Media Encoder, DirectShow/V4L2
