S8X Plus
8-channel 3G-SDI/HDMI live production video switcher with 17.3 inch display and streaming.
- Screen size: 17 inch
- Display resolution: 1920 x 1080
- 17.3 inch FHD IPS display with customisable multiview monitoring
- 8x 3G-SDI and 2x 4K HDMI inputs with frame sync; 4x 3G-SDI + 2x HDMI PGM outputs and multiview
- T-Bar, AUTO, and CUT transitions with WIPE (11 x 3), MIX, DIP, FTB, freeze
- Upstream keying (luma, chroma, 3x PIP) and downstream keying (DSK, logo); up to 6 layers
-
S6
6-channel 3G-SDI/HDMI live production video switcher with 5 inch display and streaming.
- Screen size: 5 inch
- Built-in 5 inch LCD display for multiview monitoring
- 4x 3G-SDI and 2x HDMI inputs with multi-format auto signal detection up to 1080p 60
- T-Bar, AUTO, and CUT transitions with 11 x 3 WIPE patterns, MIX, DIP, FTB
- Upstream keying (chroma key, 2x PIP, POP) and downstream keying (DSK, logo)
-

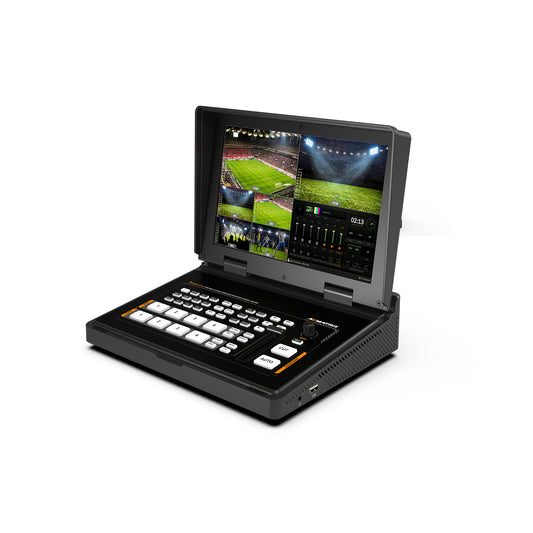

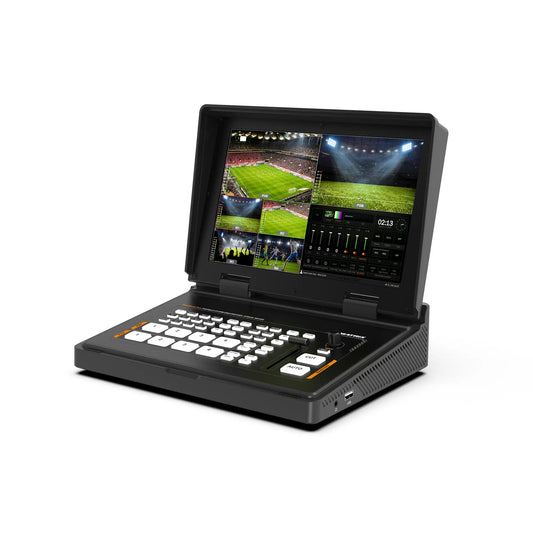

S4 Plus
4-channel HDMI/3G-SDI live production video switcher with 10.1 inch display, streaming, and recording.
- Screen size: 10 inch
- Display resolution: 1920 x 1080
- Built-in 10.1 inch IPS FHD display for multiview monitoring
- 2x 3G-SDI + 2x HDMI inputs with multi-format auto signal detection up to 1080p 60
- T-Bar, AUTO, and CUT transitions with 11x3 WIPE patterns, MIX, DIP, and more
- Upstream keying (luma, chroma, 2x PIP, POP) and downstream keying (DSK, logo)
-
S6 Plus
6-channel 3G-SDI/HDMI live production video switcher with 17.3 inch display and streaming.
- Screen size: 17 inch
- Display resolution: 1920 x 1080
- 17.3 inch FHD IPS display with customisable multiview monitoring
- 6x 3G-SDI and 2x 4K HDMI inputs (IN5/IN6 multiplexed) with frame sync; 4x 3G-SDI + 2x HDMI PGM outputs and multiview
- T-Bar, AUTO, and CUT transitions with WIPE (11 x 4), MIX, DIP, FTB, freeze
- Upstream keying (luma, chroma, 3x PIP) and downstream keying (DSK, logo); up to 6 layers
-

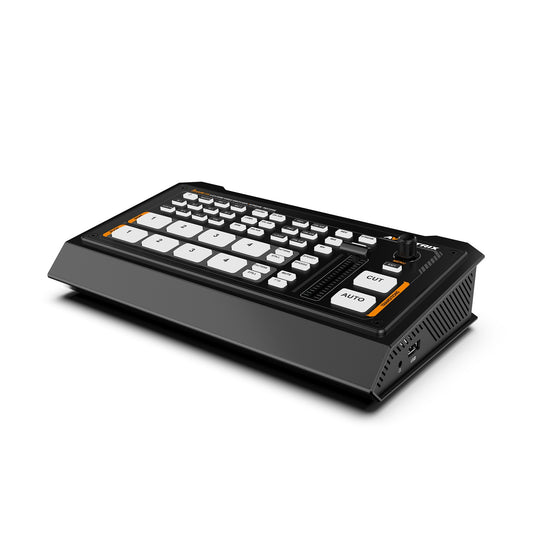

S4
4-channel HDMI/3G-SDI live production video switcher with streaming, recording, and USB capture.
- 2x 3G-SDI and 2x HDMI inputs with multi-format auto signal detection up to 1080p 60
- 2x HDMI PGM outputs plus HDMI multiview for external monitoring
- T-Bar, AUTO, and CUT transitions with 11 x 3 WIPE patterns, MIX, DIP, PATTERN, MUTE, FTB
- Upstream keying (luma, chroma, 2x PIP, POP) and downstream keying (DSK, logo)
-

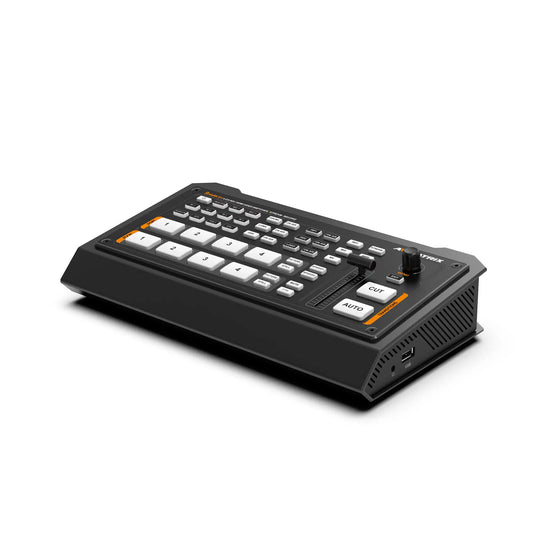

H4
4-channel HDMI live production video switcher with streaming, recording, and USB capture.
- 4x HDMI inputs with multi-format auto signal detection up to 1080p 60
- 2x HDMI PGM outputs plus HDMI multiview for external monitoring
- T-Bar, AUTO, and CUT transitions with 11 x 3 WIPE patterns, MIX, DIP, PATTERN, MUTE, FTB
- Upstream keying (luma, chroma, 2x PIP, POP) and downstream keying (DSK, logo)
-
H4 Plus
4-channel HDMI live production video switcher with 10.1 inch display, streaming, and recording.
- Screen size: 10 inch
- Display resolution: 1920 x 1080
- Built-in 10.1 inch IPS FHD display for multiview monitoring
- 4x HDMI inputs with multi-format auto signal detection up to 1080p 60
- T-Bar, AUTO, and CUT transitions with 11x3 WIPE patterns, MIX, DIP, and more
- Upstream keying (luma, chroma, 2x PIP, POP) and downstream keying (DSK, logo)
-

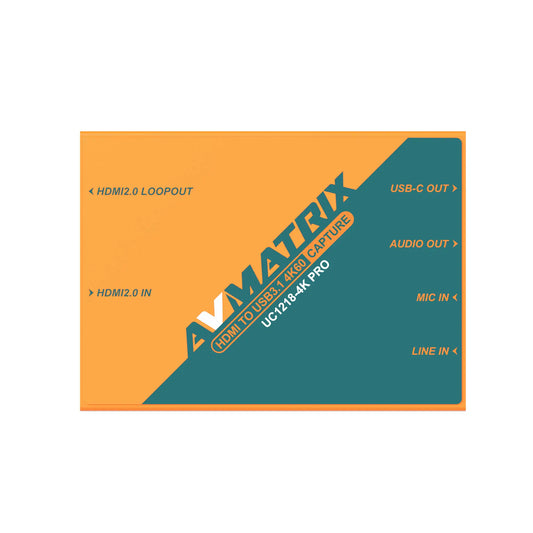

UC1218-4K PRO
HDMI 2.0 to USB 3.1 Gen2 4K capture with HDMI loop out.
- HDMI 2.0 to USB 3.1 Gen2 4K capture, 1x HDMI 2.0 input, 1x HDMI 2.0 loop-out
- USB 3.1 Gen2 Type C (10 Gbps). Up to 4K60, 2K144Hz, 1080p240Hz
- P010/MJPG up to 4K60; YUY2/NV12/I420 up to 4K60; RGB24 up to 2560 x 1440 p60
- 1x 3.5 mm line in, 1x mic in, 1x audio out. UVC/UAC
-

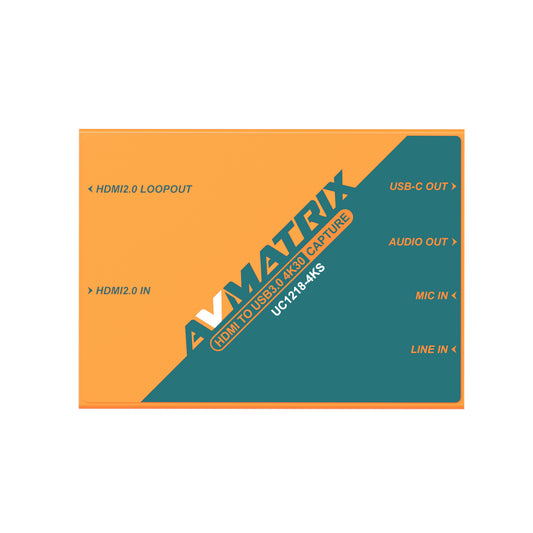

UC1218-4KS
HDMI 2.0 to USB 3.0 4K30 capture with HDMI loop out.
- HDMI 2.0 to USB 3.0 4K30 capture, 1x HDMI 2.0 input, 1x HDMI 2.0 loop-out
- USB 3.0 Type C (5 Gbps). P010/MJPG up to 4K60; YUY2 up to 2560 x 1440 p60
- RGB24 up to 2560 x 1440 p30; NV12/I420 up to 4K30
- 1x 3.5 mm line in, 1x mic in, 1x audio out. UVC/UAC
-

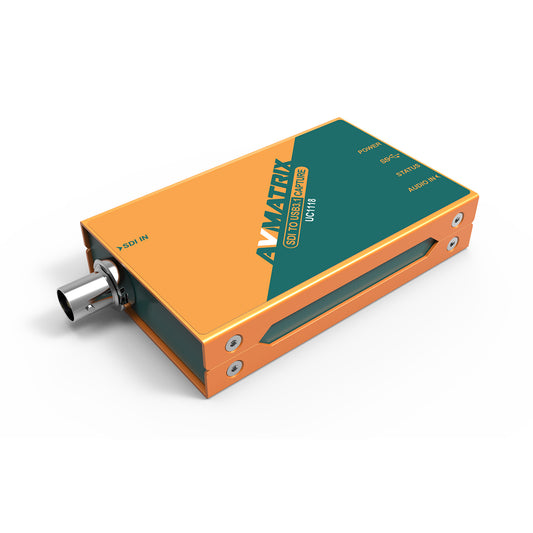

UC1118
3G-SDI to USB 3.0 capture with UVC/UAC output.
- 3G-SDI to USB 3.0 capture, 1x SD/HD/3G-SDI input only
- USB 3.0 Type C output (USB 3.1 Gen1, up to 200 MB/s)
- 3G-SDI: 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 24/25/30/50/60, 625i 50, 525i 59.94
- USB output up to 1920 x 1200. YUY2. UVC/UAC
-

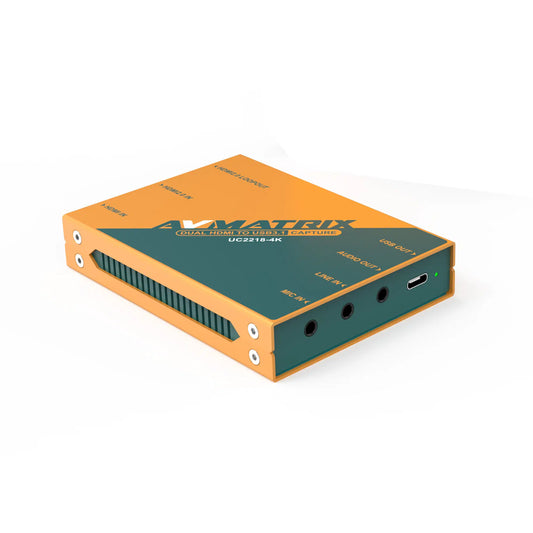

UC2218-4K
Dual HDMI to USB 3.0 capture with HDMI loop out.
- Dual HDMI to USB 3.0 capture, 1x HDMI 2.0 in, 1x HDMI in, 1x HDMI 2.0 loop-out
- USB 3.0 Type C (5 Gbps, up to 200 MB/s). HDMI 2.0 path: 4K60, 1440p144, 1080p240
- USB capture: HDMI 2.0 path up to 1080p60 YUY2; second HDMI up to 1080p30 MJPG
- 1x 3.5 mm line in, 1x mic in, 1x audio out. UVC/UAC. 1080i hardware deinterlacing
-

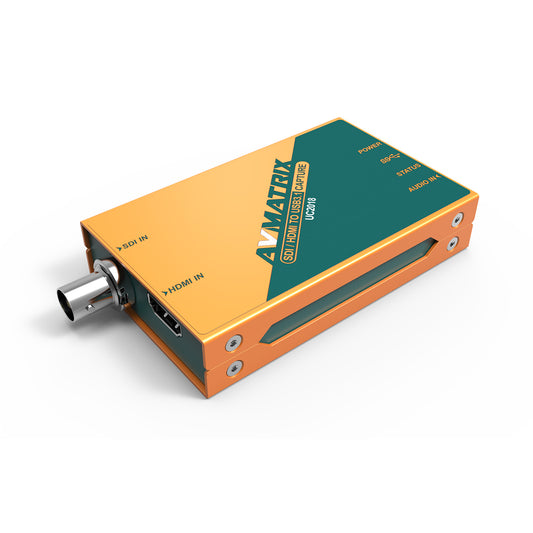

UC2018
3G-SDI/HDMI to USB 3.0 capture with UVC/UAC output.
- 3G-SDI/HDMI to USB 3.0 capture, 1x SD/HD/3G-SDI, 1x HDMI 1.4a
- USB 3.0 Type C output (USB 3.1 Gen1, up to 200 MB/s)
- 3G-SDI/HDMI: 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 24/25/30/50/60, 625i 50, 525i 59.94
- HDMI: 576p 50, 576i 50, 480p/i 59.94/60. USB output up to 1920 x 1200
-
UC1218-4K
HDMI 2.0 to USB 3.0 4K capture with HDMI loop out.
- HDMI 2.0 to USB 3.0 4K capture, 1x HDMI 2.0 input, 1x HDMI 2.0 loop-out
- USB 3.0 Type C (5 Gbps). P010/MJPG up to 4K60; YUY2 up to 2560 x 1440 p60
- RGB24 up to 2560 x 1440 p30; NV12/I420 up to 4K30
- 1x 3.5 mm line in, 1x mic in, 1x audio out. UVC/UAC
-
VC12-4K
Single-channel HDMI 2.0 PCIe video capture card up to 4K60.
- Single-channel HDMI 2.0 video capture PCI-E card, PCIe x4 Gen2, 2.5 GB/s
- 1x HDMI 2.0 input, 1x HDMI 2.0 loop-out. Up to 4K60Hz, 1440p144Hz, 1080p240Hz
- Capture: 4K, 1440p, 1080p at 25/30/50/60 fps; 1080p/720p up to 240 fps
- YUY2 uncompressed. 1x HDMI embedded audio, 16 bit PCM 48 kHz
-
VC41
4-channel 3G-SDI PCIe video capture card up to 1080p60 per channel.
- 4-channel 3G-SDI video capture PCI-E card, PCIe x4 Gen2, 2.5 GB/s
- 4x SD/HD/3G-SDI inputs, up to 1080p60 per channel
- HD/3G/3Gb/3Gb-DL/3Gb-DS. YCbCr 4:4:4 and 4:2:2
- Capture: 1920x1080, 1280x720, 720x576, 720x480 at 25/30/50/60 fps
-

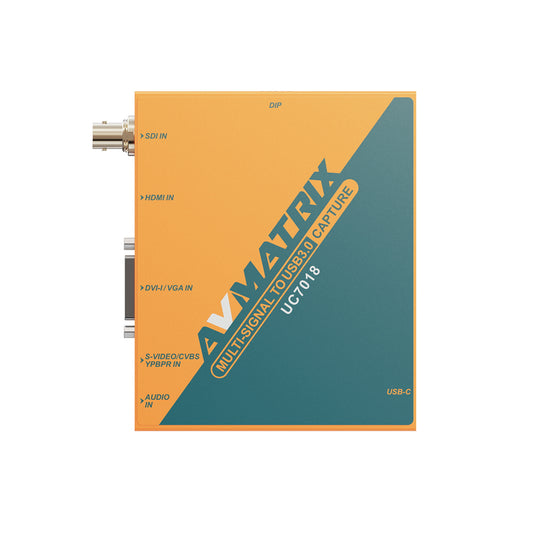

UC7018
Multi-signal to USB 3.0 capture with 3G-SDI, HDMI, DVI, and CVBS inputs.
- Multi-signal to USB 3.0 capture, 1x 3G-SDI, 1x HDMI, 1x DVI-I/VGA, 1x S-Video/CVBS/YPbPr
- USB 3.0 Type C output (USB 3.1 Gen1, up to 200 MB/s)
- 3G-SDI/HDMI: 1080p 24/25/30/50/60, 1080i 50/60, 720p 24/25/30/50/60
- DVI/VGA: 1920 x 1080 down to 640 x 400. YPbPr, S-Video, CVBS
