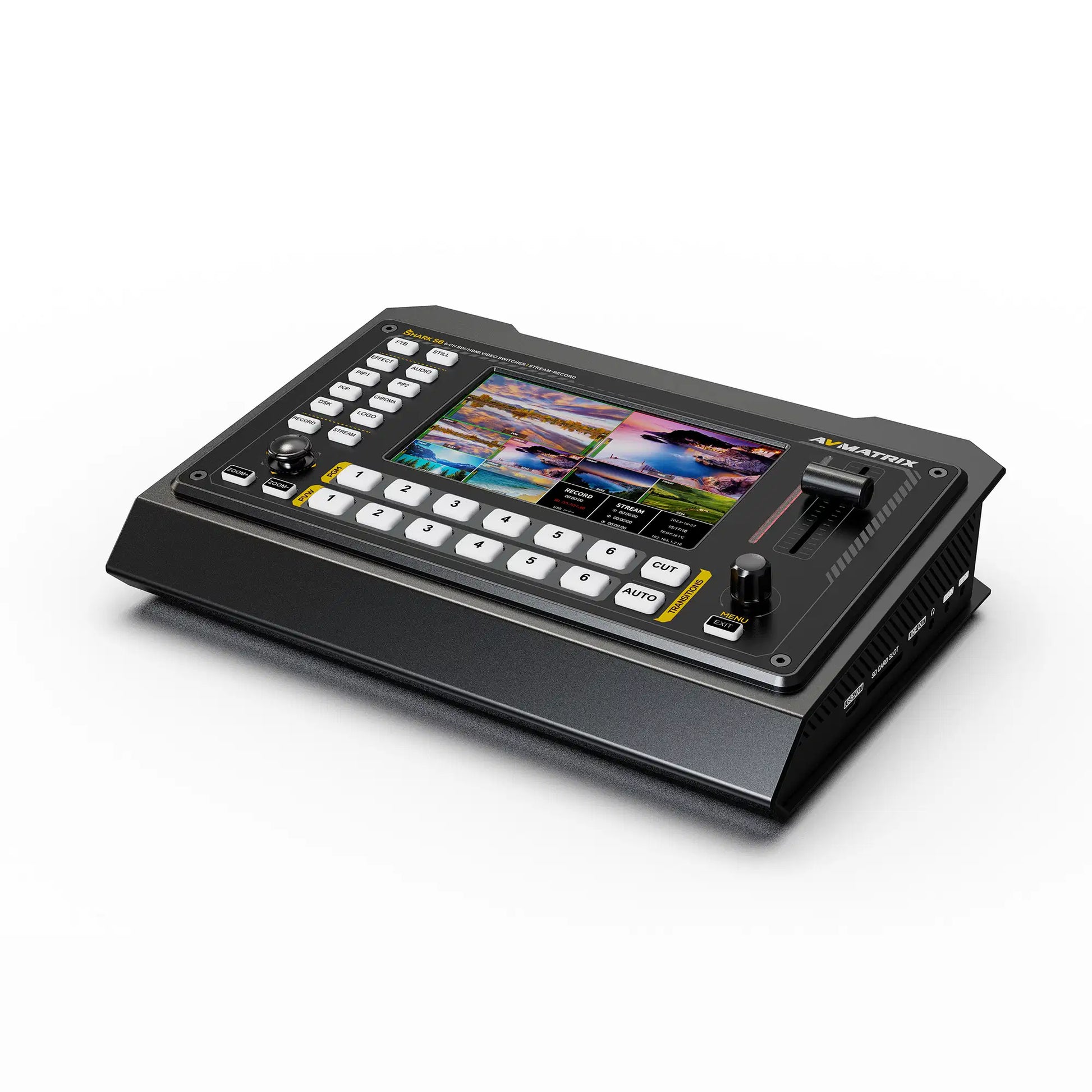

Built-in 5 inch LCD display for multiview monitoring 4x 3G-SDI and 2x HDMI inputs with multi-format auto signal detection up to 1080p 60 T-Bar, AUTO, and CUT transitions with 11 x 3 WIPE patterns, MIX, DIP, FTB Upstream keying (chroma key, 2x PIP, POP) and downstream keying (DSK, logo) RTMP(S), RTSP, SRT streaming up to 32 Mbps with dual platform support USB and SD card recording in MP4/TS; USB Type-C capture output up to 1080p 60
Display
Screen size
5 inch
Panel type
LCD
Connections
Video inputs

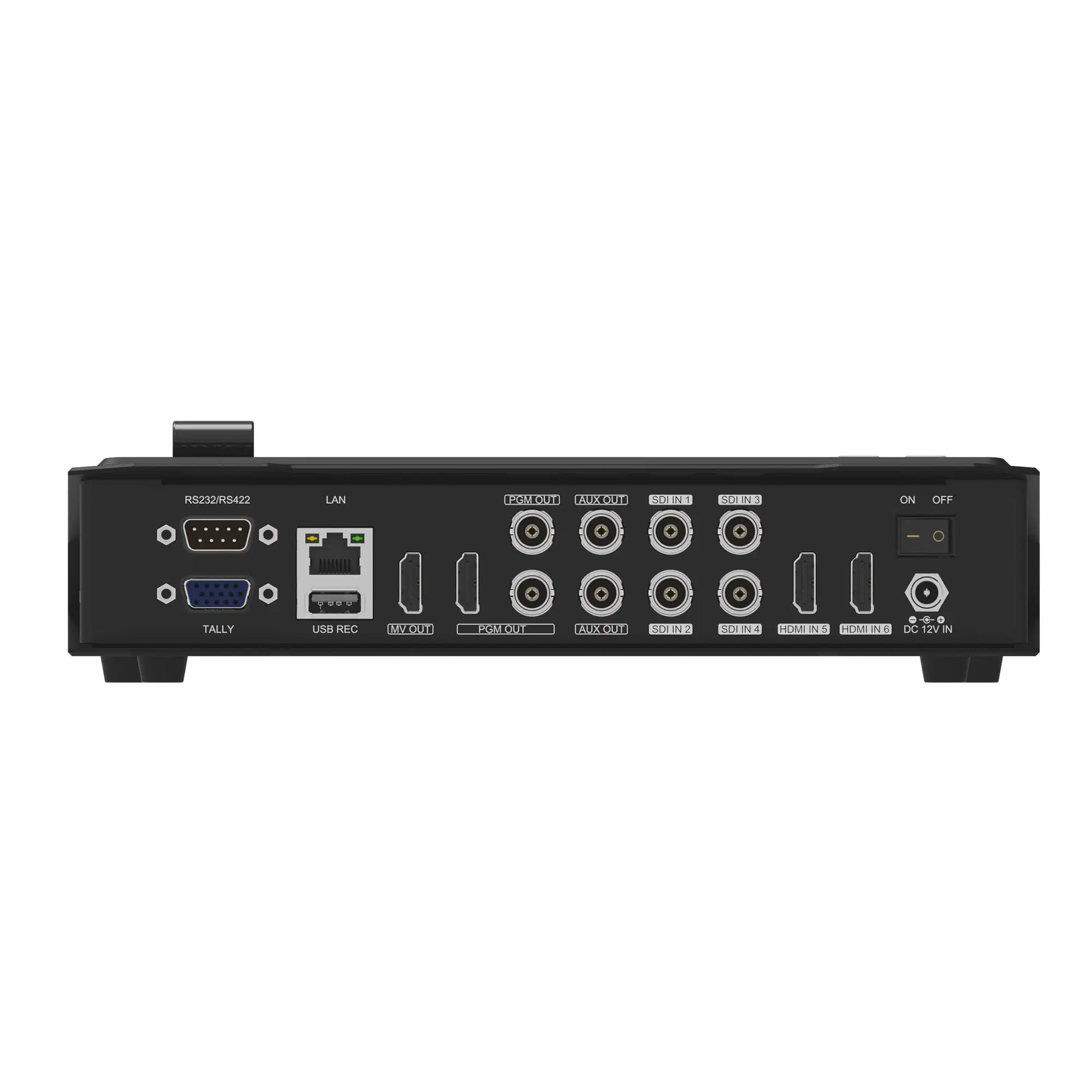

4x 3G-SDI (BNC), 2x HDMI Type-A
Video outputs
2x 3G-SDI PGM, 1x HDMI PGM, 2x 3G-SDI AUX (IN1 to 6, PVW, PGM, Colour Bar, Multiview), 1x HDMI Multiview, 1x LAN (RJ45 stream), 1x USB Type-C (UVC capture)
Other interfaces
1x USB-A + SD card slot (record/storage), 1x Tally (DB-15 GPIO), 1x RS232/RS422/RS485 (DB-9, PTZ control)
Audio

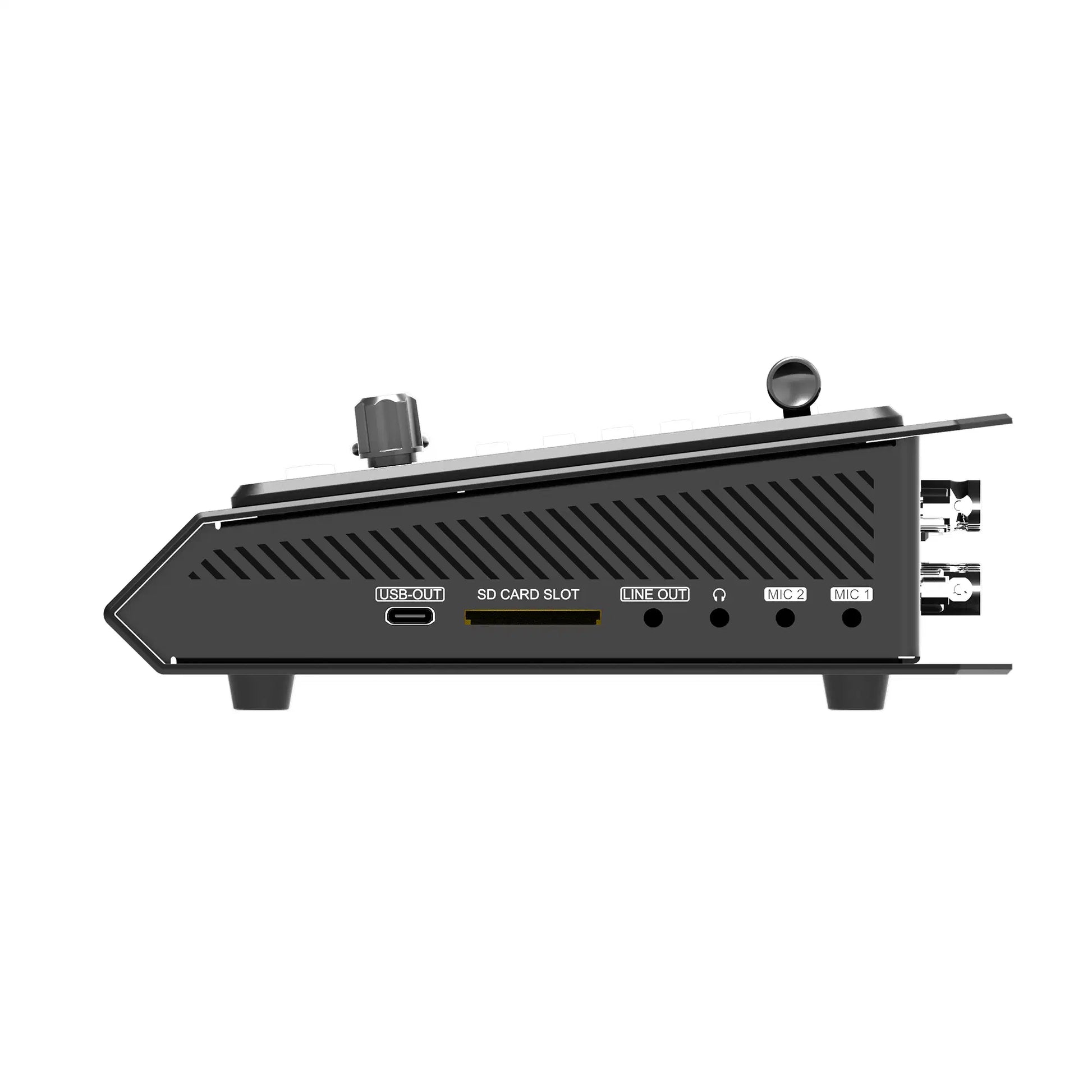

Inputs: 2x MIC (3.5 mm); Outputs: 1x line (3.5 mm), 1x earphone (3.5 mm)
Video Standards
Input format support
Multi-format auto signal detection, up to 1080p 60
3G-SDI input
1080p 60/59.94/50/30/29.97/25/24/23.98, 1080psF 30/29.97/25/24/23.98, 1080i 60/59.94/50, 720p 60/59.94/50/30/29.97/25/24/23.98, 625i 50, 525i 59.94
HDMI input
1200p 60/50/30, 1080p 60/59.94/50/30/29.97/25/24/23.98/23.976, 1080i 60/59.94/50, 720p 60/59.94/50/30/29.97/25/24/23.98, 576i 50, 576p 50
3G-SDI output
1080p 60/59.94/50/30/29.97/25/24/23.98, 1080i 60/59.94/50
HDMI PGM/MV output
PGM: 1080p 60/59.94/50/30/29.97/25/24/23.98, 1080i 60/59.94/50, Multiview: 1080p 60
Colour space
RGB Full, RGB Limited, YUV
3G-SDI compliance
SMPTE 259M, SMPTE 292M, SMPTE 424M
USB capture output
MJPG, up to 1080p 60
Power
Input voltage
DC 12V
Power consumption
≤20.4 W (12V 1.7A)
Environmental
Operating temperature
-20°C to 60°C
Storage temperature
-30°C to 70°C
Mechanical
Dimensions
238.5 x 168.2 x 47.5 mm
Weight
1450 g (net), 2370 g (gross)
Accessories
Included
12V 3A Power Supply, USB A-C Cable, Tally Connector (DB-15), Carry case

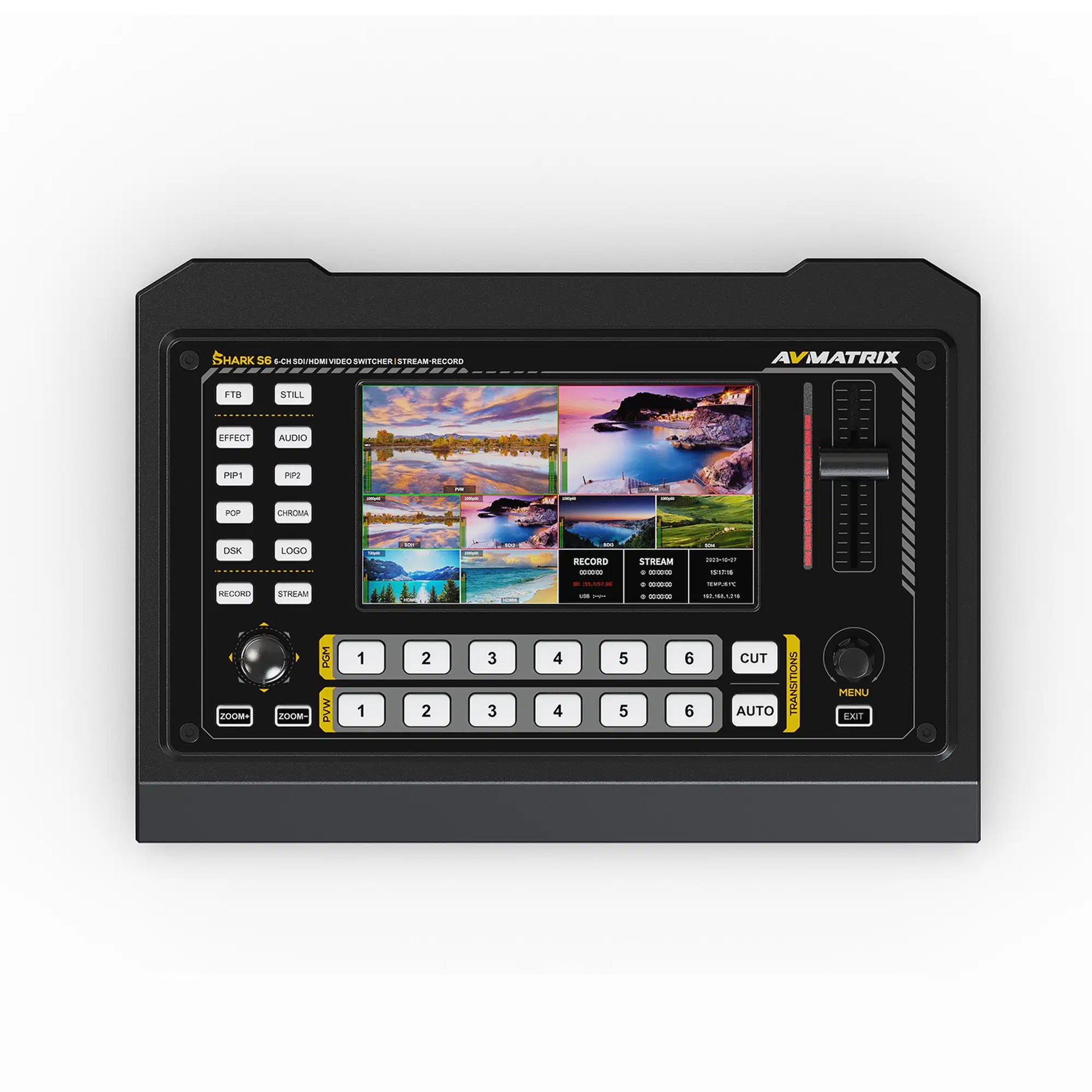

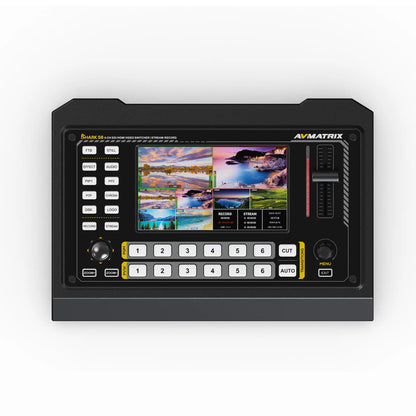

Switching
Transitions
T-Bar, AUTO, CUT
Effects
WIPE (11 x 3 patterns), MIX, DIP, STILL (freeze), FTB
Multiview layouts
2 styles (landscape and portrait)
Keys
Upstream: 1x Chroma Key, 2x PIP, POP; Downstream: 1x DSK, 1x Logo
Media
Logo library
Up to 8 PNG images (max 512 x 320)
Audio
Audio mixer
6x Video Input and 2x MIC
Audio delay
0 to 500 ms
PTZ Control
Cameras
Up to 6
Control protocols
VISCA, VISCA over IP, ONVIF, PELCO-D/P
Connection
LAN (RJ45), RS232/RS422/RS485 (DB-9)
Streaming
Streaming protocols
RTMP(S), RTSP, SRT
Encoding bitrate
2 to 32 Mbps, CBR/VBR
Recording
Storage format
USB/SD card, FAT32, exFAT, NTFS
Record file format
MP4, TS
File segment
1 to 120 mins
