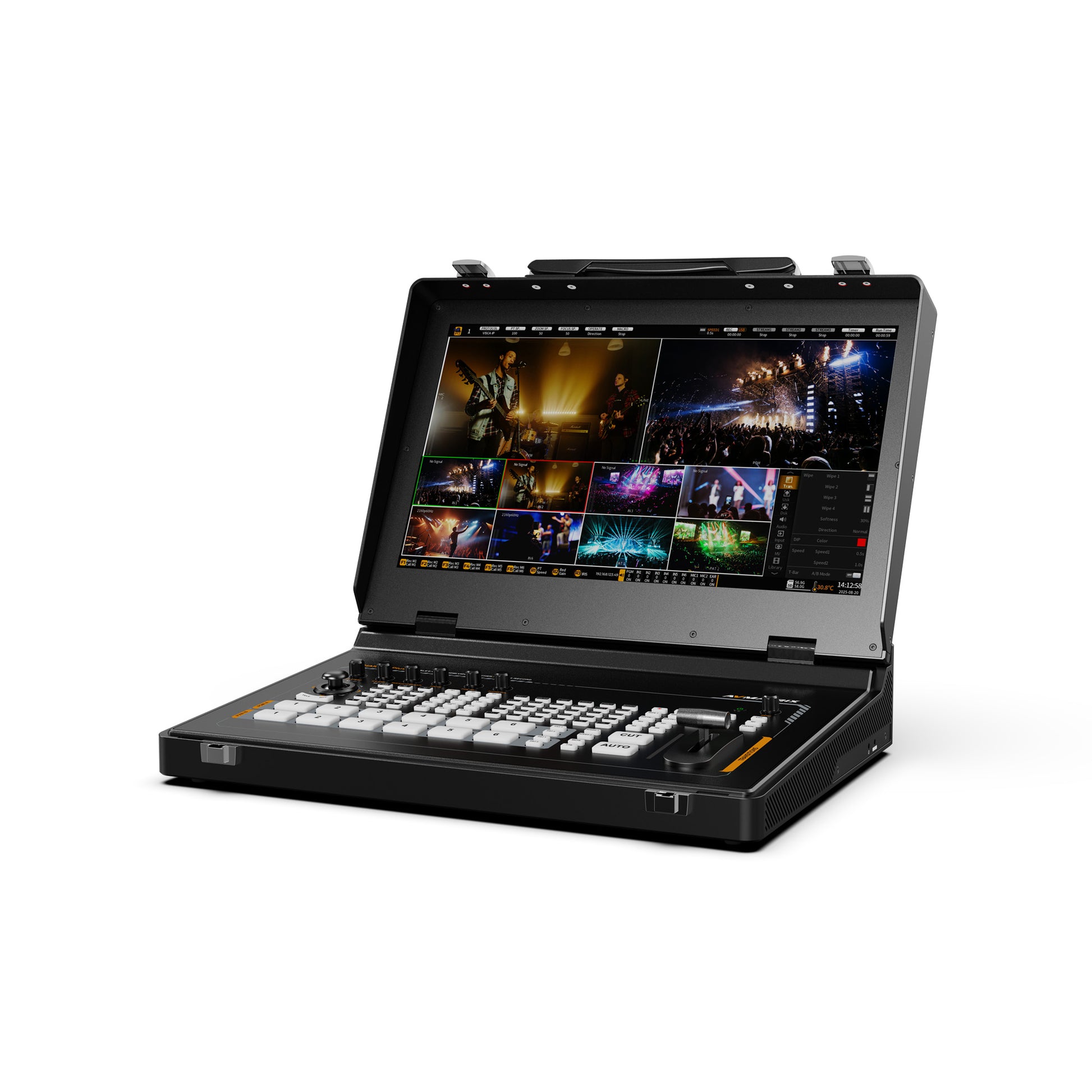

17.3 inch FHD IPS display with customisable multiview monitoring 6x 3G-SDI and 2x 4K HDMI inputs (IN5/IN6 multiplexed) with frame sync; 4x 3G-SDI + 2x HDMI PGM outputs and multiview T-Bar, AUTO, and CUT transitions with WIPE (11 x 4), MIX, DIP, FTB, freeze Upstream keying (luma, chroma, 3x PIP) and downstream keying (DSK, logo); up to 6 layers XLR/TRS balanced audio with 48V phantom power; 8-channel mixer RTMP streaming up to 32 Mbps, NDI® optional; recording to USB/SD; USB-C UVC capture up to 1080p60
Display
Screen size
17.3 inch
Panel type
IPS
Native resolution
1920 x 1080

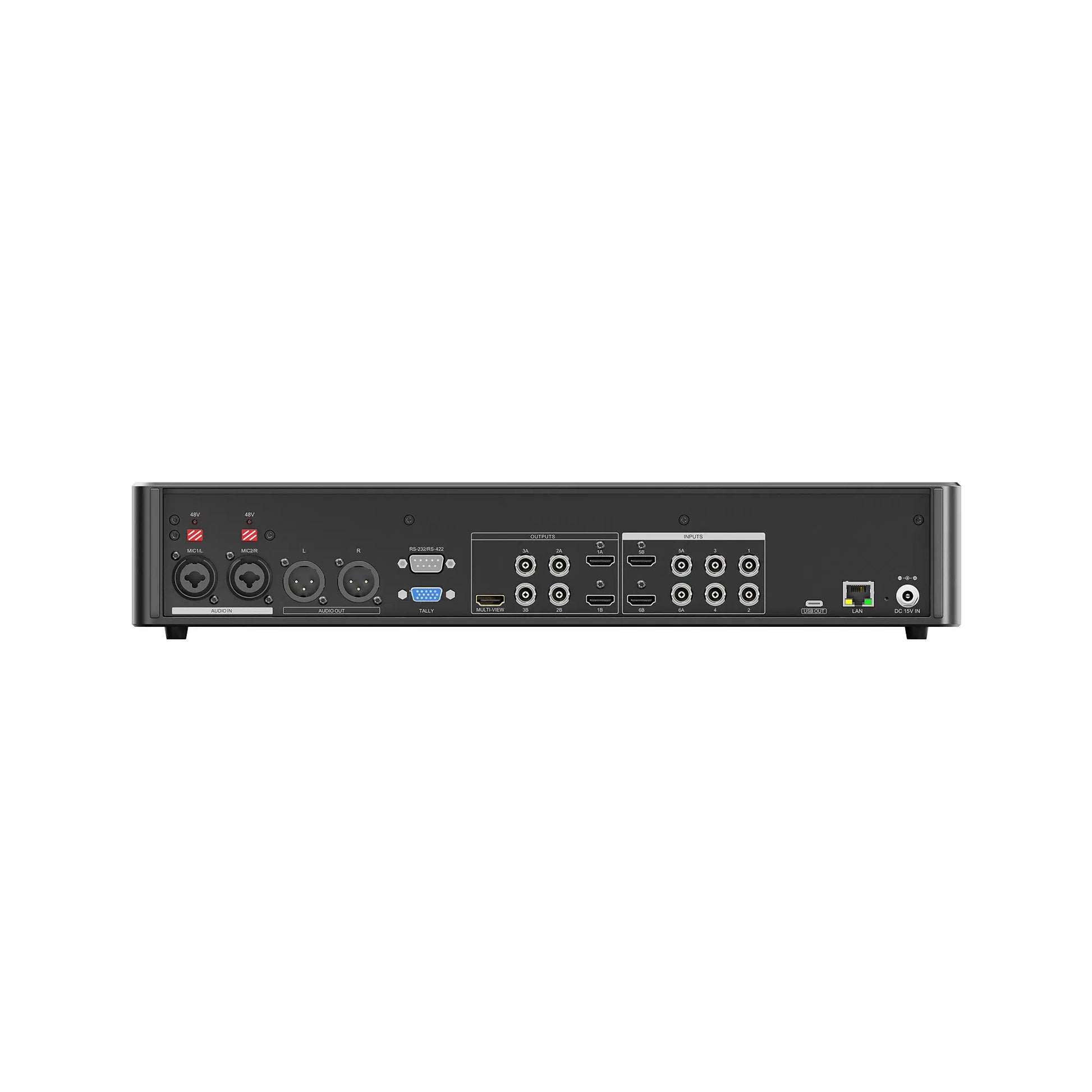

Connections
Video inputs
6x 3G-SDI (BNC), 2x 4K HDMI (multiplexed with 3G-SDI 5/6)
Video outputs
4x 3G-SDI PGM (A/B pairs), 2x HDMI PGM (A/B), 1x HDMI Multiview, 1x LAN (RJ45 stream), 1x USB Type-C (UVC capture)
Other interfaces

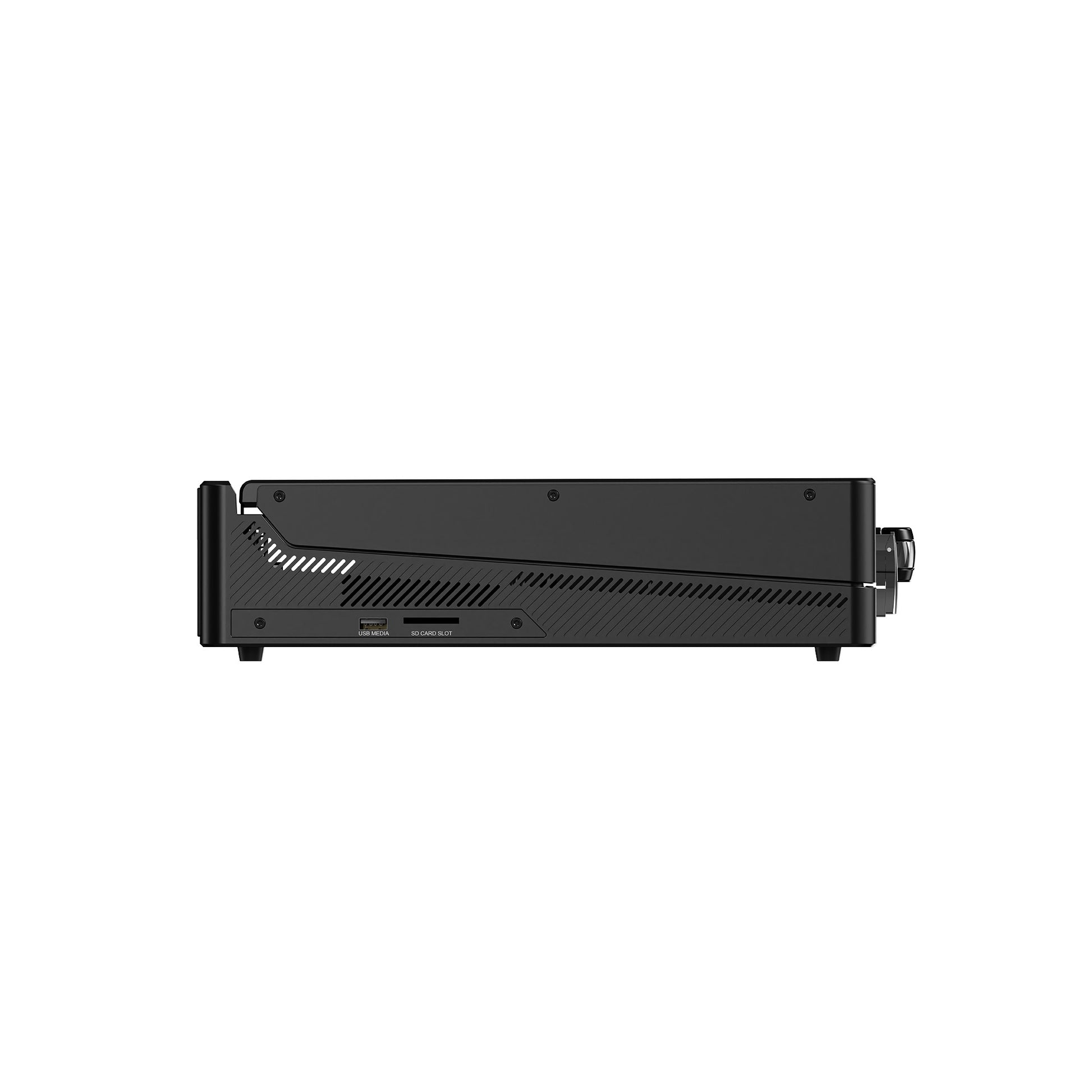

1x USB-A + SD card slot (record/storage), 1x Tally (DB-15 GPIO), 1x RS232/RS485 (PTZ control)
Audio
Inputs: 2x XLR/TRS balanced (+48V phantom), 1x 3.5 mm stereo line; Outputs: 2x XLR balanced, 1x 3.5 mm stereo, 1x 3.5 mm headphone
Video Standards
Input format support
3G-SDI: up to 1080p 60; HDMI: up to 4K 60
3G-SDI input
1080p 60/59.94/50/30/29.97/25/24/23.98, 1080psF 30/29.97/25/24/23.98, 1080i 60/59.94/50, 720p 60/59.94/50/30/29.97/25/24/23.98, 625i 50, 525i 59.94
HDMI input
4K 60/50/30, 2K 60/50/30, 1080p 60/59.94/50/30/29.97/25/24/23.98, 720p 60/59.94/50/30/29.97/25/24/23.98, 576p 50, 480p 60/59.94
3G-SDI output
1080p 60/59.94/50/48/47.95/30/29.97/25/24/23.98, 1080i 60/59.94/50
HDMI PGM/MV output
1080p 60/59.94/50/48/47.95/30/29.97/25/24/23.98, 1080i 60/59.94/50
Colour space
3G-SDI: YUV 4:2:2 10-bit; HDMI: YUV, RGB Full, RGB Limit
USB capture output
Up to 1080p 60 (YUY2, NV12, RGB32, 200 Mbps)
Power
Input voltage
DC 9 to 24V
Power consumption
≤50 W (15V)
Environmental
Operating temperature
0°C to 60°C
Storage temperature
-30°C to 70°C
Mechanical
Dimensions
433 x 307 x 75.5 mm
Weight
5240 g (net)
Accessories
Included
15V 4A Power Adapter, USB 3.0 Type-C Cable, Tally Connector (DB-15)

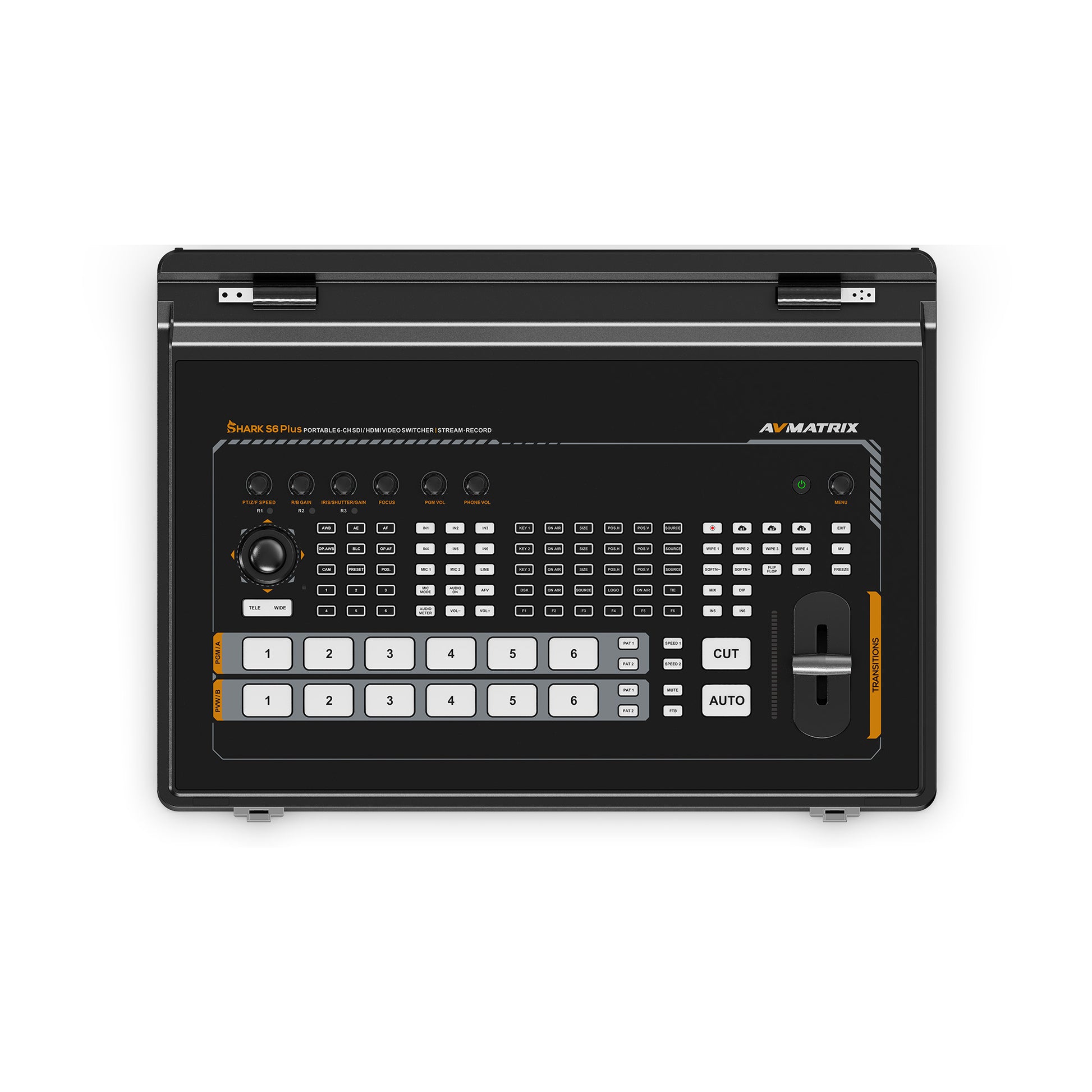

Switching
Transitions
T-Bar, AUTO, CUT
Effects
WIPE (11 x 4 patterns), MIX, DIP, STILL (freeze), PATTERN, MUTE, FTB
Multiview layouts
2 styles (landscape and portrait)
Keys
Upstream: 1x Luma Key, 1x Chroma Key, 3x PIP; Downstream: 1x DSK, 1x Logo
Macros
20 macros, recording and playback
Media
Media format
Video: MP4, TS; Audio: MP3, AAC; Image: PNG (max 1920 x 1080); Logo: PNG (max 450 x 50)
Generators
1x Pattern Generator, 2x Colour Generators
Audio
Audio mixer
6x Video Input and 2x XLR/TRS
Audio delay
0 to 500 ms
PTZ Control
Cameras
Up to 6
Control protocols
VISCA, ONVIF, PELCO-D/P
Connection
LAN (RJ45), RS232/RS485 (DB-9)
Streaming
Streaming protocols
RTMP, NDI®|HX2 (encode, optional), NDI®|HX3 (decode, optional)
Encoding bitrate
Up to 32 Mbps, CBR/VBR
Recording
Storage format
USB/SD card
Record file format
MP4, TS
