MSS0811
1U rack-mountable 8 x 8 3G-SDI matrix switcher.
- 8x SD/HD/3G-SDI/DVB-ASI inputs and 8x outputs, any-to-any matrix routing
- Supports 2K, 3G, HD, and SD-SDI with automatic format detection
- Passes all 3G-SDI embedded audio and ancillary data
- One-to-one, one-to-all, and multi-output routing presets
-
S8X Plus
8-channel 3G-SDI/HDMI live production video switcher with 17.3 inch display and streaming.
- Screen size: 17 inch
- Display resolution: 1920 x 1080
- 17.3 inch FHD IPS display with customisable multiview monitoring
- 8x 3G-SDI and 2x 4K HDMI inputs with frame sync; 4x 3G-SDI + 2x HDMI PGM outputs and multiview
- T-Bar, AUTO, and CUT transitions with WIPE (11 x 3), MIX, DIP, FTB, freeze
- Upstream keying (luma, chroma, 3x PIP) and downstream keying (DSK, logo); up to 6 layers
-

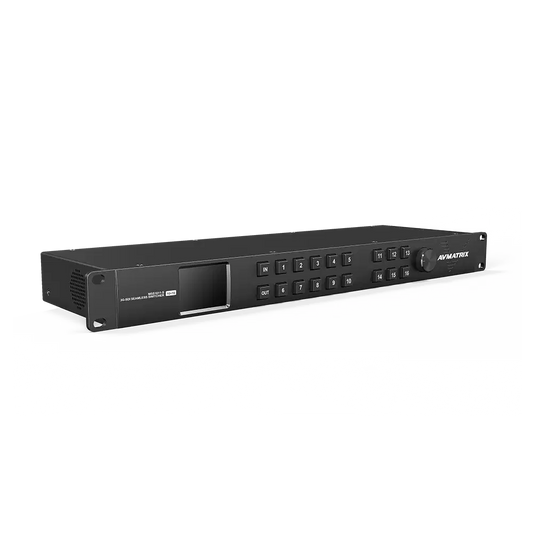

MSS1611-S
1U rack-mountable 16 x 16 3G-SDI seamless matrix switcher with frame synchronizer.
- 16x SD/HD/3G-SDI inputs and 16x SD/HD/3G-SDI outputs, any-to-any matrix routing
- Seamless switching with built-in frame synchronizer, glitch-free transitions between different formats
- Auto-detects SD, HD, and 3G-SDI on all inputs
- Configurable output resolution from 480i to 1080p 60
-
S6
6-channel 3G-SDI/HDMI live production video switcher with 5 inch display and streaming.
- Screen size: 5 inch
- Built-in 5 inch LCD display for multiview monitoring
- 4x 3G-SDI and 2x HDMI inputs with multi-format auto signal detection up to 1080p 60
- T-Bar, AUTO, and CUT transitions with 11 x 3 WIPE patterns, MIX, DIP, FTB
- Upstream keying (chroma key, 2x PIP, POP) and downstream keying (DSK, logo)
-
MMV1630
1U rack-mountable 16-channel 3G-SDI multiviewer with 16 x 16 matrix switcher.
- 16-channel multiview and 16x16 3G-SDI video switcher
- Multiview output: 2x 3G-SDI + 1x HDMI, up to 1080p 60
- 20 preset multiview layouts (16/12/11/10/9/8/6/4 windows) with full-screen SOLO
- UMD, audio meter, timecode, and border overlays per window with customisable colours
-
S4 Plus
4-channel HDMI/3G-SDI live production video switcher with 10.1 inch display, streaming, and recording.
- Screen size: 10 inch
- Display resolution: 1920 x 1080
- Built-in 10.1 inch IPS FHD display for multiview monitoring
- 2x 3G-SDI + 2x HDMI inputs with multi-format auto signal detection up to 1080p 60
- T-Bar, AUTO, and CUT transitions with 11x3 WIPE patterns, MIX, DIP, and more
- Upstream keying (luma, chroma, 2x PIP, POP) and downstream keying (DSK, logo)
-
S6 Plus
6-channel 3G-SDI/HDMI live production video switcher with 17.3 inch display and streaming.
- Screen size: 17 inch
- Display resolution: 1920 x 1080
- 17.3 inch FHD IPS display with customisable multiview monitoring
- 6x 3G-SDI and 2x 4K HDMI inputs (IN5/IN6 multiplexed) with frame sync; 4x 3G-SDI + 2x HDMI PGM outputs and multiview
- T-Bar, AUTO, and CUT transitions with WIPE (11 x 4), MIX, DIP, FTB, freeze
- Upstream keying (luma, chroma, 3x PIP) and downstream keying (DSK, logo); up to 6 layers
-
S4
4-channel HDMI/3G-SDI live production video switcher with streaming, recording, and USB capture.
- 2x 3G-SDI and 2x HDMI inputs with multi-format auto signal detection up to 1080p 60
- 2x HDMI PGM outputs plus HDMI multiview for external monitoring
- T-Bar, AUTO, and CUT transitions with 11 x 3 WIPE patterns, MIX, DIP, PATTERN, MUTE, FTB
- Upstream keying (luma, chroma, 2x PIP, POP) and downstream keying (DSK, logo)
-
H4
4-channel HDMI live production video switcher with streaming, recording, and USB capture.
- 4x HDMI inputs with multi-format auto signal detection up to 1080p 60
- 2x HDMI PGM outputs plus HDMI multiview for external monitoring
- T-Bar, AUTO, and CUT transitions with 11 x 3 WIPE patterns, MIX, DIP, PATTERN, MUTE, FTB
- Upstream keying (luma, chroma, 2x PIP, POP) and downstream keying (DSK, logo)
-
H4 Plus
4-channel HDMI live production video switcher with 10.1 inch display, streaming, and recording.
- Screen size: 10 inch
- Display resolution: 1920 x 1080
- Built-in 10.1 inch IPS FHD display for multiview monitoring
- 4x HDMI inputs with multi-format auto signal detection up to 1080p 60
- T-Bar, AUTO, and CUT transitions with 11x3 WIPE patterns, MIX, DIP, and more
- Upstream keying (luma, chroma, 2x PIP, POP) and downstream keying (DSK, logo)
