Features Explore MSS1611-S Technical Data Downloads

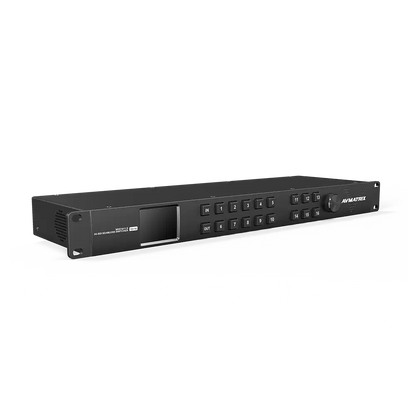

16x SD/HD/3G-SDI inputs and 16x SD/HD/3G-SDI outputs, any-to-any matrix routing Seamless switching with built-in frame synchronizer, glitch-free transitions between different formats Auto-detects SD, HD, and 3G-SDI on all inputs Configurable output resolution from 480i to 1080p 60 One-to-one and one-to-all routing presets 1U rack height (44 mm), compact 19 inch standard rack mounting 2.2 inch LCD display with front panel button and knob control LAN (UDP) and RS-422 remote control with ASCII and binary API Dual redundant power supply (PS-1 and PS-2) for mission-critical installations

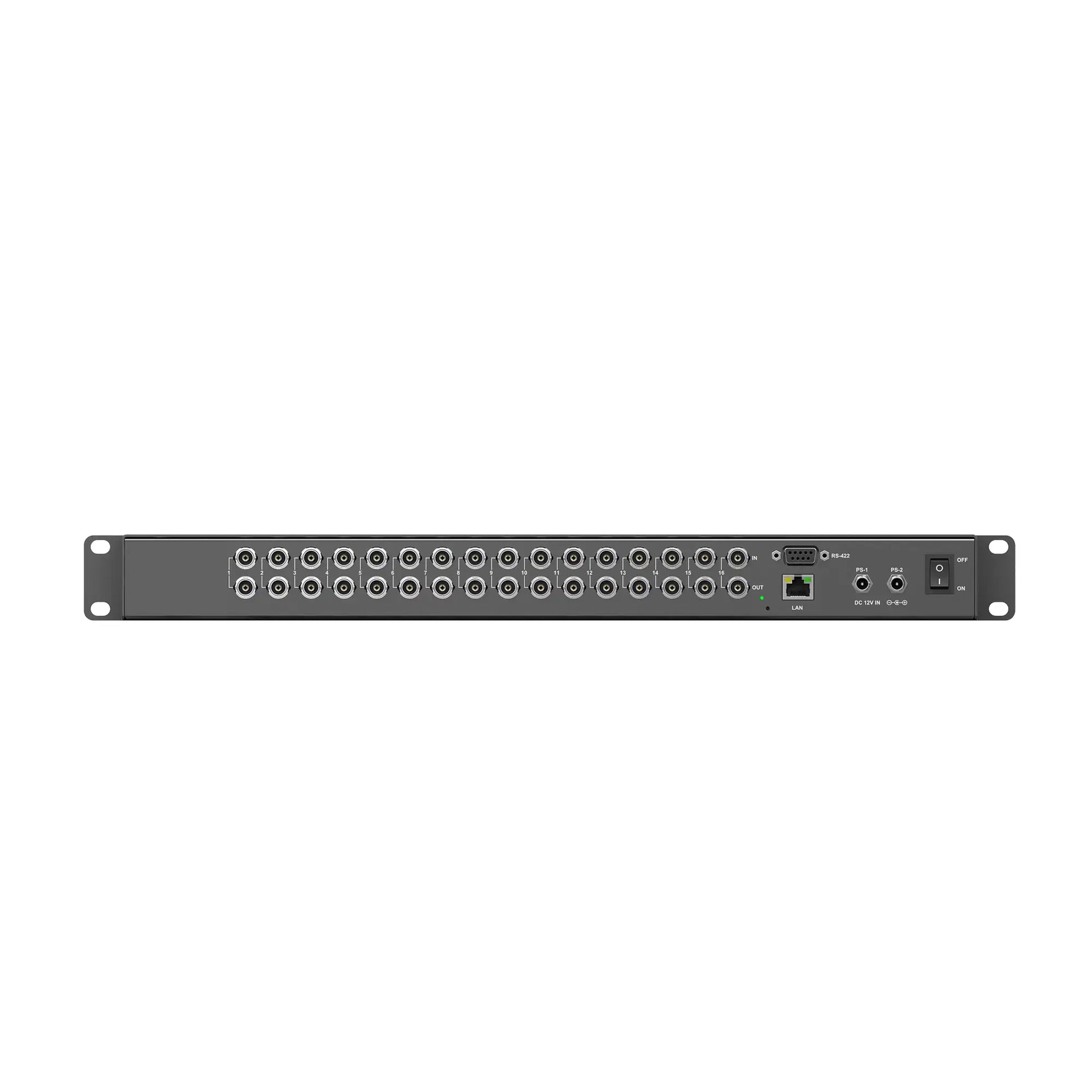

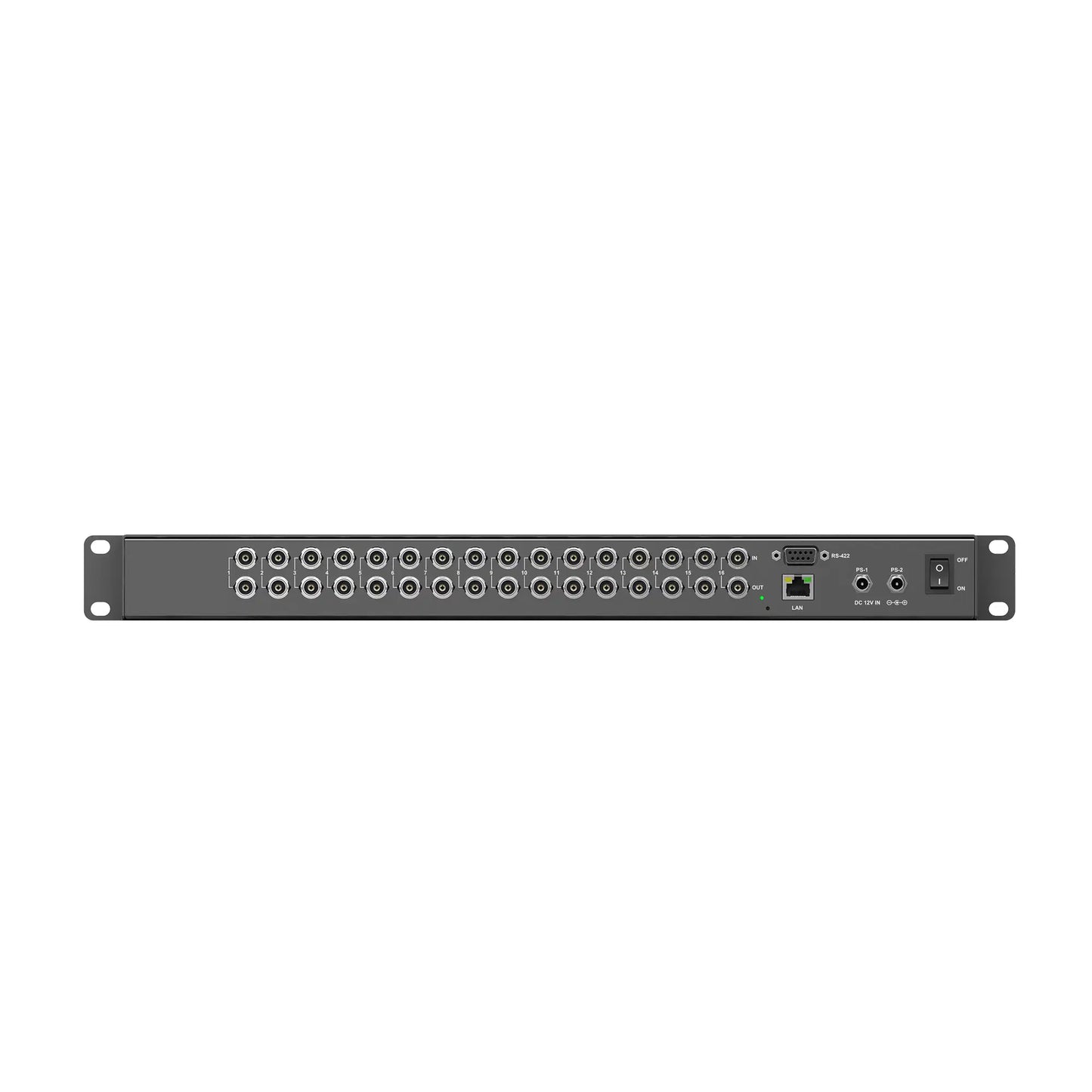

Connections
Video inputs
16x SD/HD/3G-SDI (BNC)
Video outputs
16x SD/HD/3G-SDI (BNC)
Video Standards
3G-SDI input
1080p 60/59.94/50 (3G-SDI level-A), 1080p 30/29.97/25/24/23.98, 1080psF 30/29.97/25/24/23.98, 1080i 60/59.94/50, 720p 60/59.94/50/30/29.97/25/24/23.98, 625i 50, 525i 59.94
3G-SDI output
1080p 60/59.94/50/30/29.97/25/24/23.98, 1080i 60/59.94/50, 720p 60/59.94/50/30/29.97/25/24, 576i 50, 480i 60/59.94
3G-SDI compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M
Colour space
YUV 4:2:2 10/12-bit
Operational Features

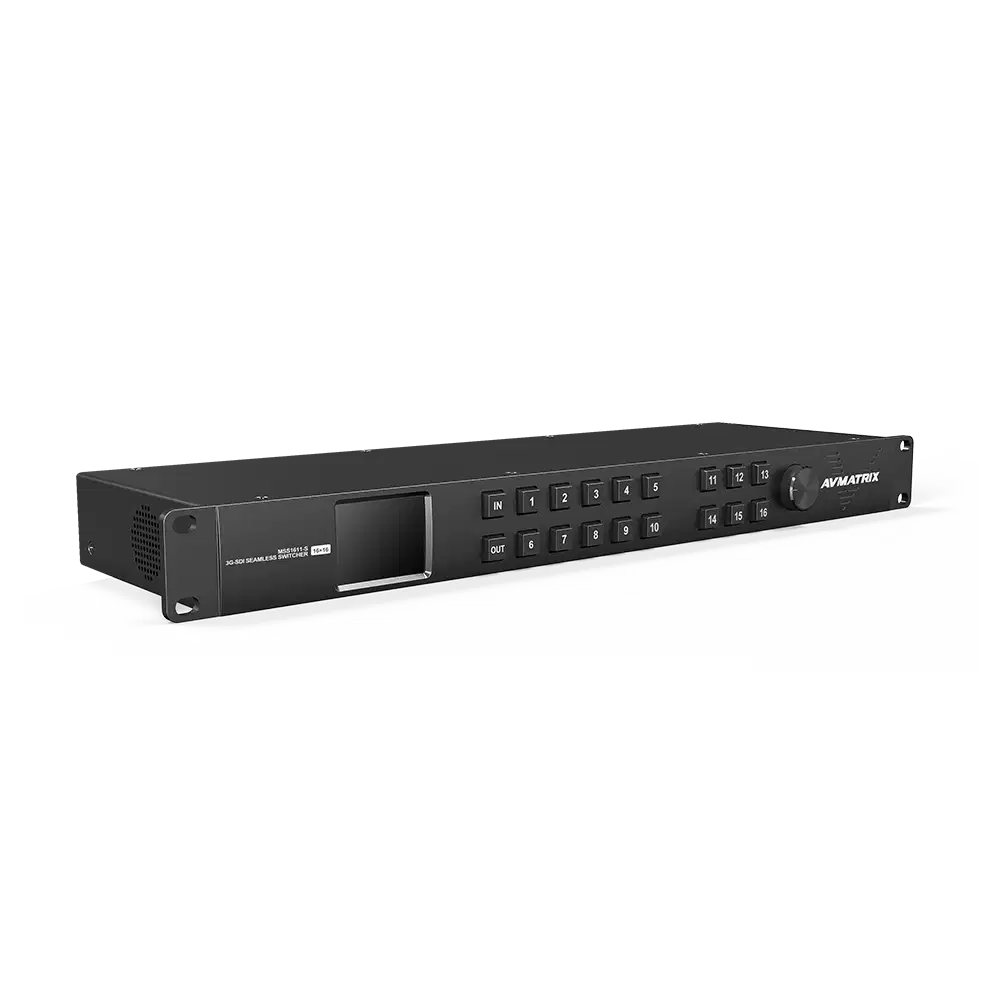

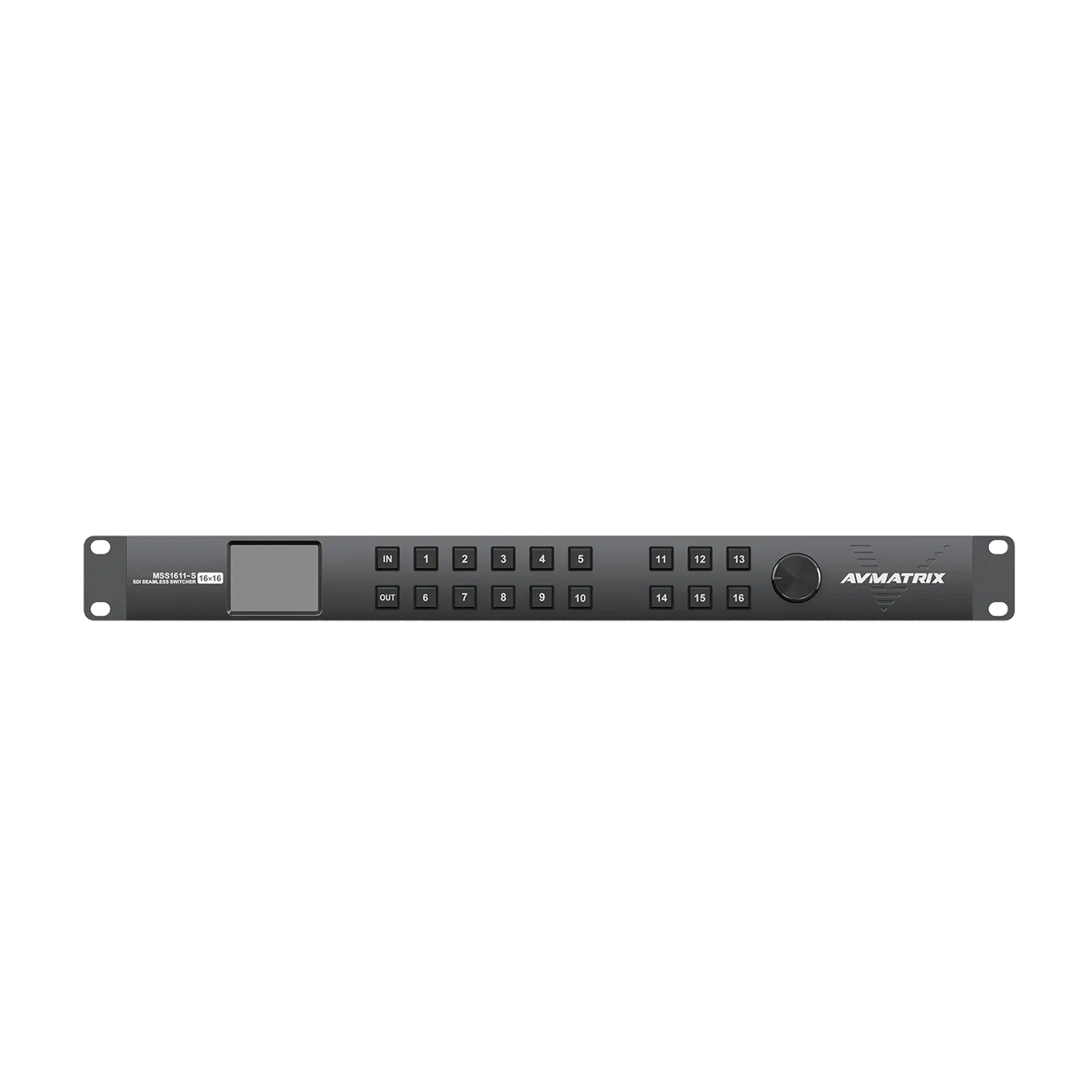

Front panel
2.2 inch LCD display, IN/OUT channel buttons (1 to 16), knob control
Control interfaces
LAN (RJ45), UDP, port 7000, RS-422, 9600 baud, 8N1
Power
Input voltage
DC 12 to 20V
Power supply
Dual redundant (PS-1, PS-2), threaded locking connectors
Power consumption
≤14 W
Environmental
Operating temperature
0°C to 60°C
Storage temperature
-30°C to 70°C
Relative humidity
0% to 90% non-condensing
Mechanical
Dimensions
482.5 x 44 x 148.6 mm
Weight
2000 g (net), 3800 g (gross)
Rack height
1U
Mounting
Rack mount
Standard 19 inch rack mounting
Accessories
Included
2x DC 12V 5A Power Adapter
Switching
Routing
16 x 16 matrix, any input to any output
Seamless switching
Built-in frame synchronizer, glitch-free switching between different formats
3G-SDI auto switching
Auto-detects SD, HD, and 3G-SDI on inputs
Presets
One-to-one, one-to-all routing
