16-channel multiview and 16x16 3G-SDI video switcher Multiview output: 2x 3G-SDI + 1x HDMI, up to 1080p 60 20 preset multiview layouts (16/12/11/10/9/8/6/4 windows) with full-screen SOLO UMD, audio meter, timecode, and border overlays per window with customisable colours 1U rack height (44 mm), compact 19 inch standard rack mounting LAN (UDP) and RS-422 remote control with full API for third-party integration Dual redundant power supply (PS-1 and PS-2) for mission-critical installations

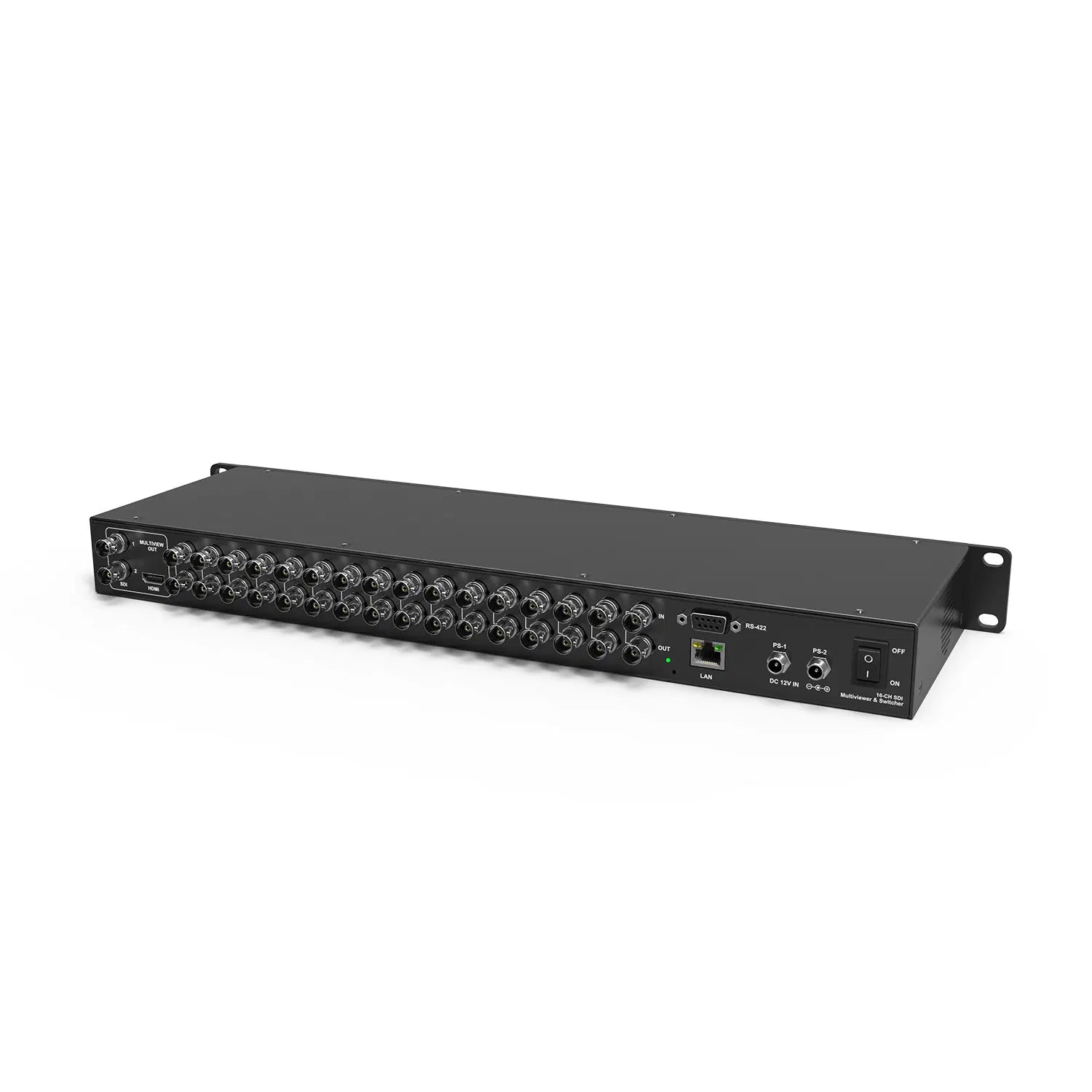

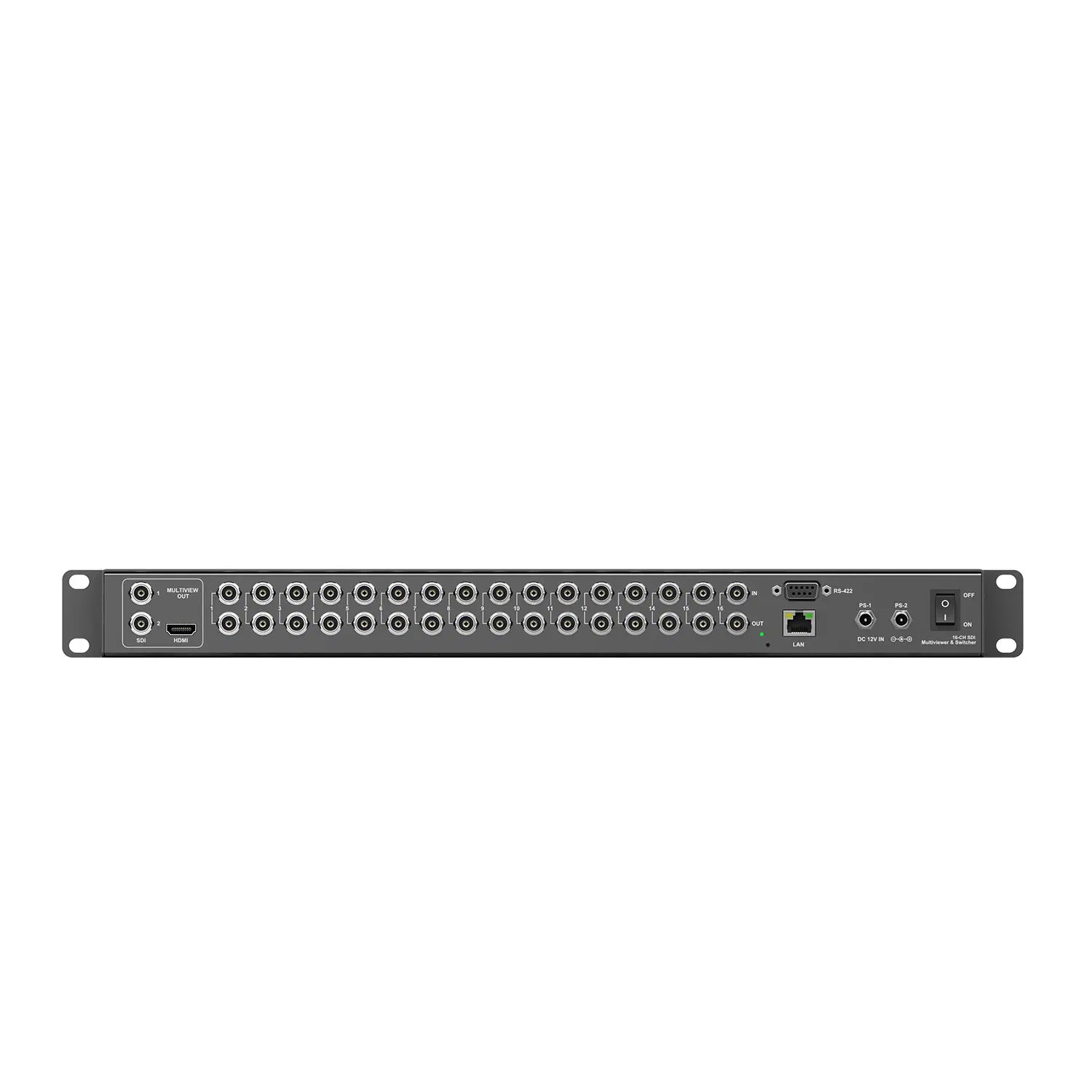

Connections
Video inputs
16x SD/HD/3G-SDI (BNC)
Video outputs
16x SD/HD/3G-SDI (BNC)
Multiview outputs
2x 3G-SDI (BNC), 1x HDMI Type-A
Audio
3G-SDI embedded, selectable per window
Video Standards
3G-SDI input (multiviewer)
1080p 60/59.94/50 (3G-SDI level-A), 1080p 30/29.97/25/24/23.98, 1080psF 30/29.97/25/24/23.98, 1080i 60/59.94/50, 720p 60/59.94/50/30/29.97/25/24/23.98, 625i 50, 525i 59.94
3G-SDI input (switcher)
2048 x 1080p 30/29.97/25/24/23.98, 2048 x 1080psF 30/29.97/25/24/23.98, 1080p 60/59.94/50/30/29.97/25/24/23.98, 1080psF 30/29.97/25/24/23.98, 1080i 60/59.94/50, 720p 60/59.94/50/30/29.97/25/24/23.98, 625i 50, 525i 59.94
3G-SDI/HDMI output
1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50
3G-SDI compliance (multiviewer)
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 352M, SMPTE 424M
3G-SDI compliance (switcher)
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, DVB-ASI
Colour space (multiviewer)
Input: YUV 4:2:2/4:4:4, RGB 4:4:4; Output: YUV 4:2:2
Colour space (switcher)
YUV 4:2:2/4:4:4, RGB 4:4:4 10/12-bit, XYZ 4:4:4 12-bit
Operational Features
Multi Viewer
Quad-View

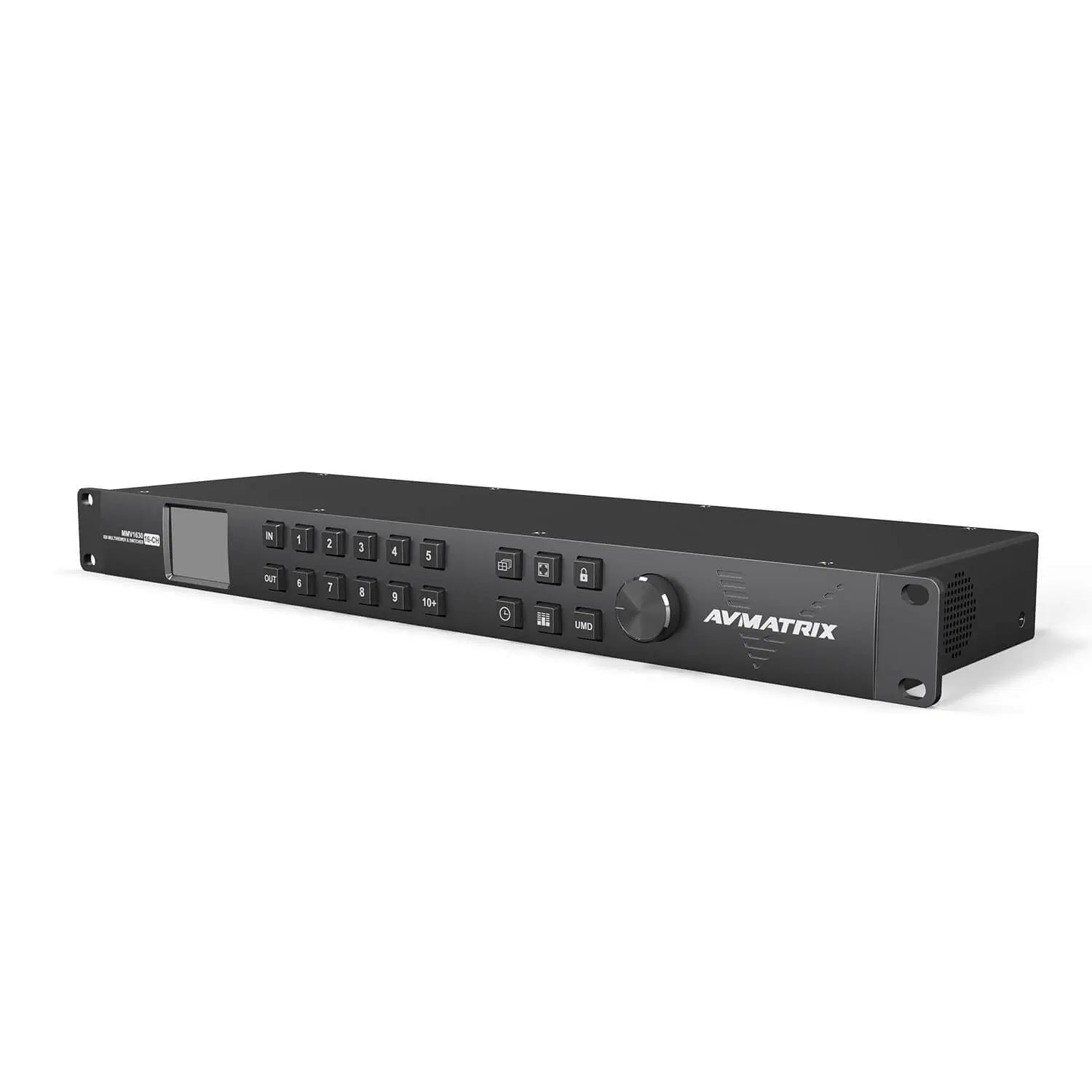

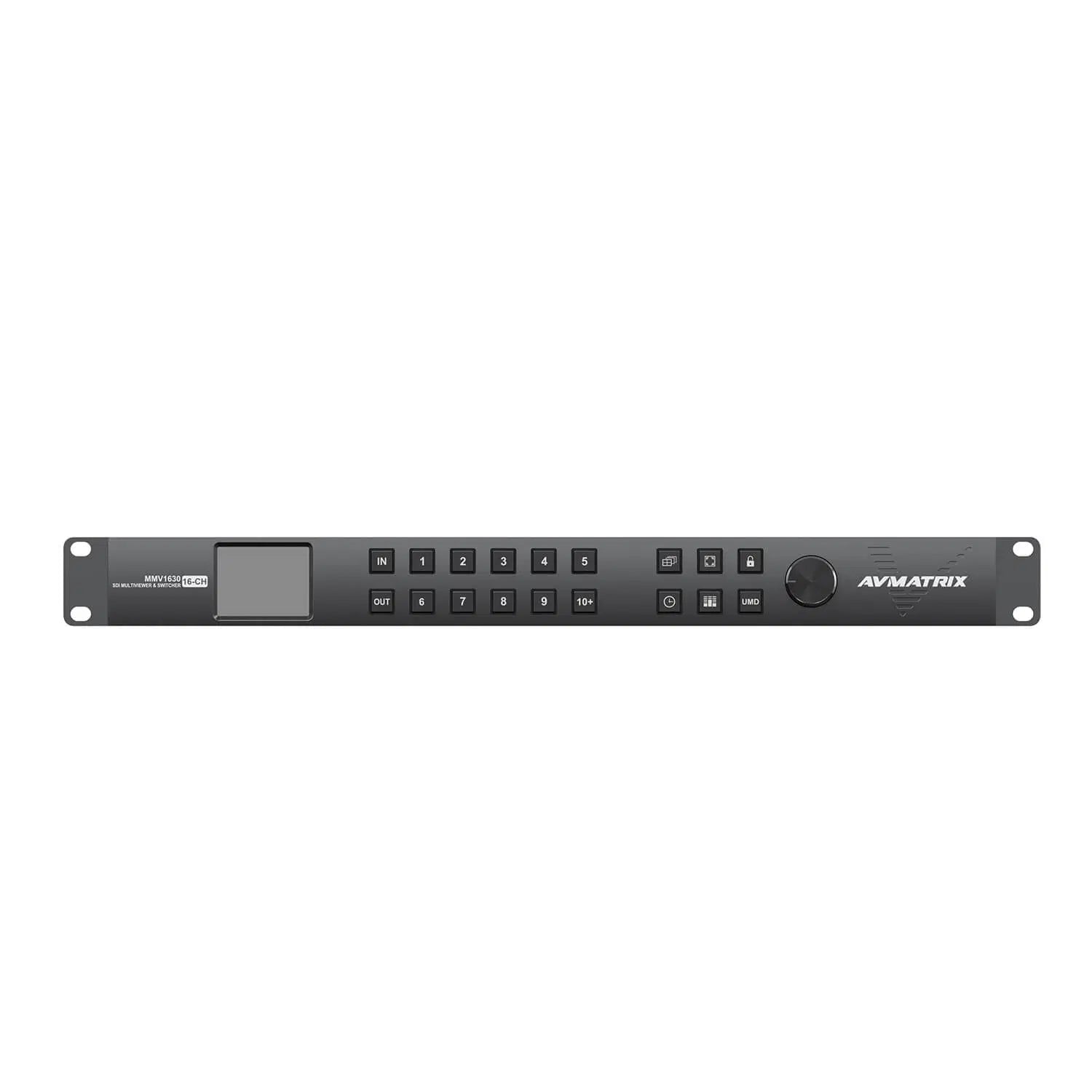

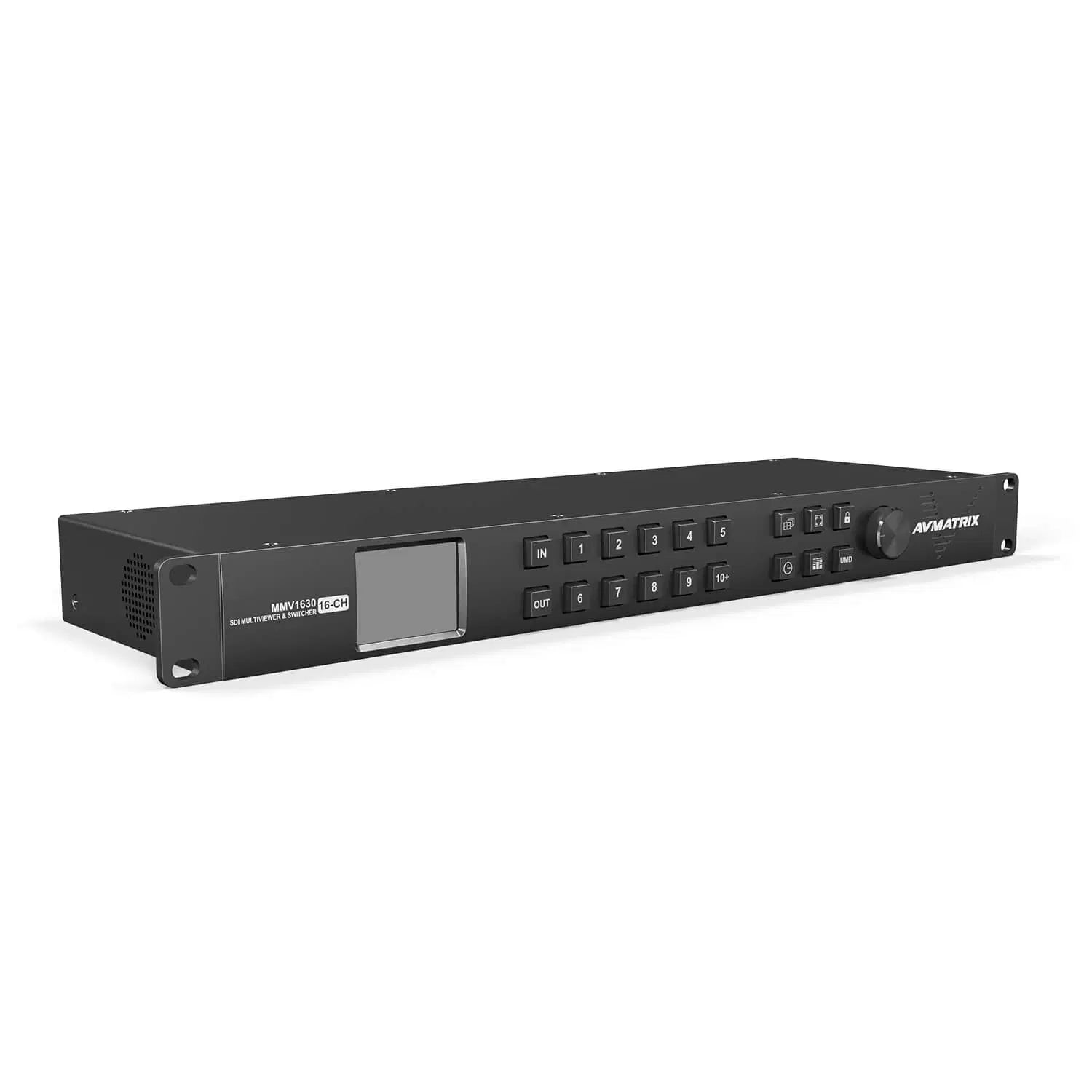

Front panel
2.2 inch LCD display, IN/OUT channel buttons (1 to 16), knob control
Control interfaces
LAN (RJ45), UDP, port 7000, RS-422, 9600 baud, 8N1
Custom presets
2 user-defined configurations (Custom1, Custom2)
Power
Input voltage
DC 12 to 20V
Power supply
Dual redundant (PS-1, PS-2), threaded locking connectors
Power consumption
≤36 W
Environmental
Operating temperature
0°C to 60°C
Storage temperature
-30°C to 70°C
Relative humidity
0% to 90% non-condensing

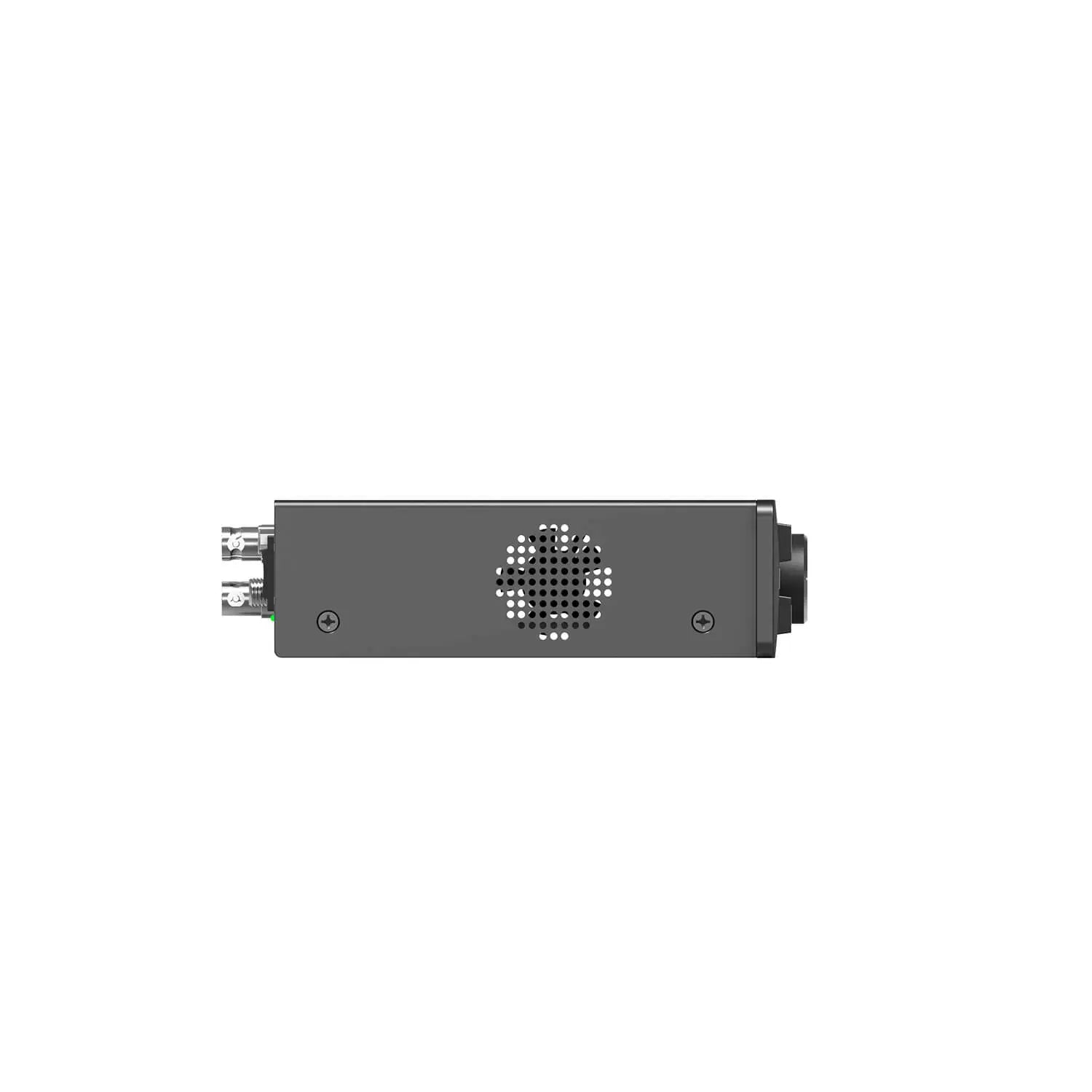

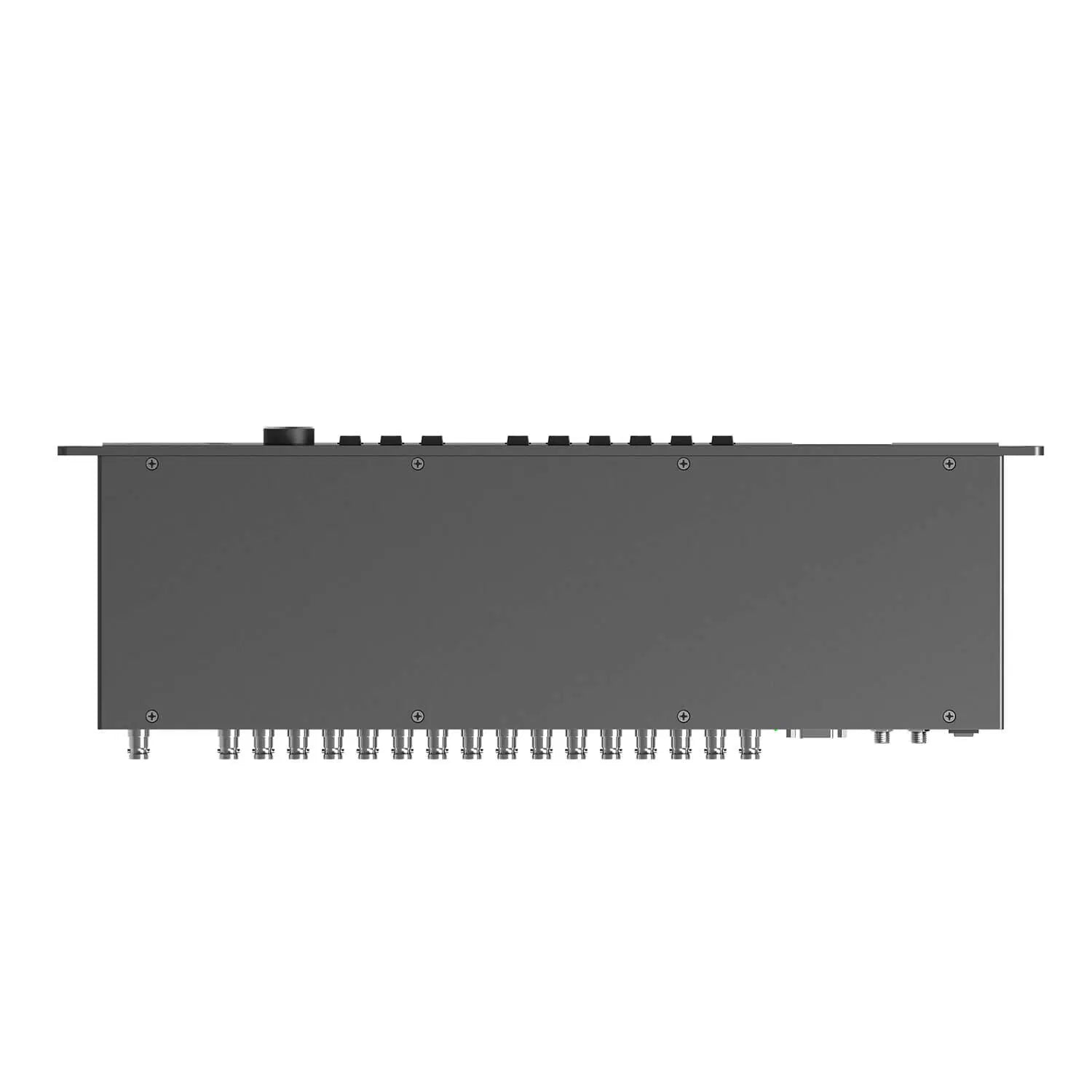

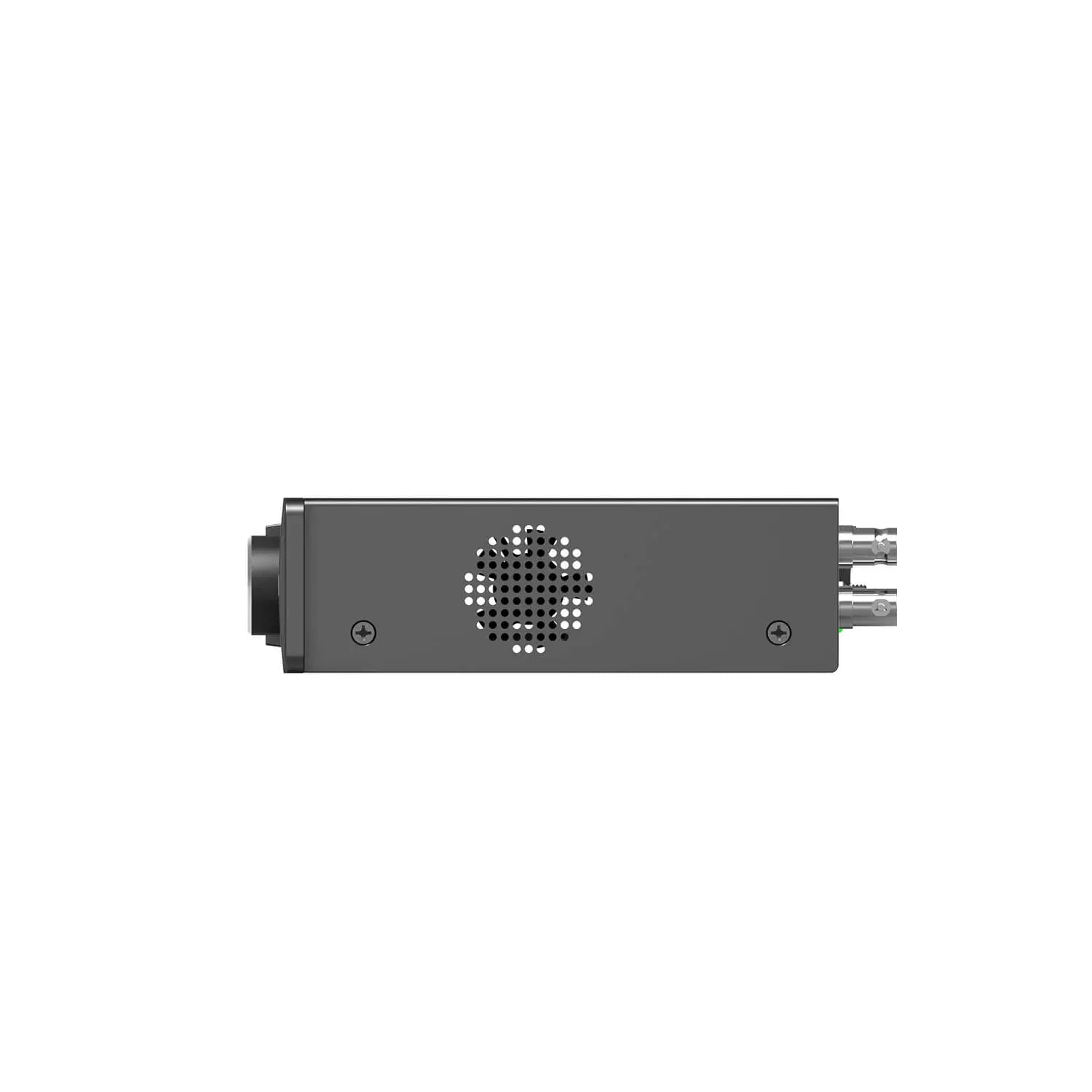

Mechanical
Dimensions
482.5 x 44 x 148.6 mm
Weight
2000 g (net), 3800 g (gross)
Rack height
1U
Mounting
Rack mount
Standard 19 inch rack mounting
Accessories
Included
2x DC 12V 5A Power Adapter
Switching
Modes
Multiviewer, 16 x 16 Matrix Switcher
Matrix routing
Any input to any output (switcher mode)
3G-SDI auto switching
Auto-detects SD, HD, and 3G-SDI on inputs
Multiviewer
Layouts
20 presets (16/12/11/10/9/8/6/4 windows)
Full screen
SOLO any input in full screen via shortcut key
Overlays
UMD, Audio meter, Timecode, Input resolution (OSD), Border, Audio alarm
