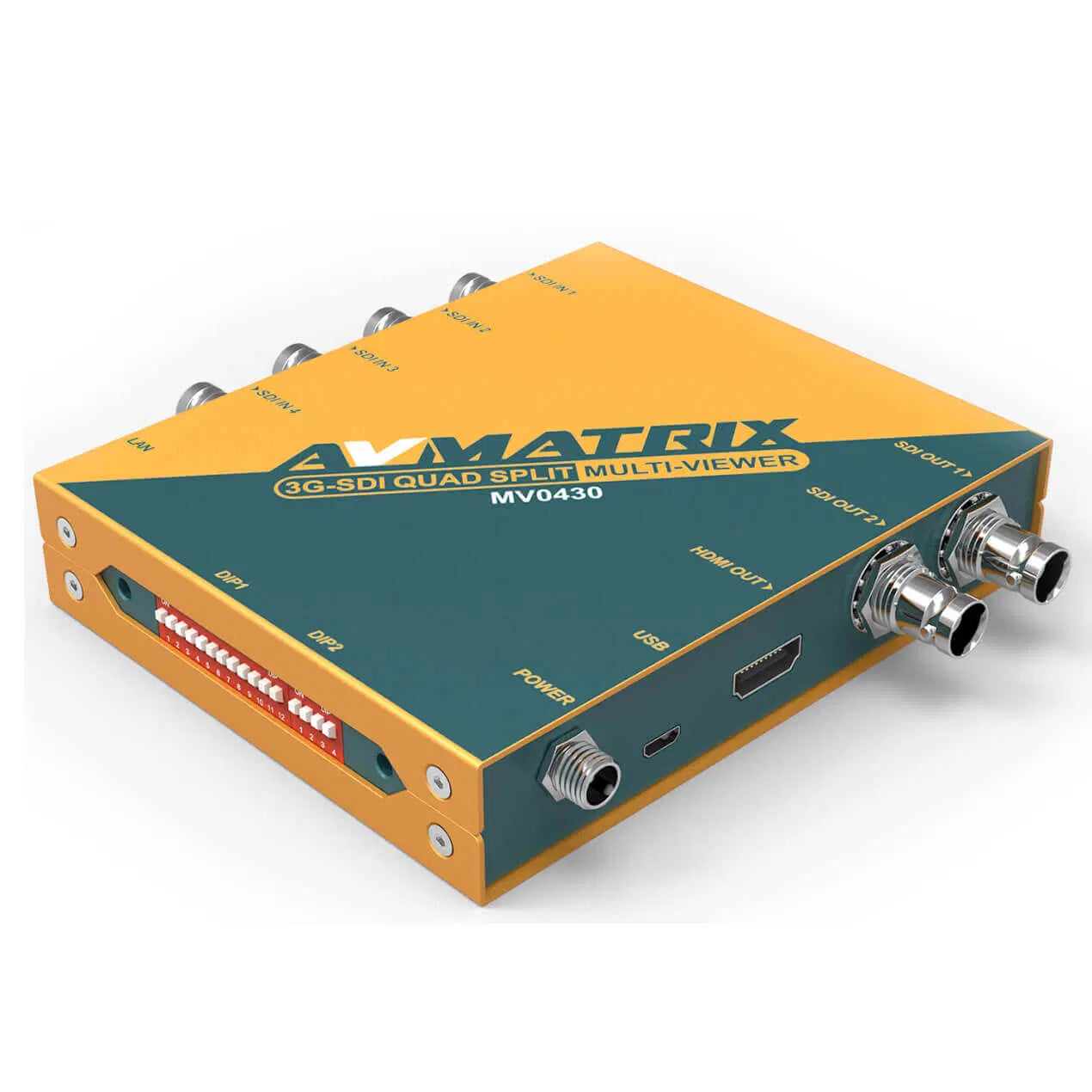

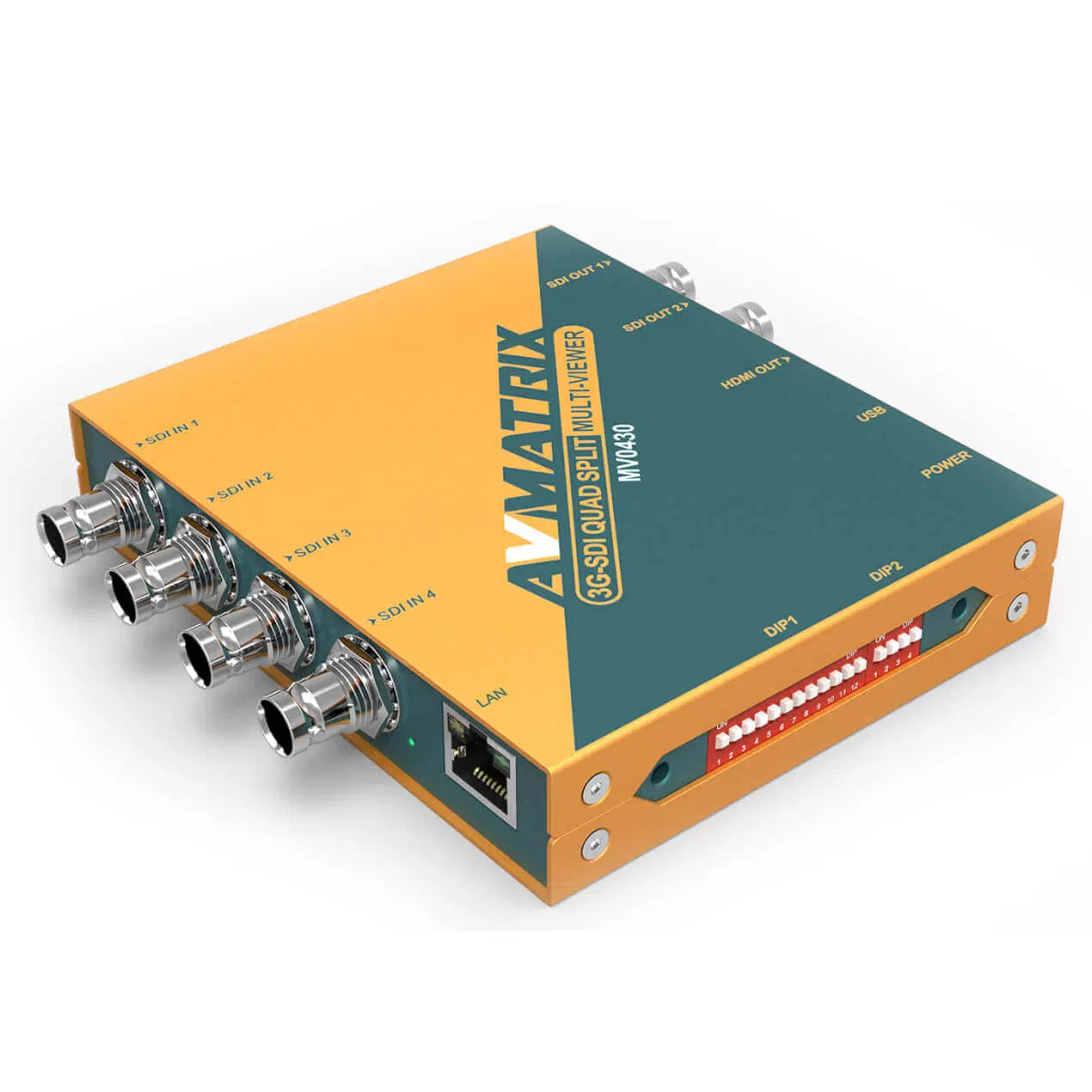

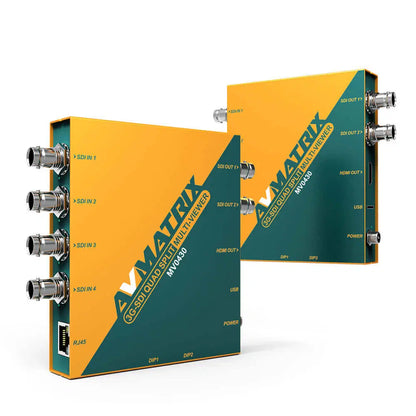

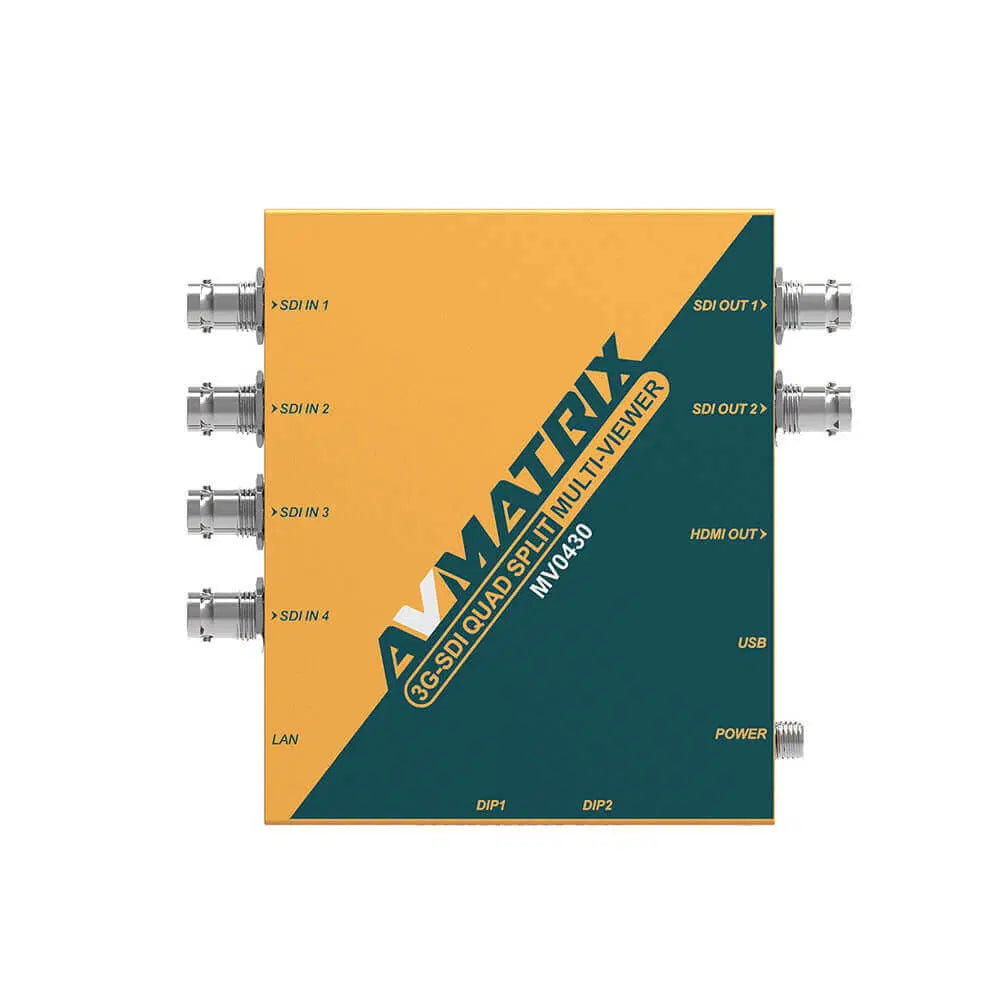

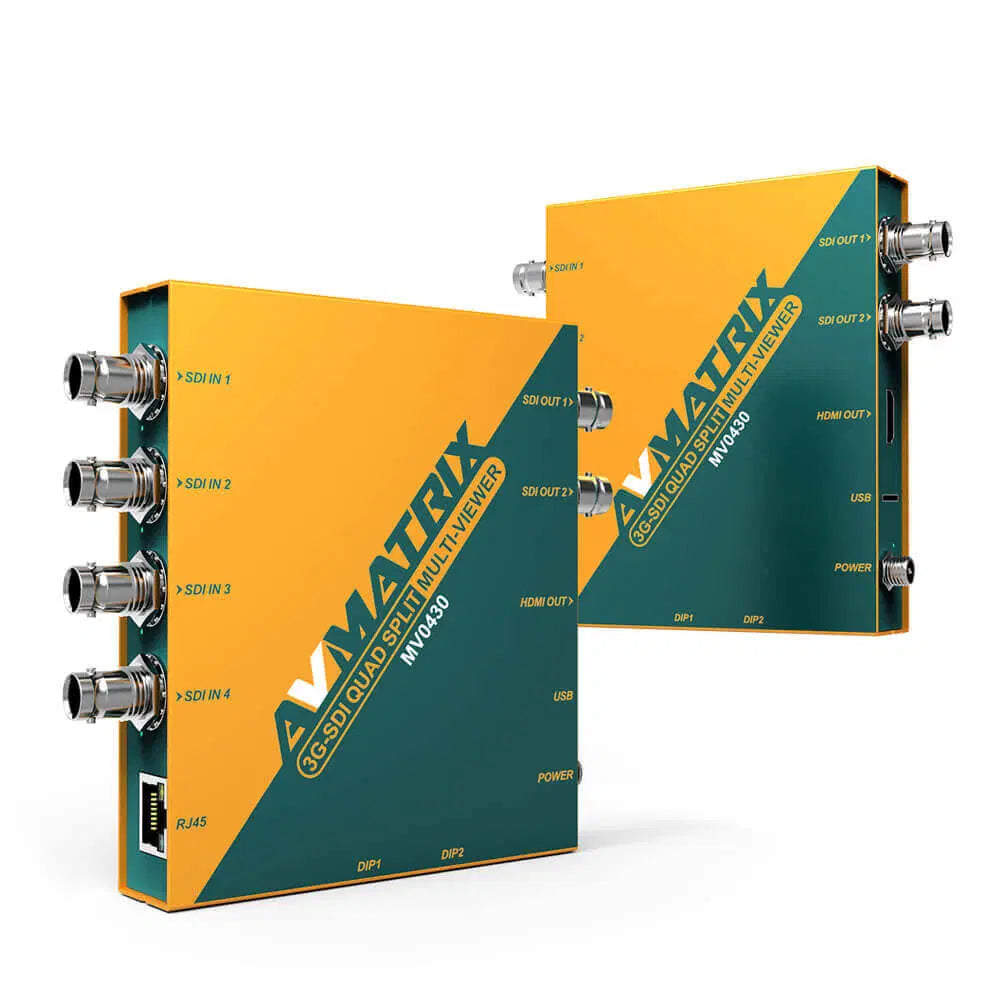

Compact 4-channel 3G-SDI multi-viewer. 4x SD/HD/3G-SDI in, 2x 3G-SDI and 1x HDMI out. 16 preset layouts including quad split, Picture-in-Picture, and Picture-by-Picture, with UMD and audio meter overlays. DIP, LAN, or USB keyboard control. DC 6 to 24 V, 6 W. 125.5 x 104 x 24.5 mm, 512 g.
4-channel 3G-SDI multi-viewer: 4x SD/HD/3G-SDI in, 2x 3G-SDI out, 1x HDMI type A out
16 preset layouts including quad split, full screen, triple, Picture-in-Picture, and Picture-by-Picture; output scaling and frame rate conversion via DIP
11-character UMD, 2-channel audio meter from 16 embedded SDI pairs, input info OSD, and coloured borders
Control via DIP switches, USB keyboard, or PC software over LAN (UDP, port 7000) with API; 2 custom presets
DC 6 to 24 V threaded locking power, 6 W; 12V universal PSU and 2x mounting brackets included
125.5 x 104 x 24.5 mm, 512 g; -20°C to 60°C operating (HDMI output 0°C to 60°C), 3 year limited warranty
Connections
Video inputs
4x SD/HD/3G-SDI (75Ω BNC)
Video outputs
2x SD/HD/3G-SDI (75Ω BNC), 1x HDMI type A
Multiview outputs
2x 3G-SDI (75Ω BNC), 1x HDMI type A
Audio
3G-SDI embedded; 2-channel audio meter selectable from 16 pairs
Network
1x LAN (RJ45; configuration, firmware updates, and PC software)
Output format and scaling, 16 layouts (quad, Picture-in-Picture, Picture-by-Picture, full screen), audio meter pair and overlay, UMD, status overlay, and custom presets
Front panel
DIP switches; USB keyboard
Control interfaces
LAN (RJ45), UDP, port 7000, USB keyboard
Custom presets
2 user-defined configurations (Custom1, Custom2)
Remote control
PC software via LAN
Scaler
Output scaling and frame rate conversion via DIP (SDI and HDMI)
Frame rate conversion
Yes — selectable SDI and HDMI output format via DIP
Power
Input voltage
DC 6 to 24 V
Power consumption
6 W
Environmental
Operating temperature
-20°C to 60°C (HDMI output 0°C to 60°C)
Storage temperature
-30°C to 70°C
Relative humidity
0% to 90% non-condensing
Mechanical
Dimensions
125.5 x 104 x 24.5 mm
Weight
512 g
Mounting
Wall mount
Detachable mounting brackets included
Accessories
Included
DC 12V Universal Power Supply with International Socket Adapters, 2x Mounting Brackets
Multiviewer
Layouts
16 presets including quad split, full screen, triple windows, Picture-in-Picture, and Picture-by-Picture
Full screen
Full screen any input, or quad view, via USB keyboard
Overlays
UMD (11 characters), Audio meter, Input information (OSD), Border
