8x SD/HD/3G-SDI/DVB-ASI inputs and 8x outputs, any-to-any matrix routing Supports 2K, 3G, HD, and SD-SDI with automatic format detection Passes all 3G-SDI embedded audio and ancillary data One-to-one, one-to-all, and multi-output routing presets 1U rack height, compact 19 inch standard rack mounting 2.2 inch LCD display with front panel button control USB keyboard, LAN (UDP), and RS232 remote control with ASCII API Dual redundant power supply (PS-1 and PS-2), ultra-low 7 W consumption

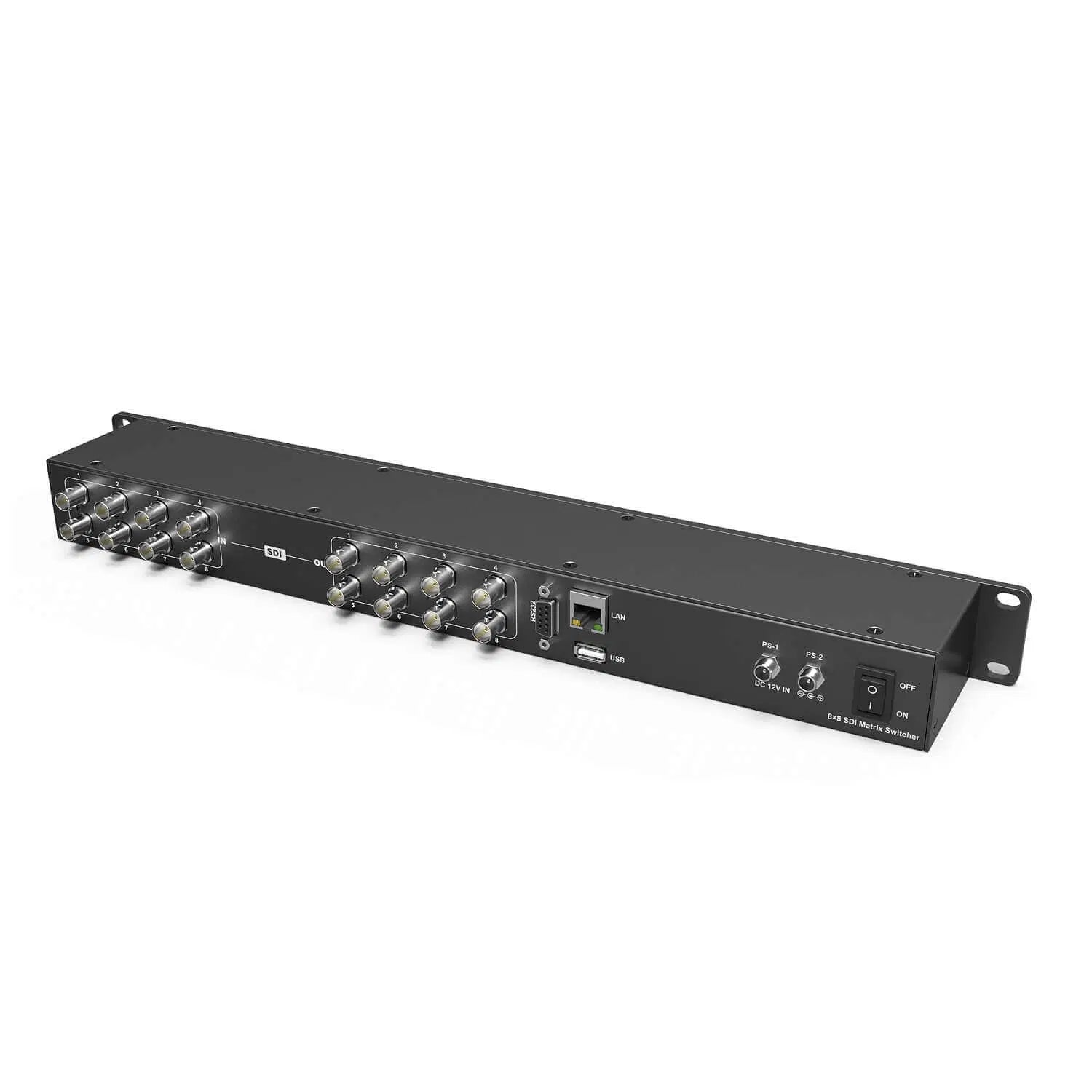

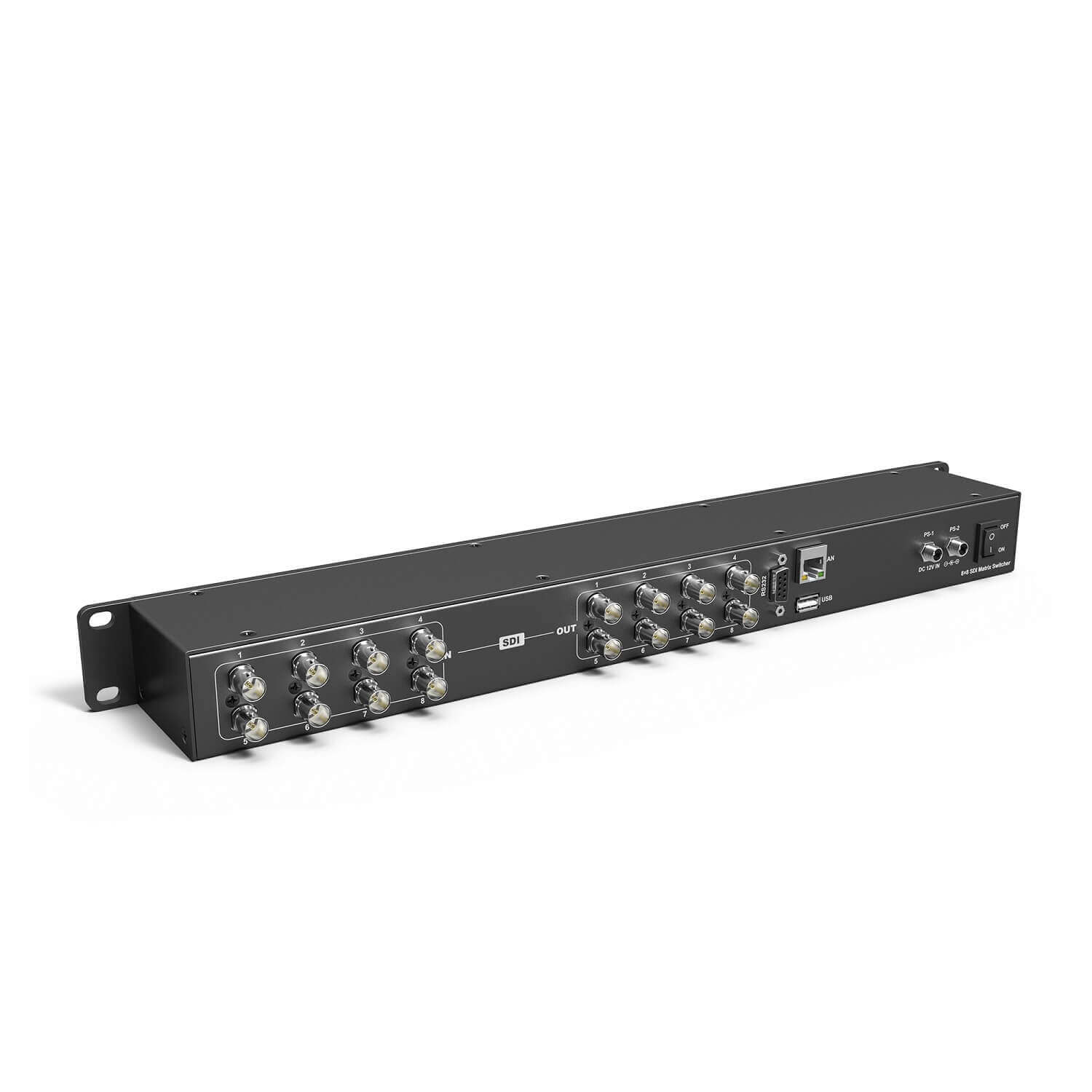

Connections
Video inputs
8x SD/HD/3G-SDI/DVB-ASI (BNC)
Video outputs
8x SD/HD/3G-SDI/DVB-ASI (BNC)
Video Standards
3G-SDI input
2048 x 1080p 30/29.97/25/24/23.98, 2048 x 1080psF 30/29.97/25/24/23.98, 1080p 60/59.94/50/30/29.97/25/24/23.98, 1080psF 30/29.97/25/24/23.98, 1080i 60/59.94/50, 720p 60/59.94/50/30/29.97/25/24/23.98, 625i 50, 525i 59.94
3G-SDI compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, DVB-ASI
Colour space
RGB 4:4:4, YUV 4:2:2/4:4:4 10/12-bit, XYZ 4:4:4 12-bit
Operational Features
Front panel

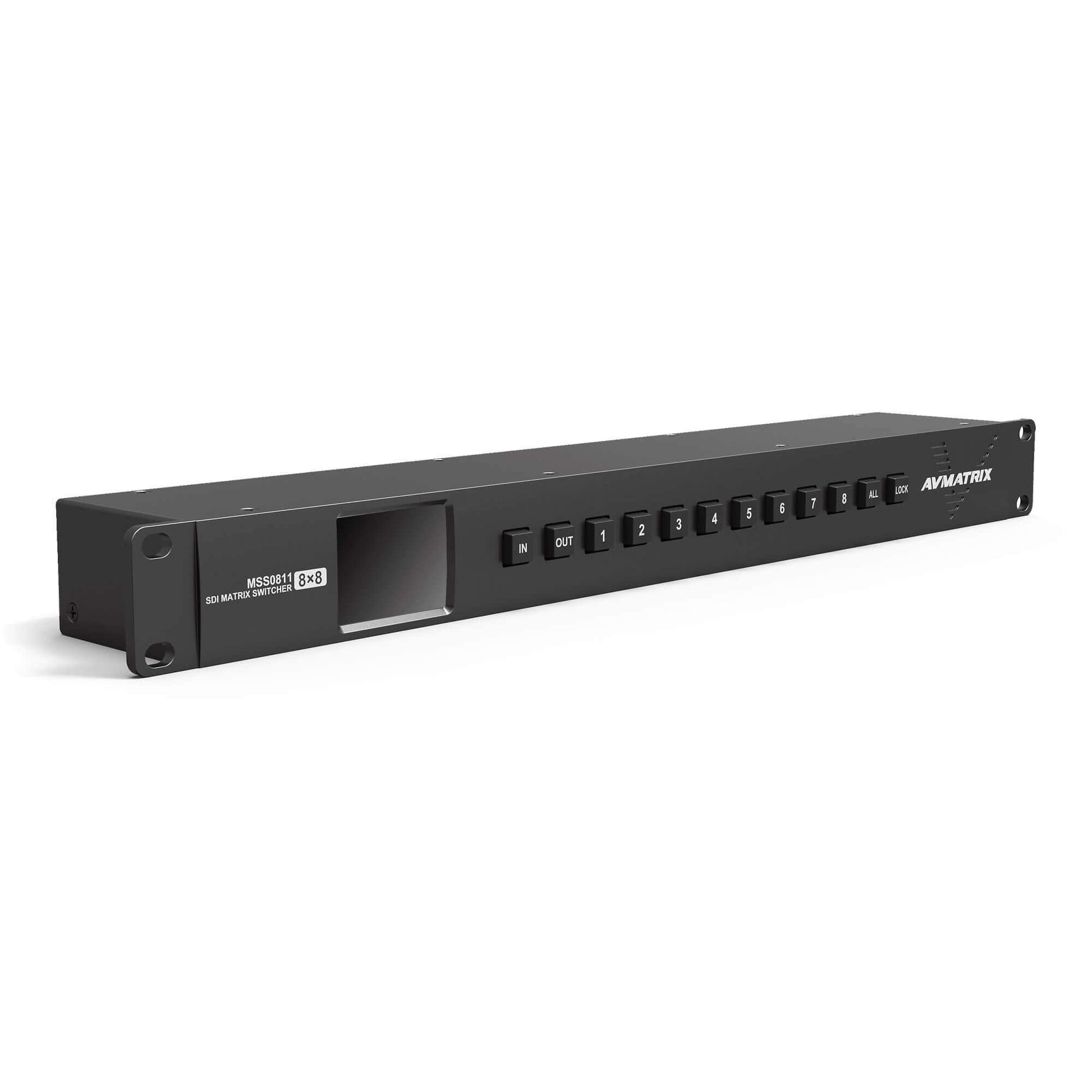

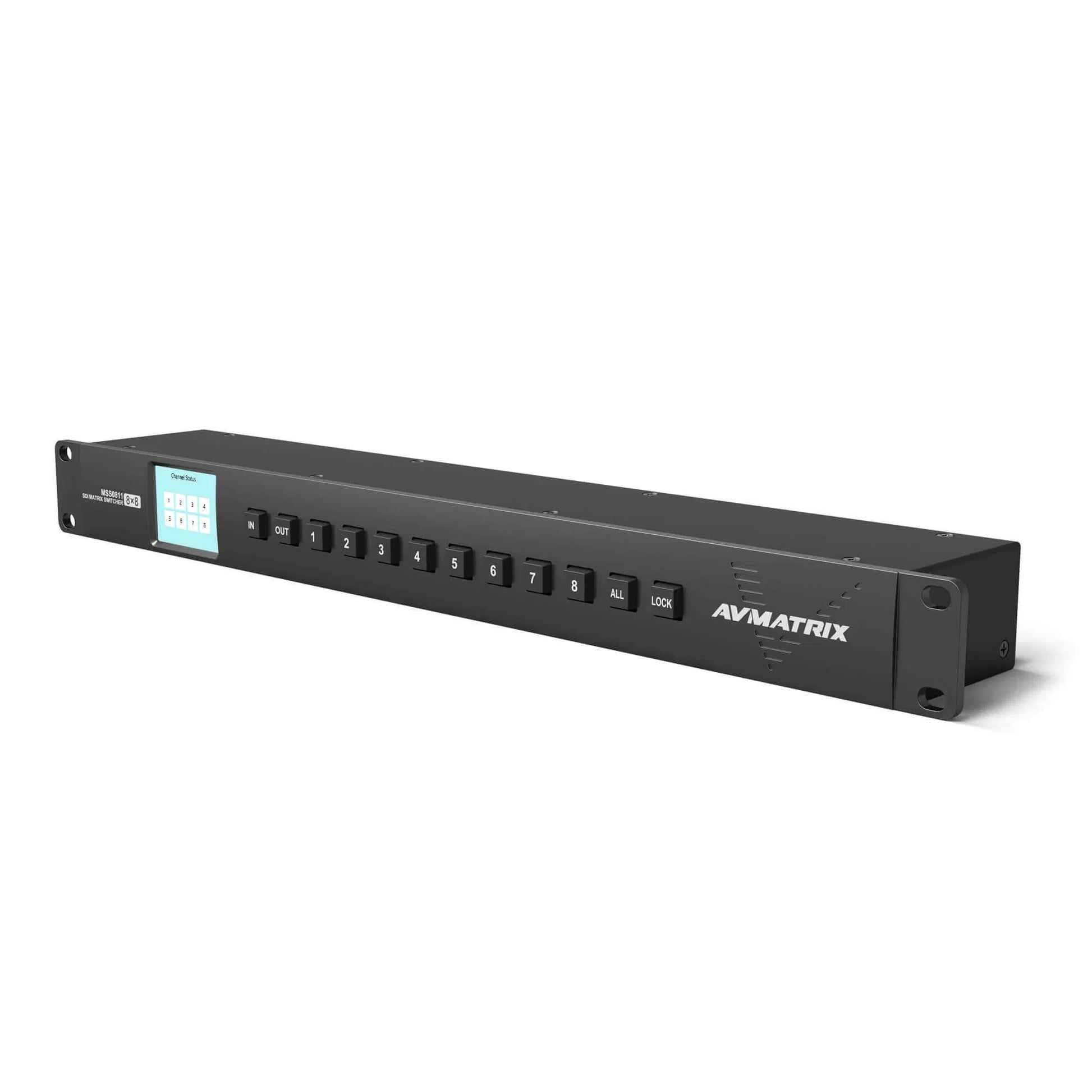

2.2 inch LCD display, IN/OUT channel buttons (1 to 8), ALL button, lock button
Control interfaces
LAN (RJ45), UDP, port 7000, RS232, 9600 baud, 8N1, USB Type-A (keyboard control)
Power
Input voltage
DC 6 to 24V
Power supply
Dual redundant (PS-1, PS-2), threaded locking connectors
Power consumption
≤7 W
Environmental
Operating temperature
-20°C to 60°C
Storage temperature
-30°C to 70°C
Relative humidity
0% to 90% non-condensing
Mechanical
Weight
1100 g (net), 1700 g (gross)
Rack height
1U
Mounting
Rack mount
Standard 19 inch rack mounting
Accessories
Included
2x DC 12V 2A Power Adapter
Switching
Routing
8 x 8 matrix, any input to any output
Data passthrough
3G-SDI embedded audio and ancillary data preserved
3G-SDI auto switching
Auto-detects SD, HD, and 3G-SDI on inputs
Presets
One-to-one, one-to-all routing
