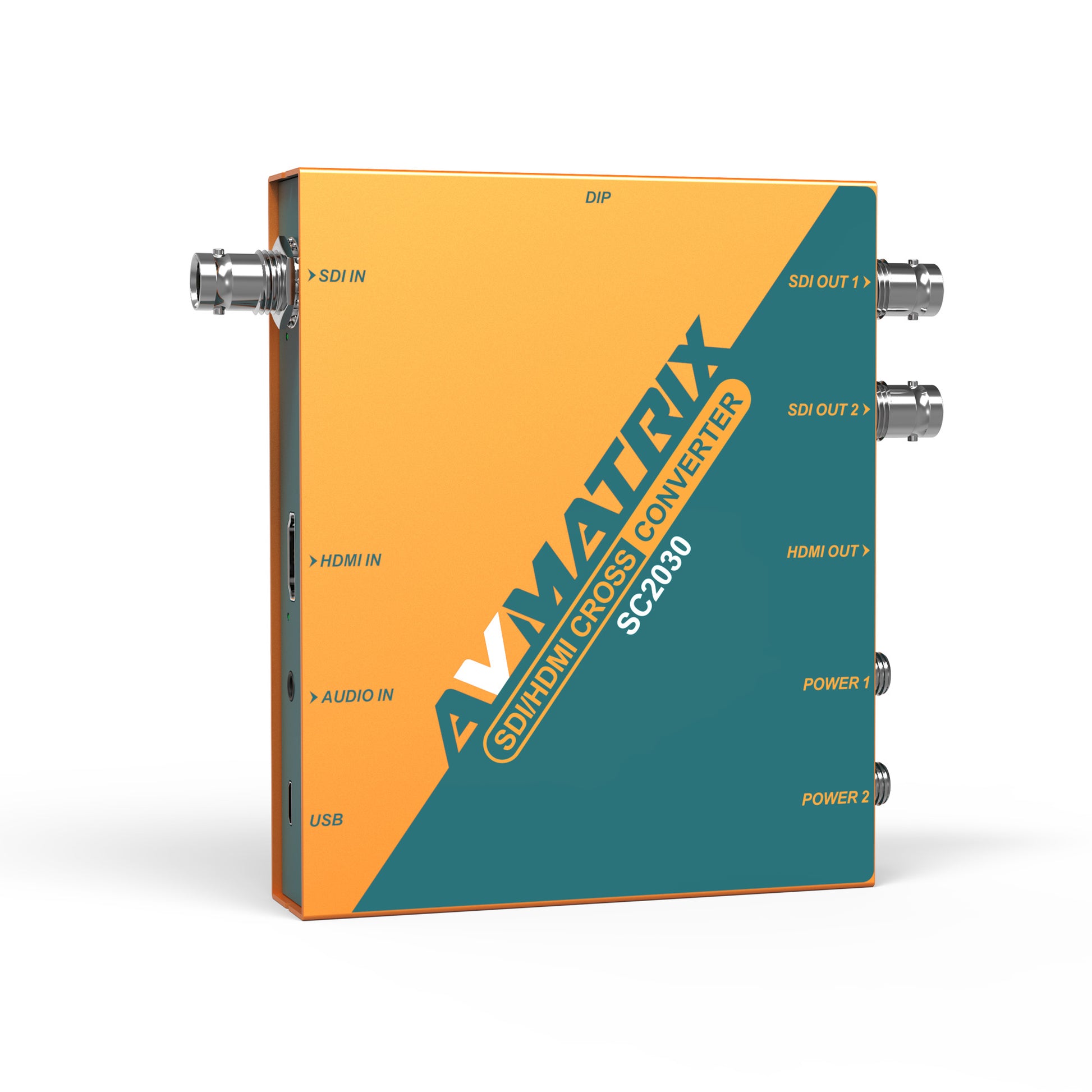

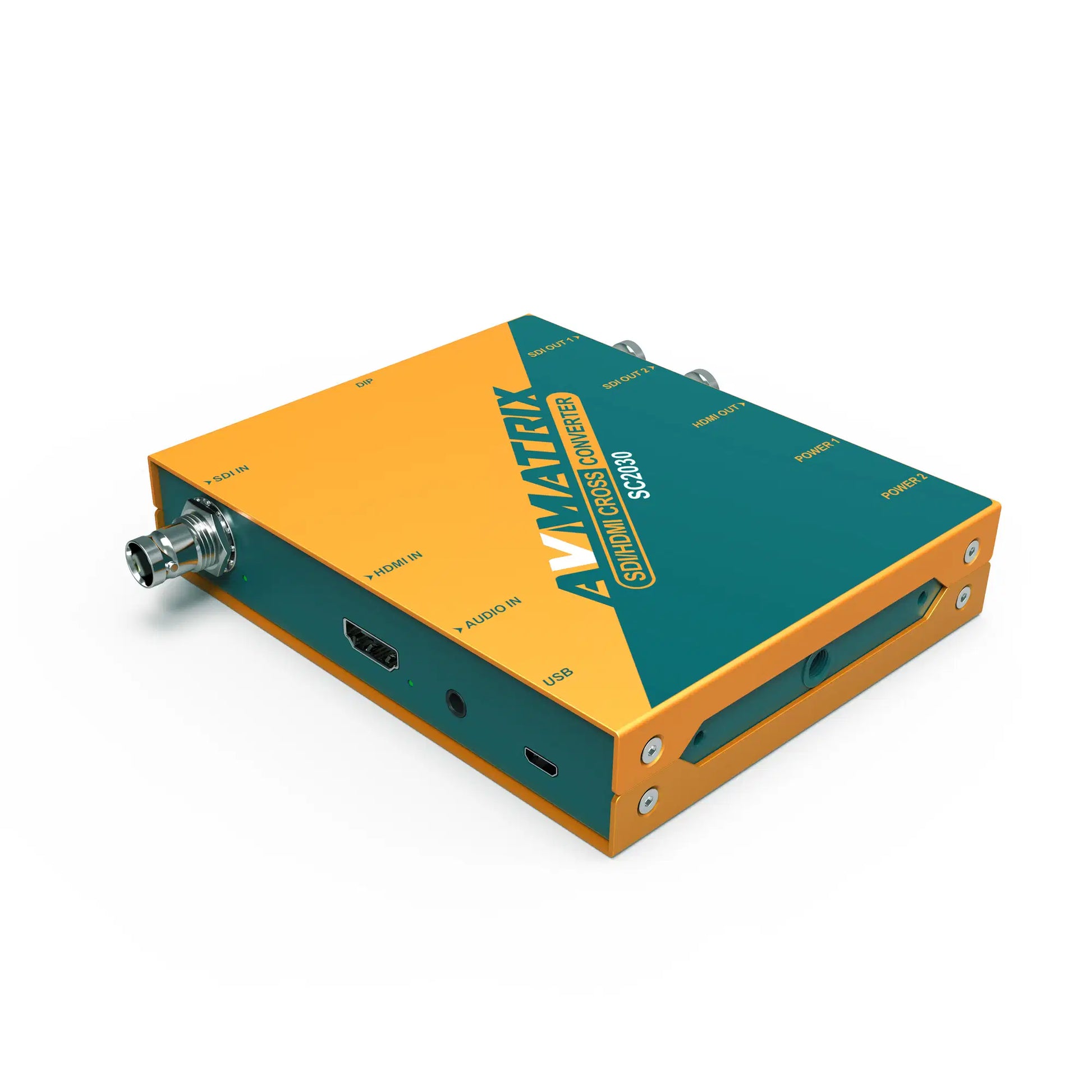

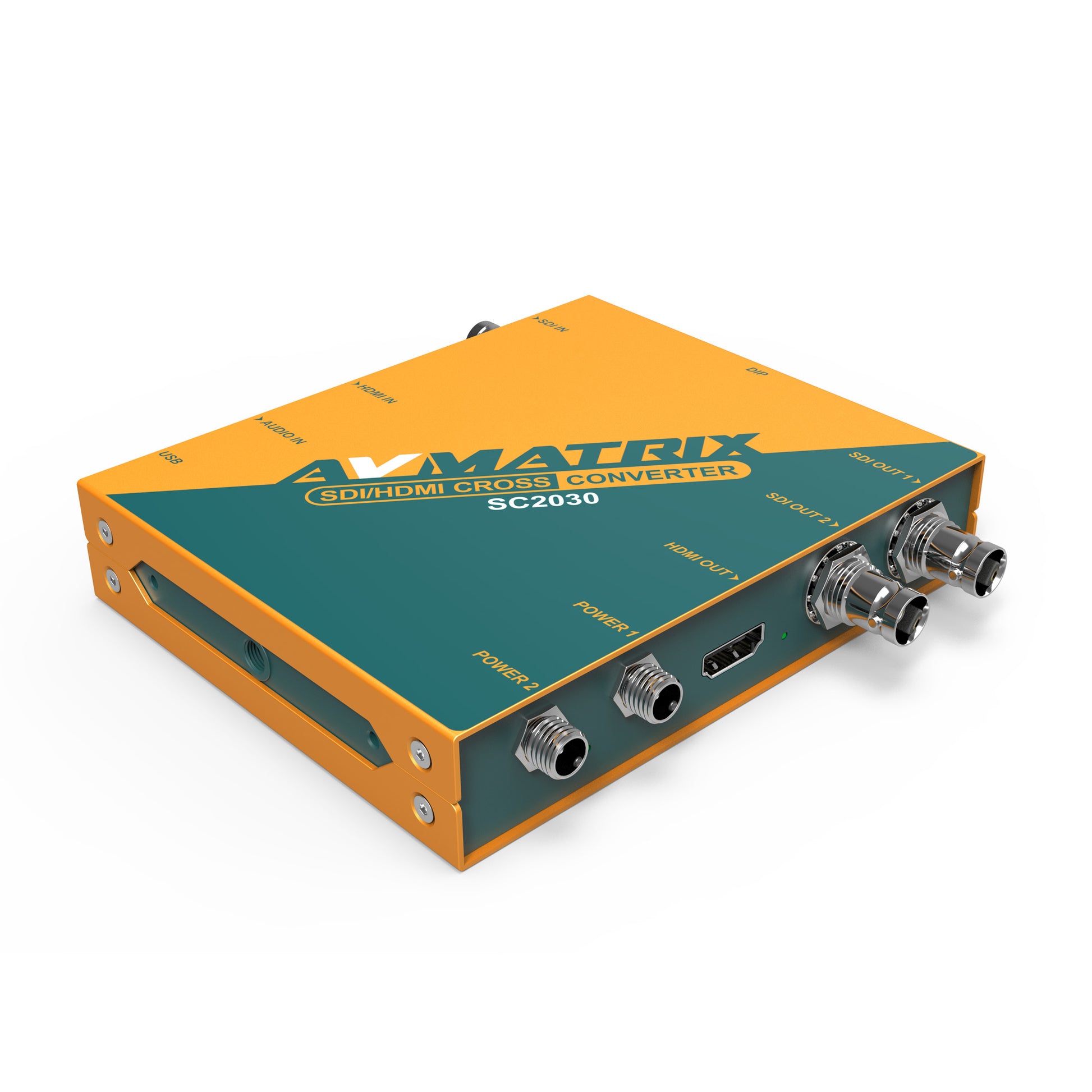

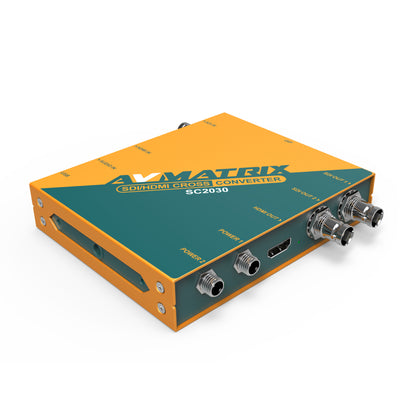

SDI/HDMI up/down cross converter: 1x SD/HD/3G-SDI BNC in, 1x HDMI type A in, 2x SDI out, 1x HDMI out Up/down scaling and frame rate conversion with selectable SDI/HDMI output formats through 1080p60 Analog audio embedding from 3.5 mm input, or pass-through from SDI/HDMI embedded audio Configuration via DIP switches or PC software over Micro USB Dual DC threaded locking power inputs (6 to 23 V) with Micro USB power (3.3 to 5 V), 4 W; DC 12V power supply and USB cable included 125.5 x 104 x 24.5 mm, 485 g; detachable mounting brackets included; -20°C to 60°C operating, 3 year limited warranty

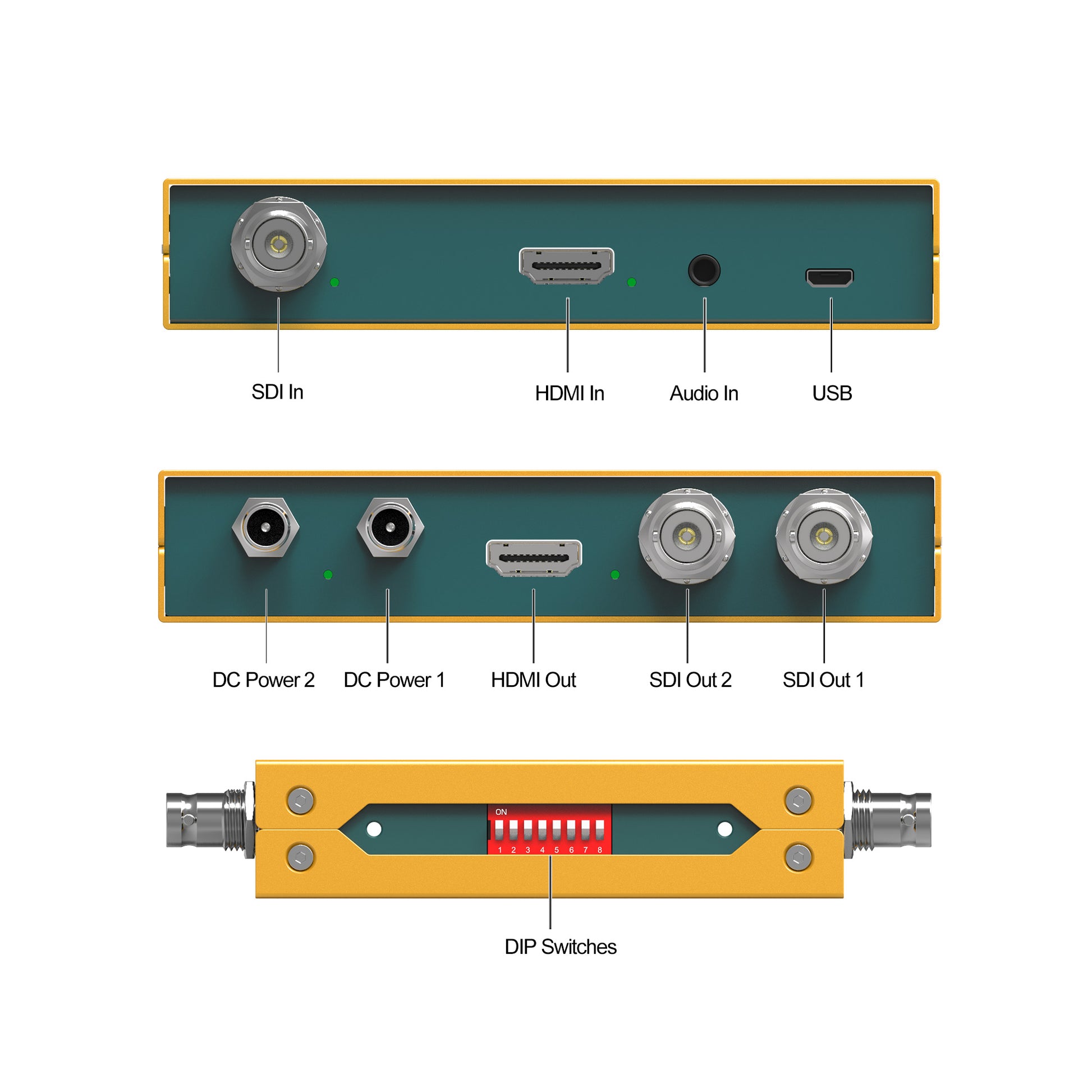

Connections
Video inputs
1x SD/HD/3G-SDI (75Ω BNC), 1x HDMI type A
Video outputs
2x SD/HD/3G-SDI (75Ω BNC), 1x HDMI type A
Audio
1x 3.5 mm analog audio in
Power input
2x DC threaded locking connector (6 to 23 V), 1x Micro USB (3.3 to 5 V)
Video Standards
3G-SDI
1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 625i 50, 525i 59.94
HDMI
1080p 23.976/23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 576p 50, 576i 50, 480i 59.94/60
3G-SDI compliance
3G Level A and Level B; SMPTE 259M, SMPTE 292M, SMPTE 424M
Colour space
YUV 4:2:2 (SDI); RGB 4:4:4, YUV 4:2:2, YUV 4:4:4 (HDMI input)
SDI output rate
SD/HD/3G-SDI
Operational Features
Cross conversion
SDI → HDMI or HDMI → SDI (selectable input); up/down scaling and frame rate conversion; selectable output through 1080p60, 1080i60, and 720p60
Scaler
Up/down scaling with selectable SDI/HDMI output formats through 1080p60
Frame rate conversion
Yes — via selectable output format (up/down scaling and frame rate conversion)
Aspect ratio conversion
SD up-conversion aspect via DIP switches
SDI distribution
1 in, 2 out
Audio embedding
1x 3.5 mm analog audio in, or pass-through from SDI/HDMI embedded audio

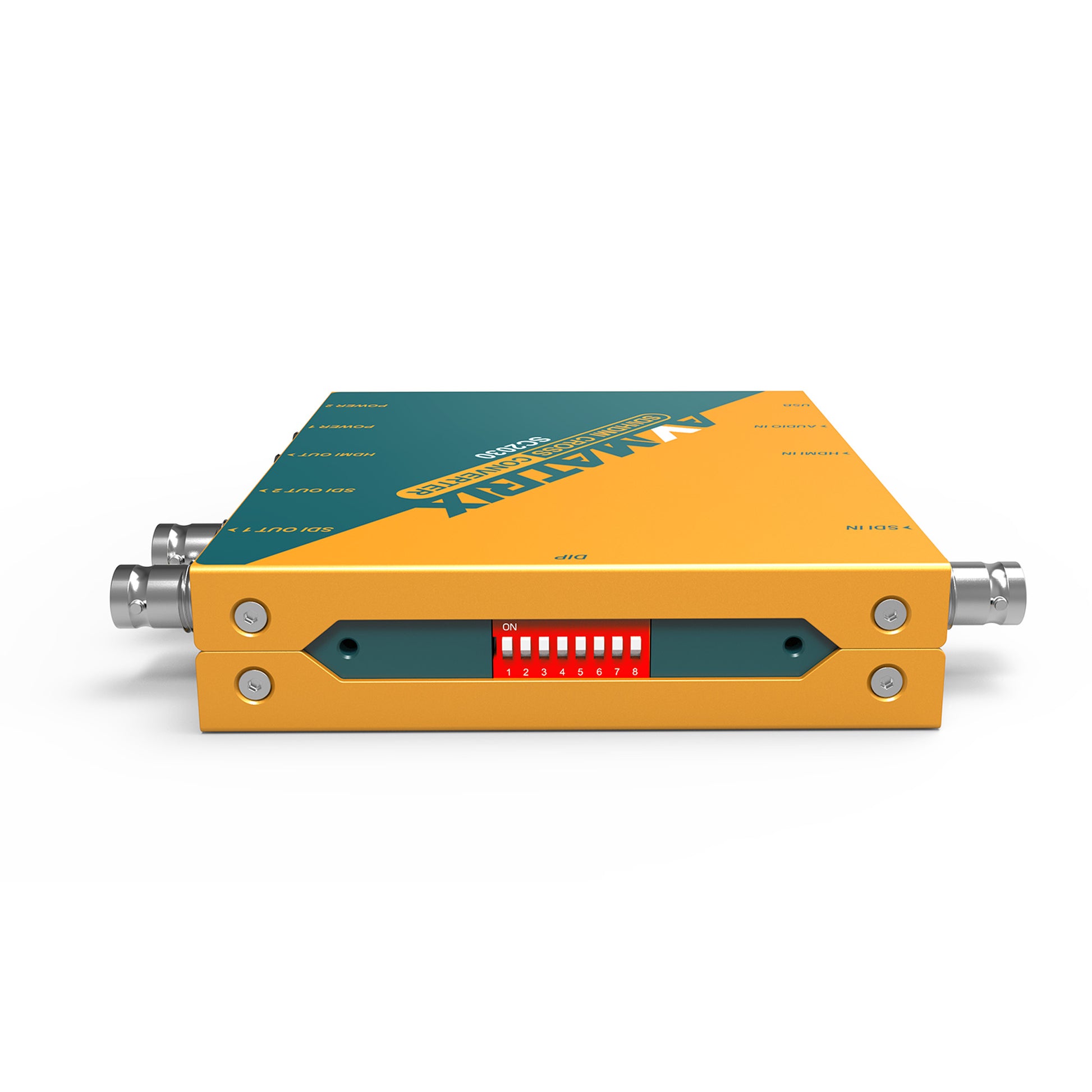

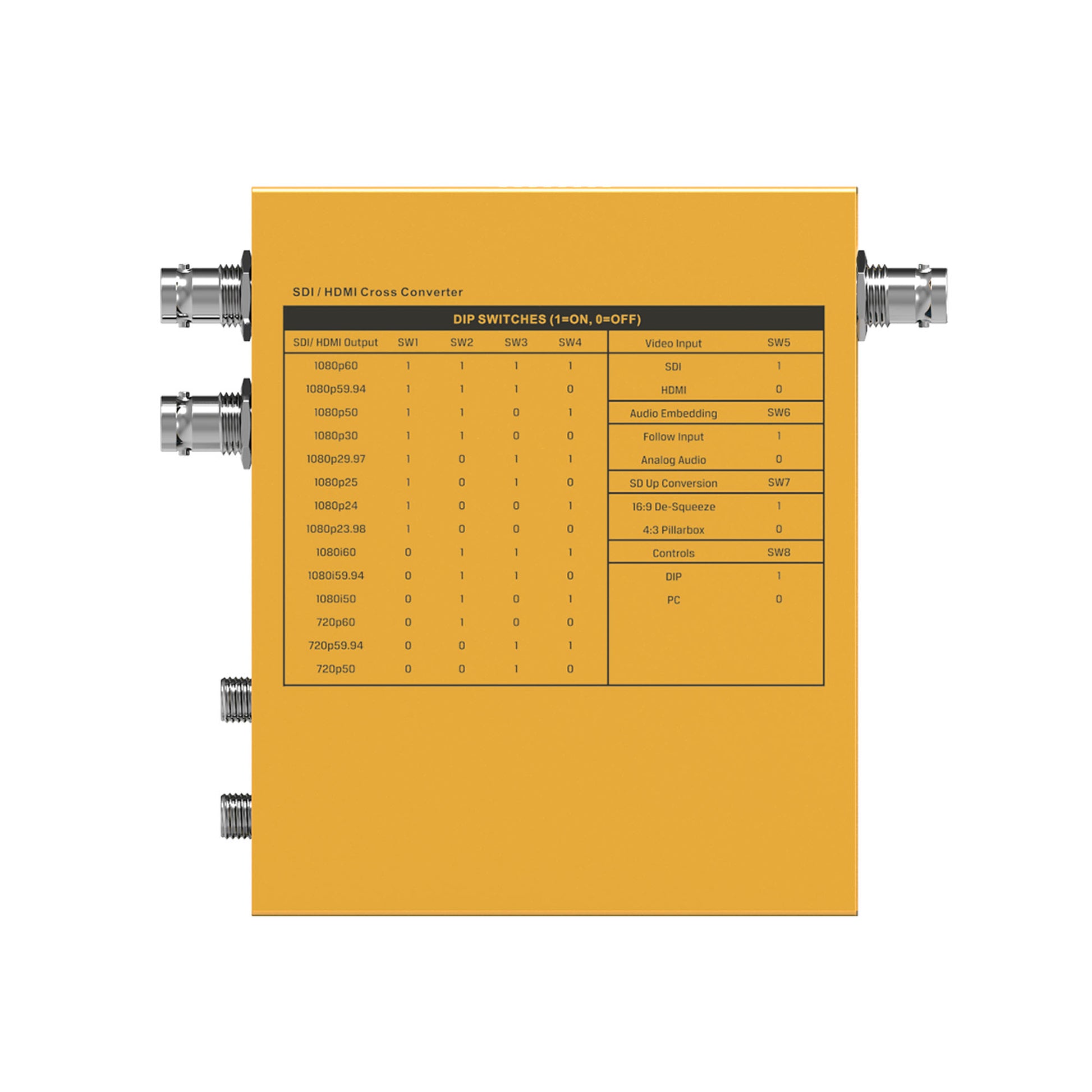

DIP switches
4x for output control
Remote control
PC software via Micro USB
Front panel control
4x DIP switches; PC software via Micro USB
Power
Input voltage
USB 3.3 to 5 V; DC 6 to 23 V
Power consumption
4 W
Environmental
Operating temperature
-20°C to 60°C
Storage temperature
-30°C to 70°C
Relative humidity
0% to 90% non-condensing
Mechanical
Dimensions
125.5 x 104 x 24.5 mm
Weight
485 g
Mounting
Wall mount
Detachable mounting brackets included
Accessories
Included
DC 12V Universal Power Supply with International Socket Adapters, USB Cable, 2x Mounting Brackets
