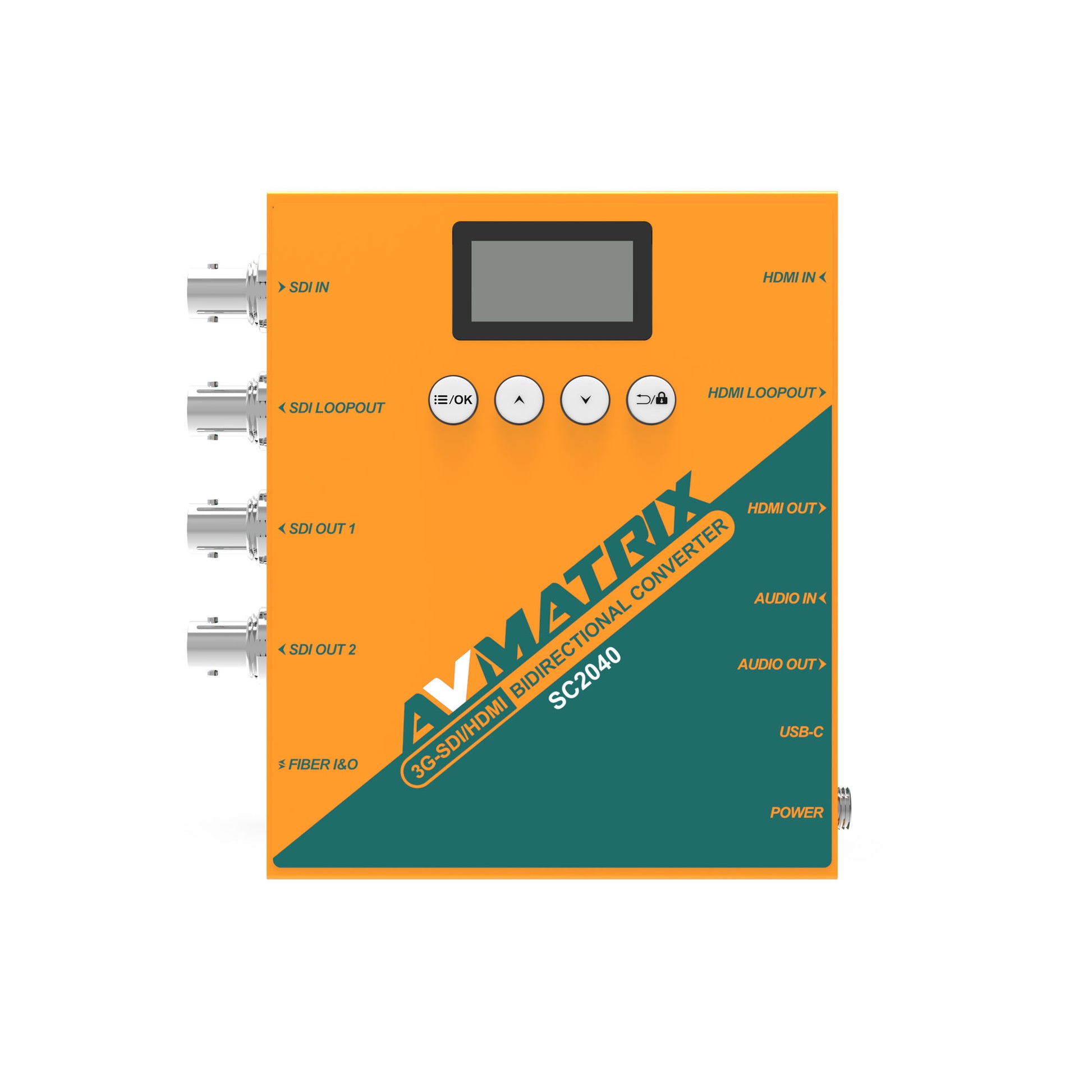

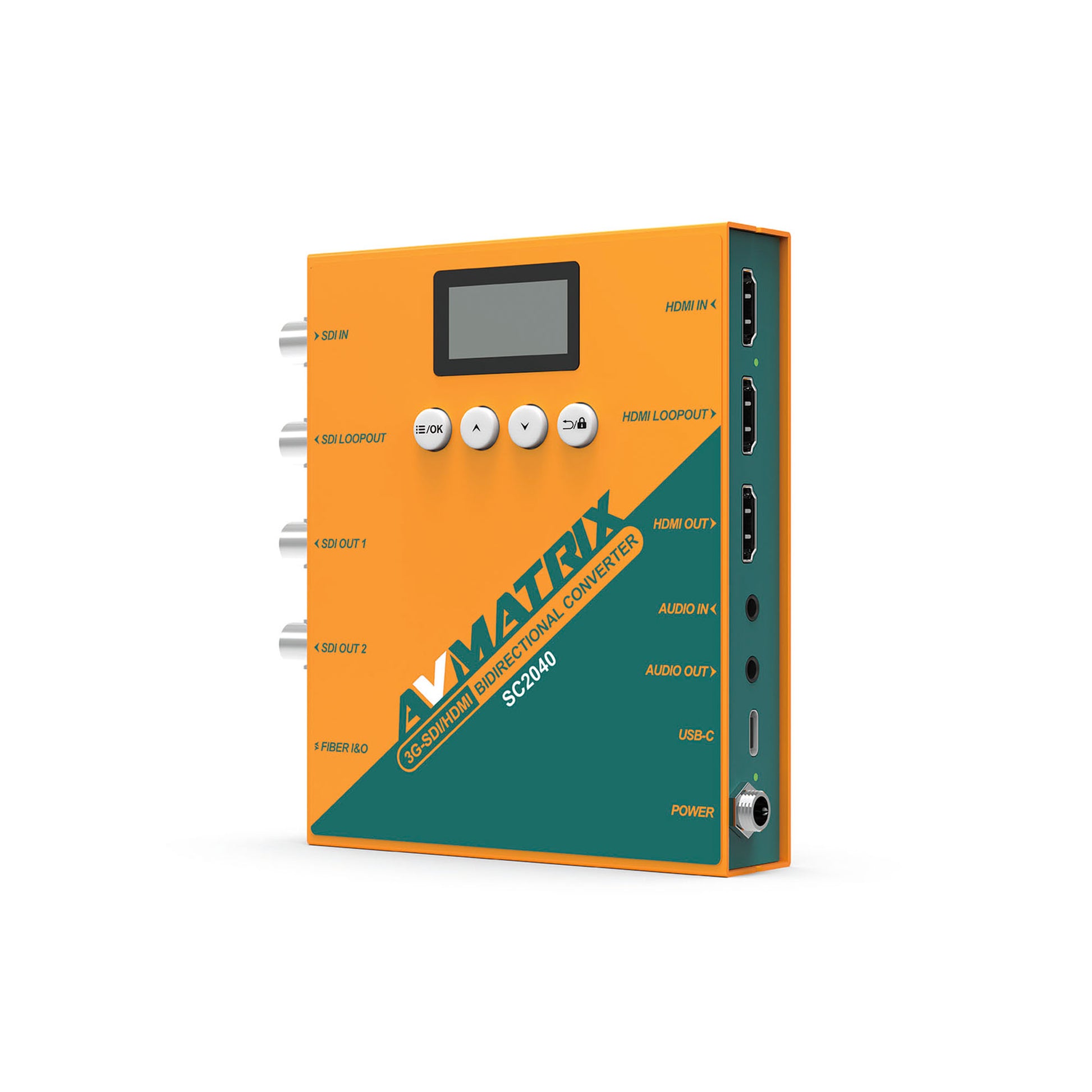

3G-SDI/HDMI bidirectional converter: 1x HDMI in, 1x SD/HD/3G-SDI or SFP fiber in (select 1 of 2), HDMI and SDI loop outs, 2x SDI out, 1x HDMI out, 1x SFP fiber out Up/down scaling and frame rate conversion with selectable SDI/HDMI output formats through 1080p60; 24 processing modes across HDMI, SDI, and fiber Optional bidirectional 3G video SFP (MSA Type) fiber transmission up to 20 km Analog audio embedding and de-embedding via 3.5 mm in/out; built-in test pattern and audio tone generator; horizontal and vertical image flip LCD status display with menu buttons, or PC software over USB Type-C; dual power DC 9 to 24 V and USB-C 5 V, 7 W; 12V 2A power adapter included 104 x 125.5 x 24.5 mm, 517 g; mounting bracket optional; -20°C to 60°C operating, 3 year limited warranty
Connections

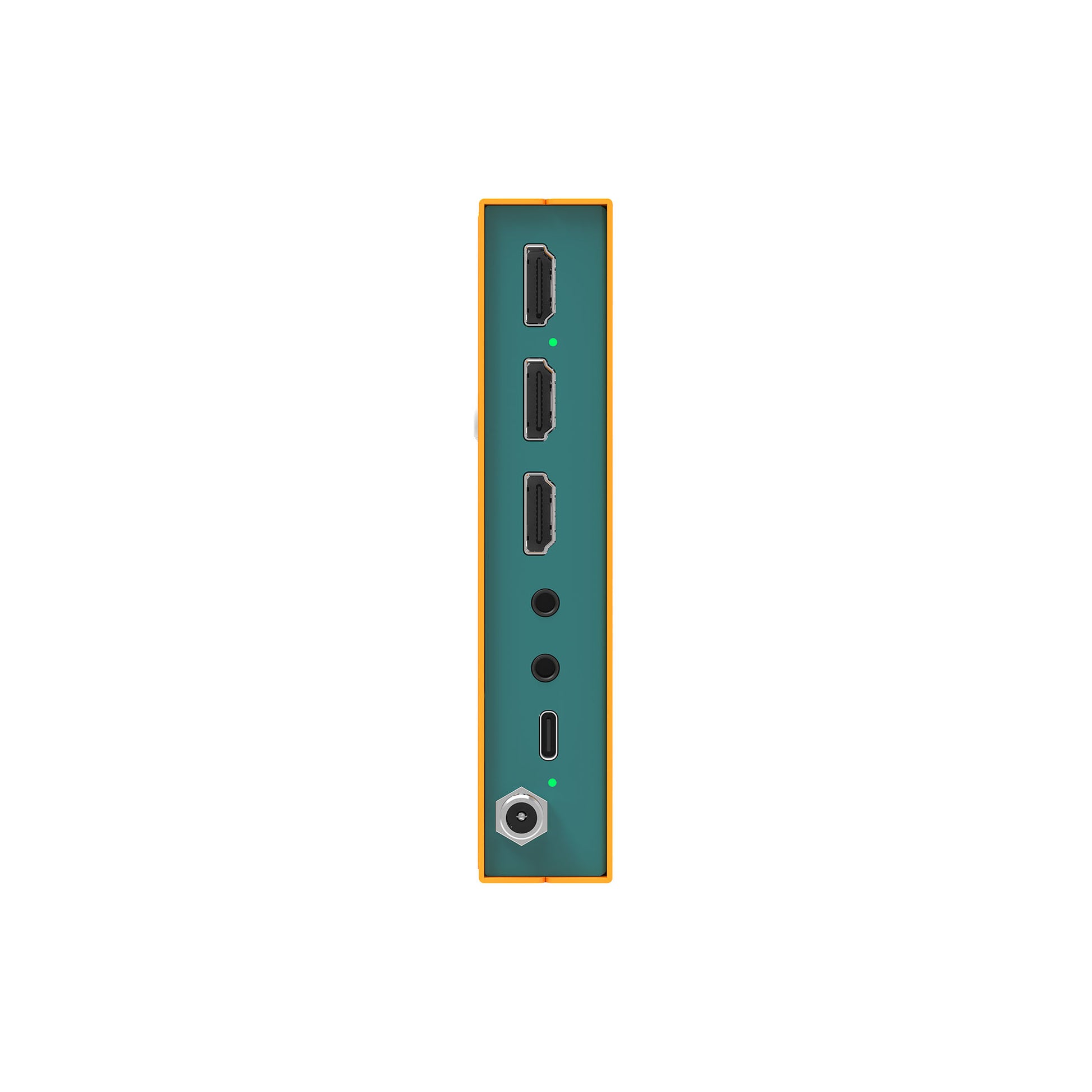

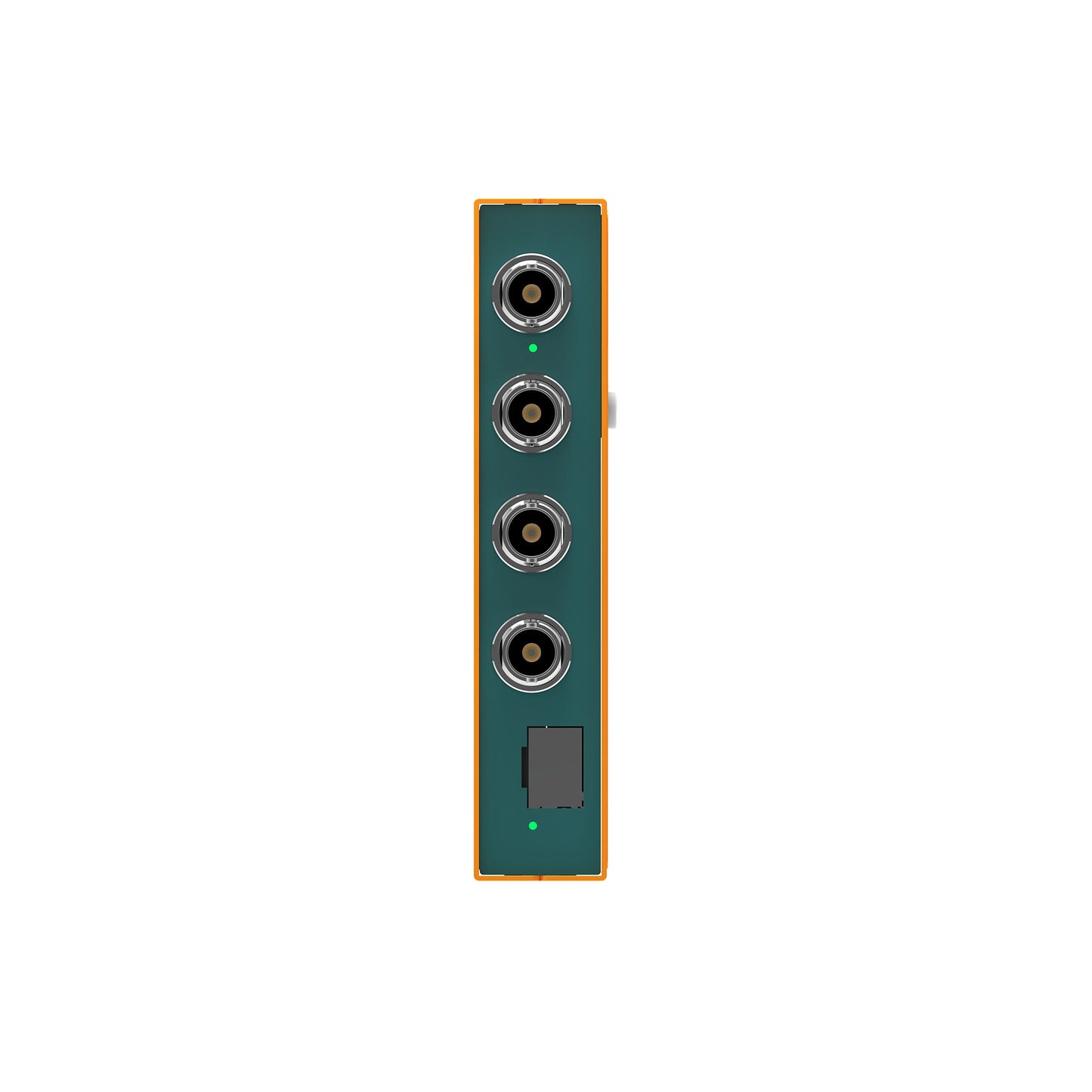

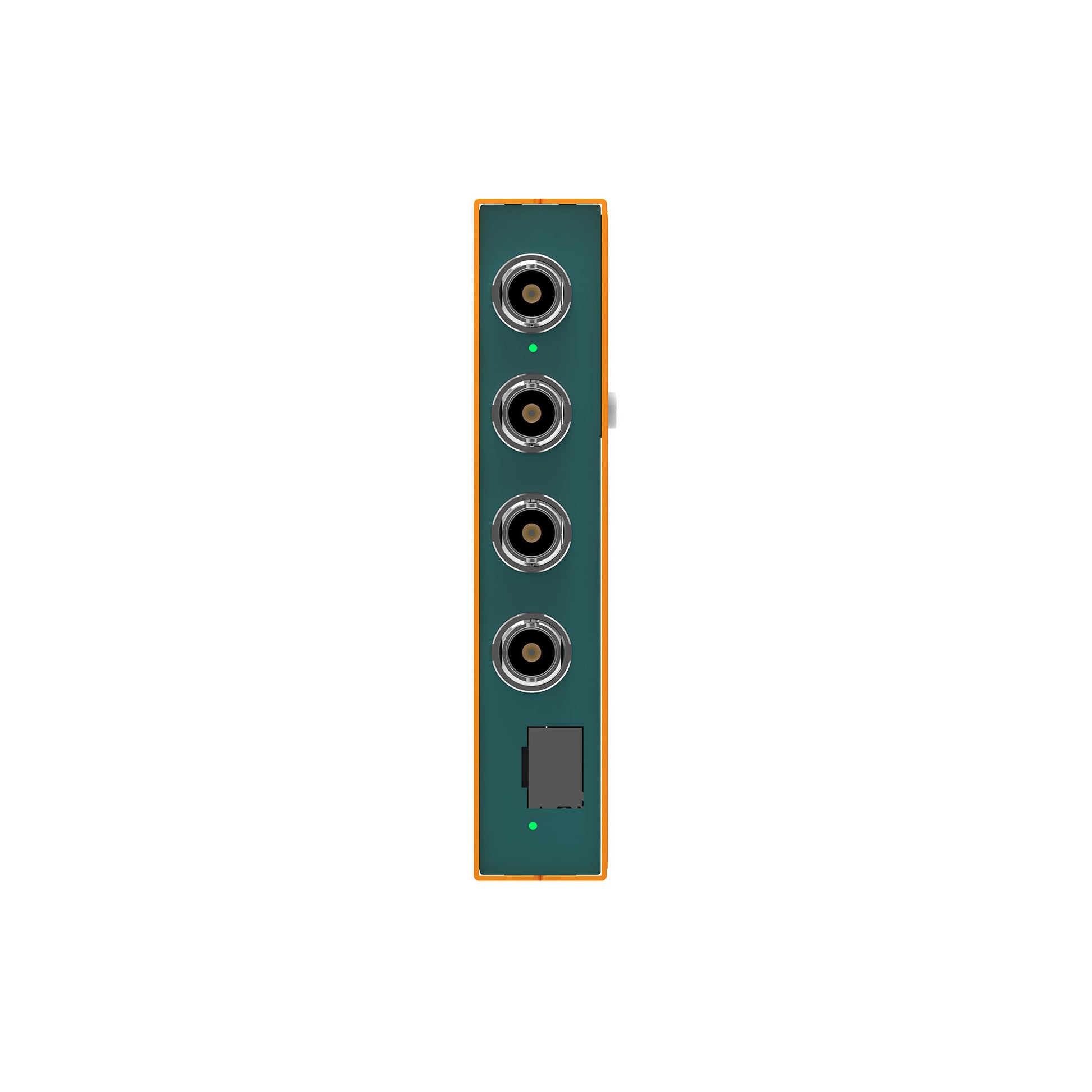

Video inputs
1x HDMI type A, 1x SD/HD/3G-SDI (75Ω BNC) or 1x SFP fiber (select 1 of 2)
Video outputs
1x HDMI loop out, 1x HDMI type A, 1x SD/HD/3G-SDI loop out, 2x SD/HD/3G-SDI (75Ω BNC), 1x SFP fiber
Fiber interface
1x SFP module slot (optional 3G video SFP, MSA Type), Bidirectional fiber I/O; up to 20 km
Audio
1x 3.5 mm analog audio in, 1x 3.5 mm analog audio out
Power input
1x DC threaded locking connector (9 to 24 V), 1x USB Type-C (5 V; upgrade, power and control)
Video Standards
3G-SDI
1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 576i 50, 480i 59.94, 576p 50, 480p 59.94
HDMI
1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 576i 50, 480i 59.94, 576p 50, 480p 59.94
SFP
1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 576i 50, 480i 59.94, 576p 50, 480p 59.94
3G-SDI compliance
3G Level A and Level B
Colour space
RGB 4:4:4, YUV 4:4:4, YUV 4:2:2 (HDMI output)
SDI output rate
SD/HD/3G-SDI
Max fiber distance
20 km (optional SFP)
Operational Features
Cross conversion
Bidirectional SDI ↔ HDMI ↔ fiber (selectable sources); up/down scaling and frame rate conversion; selectable output through 1080p60, 1080i60, and 720p60
Scaler
Up/down scaling with selectable SDI/HDMI output formats through 1080p60
Frame rate conversion
Yes — via selectable output format (up/down scaling and frame rate conversion)
Aspect ratio conversion
SD/HD aspect conversion (anamorphic, letterbox, pillarbox, zoom)
Image mirroring
Horizontal, vertical, and horizontal+vertical flip on SDI and HDMI outputs
SDI distribution
1 in, 3 out (loop + 2x SDI out)
HDMI fibre extender
TX and RX (SFP optional)
SDI fibre extender
TX and RX (SFP optional)
Audio embedding
1x 3.5 mm analog audio in, or pass-through from SDI/HDMI embedded audio
Audio de-embedding
1x 3.5 mm analog audio out
Audio pair rearrangement
Yes — HDMI (4 stereo pairs) and SDI (8 stereo pairs) output remapping
Test pattern generator
23 professional test patterns and audio tones
Frame counter and circle overlay
Dynamic circle and frame-count overlays on test pattern output
Menu control
LCD status display with 4 buttons
Remote control
PC software via USB Type-C
Front panel control
LCD status display with 4 buttons; PC software via USB Type-C
Power
Input voltage
USB-C 5 V; DC 9 to 24 V
Power consumption
7 W
Environmental
Operating temperature
-20°C to 60°C
Storage temperature
-30°C to 70°C
Mechanical
Dimensions
104 x 125.5 x 24.5 mm
Weight
517 g

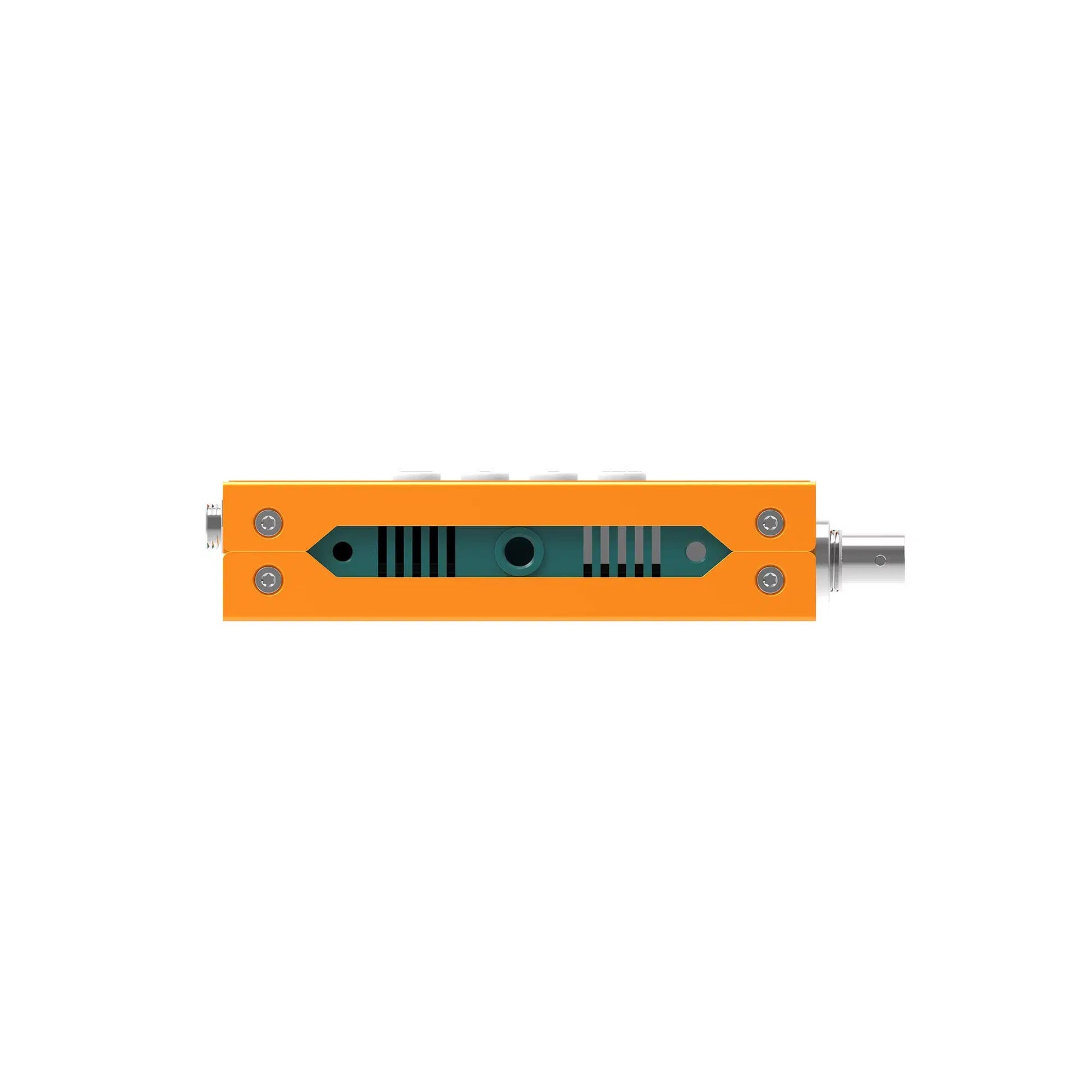

Mounting
Wall mount
Mounting bracket (optional)
Accessories
Included
12V 2A Power Adapter
Optional
SFP Module (MSA Type), Mounting Bracket, USB A-C Cable
