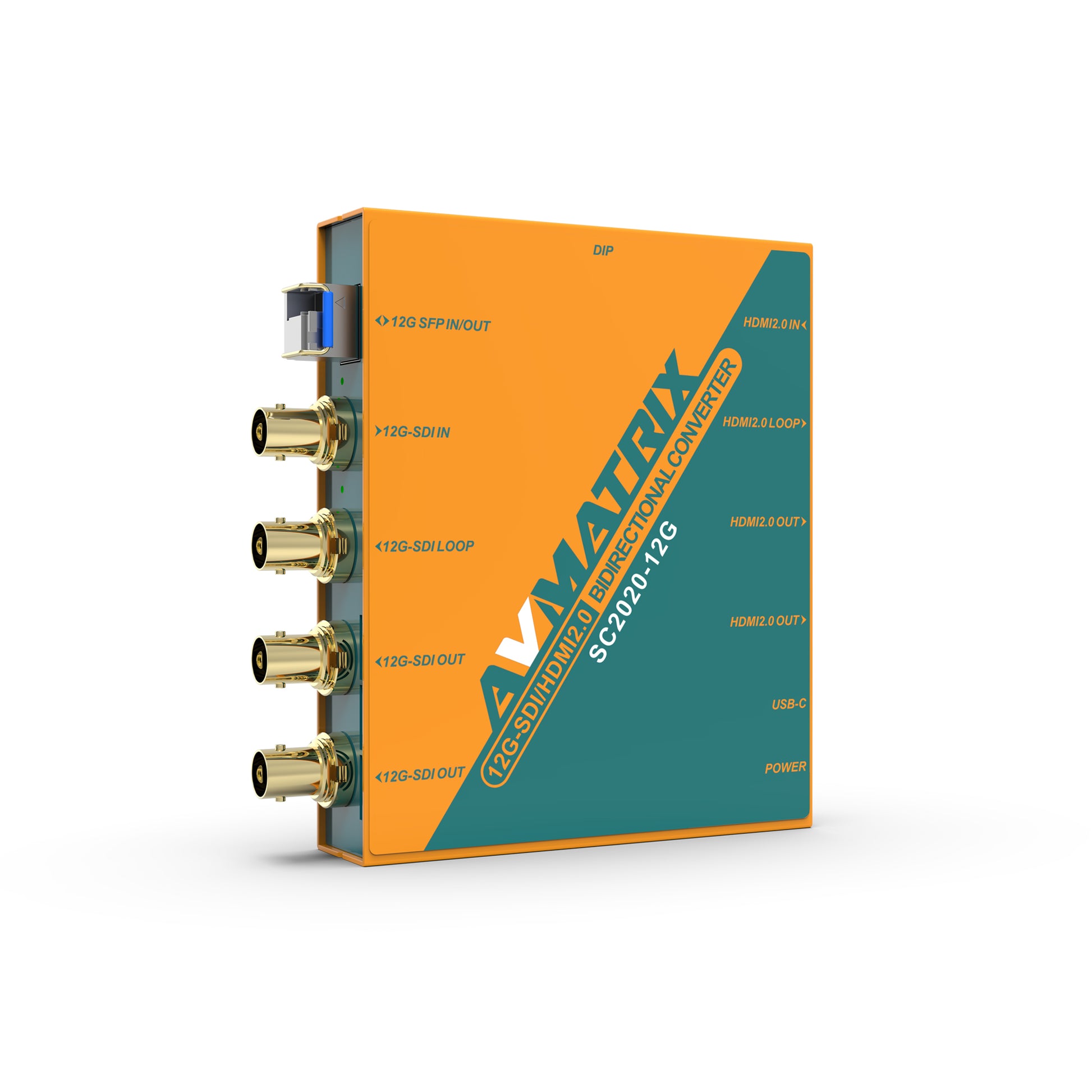

12G-SDI to HDMI 2.0 bidirectional converter: 1x HDMI 2.0 in, 1x 12G-SDI or 12G SFP fiber in (select 1 of 2), HDMI and SDI loop outs, 2x HDMI 2.0 out, 2x 12G-SDI out, 1x 12G fiber out Up to 4K60 (2160p, 1080p, 1080i, 720p); 4K60 to 4K30 conversion via DIP; 3G-SDI Level A or Level B output Optional SFP module transceiver for fiber transmission up to 10 km; SFP 12G or 6G selectable HDMI colour space Full/Limited RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0; Rec.709 and Rec.2020 Control via DIP switches or PC software over USB Type-C; DC 5 to 24 V, 15 W; 12V 2A power adapter included 104 x 125.5 x 24.5 mm, 590 g; mounting bracket optional; -20°C to 60°C operating, 3 year limited warranty

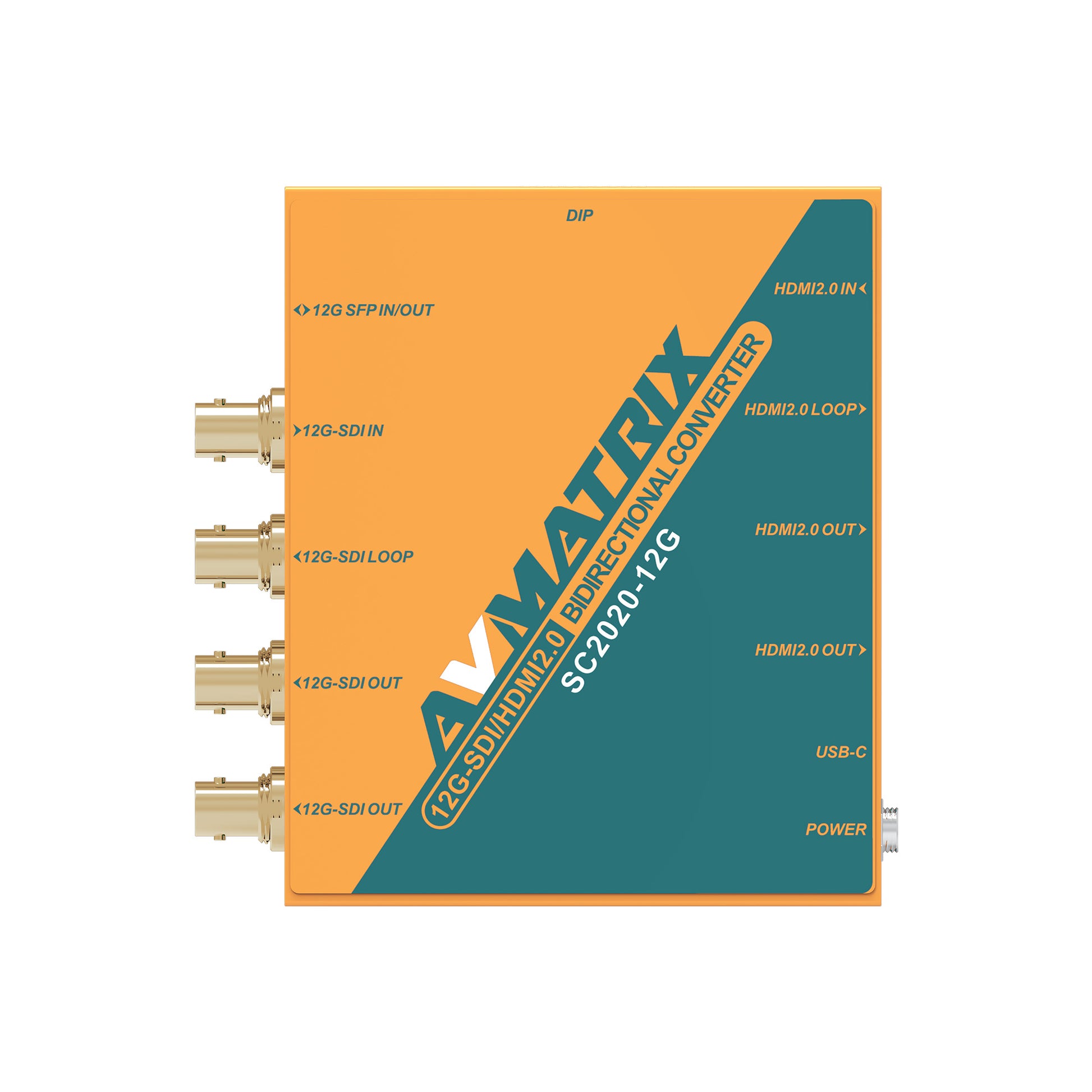

Connections
Video inputs
1x HDMI 2.0 type A, 1x 12G-SDI (75Ω BNC) or 1x 12G SFP fiber (select 1 of 2)
Video outputs

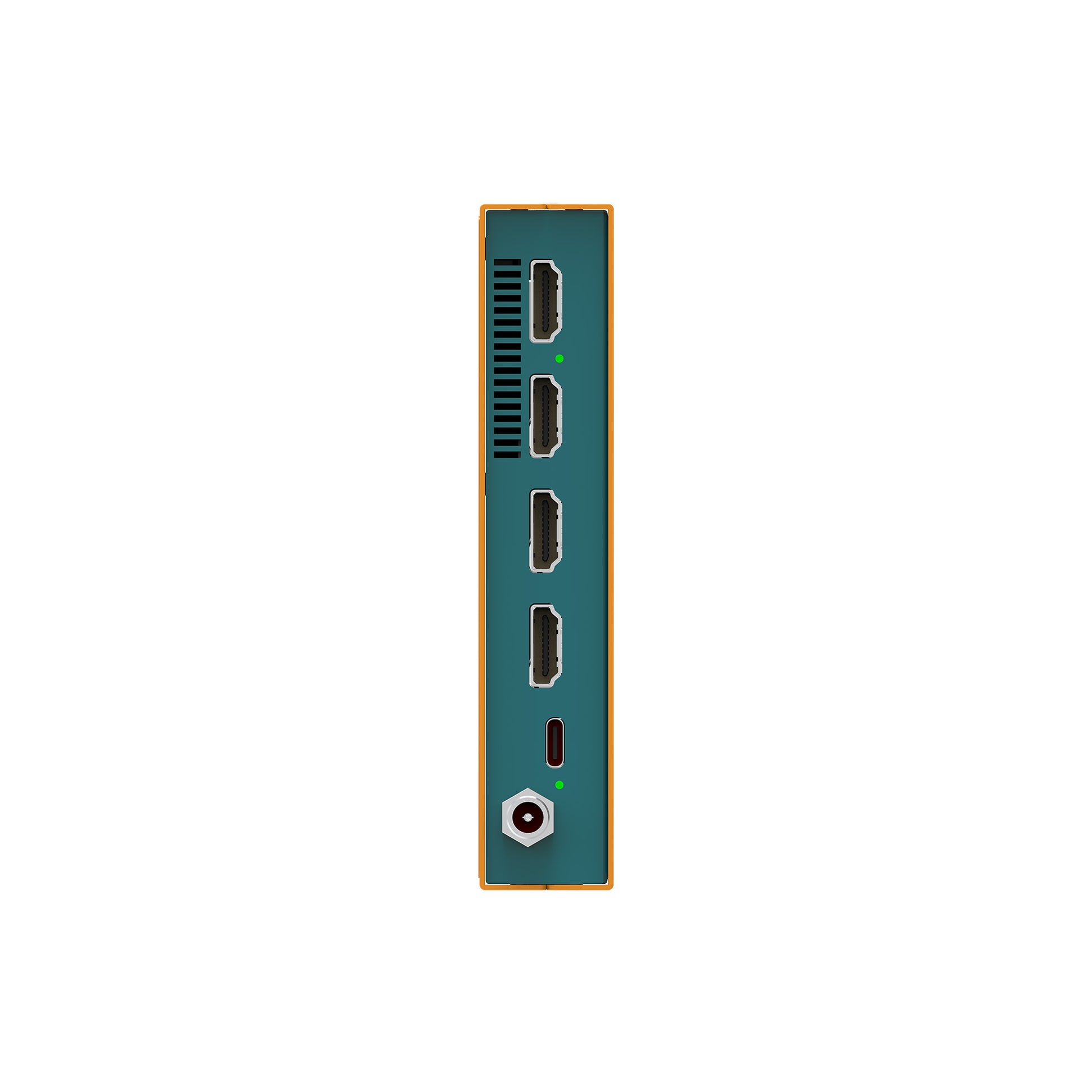

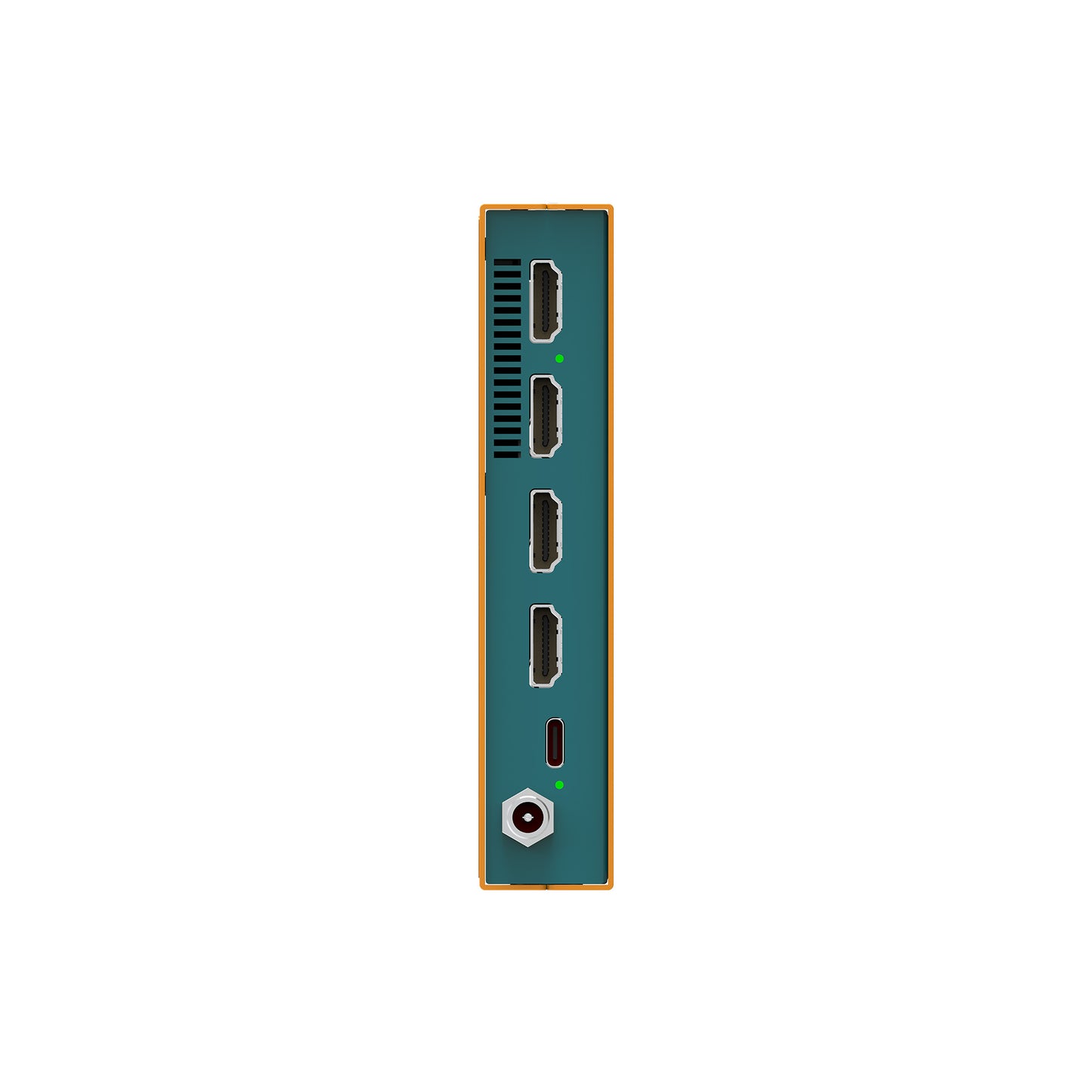

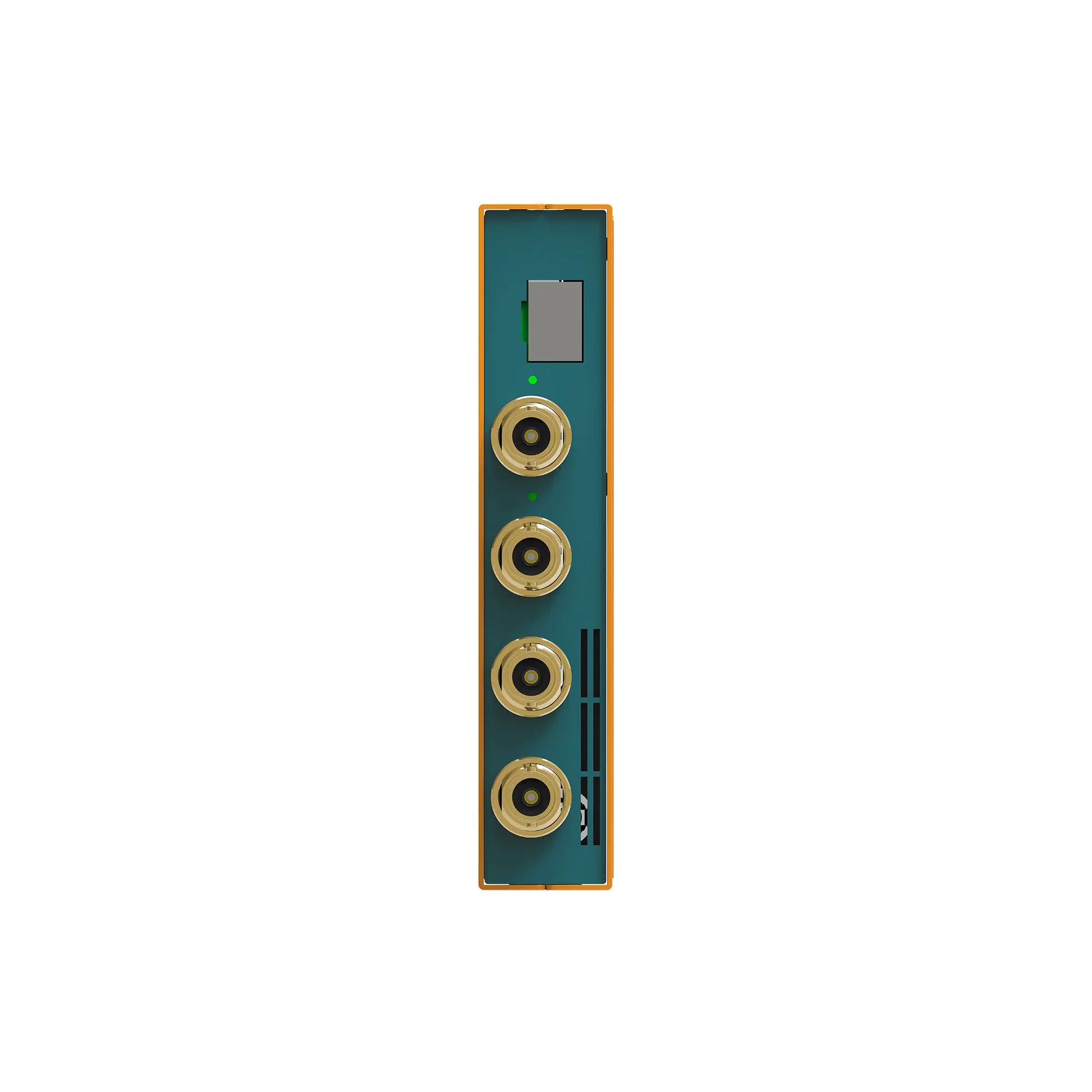

1x HDMI 2.0 loop out, 2x HDMI 2.0 type A, 1x 12G-SDI loop out, 2x 12G-SDI (75Ω BNC), 1x 12G SFP fiber
Fiber interface
1x SFP module slot (optional 12G video SFP), Bidirectional fiber I/O; up to 10 km
Power input
1x DC threaded locking connector (5 to 24 V)
Other interfaces
1x USB Type-C (upgrade and PC software control)
Video Standards
12G-SDI
2160p up to 60, 1080p, 1080i, 720p
HDMI 2.0
2160p up to 60, 1080p, 1080i, 720p
SFP
2160p up to 60, 1080p, 1080i, 720p
3G-SDI
1080p 50/59.94/60
3G-SDI compliance
3G Level A and Level B
Colour space
Full RGB 4:4:4, Limited RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 (HDMI)
Format auto-detection
Auto-detects HD, 3G, 6G, and 12G input (LED: green HD, blue 3G, yellow 6G, purple 12G)
SDI output rate
HD/3G/6G/12G-SDI; SFP 12G or 6G selectable
Max fiber distance
10 km (optional SFP)
Operational Features
Cross conversion
Bidirectional 12G-SDI ↔ HDMI 2.0 ↔ fiber (SDI/SFP select 1 of 2); selectable HDMI and SDI/SFP output sources
Scaler
4K60 to 4K30 conversion via DIP
Frame rate conversion
4K60 to 4K30 via DIP
SDI distribution
1 in, 3 out (loop + 2x 12G-SDI out)
HDMI fibre extender
TX and RX (SFP optional)
SDI fibre extender
TX and RX (SFP optional)
Selectable colour spaces
Rec.709, Rec.2020

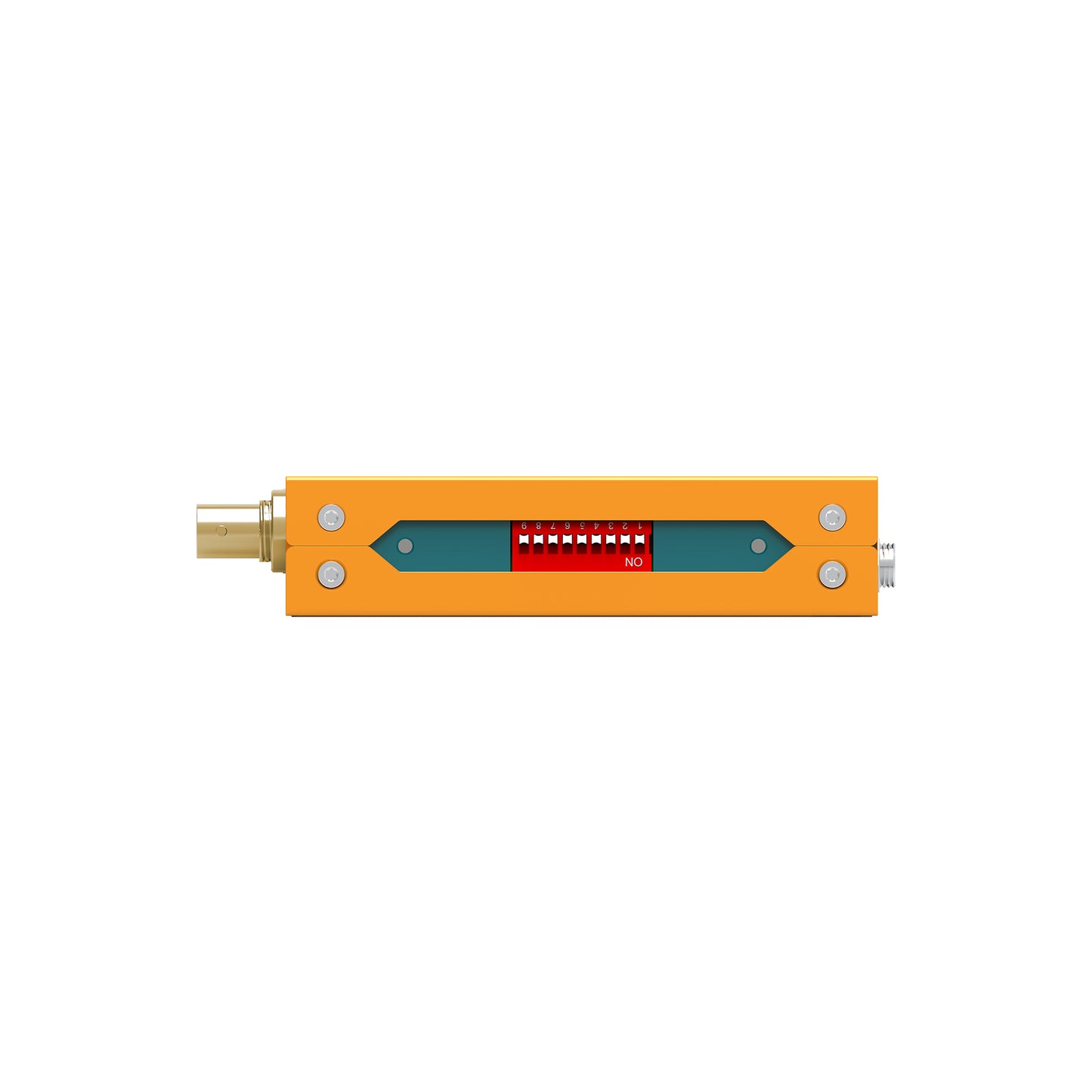

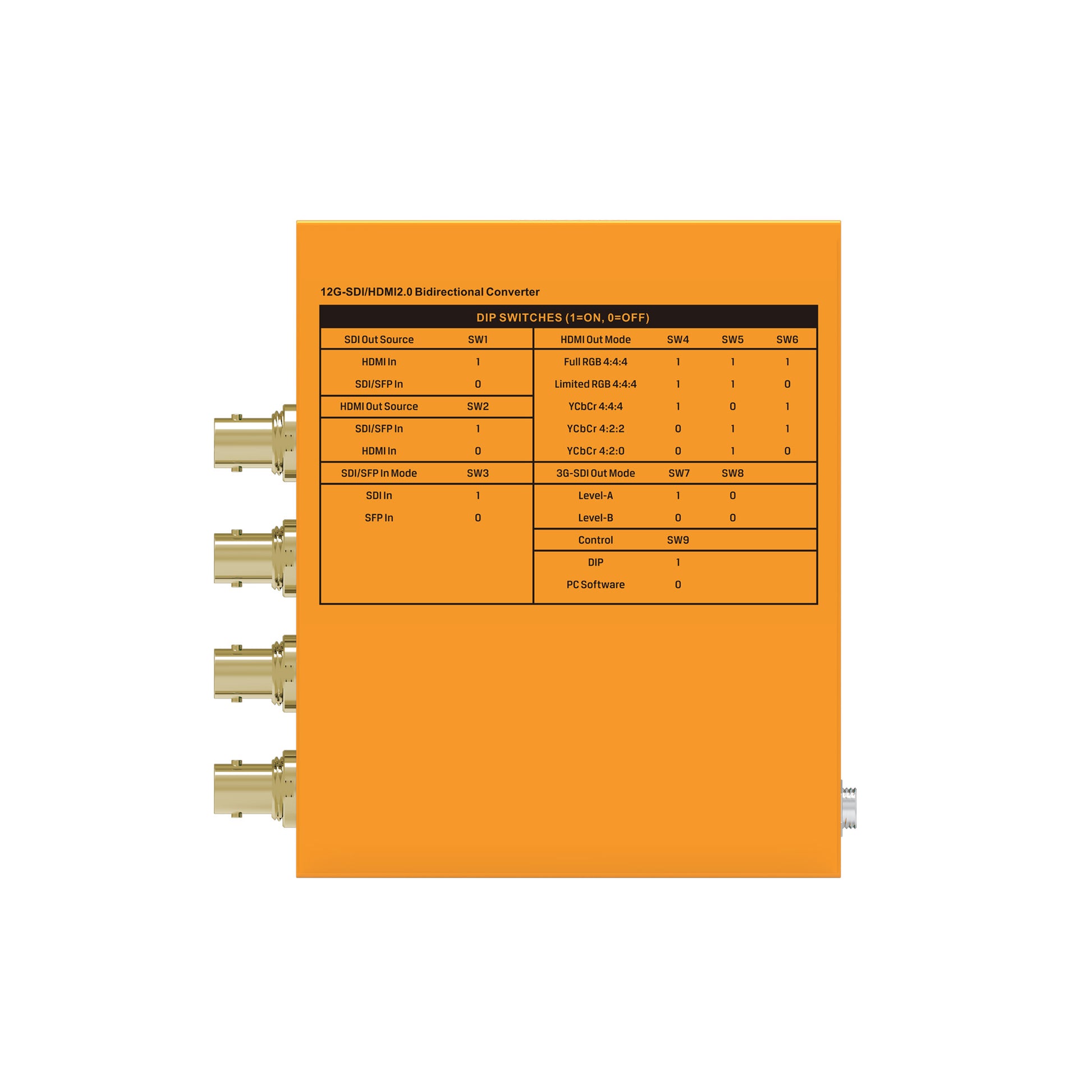

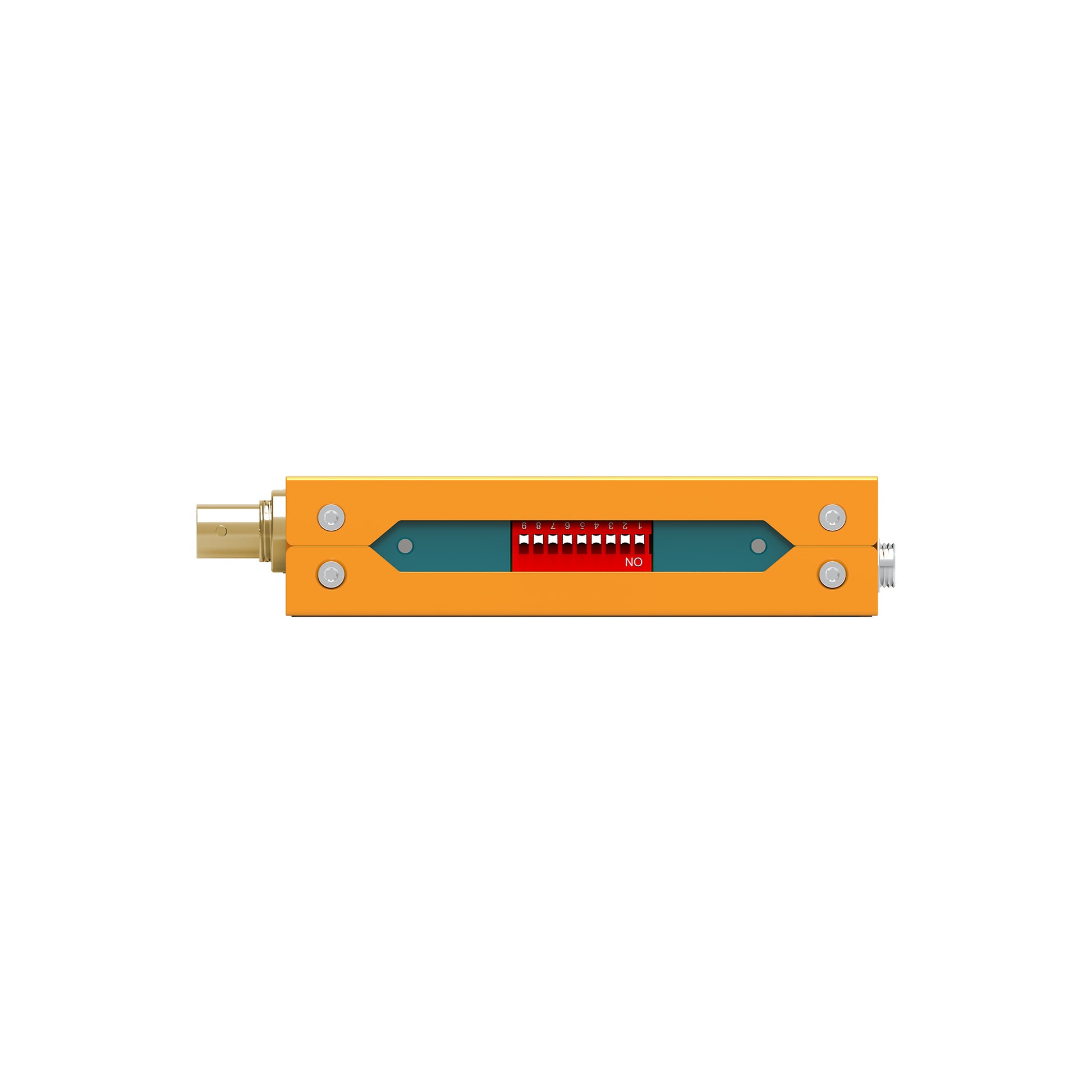

DIP switches
10x for SDI/HDMI source, SDI/SFP in, 4K60 to 4K30, SFP direction, SFP 12G/6G, HDMI colour space, 3G Level A/B, and DIP vs PC control
Remote control
PC software via USB Type-C
Front panel control
DIP switches; PC software via USB Type-C
Power
Input voltage
DC 5 to 24 V
Power consumption
15 W
Environmental
Operating temperature
-20°C to 60°C
Storage temperature
-30°C to 70°C
Mechanical
Dimensions
104 x 125.5 x 24.5 mm
Weight
590 g
Mounting
Wall mount
Mounting bracket (optional)
Accessories
Included
12V 2A Power Adapter
Optional
SFP Module, Mounting Bracket, USB A-C Cable
