Features Technical Data Downloads

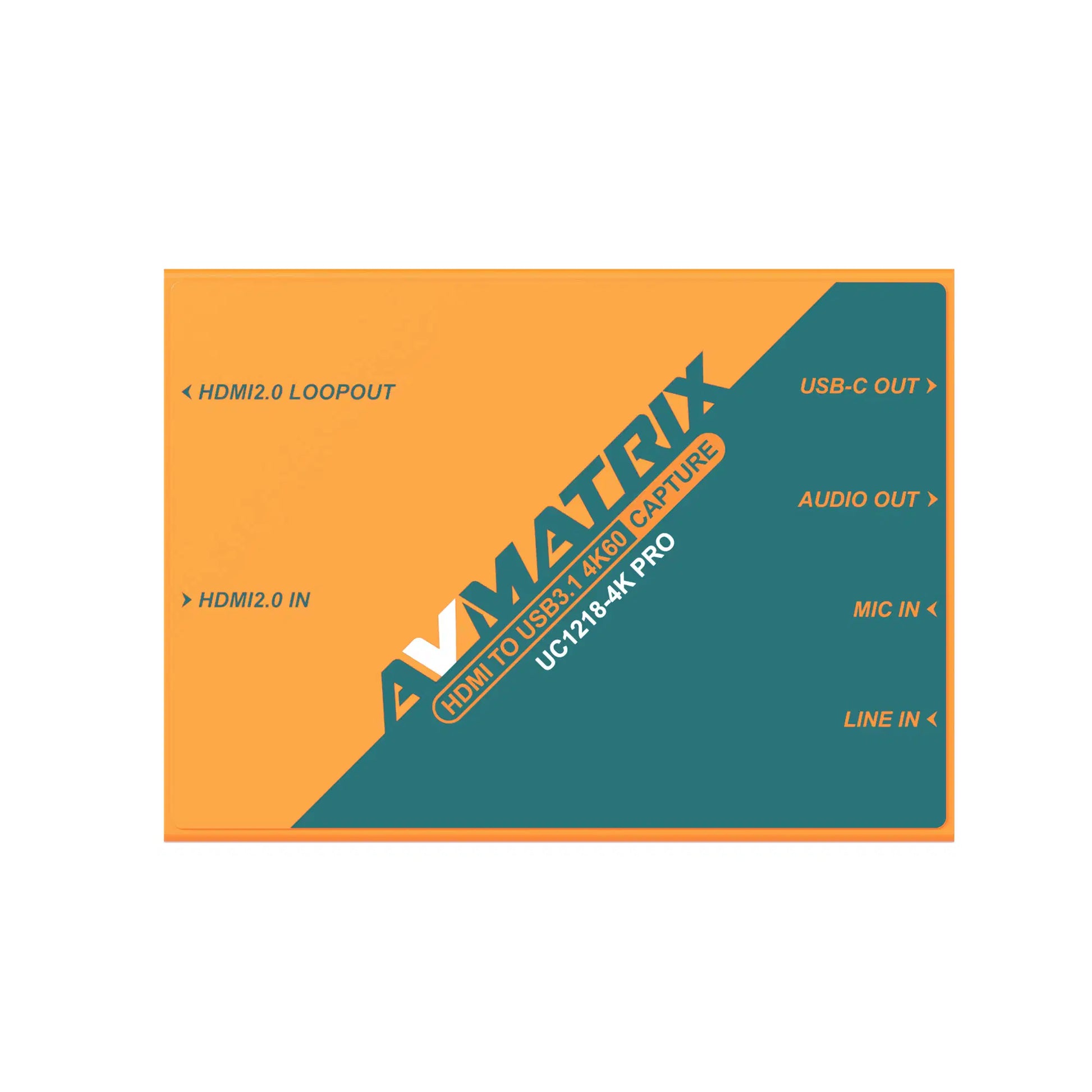

HDMI 2.0 to USB 3.1 Gen2 4K capture, 1x HDMI 2.0 input, 1x HDMI 2.0 loop-out USB 3.1 Gen2 Type C (10 Gbps). Up to 4K60, 2K144Hz, 1080p240Hz P010/MJPG up to 4K60; YUY2/NV12/I420 up to 4K60; RGB24 up to 2560 x 1440 p60 1x 3.5 mm line in, 1x mic in, 1x audio out. UVC/UAC HDR10, VRR. Ultra-low latency. 2ch 16 bit PCM 44.1 kHz 4.5 W. 104 x 76 x 19 mm, 274 g. 3-year warranty
Connections
Host interface
USB 3.1 Gen2 Type C (10 Gbps)
Video interfaces
1x HDMI 2.0 input, 1x HDMI 2.0 loop-out
Audio

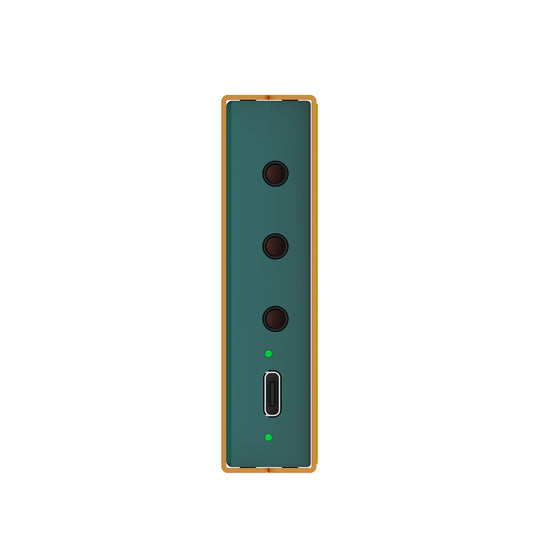

1x 3.5 mm line in, 1x 3.5 mm mic in, 1x 3.5 mm audio out
Video Standards
HDMI 2.0
4K 24/25/30/50/60, 1440p 60/120/144, 1080p 24/25/30/50/60/120/240, 1080i 50/60, 720p 50/60
Video format (USB capture)
P010/MJPG up to 4K60; YUY2/NV12/I420 up to 4K60; RGB24 up to 2560 x 1440 p60
Video color space
P010, MJPG, RGB24, YUY2, NV12, I420
Capture standard
UVC (USB Video Class), UAC (USB Audio Class)
Audio sampling
44.1 kHz 16 bit
Power
Power consumption
4.5 W ±10%
Environmental
Operating temperature
-20°C to 60°C
Storage temperature
-30°C to 70°C
Relative humidity
20 to 90% non-condensing
Mechanical
Dimensions
104 x 75.5 x 19 mm
Weight
274 g
Accessories
Included
USB 3.0 A to C cable
Optional
HDMI cable
Other
Warranty
3 years
Features
HDR10, VRR passthrough. Ultra-low latency. Gaming-optimised (PS5, Xbox Series X/S)
Support
System
Windows 7/8/10/11, Linux (kernel 2.6.38+), macOS 10.8+
Software
OBS Studio, Skype, Zoom, Teams, Google Meet, YouTube Live, QuickTime Player, FaceTime
APIs
Windows: DirectShow, DirectSound
