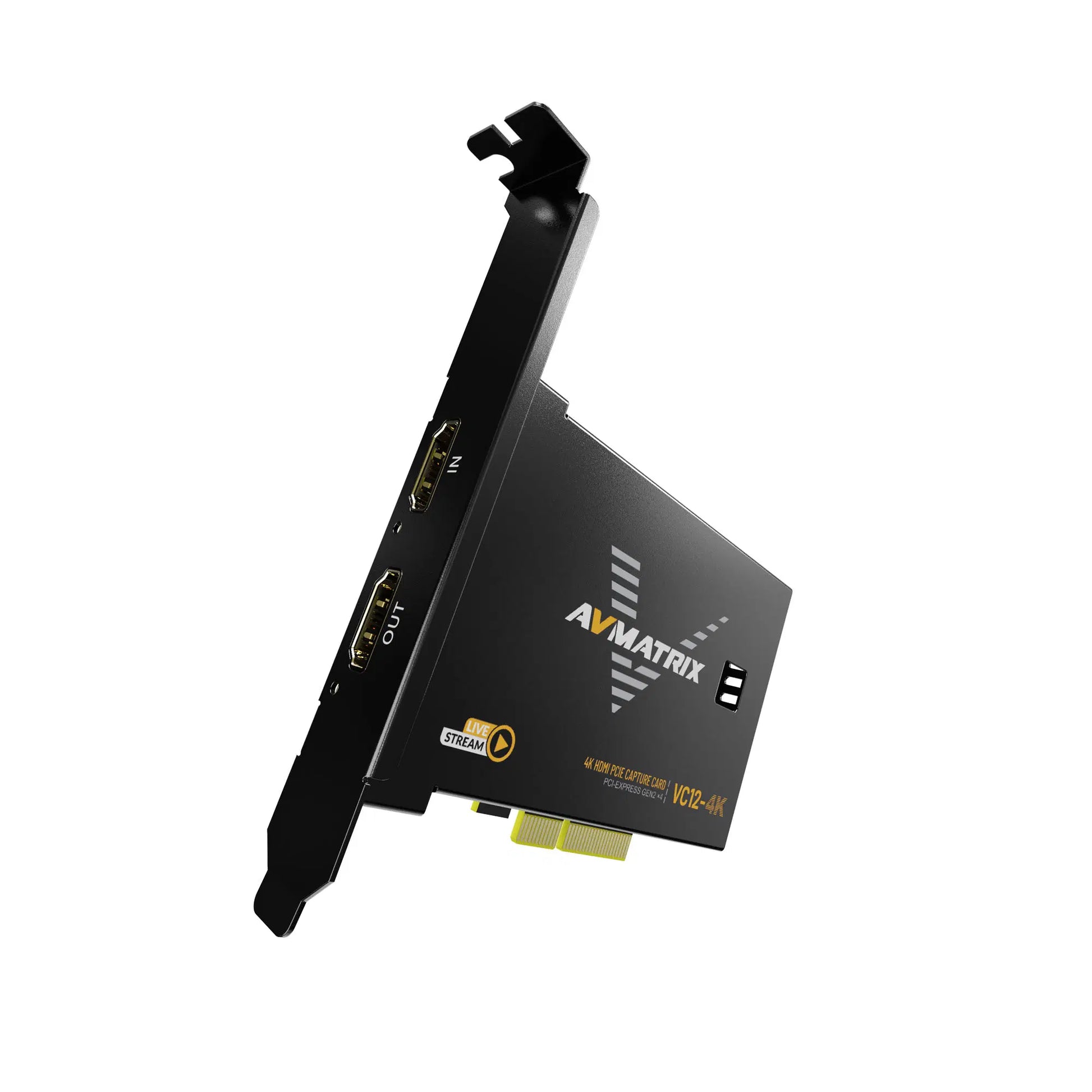

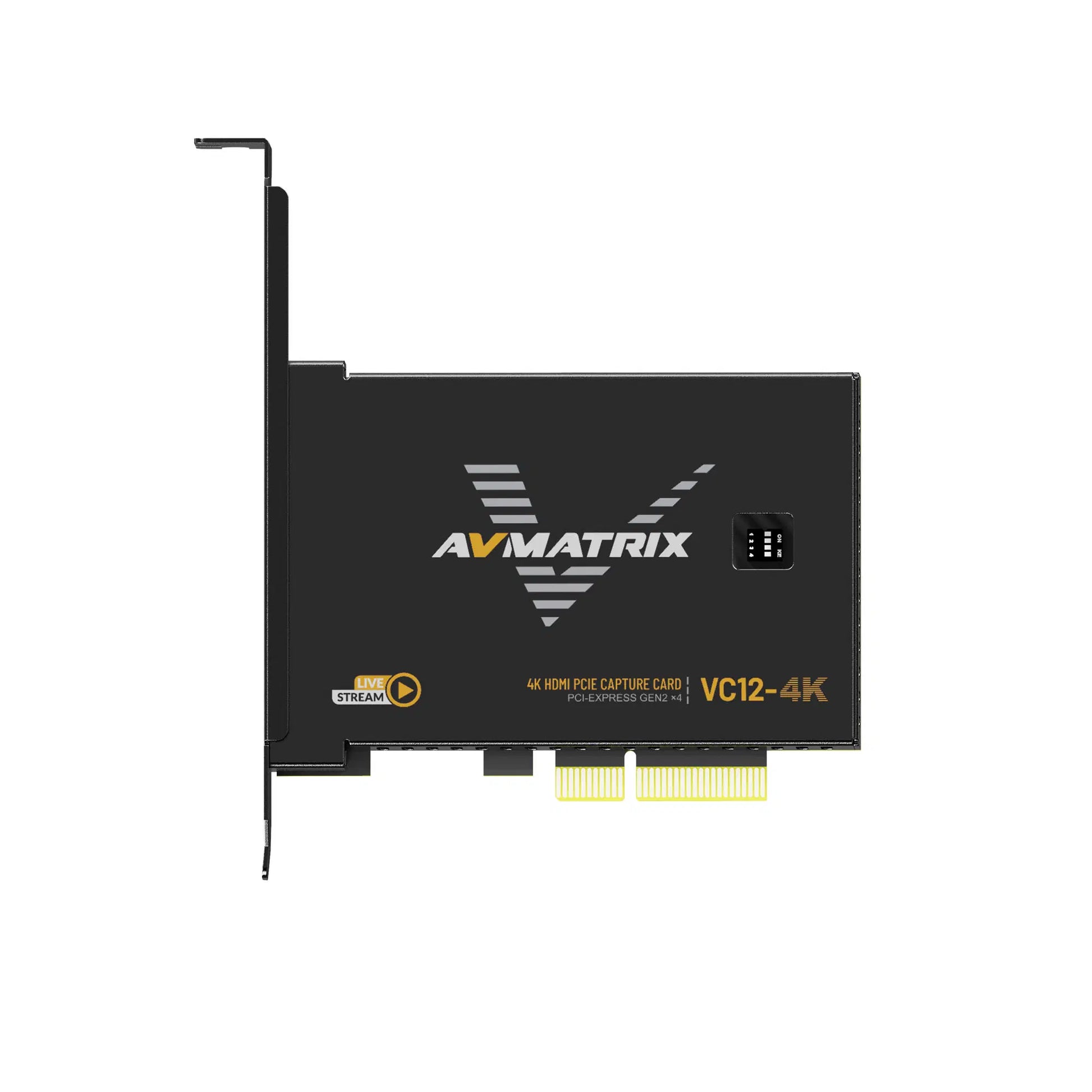

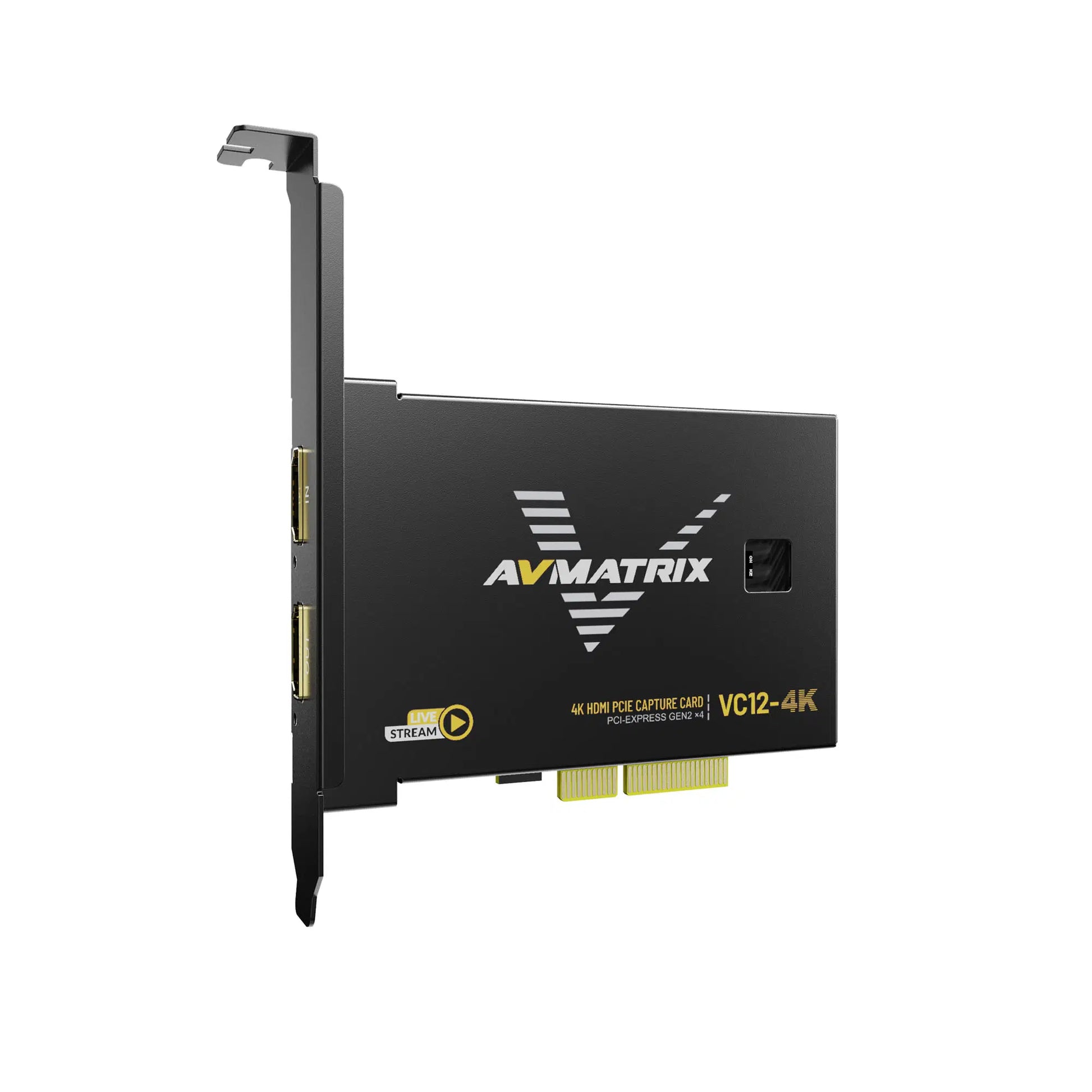

- Single-channel HDMI 2.0 video capture PCI-E card, PCIe x4 Gen2, 2.5 GB/s
- 1x HDMI 2.0 input, 1x HDMI 2.0 loop-out. Up to 4K60Hz, 1440p144Hz, 1080p240Hz
- Capture: 4K, 1440p, 1080p at 25/30/50/60 fps; 1080p/720p up to 240 fps
- YUY2 uncompressed. 1x HDMI embedded audio, 16 bit PCM 48 kHz
- 1080i hardware de-interlacing, 3D noise reduction
- XBOX, PS4, SWITCH, video player, TV box. Windows 7+, Linux 18.04+
Connections
| Host interface |
PCIe x4 Gen2 (2.5 GB/s)
|
| Video interfaces |

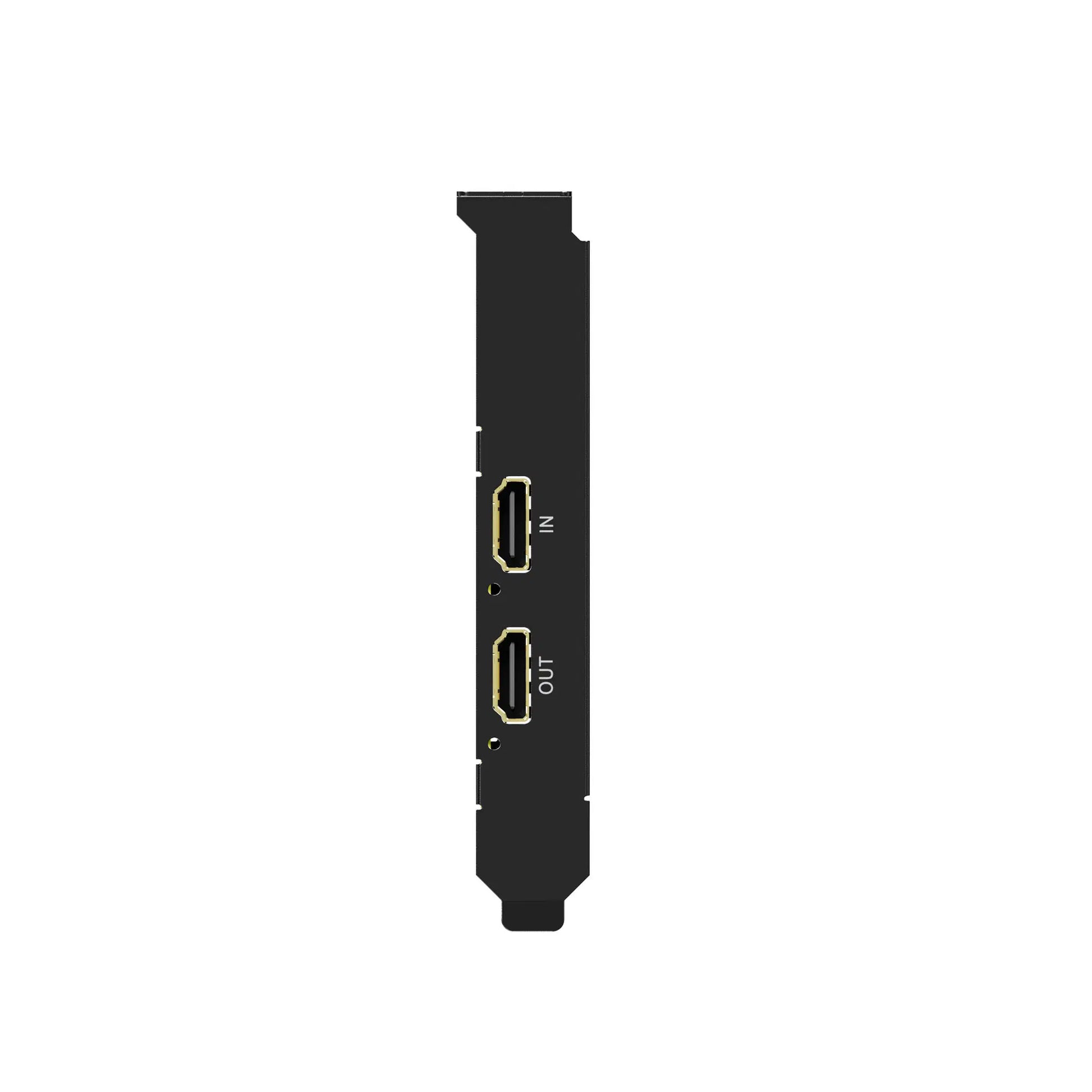

1x HDMI 2.0 input, 1x HDMI 2.0 loop-out
|
Video Standards
| HDMI 2.0 |
4K 25/30/50/60, 1440p 60/120/144, 1080p 25/30/50/60/120/240, 1080i 50/60, 720p 50/60, 720x576 25/30/60, 720x480 30/60
|
| Capture format |
YUY2, uncompressed
|
| Color precision |
YUY2 4:2:2 8bit
|
| Audio capture |
1x HDMI embedded audio
|
| Audio sampling |
48 kHz 16 bit
|
Power
| Power consumption |
≤2 W (from PCIe slot)
|
Environmental
| Operating temperature |
0°C to 60°C
|
| Storage temperature |
-20°C to 70°C
|
| Relative humidity |
5 to 90% non-condensing
|
Mechanical
| Dimensions |
120.1 x 95.7 x 21.6 mm
|
| Weight |
100 g
|
Other
| Features |
1080i hardware de-interlacing, 3D noise reduction
|
Support
| Devices |
XBOX, PS4, SWITCH, video player, TV box, media box
|
| System |
Windows 7 and above, Linux 18.04 and above
|
| Software |
OBS, XSplit, VLC, VirtualDub, VMix, VidBlaster, Wirecast, Microsoft Media Encoder, Adobe Flash Media Encoder, DirectShow/V4L2/AVCaptureSession
|
| APIs |
Windows: DirectShow, DirectSound/WASAPI; Linux: V4L2, ALSA
|
