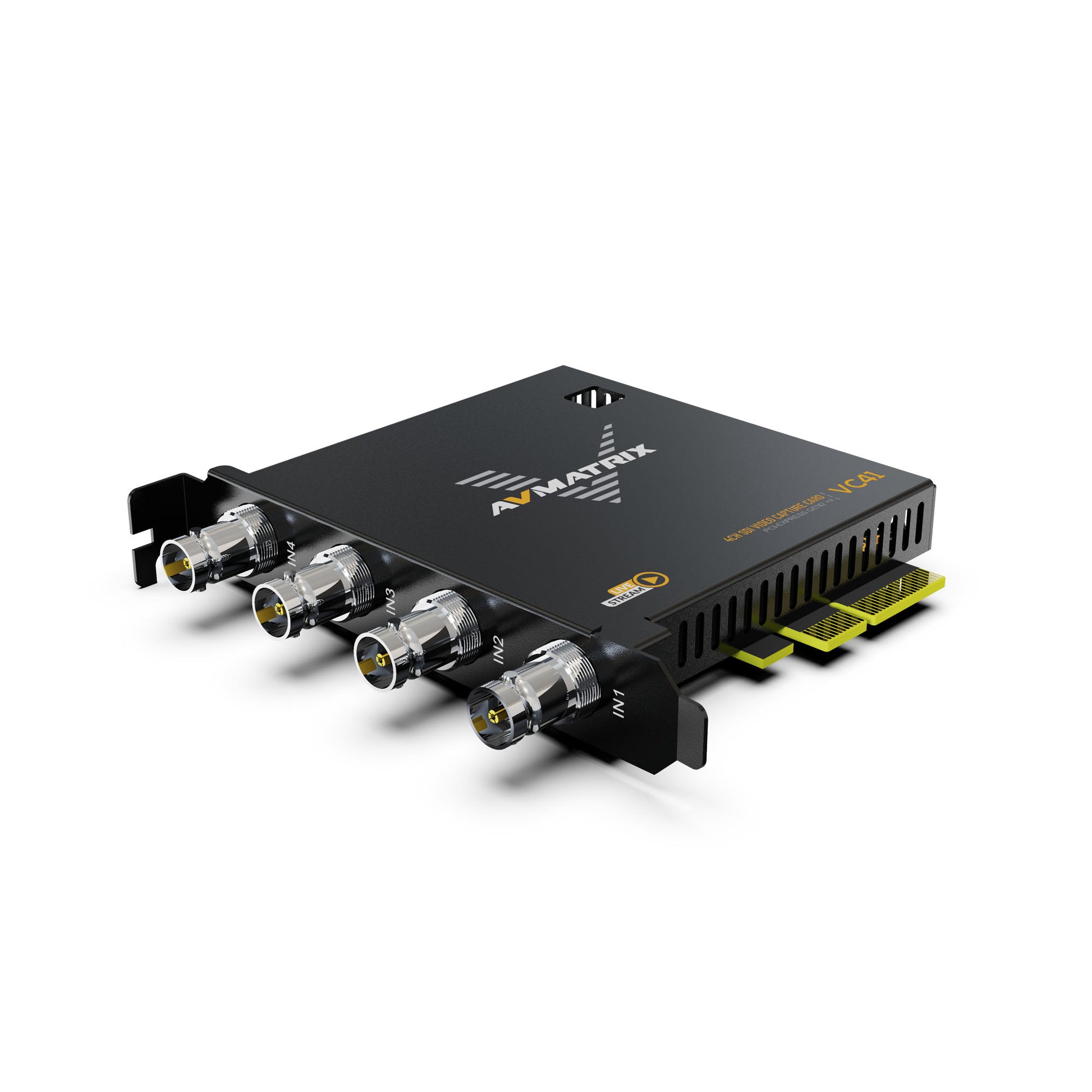

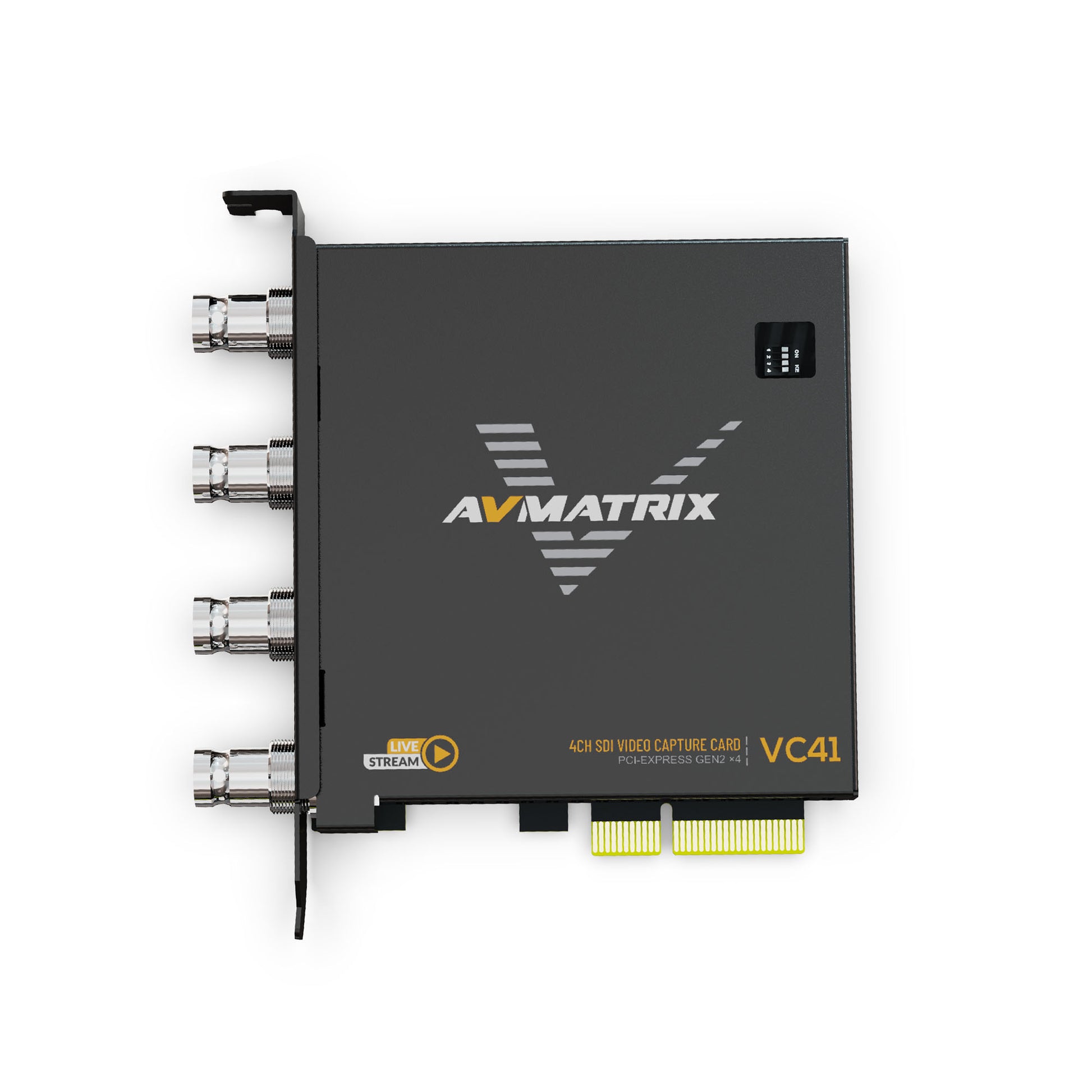

AV Matrix VC41 · 4-channel 3G-SDI video capture PCI-E card

Name: VC41
Brand: AV Matrix
SKU: VC41
Price: 309.00 GBP
Availability: InStock

4-channel 3G-SDI video capture PCI-E card. PCIe x4 Gen2, 2.5 GB/s. 4x SD/HD/3G-SDI inputs, up to 1080p60 per channel. YCbCr 4:4:4 and 4:2:2. YUY2 uncompressed. 4x 3G-SDI embedded audio, 16 bit PCM 48 kHz. 1080i hardware de-interlacing, 3D noise reduction. Windows 7+, Linux 18.04+. OBS, XSplit, VLC, VMix, Wirecast. ≤2 W, 120 x 88 x 22 mm, 150 g.

1 4

£309.00 exc VAT £370.80inc VAT

View full details

4-channel 3G-SDI video capture PCI-E card, PCIe x4 Gen2, 2.5 GB/s
4x SD/HD/3G-SDI inputs, up to 1080p60 per channel
HD/3G/3Gb/3Gb-DL/3Gb-DS. YCbCr 4:4:4 and 4:2:2
Capture: 1920x1080, 1280x720, 720x576, 720x480 at 25/30/50/60 fps
YUY2 uncompressed. 4x 3G-SDI embedded audio, 16 bit PCM 48 kHz
1080i hardware de-interlacing, 3D noise reduction. Windows 7+, Linux 18.04+

Connections

Host interface	PCIe x4 Gen2 (2.5 GB/s)

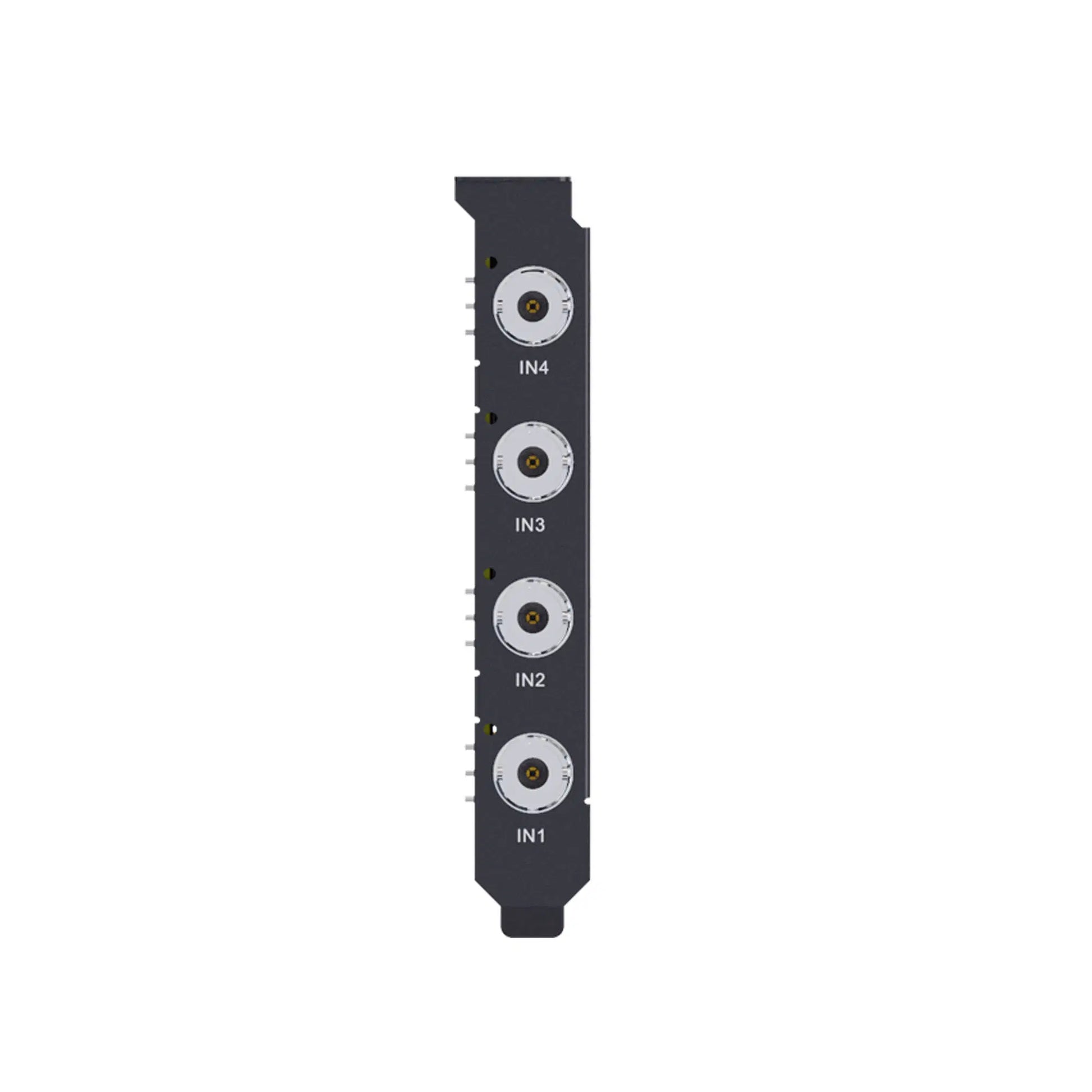

Video interfaces	4x SD/HD/3G-SDI input

Video Standards

3G-SDI	HD / 3G / 3Gb / 3Gb-DL / 3Gb-DS (3Gb-DS first stream only), 1080p 25/30/50/60, 1080i 50/60, 720p 25/30/50/60, 720x576 25/30/60, 720x480 30/60
Color sampling	YCbCr 4:4:4, YCbCr 4:2:2
Capture format	YUY2, uncompressed
Color precision	YUY2 4:2:2 8bit
Audio capture	4x 3G-SDI embedded audio
Audio sampling	48 kHz 16 bit

Operational Features

Power

Power consumption	≤2 W (from PCIe slot)

Environmental

Operating temperature	0°C to 60°C
Storage temperature	-20°C to 70°C
Relative humidity	5 to 90% non-condensing

Mechanical

Dimensions	120.1 x 88.4 x 21.6 mm
Weight	150 g

Other

Features	1080i hardware de-interlacing, 3D noise reduction

Support

System	Windows 7 and above, Linux 18.04 and above
Software	OBS, XSplit, VLC, VirtualDub, VMix, VidBlaster, Wirecast, Microsoft Media Encoder, Adobe Flash Media Encoder, DirectShow/V4L2/AVCaptureSession
APIs	Windows: DirectShow, DirectSound/WASAPI; Linux: V4L2, ALSA
