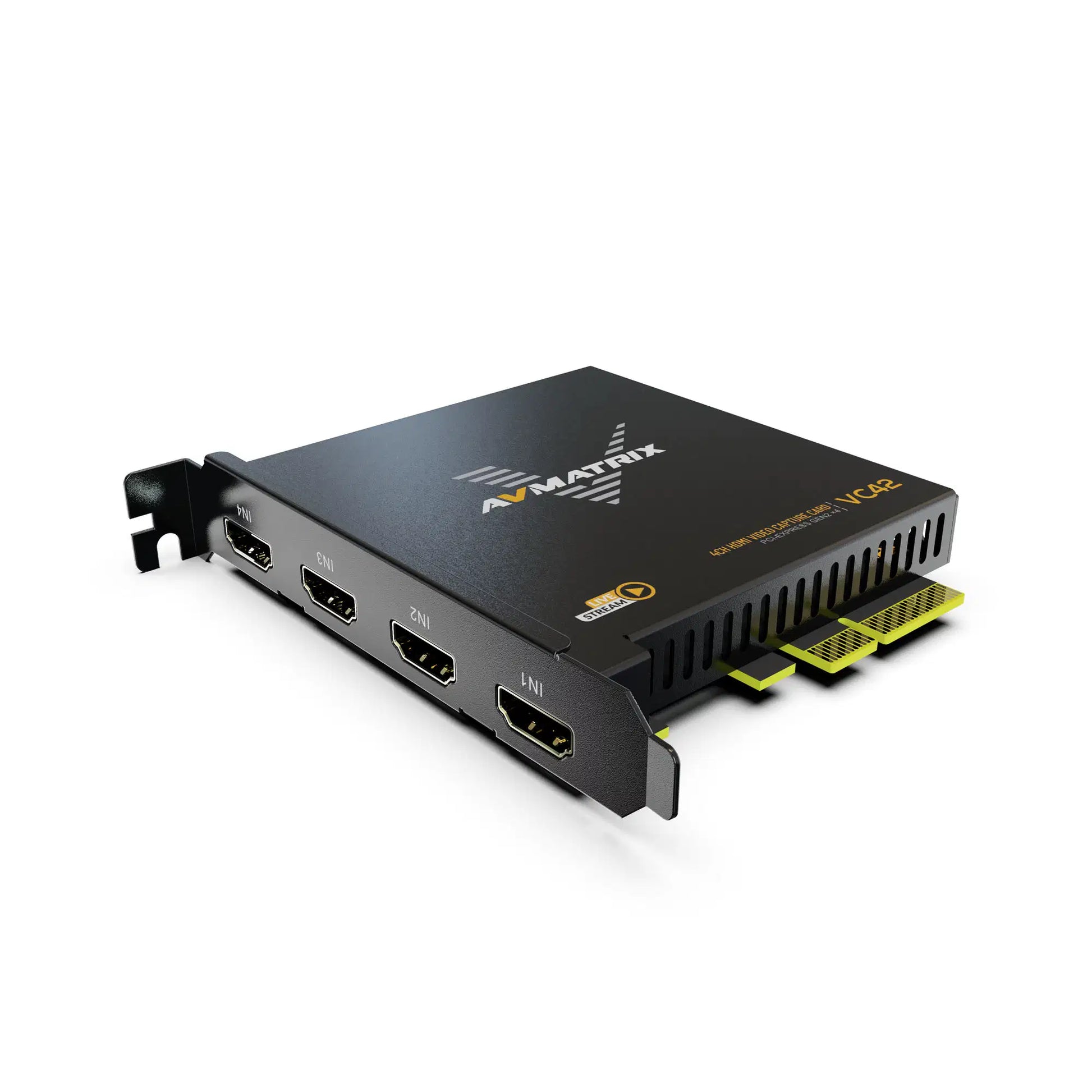

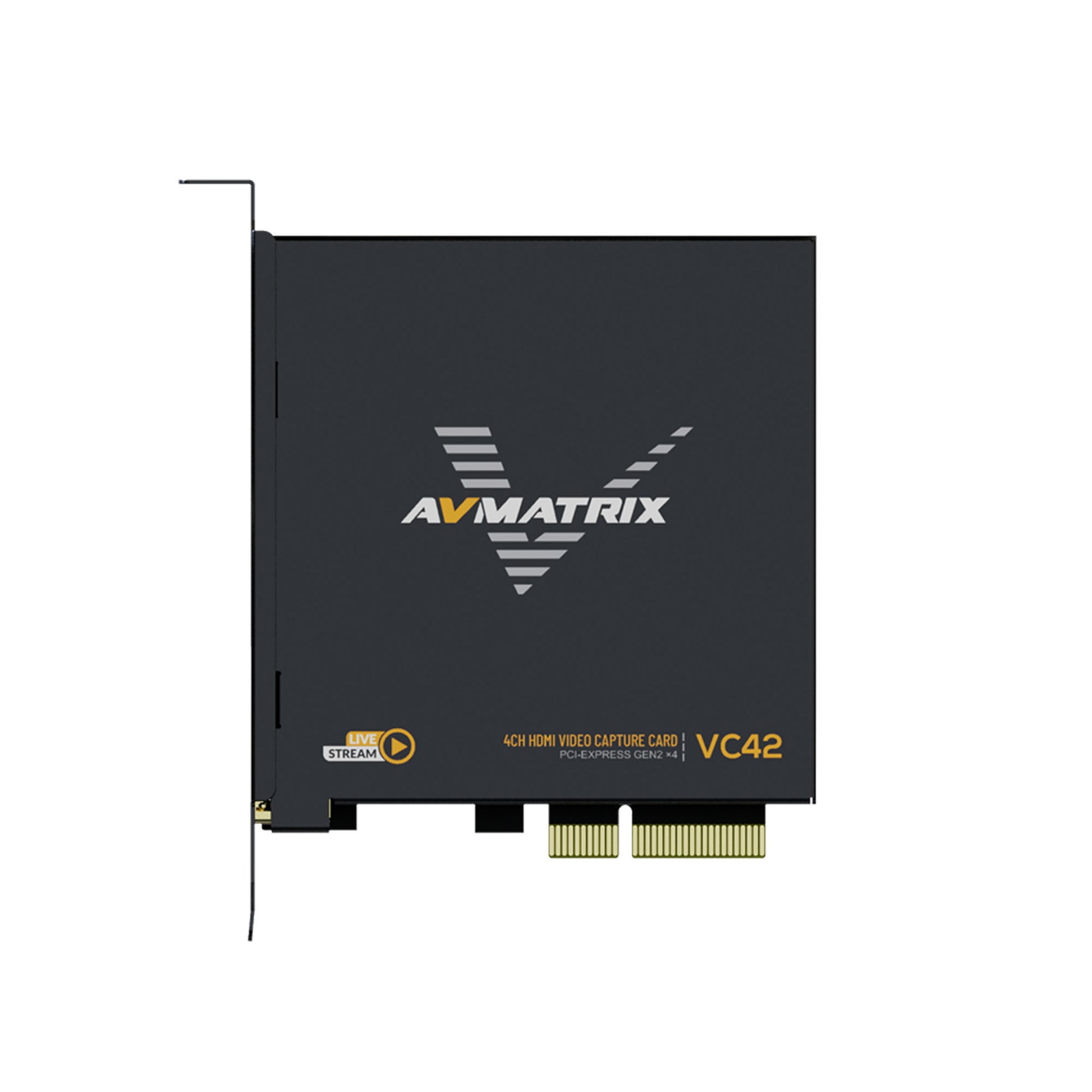

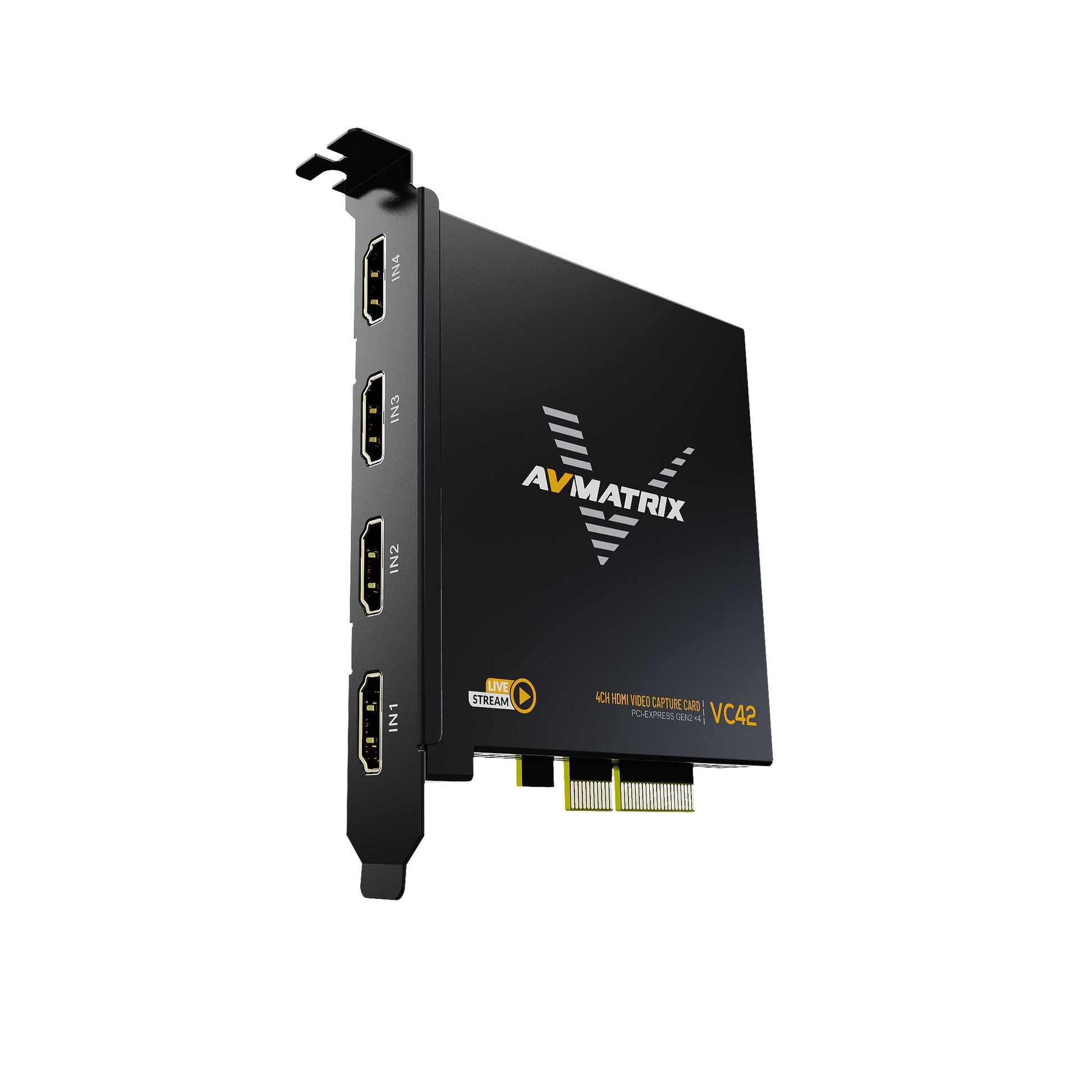

AV Matrix VC42 · 4-channel HDMI video capture PCI-E card

Name: VC42
Brand: AV Matrix
SKU: VC42
Price: 269.00 GBP
Availability: InStock

AV Matrix VC42 · 4-channel HDMI video capture PCI-E card

4-channel HDMI video capture PCI-E card. PCIe x4 Gen2, 2.5 GB/s. 4x HDMI 1.4 inputs, up to 1080p60 per channel. YUY2 uncompressed. 4x HDMI embedded audio, 16 bit PCM 48 kHz. 1080i hardware de-interlacing, 3D noise reduction. Windows 7+, Linux 18.04+. OBS, XSplit, VLC, VMix, Wirecast. ≤2 W, 120 x 88 x 22 mm, 150 g.

1 5

£269.00 exc VAT £322.80inc VAT

View full details

4-channel HDMI video capture PCI-E card, PCIe x4 Gen2, 2.5 GB/s
4x HDMI 1.4 inputs, up to 1080p60 per channel
Capture: 1920x1080, 1280x720, 720x576, 720x480 at 25/30/50/60 fps
YUY2 uncompressed. 4x HDMI embedded audio, 16 bit PCM 48 kHz
1080i hardware de-interlacing, 3D noise reduction
Windows 7+, Linux 18.04+. OBS, XSplit, VLC, VirtualDub, VMix, VidBlaster, Wirecast

Connections

Host interface	PCIe x4 Gen2 (2.5 GB/s)

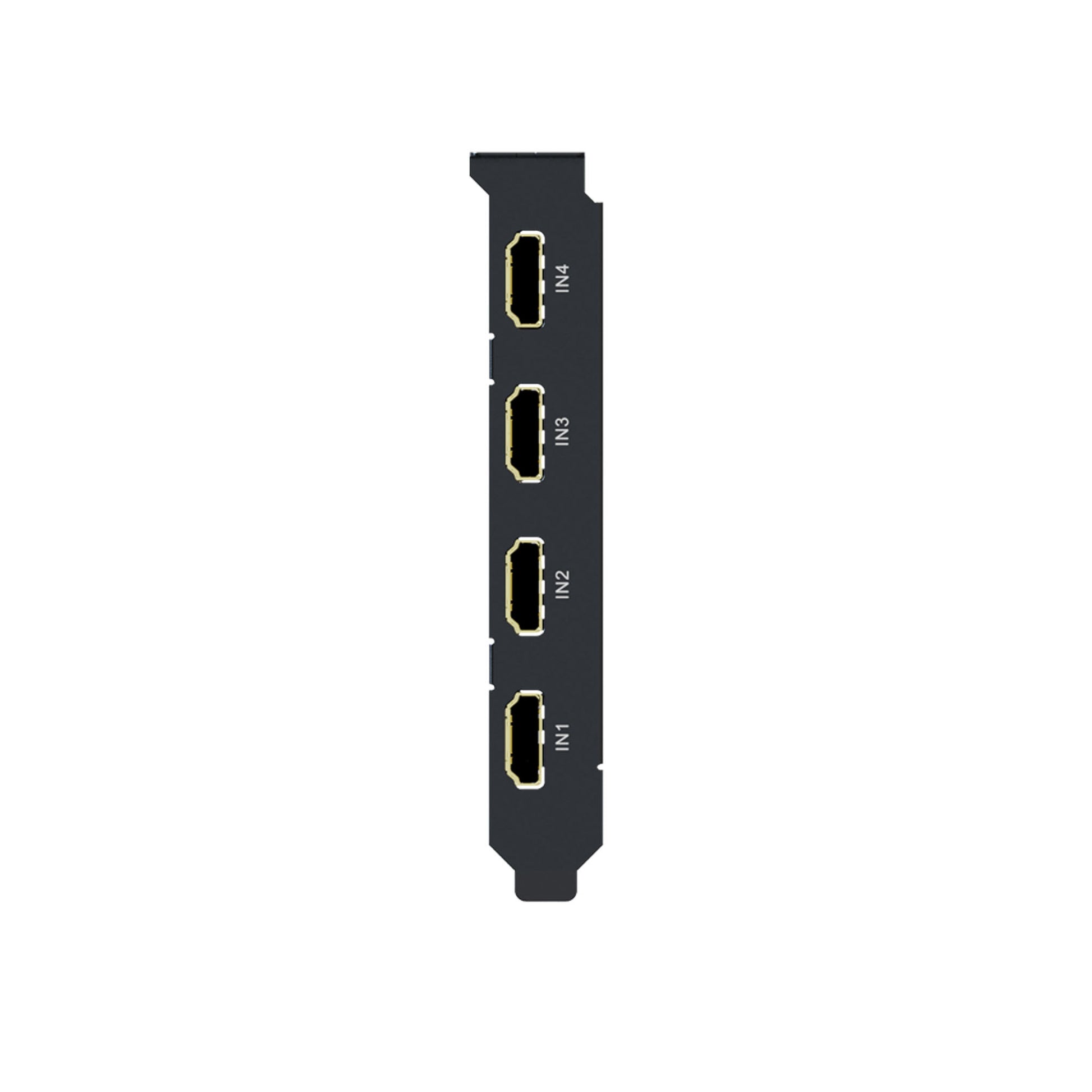

Video interfaces	4x HDMI 1.4 input

Video Standards

HDMI 1.4	1080p 25/30/50/60, 1080i 50/60, 720p 25/30/50/60, 720x576 25/30/60, 720x480 30/60
Capture format	YUY2, uncompressed
Color precision	YUY2 4:2:2 8bit
Audio capture	4x HDMI embedded audio
Audio sampling	48 kHz 16 bit

Operational Features

Power

Power consumption	≤2 W (from PCIe slot)

Environmental

Operating temperature	0°C to 60°C
Storage temperature	-20°C to 70°C
Relative humidity	5 to 90% non-condensing

Mechanical

Dimensions	120.1 x 88.4 x 21.6 mm
Weight	150 g

Other

Features	1080i hardware de-interlacing, 3D noise reduction

Support

System	Windows 7 and above, Linux 18.04 and above
Software	OBS, XSplit, VLC, VirtualDub, VMix, VidBlaster, Wirecast, Microsoft Media Encoder, Adobe Flash Media Encoder, DirectShow/V4L2/AVCaptureSession
APIs	Windows: DirectShow, DirectSound/WASAPI; Linux: V4L2, ALSA
