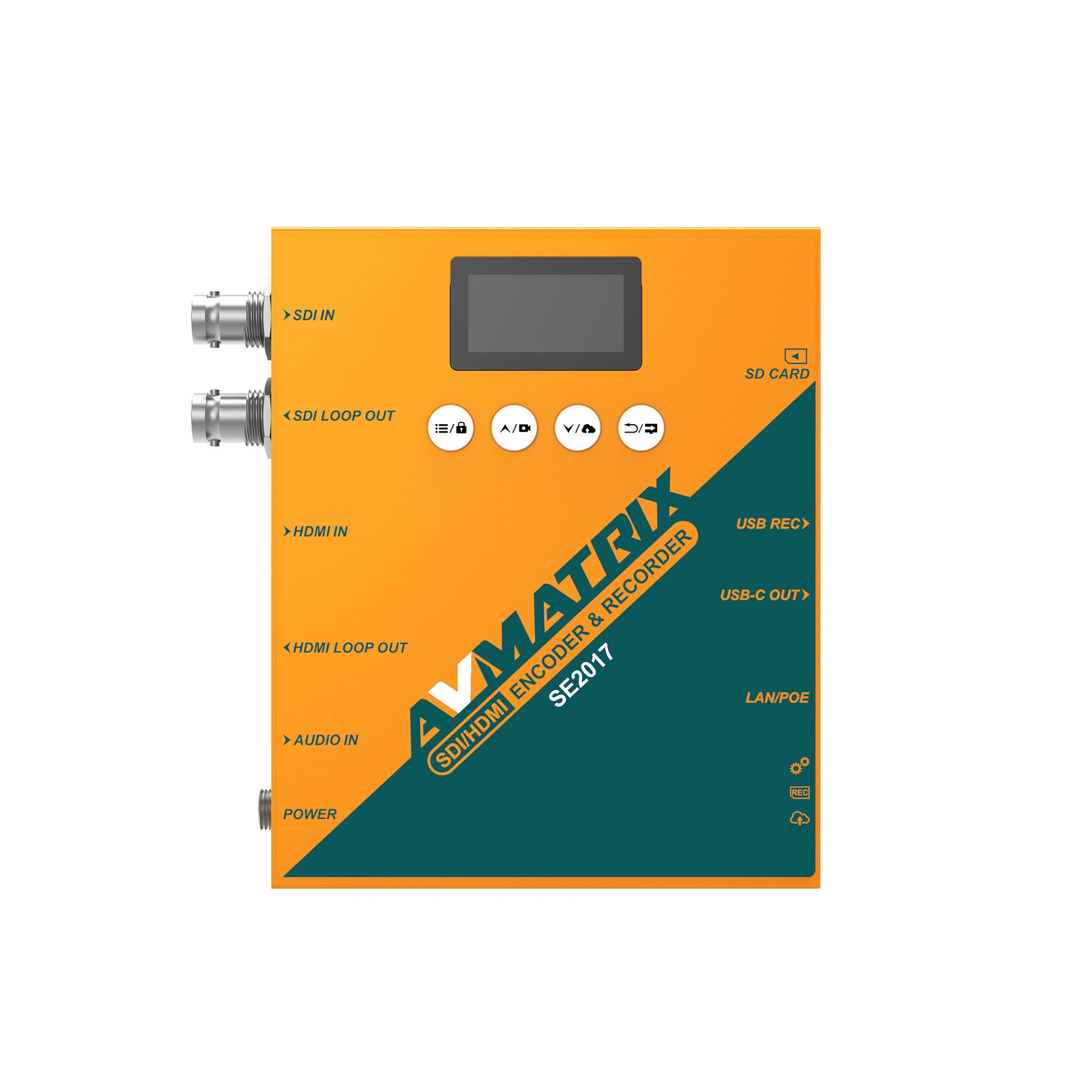

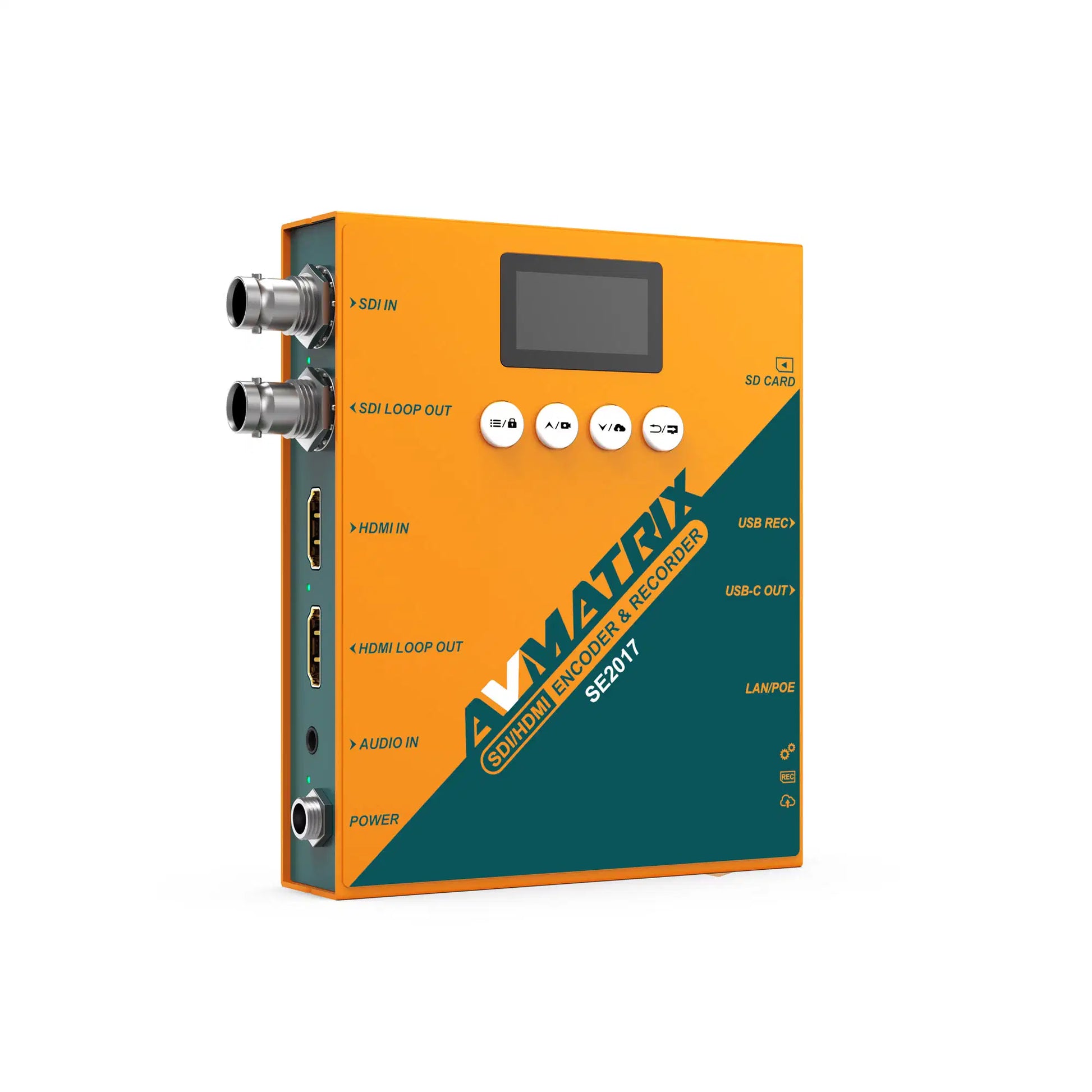

3G-SDI/HDMI encoder and recorder, 1x HDMI in/loop out, 1x 3G-SDI in/loop out, 3.5 mm line in, RJ45 100/1000 Mbps Record to SD card or USB disk (FAT32/exFAT/NTFS). File segments 1 to 120 mins HDMI and 3G-SDI input: 1080p 24 to 60, 1080i 50/60, 720p 24 to 60, 576i/p 50, 480i/p 60 Video bitrate 2 to 32 Mbps; audio AAC 64 to 320 Kbps. USB capture out up to 1080p 60 Hz Protocols: RTSP, RTMP, SRT. Web configuration, remote upgrade DC 12V, 4.5 W. 104 x 125.5 x 24.5 mm, 550 g. -20°C to 60°C operating
Connections

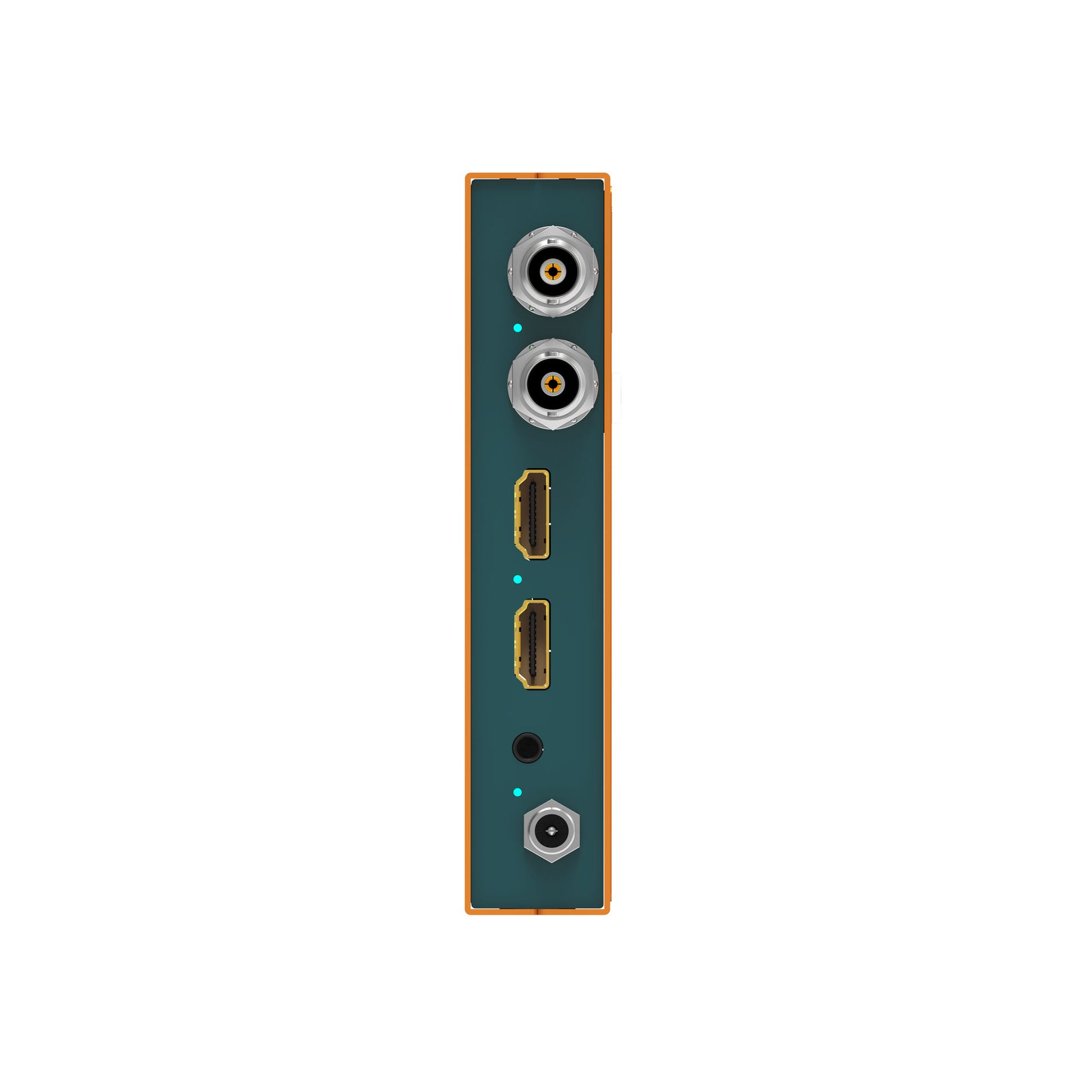

Video interfaces
1x HDMI input, 1x HDMI loop out, 1x 3G-SDI input, 1x 3G-SDI loop out
Audio
1x 3.5 mm line in

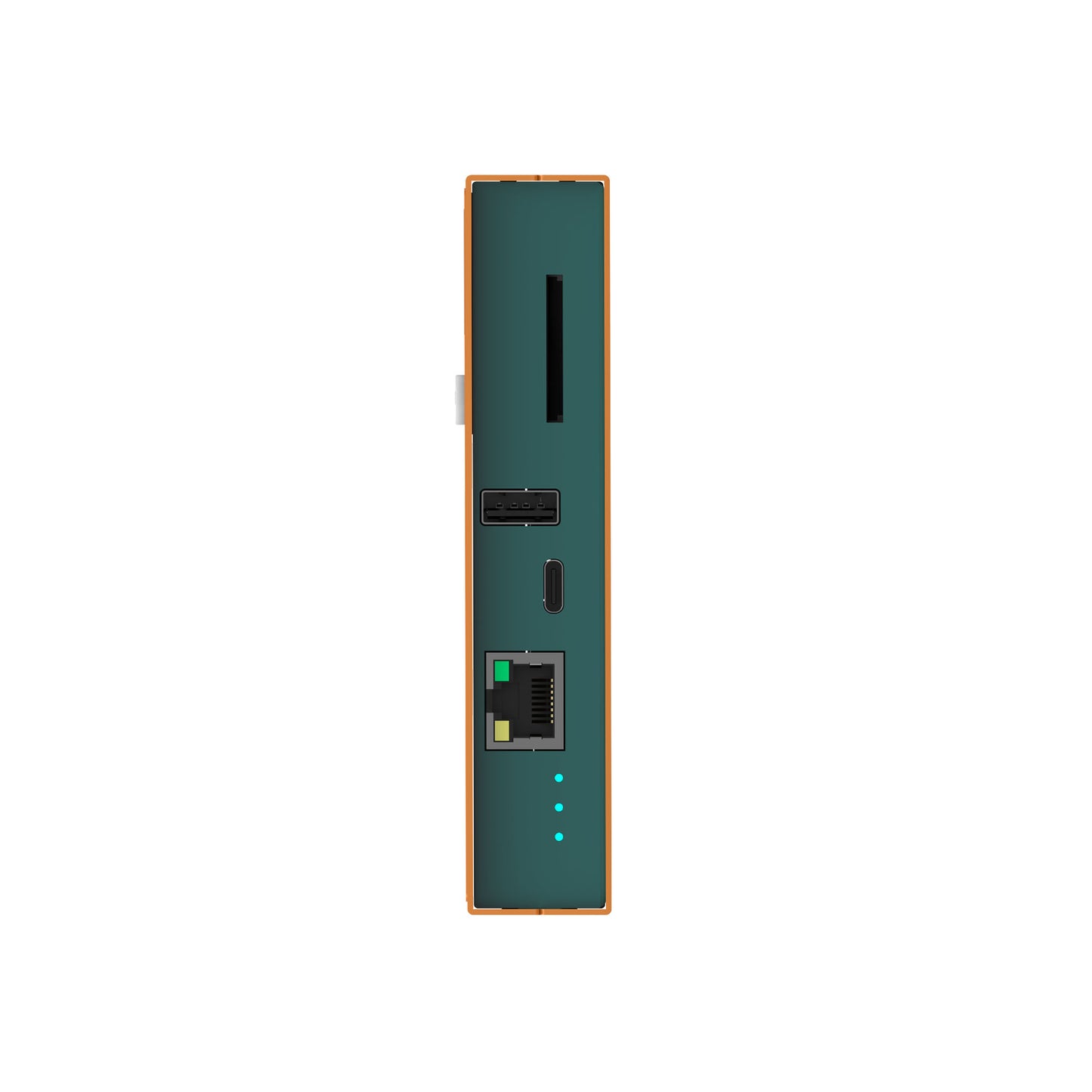

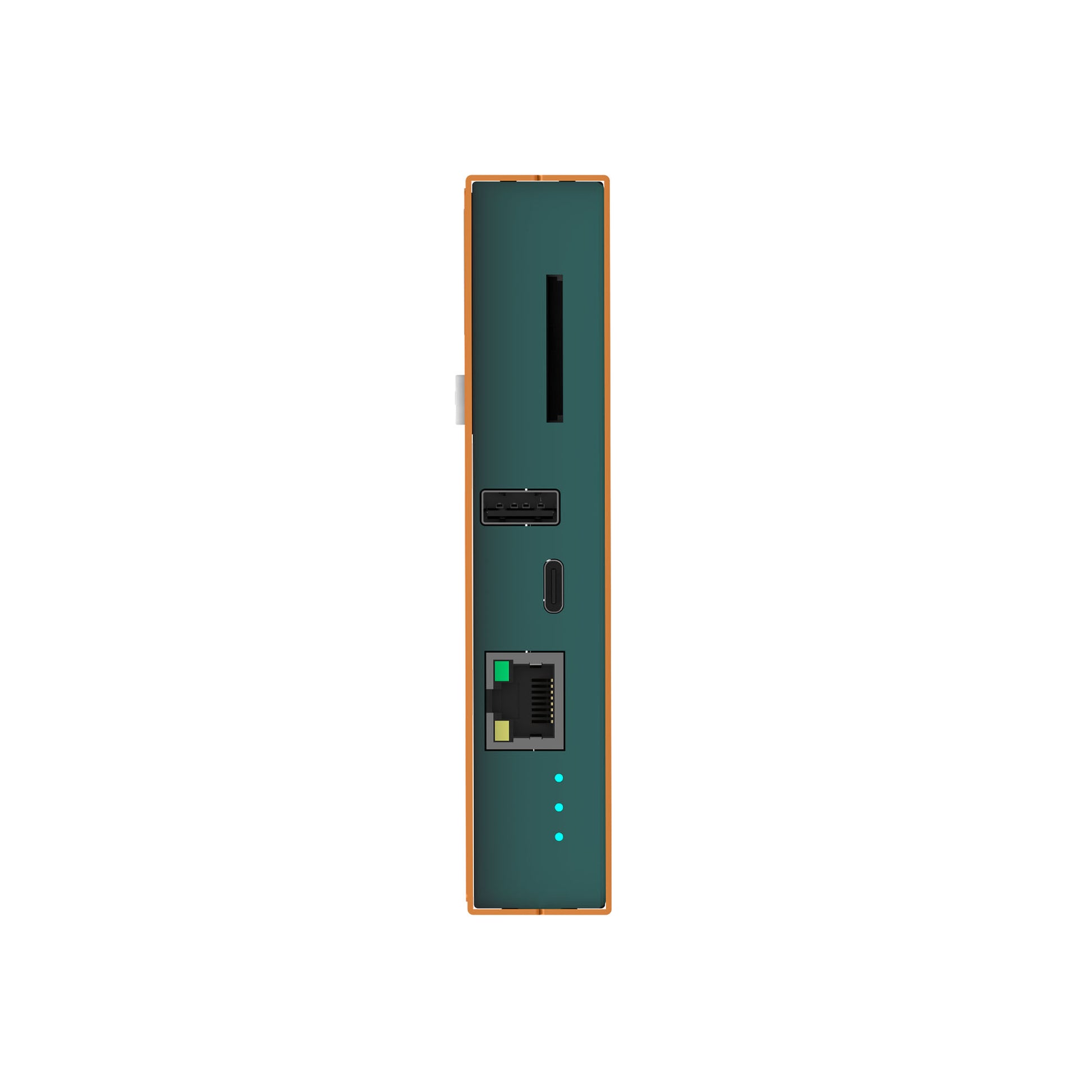

Network
1x RJ45 100/1000 Mbps
Power input
1x DC 12V 2A
Video Standards
HDMI
1080p 24/25/30/50/60, 1080i 50/60, 720p 24/25/30/50/60, 576p 50, 576i 50, 480p 60, 480i 60
3G-SDI
1080p 24/25/30/50/60, 1080i 50/60, 720p 24/25/30/50/60, 576p 50, 576i 50, 480p 60, 480i 60
Video encoding
Bitrate 2 to 32 Mbps, Resolutions 1920x1080, 1280x720, 720x480, Frame rate 24/25/30/50/60 fps
Audio encoding
AAC, 64 to 320 Kbps
Power
Input voltage
DC 12V
Power consumption
4.5 W
Environmental
Operating temperature
-20°C to 60°C
Storage temperature
-30°C to 70°C
Mechanical
Dimensions
104 x 125.5 x 24.5 mm
Weight
550 g (net) / 905 g (gross)
Other
Configuration
Web configuration, remote upgrade
Recording
SD card format
FAT32, exFAT, NTFS
USB disk format
FAT32, exFAT, NTFS
File segment
1/5/10/20/30/60/90/120 mins
Storage
SD card, USB disk
Streaming
Streaming protocols
RTSP, RTMP, SRT
