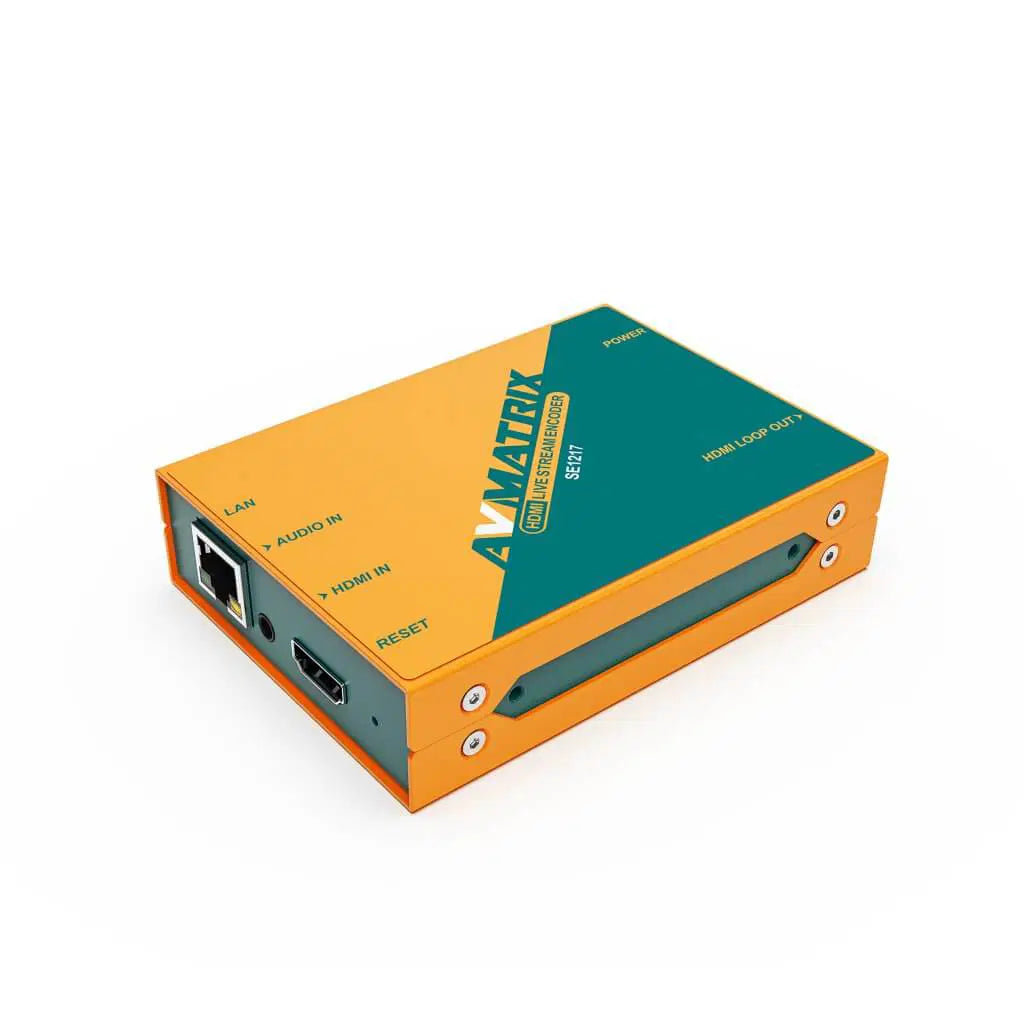

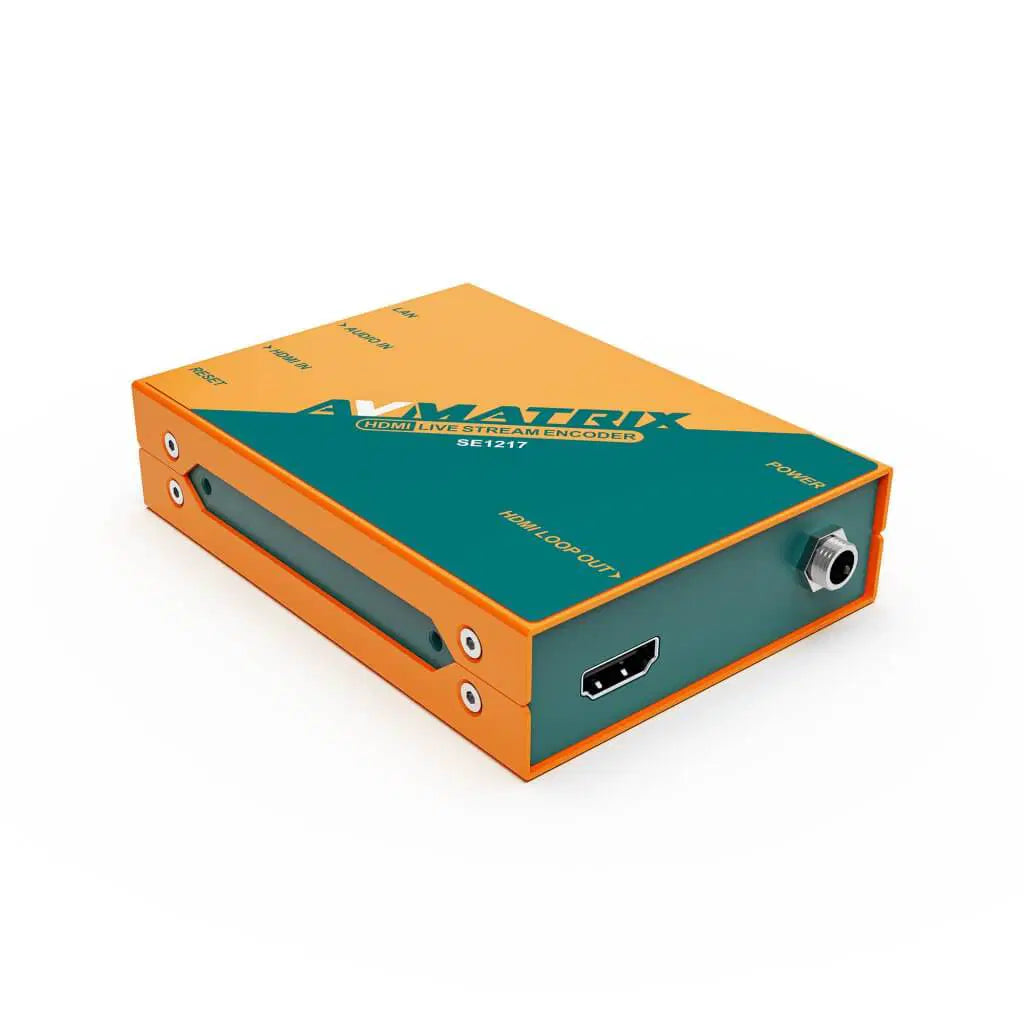

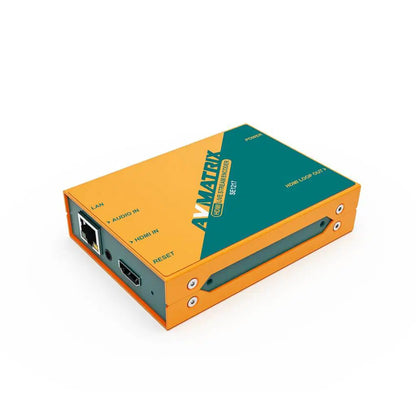

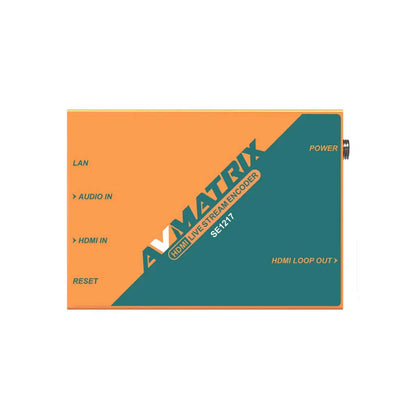

HDMI streaming encoder, 1x HDMI in, 1x HDMI loop out, 3.5 mm line in, RJ45 100/1000 Mbps HDMI input: 1080p 24 to 60, 1080i 50/60, 720p 24 to 60, 576i/p 50, 480i/p 60 Video bitrate 16 Kbps to 12 Mbps; audio AAC/MP3/MP2/G711, 24 to 320 Kbps Encoding: 1920x1080 down to 640x360. Frame rate 5 to 60 fps Protocols: HTTP, RTSP, RTMPS, RTMP, RTP, UDP, Multicast, Unicast, SRT Web configuration, remote upgrade. DC 12V 2A, 5 W. 104 x 75.5 x 24.5 mm, 310 g

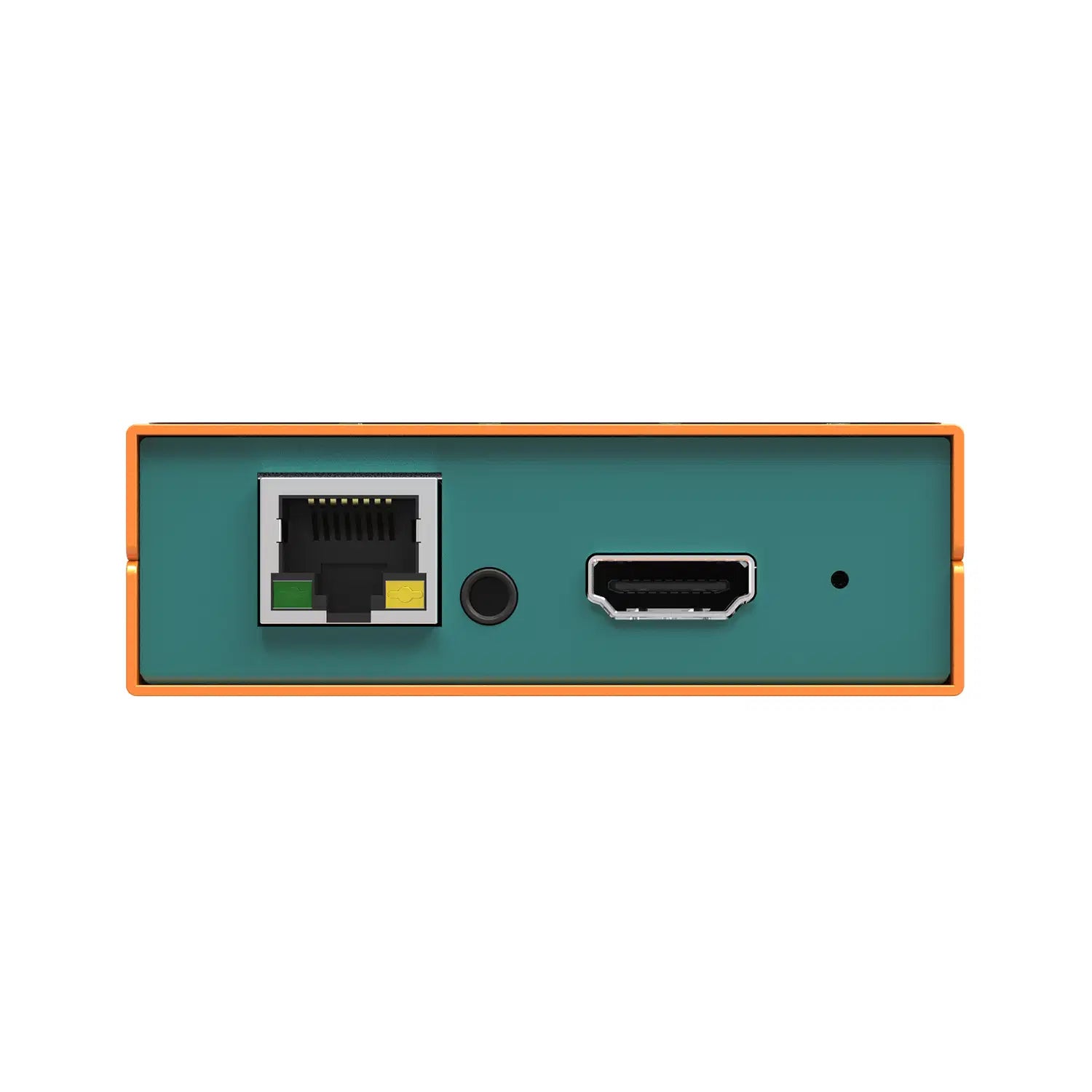

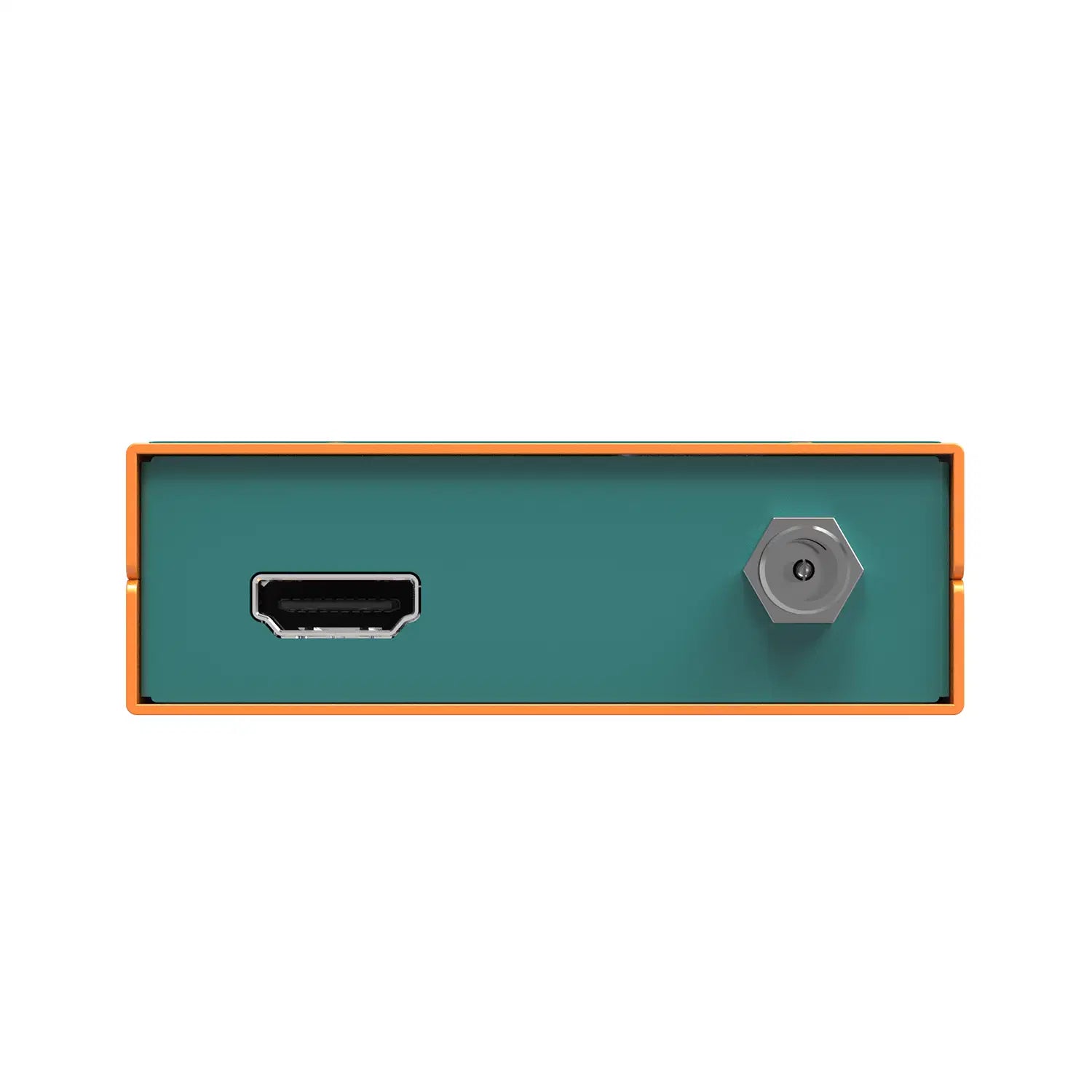

Connections
Video interfaces

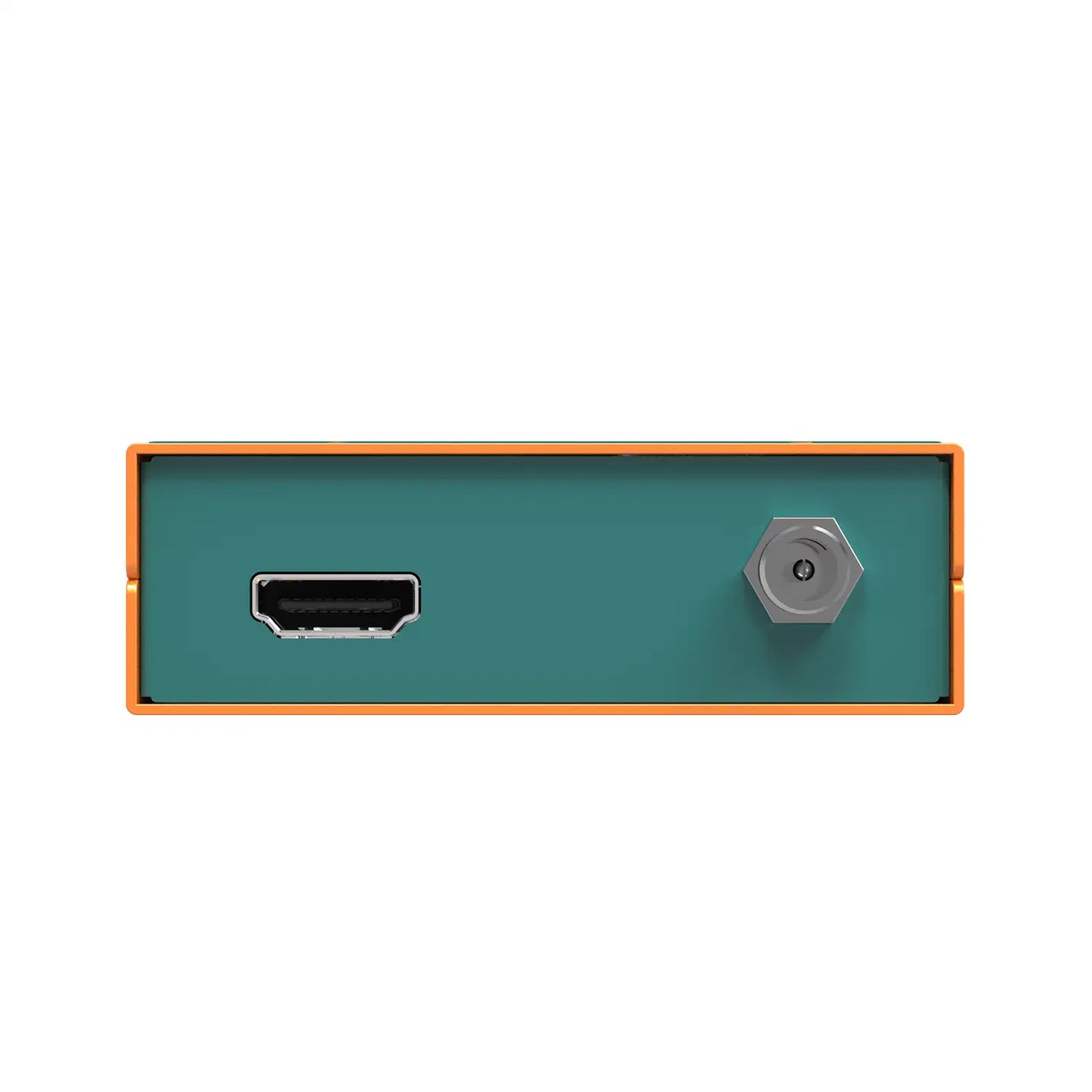

1x HDMI input, 1x HDMI loop out
Audio
1x 3.5 mm line in
Network
1x RJ45 100/1000 Mbps
Power input
1x DC 12V 2A
Video Standards
HDMI
1080p 24/25/30/50/60, 1080i 50/60, 720p 24/25/30/50/60, 576p 50, 576i 50, 480p 60, 480i 60
Video encoding
Bitrate 16 Kbps to 12 Mbps, Resolutions 1920x1080 down to 640x360, Frame rate 5 to 60 fps
Audio encoding
AAC/MP3/MP2/G711, 24 to 320 Kbps
Power
Input voltage
DC 12V
Power consumption
5 W
Environmental
Operating temperature
0°C to 40°C
Storage temperature
-20°C to 70°C
Mechanical
Dimensions
104 x 75.5 x 24.5 mm
Weight
310 g (net) / 690 g (gross)
Other
Configuration
Web configuration, remote upgrade
Streaming
Streaming protocols
HTTP, RTSP, RTMPS, RTMP, RTP, UDP, Multicast, Unicast, SRT
