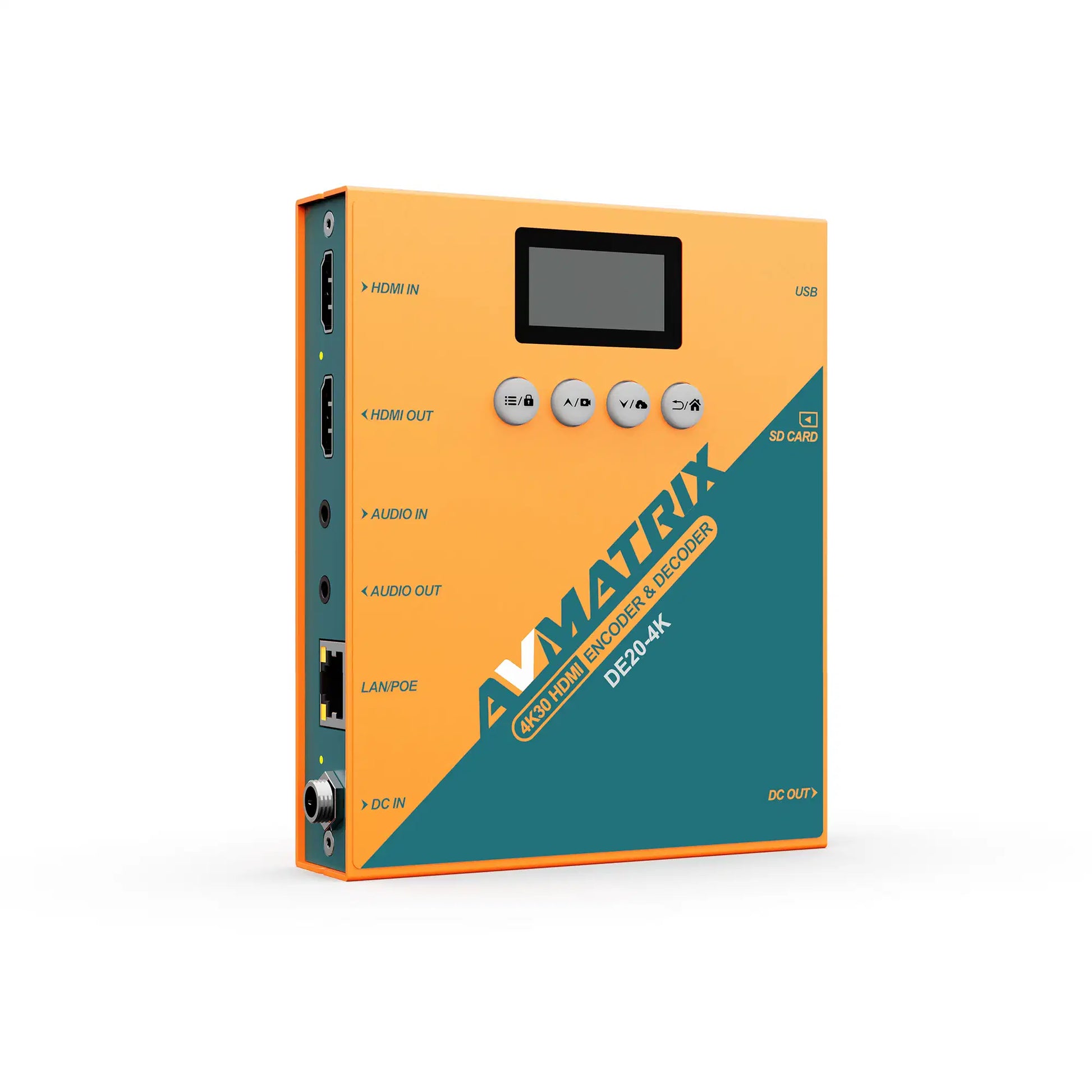

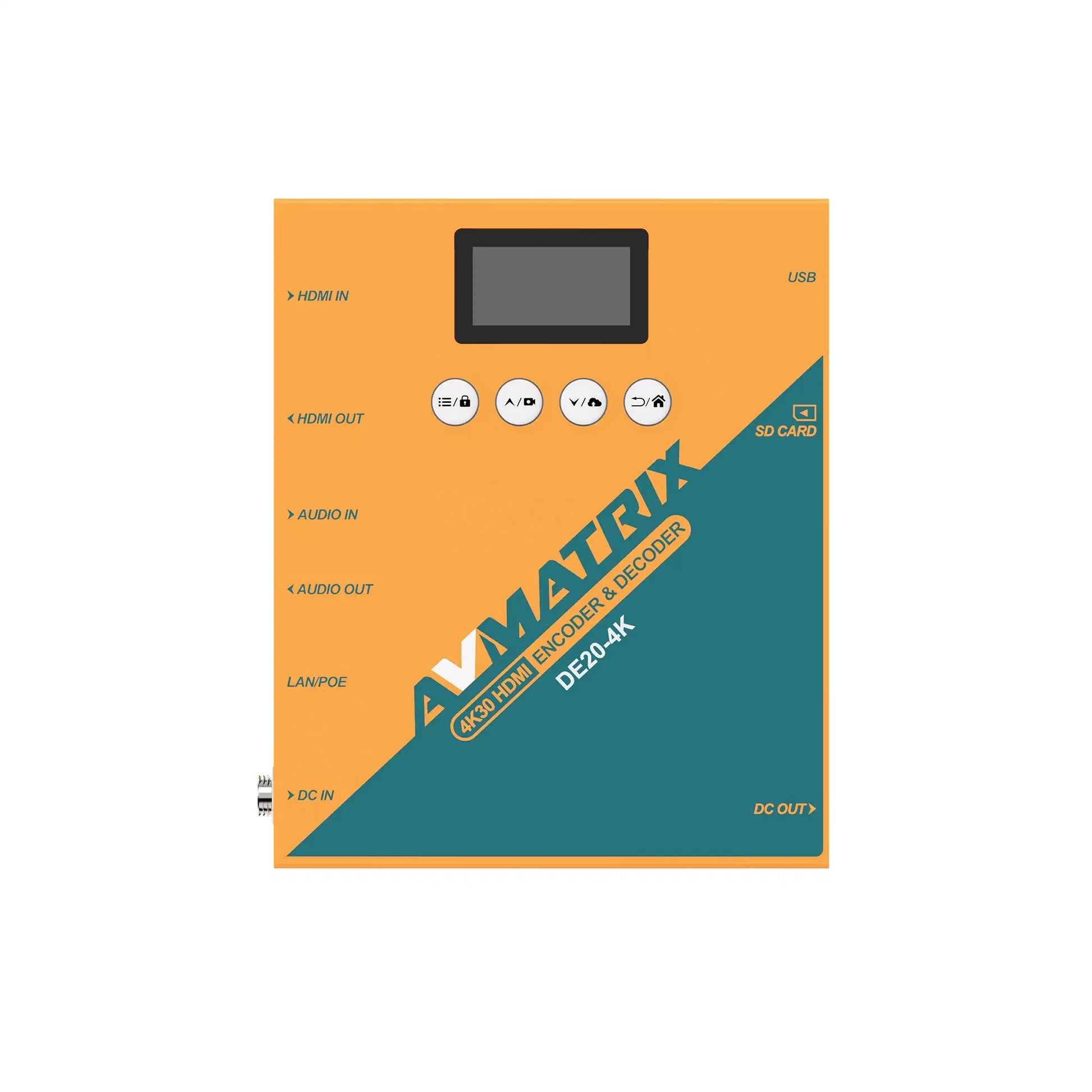

HDMI 2.0 to NDI®|HX bi-directional encoder. Encode HDMI sources to NDI®|HX or decode NDI® to HDMI for on-set monitoring without a PC. 1x HDMI input, 1x HDMI loop out, 1x HDMI output, 1x NDI®|HX/PoE+ RJ45, 3.5 mm line in and out. NDI®|HX, NDI®|HX2, and NDI®|HX3 to 2160p 30; up to 50 Mbps. 2160p 60 HDMI input with 2160p 60 HDR passthrough on loop out. USB UVC capture and LAN streaming. Flexible audio mixing, PTZ control, tally. Record to SD card, USB disk, or NAS. DC 6 to 20V (12V adapter included) or PoE+, DC passthrough output and USB 5 V. 104 x 125.5 x 24.5 mm, 501 g.
NDI®|HX, NDI®|HX2, and NDI®|HX3 up to 2160p 30 at up to 50 Mbps over PoE+ Ethernet
1x HDMI input, 1x HDMI loop out, 1x HDMI output; 1x NDI®|HX/PoE+ RJ45; 1x 3.5 mm line in and out; flexible audio mixing
2160p 60 HDMI input; 2160p 60 HDR passthrough on HDMI loop out; 2160p 30/25/24 on HDMI decode output

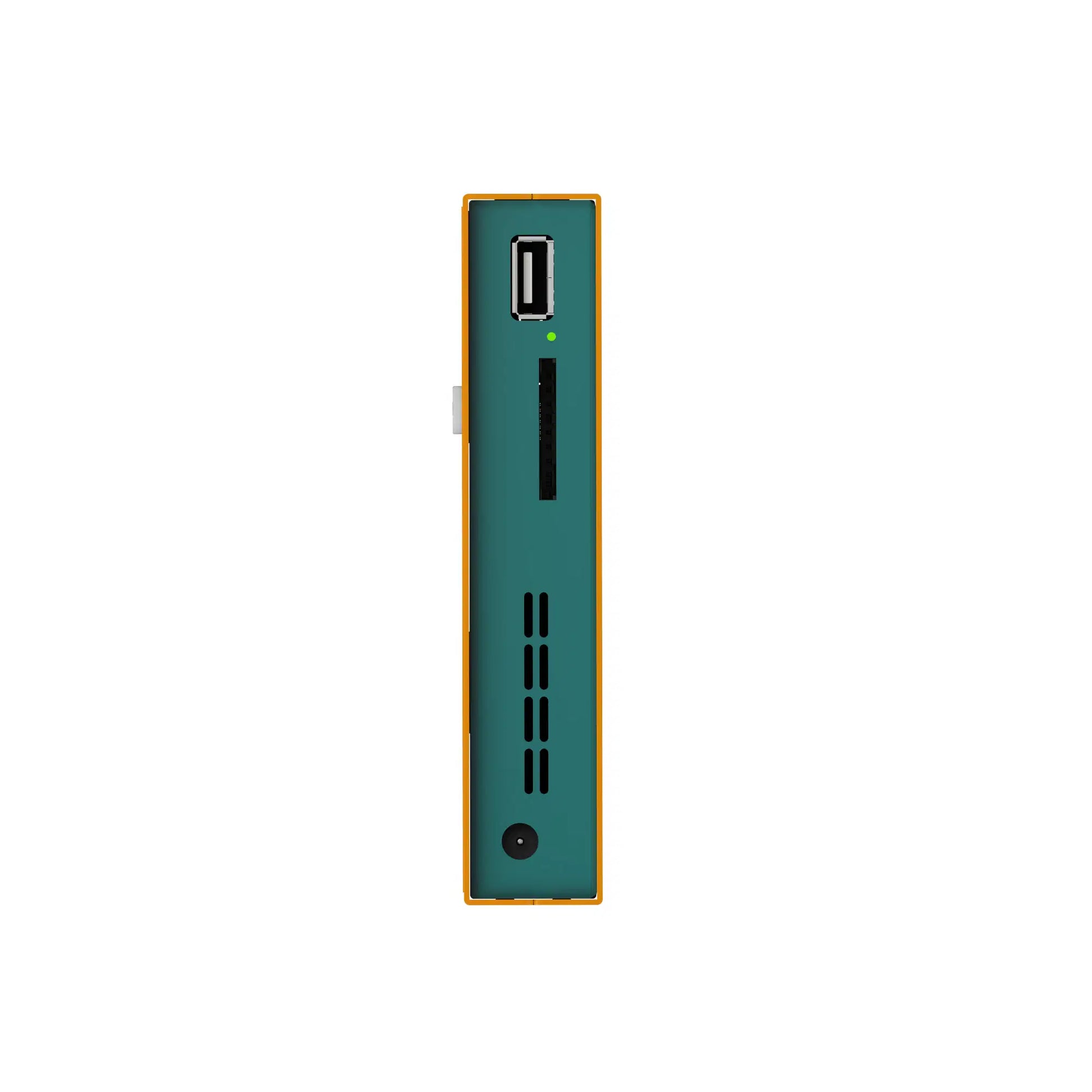

USB UVC device capture; LAN streaming over RJ45; record to SD card, USB disk, or NAS (FAT32/exFAT)
PTZ camera control: PELCO-D, PELCO-P, VISCA, IP VISCA, NDI; program and preview tally indication; OSD overlay (text, logo, image)
Web configuration via browser; Wi-Fi client and hotspot for mobile control
DC 6 to 20V (12V 2A adapter included) or PoE+ IEEE 802.3at; DC 6 to 20V passthrough output (max 1 A) and USB 5 V 1 A output. RTSP, RTMP, RTMPS, and SRT streaming. 104 x 125.5 x 24.5 mm, 501 g
NDI®|HX, NDI®|HX2, and NDI®|HX3, H.264 (default), H.265, MJPEG; 64 Kbps to 51.2 Mbps (streaming), Up to 50 Mbps, 2160p 60 on HDMI input; 2160p 60 HDR passthrough on HDMI loop out; 2160p 30/25/24 on HDMI decode output, 2160p 30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50 encode and decode, USB UVC capture (MJPEG up to 1080p); LAN streaming over RJ45
Audio encoding
AAC (default), MP3; 32/44.1/48 kHz; 64 to 256 Kbps
Operational Features
Tally
Program and preview tally indication
PTZ control
PELCO-D, PELCO-P, VISCA, IP VISCA, NDI
Audio mixing
Flexible audio mixing
OSD
Text, logo, and image overlay
Recording
SD card format
FAT32, exFAT
USB disk format
FAT32, exFAT
File segment
By file size or duration
Storage
SD card, USB disk, NAS
Power
Input voltage
DC 6 to 20V (12V 2A adapter included); PoE+ IEEE 802.3at on RJ45
Power consumption
8 W maximum
Power output
DC 6 to 20V passthrough output (max 1 A); USB 5 V 1 A
Environmental
Operating temperature
-20°C to 60°C
Storage temperature
-30°C to 70°C
Mechanical
Dimensions
104 x 125.5 x 24.5 mm
Weight
501 g (net) / 820 g (gross)
Accessories
Included
12V 2A power adapter
Optional
Mounting Brackets, USB Type-A to Type-C cable
Other
Warranty
3 years
Configuration
Web configuration; Wi-Fi client and hotspot
Streaming
NDI®
1x NDI®|HX encoding or 1x NDI®|HX decoding, NDI®|HX, NDI®|HX2, and NDI®|HX3, Up to 50 Mbps, Encode and decode to 2160p 30/25/24
