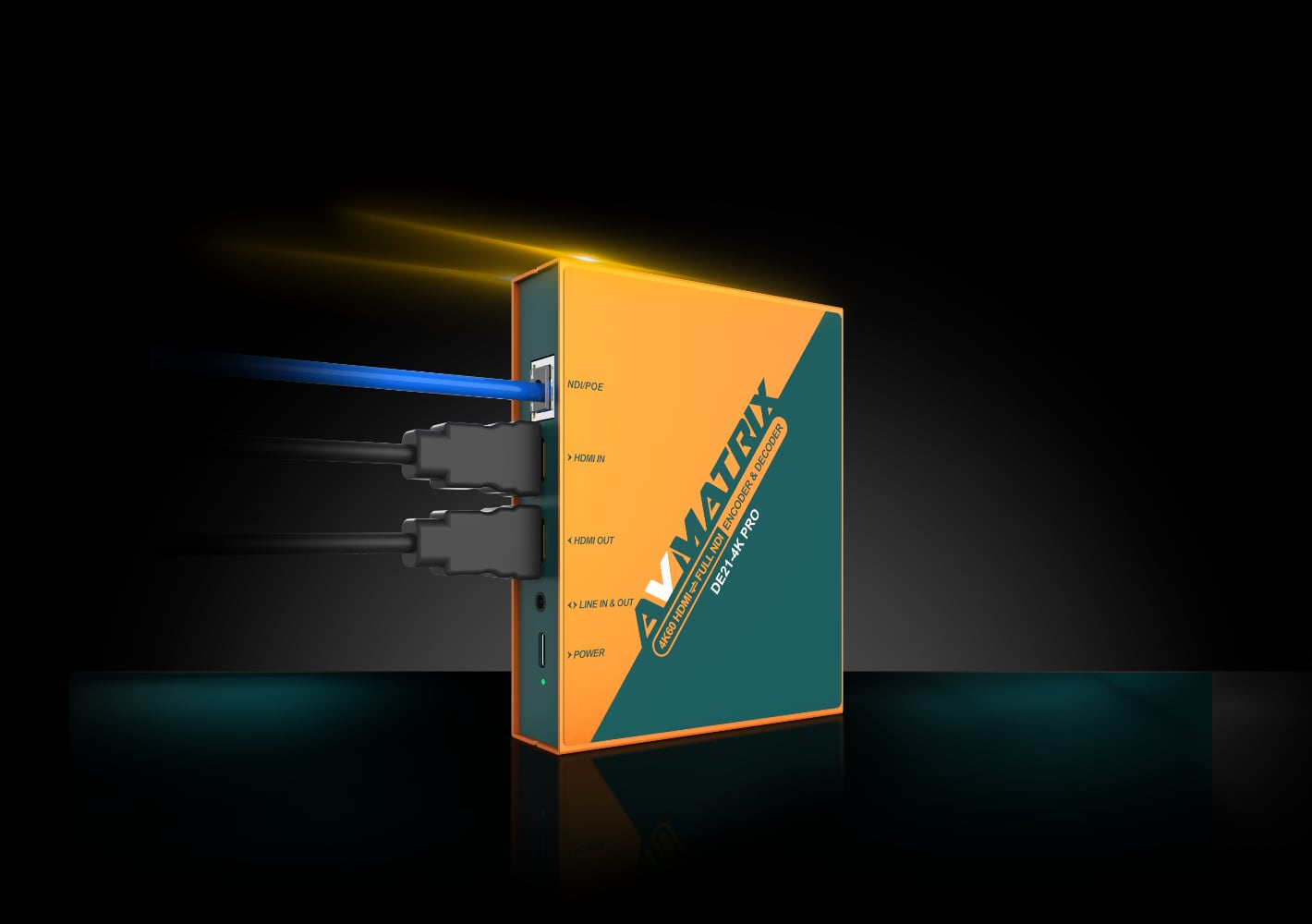

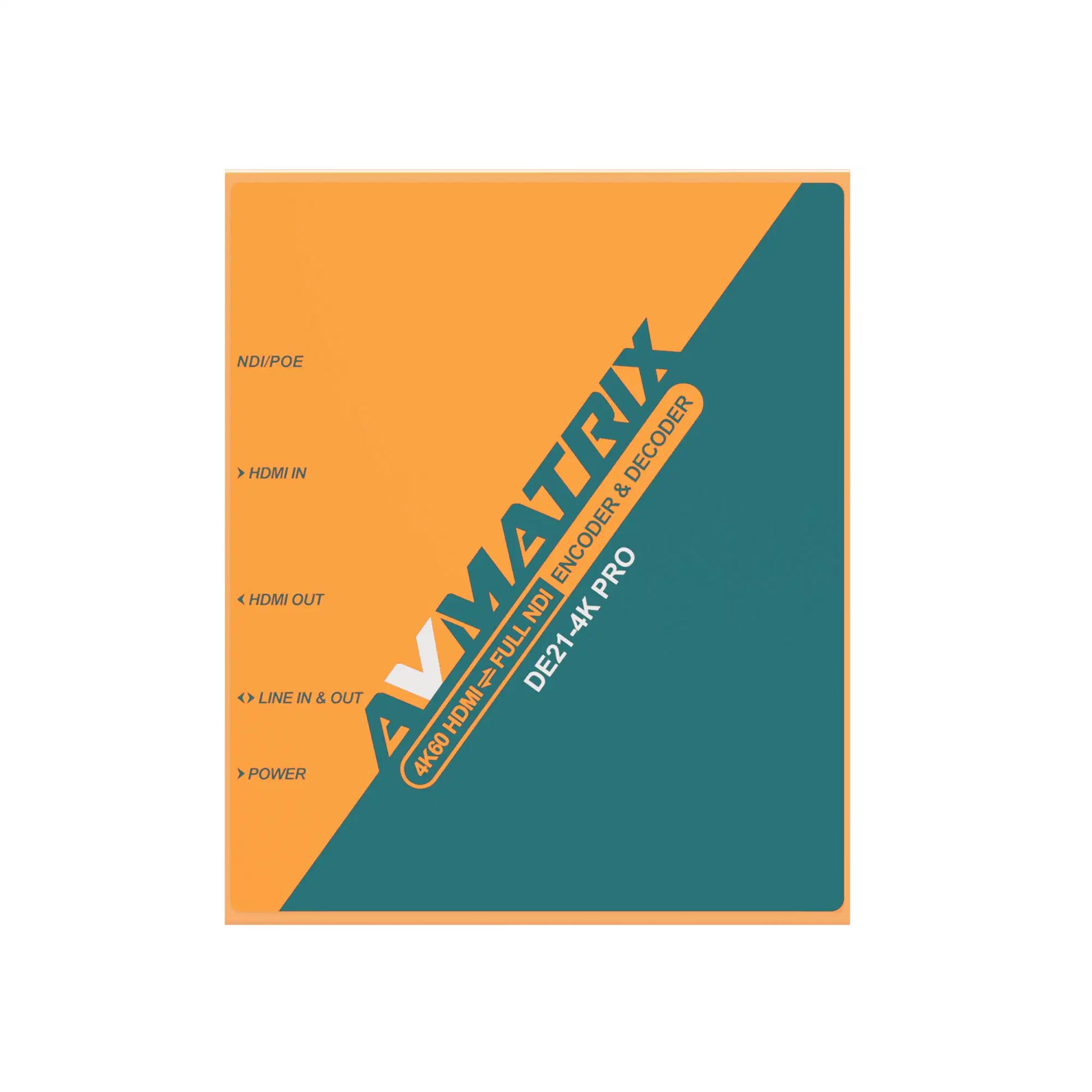

AV Matrix DE21-4K PRO · HDMI 2.0 to NDI® High Bandwidth bi-directional encoder

Name: DE21-4K PRO
Brand: AV Matrix
SKU: DE21-4K-PRO
Price: 499.00 GBP
Availability: InStock

AV Matrix DE21-4K PRO · HDMI 2.0 to NDI® High Bandwidth bi-directional encoder

HDMI 2.0 to NDI® High Bandwidth bi-directional encoder. Encode HDMI sources to NDI® or decode NDI® to HDMI for on-set monitoring without a PC. 4K60, 1x HDMI in/out, 1x NDI®/PoE RJ45, 3.5 mm audio. YCbCr 4:2:2 8bit NDI® High Bandwidth. 250 Mbps @ 4K60, 125 Mbps @ 1080p60. DC 5 to 18V USB-C, 5 W. 104 x 125.5 x 24.5 mm, 501 g.

1 6

£499.00 exc VAT £598.80inc VAT

View full details

HDMI 2.0 to NDI® High Bandwidth bi-directional encoder

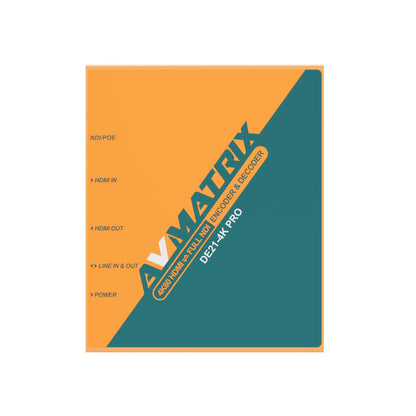

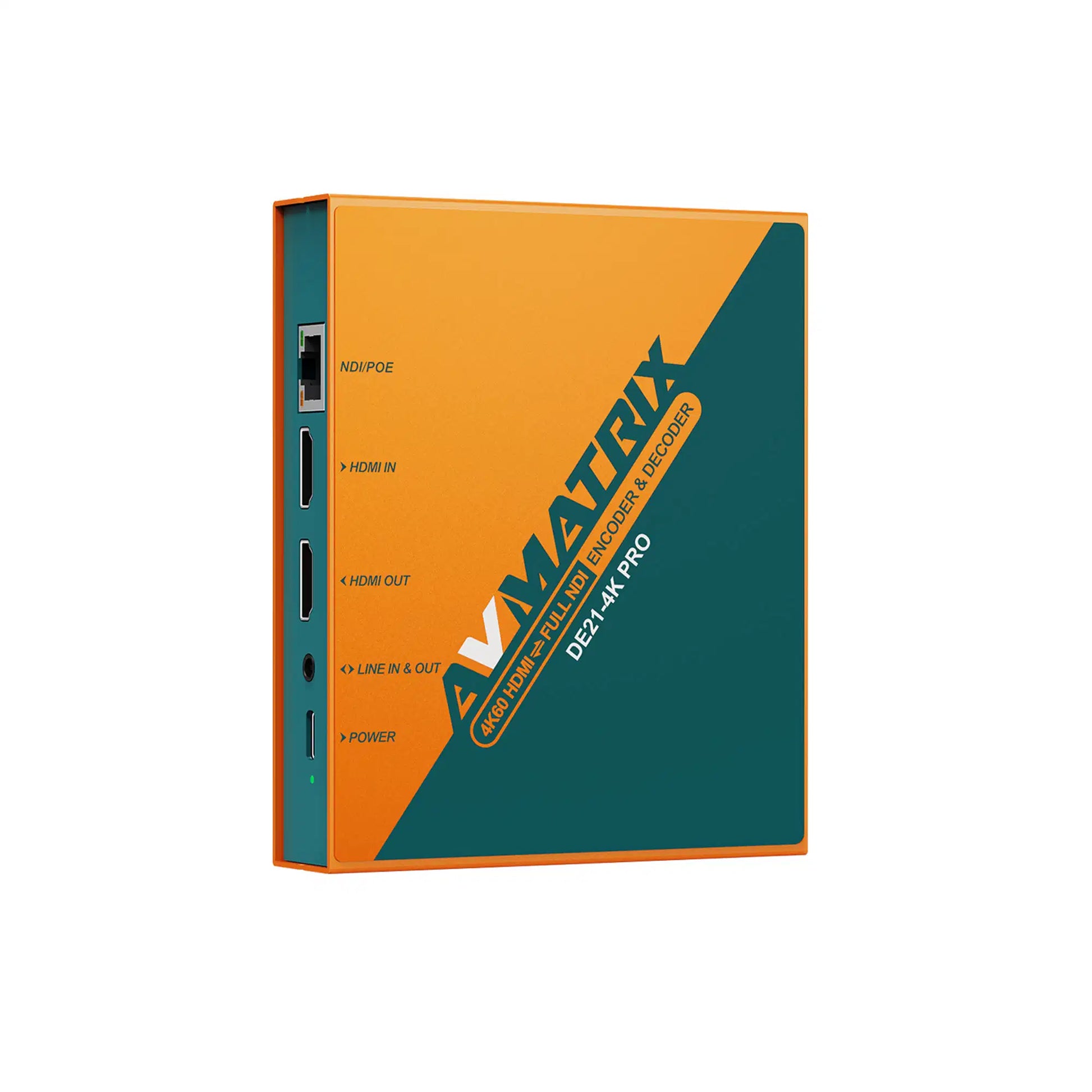

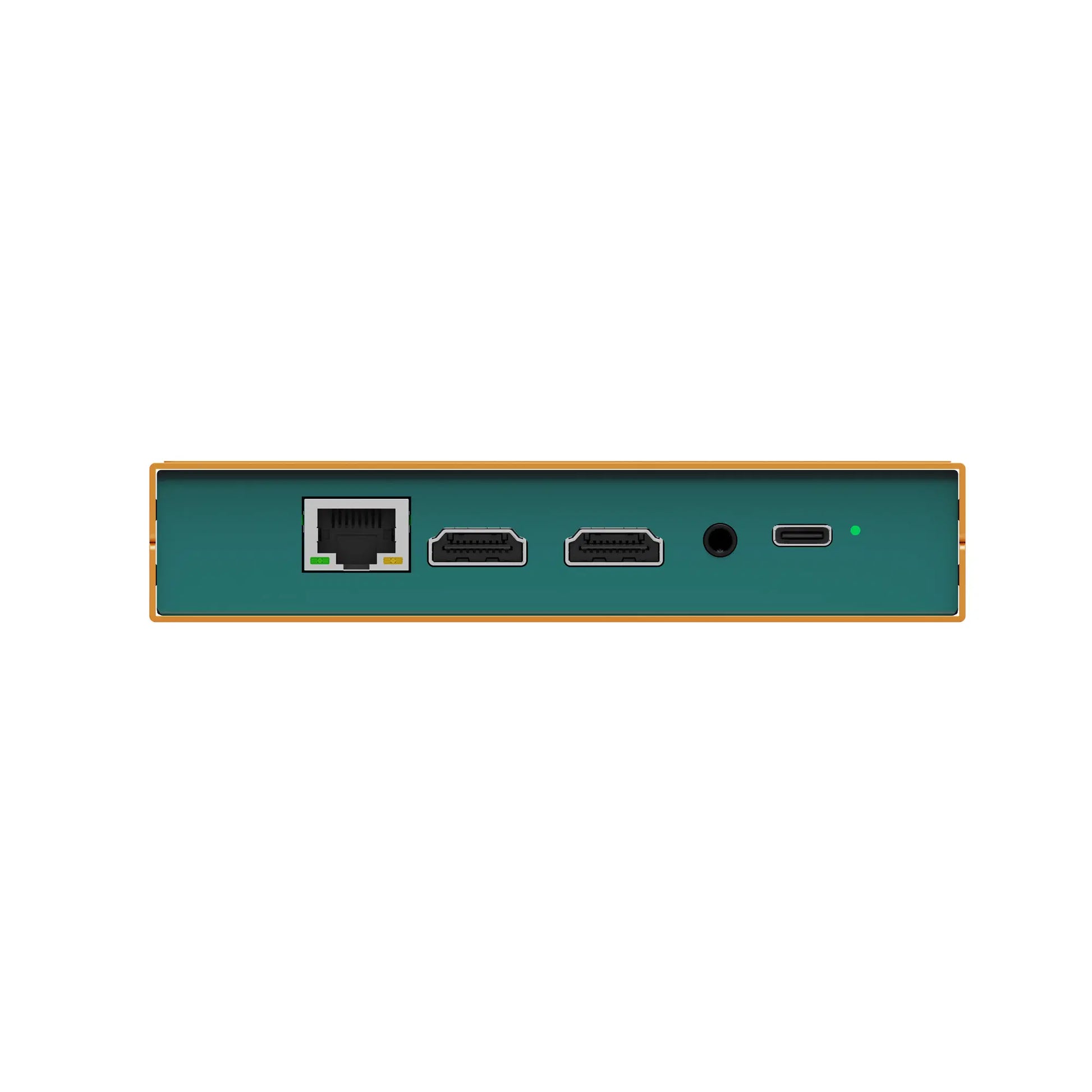

1x HDMI input, 1x HDMI output; 1x NDI®/PoE RJ45; 3.5 mm line in/out
YCbCr 4:2:2 8bit NDI® High Bandwidth HD encoding
Typical bitrate: 250 Mbps @ 4K60, 125 Mbps @ 1080p60
HDMI 4K (4096x2160, 3840x2160), 2K, 1080p, 1080i, 720p, 24/25/30/50/60 fps
DC 5 to 18V USB-C power, 5 W; 104 x 125.5 x 24.5 mm; 501 g

Connections

Video interfaces	1x HDMI input, 1x HDMI output
Audio	1x 3.5 mm line in and out
Network	1x NDI®/PoE RJ45
Power input	1x DC 5 to 18V USB-C

Video Standards

HDMI	2160p 24/25/30/50/60, 2560x1080 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
Video encoding	NDI® High Bandwidth HD, YCbCr 4:2:2 8bit, 250 Mbps @ 4K60, 125 Mbps @ 1080p60, Up to 2160p 24/25/30/50/60

Operational Features

Power

Input voltage	DC 5 to 18V (USB-C)
Power consumption	5 W ±10%

Environmental

Operating temperature	-20°C to 60°C
Storage temperature	-30°C to 70°C

Mechanical

Dimensions	104 x 125.5 x 24.5 mm
Weight	501 g (net) / 750 g (gross)

Accessories

Optional	Mounting Brackets

Other

Warranty	3 years

Streaming

NDI®	1x NDI® encoding or 1x NDI® decoding, YCbCr 4:2:2 8bit NDI® High Bandwidth HD, 250 Mbps @ 4K60, 125 Mbps @ 1080p60
