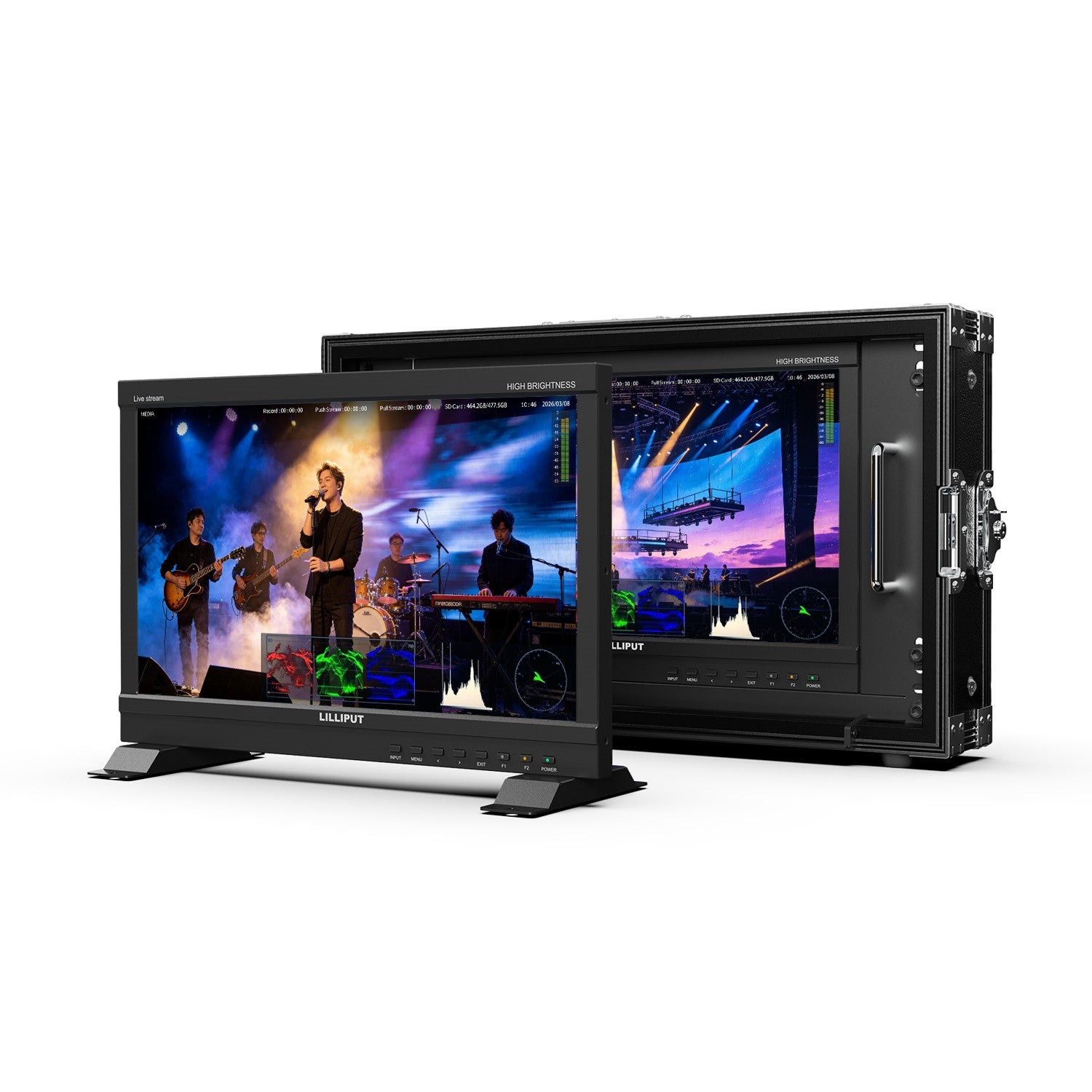

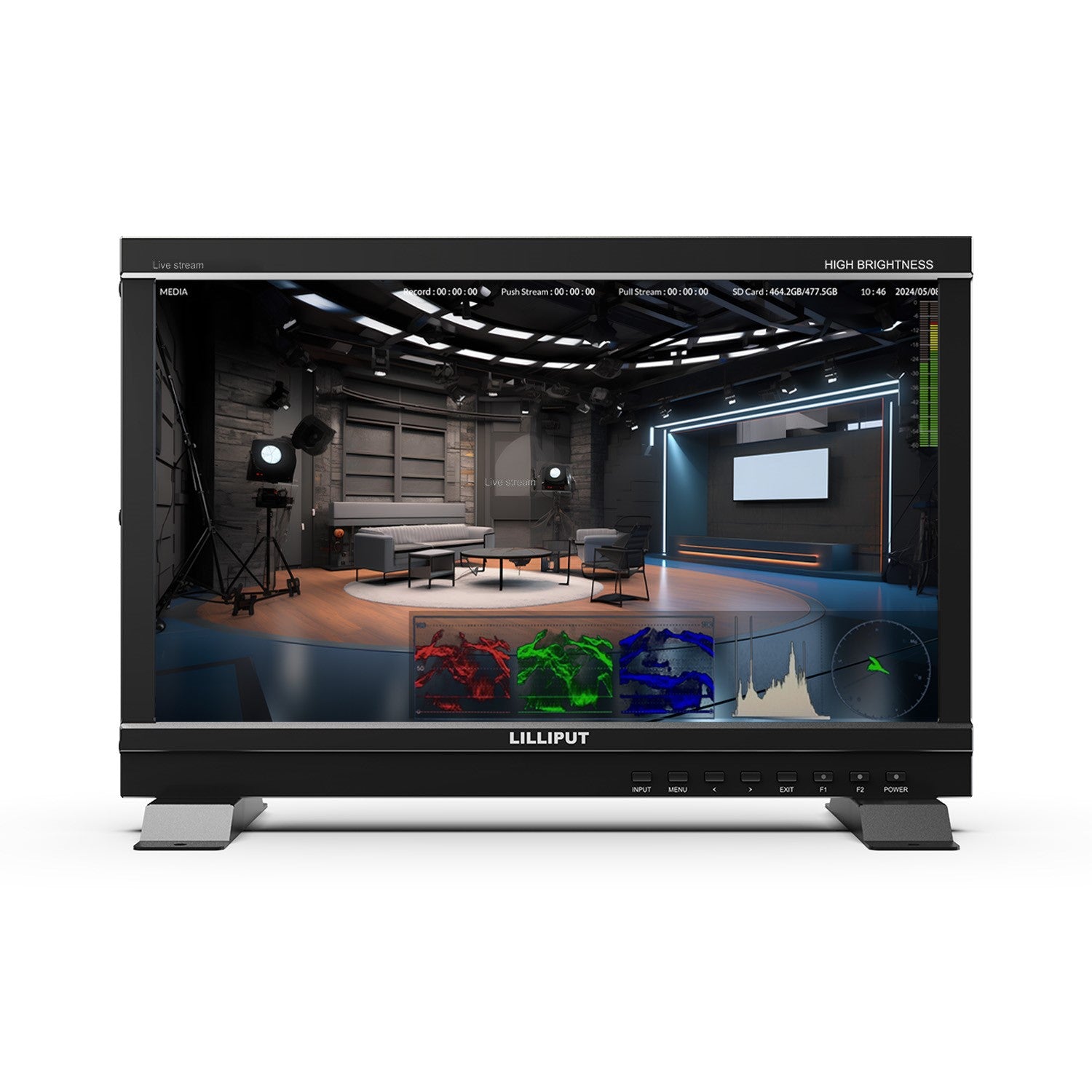

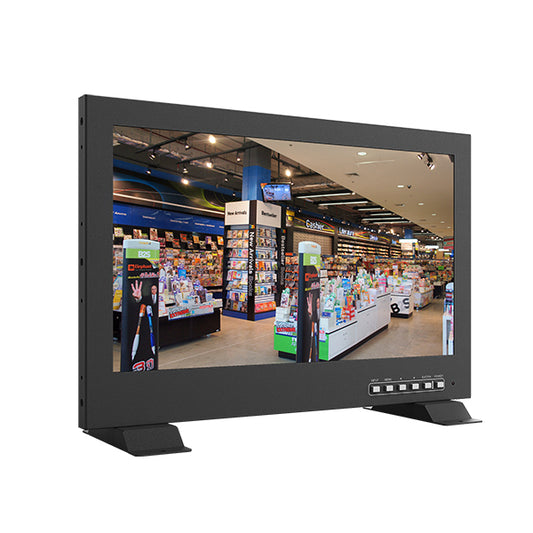

15.6 inch professional video monitor with 3G-SDI, HDMI 2.0, NDI® and built-in video recording Native NDI®|HX, NDI®|HX2, and NDI®|HX3 with PoE++ for rapid integration into LAN-based workflows 1920 x 1080 display, 1200 cd/m², 1000:1 contrast; 1x 3G-SDI, 1x HDMI 2.0, 1x LAN 1000M Onboard recording: 1080p/720p/480p to SD card (up to 512GB), H.264, .mkv HDR: ST2084 300/1000/10000, HLG; 3D LUT (.cube); Rec.709 calibration IP streaming: Push/Pull YCbCr 4:2:2 (32 Mbps @ 1080p60); SRT, RTMP, RTSP Waveform and vector scopes; VESA 75 x 75 mm; base brackets included
Display
Screen size
15.6 inch
Aspect ratio
16:9
Native resolution
1920 x 1080
Panel type
LCD
Brightness
1200 cd/m²
Contrast
1000:1
Viewing angle
160°/160° (H/V)
HDR
ST2084 300/1000/10000, HLG
Supported log formats
SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined
LUT support
3D-LUT (.cube format)

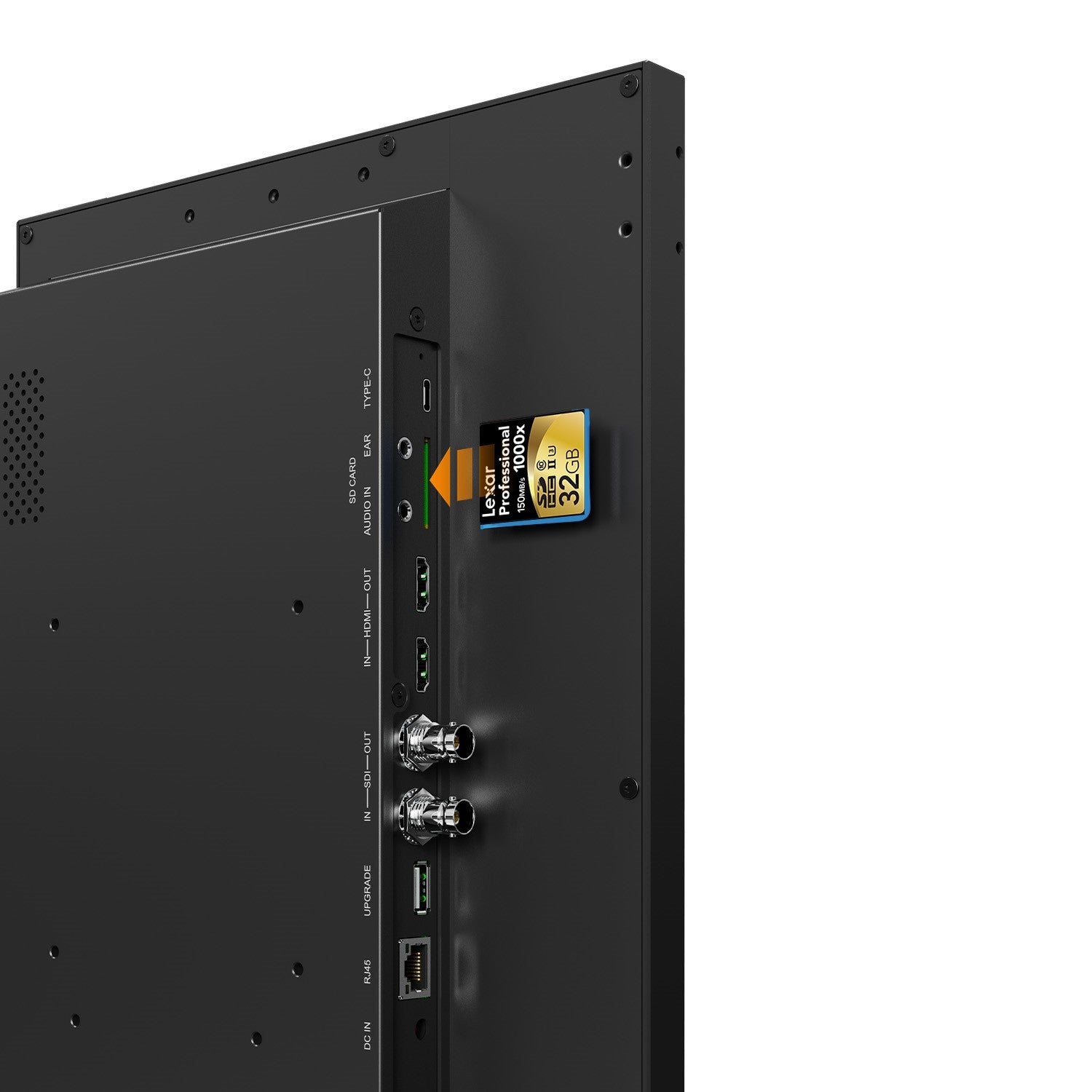

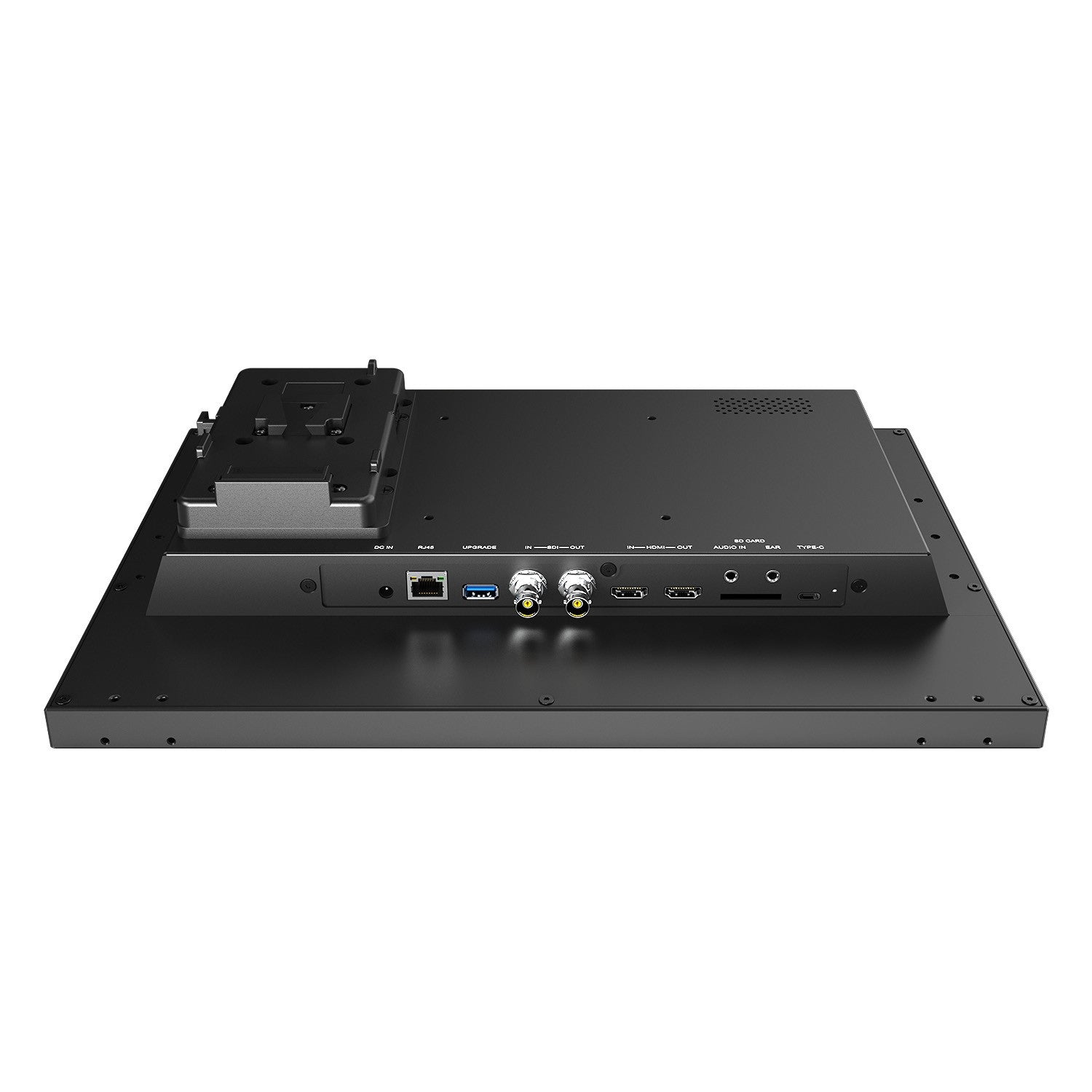

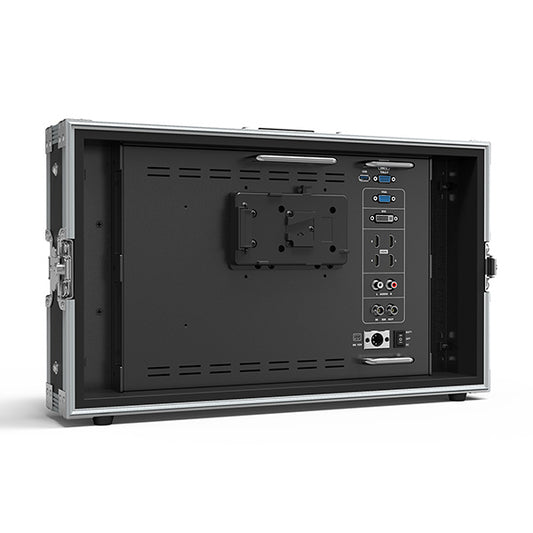

Connections
Video inputs
1x 3G-SDI, 1x HDMI 2.0, 1x LAN 1000M
Video outputs
1x 3G-SDI, 1x HDMI 2.0
Audio
3G-SDI 2ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 1x Built-in speaker
Video Standards
3G-SDI
1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
HDMI 2.0
2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
NDI®
NDI®|HX, NDI®|HX2, NDI®|HX3
Scopes
Video analysis
Waveform (Y, YCbCr, RGB), Vector, Histogram, Peaking, False colour (Default, Spectrum, ARRI, RED), Exposure, Check field, Freeze, Colour bar
Audio analysis
Audio vector, Level meter
Power
Input voltage
DC 9 to 24V
Power consumption
≤39 W (15V)
PoE
PoE++ IEEE 802.3bt
Compatible batteries
V-Lock or Anton Bauer mount (optional)
Input voltage (battery)
14.8V nominal
Environmental
Operating temperature
0°C to 50°C
Storage temperature
-20°C to 60°C
Mechanical
Dimensions
376 x 247.7 x 49.3 mm
Weight
3.15 kg
Mounting
VESA mount
75 x 75 mm; 75 x 75 mm (V-mount/Anton Bauer battery)
Base brackets
Base brackets included
Rack mount
6U rack mount brackets (optional)
Operational Features
Markers — Aspect markers
16:9, 1.85:1, 2.35:1, 2.39:1, 4:3, 3:2, 1.3X, 1.5X, 1.8X, 2.0X, 2.0X MAG, Grid, User
Markers — Safety marker
80%, 85%, 88%, 90%, 93%, 95%
Markers — Centre marker
On/Off
Function buttons
F1, F2 user-definable
Colour temperature
5500K, 6500K, 7500K, 9300K, User
Gamma
1.8 to 2.8
Selectable colour spaces
Native, SMPTE-C, Rec.709, EBU
Comparison
Gamma/HDR, Colour space, Camera LUT
Peaking
Red, Green, Blue, White, Black
Time code
LTC, VITC
Accessories
Included
15V 4A DC Power Adapter, Base Bracket, E-User Manual
Optional
Battery Plate + D-Tap Cable, Carry case & Sunshade, 19" rack mount brackets, Gimbal Bracket
Recording
Storage
SD card
File segment
1/5/10/20/30/60 min
Record file format
H.264
Video resolution
1920 x 1080, 1280 x 720, 720 x 480
Frame rates
60/50/30/25/24 fps
Audio sample rate
44.1 kHz / 48 kHz
Streaming
IP streaming
Push/Pull: YCbCr 4:2:2 (up to 32 Mbps @ 1080p60)
Streaming protocols — Push
SRT, RTMP
Streaming protocols — Pull
RTMP, RTSP, HTTP, HTTPS, NDI®|HX, NDI®|HX2, NDI®|HX3
