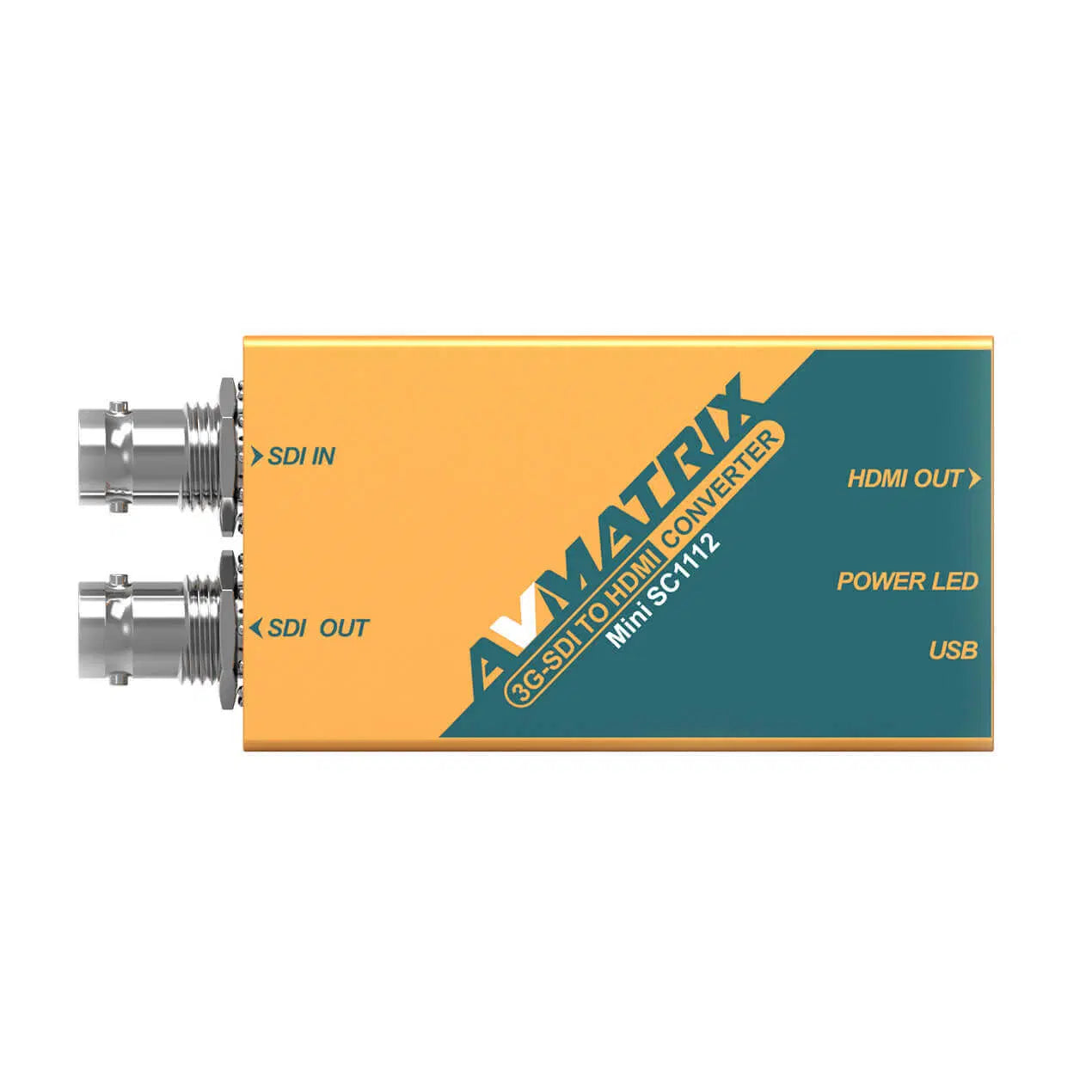

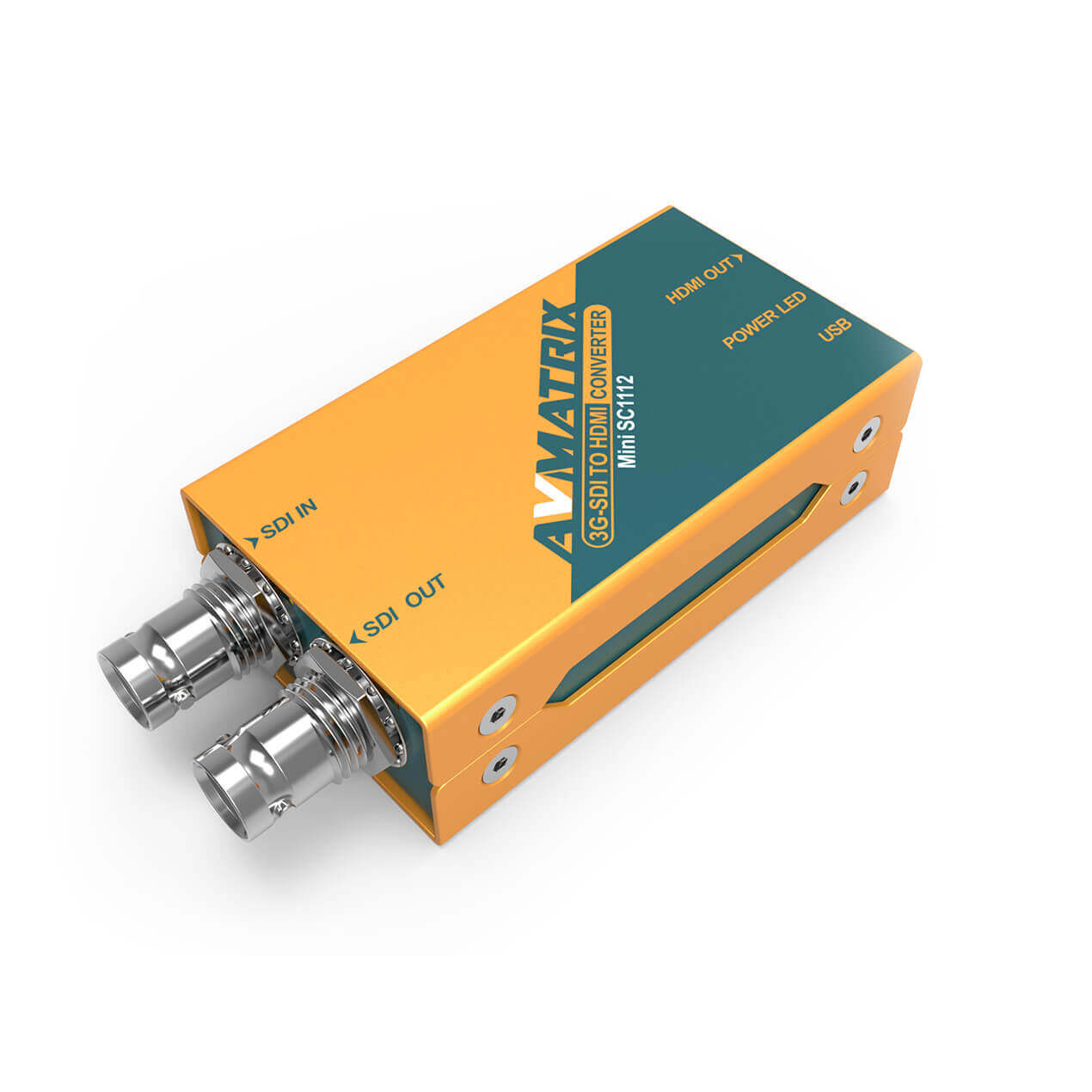

3G-SDI to HDMI mini converter: 1x SD/HD/3G-SDI BNC in, 1x SDI loop out, 1x HDMI type A out Pocket-size broadcast converter with full-size SDI and HDMI connectors for convenient field and studio use Auto-detects SD, HD, and 3G-SDI Level A/B on input up to 1080p60; YUV 4:2:2 colour space on SDI and HDMI SDI formats: 525i/625i, 720p, 1080i, 1080pSF, and 1080p; HDMI output: 480i/576i, 720p, 1080i, and 1080p USB Type-C power (3.3 to 5 V), 1.5 W; detachable mounting bracket included 71 x 41 x 23 mm, 168 g; -20°C to 60°C operating, 3 year limited warranty
Connections
Video inputs

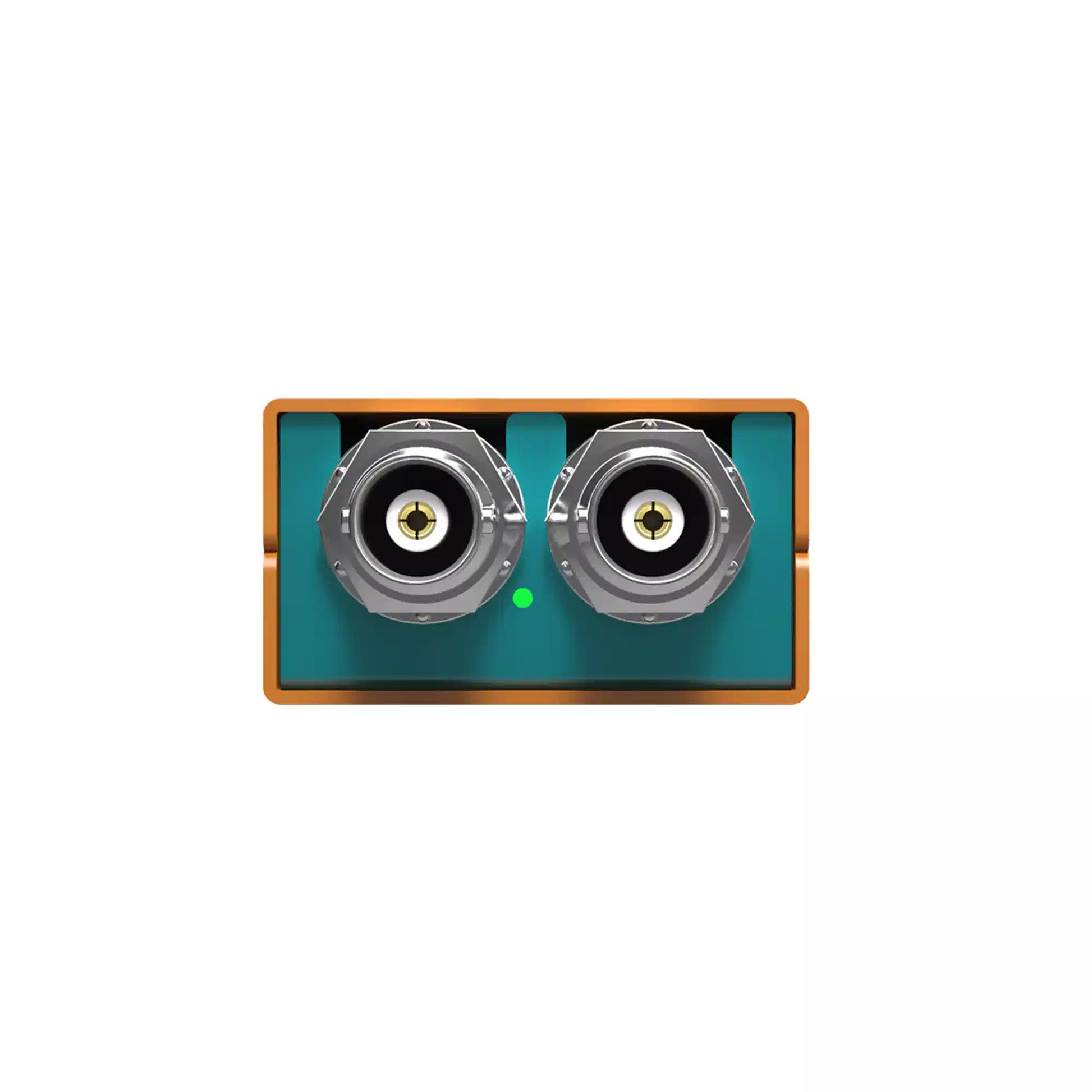

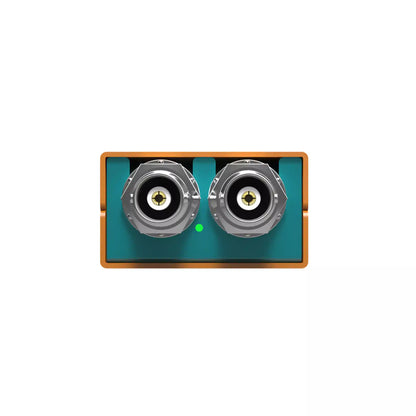

1x SD/HD/3G-SDI (75Ω BNC)
Video outputs

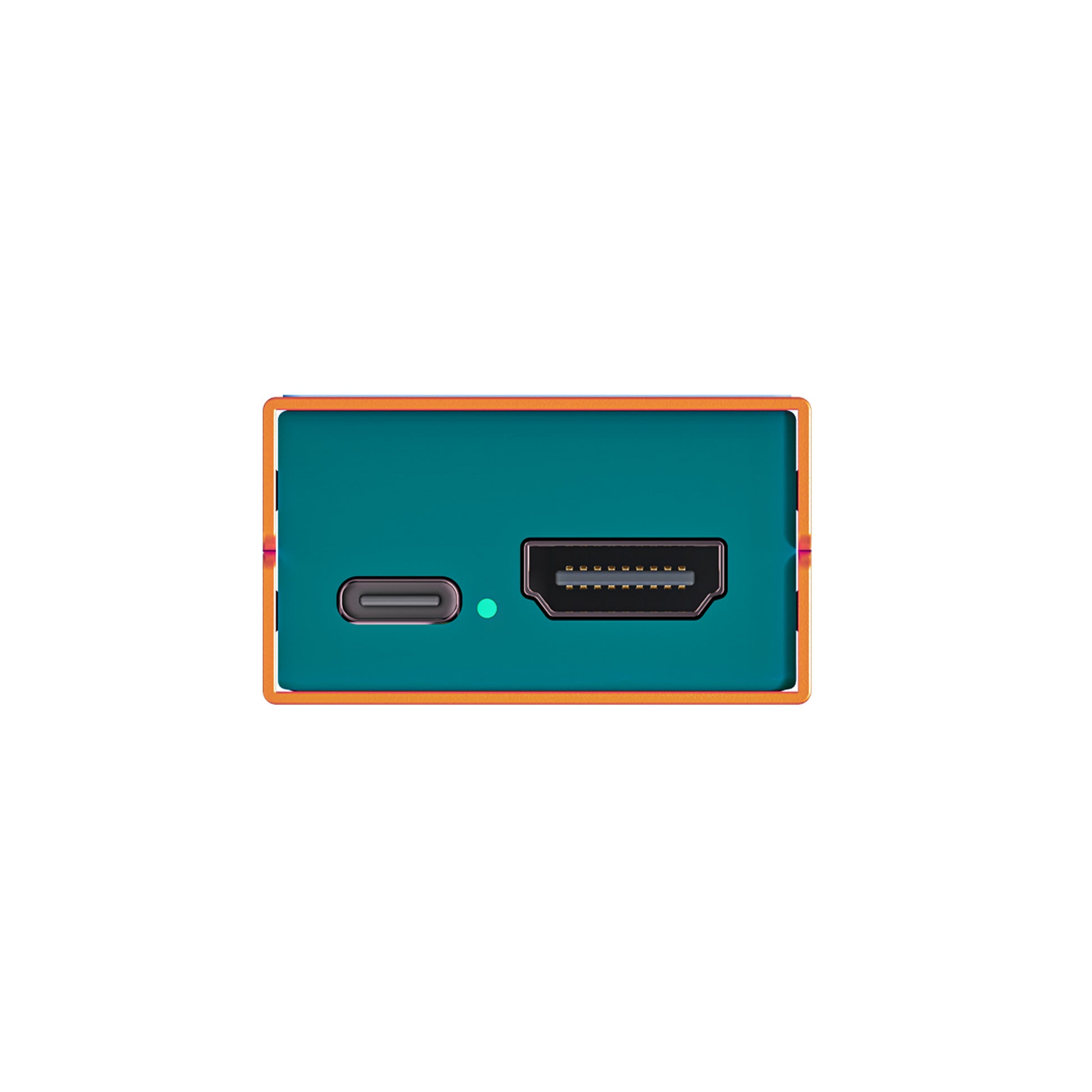

1x SD/HD/3G-SDI loop out (75Ω BNC), 1x HDMI type A
Power input
1x USB Type-C (3.3 to 5 V)
Video Standards
3G-SDI
1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 25/29.97/30/50/59.94/60, 625i 50, 525i 59.94
HDMI
1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 720p 25/29.97/30/50/59.94/60, 576i 50, 480i 59.94
3G-SDI compliance
SMPTE 259M, SMPTE 292M, SMPTE 424M
Colour space
YUV 4:2:2 (SDI and HDMI)
Format auto-detection
Auto-detects SD, HD, and 3G-SDI Level A/B on input
Power
Input voltage
DC 3.3 to 5 V USB Type-C
Power consumption
1.5 W
Environmental
Operating temperature
-20°C to 60°C
Storage temperature
-30°C to 70°C
Relative humidity
0% to 90% non-condensing
Mechanical
Dimensions
71 x 41 x 23 mm
Weight
168 g
Mounting
Wall mount

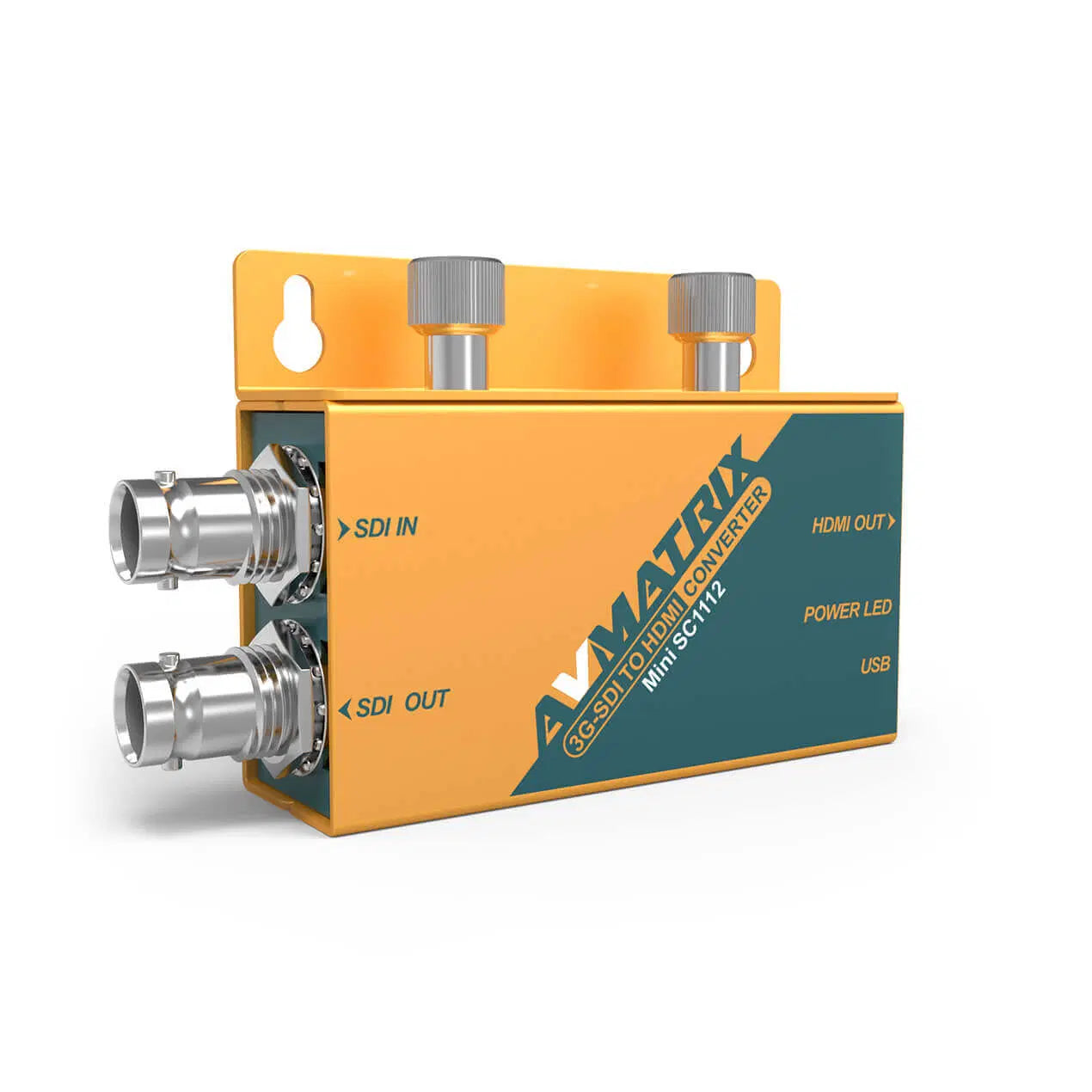

Detachable mounting bracket included
Accessories
Included
5V Special Power Adapter, USB Cable, Mounting Bracket
