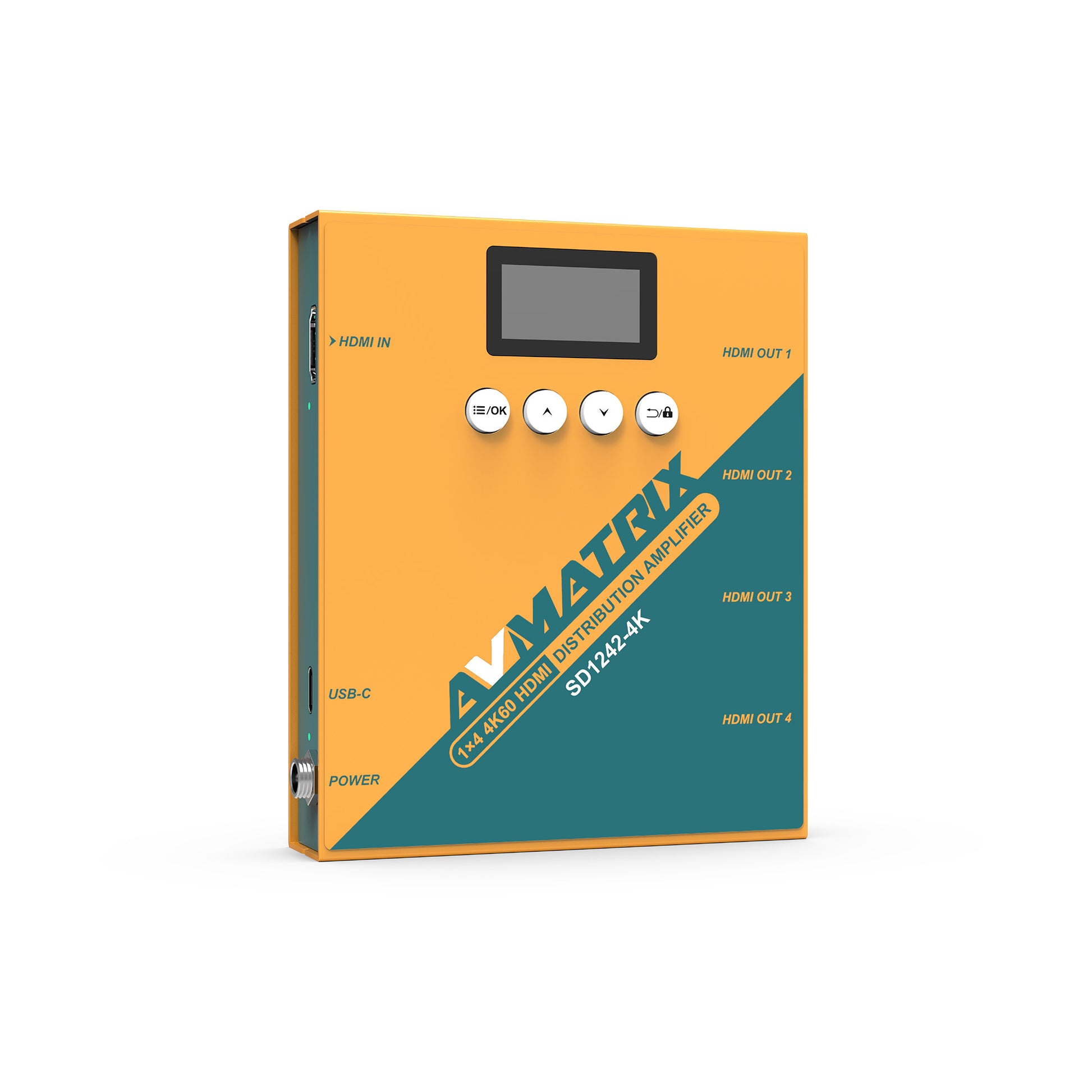

1x4 4K60 HDMI distribution amplifier. 1x HDMI 2.0 in, 4x HDMI 2.0 out, EDID management via LCD menu. Dual power USB-C 5 to 5.5 V or DC 5.5 to 24 V, 6 W. 125.5 x 104 x 24.5 mm, 471 g.
1x4 4K60 HDMI distribution amplifier: 1x HDMI 2.0 type A in, 4x HDMI 2.0 type A out
HDMI 2.0 through 4096 x 2160p60 and 3840 x 2160p60; RGB 4:4:4, YUV 4:2:2, and YUV 4:4:4 8-bit
EDID management via LCD: Auto, Standard, Custom, Copy, and Pre-save; per-output enable; lockable front-panel buttons
USB Type-C 5 to 5.5 V or DC 5.5 to 24 V, 6 W; 12V 2A universal power adapter included; USB-C for updates and PC software
125.5 x 104 x 24.5 mm, 471 g; mounting bracket optional; -20°C to 60°C operating, 3 year limited warranty
Connections
Video inputs
1x HDMI 2.0 type A
Video outputs
4x HDMI 2.0 type A
Power input

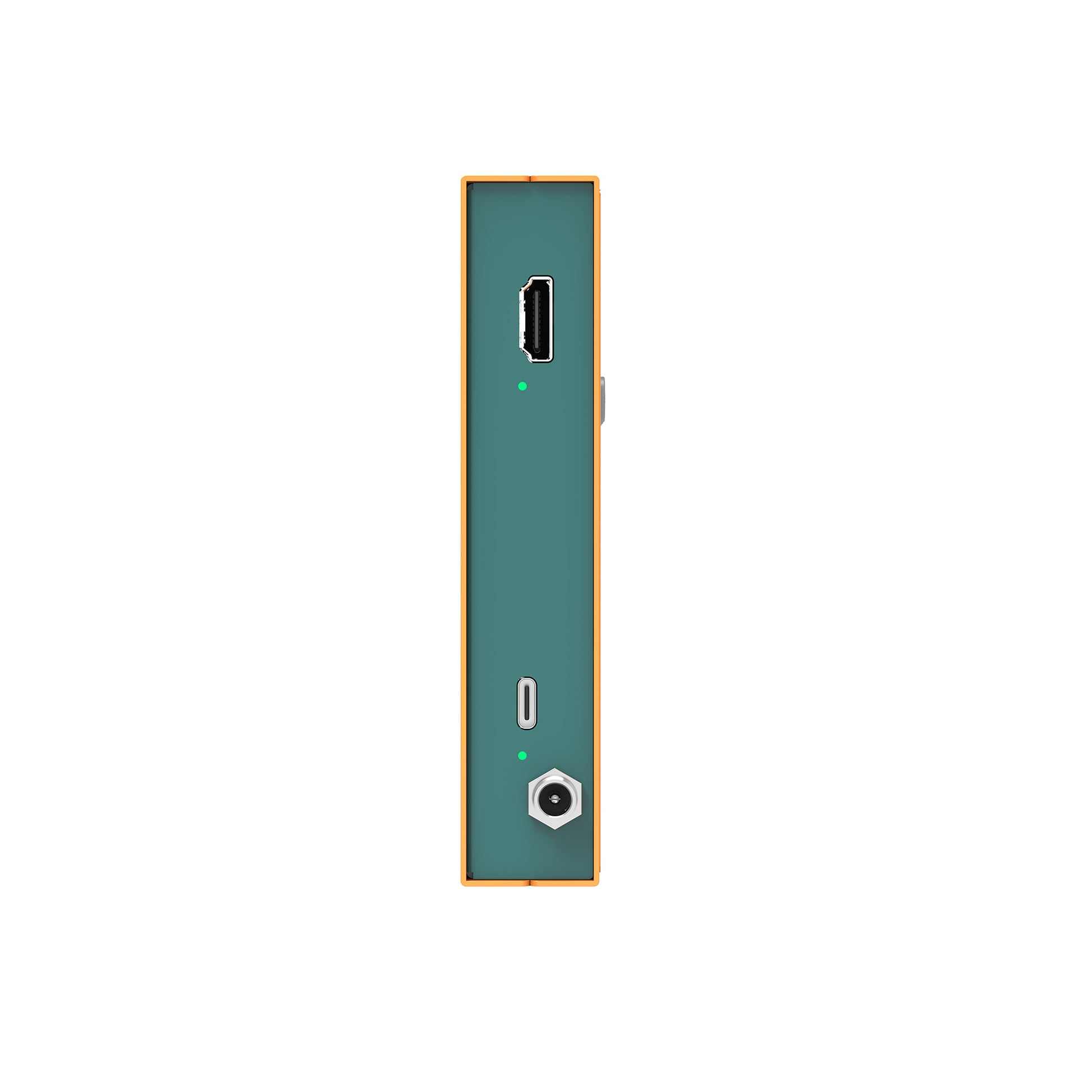

1x DC threaded locking connector (5.5 to 24 V), 1x USB Type-C (5 to 5.5 V; power, update, and PC software)
Video Standards
HDMI 2.0
4096 x 2160p 23.98/24/25/29.97/30/50/59.94/60, 3840 x 2160p 23.98/24/25/29.97/30/50/59.94/60, 2560 x 1080p 23.98/24/25/29.97/30/50/59.94/60, 1920 x 1080p 23.98/24/25/29.97/30/50/59.94/60, 1920 x 1080i 50/59.94/60, 1280 x 720p 23.98/24/25/29.97/30/50/59.94/60, 1440 x 576i 50, 1440 x 480i 59.94/60, 720 x 576p 50, 640 x 480p 59.94/60
HDMI compliance
HDMI 2.0
Colour space
RGB 4:4:4 8-bit, YUV 4:2:2 8-bit, YUV 4:4:4 8-bit
Operational Features
Menu control
LCD with 4 buttons; EDID Auto, Standard, Custom, Copy, and Pre-save; per-output enable
Function buttons
Menu/Confirm, Previous, Next, Back/Lock

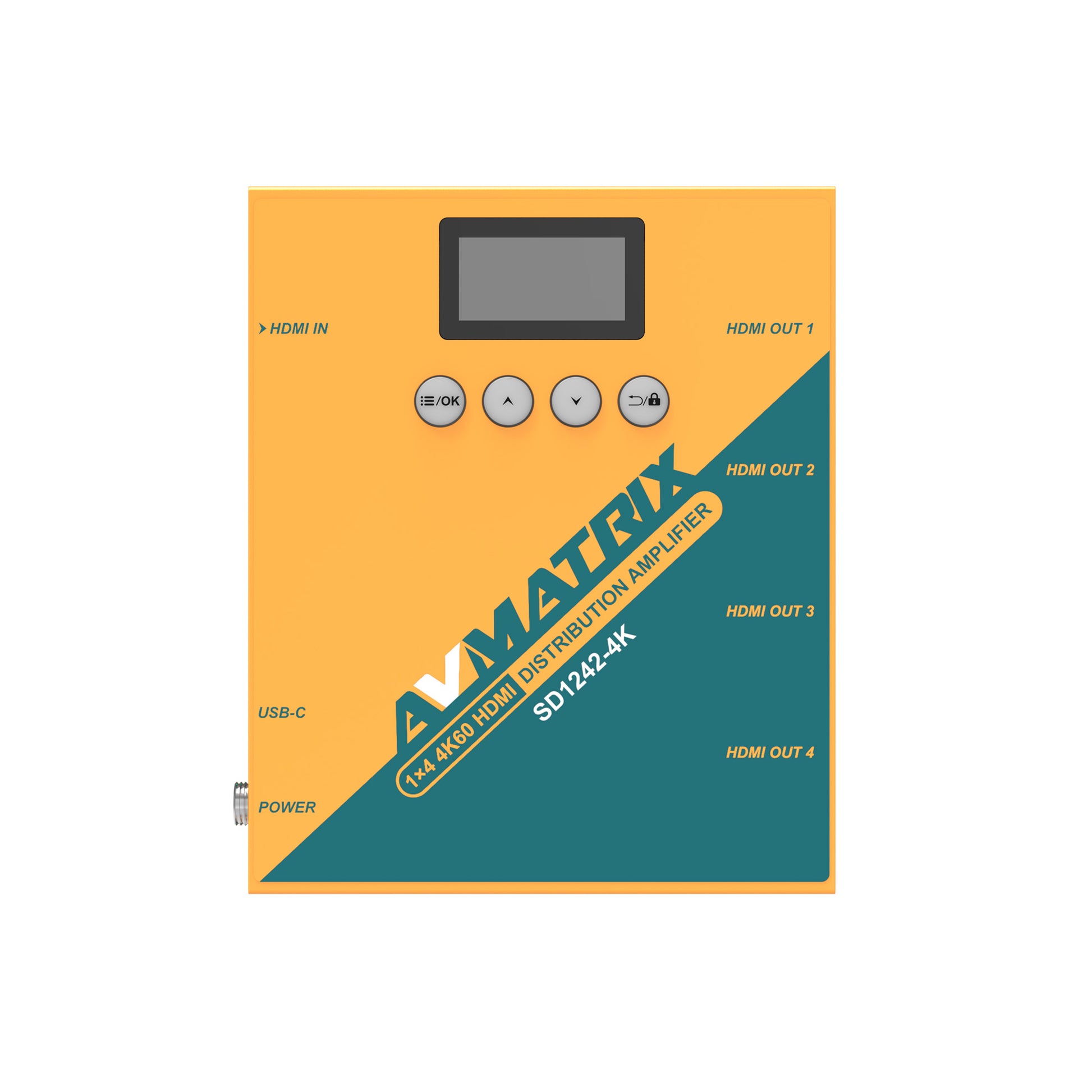

Front panel control
LCD status display with 4 buttons
Remote control
PC software via USB Type-C
Power
Input voltage
USB 5 to 5.5 V; DC 5.5 to 24 V
Power consumption
6 W
Environmental
Operating temperature
-20°C to 60°C
Storage temperature
-30°C to 70°C
Relative humidity
0% to 90% non-condensing
Mechanical
Dimensions
125.5 x 104 x 24.5 mm
Weight
471 g
Mounting
Wall mount
Mounting bracket (optional)
Accessories
Included
DC 12V 2A Universal Power Adapter with International Plug
