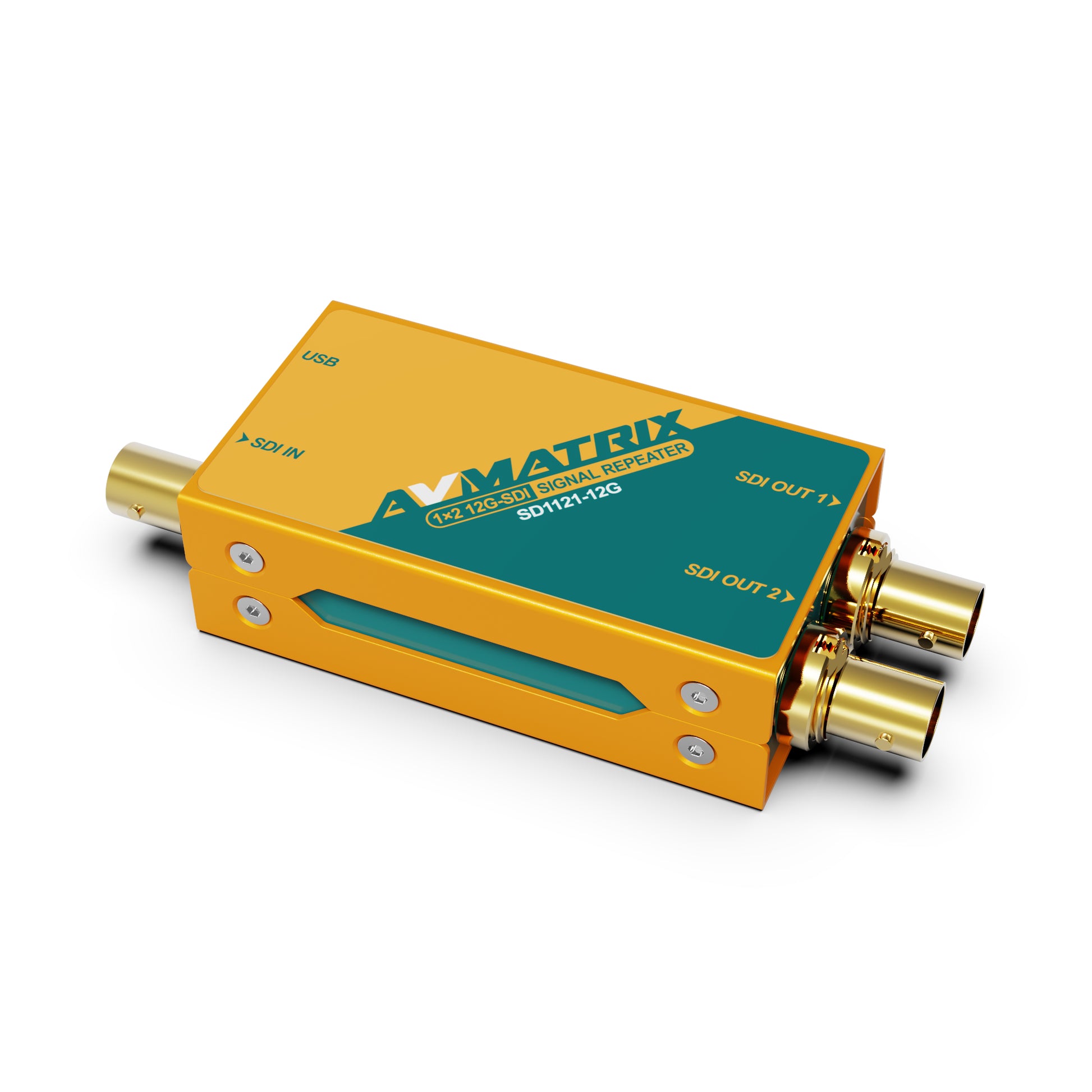

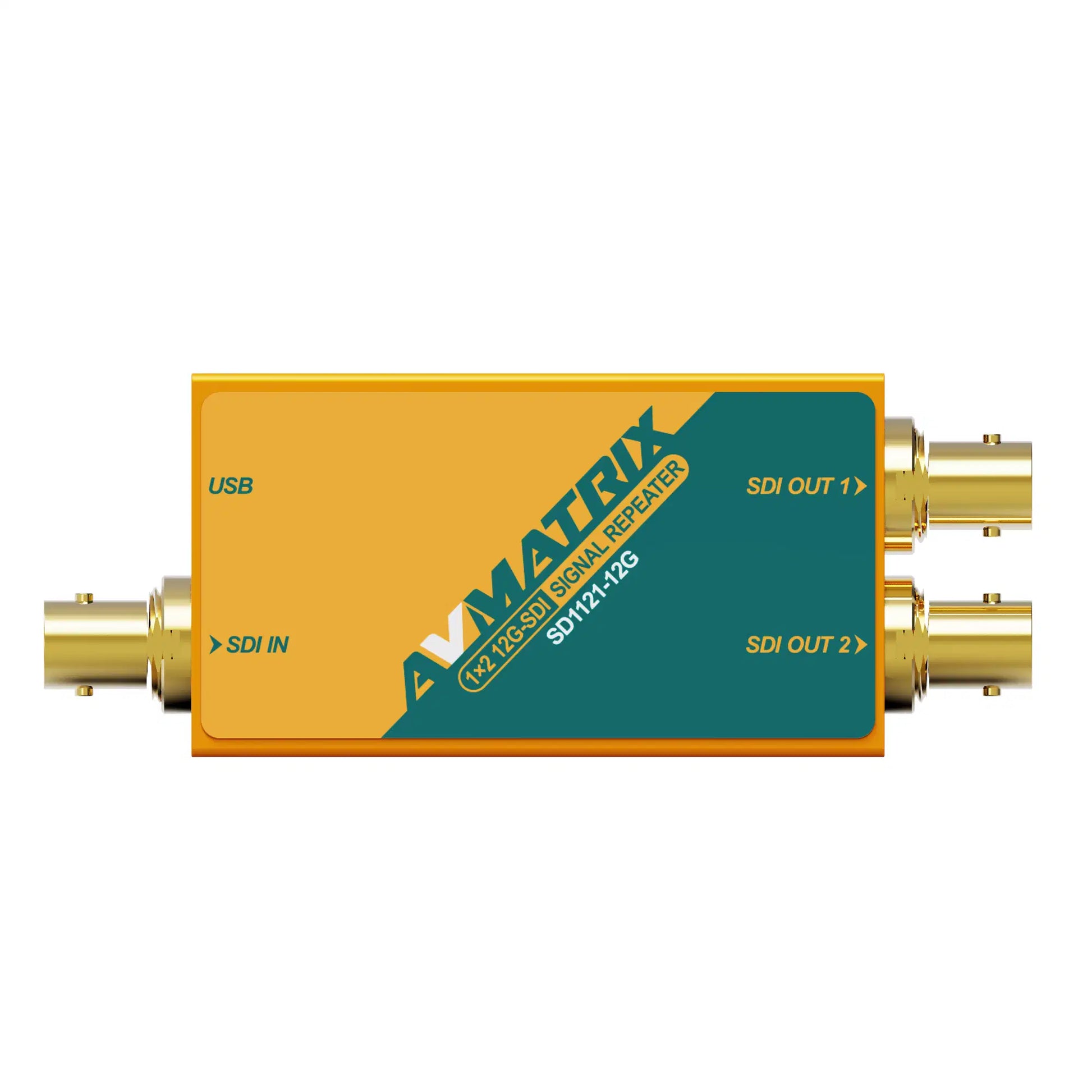

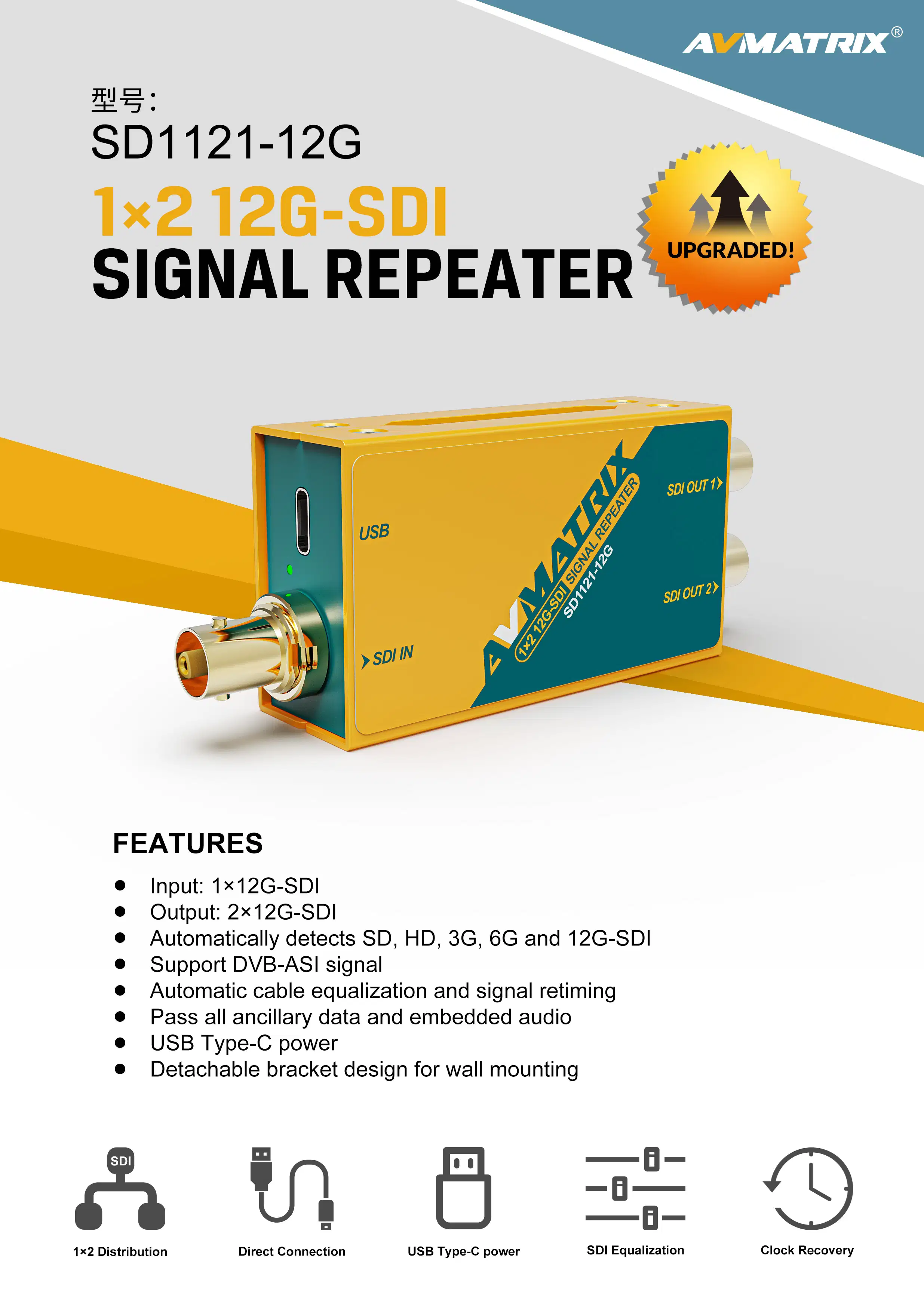

1x2 12G-SDI signal repeater: 1x 12G-SDI BNC in, 2x 12G-SDI BNC out; automatically detects SD, HD, 3G, 6G, and 12G-SDI DVB-ASI compatible; automatic cable equalization and signal retiming (long-reach SDI up to 12G 60 m, 3G 120 m per Belden-class coax) Passes embedded audio and ancillary data on both outputs 5 V USB Type-C power (1 W typical); detachable wall-mount bracket included 105.5 x 41 x 23 mm, 156 g; -20°C to 60°C operating, 3 year limited warranty

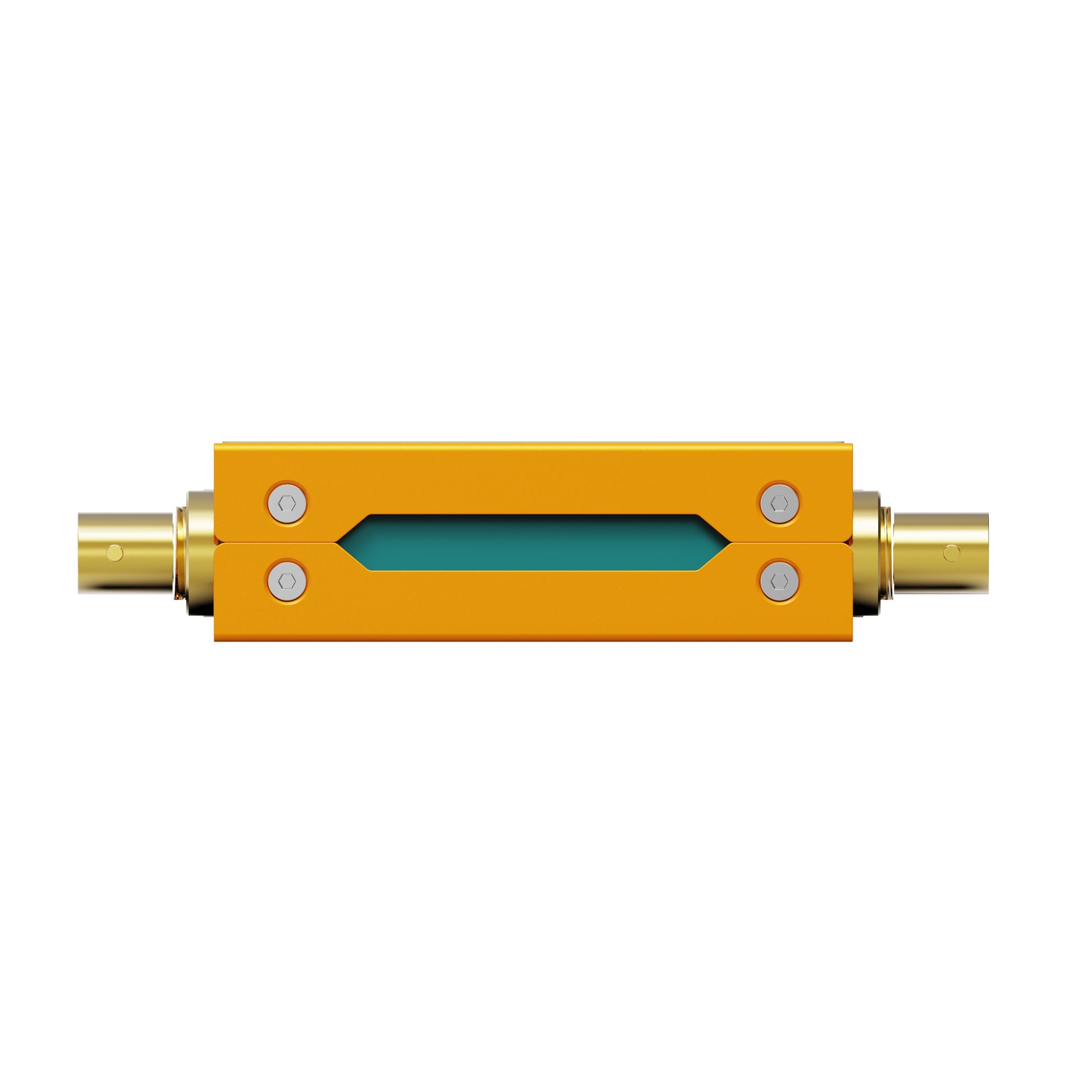

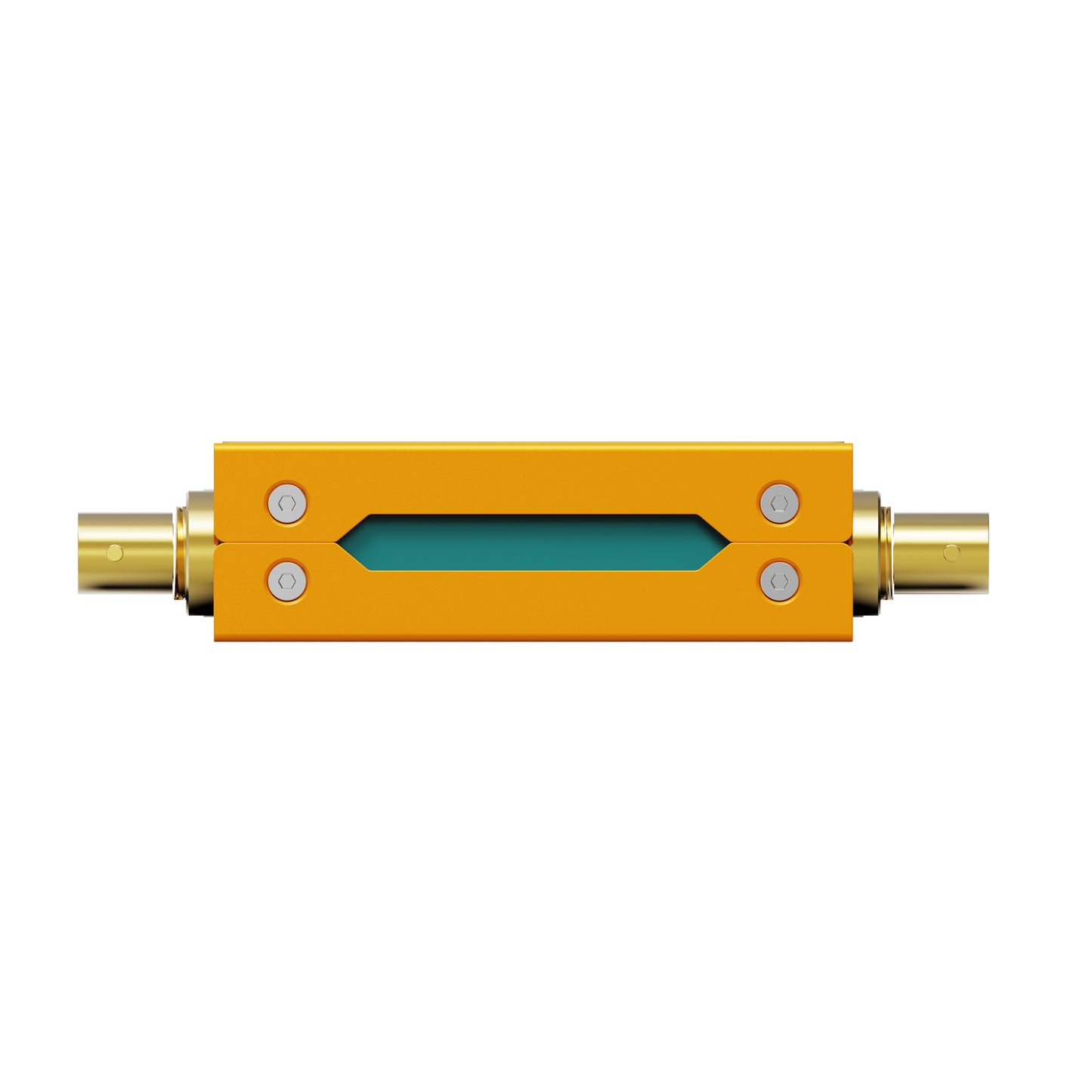

Connections

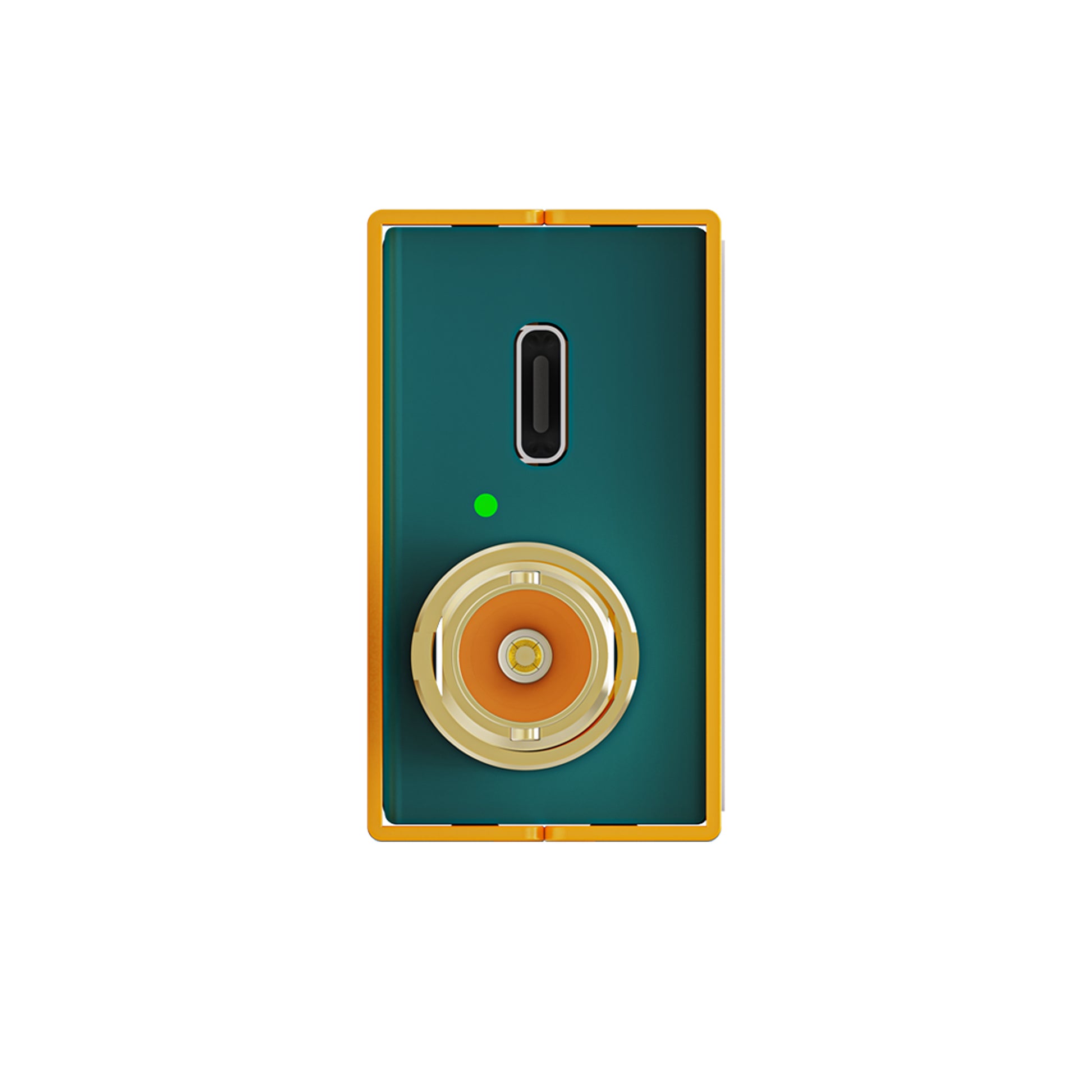

Video inputs
1x SD/HD/3G/6G/12G-SDI (BNC)

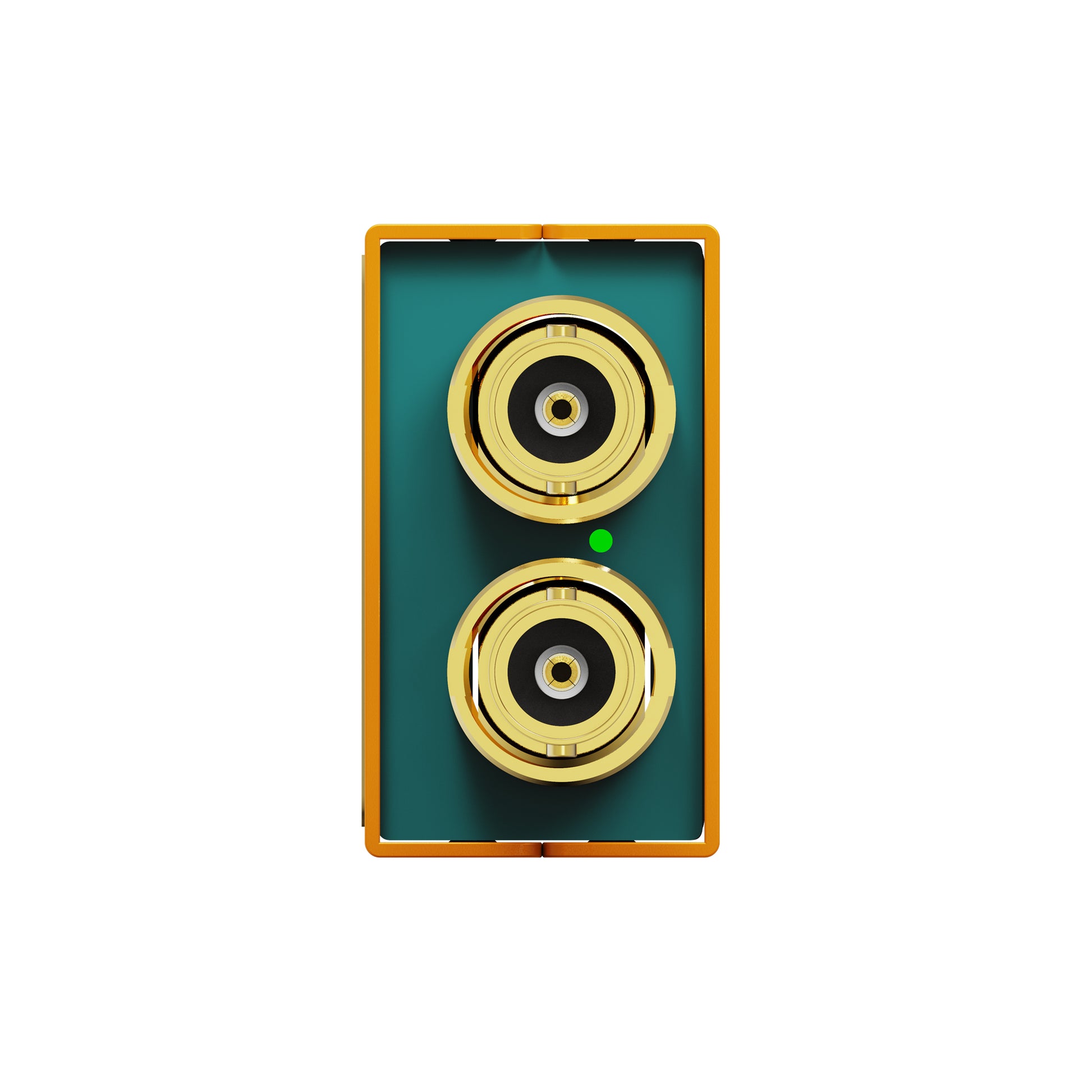

Video outputs
2x SD/HD/3G/6G/12G-SDI/DVB-ASI (BNC)
Audio
SDI embedded audio and ancillary data pass-through
Power input
1x USB Type-C (5 V)
Video Standards
3G-SDI
1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 2048 x 1080p 23.98/24/25/29.97/30, 2048 x 1080pSF 23.98/24/25/29.97/30, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 2048 x 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 625i 50, 525i 59.94
12G-SDI
2160p 23.98/24/25/29.97/30, 4096 x 2160 23.98/24/25/29.97/30, 2160p 47.95/48/50/59.94/60, 4096 x 2160 47.95/48/50/59.94/60, 1080p 47.95/48/50/59.94/60, 2048 x 1080p 47.95/48/50/59.94/60
3G-SDI compliance
SMPTE ST-2081, SMPTE ST-2082, SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M-B, SMPTE 274M, SMPTE 425M, ITU-R BT.656, ITU-R BT.601, DVB-ASI
Colour space
RGB 4:4:4 10/12-bit; YUV 4:2:2/4:4:4 10/12-bit; XYZ 4:4:4 12-bit
Cable equalization (max cable)
SD 400 m, HD 200 m, 3G 120 m, 12G 60 m
Format auto-detection
Auto-detects SD, HD, 3G, 6G, and 12G-SDI; DVB-ASI compatible
Power
Input voltage
5 V USB Type-C
Power consumption
1 W
Environmental
Operating temperature
-20°C to 60°C
Storage temperature
-30°C to 70°C
Relative humidity
0% to 90% non-condensing
Mechanical
Dimensions
105.5 x 41 x 23 mm
Weight
156 g
Mounting
Wall mount
Detachable wall mounting bracket included
Accessories
Included
5V USB Power Adapter, Detachable wall mounting bracket
