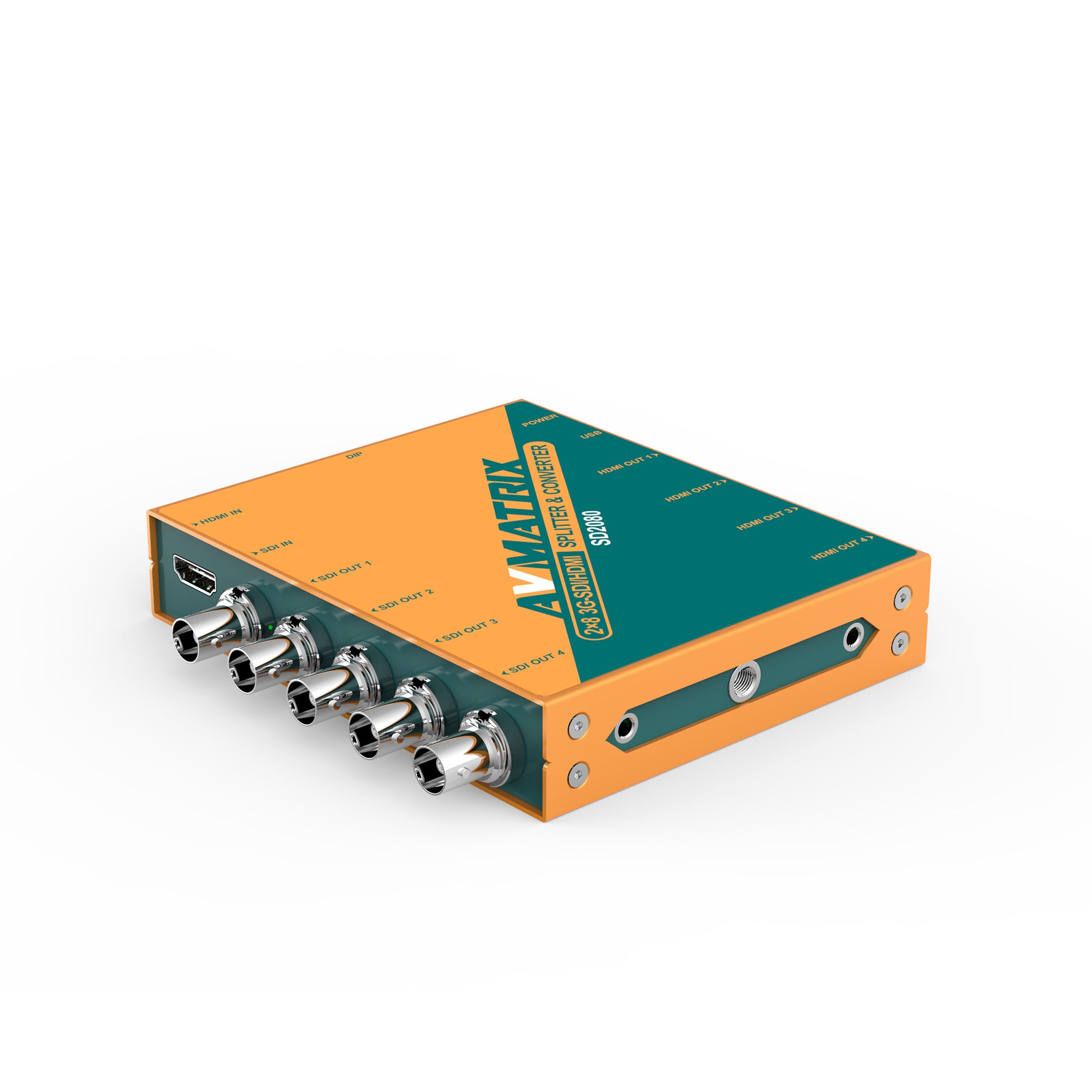

2x8 3G-SDI/HDMI splitter and converter: 1x HDMI type A in, 1x SD/HD/3G-SDI in, 4x HDMI out, 4x SDI out Distribute and convert between SDI and HDMI; selected input is sent to all eight outputs simultaneously, up to 1080p60 Auto-detects HDMI and SD/HD/3G-SDI input; SDI equalization and re-clock; DIP SW1 selects HDMI or SDI input USB Type-C 5 V or threaded locking DC 6 to 28 V; 6.6 W (DC) / 7.5 W (USB); 12V 2A power supply included 125.5 x 104 x 24.5 mm, 485 g; 2x detachable mounting brackets included; -20°C to 60°C operating

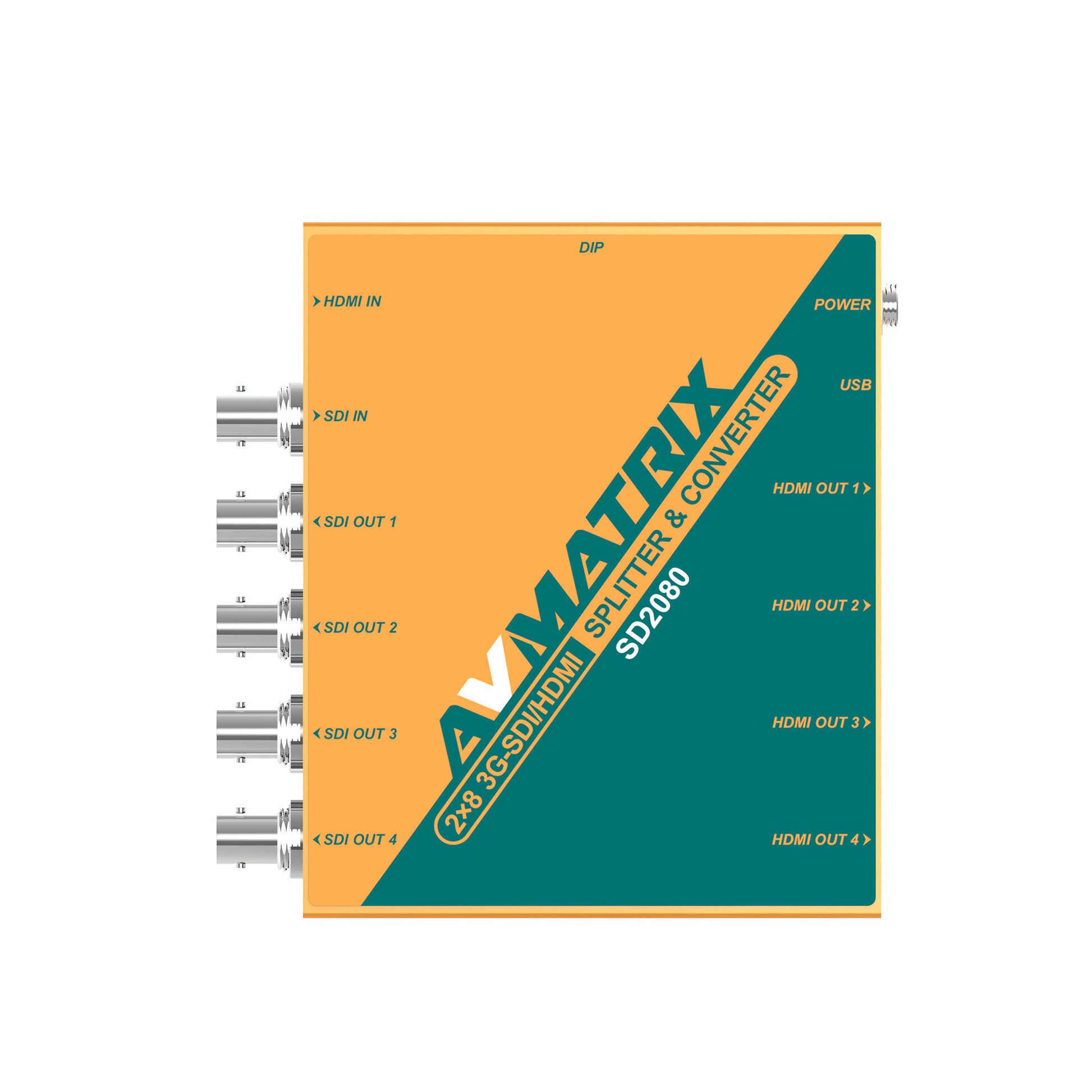

Connections
Video inputs
1x HDMI type A, 1x SD/HD/3G-SDI (BNC)
Video outputs

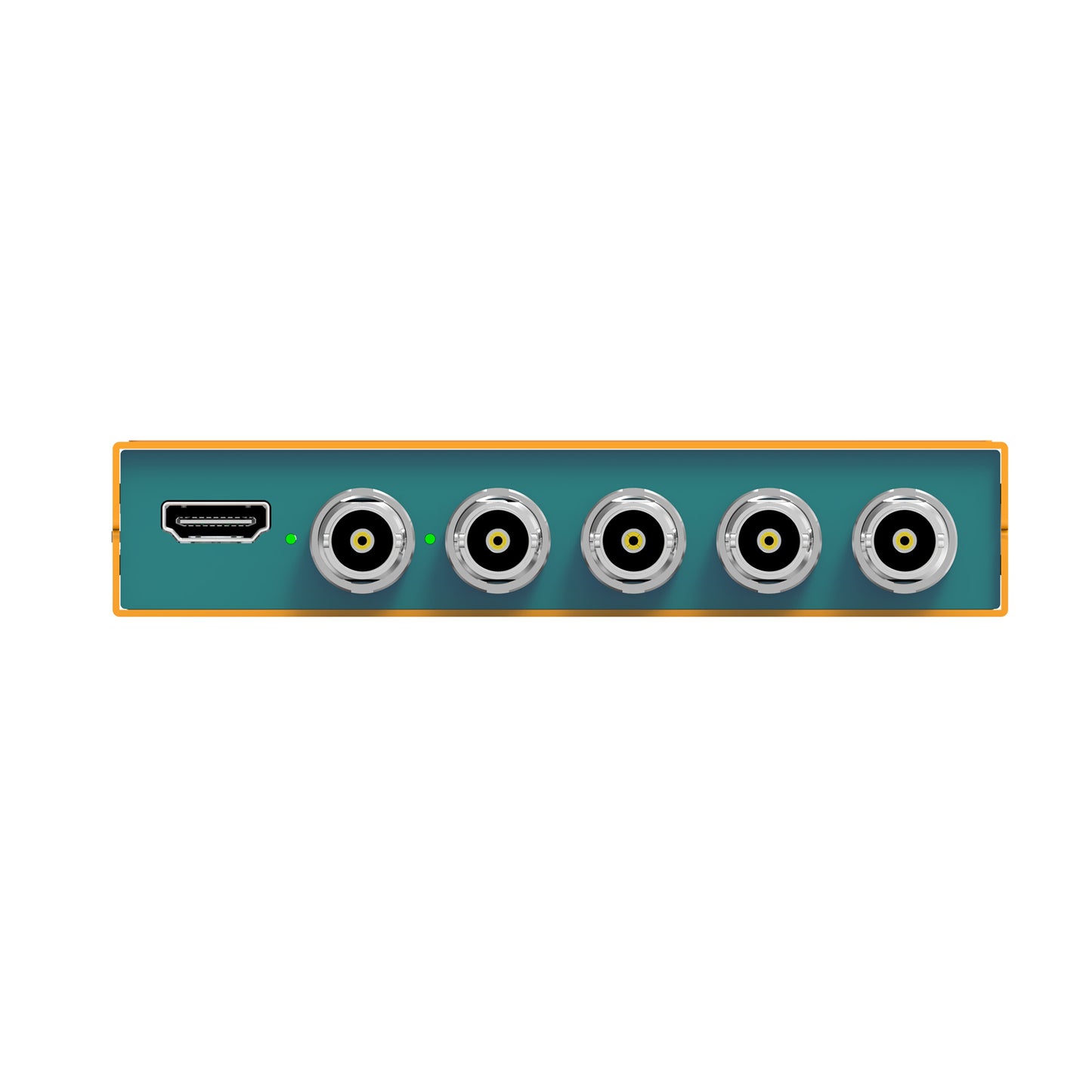

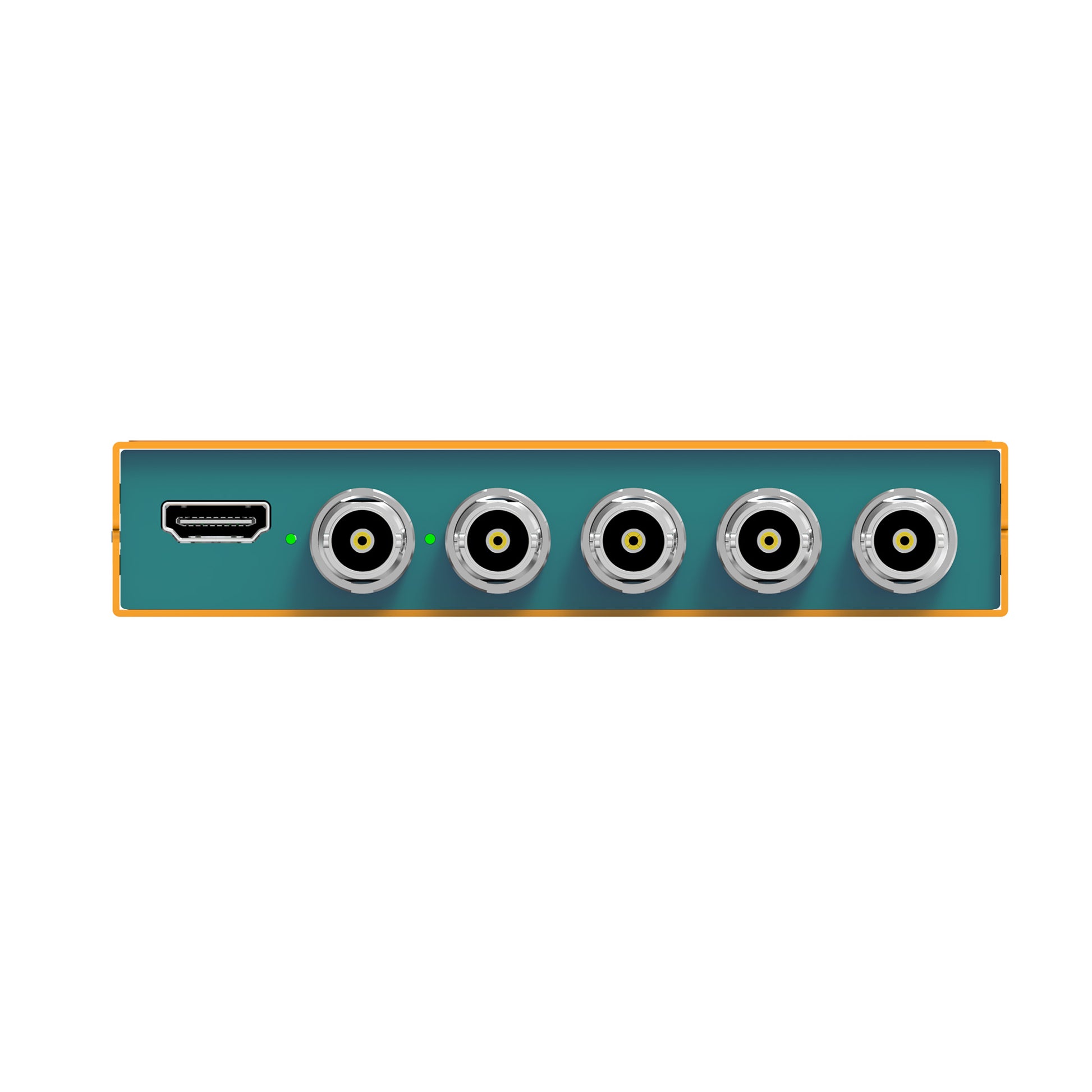

4x HDMI type A, 4x SD/HD/3G-SDI (BNC)
Power input

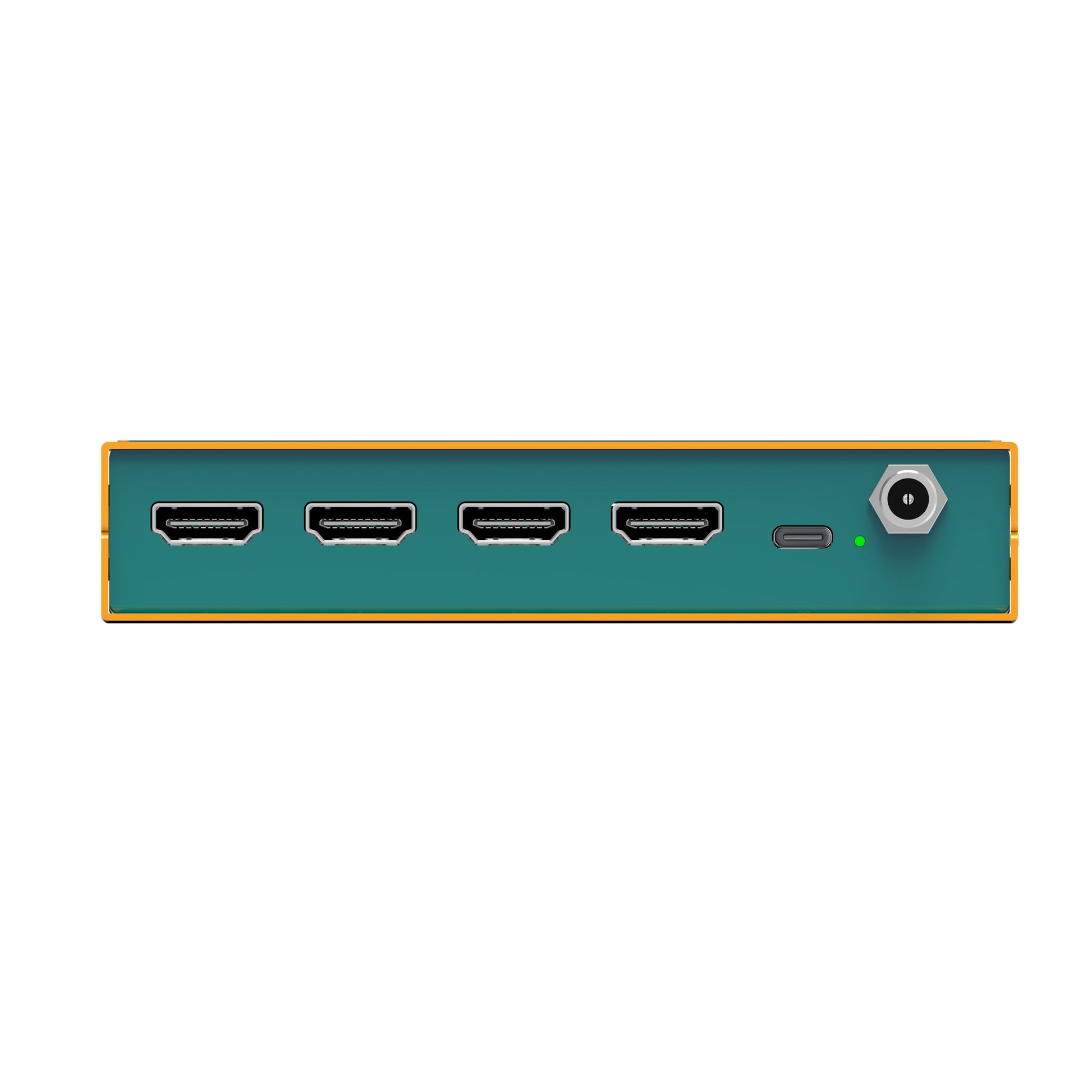

1x DC threaded locking connector (6 to 28 V), 1x USB Type-C (5 V)
Video Standards
3G-SDI
1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 25/29.97/30/50/59.94/60, 625i 50, 525i 59.94
HDMI
1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 720p 25/29.97/30/50/59.94/60, 576i 50, 480i 59.94
3G-SDI compliance
SMPTE 292M, SMPTE 259M, SMPTE 424M
Colour space
YUV 4:2:2 (SDI); RGB 4:4:4, YUV 4:2:2, YUV 4:4:4 (HDMI)
SDI output rate
SD/HD/3G-SDI
Format auto-detection
Auto-detects HDMI and SD/HD/3G-SDI input
Operational Features
Cross conversion
SDI → HDMI or HDMI → SDI (DIP-selectable input); selected input is distributed to 4x SDI and 4x HDMI simultaneously
SDI distribution
1 in, 4 out (plus 4x HDMI converted)
DIP switches

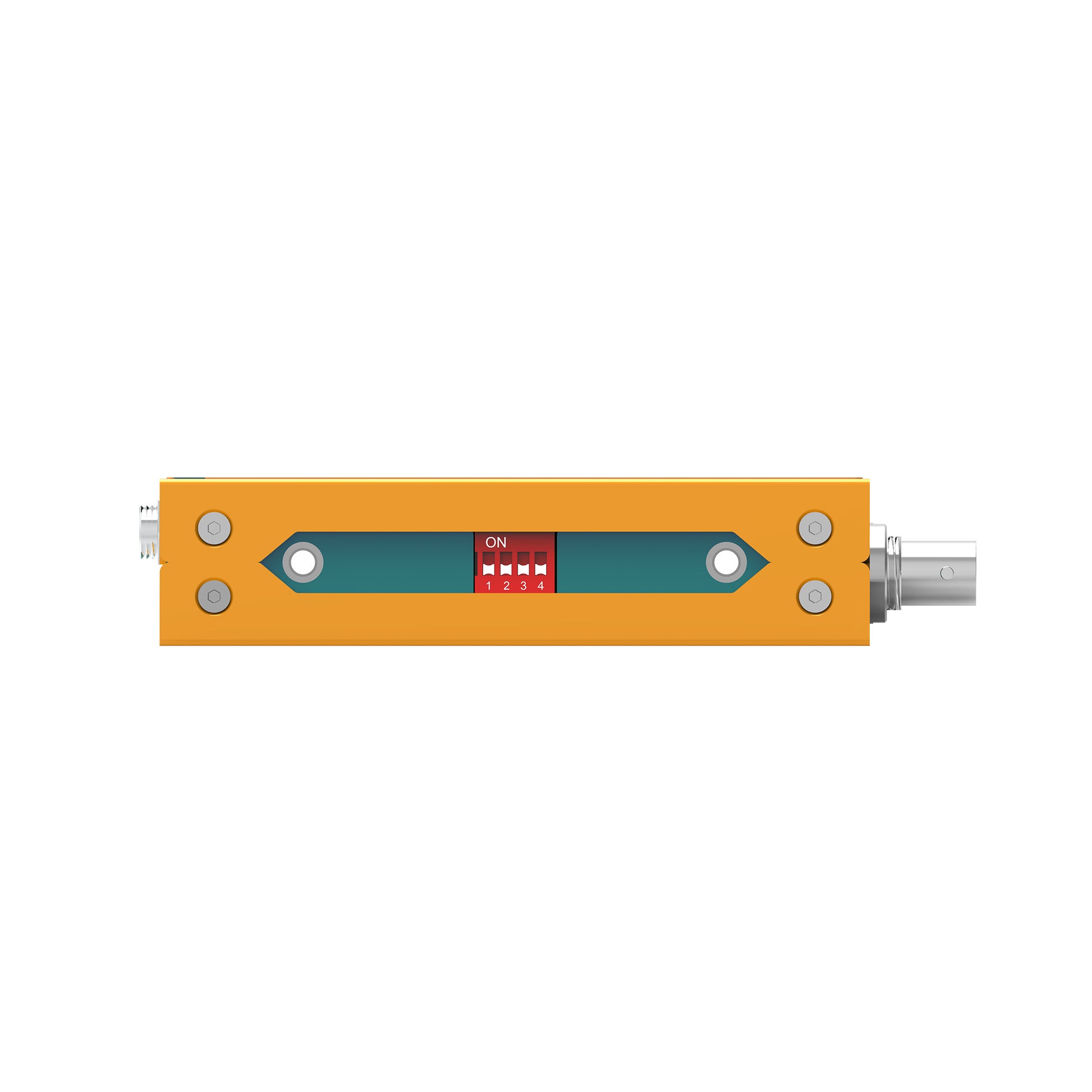

4x; SW1 selects HDMI or SDI input; SW2–SW4 reserved
Front panel control
4x DIP switches
Power
Input voltage
USB 5 V; DC 6 to 28 V
Power consumption
6.6 W (DC); 7.5 W (USB)
Environmental
Operating temperature
-20°C to 60°C
Storage temperature
-30°C to 70°C
Relative humidity
0% to 90% non-condensing
Mechanical
Dimensions
125.5 x 104 x 24.5 mm
Weight
485 g
Mounting
Wall mount

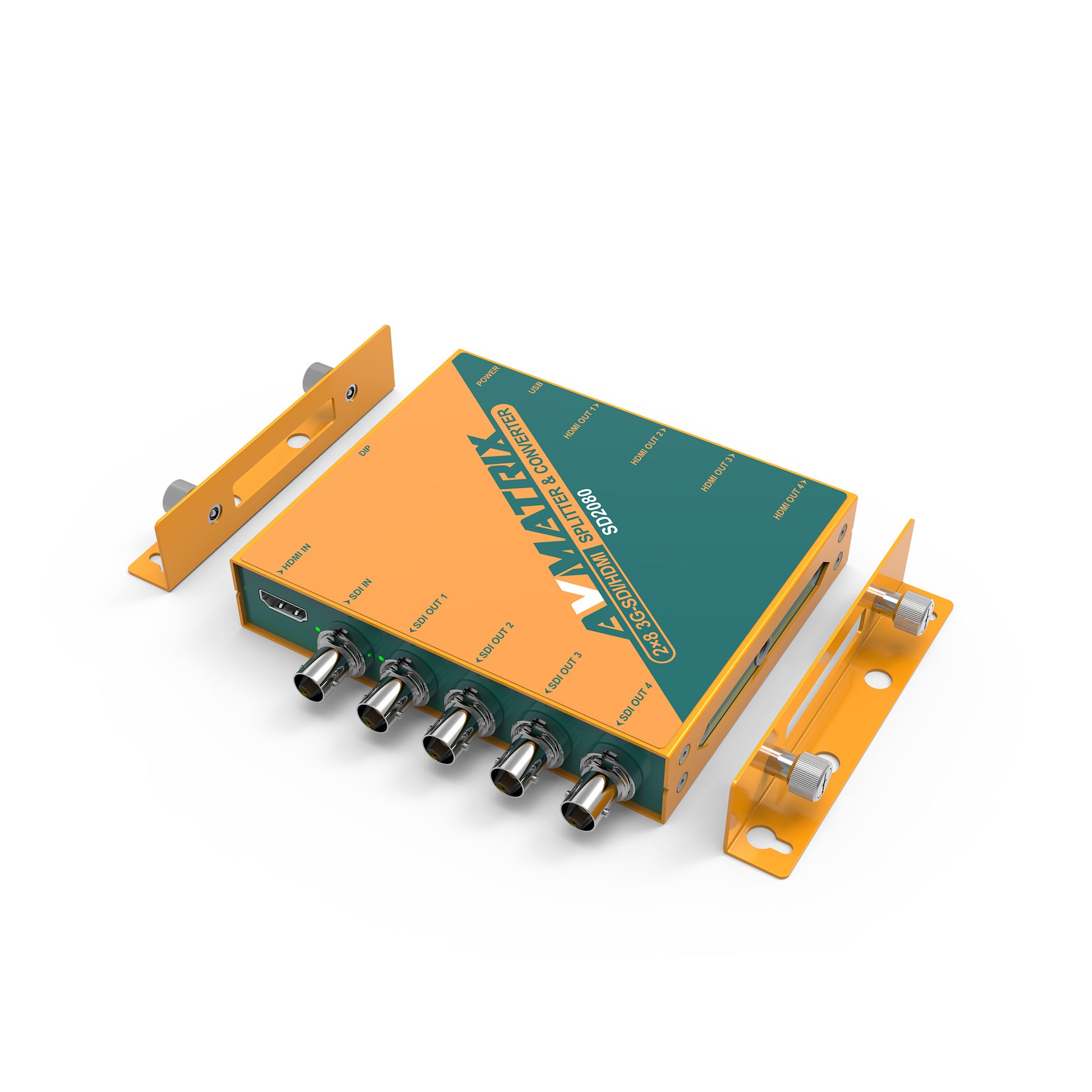

Detachable mounting brackets included
Accessories
Included
12V 2A Power Supply, 2x Mounting Brackets
