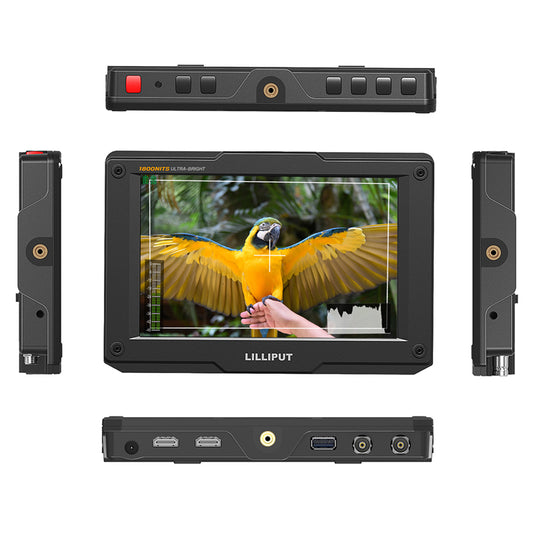

Lilliput HT7S · 7 inch 3G-SDI high-brightness on-camera monitor
Lilliput HT7S · 7 inch 3G-SDI high-brightness on-camera monitor
7 inch on-camera monitor with capacitive touch screen. 1920 x 1200, 2000 cd/m² high-brightness. 3G-SDI and HDMI 2.0 with 4K 60Hz. HDR, 3D LUT, 17 camera logs. LANC camera control. Dual battery plate. 520 g. Shoe mount with 1/4 inch thread. NP-F battery compatible.
- 7 inch 1920 x 1200 LCD display, 2000 cd/m² high-brightness, 1200:1 contrast, 100% BT.709, 16:10 aspect ratio
- Capacitive touch screen, menu control via touch gestures; shortcut swipes for backlight, volume, zoom

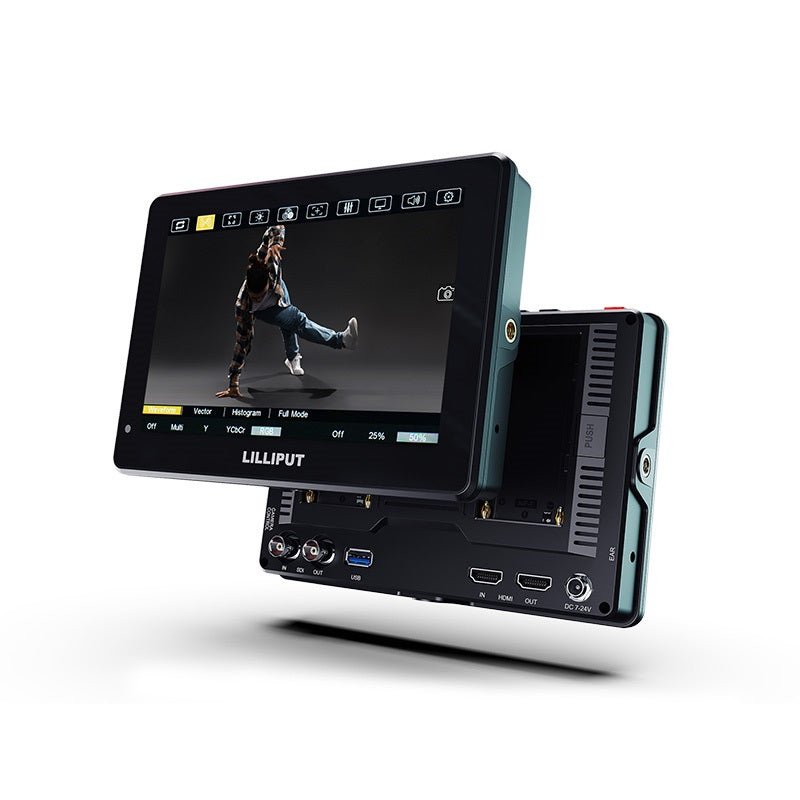

- 1x 3G-SDI and 1x HDMI 2.0 input/output, 4K 60Hz support
- HDR ST 2084 (300/1000/10000 cd/m²) and HLG; 3D LUT (.cube); 17 default camera logs plus 6 user LUTs

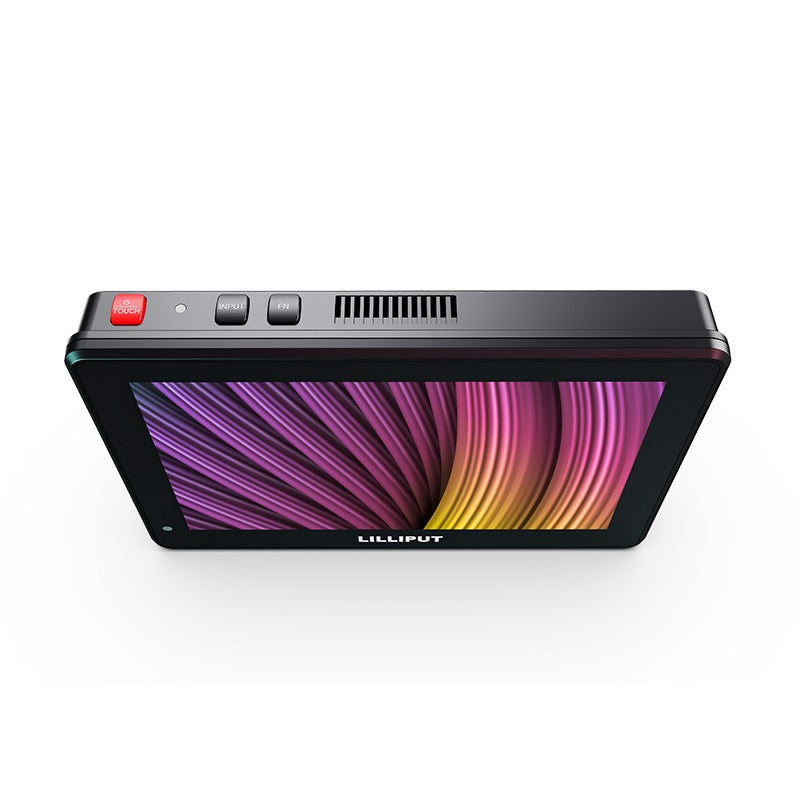

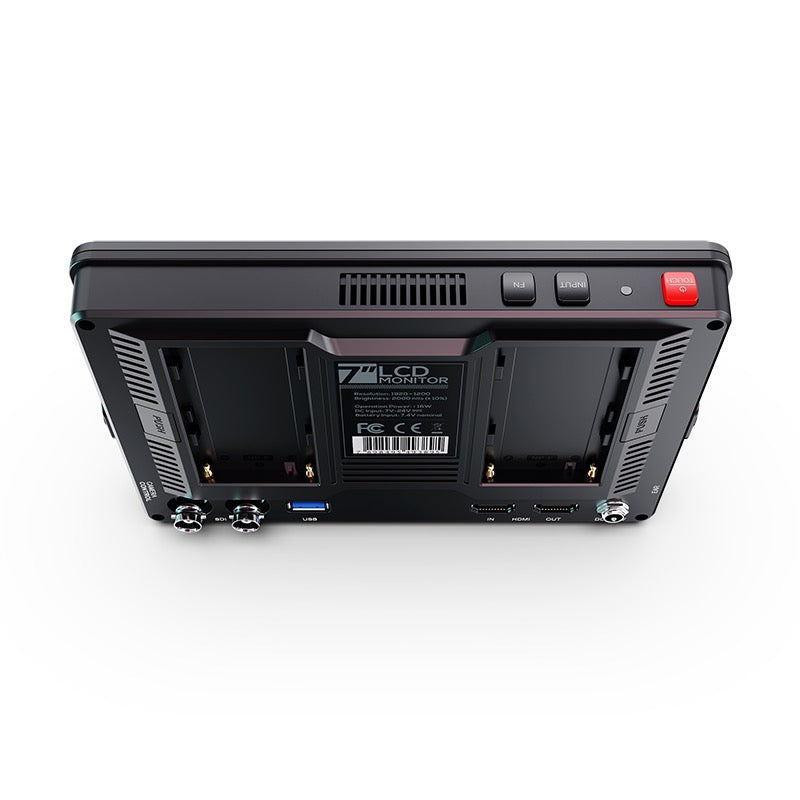

- LANC port for Sony camera control; FN user-definable function button; dual battery plate
- 520 g; 186 x 128 x 29 mm; shoe mount 1/4 inch thread; NP-F battery compatible
HT7S is a precision on-camera monitor with an amazing 2000 cd/m² Ultra High Brightness and innovative Touch LCD screen, capable of controlling your video camera's menu on set.
A solid piece of kit, it is designed specifically for the outdoor photographer and film maker.
Display
| Screen size | 7 inch |
|---|---|
| Aspect ratio | 16:10 |
| Native resolution | 1920 x 1200 |
| Panel type | LCD |
| Brightness | 2000 cd/m² |
| Contrast | 1200:1 |
| Viewing angle | 160°/160° (H/V) |
| Touch screen | Capacitive touch |
| HDR | HLG, ST 2084 300, ST 2084 1000, ST 2084 10000 |
| Colour space — Rec.709 | 100% |
| Supported log formats | SLog2, SLog3, ArriLog, CLog, VLog, JLog, NLog, User (1 to 6) |
| LUT support | 3D-LUT (.cube format, 17x17x17 or 33x33x33 BGR) |
Connections
| Video inputs | 1x 3G-SDI, 1x HDMI 2.0 |
|---|---|
| Video outputs | 1x 3G-SDI, 1x HDMI 2.0 (4K 60Hz) |
| Audio | 1x Built-in speaker, 3.5 mm ear jack (2ch 48kHz 24-bit), HDMI 8ch 24-bit |
Video Standards
| 3G-SDI | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 |
|---|---|
| HDMI 2.0 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 |
Scopes

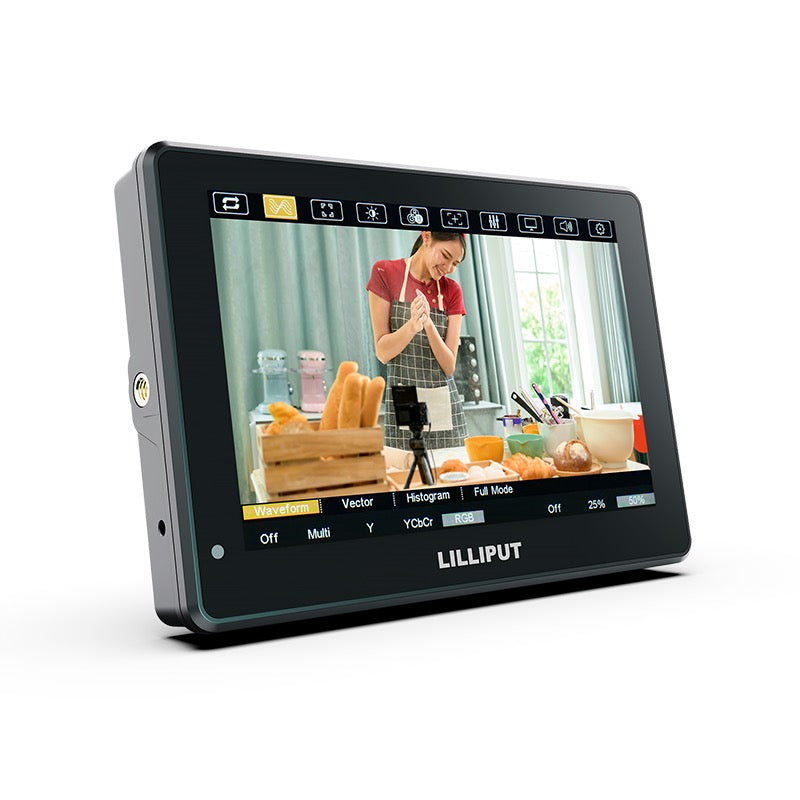

| Video analysis | Waveform (Multi, Y, YCbCr, RGB), Vector, Peaking, False colour (Default, Spectrum, ARRI, RED), Exposure, Histogram, Check field |
|---|---|
| Audio analysis | Level meter |
Power
| Input voltage | DC 7 to 24V |
|---|---|
| Power consumption | ≤16 W (15V) |
| Compatible batteries | Sony NP-F series |
Environmental
| Operating temperature | 0°C to 50°C |
|---|---|
| Storage temperature | -20°C to 60°C |
Mechanical
| Dimensions | 186 x 128 x 29 mm |
|---|---|
| Weight | 520 g |
Mounting
| Shoe mount | 3x 1/4 inch BSW |
|---|
Operational Features
| Menu control | Capacitive touch menu; centre swipe menu; left/right backlight and volume shortcuts |
|---|---|
| Markers — Aspect markers | 16:9, 1.85:1, 2.35:1, 2.39:1, 4:3, 3:2, 1.33X, 1.5X, 1.8X, 2X, Grid, User |
| Markers — Safety marker | 80%, 85%, 88%, 90%, 93%, 95% |
| Markers — Centre marker | On/Off |
| Touch gestures | Centre swipe: menu; left/right swipe: backlight/volume; two-finger zoom; shortcut menu swipe |
| Function buttons | FN user-definable |

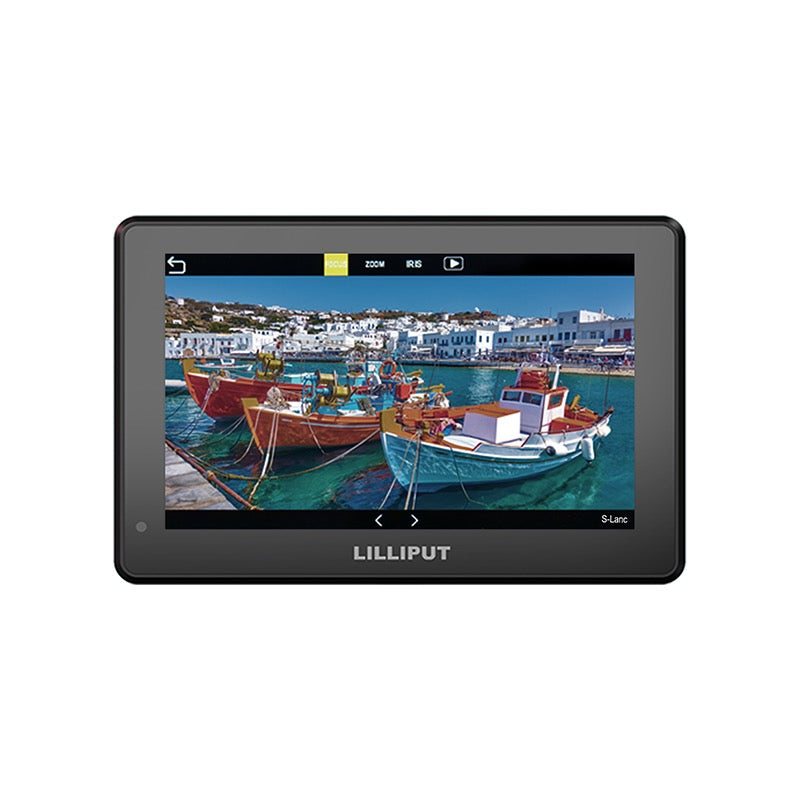

| Camera control | LANC (Sony S-Lanc compatible) |
| Colour temperature | 3200K, 5500K, 6500K, 7500K, 9300K, User |
| Gamma | 1.8 to 2.8 |
| Selectable colour spaces | Native, SMPTE-C, Rec.709, EBU |
| Comparison | Gamma/HDR, Colour space, Camera LUT |
| Peaking | Red, Green, Blue, White |
| Time code | LTC, VITC |
| Display scan | Aspect, Pixel to pixel, Zoom |
| Overscan | On/Off |
| Anamorphic de-squeeze | 1.33X, 1.5X, 1.8X, 2X, 2X MAG |
| H/V delay | Horizontal, Vertical, H/V |
| Freeze | On/Off |
| Image mirroring | Vertical flip, Horizontal flip |
Accessories
| Included | 0.8 m HDMI A-D cable, LANC cable, Mini shoe mount, USB drive disk |
|---|---|

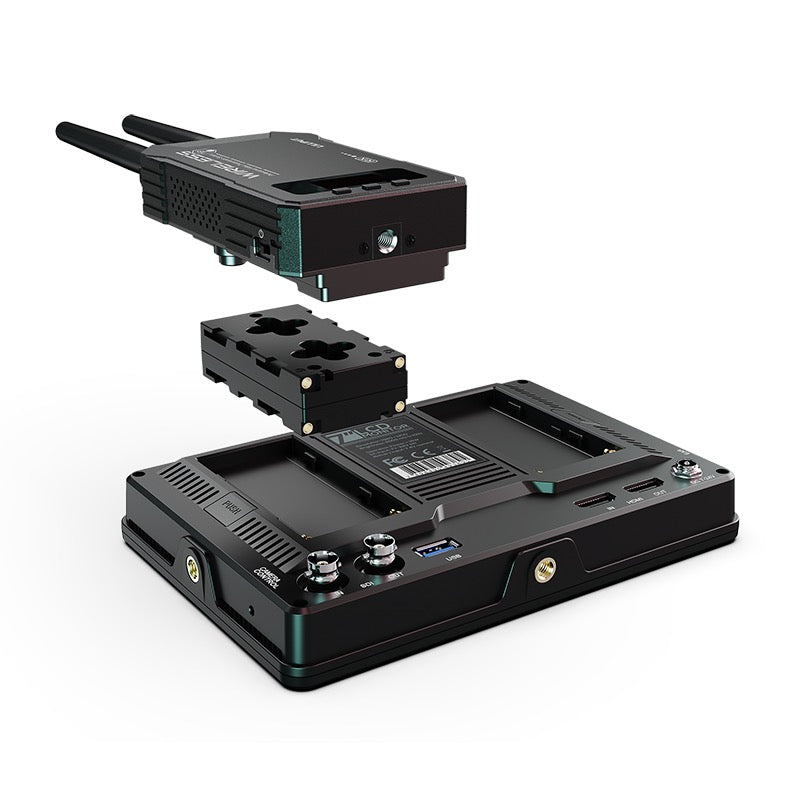

| Optional | 12V 2A DC power adapter, Battery plate adapter, Wireless video transmission, Carry case |
