23.8 inch premium high-brightness studio production monitor with 1200 cd/m², 12-bit processing, quad-link 12G-SDI, HDMI 2.1, HDR, 3D LUT, and scopes. Built for outdoor and bright-environment broadcast. Battery-compatible for field use.
- 23.8 inch 4K display, 1200 cd/m², 1000:1 contrast, designed for outdoor use
- 12-bit data processing and buffering for accurate colour
- 4x 12G-SDI (quad-link 8K), 1x 12G SFP+ (fiber optional), 1x HDMI 2.1
- Up to 8K 60Hz (7680x4320, 8192x4320) via quad-link 12G-SDI
- HDR: HLG, ST 2084 (300/1000/10000 cd/m²)
- Log formats: SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined
- 3D LUT (.cube) load via USB; calibration to Rec.709, DCI-P3, NTSC, BT.2020

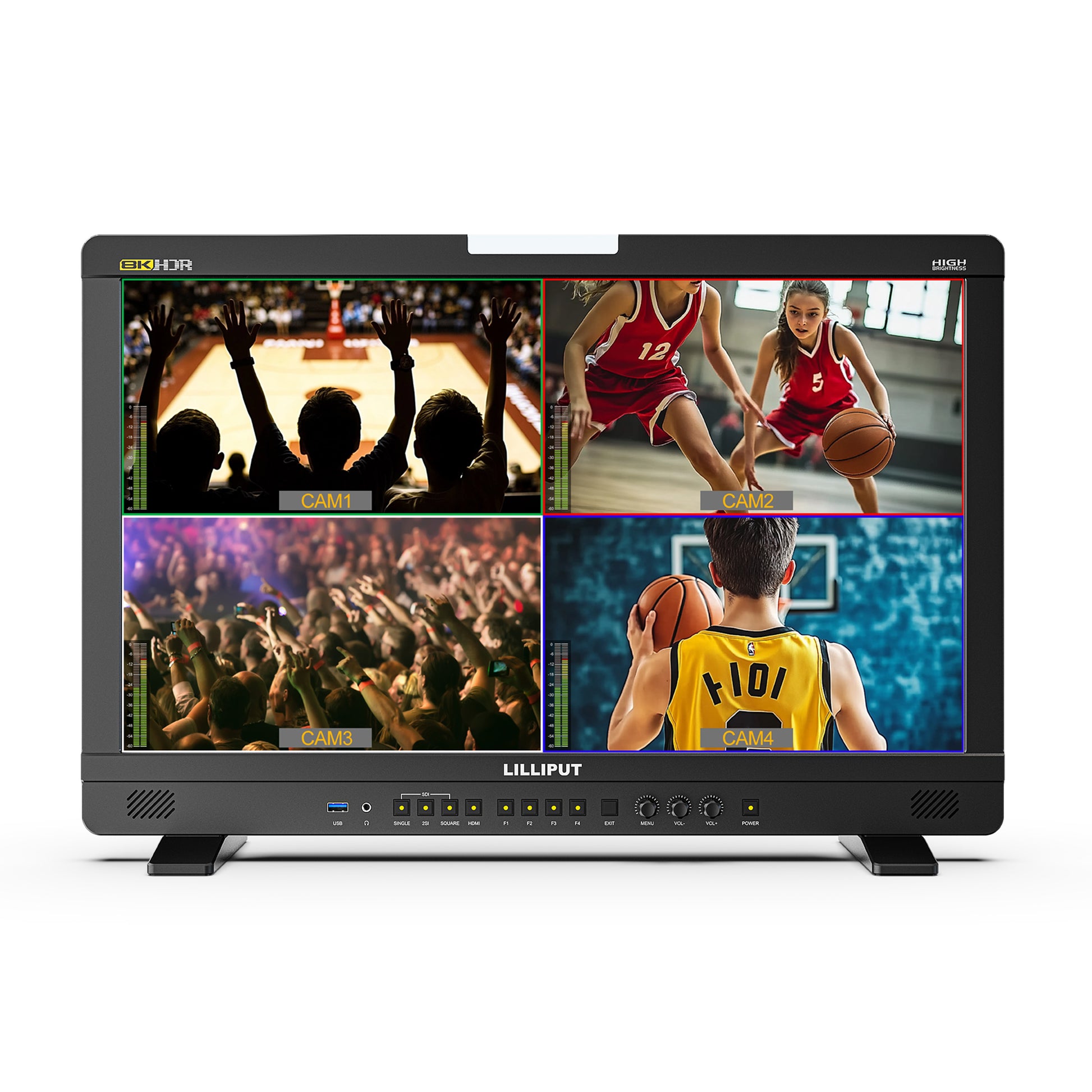

- Quad-View multiview; waveform, vector, histogram, audio vector, level meter
- F1 to F4 user-definable buttons; custom Menu Knob (brightness, peaking, volume, etc.)
- Color Space/HDR/Gamma/Camera Log comparison (side-by-side with original)
- False colour (ARRI, RED, Spectrum); peaking (5 colours); aspect markers (16:9, 1.85:1, 2.35:1, 4:3, 3:2)
- Time code LTC/VITC; UMD display; tally (red/green/yellow)
- V-Lock or Anton Bauer battery compatible
- GPI, LAN, RS422 remote (TSL V3.1)
The Lilliput UQ23 is the third iteration, and most feature-rich version of our flagship Lilliput Q23 model range.
Featuring a 1200 cd/m² LED 10-bit panel, 100% compliance with the Rec.709 colour space, it has the best spec of panel on a Lilliput 23.8 inch monitor.
Also, with the ability to input an 8K signal through HDMI 2.1 or 12G-SDI, and with an optional fiber SFP input, it truly is the best of the Lilliput Q-Range.
Display
| Screen size | 23.8 inch |
|---|---|
| Aspect ratio | 16:9 |
| Native resolution | 3840 x 2160 |
| Panel type | LED |
| Brightness | 1200 cd/m² |
| Contrast | 1000:1 |
| Viewing angle | 178°/178° (H/V) |
| HDR | HLG, ST 2084 300/1000/10000 |
| Colour space — DCI-P3 | 100% |
| Colour space — Rec.2020 | 86% |
| Supported log formats | SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined |
| LUT support | 3D-LUT (.cube format) |
| Bit depth | 8+2 (FRC) display; 12-bit processing |

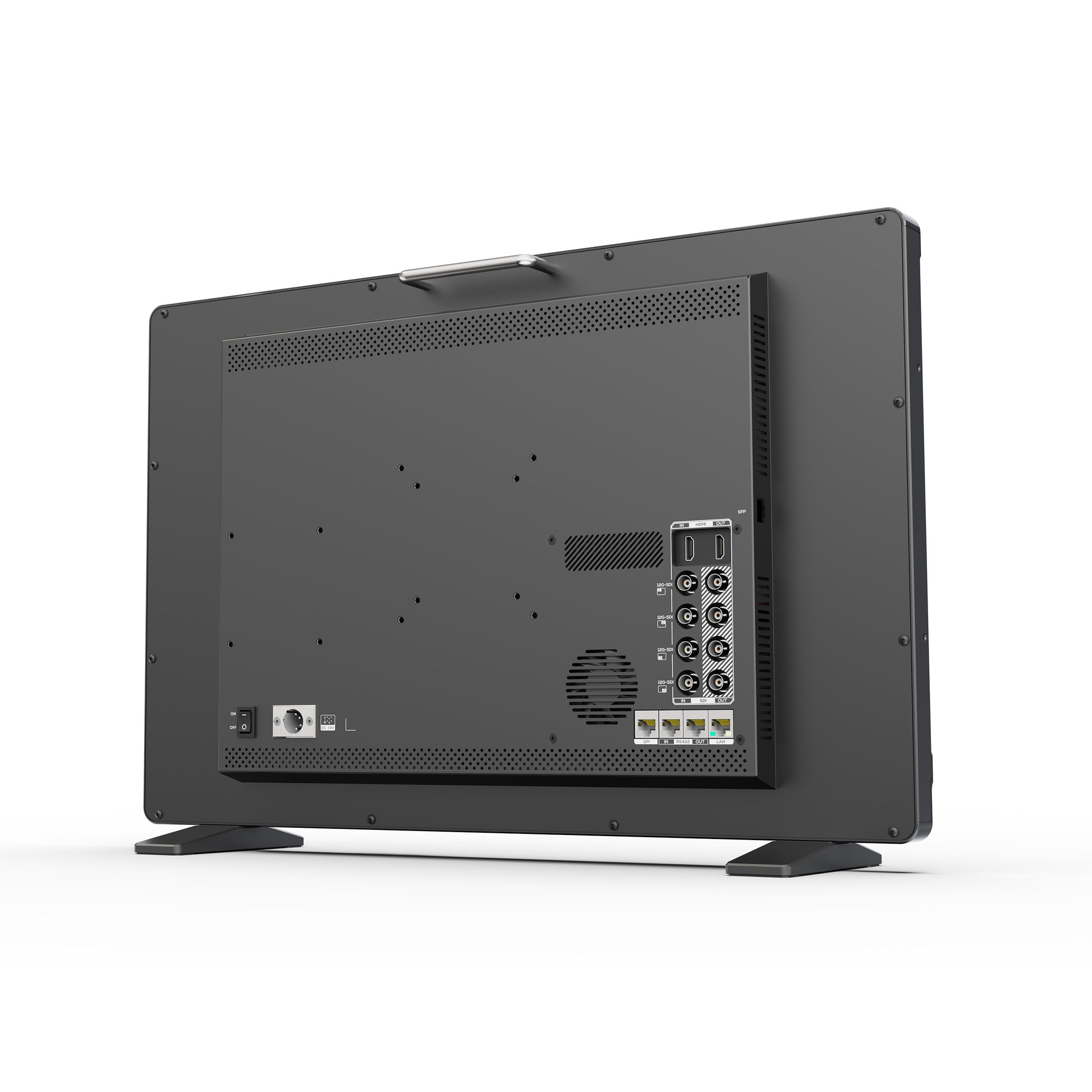

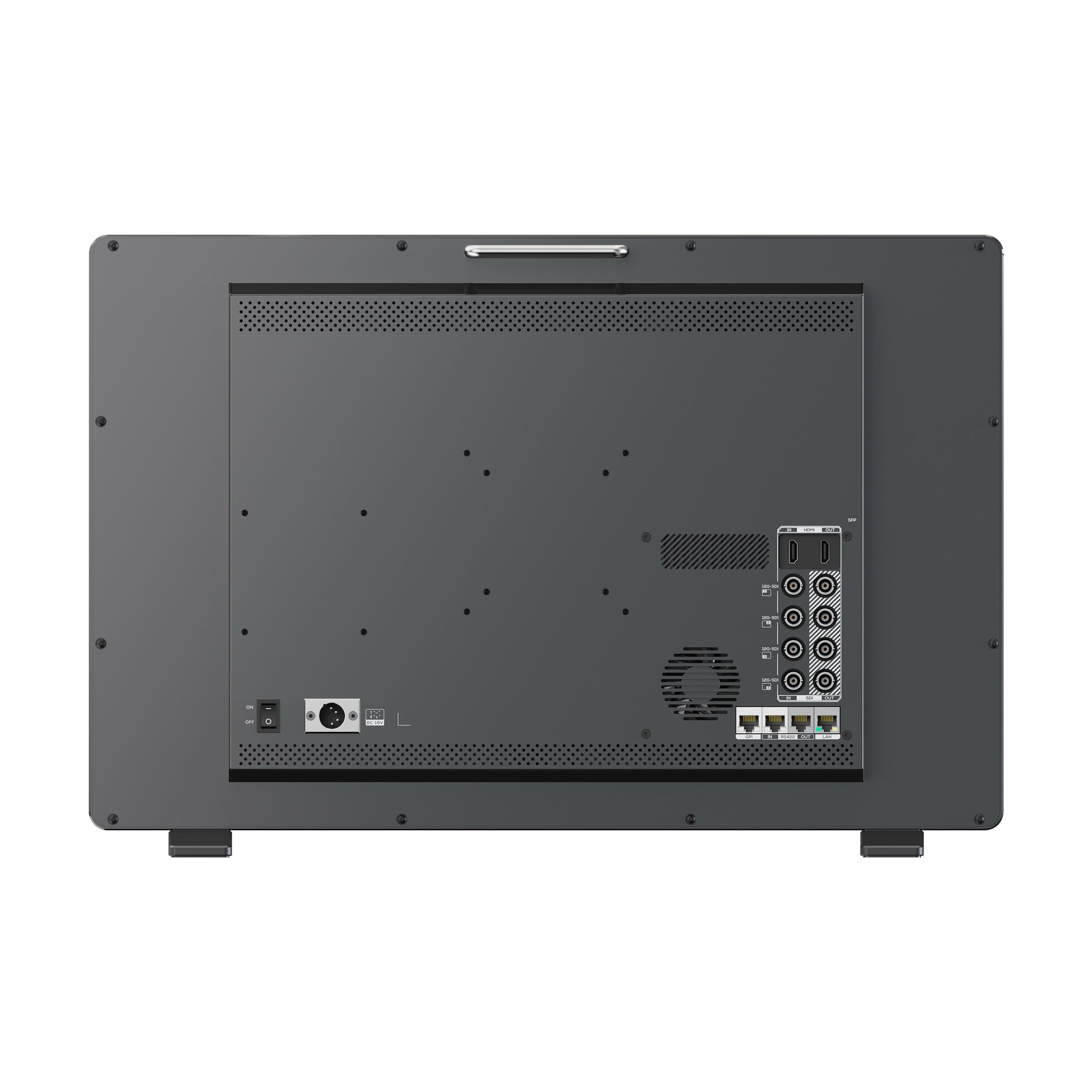

Connections
| Video inputs | 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.1 |
|---|---|
| Video outputs | 4x 12G-SDI, 1x HDMI 2.1 |
| Audio | 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 2x Built-in speakers |
Video Standards
| 12G-SDI | 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 |
|---|---|
| HDMI 2.1 | 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 |
| SFP | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 |
Scopes
| Video analysis | Waveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom |
|---|---|
| Audio analysis | Audio vector, Level meter |
Power
| Input voltage | DC 12 to 24V |
|---|---|
| Power consumption | ≤90 W (at 19V) |
| Compatible batteries | V-Lock or Anton Bauer mount |
| Input voltage (battery) | 14.8V nominal |
Environmental
| Operating temperature | 0°C to 50°C |
|---|---|
| Storage temperature | -20°C to 60°C |
Mechanical
| Dimensions | 576.6 x 375.5 x 53.5 mm (device only) |
|---|---|
| Weight | 7.7 kg (device only) |
Mounting
| VESA mount | 75 x 75 mm, 100 x 100 mm (plate included) |
|---|---|
| Base brackets | Base brackets included |
Operational Features
| Menu control | Custom Menu Knob (brightness, contrast, volume, peaking, etc.) |
|---|---|
| Markers — Aspect markers | 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 256:135, 2.0X, 2.0X MAG, Grid, User |
| Markers — Safety marker | 80%, 85%, 88%, 90%, 93%, 95% |
| Markers — Centre marker | On/Off |
| Function buttons | F1 to F4 user-definable (peaking, waveform, level meter, colour space, aspect marker, freeze, etc.) |
| Remote control | GPI, LAN, RS422 In/Out |
| Multi Viewer | Quad-View |
| Colour temperature | 3200K, 5500K, 6500K, 7500K, 9300K, User |
| Gamma | 1.8 to 2.8 |
| Selectable colour spaces | Native, SMPTE-C, Rec.709, EBU, DCI-P3, Rec.2020 |
| Comparison | Colour space, HDR, Gamma, Camera Log (side-by-side with original) |
| Peaking | Red, Green, Blue, White, Black |
| Tally | Red, Green, Yellow |
| Time code | LTC, VITC |
| UMD | User-defined text (7 colours) |
Accessories
| Included | 19V 6A Power Adapter, Base Brackets, USB Flash Disk, Battery Plate (V-mount or Anton Bauer), VESA Mount Plate, D-Tap to XLR Connector |
|---|---|
| Optional | SFP Optical Fiber, Carry case & Sunshade |
