Lilliput PVM220S-H · 21.5 inch 3G-SDI production video monitor

Name: PVM220S-H
Brand: Lilliput
SKU: PVM220S-H
Price: 519.00 GBP
Availability: InStock

21.5 inch high-brightness broadcast monitor. 1000 cd/m², HDMI 2.0, 3G-SDI, HDR, 3D LUT, waveform/vector scopes, and VESA mounting for on-set monitoring.

1 5

£519.00 exc VAT £622.80inc VAT

Key Attributes

Display resolution 1920 x 1080
Aspect ratio 16:9
Contrast 1000:1
Brightness 1000 cd/m²
Screen size 21 inch

Optional extras

Carry case & sunshade (£200.00 exc VAT) Protective carry case with sunshade for the PVM220S range (PVM220S, PVM220S-H, PVM220S-E).Monitor not included and shown for illustration purposes only. See more…

View full details

21.5 inch 1920 x 1080 display, 1000 cd/m², 1000:1 contrast
1x 3G-SDI, 1x HDMI 2.0, signal loop through
HDR: ST2084 300/1000/10000, HLG; 3D LUT (.cube); Rec.709 calibration
Log formats: SLog2/SLog3, CLog, NLog, ArriLog, JLog, user-defined

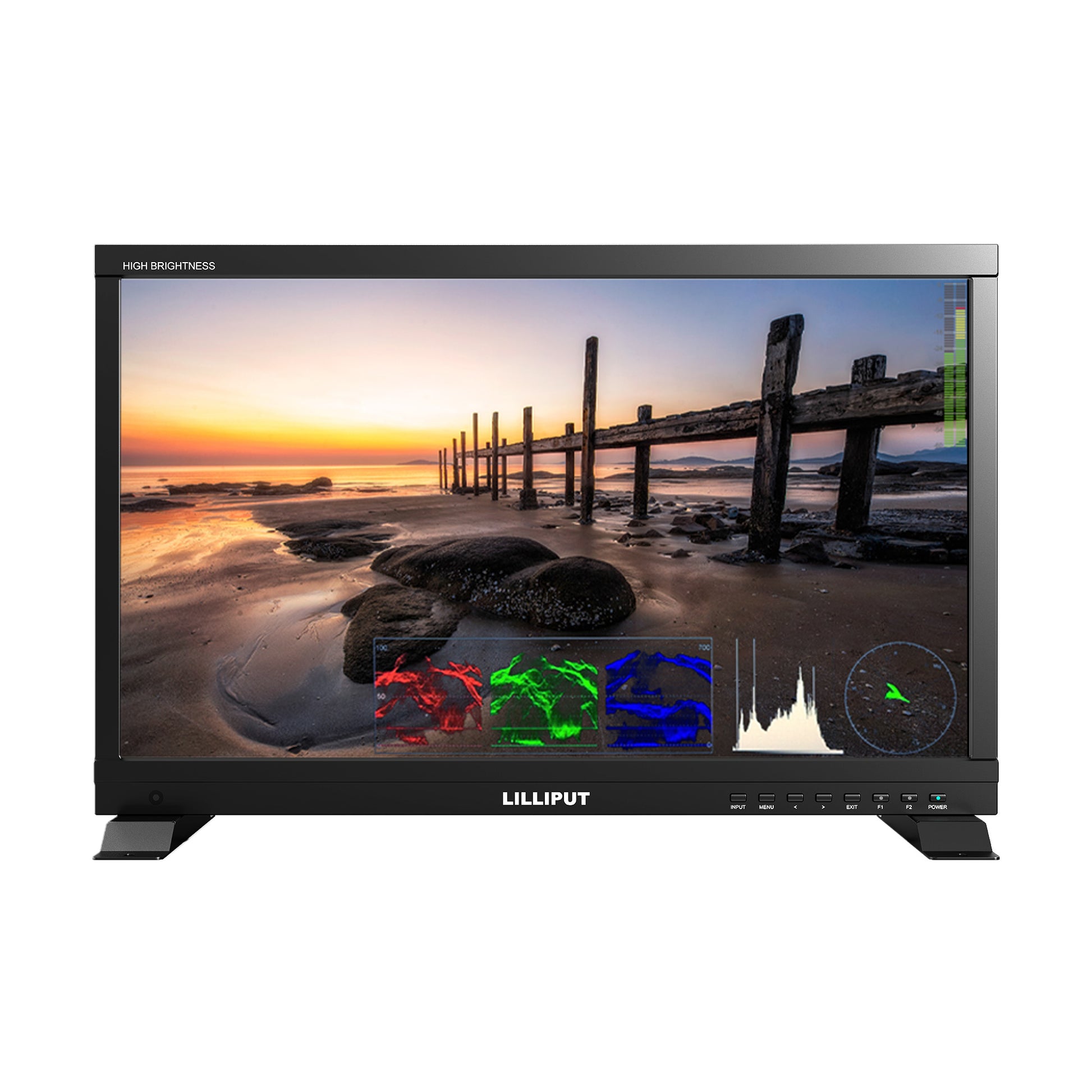

Waveform, Vectorscope, Histogram, Level Meter; False Color; Anamorphic de-squeeze
Color gamut SMPTE-C/Rec709/EBU; Gamma 1.8 to 2.8; V-Lock/Anton Bauer compatible
Versatile mounting: VESA 75 x 75 mm and VESA 100 x 100 mm, base brackets included

Display

Screen size	21.5 inch
Aspect ratio	16:9
Native resolution	1920 x 1080
Panel type	LCD
Brightness	1000 cd/m²
Contrast	1000:1
Viewing angle	178°/178° (H/V)
HDR	ST2084 300/1000/10000, HLG
Supported log formats	SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined
LUT support	3D-LUT (.cube format)

Connections

Video inputs	1x 3G-SDI, 1x HDMI 2.0
Video outputs	1x 3G-SDI, 1x HDMI 2.0
Audio	3G-SDI 2ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 1x Built-in speaker

Video Standards

3G-SDI	1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
HDMI 2.0	2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60

Scopes

Video analysis	Waveform (Y, YCbCr, RGB), Vector, Histogram, Peaking, False colour (Default, Spectrum, ARRI, RED), Exposure, Check field, Freeze, Colour bar
Audio analysis	Audio vector, Level meter

Power

Input voltage	DC 9 to 24V
Power consumption	≤53 W (15V)

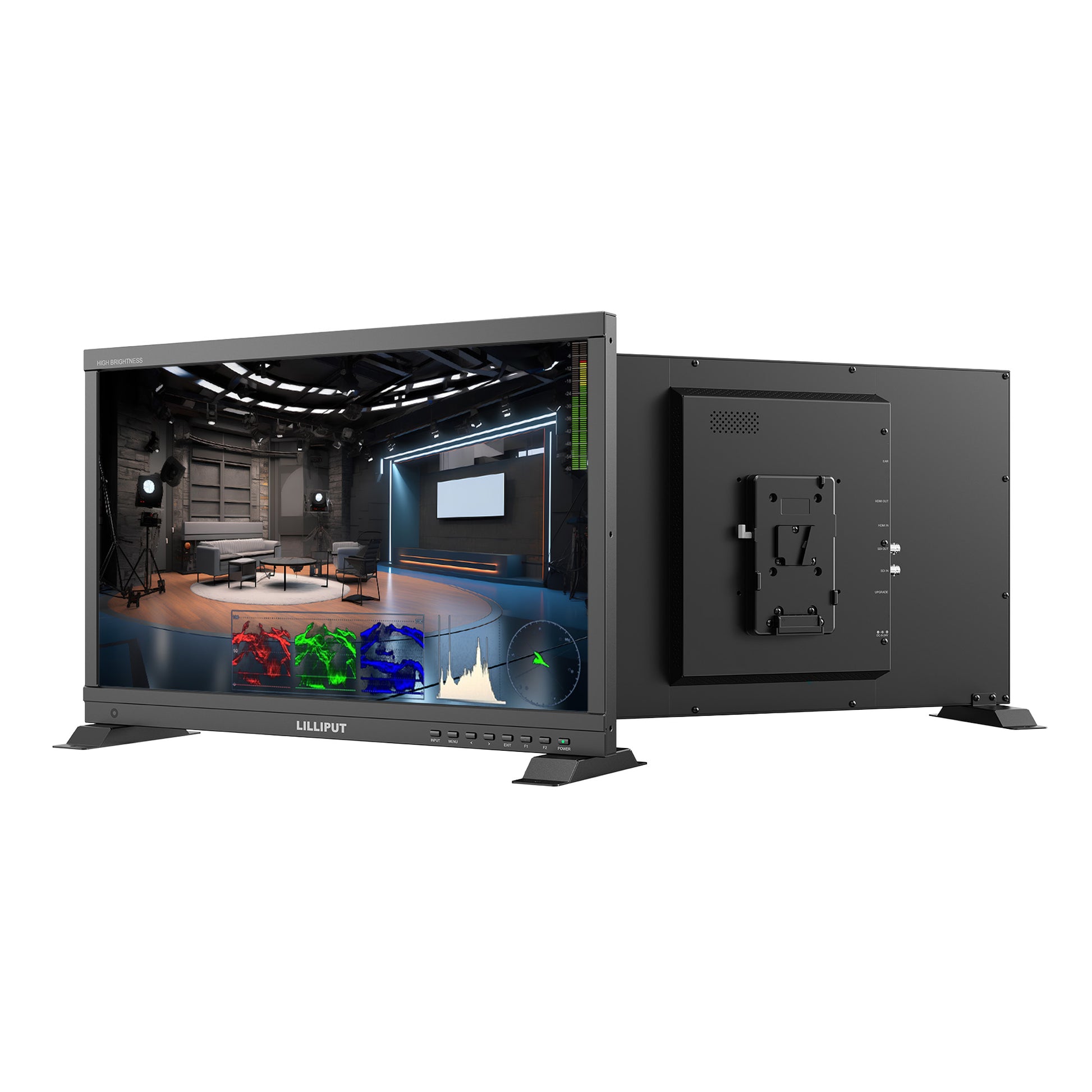

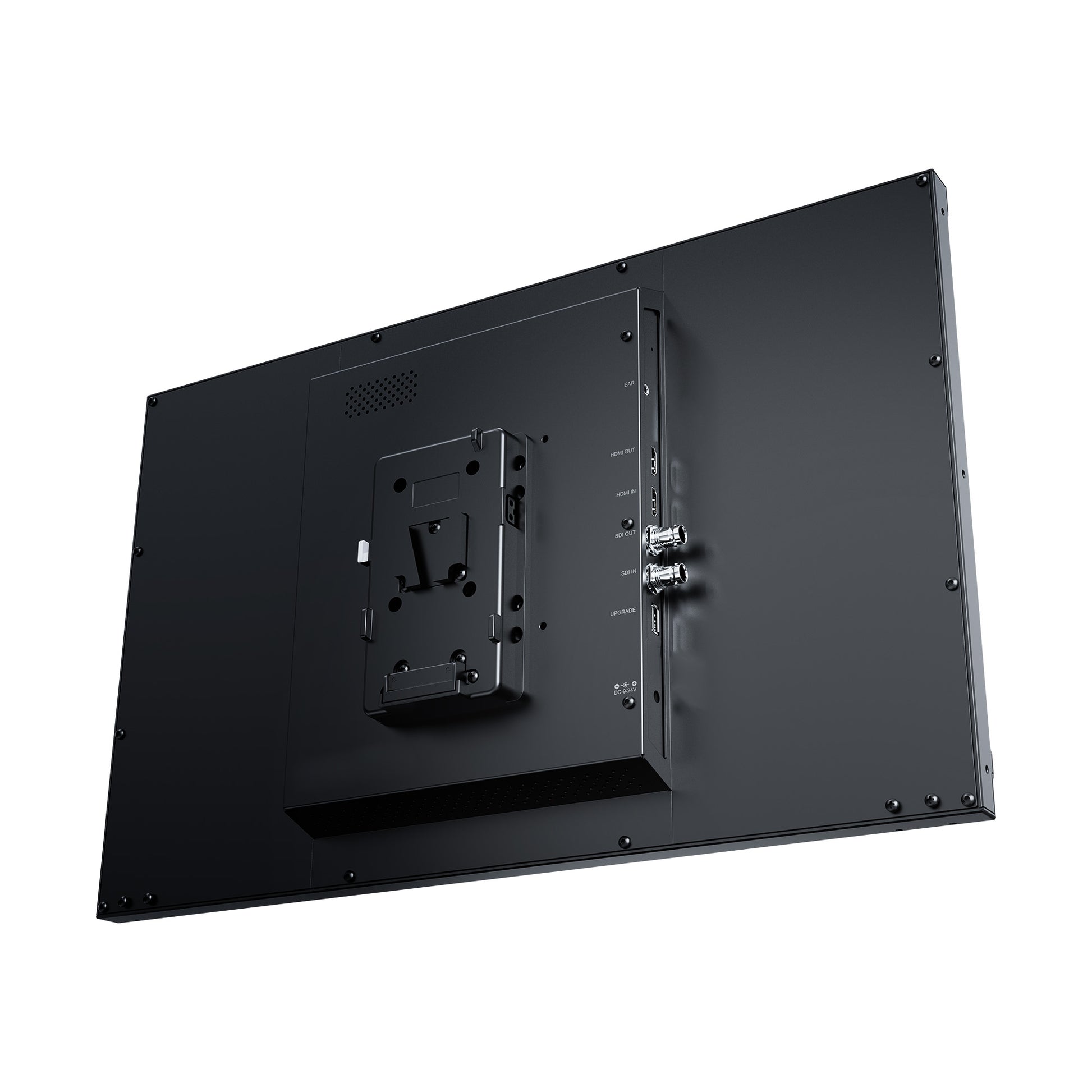

Compatible batteries	V-Lock or Anton Bauer mount (optional)
Input voltage (battery)	14.8V nominal

Environmental

Operating temperature	0°C to 50°C
Storage temperature	-20°C to 60°C

Mechanical

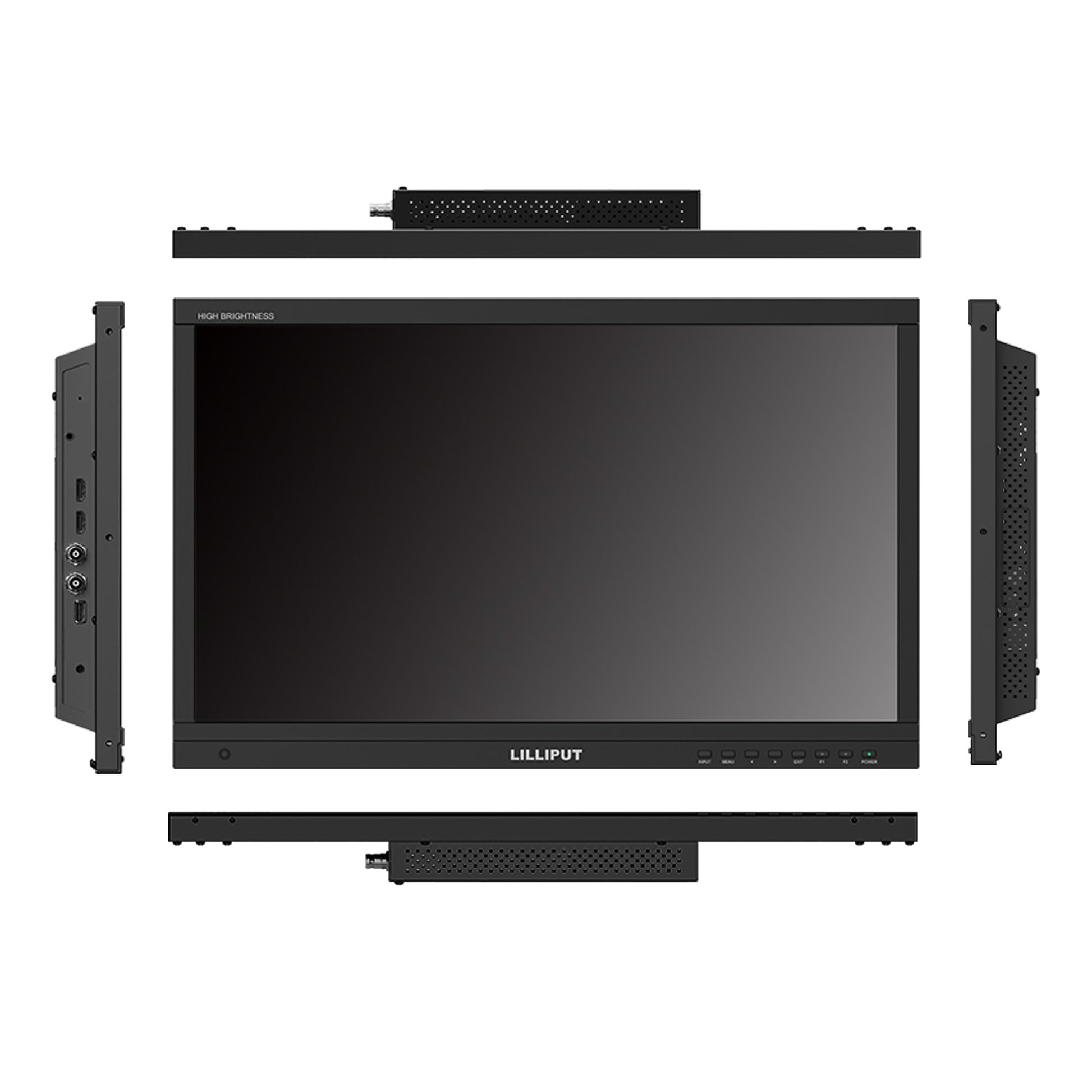

Dimensions	508 x 321 x 47 mm
Weight	4.7 kg

Mounting

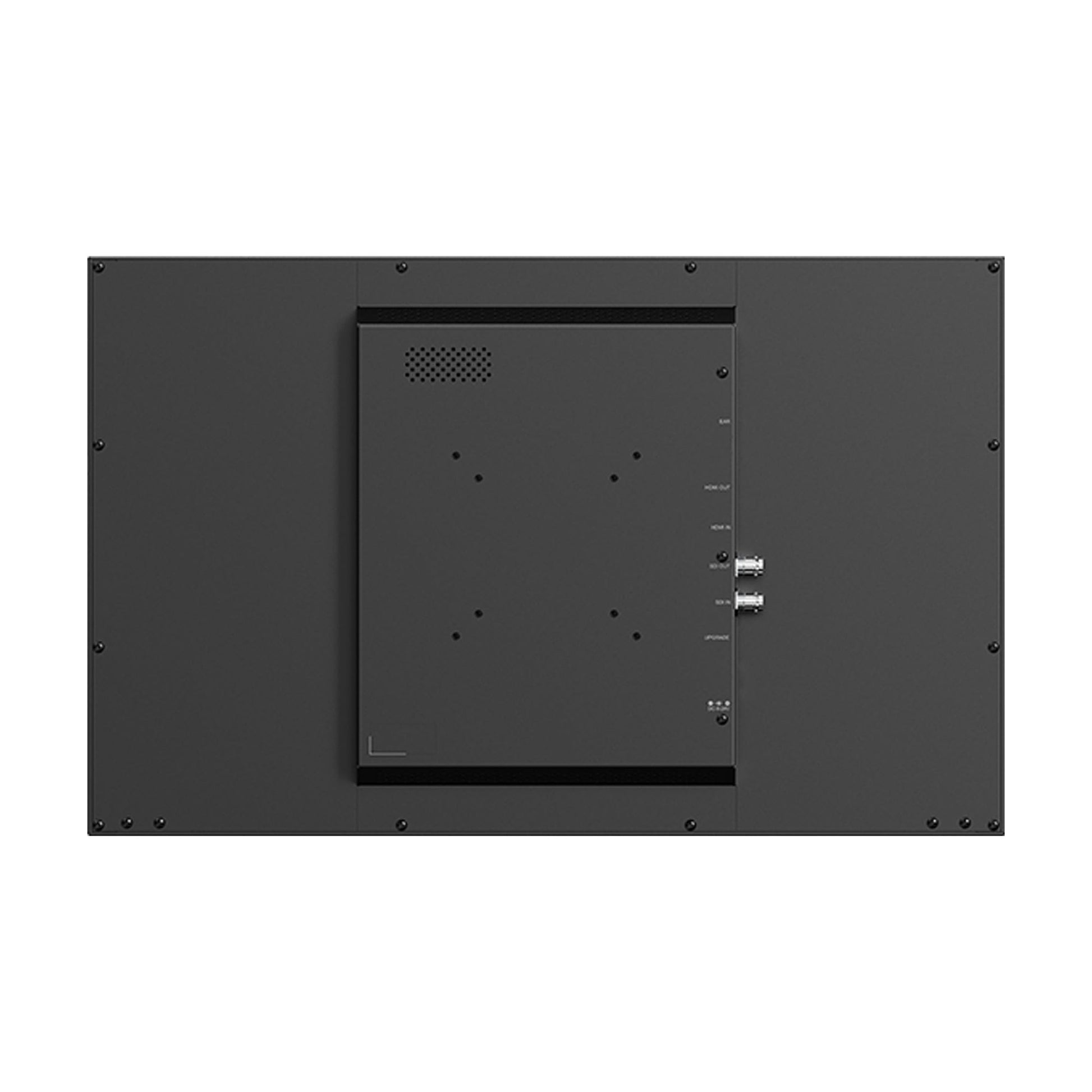

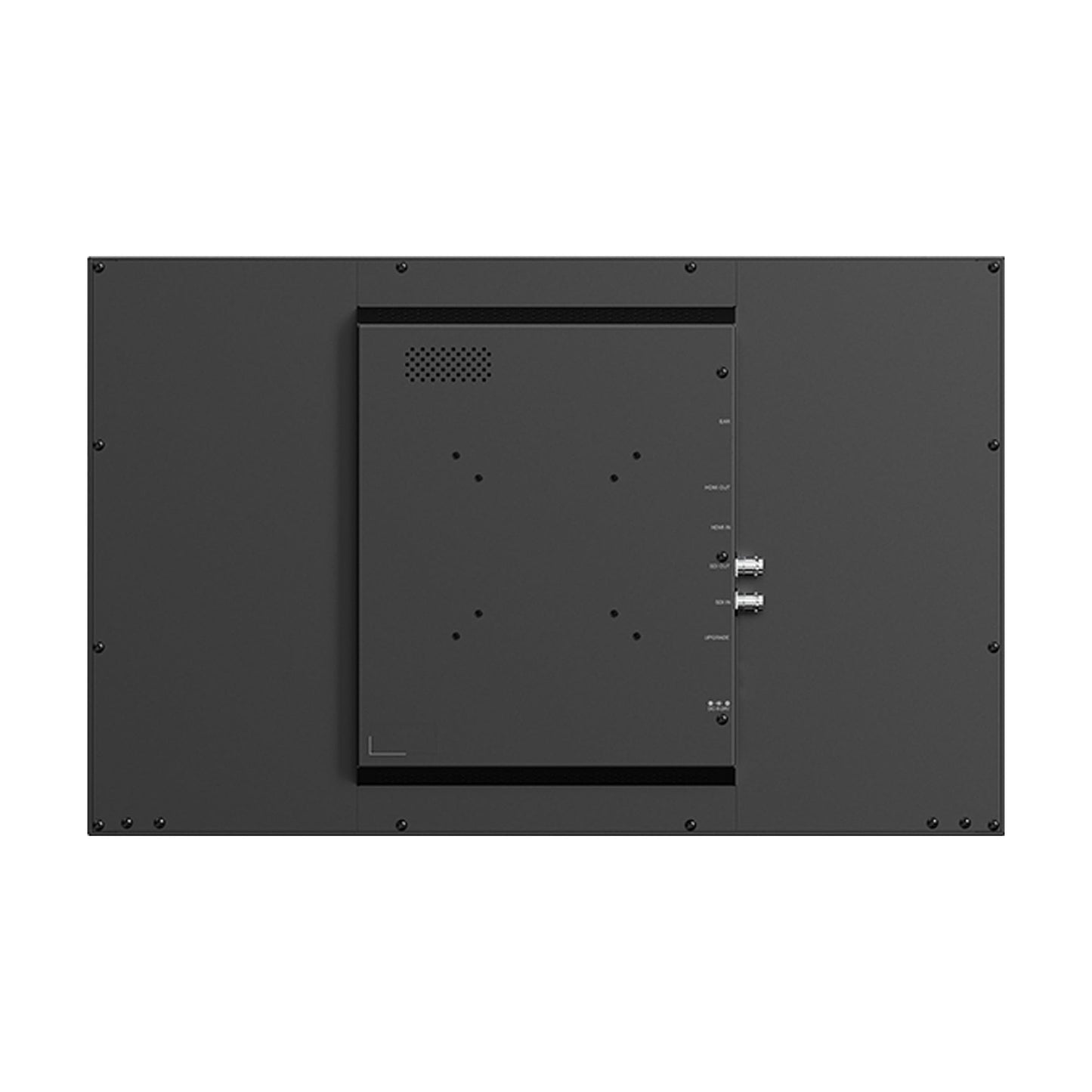

VESA mount	75 x 75 mm, 100 x 100 mm (external bracket); 75 x 75 mm (V-mount/Anton Bauer battery)
Base brackets	Base brackets included

Operational Features

Markers — Aspect markers	16:9, 1.85:1, 2.35:1, 2.39:1, 4:3, 3:2, 1.3X, 1.5X, 1.8X, 2.0X, 2.0X MAG, Grid, User
Markers — Safety marker	80%, 85%, 88%, 90%, 93%, 95%
Markers — Centre marker	On/Off
Function buttons	F1, F2 user-definable
Colour temperature	5500K, 6500K, 7500K, 9300K, User
Gamma	1.8 to 2.8
Selectable colour spaces	Native, SMPTE-C, Rec.709, EBU
Comparison	Gamma/HDR, Colour space, Camera LUT
Peaking	Red, Green, Blue, White, Black
Time code	LTC, VITC

Accessories

Included	15V 4A DC Power Adapter, Base Bracket, E-User Manual
Optional	Battery Plate + D-Tap Cable, Carry case & Sunshade
