Lilliput Q17 · 17.3 inch 12G-SDI HD production video monitor

Name: Q17
Brand: Lilliput
SKU: Q17
Price: 1329.00 GBP
Availability: InStock

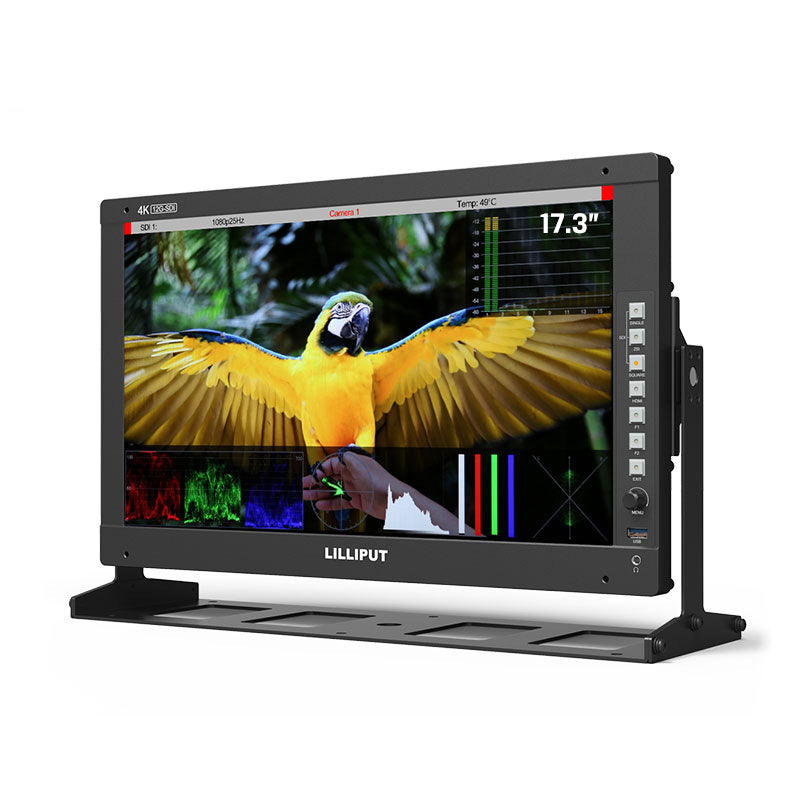

17.3 inch HD production monitor. 1920 x 1080, 300 cd/m². 2x 12G-SDI, 2x 3G-SDI, 1x HDMI 2.0 with 4K support. HDR, 3D LUT, Quad-View. Remote control via LAN, RS422, GPI. 3.2 kg. V-Lock or Anton Bauer battery compatible.

1 3

£1,329.00 exc VAT £1,594.80inc VAT

Key Attributes

Display resolution 1920 x 1080
Aspect ratio 16:9
Contrast 1200:1
Brightness 300 cd/m²
Screen size 17 inch

View full details

17.3 inch 1920 x 1080 display, 300 cd/m², 1200:1 contrast, 16:9
2x 12G-SDI, 2x 3G-SDI (Single/Dual/Quad Link 4K), 1x HDMI 2.0 input and loop output
Optional SFP optical connector for fiber input
HDR: ST 2084 300/1000/10000, HLG; 3D LUT (.cube); calibration to Rec.709
Log formats: SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined
Waveform, vector, histogram, 4 bar display, audio vector, level meter; peaking, false colour, exposure
Anamorphic de-squeeze: 2x, 1.5x, 1.33x; tally (Red/Green/Yellow); time code LTC/VITC
3.2 kg; 434 x 263 x 54 mm; VESA 75 and 100; V-Lock or Anton Bauer battery plate included
Versatile mounting: VESA 75 x 75 mm and VESA 100 x 100 mm, base brackets included, optional 6U rack mount brackets

Display

Screen size	17.3 inch
Aspect ratio	16:9
Native resolution	1920 x 1080
Panel type	LCD
Brightness	300 cd/m²
Contrast	1200:1
Viewing angle	170°/170° (H/V)
HDR	ST 2084 300/1000/10000, HLG
Supported log formats	SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined
LUT support	3D-LUT (.cube format)
Anamorphic de-squeeze	2x, 1.5x, 1.33x

Connections

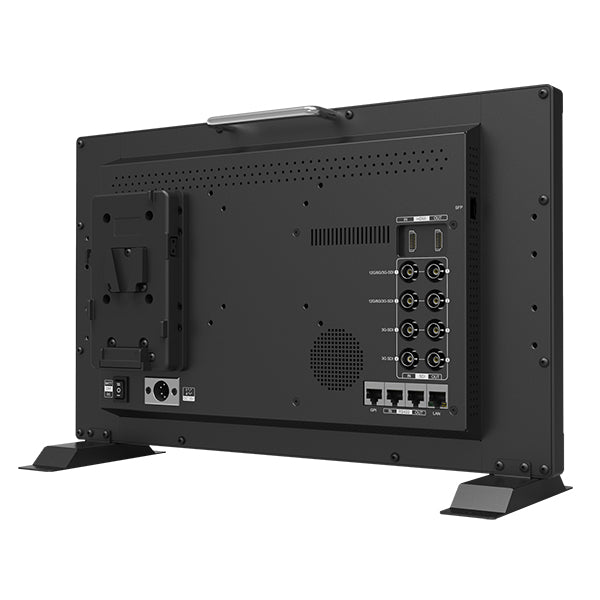

Video inputs	2x 12G-SDI, 2x 3G-SDI (4K Single/Dual/Quad Link), 1x HDMI 2.0, 1x SFP (optional optical module)
Video outputs	2x 12G-SDI, 2x 3G-SDI, 1x HDMI 2.0
Audio	3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), 2x Built-in speakers

Video Standards

3G-SDI	2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
HDMI 2.0	2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
SFP	2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60

Scopes

Video analysis	Waveform (Multi, Y, YCbCr, RGB), Vector, Histogram, 4 Bar Display, Peaking, False colour (Default/Spectrum/ARRI/RED), Exposure, Check field
Audio analysis	Audio vector, Level meter

Power

Input voltage	DC 12 to 24V
Power consumption	≤26.5 W
Compatible batteries	V-Lock or Anton Bauer mount
Input voltage (battery)	14.4V nominal

Environmental

Operating temperature	0°C to 50°C
Storage temperature	-20°C to 60°C

Mechanical

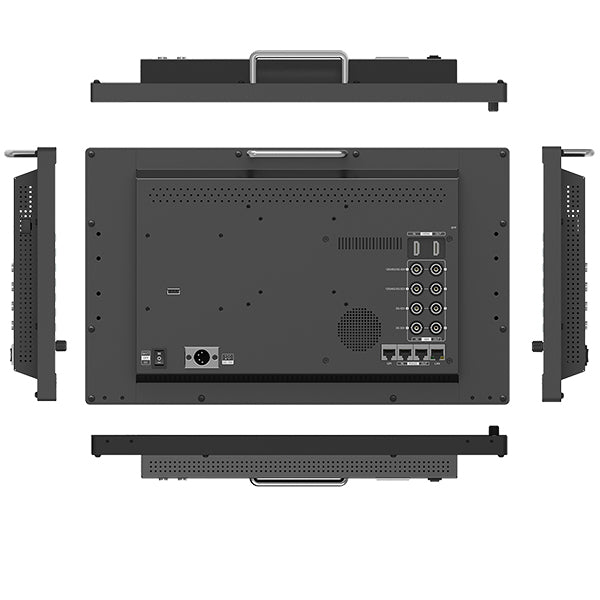

Dimensions	434 x 263 x 54 mm
Weight	3.2 kg

Mounting

VESA mount	75 x 75 mm, 100 x 100 mm (external bracket)
Base brackets	Base brackets (1 pair) included
Rack mount	6U rack mount brackets (optional)
Gimbal bracket	Included

Operational Features

Remote control	LAN (10/100), RS422 In/Out, GPI (8-pin RJ45)
Tally	Red, Green, Yellow
Time code	LTC, VITC
UMD	User-defined text; TSL V3.1 protocol
Markers — Aspect markers	16:9, 1.85:1, 2.35:1, 4:3, 3:2, 2.0X, 2.0X MAG, Grid, User
Markers — Safety marker	80%, 85%, 88%, 90%, 93%, 95%
Markers — Centre marker	On/Off
Image mirroring	Vertical flip, Horizontal flip
Multi Viewer	Quad-View
Selectable colour spaces	Native, SMPTE-C, Rec.709, EBU

Accessories

Included	15V DC Adapter, Gimbal bracket, Base Bracket, VESA Mount Plate, V-Lock or Anton Bauer Mount, Carry case, Acrylic Screen Protector, 8GB USB Flash Disk (User guide and software)
Optional	Carry case, 19" rack mount brackets, SFP Optical Fiber Module
