Lilliput Q43-8K · 43 inch 12G-SDI 4K production video monitor
Lilliput Q43-8K · 43 inch 12G-SDI 4K production video monitor
43 inch 8K production monitor with quad-link 12G-SDI, HDR (HLG, ST 2084), 3D LUT, and scopes. For broadcast and post-production.
- 43 inch 4K display, 400 cd/m², 1200:1 contrast
- 4x 12G-SDI (quad-link 8K), 1x 12G SFP+ (fiber optional), 1x HDMI 2.0
- Up to 8K 60Hz via quad-link 12G-SDI (ST2082-12)
- HDR: HLG, ST 2084 (300/1000/10000 cd/m²)
- Log formats: SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined
- 3D LUT (.cube), 17 default + 6 user logs; 100% Rec.709, DCI-P3, NTSC

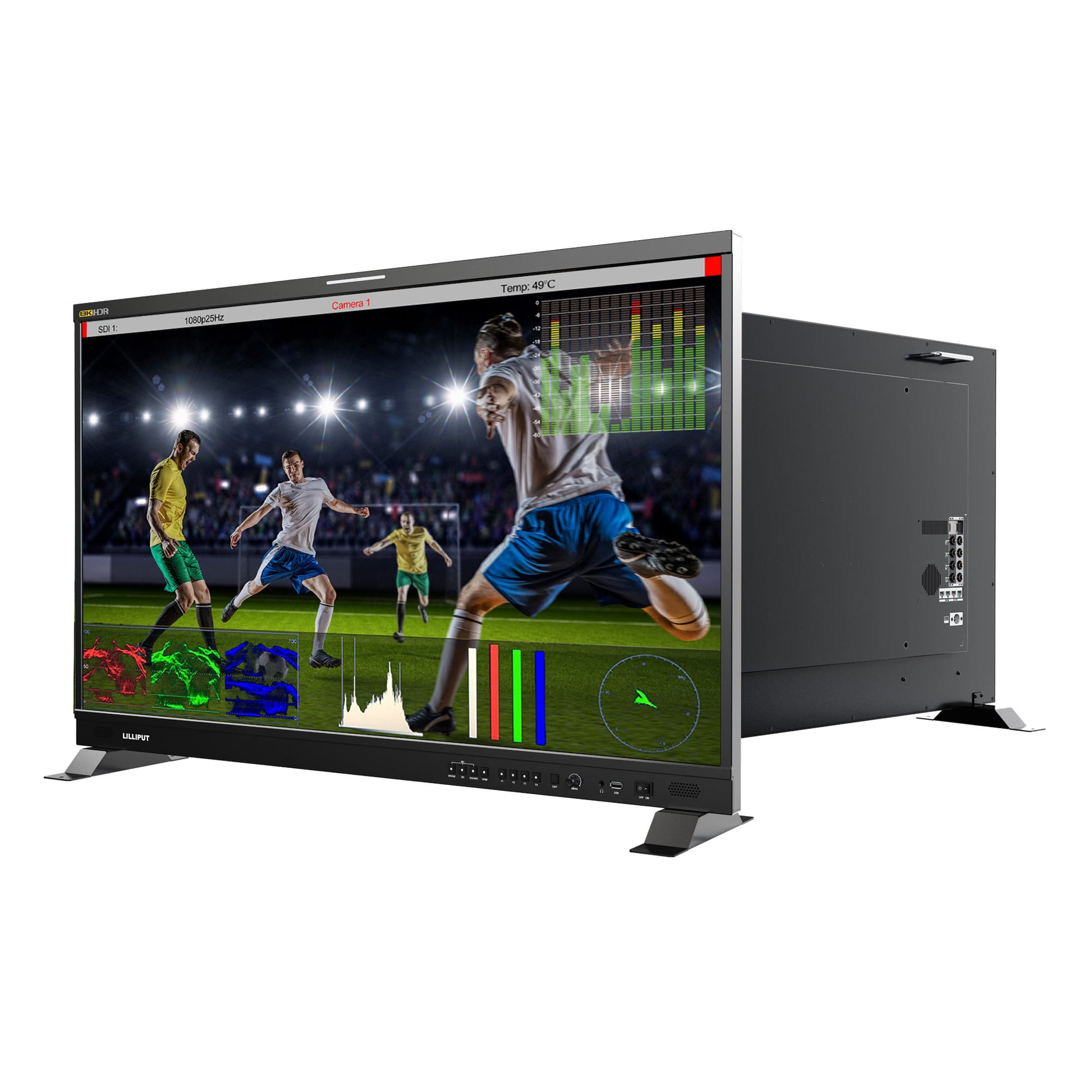

- Quad-View multiview; waveform, vectorscope, false colour, histogram, audio vector
- GPI, LAN, RS422 remote; F1 to F4 user-definable buttons

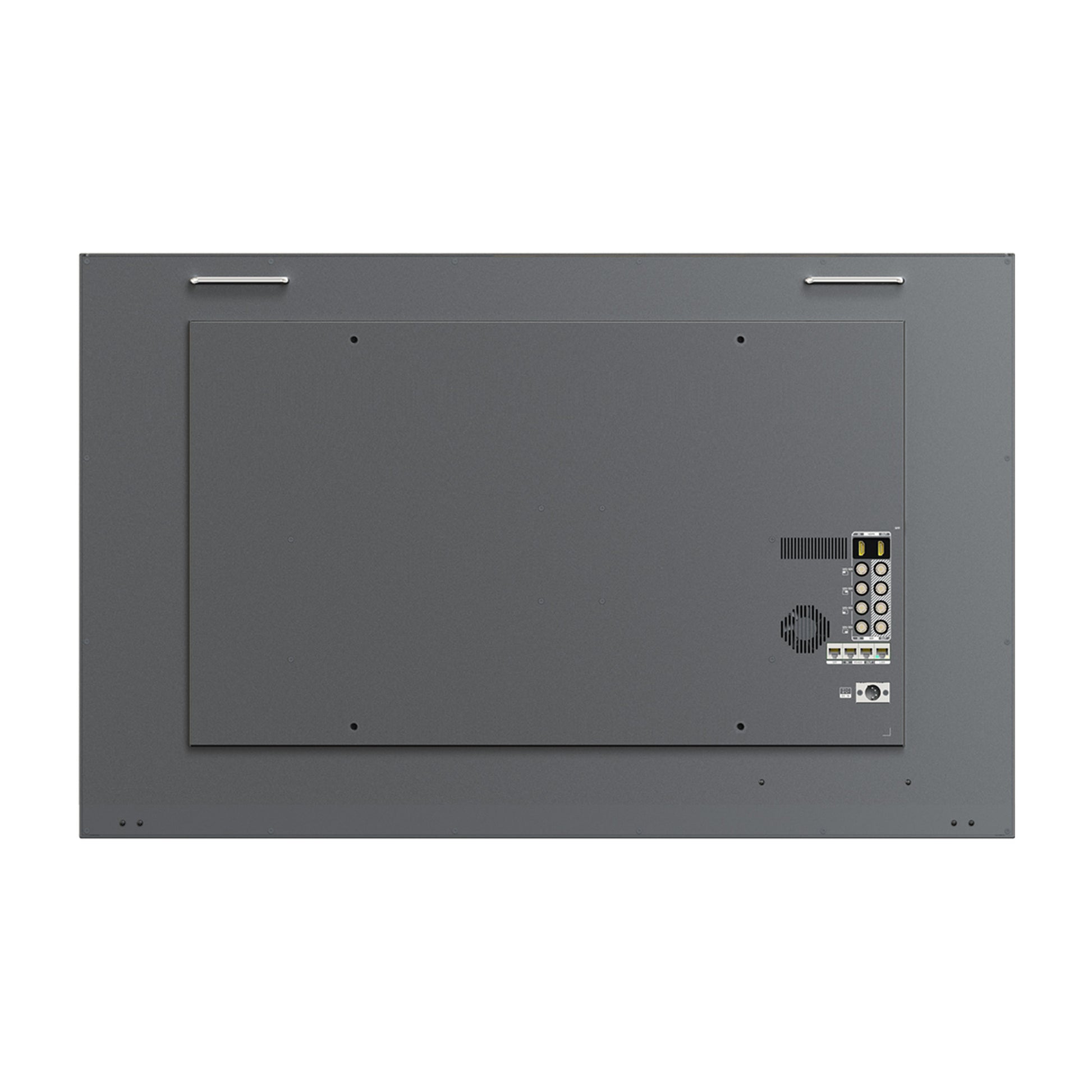

The Lilliput Q43-8K is part of the Lilliput flagship range of monitors designed to handle and process an 8K video input signal. It takes 4x 12G-SDI input feeds via the BNC connectors at the back of the unit, and in compliance with the ST 2082-12 video protocol, combines them to create an 8K 60Hz video signal which it displays on the 3840 x 2160 pixel panel.
With other features such as Rec.709 and DCI-P3 colour space, 3D LUT support, remote control through LAN connection, Multiview and Quad-Split, and an optionally purchased 12G SFP+ connection - the Q43-8K packs massive value monitoring into an easy-to-operate system.
Display
| Screen size | 43 inch |
|---|---|
| Aspect ratio | 16:9 |
| Native resolution | 3840 x 2160 |
| Panel type | LED |
| Brightness | 400 cd/m² |
| Contrast | 1200:1 |
| Viewing angle | 178°/178° (H/V) |
| HDR | HLG, ST 2084 300/1000/10000 |
| Supported log formats | SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined |
| LUT support | 3D-LUT (.cube format) |
| Colour space — Rec.709 | 100% |
Connections

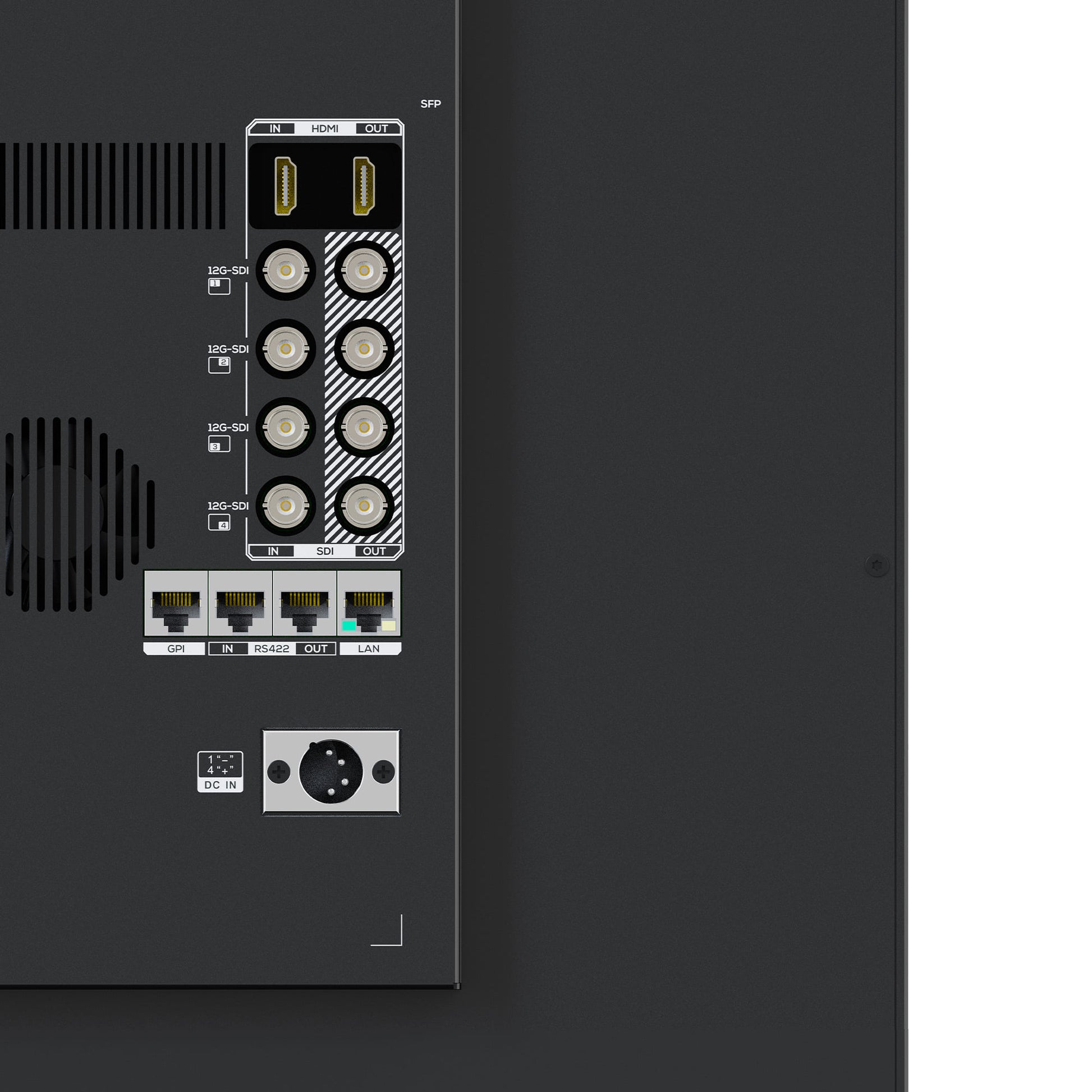

| Video inputs | 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.0 |
|---|---|
| Video outputs | 4x 12G-SDI, 1x HDMI 2.0 |
| Audio | 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 2x Built-in speakers |
Video Standards
| 12G-SDI | 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 |
|---|---|
| HDMI 2.0 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 |
| SFP | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 |
| Colour space | Rec.709, DCI-P3, NTSC |
Scopes
| Video analysis | Waveform, Vectorscope, False colour, Histogram, Exposure, Focus peaking, Check field, Colour bar, Pixel zoom, Pixel-to-pixel, Marker, Freeze, H/V delay |
|---|---|
| Audio analysis | Audio vector, Level meter |
Power
| Input voltage | DC 24V |
|---|---|
| Power consumption | ≤77 W (at 24V) |
Environmental
| Operating temperature | 0°C to 50°C |
|---|---|
| Storage temperature | -20°C to 60°C |
Mechanical
| Dimensions | 968.5 x 604.9 x 48.5 mm |
|---|---|
| Weight | 14.5 kg |
Mounting
| Base brackets | Base brackets included |
|---|---|

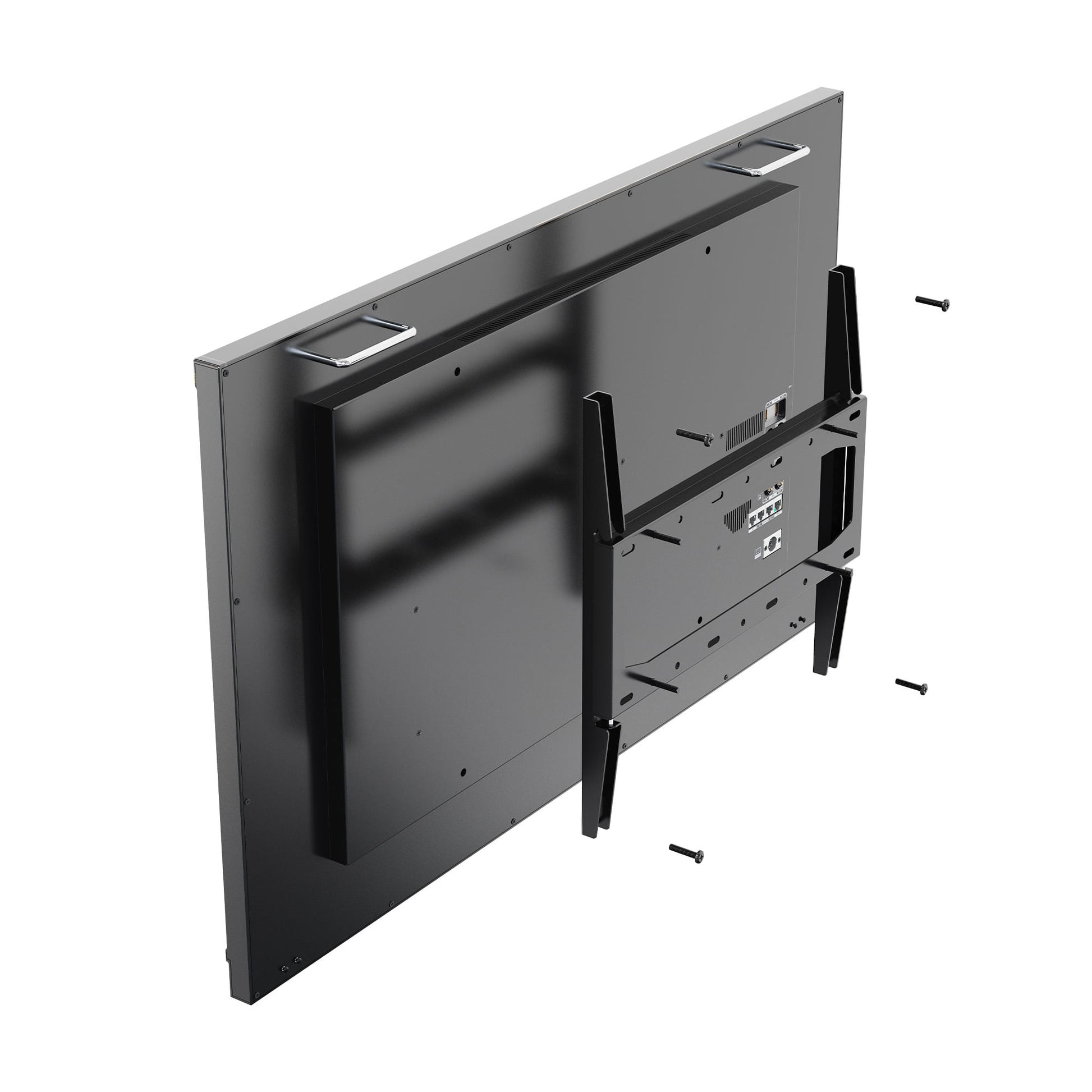

| Wall mount | 400 x 400 mm (M6/30 mm screws) |
Operational Features
| Menu control | Custom Menu Knob (brightness, contrast, volume, peaking, etc.) |
|---|---|
| Markers — Aspect markers | 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 2.0X, 2.0X MAG, Grid, User |
| Markers — Safety marker | 80%, 85%, 88%, 90%, 93%, 95% |
| Markers — Centre marker | On/Off |
| Function buttons | F1 to F4 user-definable (peaking, waveform, level meter, colour space, aspect marker, freeze, etc.) |
| Remote control | GPI, LAN, RS422 In/Out |

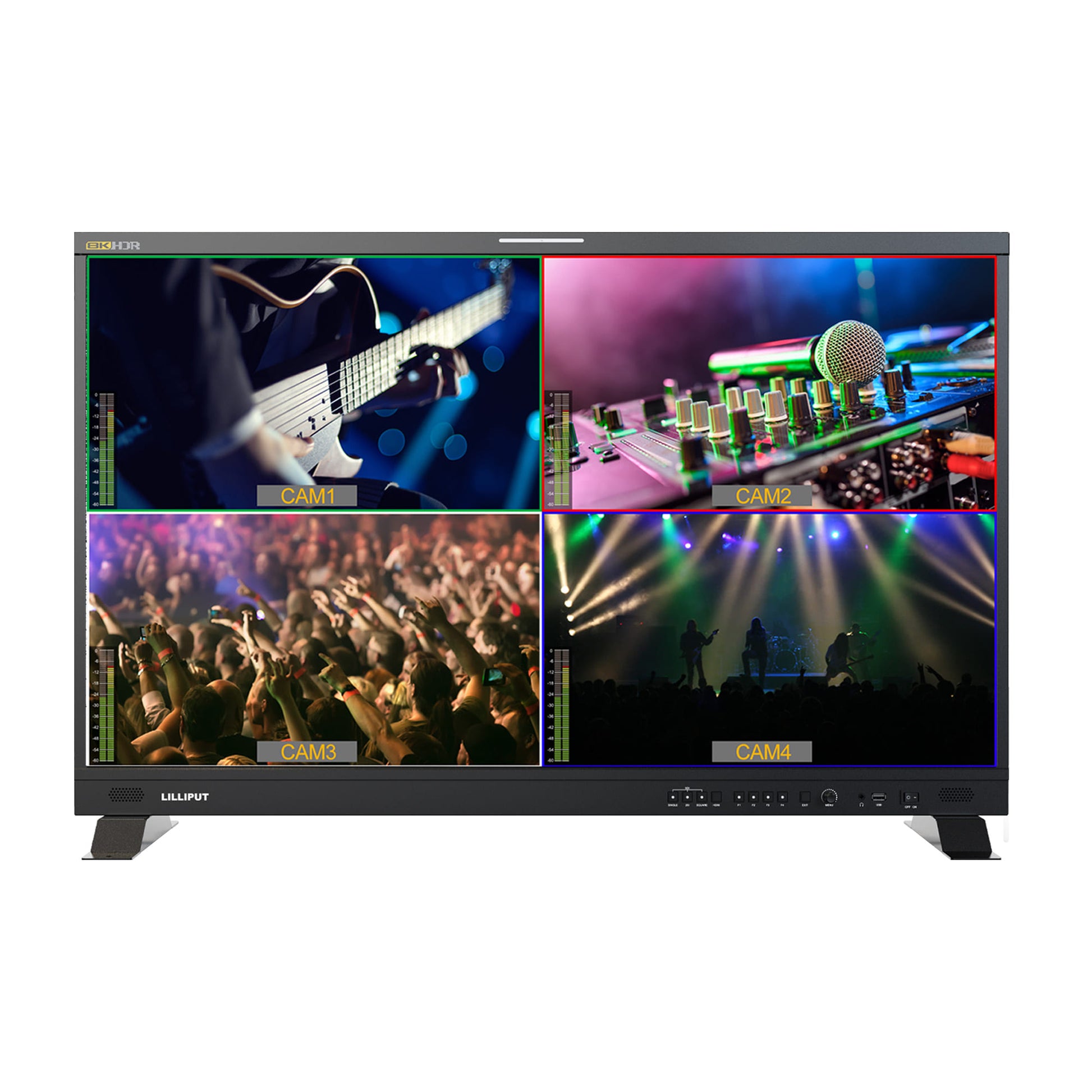

| Multi Viewer | Quad-View |
| Colour temperature | 3200K, 5500K, 6500K, 7500K, 9300K, User |
| Gamma | 1.8 to 2.8 |
| Selectable colour spaces | Native, SMPTE-C, Rec.709, EBU, DCI-P3, Rec.2020 |
| Comparison | Colour space, HDR, Gamma, Camera Log (side-by-side with original) |
| Peaking | Red, Green, Blue, White, Black |
| Tally | Red, Green, Yellow |
| Time code | LTC, VITC |
| UMD | User-defined text (7 colours) |
| Image mirroring | Vertical flip, Horizontal flip |
Accessories
| Included | 24V 7.5A DC Adapter, Base Brackets, USB Flash Disk |
|---|---|
| Optional | SFP Optical Fiber Module |
