17.3 inch 1U rack-mountable broadcast monitor. 4x 12G-SDI, 1x HDMI 2.0, up to 4K 60Hz. Quad-View MV mode, TALLY connector, HDR, 3D LUT for control room and broadcast applications.
17.3 inch 1920 x 1080 IPS display, 300 cd/m², 1200:1 contrast
4x 12G-SDI, 1x HDMI 2.0, up to 2160p 60Hz on all inputs

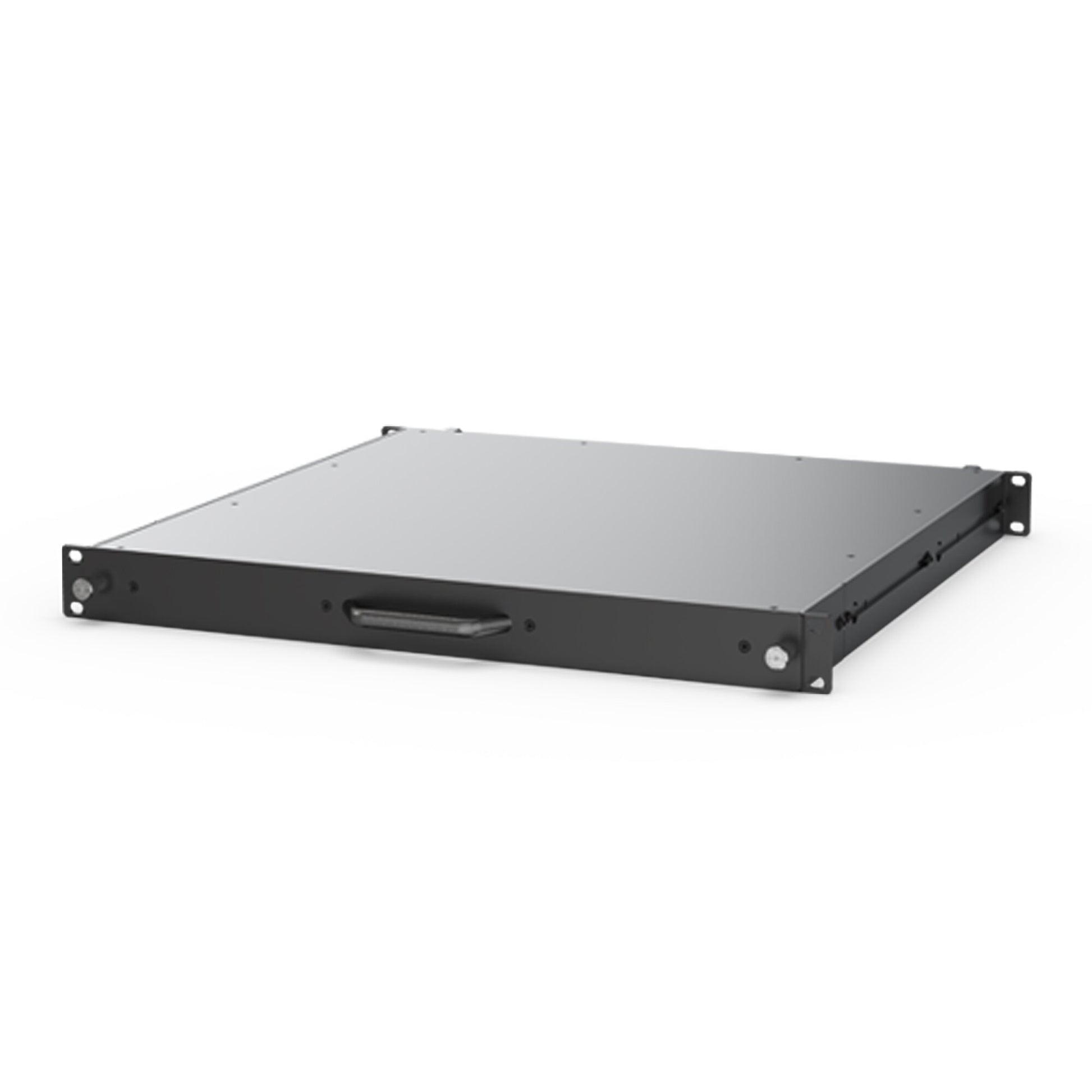

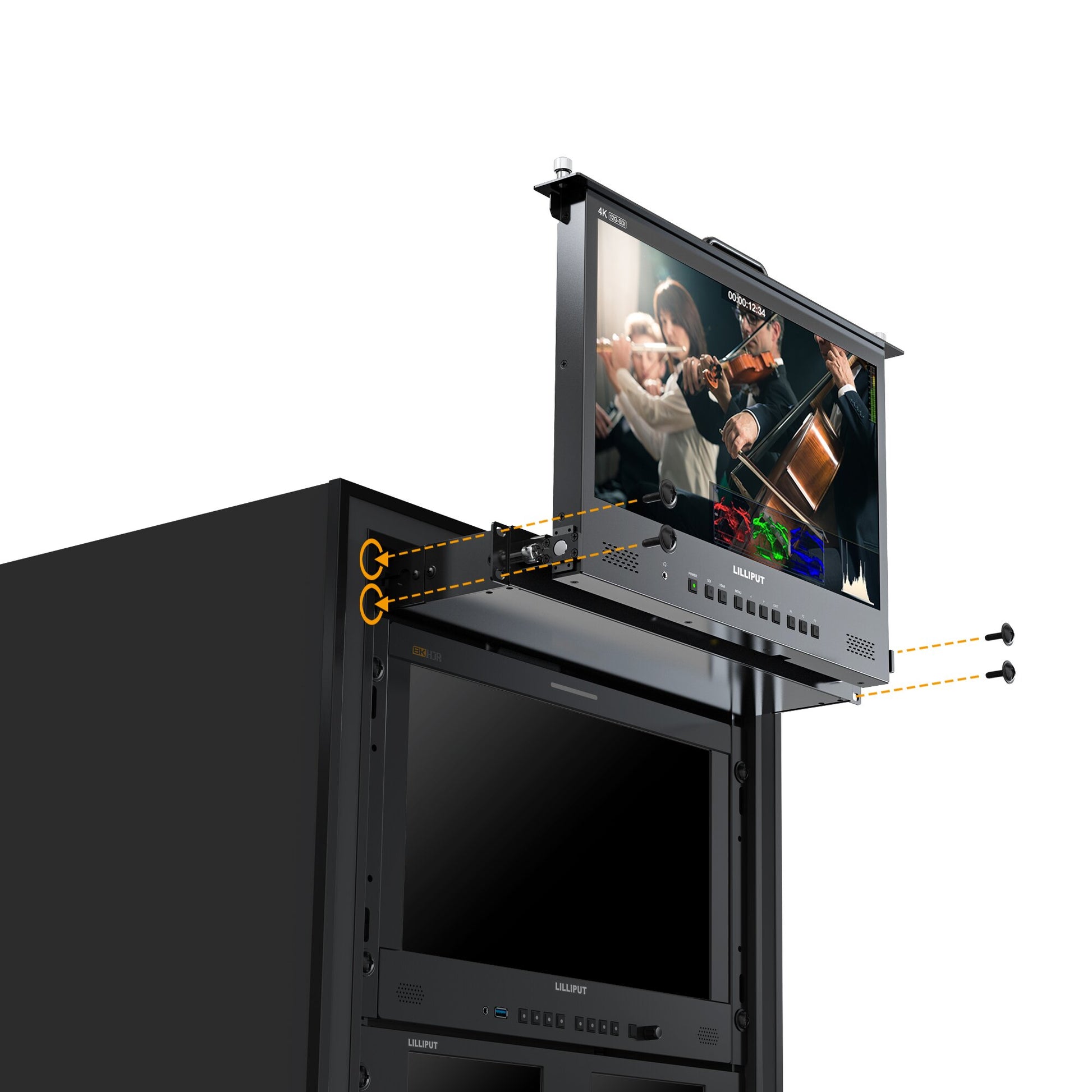

1U rack height (44 mm), 19 inch standard rack mounting

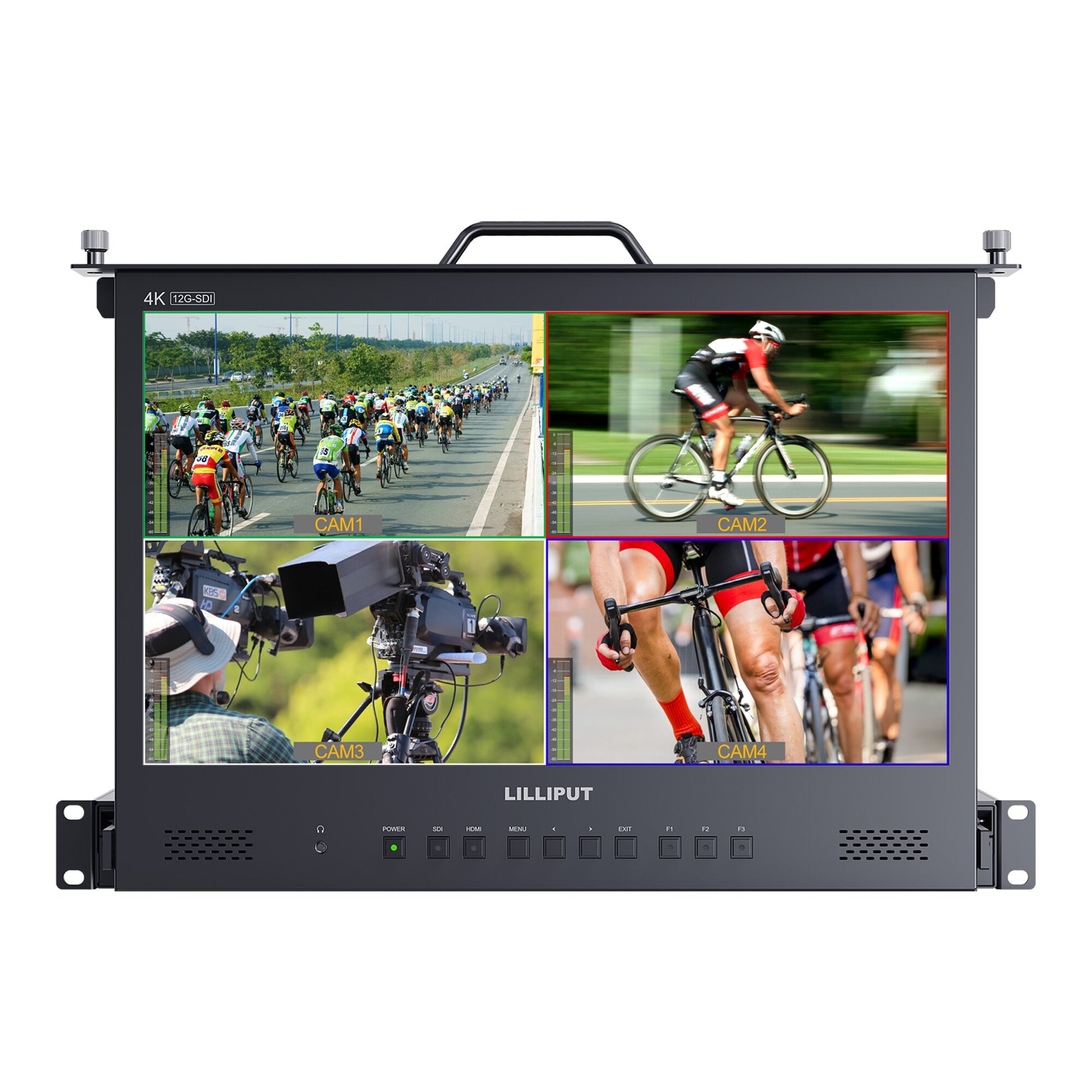

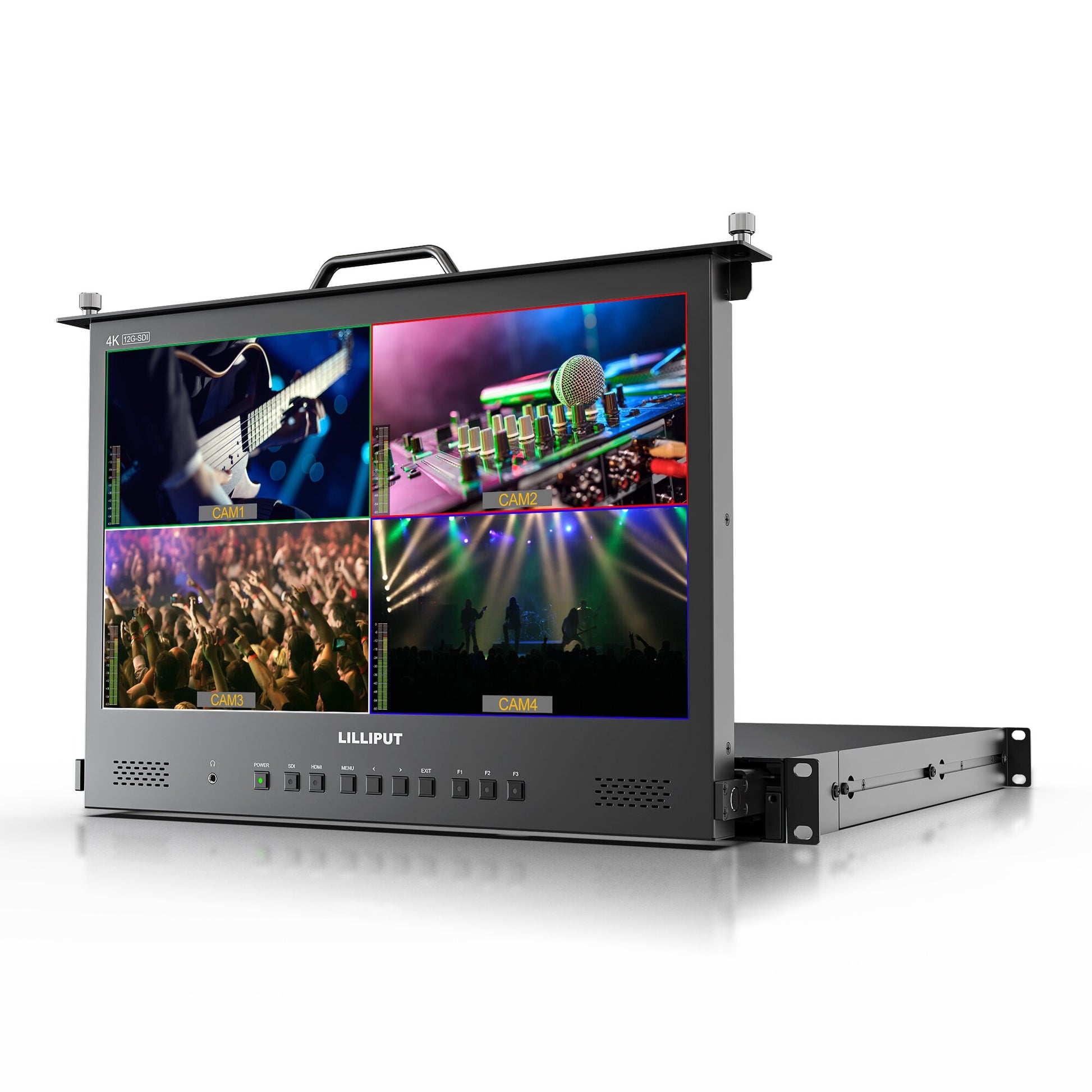

Quad-View MV mode: monitor 4 sources (SDI1 to 4 or HDMI) simultaneously
TALLY connector; HDR (ST2084, HLG); 3D LUT (.cube); Rec.709 calibration
Waveform, Vectorscope, Histogram, Level Meter; LAN for remote control

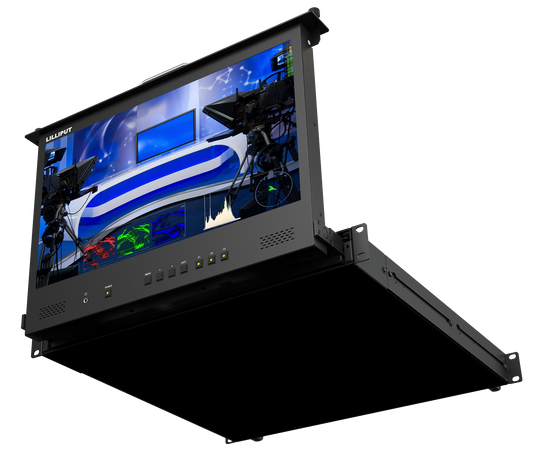

The Lilliput RM-1731S-12G is a 1U pull-out rackmount monitor. It features a 17.3 inch 1920 x 1080 Full HD IPS screen, with high spec picture quality and good colour reproduction. Its physical interfaces support up to 12G-SDI / HDMI 2.0 signal inputs, and will loop the input signal to its built-in set of outputs. For the advanced camera user, auxiliary functions such as waveforms, audio vector scopes and a whole host of others are included to assist in accurate reproduction of the filmed source. The Lilliput RM-1731S-12G has been calibrated with professional equipment - all parameters are accurate, and the system complies with or compares functionality with industry standards.
Display
Screen size
17.3 inch
Aspect ratio
16:9
Native resolution
1920 x 1080
Panel type
IPS
Brightness
300 cd/m²
Contrast
1200:1
Viewing angle
170°/170° (H/V)

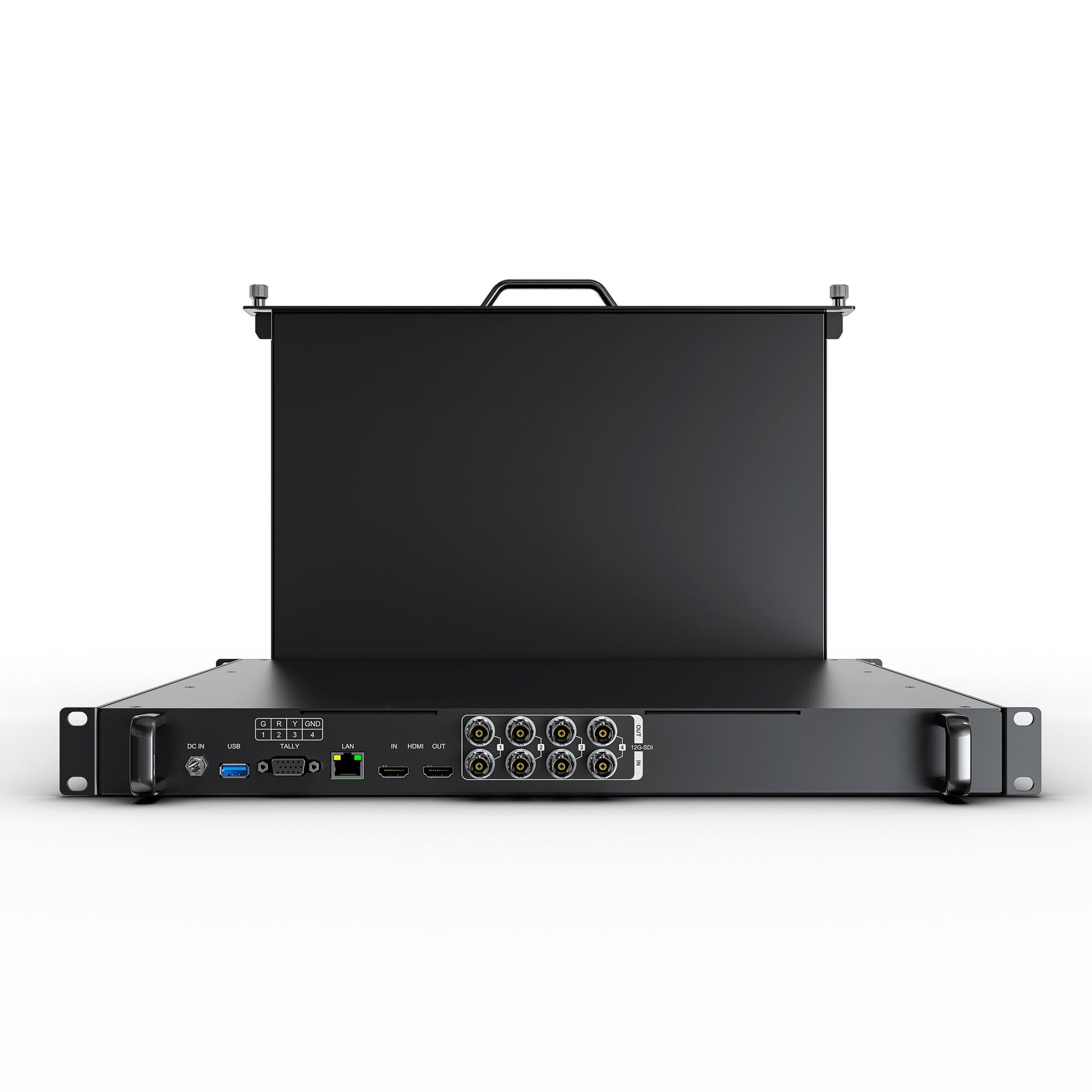

Connections
Video inputs
4x 12G-SDI, 1x HDMI 2.0
Video outputs
4x 12G-SDI, 1x HDMI 2.0
Audio
3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), 2x Built-in speakers
