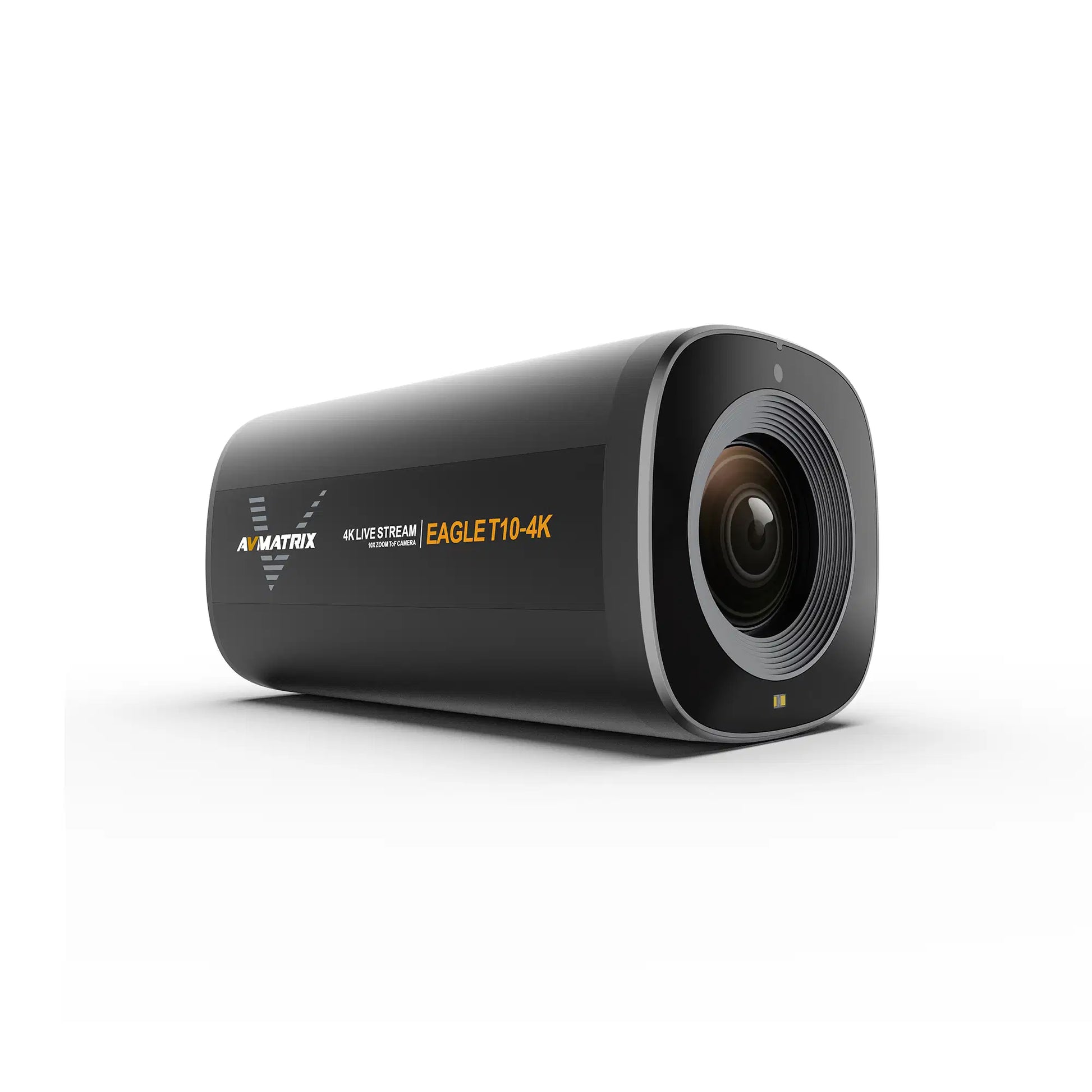

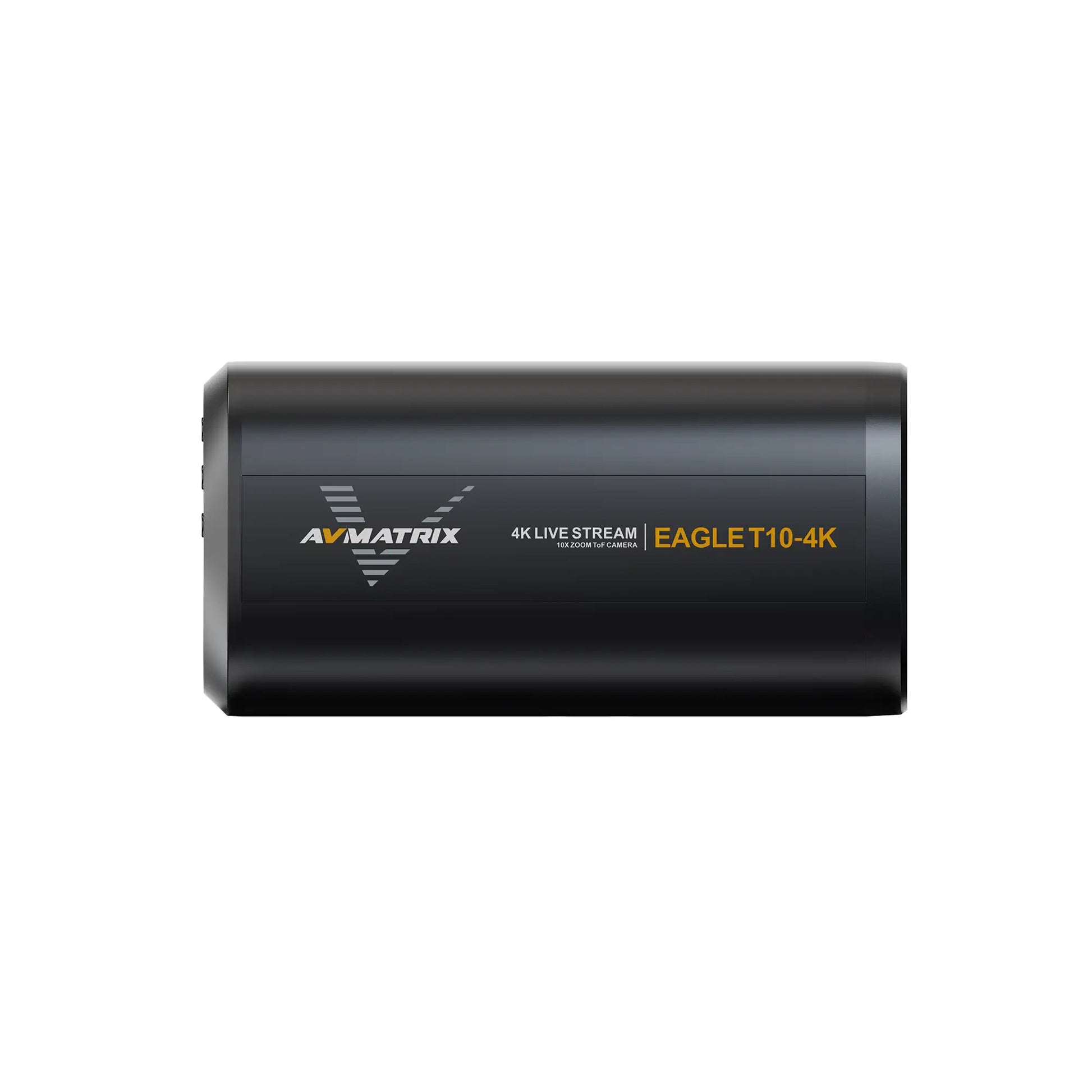

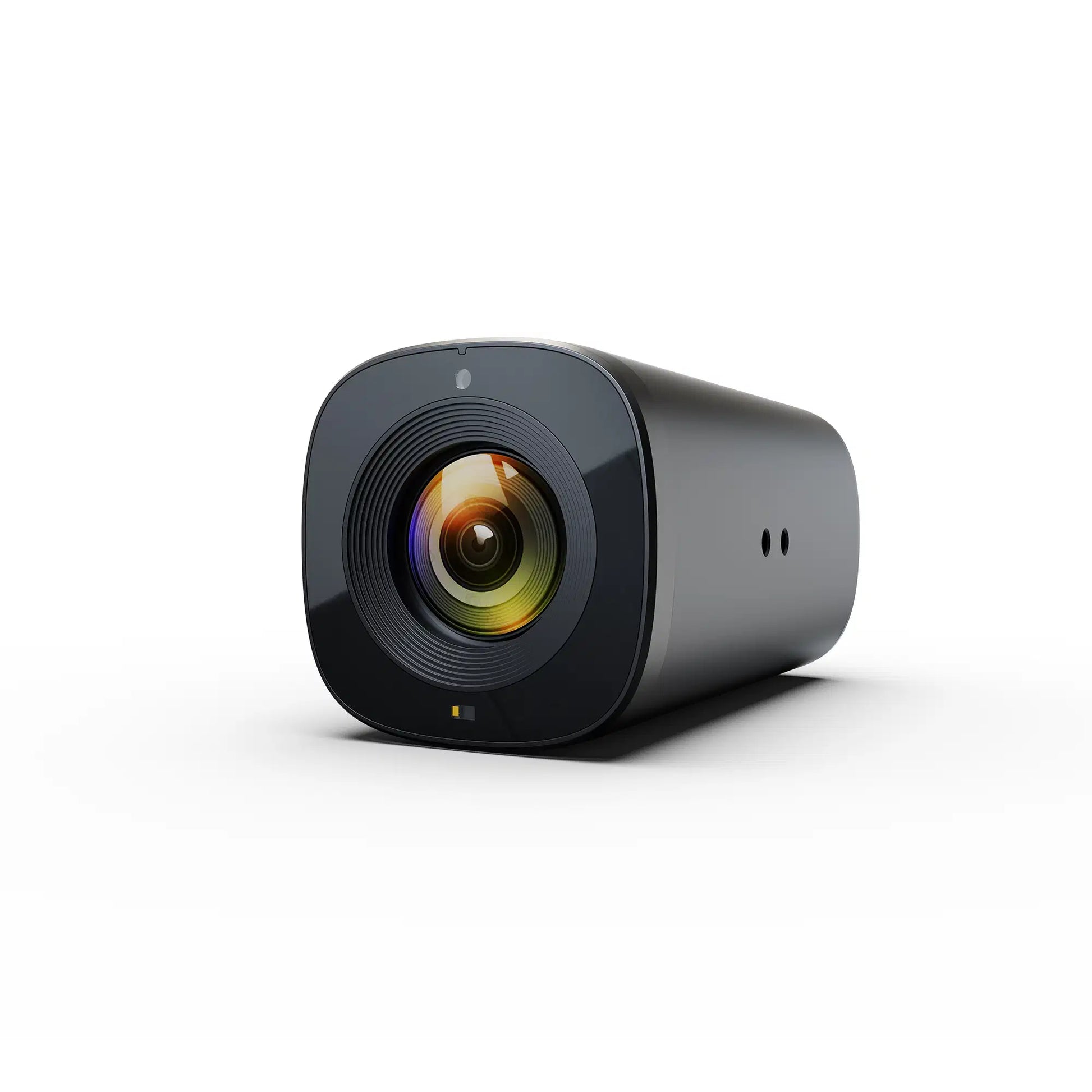

4K live streaming block camera with 10x optical zoom and ToF autofocus. 1/2.8" 8MP CMOS sensor. HDMI (2160p30) and USB-C UVC dual outputs. RS485 VISCA control with IR remote. Aluminium alloy body rated for 24/7 operation.
Landscape and portrait installation; H Flip, V Flip, H&V Flip
Compatible with Windows, Mac, and Android; works with OBS, vMix, Zoom, Teams
Aluminium alloy body with excellent heat dissipation — rated for 24/7 operation

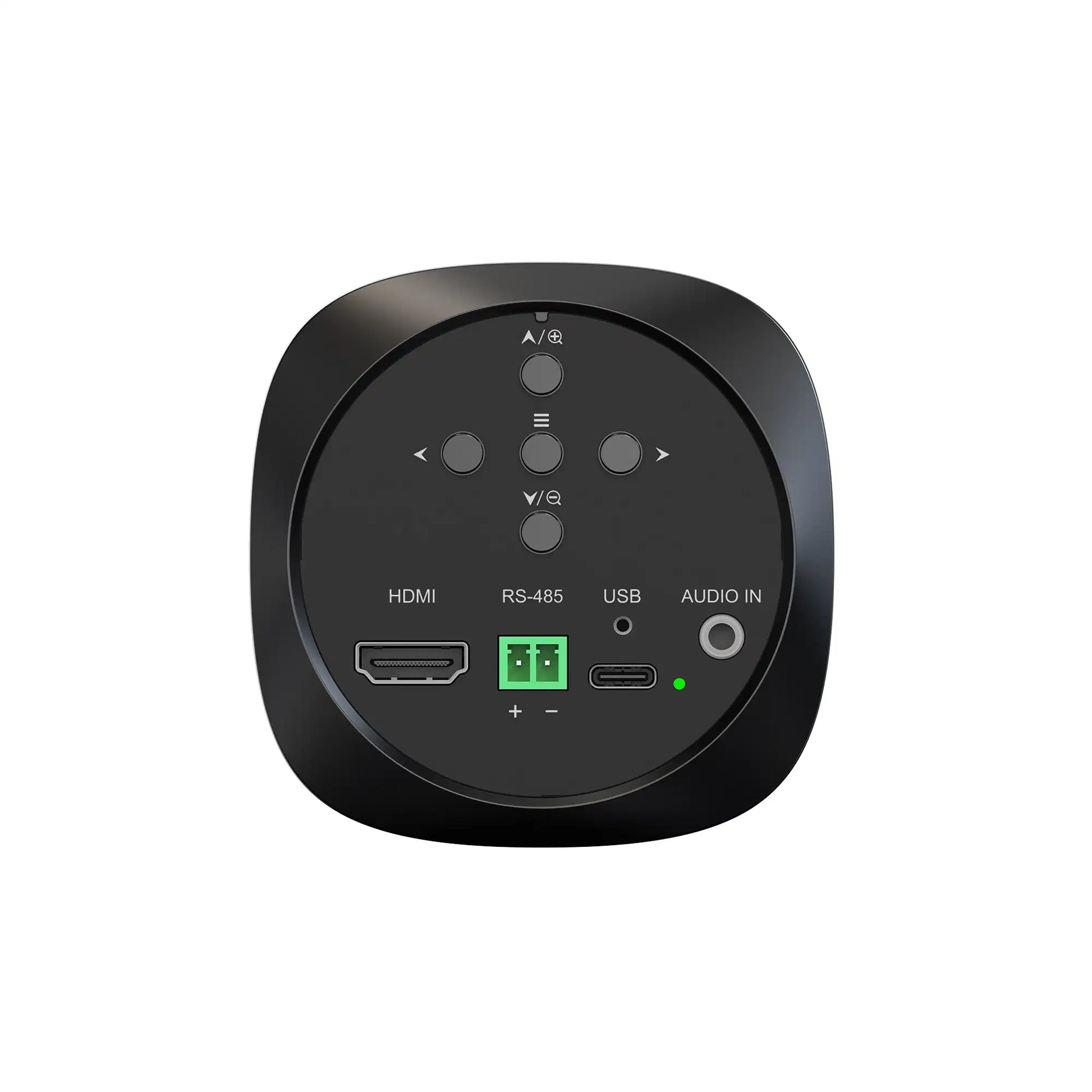

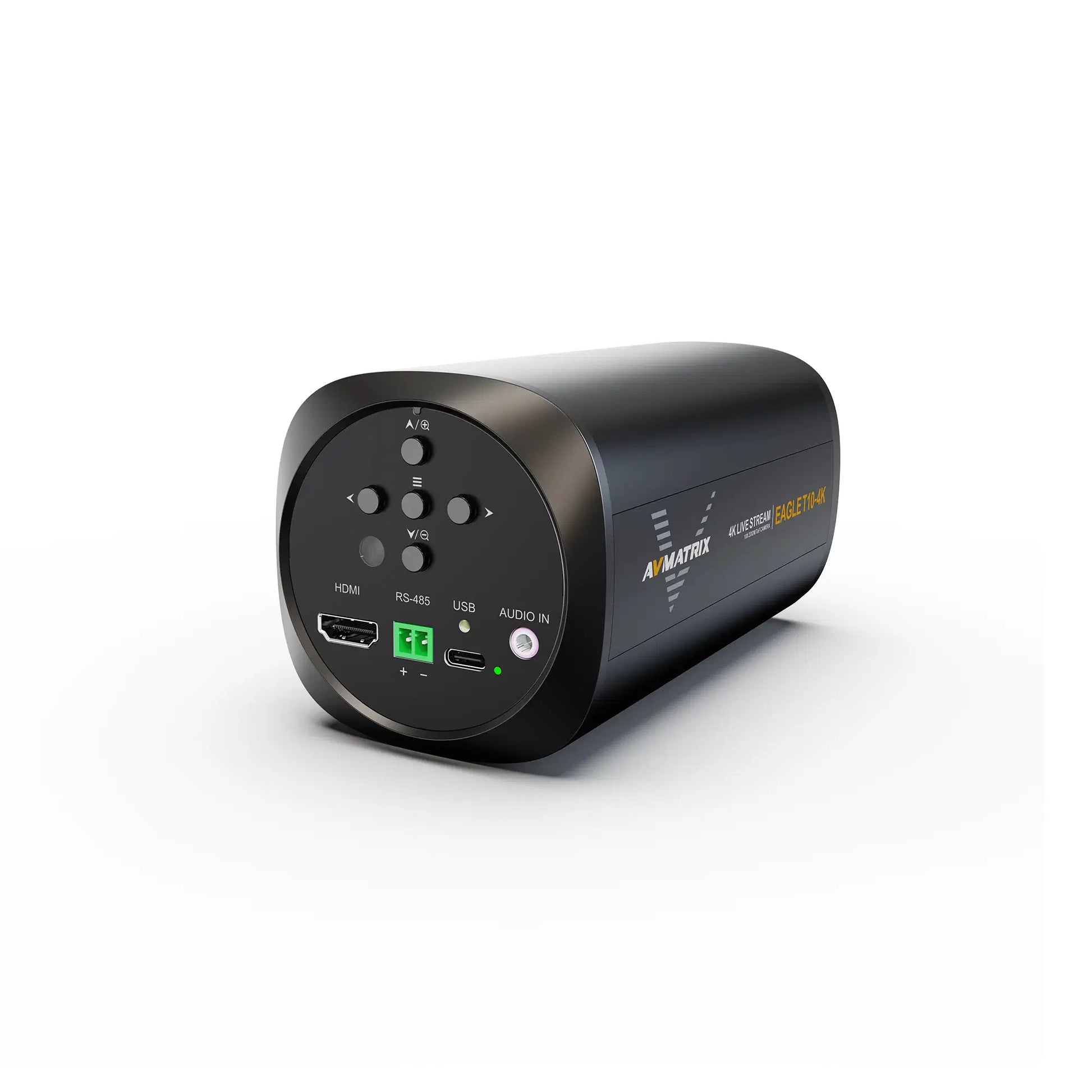

Connections
Video outputs
HDMI, USB-C (UVC)
Audio in
3.5 mm stereo
Serial protocol
VISCA
Video Standards
HDMI
2160p30, 1080p 60/50/30/25, 720p 60/50/30/25
USB capture (MJPG)
3840 x 2160 @ 30fps, 1920 x 1080 @ 60fps, 1280 x 960 @ 60fps, 1024 x 768 @ 60fps, 1280 x 720 @ 60fps, 800 x 600 @ 60fps, 720 x 576 @ 60fps, 640 x 480 @ 60fps
USB capture (YUY2)
1920 x 1080 @ 60fps, 1280 x 960 @ 60fps, 1024 x 768 @ 60fps, 1280 x 720 @ 60fps, 800 x 600 @ 60fps, 720 x 576 @ 60fps, 640 x 480 @ 60fps
Operational Features
Remote control
RS485
Power
Input voltage
5 V ±5% via USB-C (4.75 to 5.25 V)
Power consumption
<5 W
Environmental
Operating temperature
0°C to 40°C
Environment
Indoors
Mechanical
Dimensions
78 x 78 x 154.5 mm
Weight
686.7 g
Installation
Landscape & Portrait
Accessories
Included
IR Remote Control, Lens Cap, USB3.0 A-C Cable (Locker), HDMI Cable, 5V 2A Power Adapter
