Lilliput A13 · 13.3 inch 3G-SDI and HDMI OLED field monitor

Name: A13
Brand: Lilliput
SKU: A13
Price: 619.00 GBP
Availability: InStock

13.3 inch OLED field monitor. 3840 x 2160, 400 cd/m², 100% DCI-P3. 1x HDMI 2.0, 3x HDMI 1.4b, 1x 3G-SDI, 1x DP 1.2. HDR ST 2084. Multi-picture modes. 1.15 kg. VESA and gimbal bracket. Battery compatible.

1 6

£619.00 exc VAT £742.80inc VAT

Key Attributes

Display resolution 3840 x 2160
Aspect ratio 16:9
Contrast 100,000:1
Brightness 400 cd/m²
Screen size 13 inch

View full details

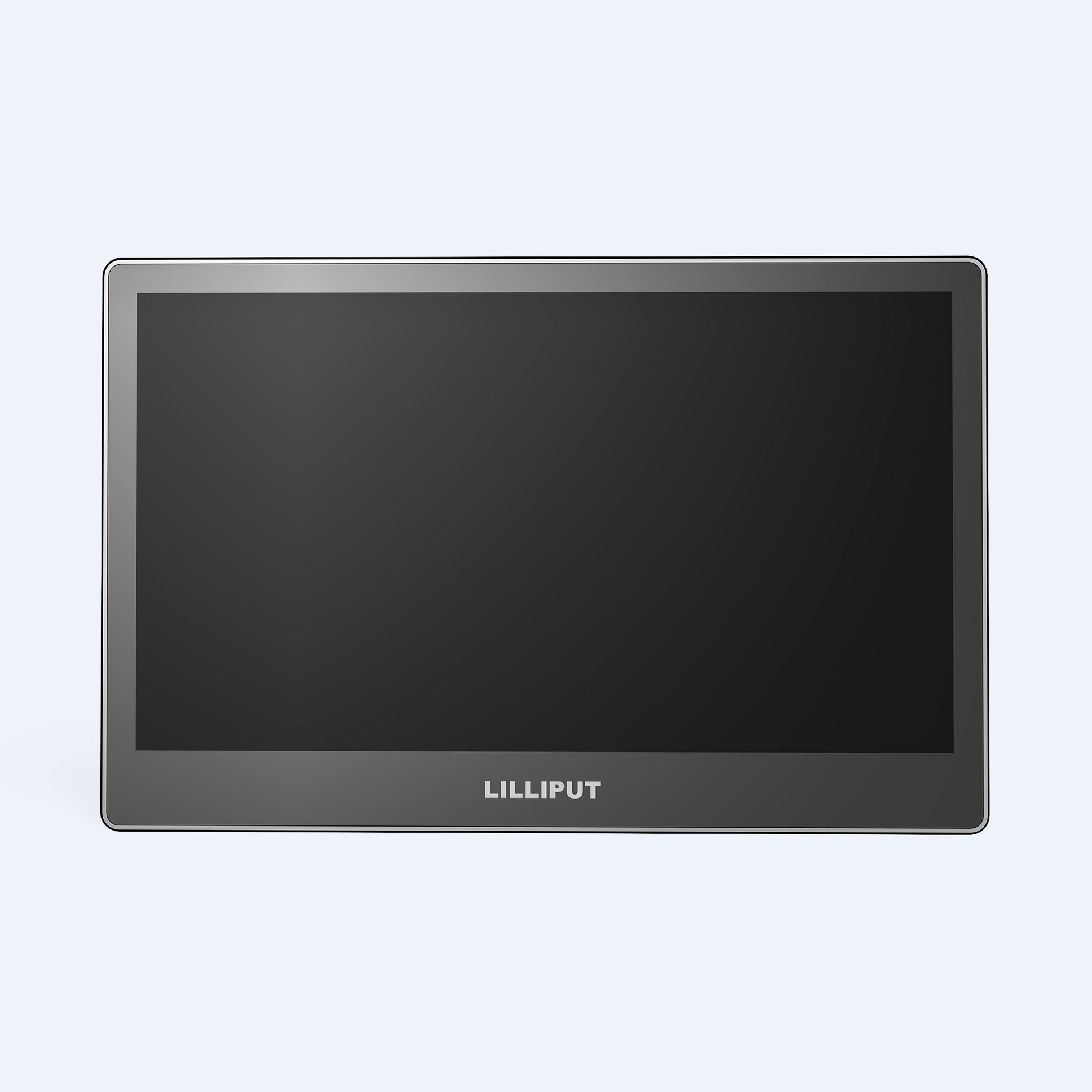

13.3 inch 3840 x 2160 OLED display, 400 cd/m², 100,000:1 contrast, 100% DCI-P3, 16:9
1x HDMI 2.0 (4K 60Hz), 3x HDMI 1.4b (4K 30Hz), 1x 3G-SDI, 1x DisplayPort 1.2
HDR ST 2084; multi-picture modes: 1P, 2P LR, 2P TB, 2P PIP, 4P
Centre marker, safety marker, aspect marker, peaking, false colour, check field, freeze
1.15 kg; 320 x 208 x 26.5 mm; VESA mount; gimbal bracket; FN user-definable button
VESA battery plate included; optional V-mount or Anton Bauer

Display

Screen size	13.3 inch
Aspect ratio	16:9
Native resolution	3840 x 2160
Panel type	OLED
Brightness	400 cd/m²
Contrast	100,000:1
Viewing angle	170°/170° (H/V)
HDR	ST 2084
Colour space — DCI-P3	100%

Connections

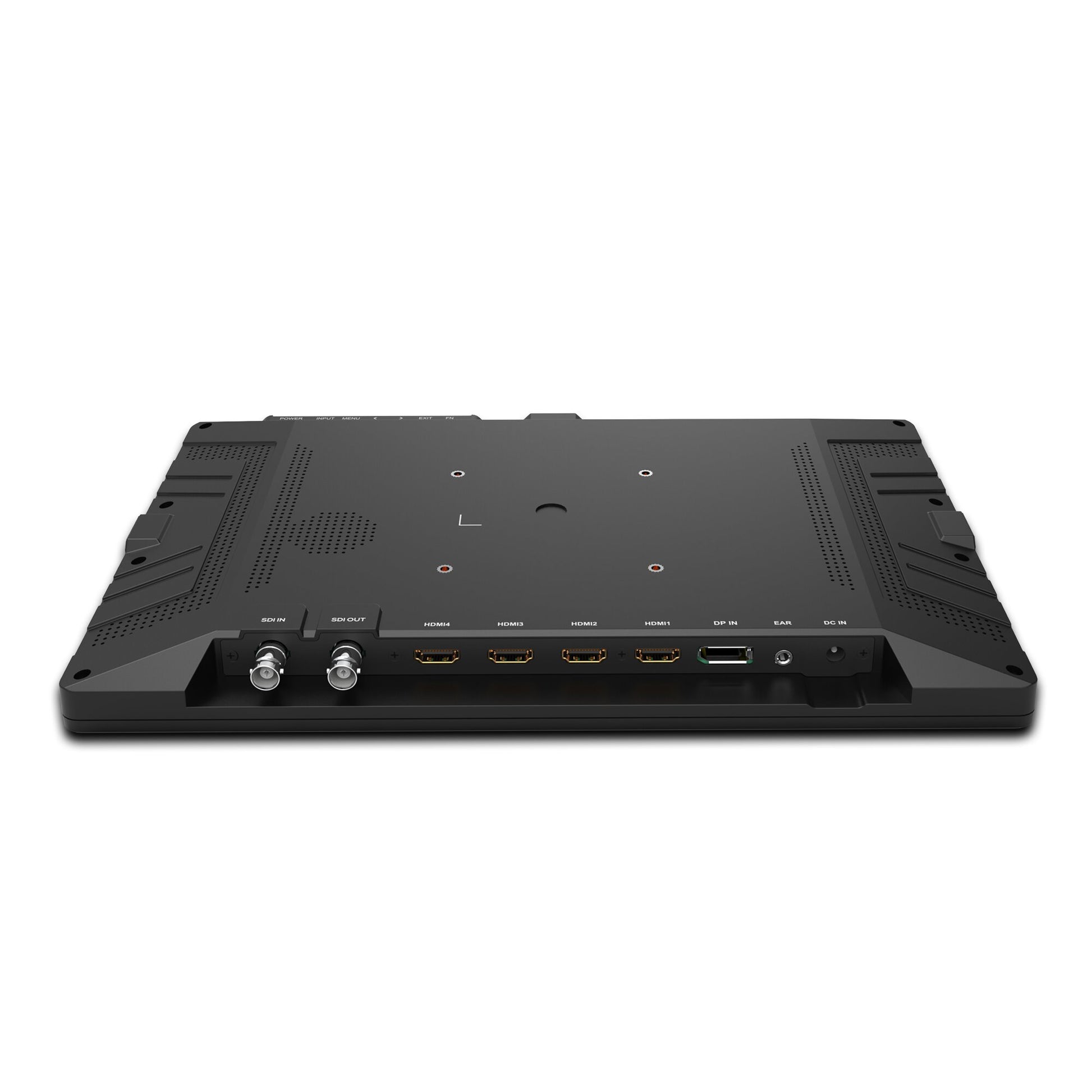

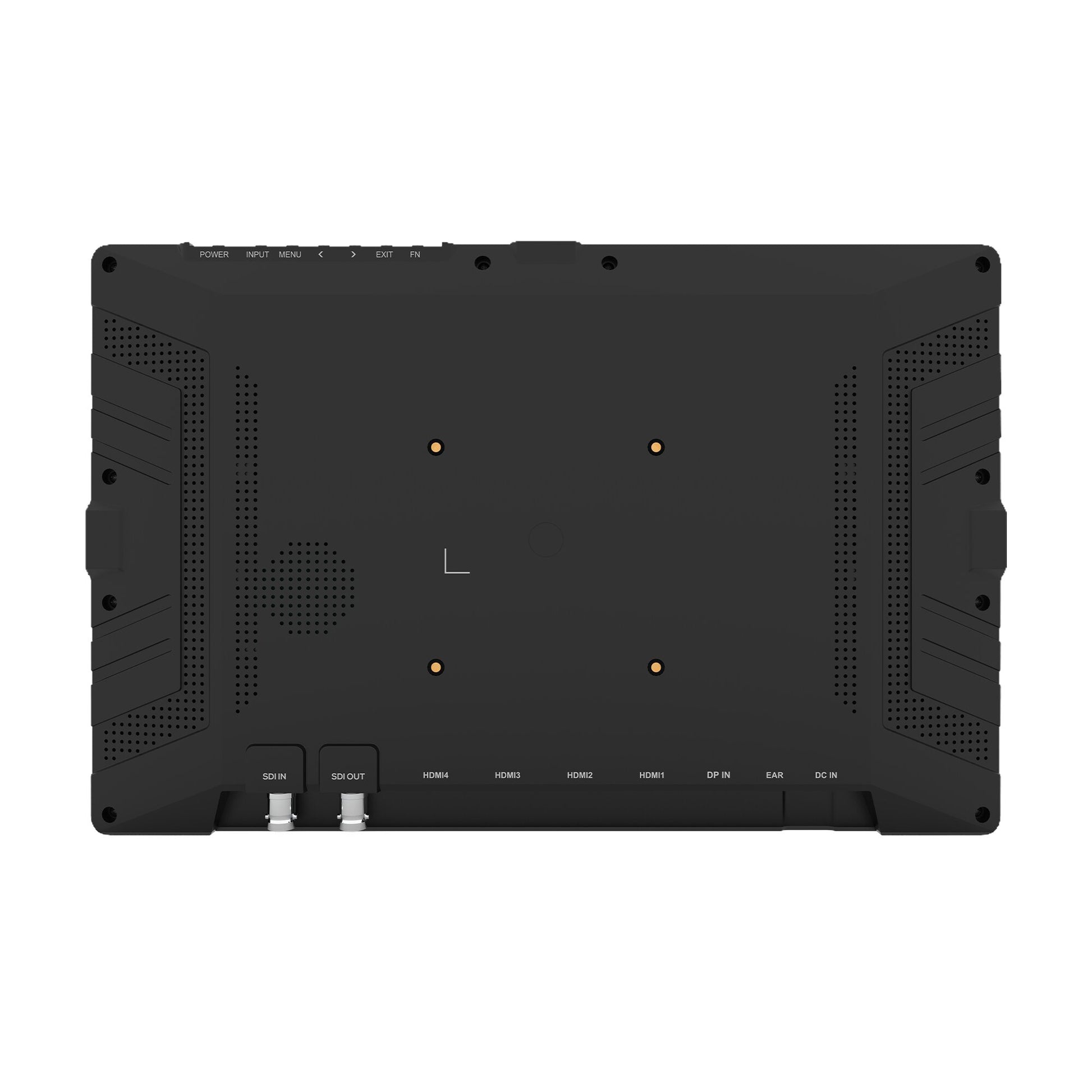

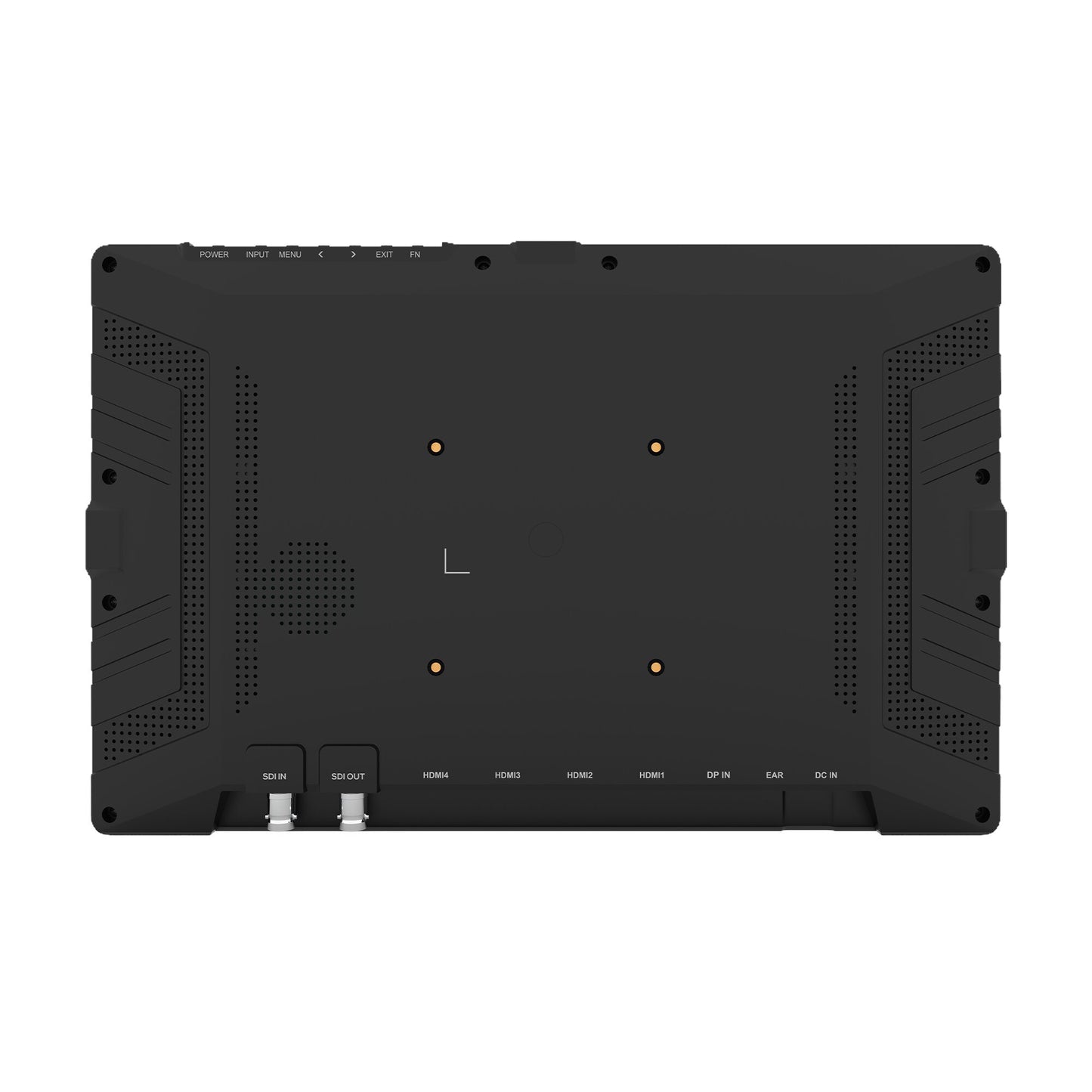

Video inputs	1x HDMI 2.0, 3x HDMI 1.4b (4K 30Hz), 1x 3G-SDI, 1x DisplayPort 1.2
Video outputs	1x 3G-SDI
Audio	2x Built-in speakers, 3.5 mm ear jack (2ch 48kHz 24-bit)

Video Standards

3G-SDI	1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
HDMI 2.0	2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
HDMI 1.4b	2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
DisplayPort	2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60

Power

Input voltage	DC 7 to 24V
Power consumption	≤20 W (12V)

Environmental

Operating temperature	0°C to 50°C
Storage temperature	-20°C to 60°C

Mechanical

Dimensions	320 x 208 x 26.5 mm
Weight	1.15 kg

Mounting

VESA mount	75 x 75 mm (battery plate included)

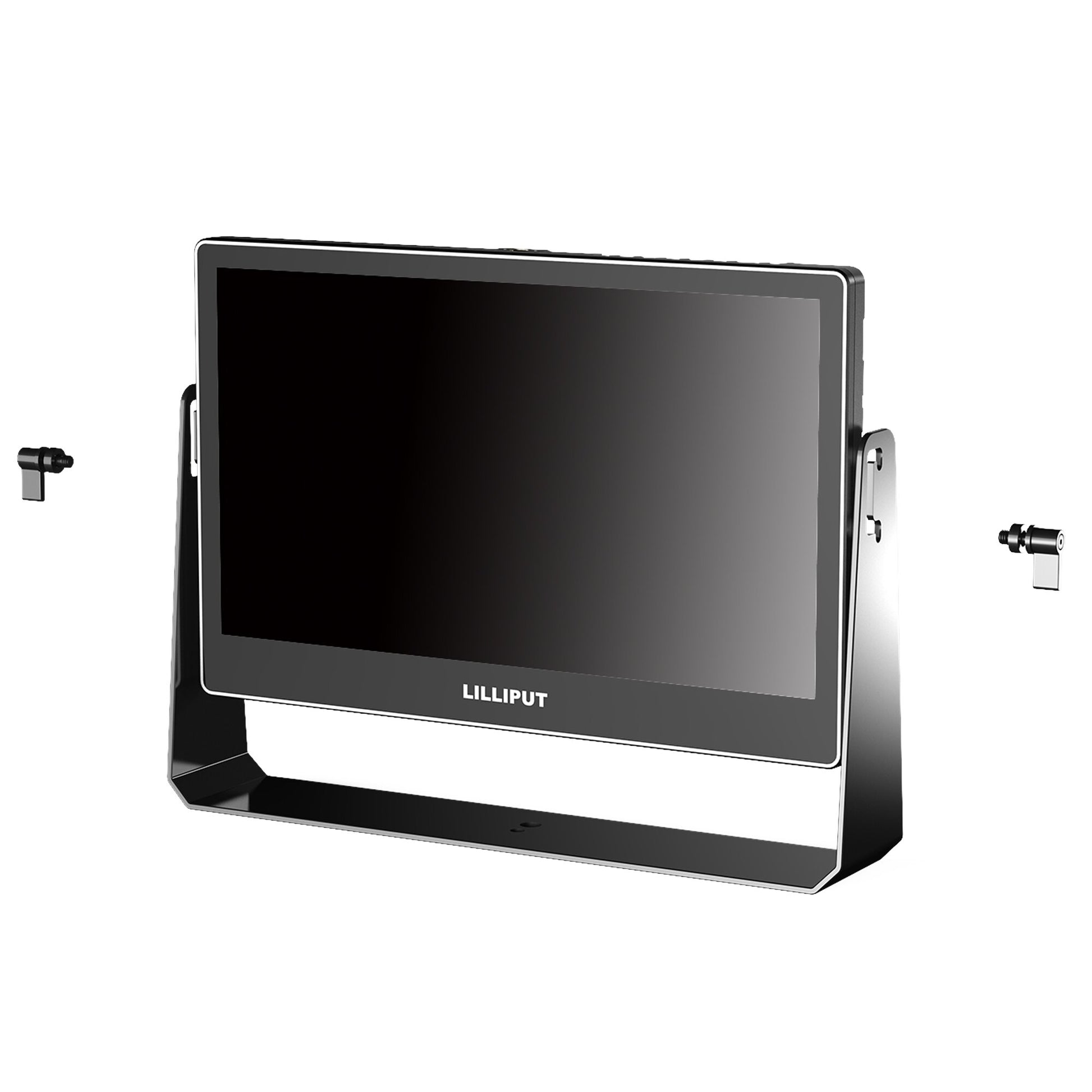

Gimbal bracket	Included

Operational Features

Function buttons	User-definable (default: Display Mode)
Markers — Aspect markers	16:9, 1.85:1, 2.35:1, 4:3, 17:9
Markers — Safety marker	80%, 85%, 88%, 90%, 93%, 95%
Markers — Centre marker	On/Off
Image mirroring	Vertical flip, Horizontal flip

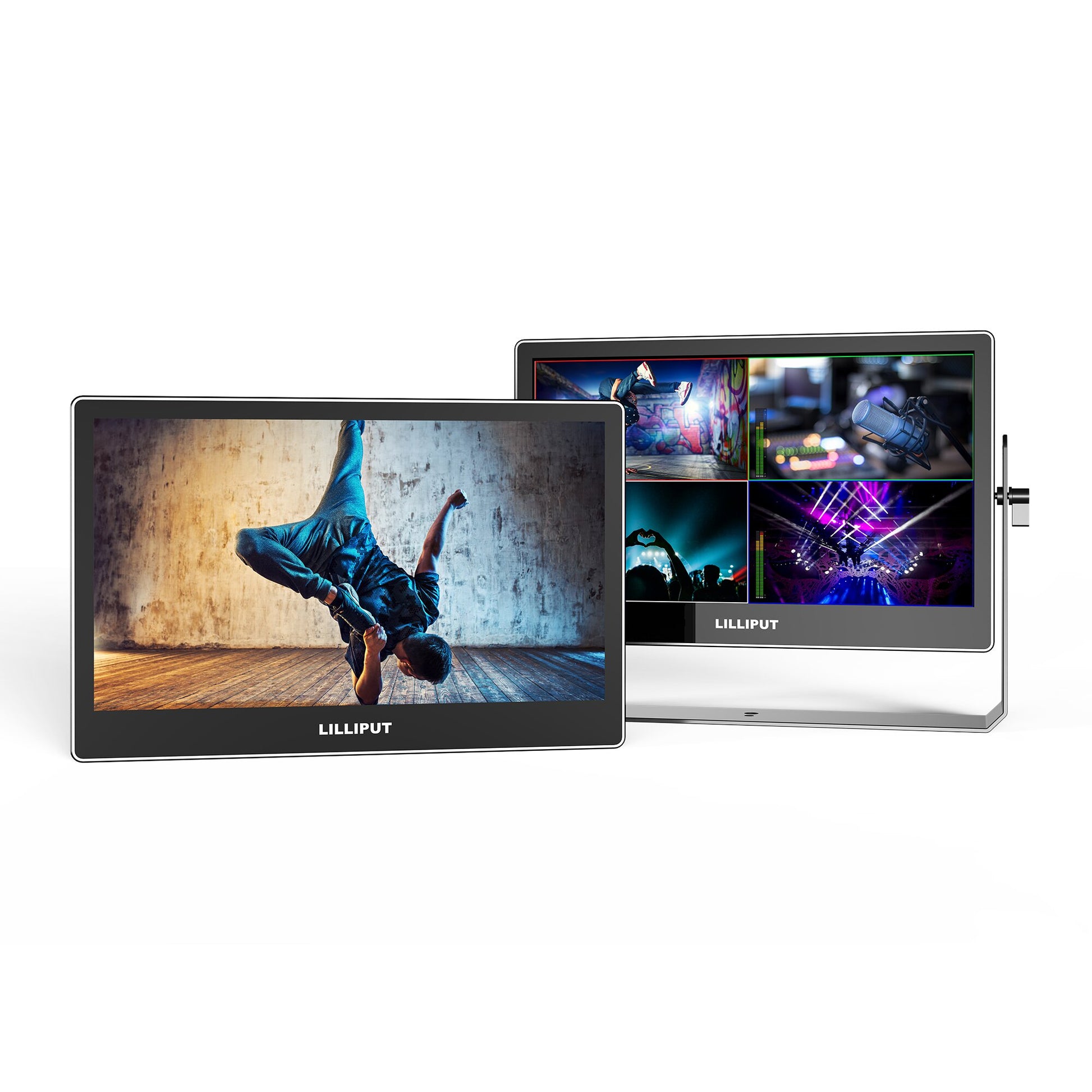

Multi Viewer	Picture-by-Picture, Picture-in-Picture, Quad-View
Selectable colour spaces	Native, DCI-P3, Rec.709

Accessories

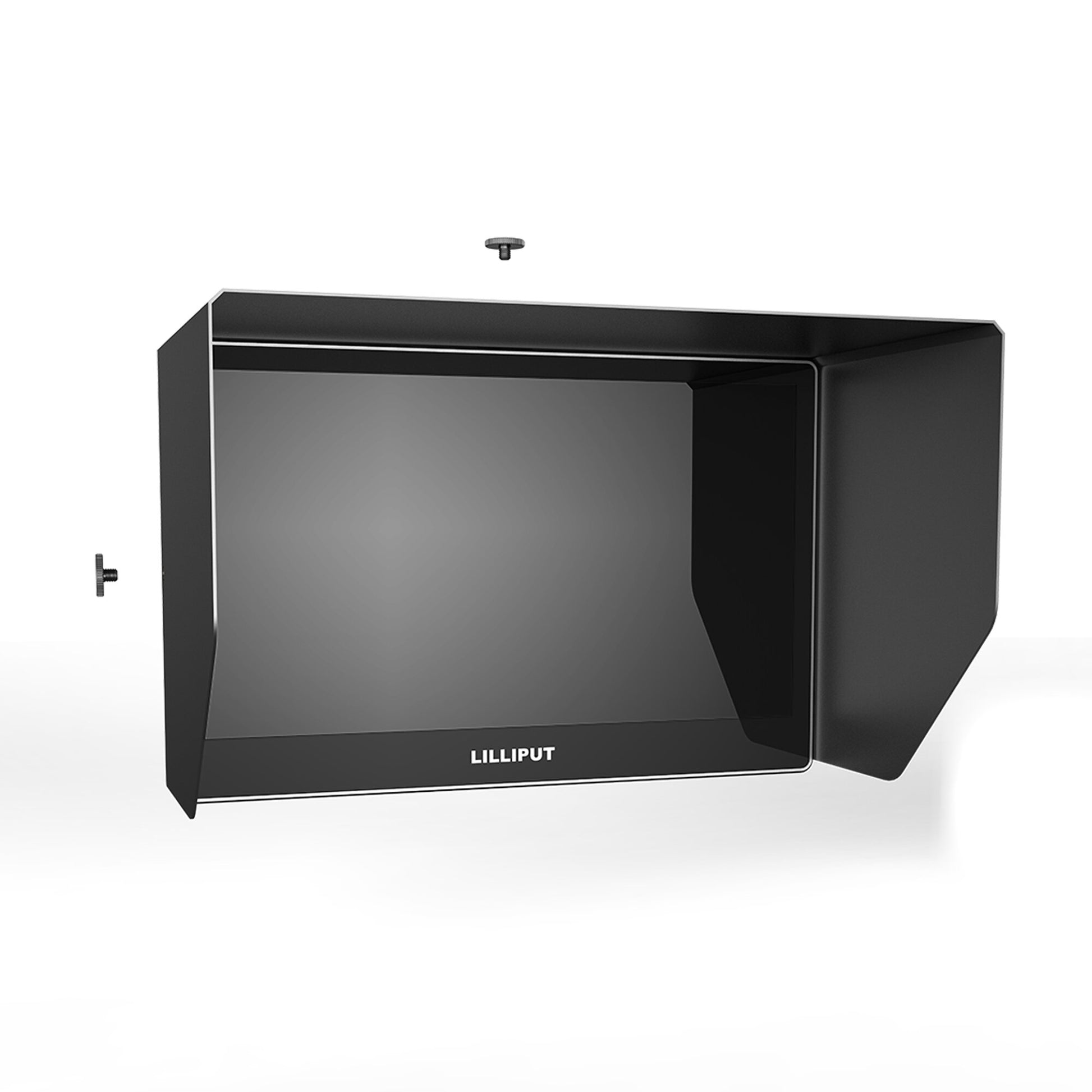

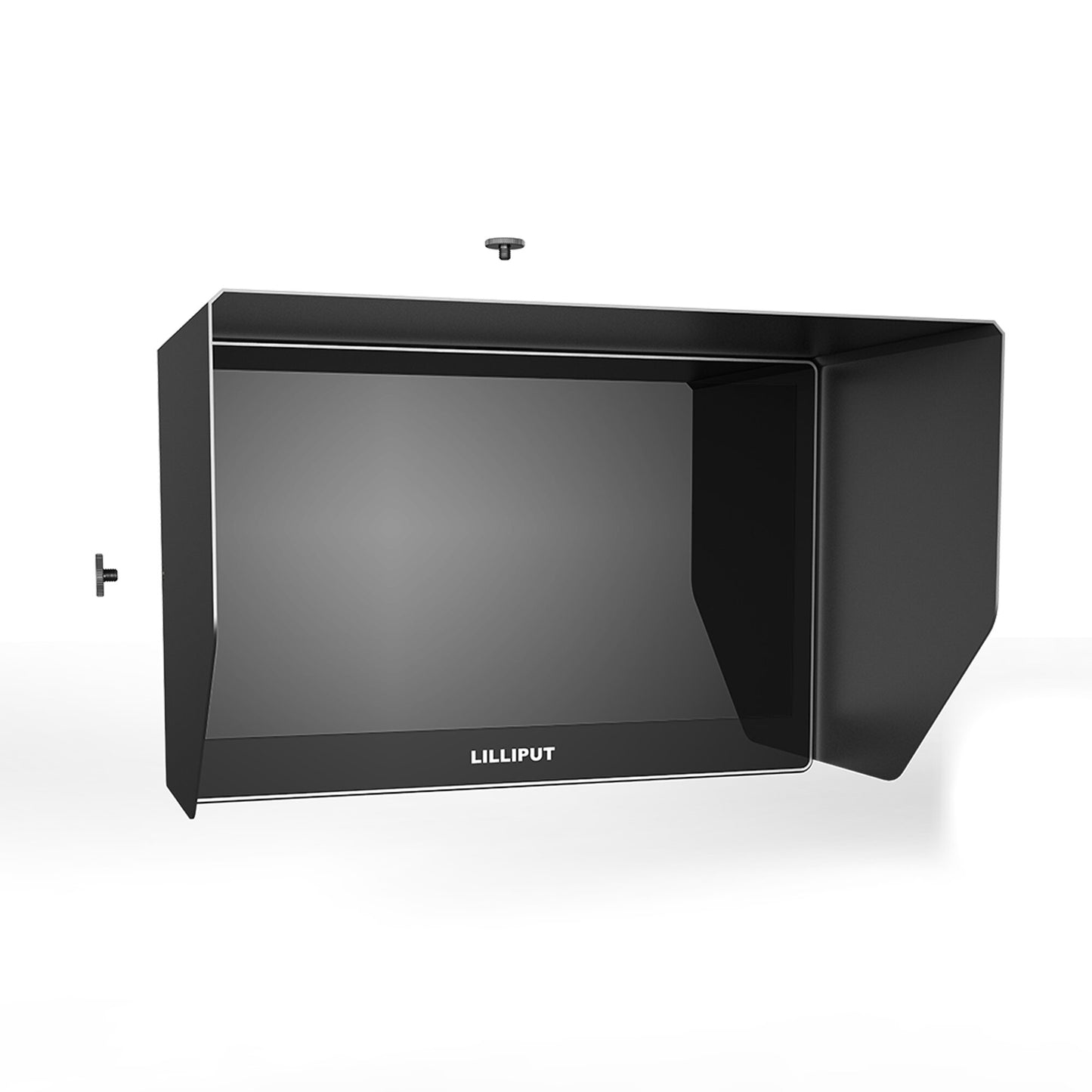

Included	Gimbal bracket, 0.8 m HDMI A-A cable, 12V 3A DC power adapter, Sunshade, VESA mount plate bracket, User manual card
Optional	V-mount or Anton Bauer battery plate
