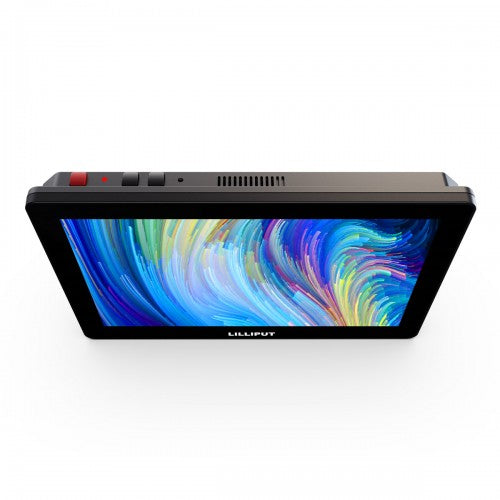

10.1 inch on-camera monitor with capacitive touch screen. 1920 x 1200, 1500 cd/m². 3G-SDI and HDMI 2.0 with 4K 60Hz. HDR, 3D LUT, 17 camera logs. LANC camera control. 850 g. Shoe mount and VESA. NP-F and V-Lock battery compatible.
10.1 inch 1920 x 1200 LCD display, 1500 cd/m², 1000:1 contrast, 125% BT.709 / 92.5% DCI-P3, 16:10 aspect ratio
Capacitive touch screen, menu control via touch gestures; shortcut swipes for backlight, volume, zoom

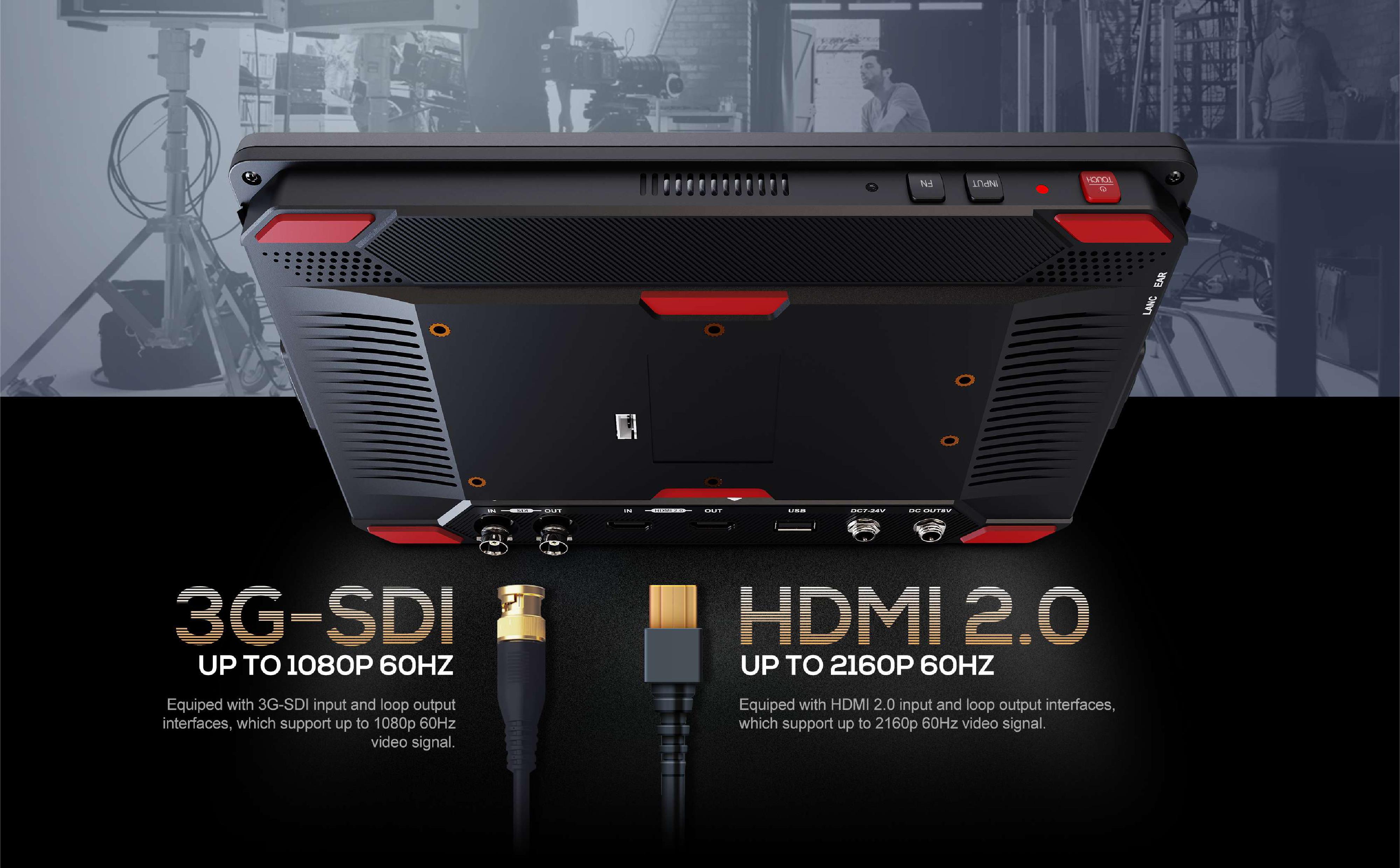

1x 3G-SDI and 1x HDMI 2.0 input/output, 4K 60Hz support
HDR ST 2084 (300/1000/10000 cd/m²) and HLG; 3D LUT (.cube); 17 default camera logs plus 6 user LUTs
LANC port for Sony camera control; FN user-definable function button; 50,000 h LED lifetime
850 g; 251 x 170 x 26.5 mm; shoe mount 1/4 inch; VESA mount; NP-F (F970) and V-Lock battery compatible
The Lilliput HT10S is a precision on-camera monitor with an ultra-bright 1500 cd/m2 display designed specifically for photography and film-makers in outdoor video and film shooting environments.
It has a touchscreen capable of controlling video a camera menu system directly from the LED Panel (connected by LANC cable), and features HDR 10+ and 3D-LUT (Look Up Table) capabilities.
Display
Screen size
10.1 inch
Aspect ratio
16:10
Native resolution
1920 x 1200
Panel type
LCD
Brightness
1500 cd/m²
Contrast
1000:1
Viewing angle
170°/170° (H/V)
Touch screen
Capacitive touch
HDR
ST 2084 300/1000/10000 cd/m², HLG
Colour space — Rec.709
100%
LED lifetime
50,000 h
Connections
Video inputs
1x 3G-SDI, 1x HDMI 2.0
Video outputs
1x 3G-SDI, 1x HDMI 2.0 (4K 60Hz)
Audio
1x Built-in speaker, 3.5 mm ear jack (2ch 48kHz 24-bit), HDMI 8ch 24-bit
