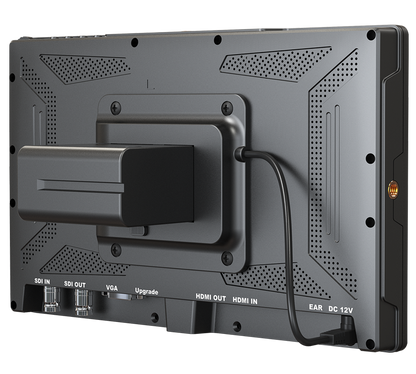

10.1 inch on-camera monitor. 1920 x 1200, 320 cd/m². 1x 3G-SDI, 1x HDMI 1.4, VGA with loop-through. Glass+Glass panel. F1/F2 user-definable buttons. 550 g. NP-F battery compatible. Sun shade and shoe mount included.

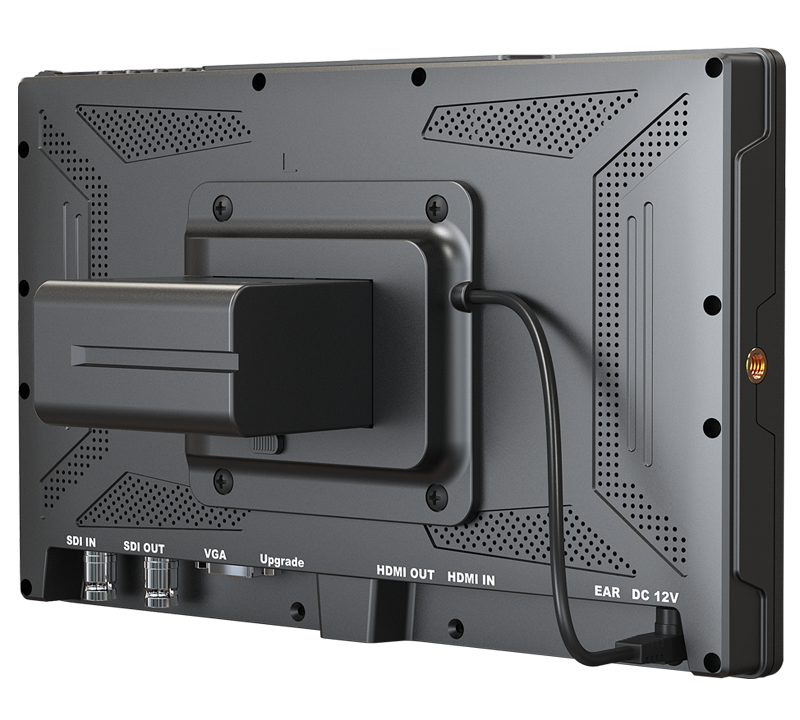

550 g; 252 x 157 x 25 mm; 75 mm VESA; NP-F battery plate included; sun shade compatible
The Lilliput A11 is a 10.1" 4K compatible monitor with a 1920 x 1200 px panel, and HDMI 1.4 + 3G-SDI connectivity. The Lilliput A11 has been designed for the video and film industry professional and is ideally suited for directors and camera operators operating 4K capable equipment.
The Lilliput A11 matches with world-famous 4K / FHD camera brands to assist camera operators in acquiring better photography and gives a much more satisfying experience for variety of applications, i.e. filming on site, broadcast live action, moviemaking and post-production, etc.
The Lilliput A11 has a 1920 x 1200 native resolution, 10.1 inch 8-bit LCD panel - which allows for a level of detail far beyond what the human retina can identify. Features include 1000:1 contrast, 320 cd/m² brightness and a 175° viewing angle. With full lamination technology you can see every detail in massive Full HD visual quality. The built-in HDMI 1.4 port supports 4K 30Hz signal input, while the 3G-SDI BNC port supports 3G-SDI, HD-SDI and SD-SDI signal inputs. A universal VGA port is also included which allows for more legacy usage environments. The Lilliput A11 also features unique Glass+Glass (G+G, G&G) technology, creating a smooth appearance for its outer body. It facilitates the best view possible and allows the user to achieve the best photography that they can.

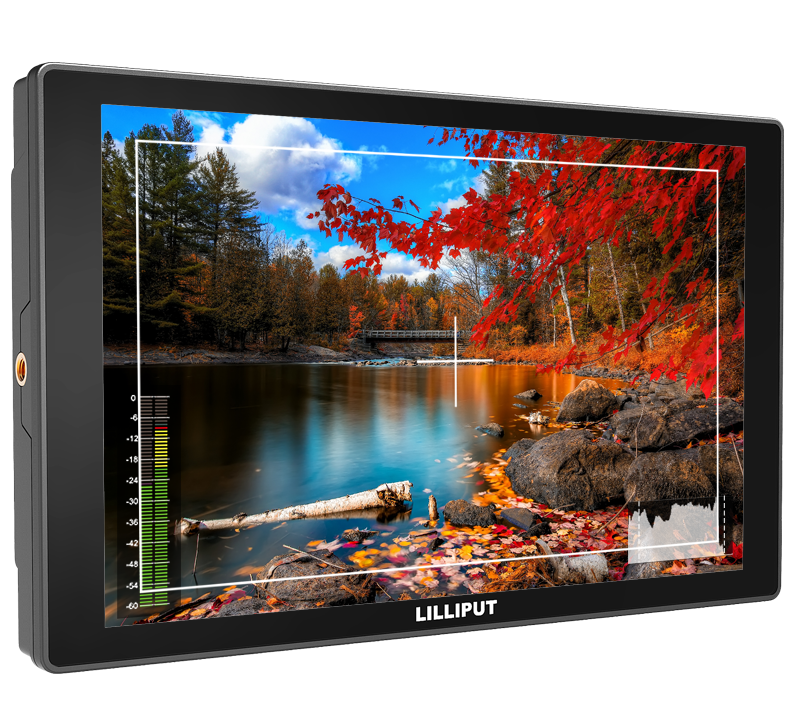

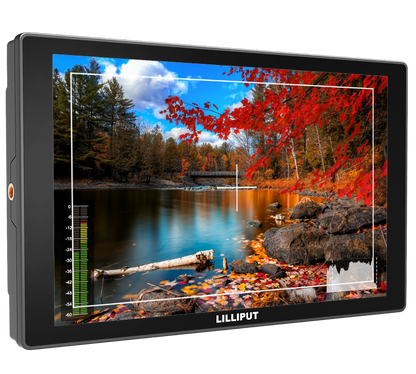

The Lilliput A11 provides plenty of auxiliary functions for taking photos and making movies. Highlights include Peaking, False Colour, Histograms and Audio Level Meters.
F1 & F2 are user-definable buttons for you to set up shortcut access to custom auxiliary functions, such as Peaking, Underscan and Check Field.
Display
Screen size
10.1 inch
Aspect ratio
16:10
Native resolution
1920 x 1200
Panel type
8-bit LCD
Brightness
320 cd/m²
Contrast
1000:1
Viewing angle
175°/175° (H/V)

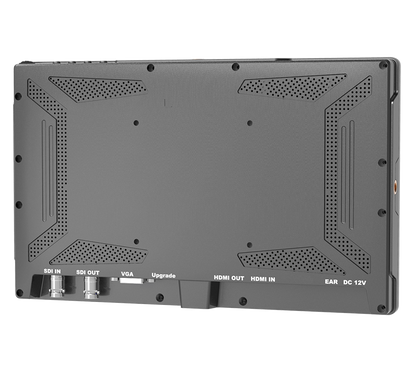

Connections
Video inputs

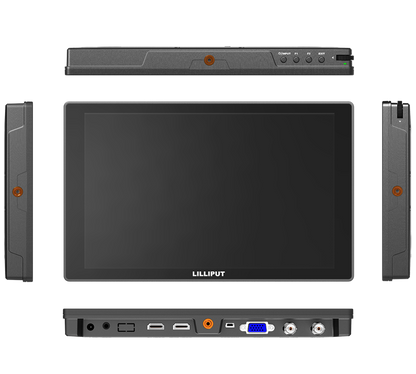

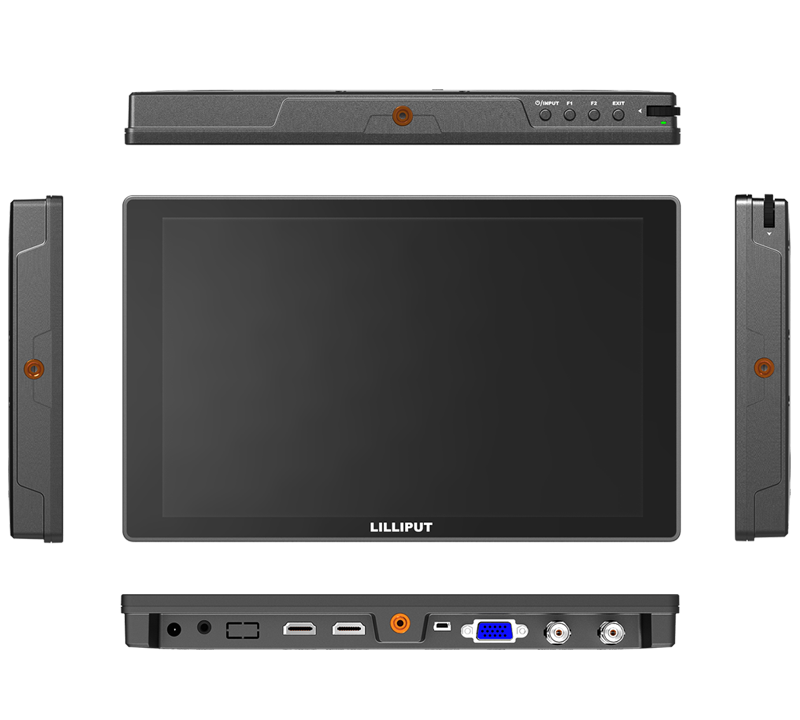

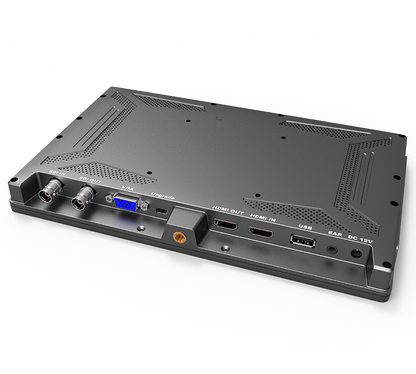

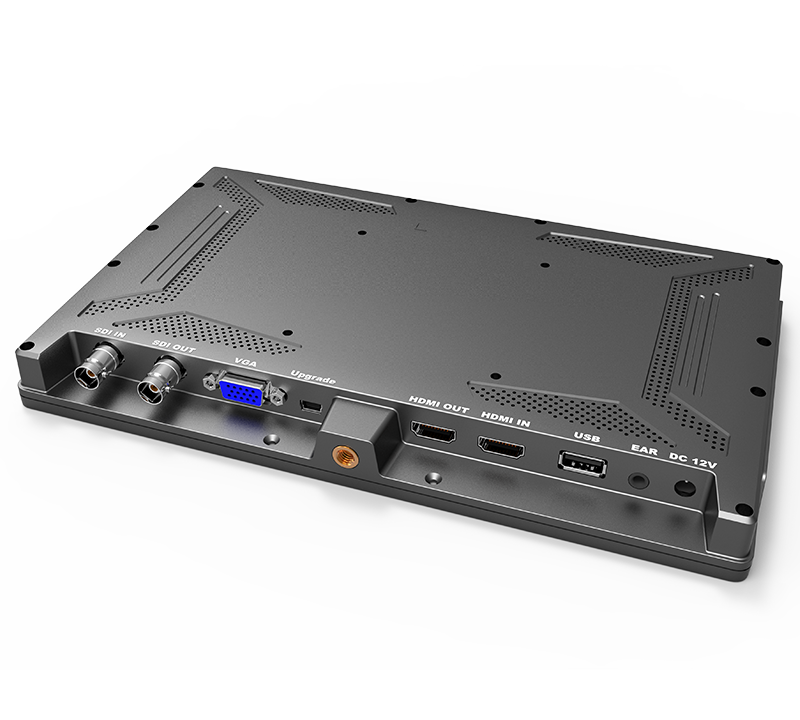

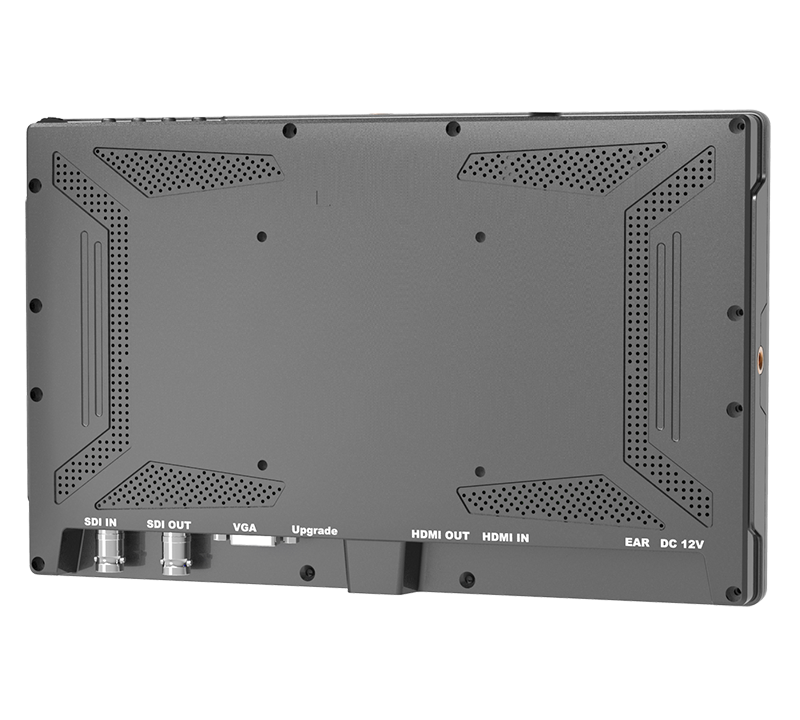

1x 3G-SDI, 1x HDMI 1.4, 1x VGA
Video outputs
1x 3G-SDI, 1x HDMI 1.4
Audio
3G-SDI 12ch 48kHz 24-bit, HDMI 2ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), 1x Built-in speaker
