5 inch on-camera monitor. 1920 x 1080, 400 cd/m². HDMI 1.4 with 4K passthrough. 118 g ultra-light. Shoe mount with 1/4 inch BSW thread. NP-F and LP-E6 battery compatible.
118 g ultra-light; 129.6 x 80.1 x 23.6 mm compact design
Shoe mount: 1/4 inch British Standard Whitworth (BSW) thread
NP-F (F970) and LP-E6 battery compatible; F1 user-definable (peaking, waveform, false colour, etc.)
Centre marker, aspect marker, safety marker, peaking, false colour, exposure, histogram, level meter

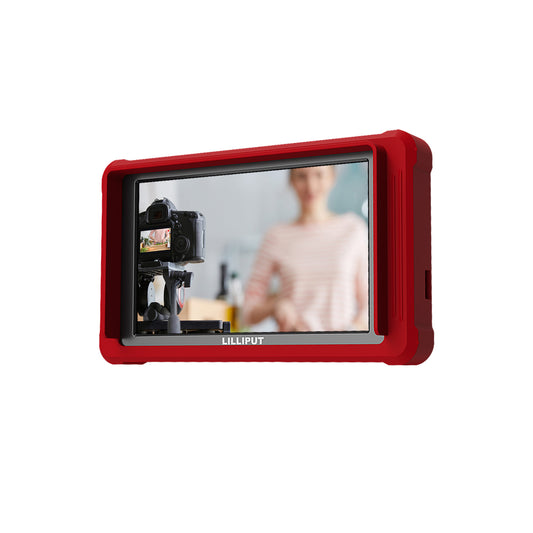

The Lilliput A5 is the first Lilliput monitor to feature 4K inputs at the 5" screen size. It's UHD 4K compatible with a 16:9 aspect ratio LCD field monitor which presents its images on a Full HD 1920 x 1080 IPS panel. If you're a mobile shooter who has upgraded to the 4K workspace, the A5 offers control over your shooting workflow both in the field and in the studio.
The A5 is the first Lilliput monitor to feature a 5" 4K input. Facilitated by an HDMI 1.4 input, the A5 is a solid choice for Ultra HD film makers and photographers alike.

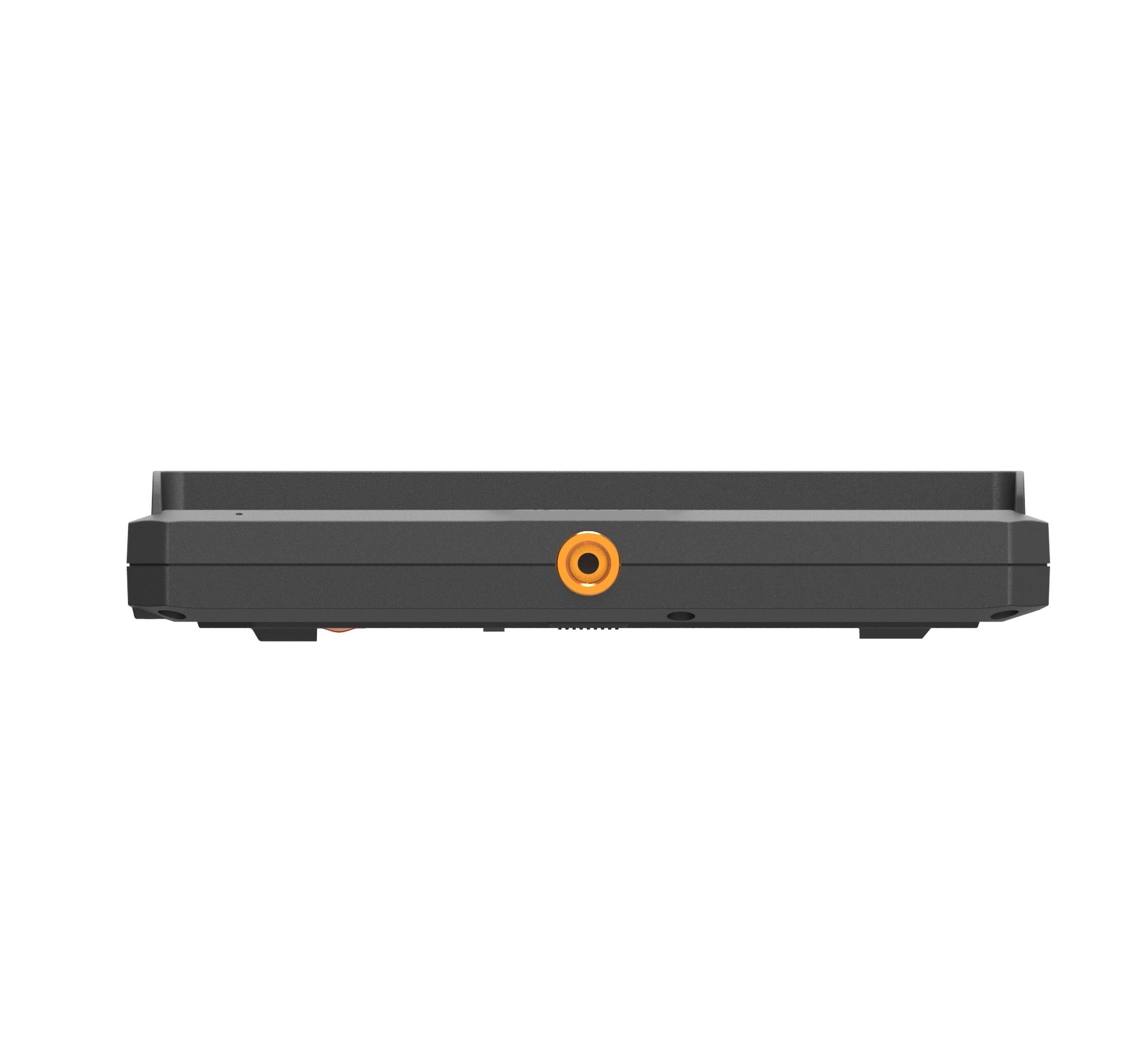

There are two options for mounting this monitor - the most common is the Shoe Mount adaptor which screws into a 1/4" BSW threaded hole at the bottom of the monitor and then clips into the shoe mount on top of your camera. Alternatively, you can use the VESA 75 mounting hole set in the back to attach the monitor to a sturdier mount if needed.
The Lilliput A5 features a Full HD native panel, clocking in at 1920 x 1080. Much improved over its predecessors, this high resolution will give you the clearest view of your images without excessive downsampling or over-interpolation.
The A5 has a plenitude of advanced functions to assist with your shooting. Namely - Timecodes, Pixel Zoom Function, Audio Level Meters, Peaking, False Colour, Histograms, Exposures, Check Fields, Colour Bars, Pixel to Pixel, and Image flips. A host of functions for a multi faceted monitoring solution.
The A5 supports battery plates for both the F970 / LP-E6 DSLR batteries, so you can rely on your existing battery supply to power the A5 in the field.
Display
Screen size
5 inch
Aspect ratio
16:9
Native resolution
1920 x 1080
Panel type
IPS
Brightness
400 cd/m²
Contrast
1000:1
Viewing angle
170°/170° (H/V)
Connections
Video inputs
1x HDMI 1.4
Video outputs
1x HDMI 1.4
Audio
HDMI 2ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), 1x Built-in speaker
