5.4 inch 1920 x 1200 LTPS display, 600 cd/m², 1100:1 contrast, 16:10 aspect ratio 1x 3G-SDI and 1x HDMI 2.0 input/output, 4K 60Hz support HDR ST 2084 (300/1000/10000 cd/m²) and HLG; 3D LUT (.cube); camera log (SLog2/SLog3, ArriLog, CLog, JLog, VLog, NLog) 295 g; 154.5 x 90 x 20 mm compact design Shoe mount: 1/4 inch British Standard Whitworth (BSW) thread NP-F and LP-E6 battery compatible; waveform, vector, peaking, histogram, false colour, time code LTC/VITC
Display
Screen size
5.4 inch
Aspect ratio
16:10
Native resolution
1920 x 1200
Panel type
LTPS
Brightness
600 cd/m²
Contrast
1100:1
Viewing angle
160°/160° (H/V)
HDR
ST 2084 300/1000/10000 cd/m², HLG
Supported log formats
SLog2/SLog3, ArriLog, CLog, JLog, VLog, NLog or User
LUT support
3D-LUT (.cube format)

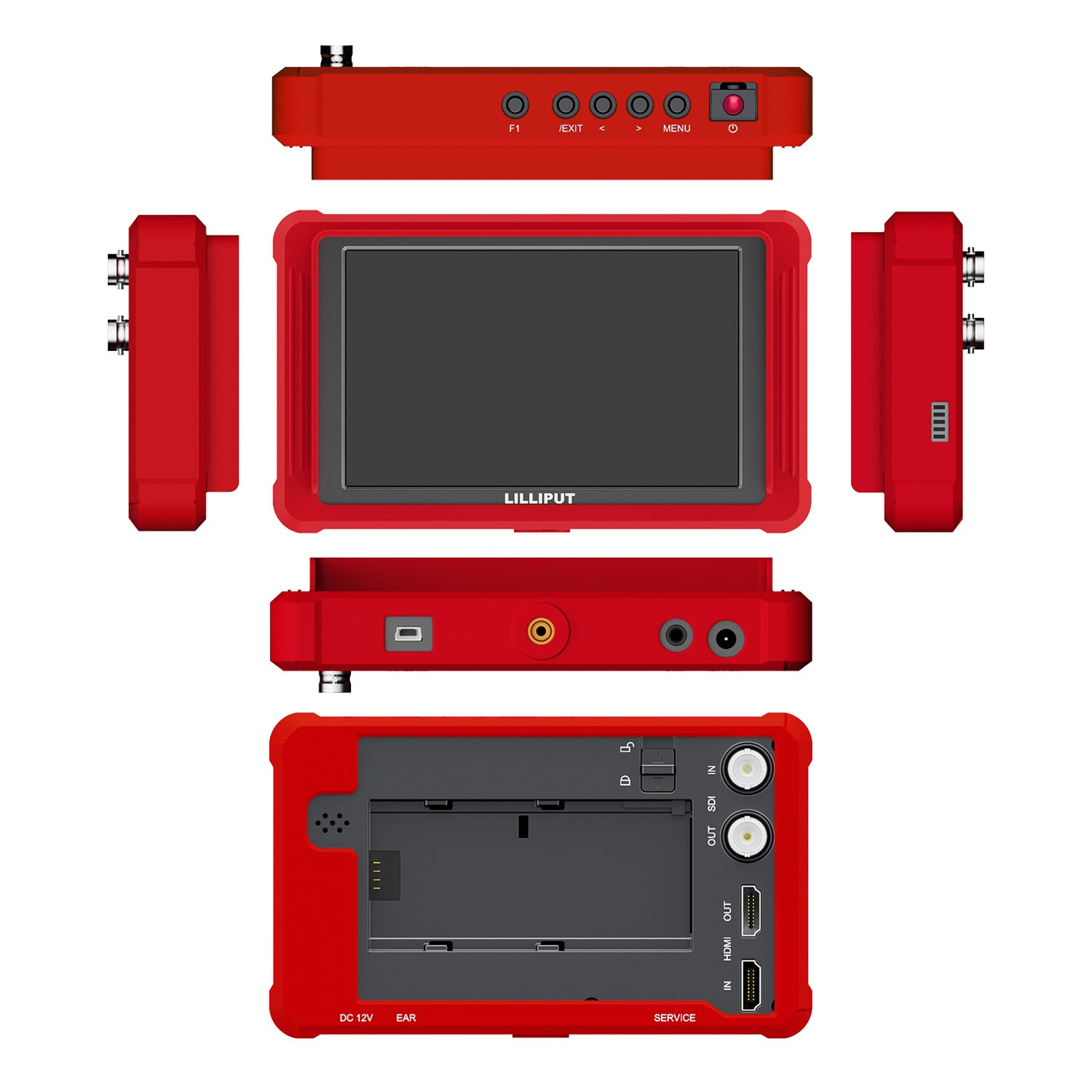

Connections
Video inputs
1x 3G-SDI, 1x HDMI 2.0
Video outputs
1x 3G-SDI, 1x HDMI 2.0 (4K 60Hz)
Audio
1x Built-in speaker, 1x 3.5 mm ear jack
Video Standards
3G-SDI
1080p 60/50/30/25/24, 1080pSF 30/25/24, 1080i 60/50, 720p 60/50
HDMI 2.0
2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50
Scopes
Video analysis
Waveform, Vector, Peaking, Histogram, False colour
Audio analysis
Audio vector, Level meter
Power
Input voltage
DC 7 to 24V
Power consumption
≤9 W
Compatible batteries
Sony NP-F, Canon LP-E6
Current
0.75 A (12V)
Environmental
Operating temperature
-20°C to 50°C
Storage temperature
-30°C to 70°C
Mechanical
Dimensions
154.5 x 90 x 20 mm
Weight
295 g
Mounting
Shoe mount
1x 1/4 inch BSW
Operational Features
Time code
LTC, VITC
Markers — Aspect markers
16:9, 1.85:1, 2.35:1, 4:3, 3:2, 1.3X, 1.5X, 2.0X, 2.0X MAG, Grid
Markers — Safety marker
80%, 85%, 88%, 90%, 93%, 95%
Markers — Centre marker
On/Off
Accessories
Included
12V 2A DC power adapter, 0.8 m HDMI A-C cable, Battery plate (NP-F / LP-E6), Silicone case, Sunshade, Hot shoe mount, Mini USB to USB-A connector
