Lilliput Q5 · 5.5 inch 3G-SDI on-camera video monitor

Name: Q5
Brand: Lilliput
SKU: Q5
Price: 285.00 GBP
Availability: InStock

5.5 inch on-camera monitor. 1920 x 1080, 500 cd/m². 1x 3G-SDI and 1x HDMI 1.4 with loop-through and SDI/HDMI cross conversion. 320 g. Hot shoe mount with 1/4 inch BSW thread. NP-F and LP-E6 battery plates included.

1 6

£285.00 exc VAT £342.00inc VAT

Key Attributes

Display resolution 1920 x 1080
Aspect ratio 16:9
Contrast 1000:1
Brightness 500 cd/m²
Screen size 5 inch

View full details

5.5 inch 1920 x 1080 LCD display, 500 cd/m², 1000:1 contrast, 16:9 aspect ratio

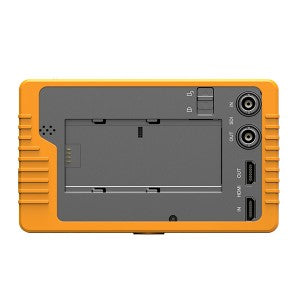

1x 3G-SDI and 1x HDMI 1.4 input/output with loop-through and SDI/HDMI cross conversion

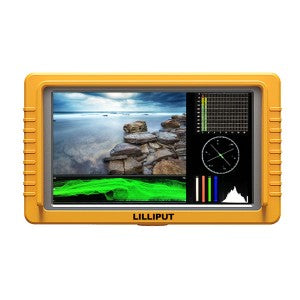

Waveform (Multi, Y, YCbCr, RGB), peaking, false colour, exposure, histogram, level meter; time code LTC/VITC (SDI)
F1/F2 user-definable function buttons (default: Waveform, Scan); integrated recording info display; metal housing

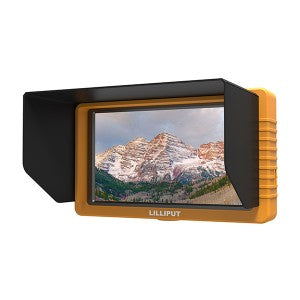

320 g; 154.5 x 90 x 20 mm; hot shoe mount with 1/4 inch BSW thread; silicone rubber case and folding sun shade included

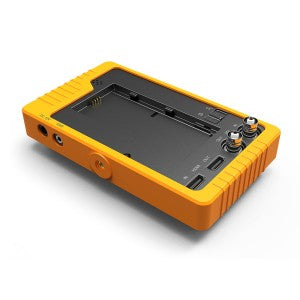

Sony NP-F (F970) and Canon LP-E6 battery plates included; DC 7 to 24V, ≤12 W

Display

Screen size	5.5 inch
Aspect ratio	16:9
Native resolution	1920 x 1080
Panel type	LCD
Brightness	500 cd/m²
Contrast	1000:1
Viewing angle	160°/160° (H/V)

Connections

Video inputs	1x 3G-SDI, 1x HDMI 1.4
Video outputs	1x 3G-SDI, 1x HDMI 1.4
Audio	3G-SDI 12ch 48kHz 24-bit, HDMI 2ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), 1x Built-in speaker

Video Standards

3G-SDI	1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
HDMI 1.4	1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60

Scopes

Video analysis	Waveform, Peaking, False colour, Exposure, Histogram
Audio analysis	Level meter

Power

Input voltage	DC 7 to 24V
Power consumption	≤12 W
Compatible batteries	Sony NP-F (F970), Canon LP-E6
Input voltage (battery)	7.2V nominal

Environmental

Operating temperature	0°C to 50°C
Storage temperature	-20°C to 60°C

Mechanical

Dimensions	154.5 x 90 x 20 mm
Weight	320 g

Mounting

Shoe mount	1x 1/4 inch BSW

Operational Features

Function buttons	F1 and F2 user-definable (default: Waveform, Scan)
Markers — Aspect markers	16:9, 1.85:1, 2.35:1, 4:3, 3:2
Markers — Safety marker	80%, 85%, 88%, 90%, 93%, 95%
Markers — Centre marker	On/Off
Image mirroring	Vertical flip, Horizontal flip
Cross conversion	HDMI 1.4 ↔ 3G-SDI (bidirectional)
Waveform	Multi, Y, YCbCr, RGB
Histogram	Y, RGB, Colour
Peaking	Red, Green, Blue, White
Time code	LTC, VITC (SDI only)

Accessories

Included	12V DC power adapter, Folding sun shade, HDMI A/C cable, Hot shoe mount, Silicone rubber case, Sony NP-F (F970) battery plate, Canon LP-E6 battery plate, User manual
Optional	Battery
