Lilliput BM281-4KS · 28 inch 3G-SDI 4K video monitor with flight case

Name: BM281-4KS
Brand: Lilliput
SKU: BM281-4KS
Price: 969.00 GBP
Availability: InStock

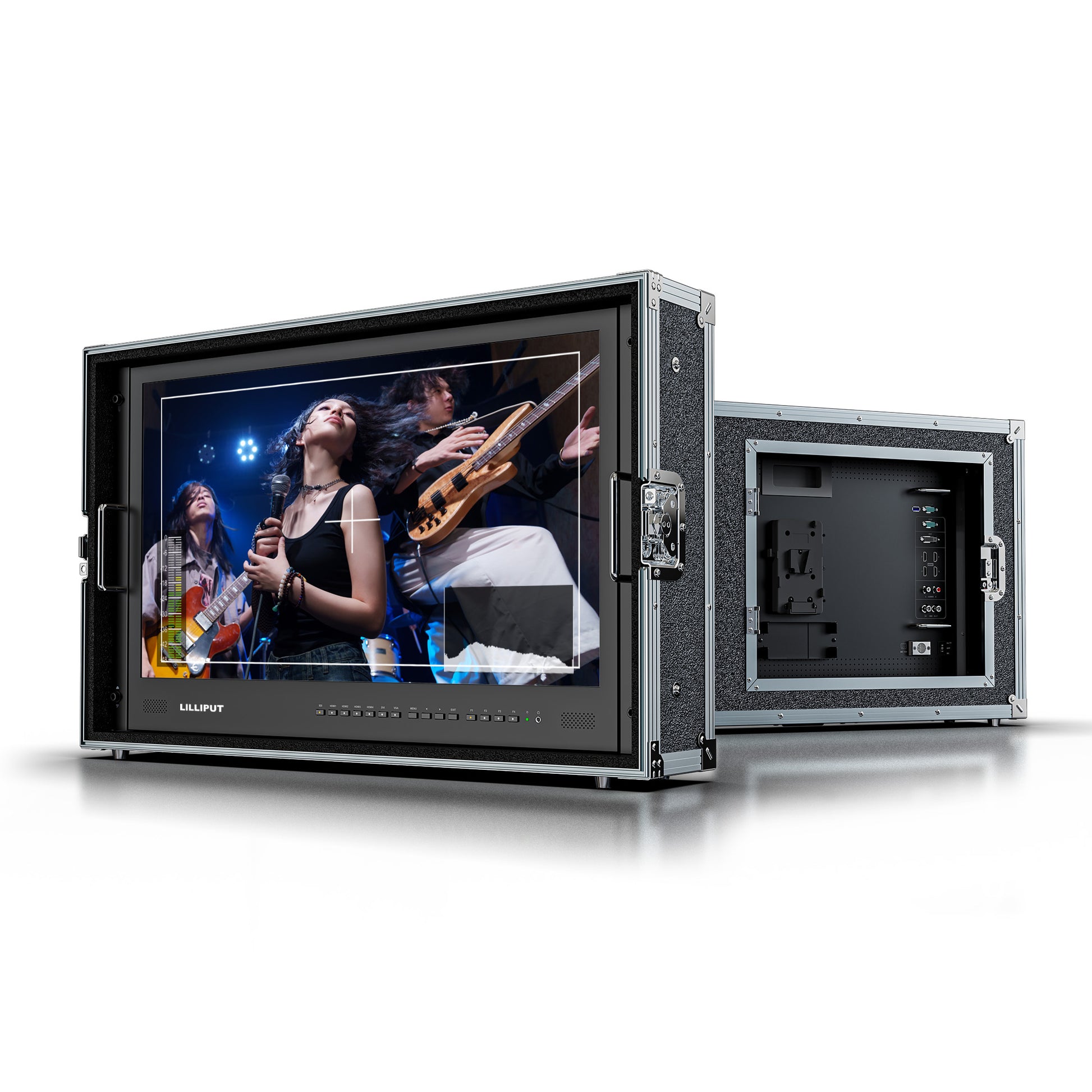

28 inch monitor supplied with an enclosed flight case. Ideal for transportation between sets and venues. 3G-SDI, HDMI 2.0, 4K support for field broadcast and on-location production.

1 6

£969.00 exc VAT £1,162.80inc VAT

Key Attributes

Display resolution 3840 x 2160
Aspect ratio 16:9
Contrast 1000:1
Brightness 300 cd/m²
Screen size 28 inch

View full details

28 inch 4K IPS display, 300 cd/m², 1000:1 contrast
1x 3G-SDI, 1x HDMI 2.0, 3x HDMI 1.4, 1x DVI, 1x VGA
HDR10 (HDMI), 3D LUT (.cube), Rec.709

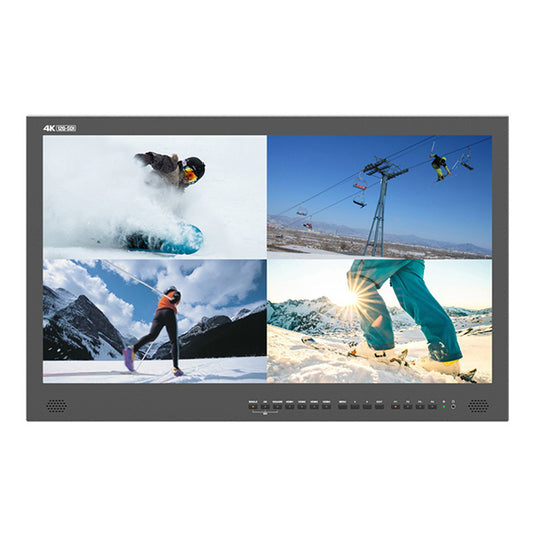

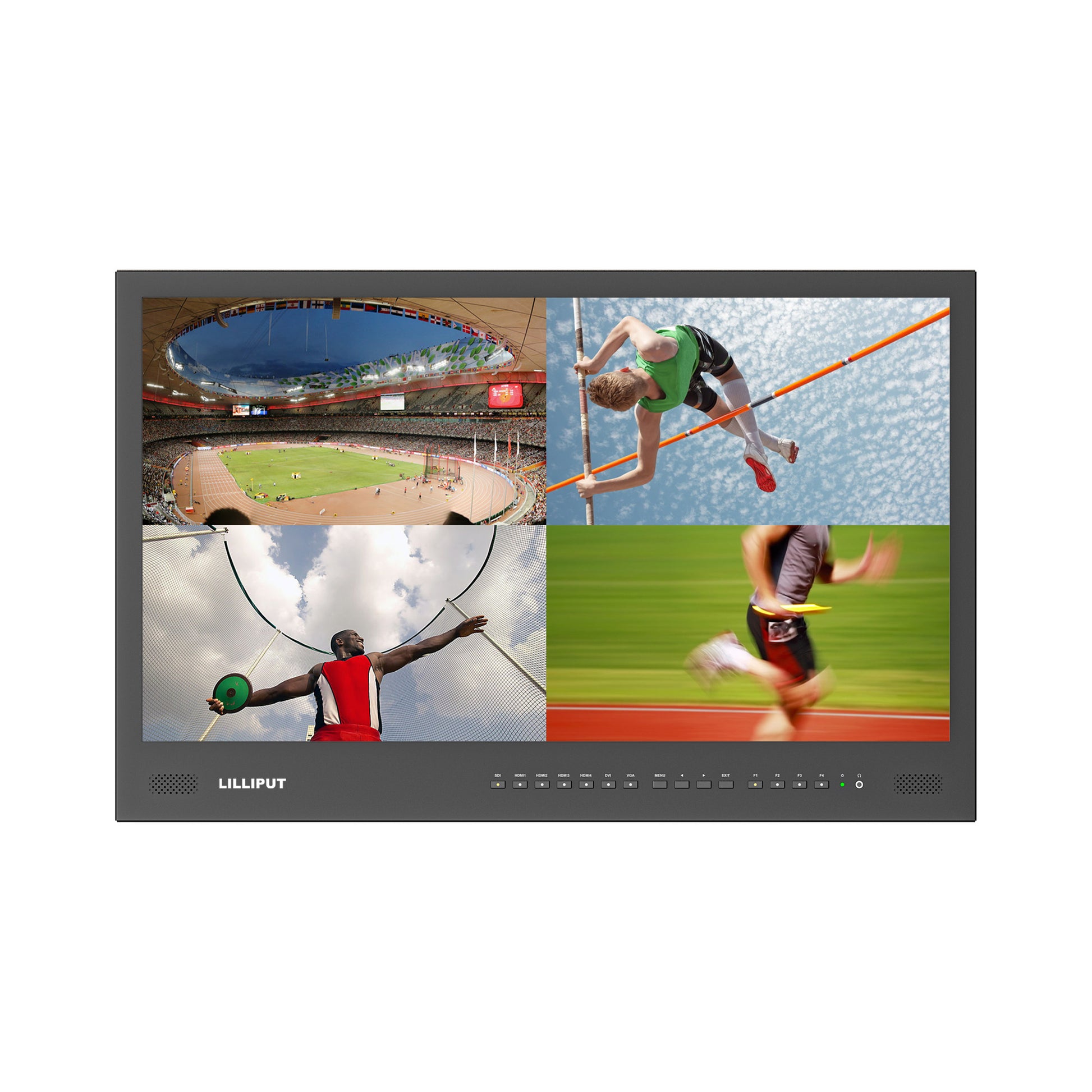

Quad-View, Picture-by-Picture, and Picture-in-Picture from mixed SDI, HDMI, DVI, and VGA inputs

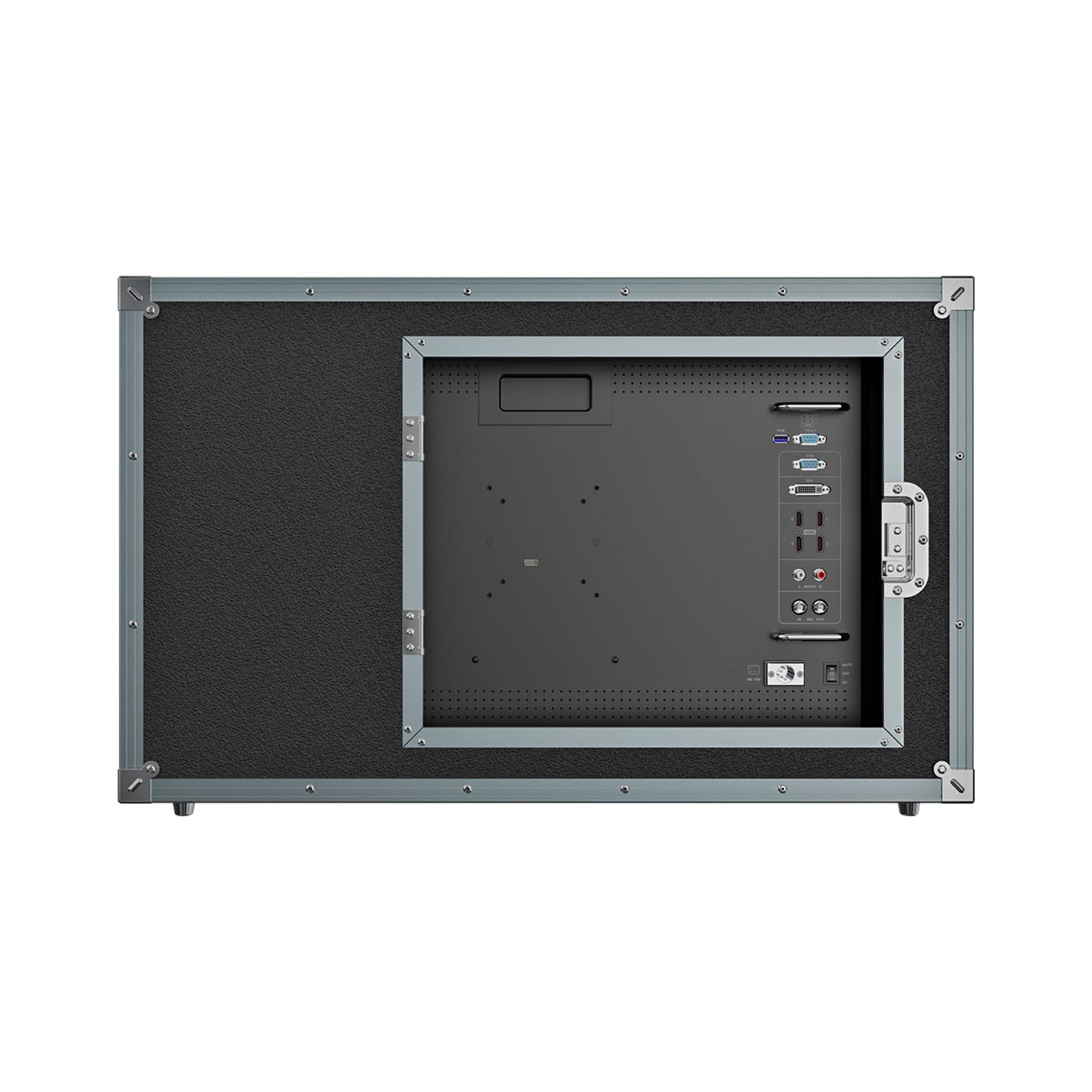

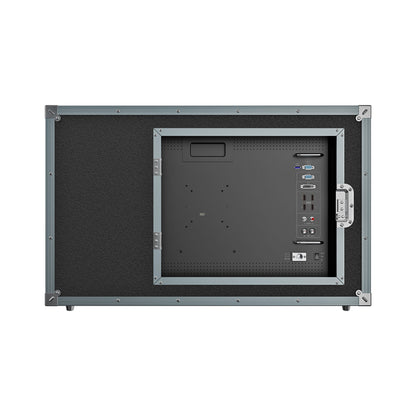

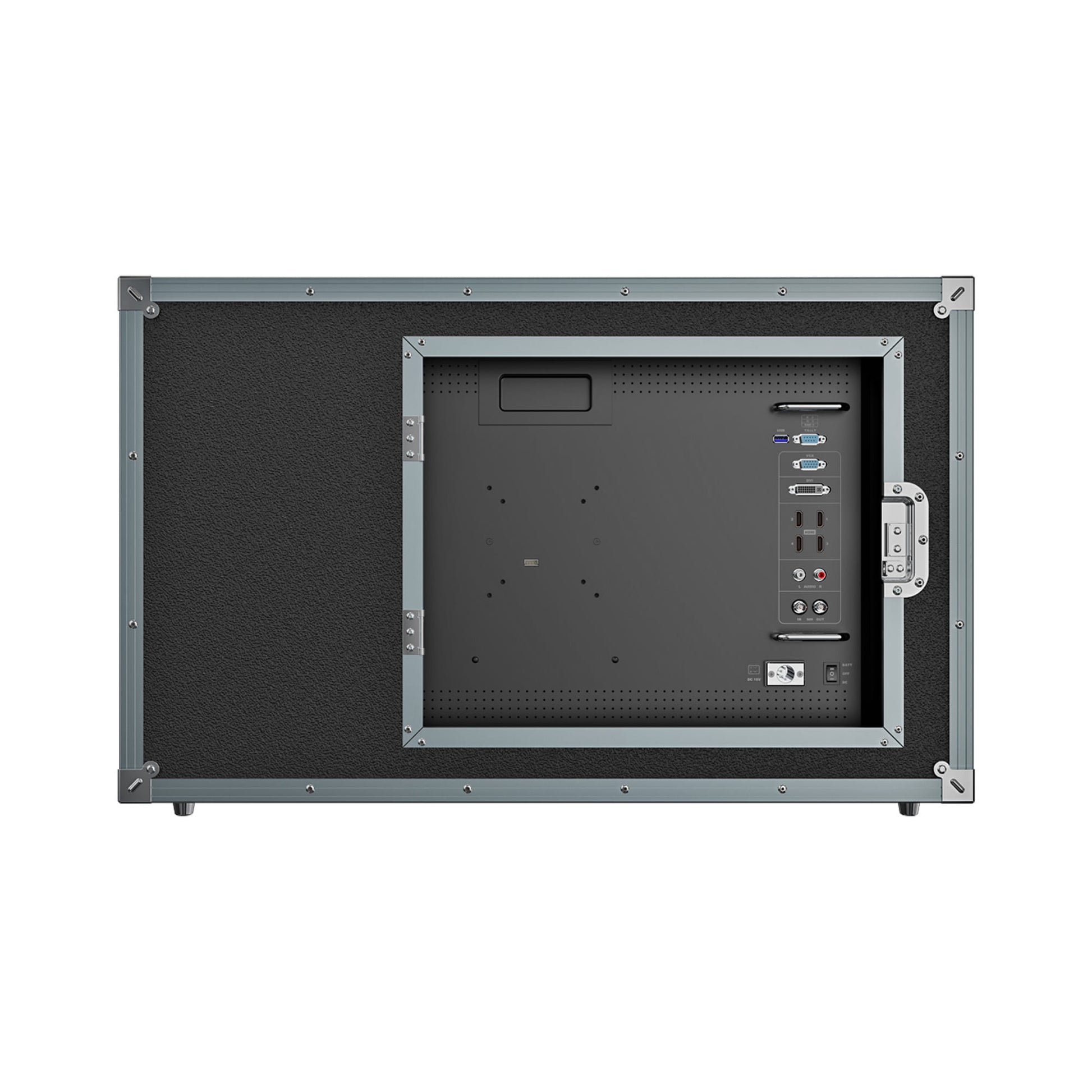

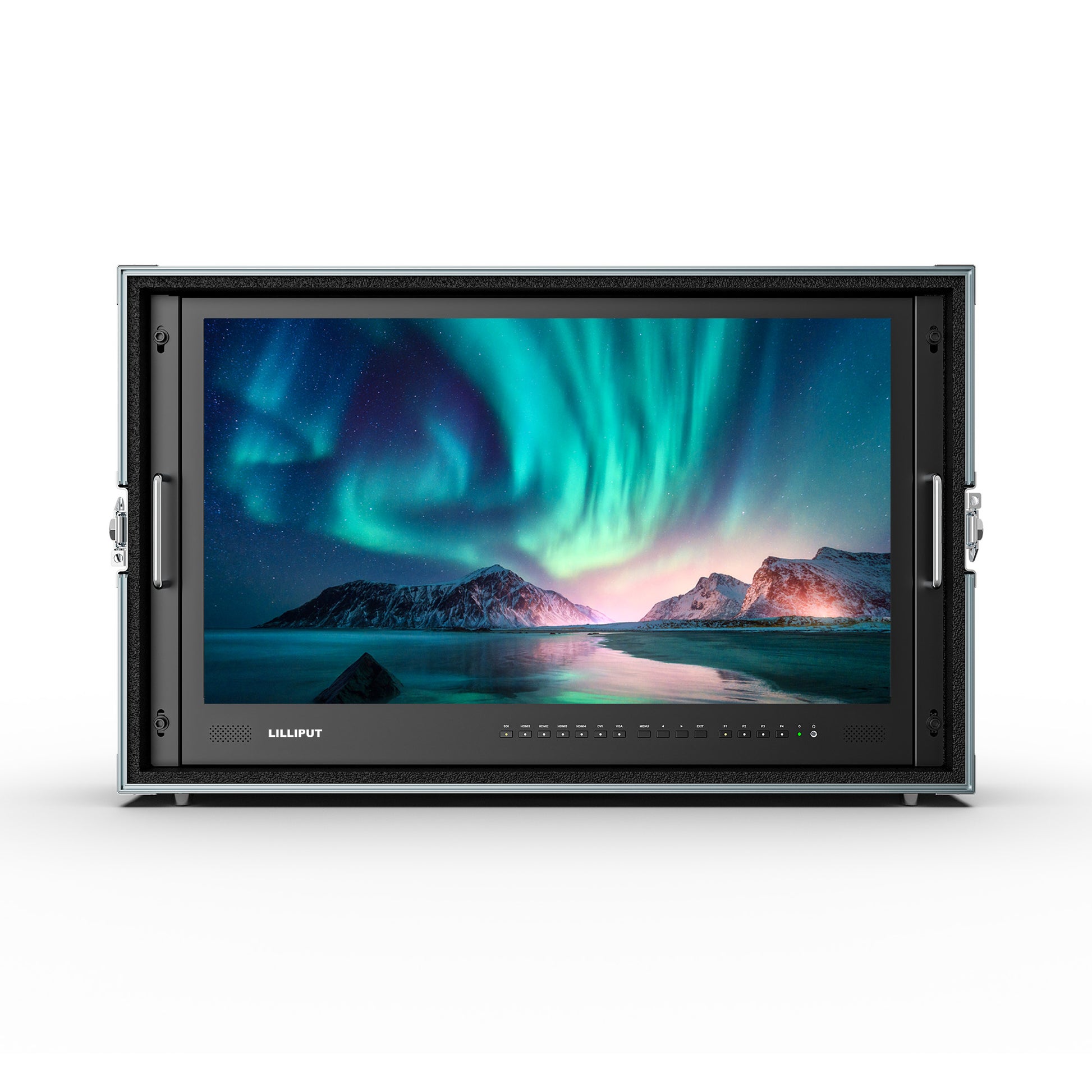

Supplied with enclosed flight case and sun shade, ideal for transport between sets and venues
V-Lock or Anton Bauer battery compatible
TALLY connector; 12ch 3G-SDI audio, 2ch HDMI audio; F1 to F4 user-definable buttons; USB 3D LUT load

Display

Screen size	28 inch
Aspect ratio	16:9
Native resolution	3840 x 2160
Panel type	IPS
Brightness	300 cd/m²
Contrast	1000:1
Viewing angle	178°/178° (H/V)
HDR	HDR10 (HDMI)
Supported log formats	SLog, SLog2, SLog3
LUT support	3D-LUT (.cube format)

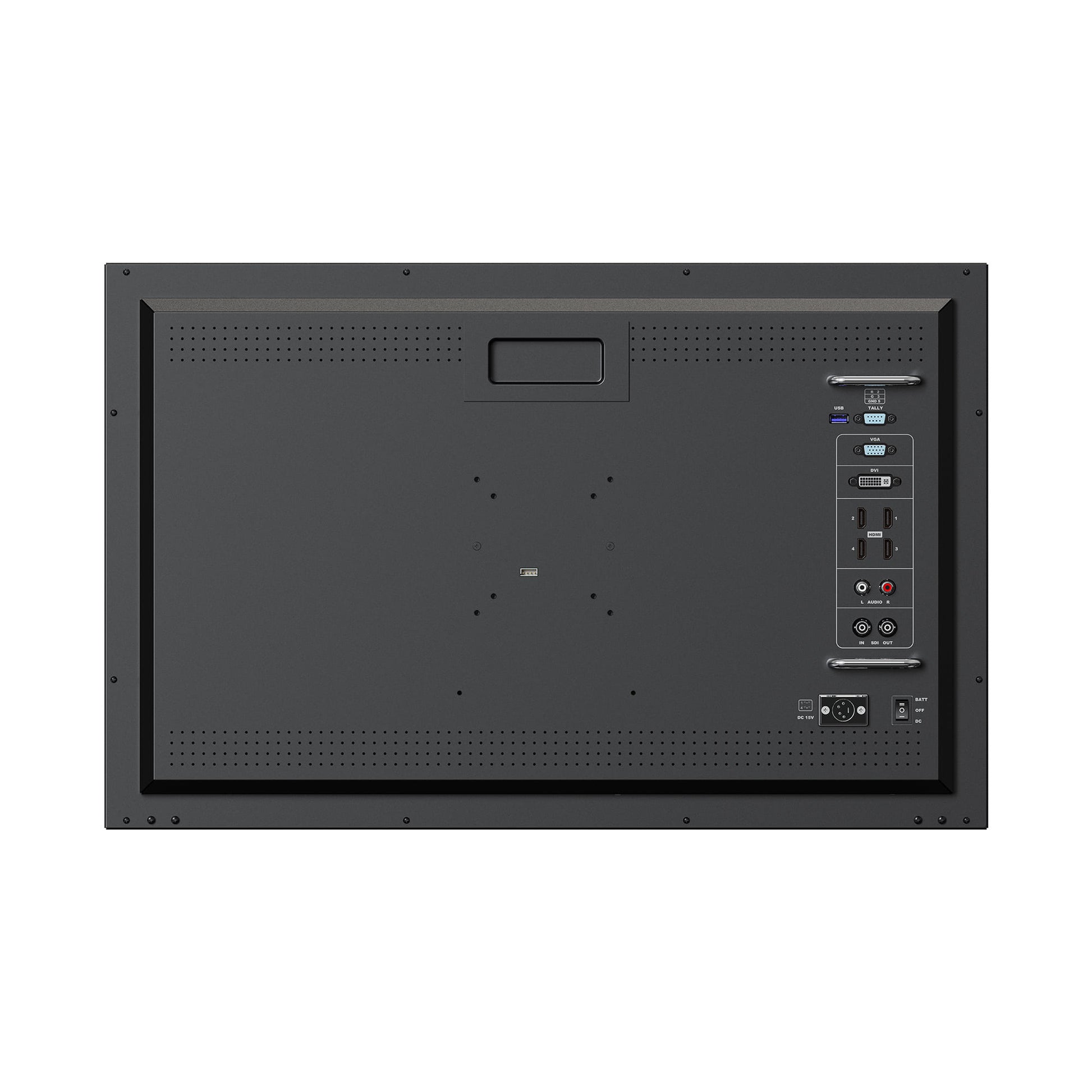

Connections

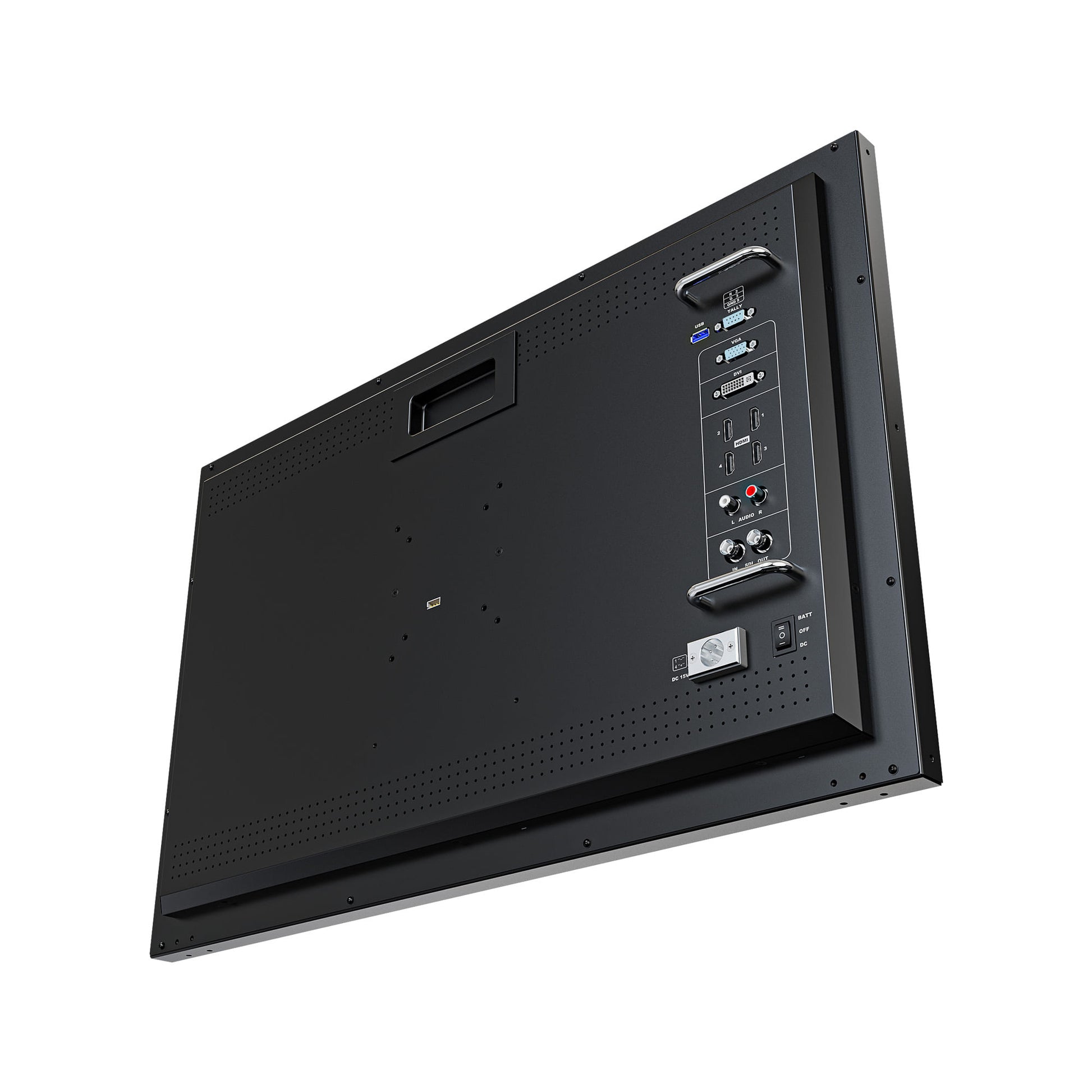

Video inputs	1x 3G-SDI, 1x HDMI 2.0, 3x HDMI 1.4, 1x DVI, 1x VGA
Video outputs	1x 3G-SDI
USB	3D LUT load
Audio	3G-SDI 12ch 48kHz 24-bit, HDMI 2ch 24-bit, 3.5 mm ear jack, 2x Built-in speakers

Video Standards

3G-SDI	1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
HDMI 2.0	2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
HDMI 1.4	2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60

Scopes

Video analysis	Histogram, Peaking, False colour, Exposure, Check field, Freeze
Audio analysis	Level meter

Power

Input voltage	DC 12 to 24V
Power consumption	≤51 W
Compatible batteries	V-Lock or Anton Bauer mount
Input voltage (battery)	14.4V nominal

Environmental

Operating temperature	0°C to 60°C
Storage temperature	-20°C to 60°C

Mechanical

Dimensions	663 x 425 x 43.8 mm
Weight	9 kg
Dimensions (with case)	761 x 474 x 173 mm
Weight (with case)	21 kg

Mounting

VESA mount	75 x 75 mm, 100 x 100 mm
Base brackets	Base brackets included

Operational Features

Multi Viewer	Picture-by-Picture, Picture-in-Picture, Quad-View
Markers — Aspect markers	16:9, 1.85:1, 2.35:1, 4:3, 17:9
Markers — Safety marker	80%, 85%, 88%, 90%, 93%, 95%
Markers — Centre marker	On/Off
Function buttons	F1 to F4 user-definable
Colour temperature	9300K, 7500K, 6500K, 5800K, User
Selectable colour spaces	Native, Rec.709, User1, User2, User3
Tally	TALLY connector
Time code	LTC, VITC
Image mirroring	Horizontal flip, Vertical flip
Freeze	On/Off

Accessories

Included	Carry case, Sun shade, VESA Mount Plate, V-Lock / Anton Bauer Mount, 15V DC Adapter, Base Bracket, TALLY connector, Fixing belt, User manual
Optional	WHDI accessories
