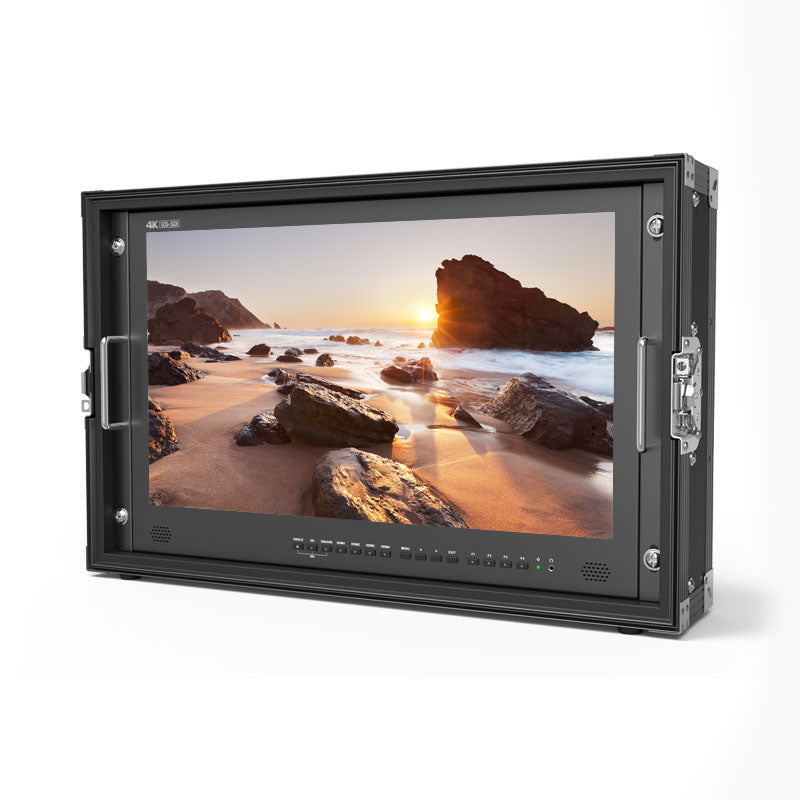

23.8 inch 4K display, 300 cd/m², 1000:1 contrast 2x 12G-SDI, 2x 3G-SDI (4K single/dual/quad link) 1x HDMI 2.0, 3x HDMI 1.4, multi-input flexibility Video loop output: uncompressed true 10-bit or 8-bit 4:2:2 Supplied with enclosed flight case and sun shade, ideal for transport between sets and venues V-Lock or Anton Bauer battery compatible TALLY connector; 12ch 3G-SDI audio, 2ch HDMI audio
The Lilliput BM230-12G is a 23.8" 4K resolution monitor with HDMI and 12G-SDI connectivity. It is designed for the professional video and film industry and is ideally suited for directors and camera operators operating 4K capable equipment.
Display
Screen size
23.8 inch
Aspect ratio
16:9
Native resolution
3840 x 2160
Panel type
LED
Brightness
300 cd/m²
Contrast
1000:1
Viewing angle
178°/178° (H/V)

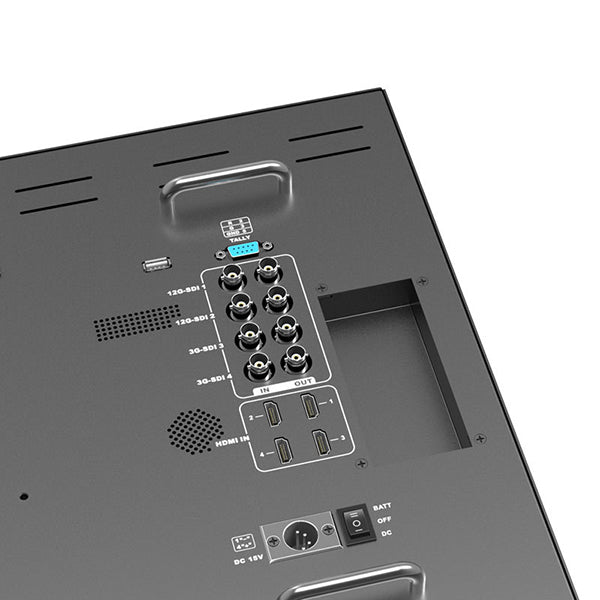

Connections
Video inputs
2x 12G-SDI, 2x 3G-SDI (4K single/dual/quad link), 1x HDMI 2.0, 3x HDMI 1.4
Video outputs
2x 12G-SDI, 2x 3G-SDI (uncompressed 10-bit or 8-bit 4:2:2)
Audio
3G-SDI 12ch 48kHz 24-bit, HDMI 2ch 24-bit, 3.5 mm ear jack, 2x Built-in speakers
Video Standards
3G-SDI
2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
HDMI 2.0
2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
HDMI 1.4
2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
Power
Input voltage
DC 12 to 24V
Power consumption
≤61.5 W
Compatible batteries
V-Lock or Anton Bauer mount
Input voltage (battery)
14.4V nominal
Environmental
Operating temperature
0°C to 50°C
Storage temperature
-20°C to 60°C
Mechanical
Dimensions
579 x 376.5 x 45 mm
Weight
8.6 kg
Dimensions (with case)
666 x 417 x 173 mm
Weight (with case)
17 kg

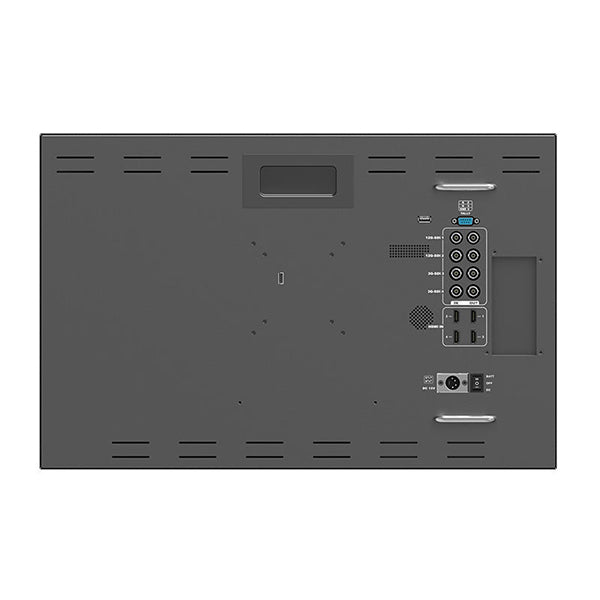

Mounting
VESA mount
VESA mount plate included
Base brackets
Base brackets included
Operational Features
Multi Viewer

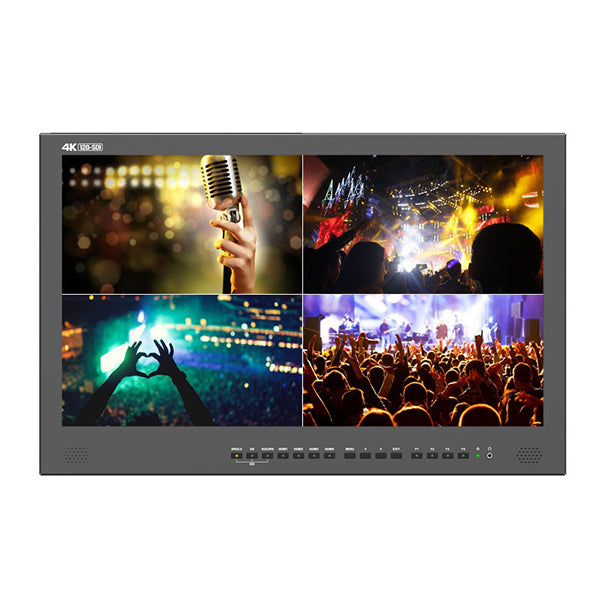

Picture-by-Picture, Picture-in-Picture, Quad-View
Markers — Aspect markers
16:9, 1.85:1, 2.35:1, 4:3, 17:9
Markers — Safety marker
80%, 85%, 88%, 90%, 93%, 95%
Markers — Centre marker
On/Off
Accessories
Included
Carry case, Sun shade, VESA Mount Plate, V-Lock / Anton Bauer Mount, 15V DC Adapter, Base Bracket, TALLY connector, Fixing belt, User manual
Optional
Acrylic Screen Protector, WHDI accessories
