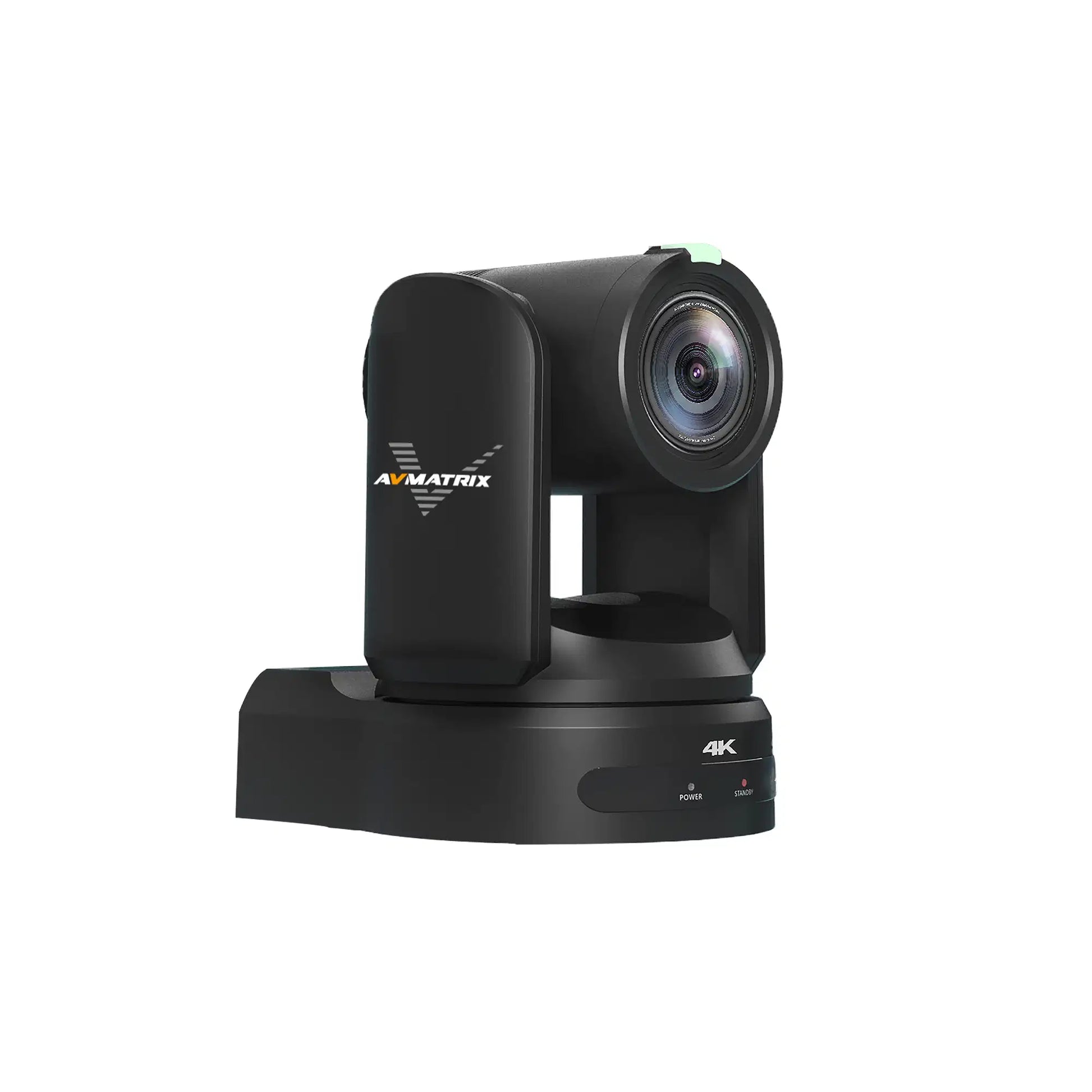

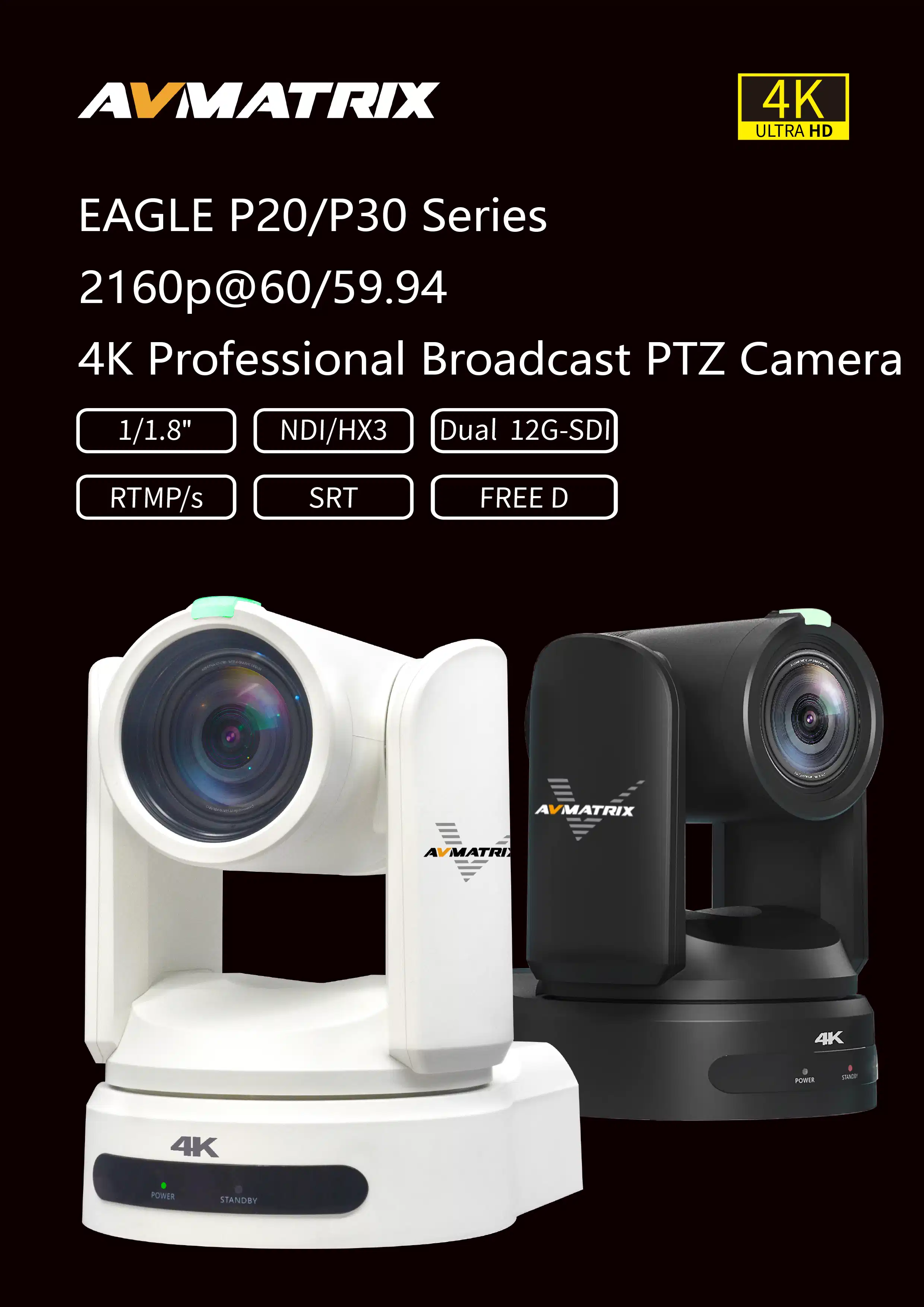

AV Matrix P30-12G · 30x optical zoom 12G-SDI 4K PTZ camera

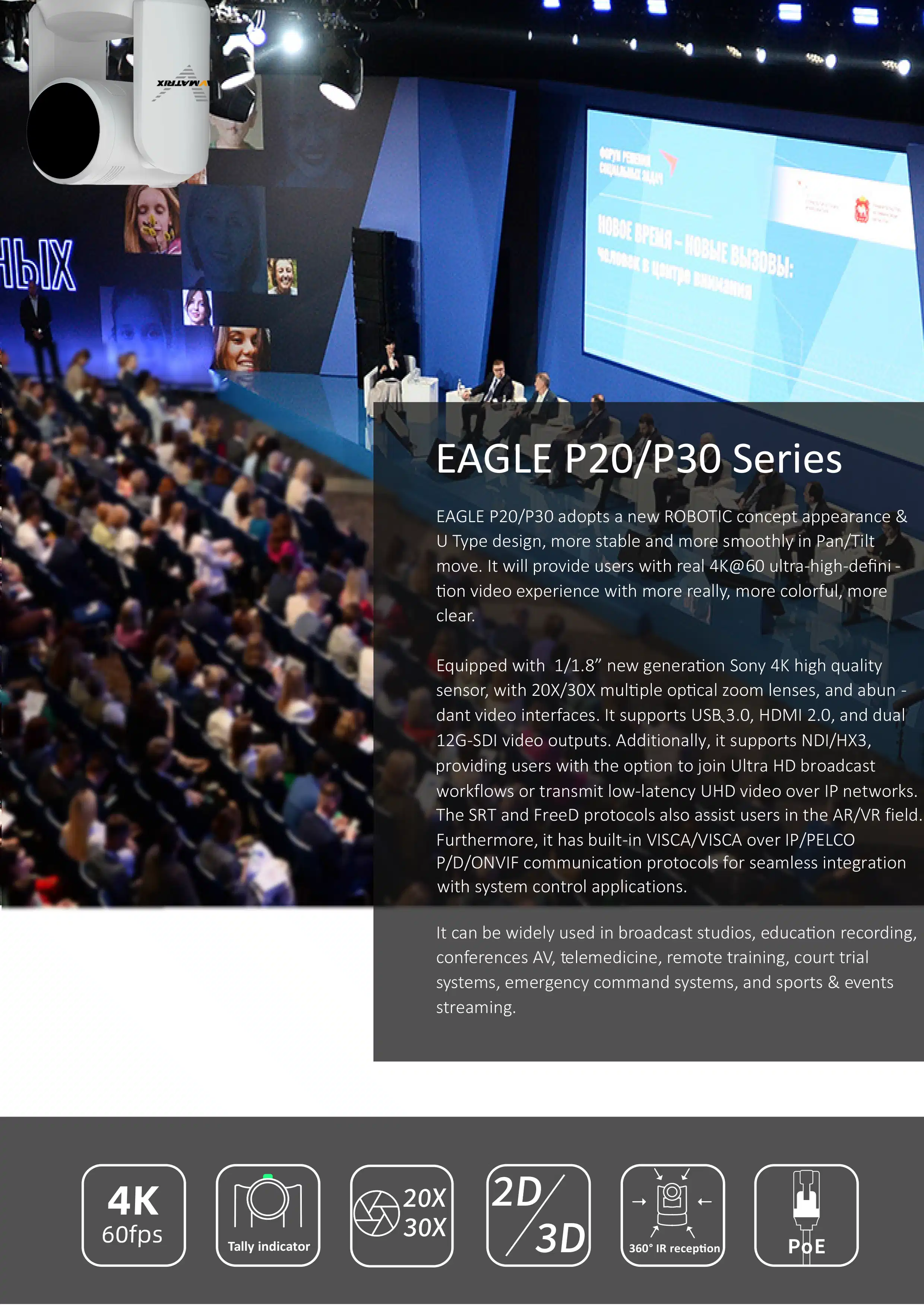

4K Ultra HD broadcast PTZ camera with 30x optical zoom. 1/1.8" CMOS sensor, 8.3 megapixels. HDMI 2.0, dual 12G-SDI, USB 3.0, 1000M LAN. VISCA, PELCO-D/P, ONVIF. 0.05 Lux min illumination. NDI®|HX3 optional upgrade. PoE+. For broadcast and live production.

1 4

£2,079.00 exc VAT £2,494.80inc VAT

Configuration

NDI®|HX3 Camera

View full details

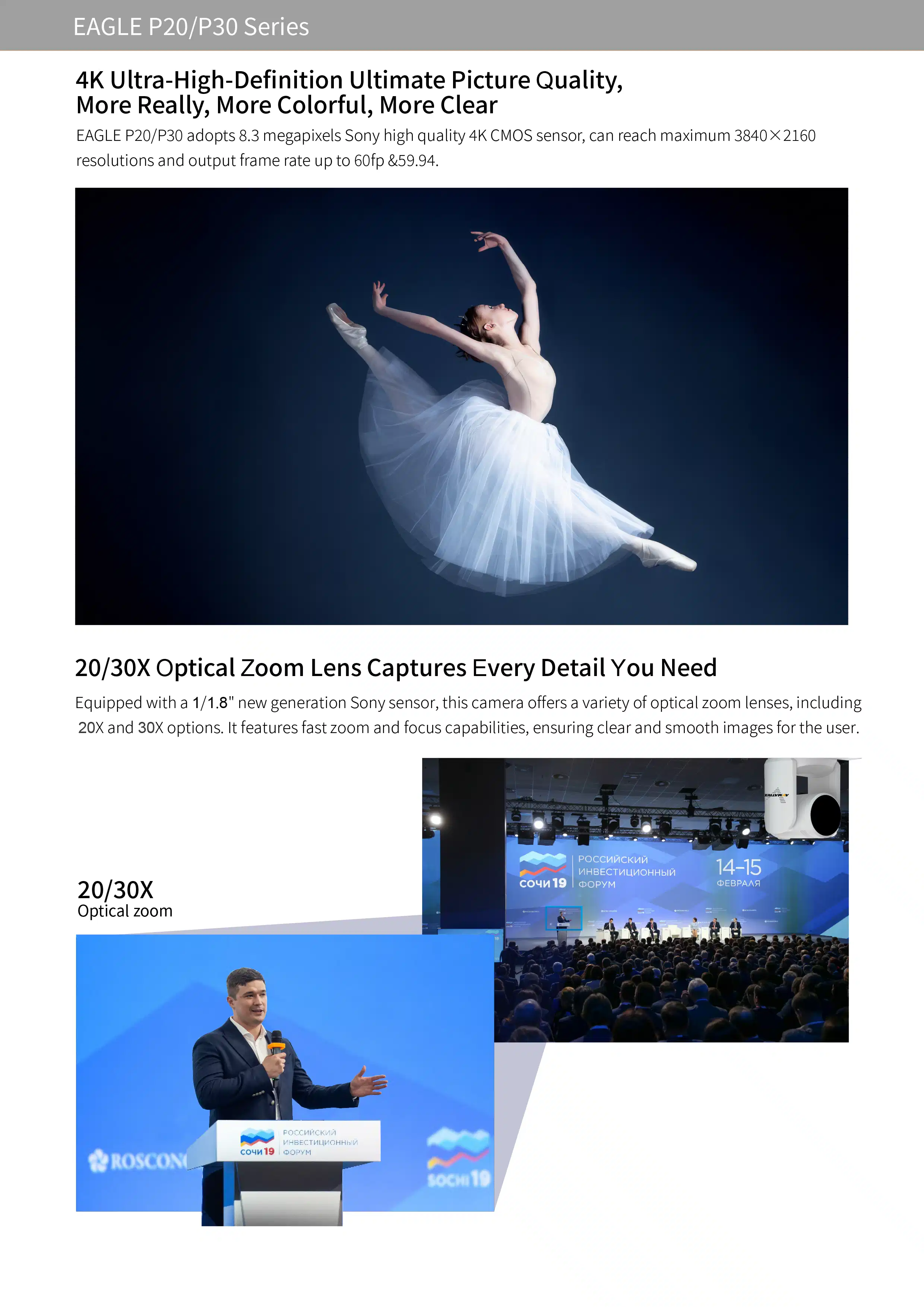

1/1.8" CMOS sensor, 8.3 megapixels, up to 2160P60
30x optical zoom (f=7.1 to 211.95 mm), 12x digital zoom
HDMI 2.0 + dual 12G-SDI synchronous output for live and recording
USB 3.0 uncompressed UVC output, 1000M Ethernet (PoE+)
VISCA, PELCO-D/P, ONVIF, RTSP, RTMP, SRT; 0.05 Lux (F1.61)
RS232 IN/OUT, RS422 IN/OUT, IP control; 255 presets

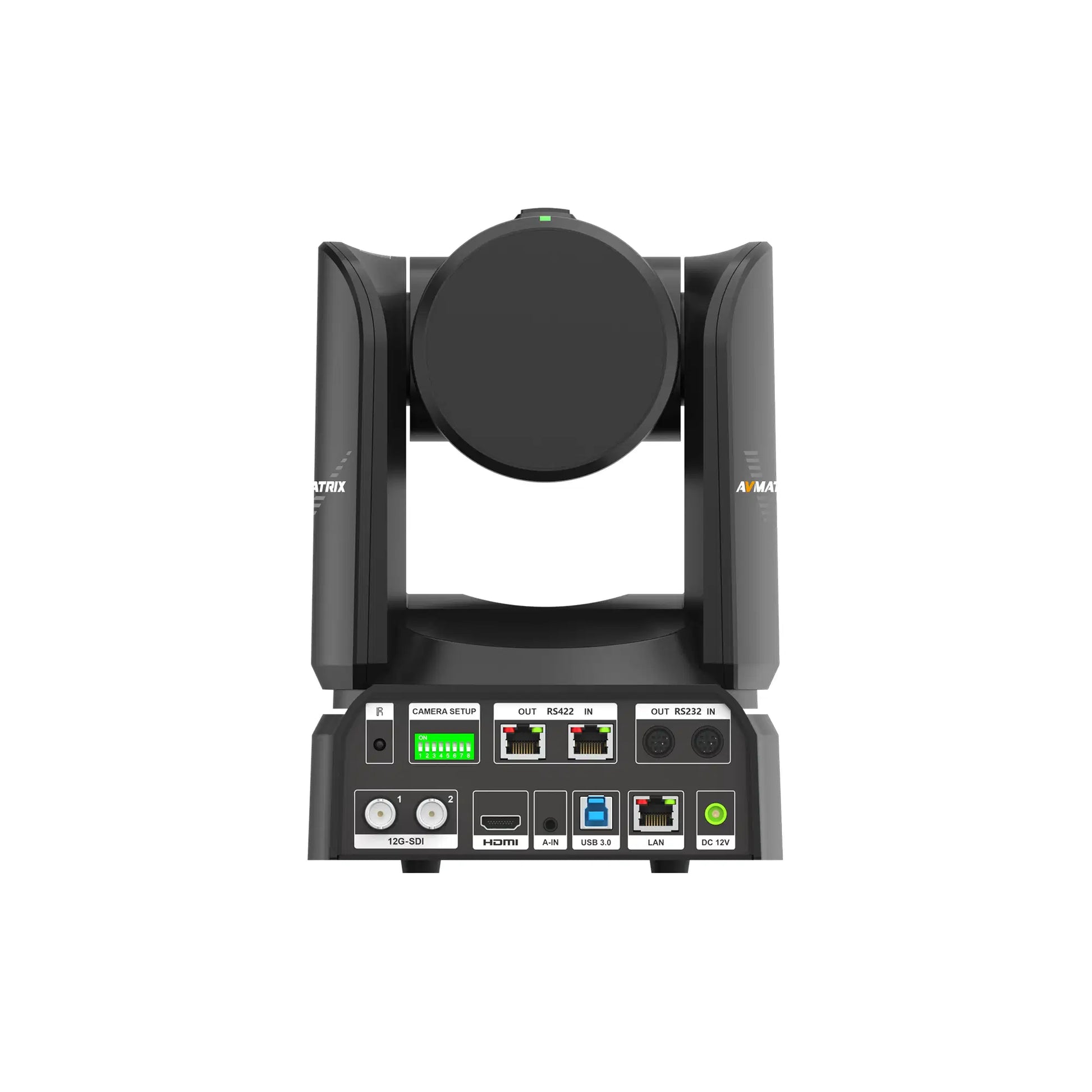

Connections

Video outputs	1x HDMI 2.0, 2x 12G-SDI, 1x USB 3.0, LAN (RJ45)
Audio in	Dual channel 3.5 mm line input
Audio output	HDMI, 3G-SDI, LAN, USB 3.0
Audio compression	AAC, G.711A, G.711U
Video compression	MJPEG
Network	1000M Ethernet (10/100BASE-TX)
Network protocol	RTSP, RTMP, ONVIF, SRT, GB28181, VPN

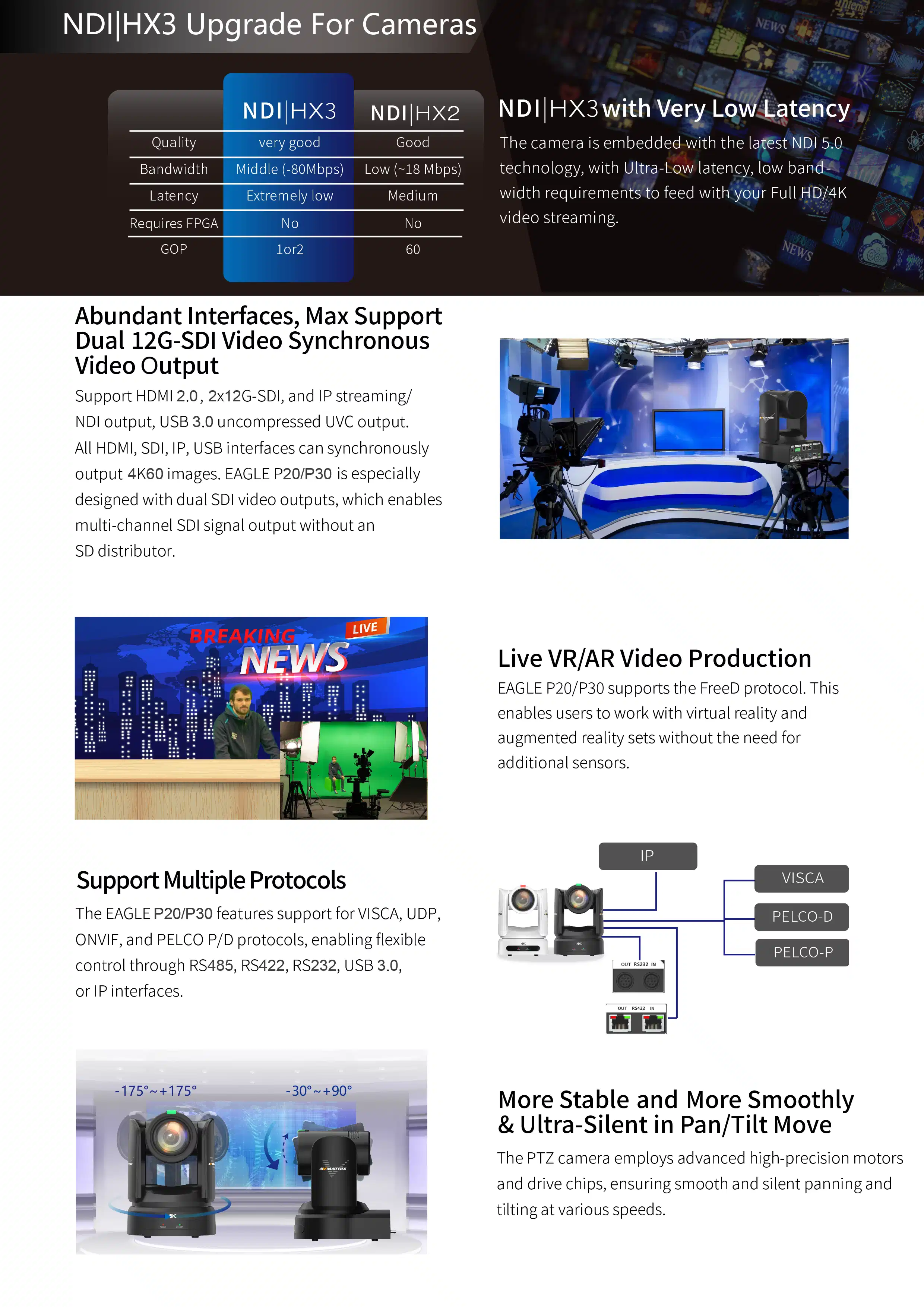

IP protocol	VISCA over IP, ONVIF, UVC (USB only), NDI®\|HX3 (optional)
Serial protocol	VISCA, PELCO-D, PELCO-P (2400/4800/9600/19200/38400 bps)

Video Standards

HDMI 2.0	2160p 60/59.94/50/30/29.97/25, 1080p 60/59.94/50/30/29.97/25, 1080i 60/59.94/50, 720p 60/59.94/50
12G-SDI	2160p 60/59.94/50/30/29.97/25, 1080p 60/59.94/50/30/29.97/25, 1080i 60/59.94/50, 720p 60/59.94/50

Operational Features

Remote control	1x RS232-IN, 1x RS232-OUT, 1x RS422-IN, 1x RS422-OUT, 1x RJ45

Power

Power interface	DC-038 (DC 12V)
Power adapter	AC 100 to 240V input, DC 12V/2A output
Input voltage	DC 12V
Power consumption	15 W (max)
PoE	PoE+ IEEE 802.3at

Environmental

Operating temperature	-10°C to +50°C
Operating humidity	20 to 80%
Storage temperature	-10°C to +60°C
Storage humidity	20 to 95%

Mechanical

Pan/Tilt range	Pan ±175°, Tilt -30° to +90°
Pan speed	0.1 to 100°/s
Tilt speed	0.1 to 80°/s

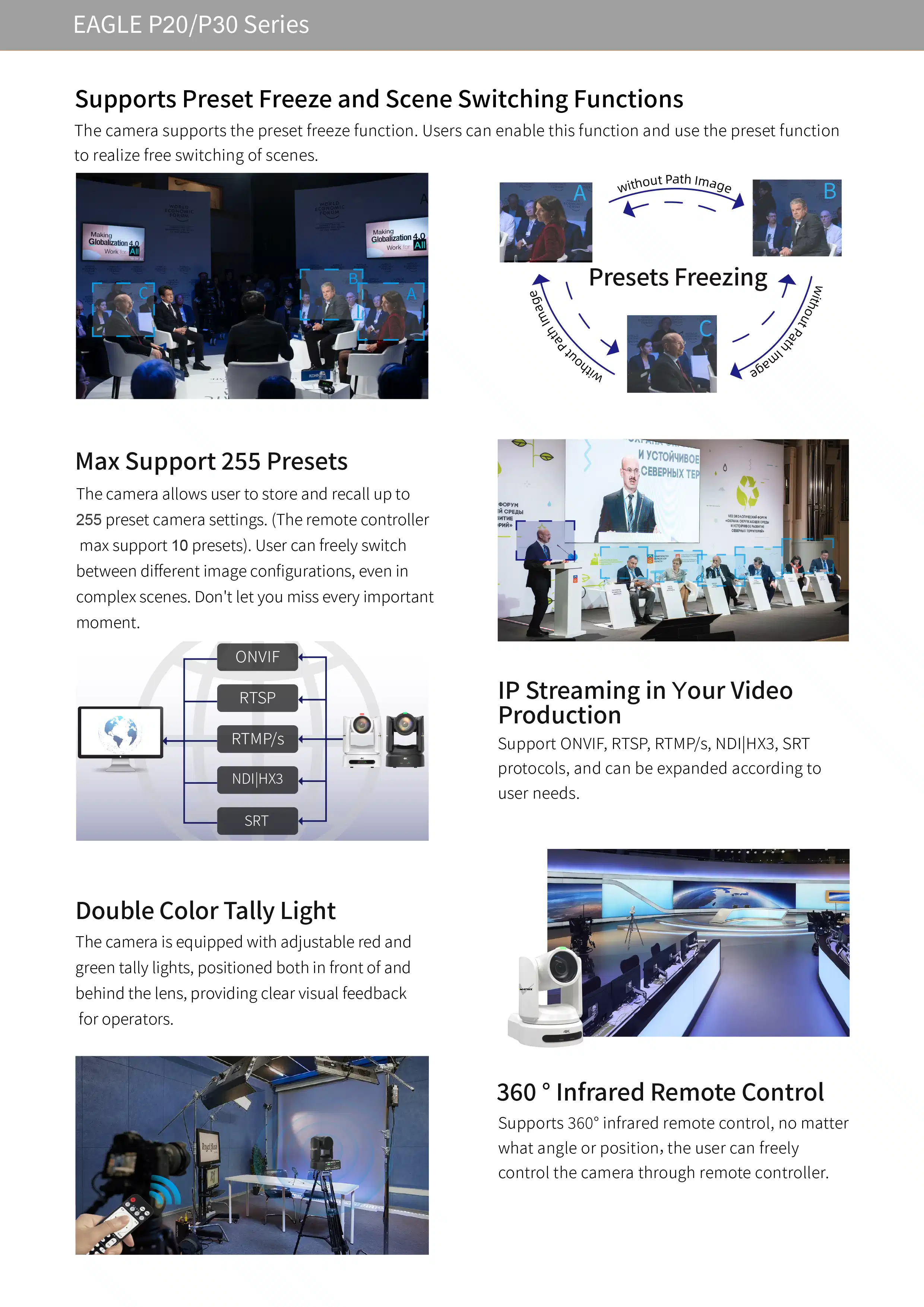

Presets	255
Weight	2.97 kg (net)

Accessories

Included	12V 2A Power Adapter, USB 3.0 Type-C Cable, RS232 Serial Cable, Remote Controller
Optional	Ceiling Mount Bracket, Wall Mount Bracket

Imaging

Sensor	1/1.8 inch CMOS
Effective pixels	8.3 megapixels
Optical zoom	30x (f=7.1 to 211.95 mm)
Digital zoom	12x
HFOV	2.5°(T) to 59.2°(W)
Iris	F1.61 to F5.19
Minimum illumination	0.05 Lux (F1.61)
Noise reduction	2D and 3D
White balance	Manual, Auto, Indoor, Outdoor, One Push, 3000K, 4000K, 5000K, 6500K, ATW
Focus modes	Manual, Auto, Z-Trigger
