1/2.8 inch HD CMOS sensor, 2.07 megapixels, 16:9 30x optical zoom (f=5.2 to 148.4 mm), 16x digital zoom Viewing angle: D 65.4° to 2.48°, H 58.1° to 2.14°, V 33.8° to 1.2° 1x HDMI, 1x 3G-SDI, 1x USB 3.0 (UVC), LAN (RJ45) USB 3.0 UVC output for direct PC capture (webcam); compatible with OBS, vMix, Zoom, Teams LAN streaming via RTSP, RTMP, ONVIF, SRT, NDI®|HX3 1080p60/50/30/25, 1080i60/50, 720p60/50 on HDMI and 3G-SDI 2D and 3D noise reduction; ≥50 dB SNR; 0.5 Lux (F1.8, AGC ON)

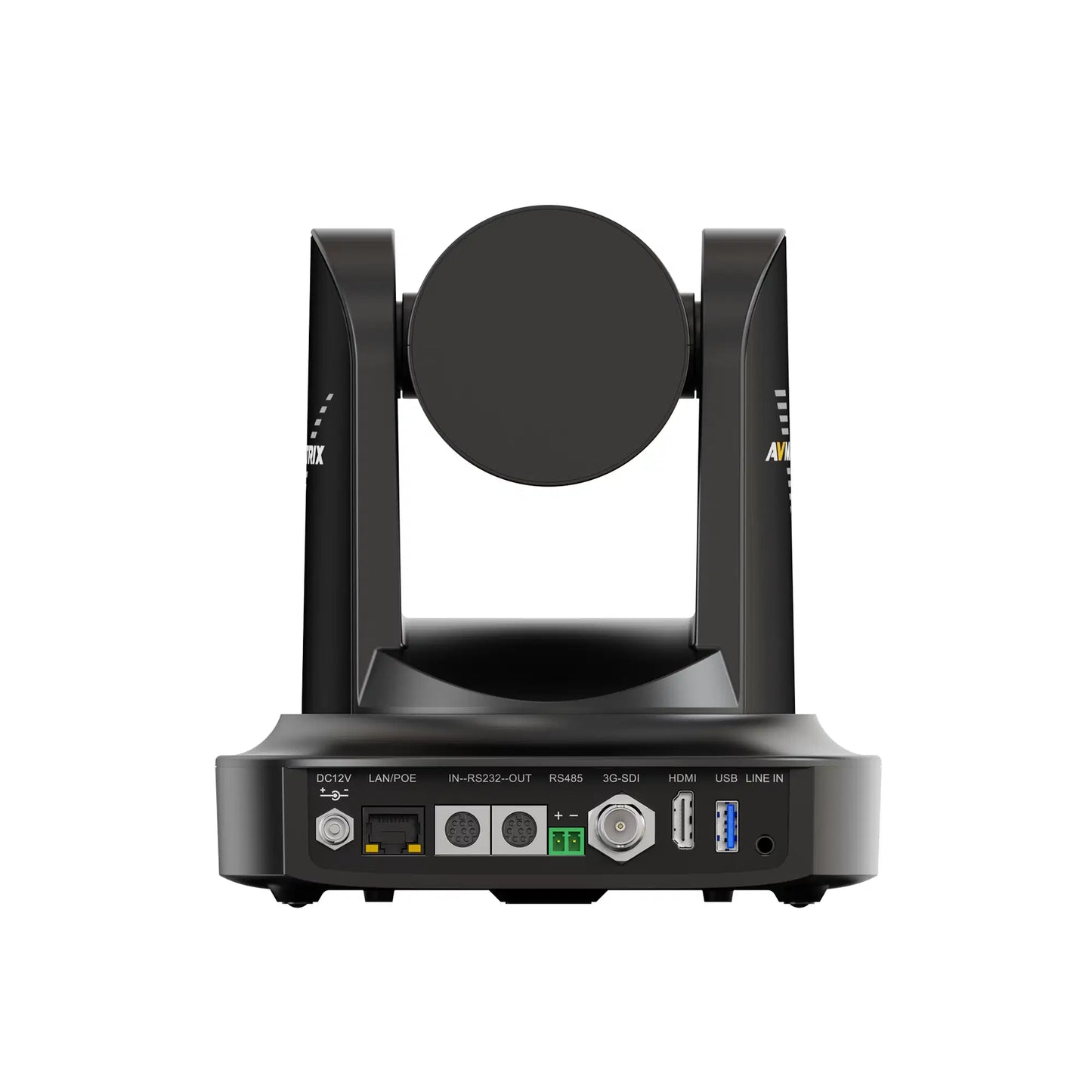

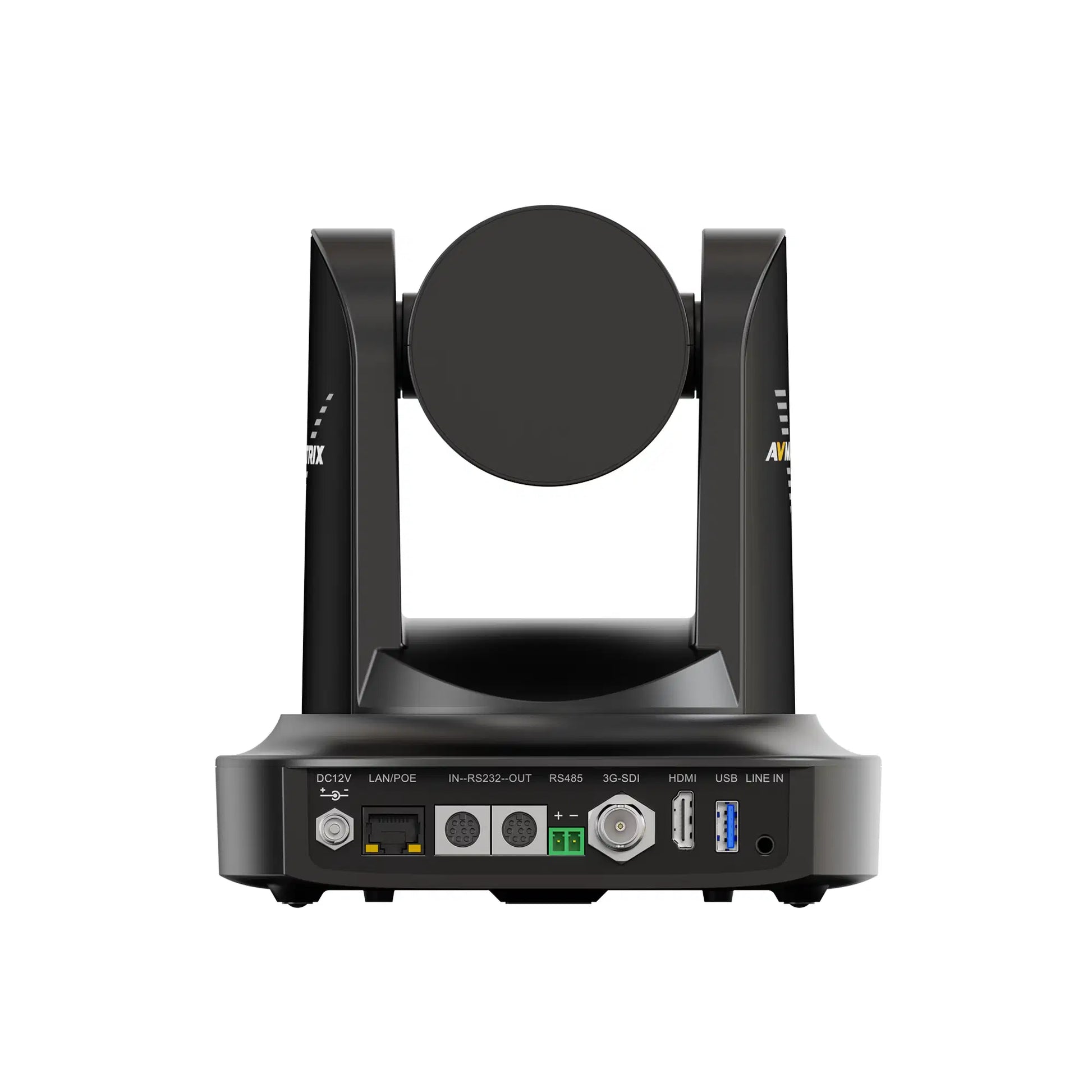

Connections
Video outputs
1x HDMI, 1x 3G-SDI, 1x USB 3.0 (UVC), LAN (RJ45)
Audio in
3.5 mm dual-channel linear input
Audio output
HDMI, 3G-SDI, LAN, USB 3.0
Audio bitrate
96 Kbps, 128 Kbps
Audio compression
AAC, G.711A
Video compression
MJPEG, YUY2, NV12
Video bitrate
64 to 40960
Bitrate control
Fixed bitrate, Variable bitrate
Frequency
50 Hz: 1 to 50 fps; 60 Hz: 1 to 60 fps
Network
100M Ethernet; PoE+ IEEE 802.3at; audio and video output; remote upgrade, reboot, and reset
Network protocol
RTSP, RTMP, ONVIF, GB/T28181, SRT, NDI®|HX3, IP VISCA
IP protocol
VISCA over IP, ONVIF, UVC (USB only), NDI®|HX3
USB protocol
UVC, UAC
Serial protocol
VISCA, PELCO-D, PELCO-P (2400/4800/9600/38400/115200 bps)
Video Standards
HDMI
1080p 60/59.94/50/30/29.97/25, 1080i 60/59.94/50, 720p 60/59.94/50
3G-SDI
1080p 60/59.94/50/30/29.97/25, 1080i 60/59.94/50, 720p 60/59.94/50
LAN (main stream MJPEG)
1920 x 1080 @ 60/30/25/20/15/10/5 fps, 1280 x 720 @ 60/30/25/20/15/10/5 fps, 640 x 480 @ 60/30/25/20/15/10/5 fps
LAN (sub-stream MJPEG)
1280 x 720 @ 60/30/25/20/15/10/5 fps, 640 x 360 @ 60/30/25/20/15/10/5 fps, 640 x 480 @ 60/30/25/20/15/10/5 fps, 320 x 240 @ 60/30/25/20/15/10/5 fps, 320 x 180 @ 60/30/25/20/15/10/5 fps
USB capture (MJPG)
1920 x 1080 @ 60/30/25/20/15/10/5 fps, 1280 x 720 @ 60/30/25/20/15/10/5 fps, 640 x 360 @ 60/30/25/20/15/10/5 fps, 640 x 480 @ 60/30/25/20/15/10/5 fps, 320 x 240 @ 60/30/25/20/15/10/5 fps, 320 x 180 @ 60/30/25/20/15/10/5 fps
USB capture (YUY2/NV12)
1920 x 1080 @ 60/30/25/20/15/10/5 fps, 1280 x 720 @ 60/30/25/20/15/10/5 fps, 1024 x 576 @ 60/30/25/20/15/10/5 fps, 800 x 600 @ 60/30/25/20/15/10/5 fps, 800 x 448 @ 60/30/25/20/15/10/5 fps, 640 x 480 @ 60/30/25/20/15/10/5 fps, 640 x 360 @ 60/30/25/20/15/10/5 fps, 480 x 270 @ 60/30/25/20/15/10/5 fps, 320 x 180 @ 60/30/25/20/15/10/5 fps
Operational Features
Tracking modes
Off, Real-time tracking, Stage tracking, Area tracking, Intelligent framing
Tracking distance
Up to 18 m
Remote control
1x RS232-IN, 1x RS232-OUT, 1x RS485
Power
Power interface
HEC3800 (DC 12V)
Power adapter
AC 110 to 220V input, DC 12V/1.5A output
Input voltage
DC 12V ±10%
Input current
≤1.2 A
Power consumption
≤13.8 W
PoE
PoE+ IEEE 802.3at
Environmental
Operating temperature
-10°C to +50°C
Operating humidity
20 to 80%
Storage temperature
-10°C to +70°C
Storage humidity
20 to 95%
Environment
Indoors
Mechanical
Dimensions
170 x 170 x 180 mm
Pan/Tilt range
Pan -170° to +170°, Tilt -30° to +90°
Pan speed
0.1 to 100°/s
Tilt speed
0.1 to 45°/s
Preset speed
Pan 100°/s, Tilt 45°/s
Presets
255 (10 via IR remote control)
Weight
1.26 kg
Accessories
Included
12V 2A Power Adapter, USB 3.0 A-A Cable, RS232 Serial Cable, RS485 PIN Connector, Remote Control, PoE Module
Imaging
Sensor
1/2.8 inch HD CMOS
Effective pixels
2.07 megapixels, 16:9
Optical zoom
30x (f=5.2 to 148.4 mm)
Digital zoom
16x
Viewing angle
D: 65.4° to 2.48°, H: 58.1° to 2.14°, V: 33.8° to 1.2°
Minimum illumination
0.5 Lux (F1.8, AGC ON)
Noise reduction
2D, 3D
White balance
Auto, Manual, One Touch White Balance, 2400K to 7100K (100K steps)
Focus modes
Auto, Manual, One-push
Iris
Auto, Manual
Electronic shutter
Auto, Manual
BLC
On, Off
Dynamic range
Off, Dynamic level adjustment
Video adjustment
Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
SNR
≥50 dB
