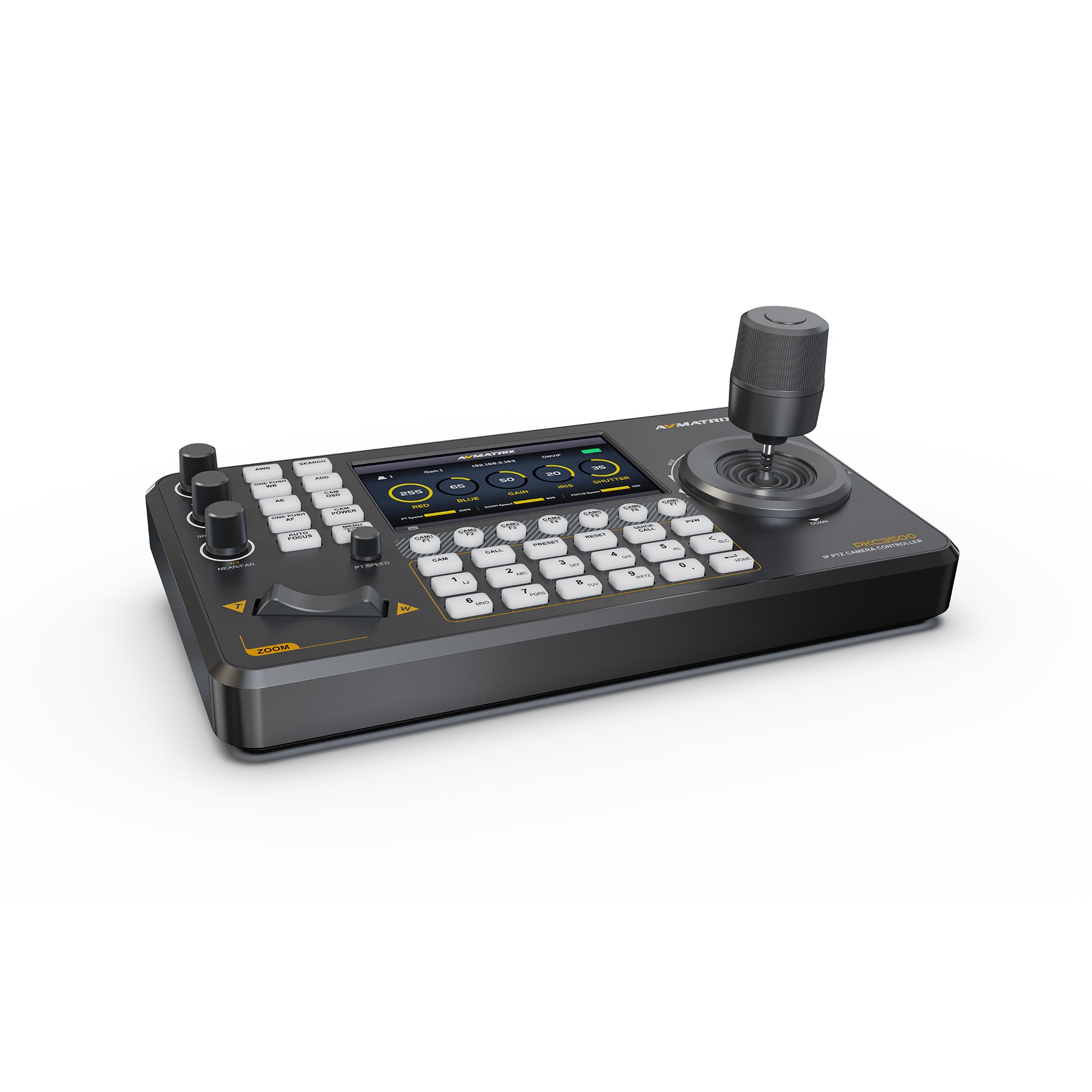

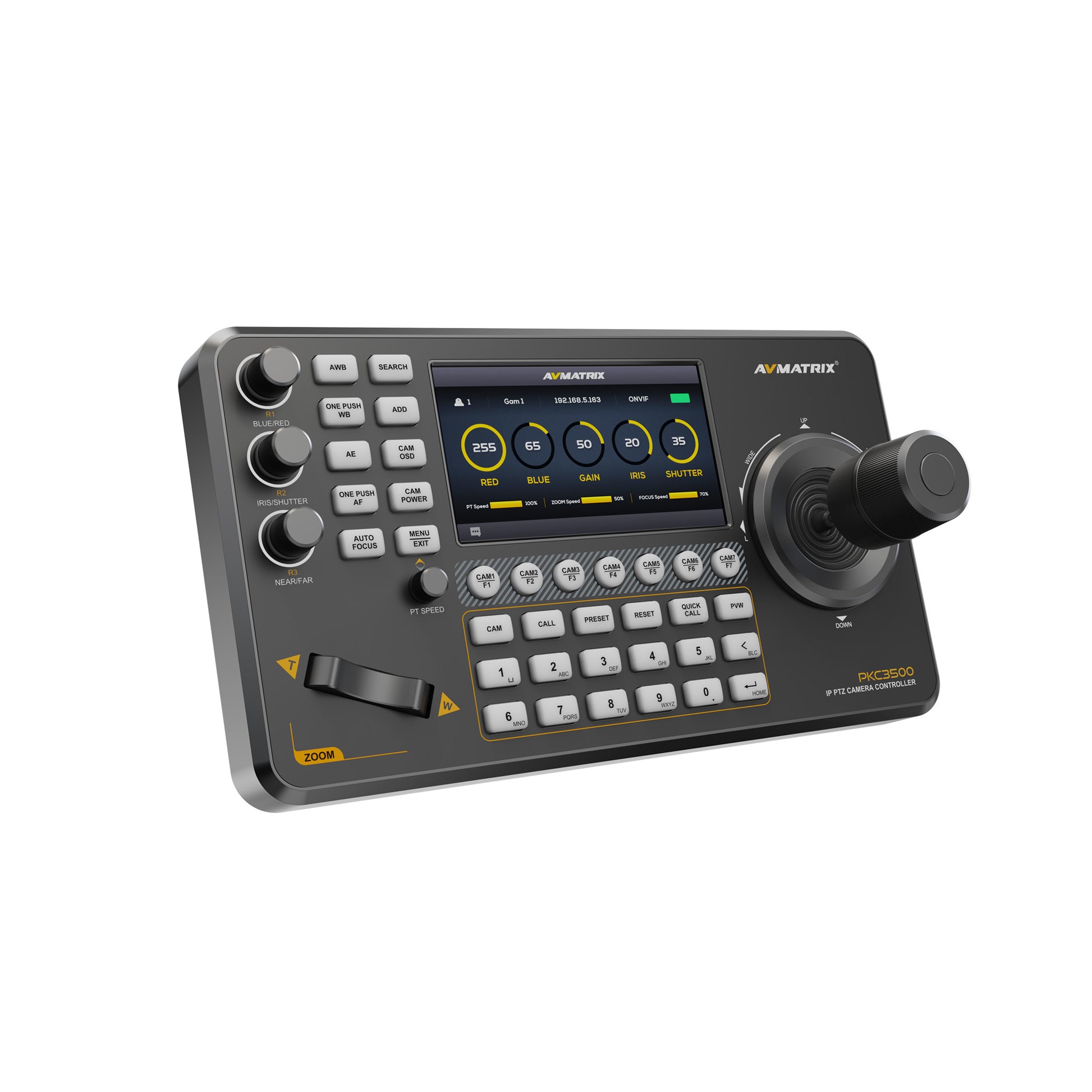

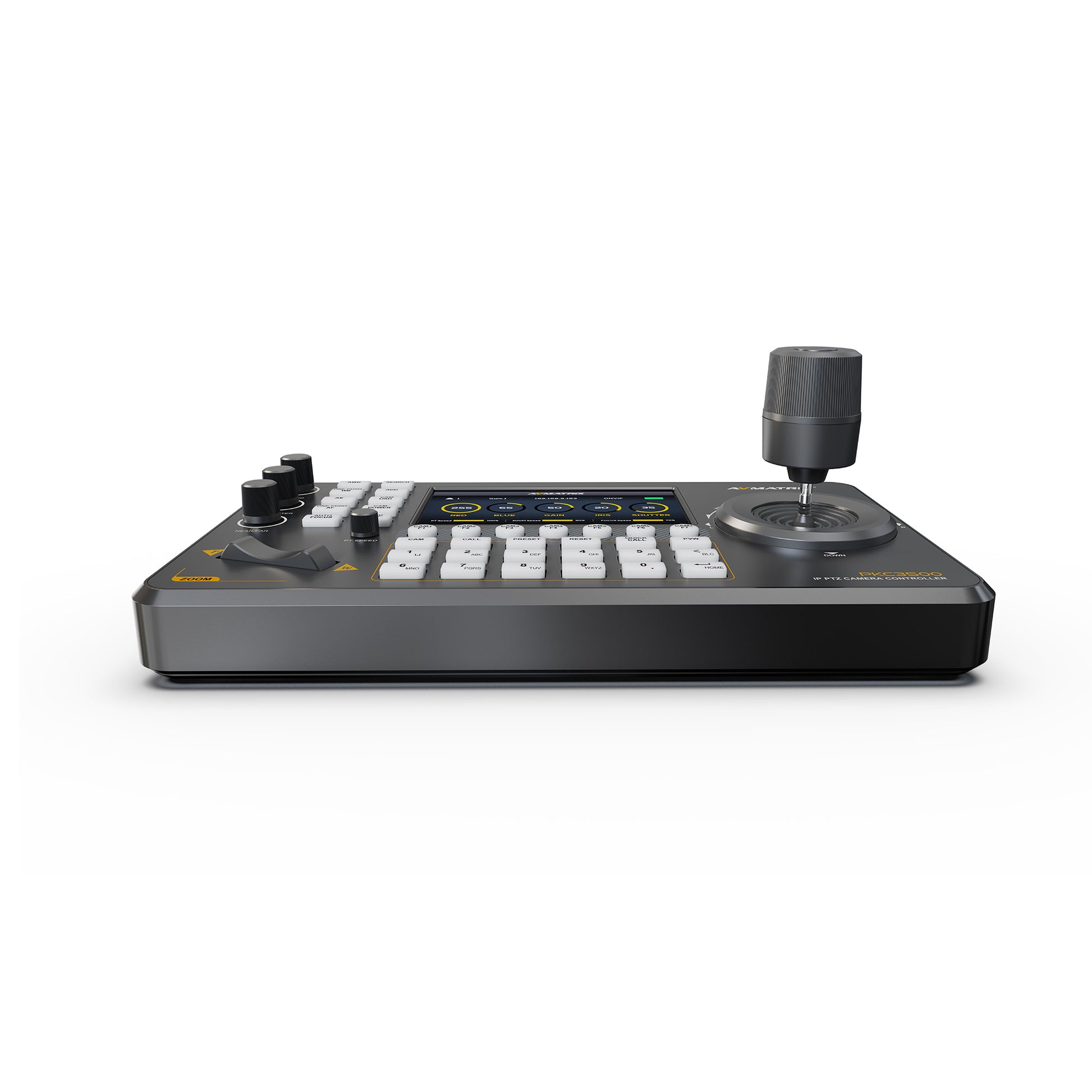

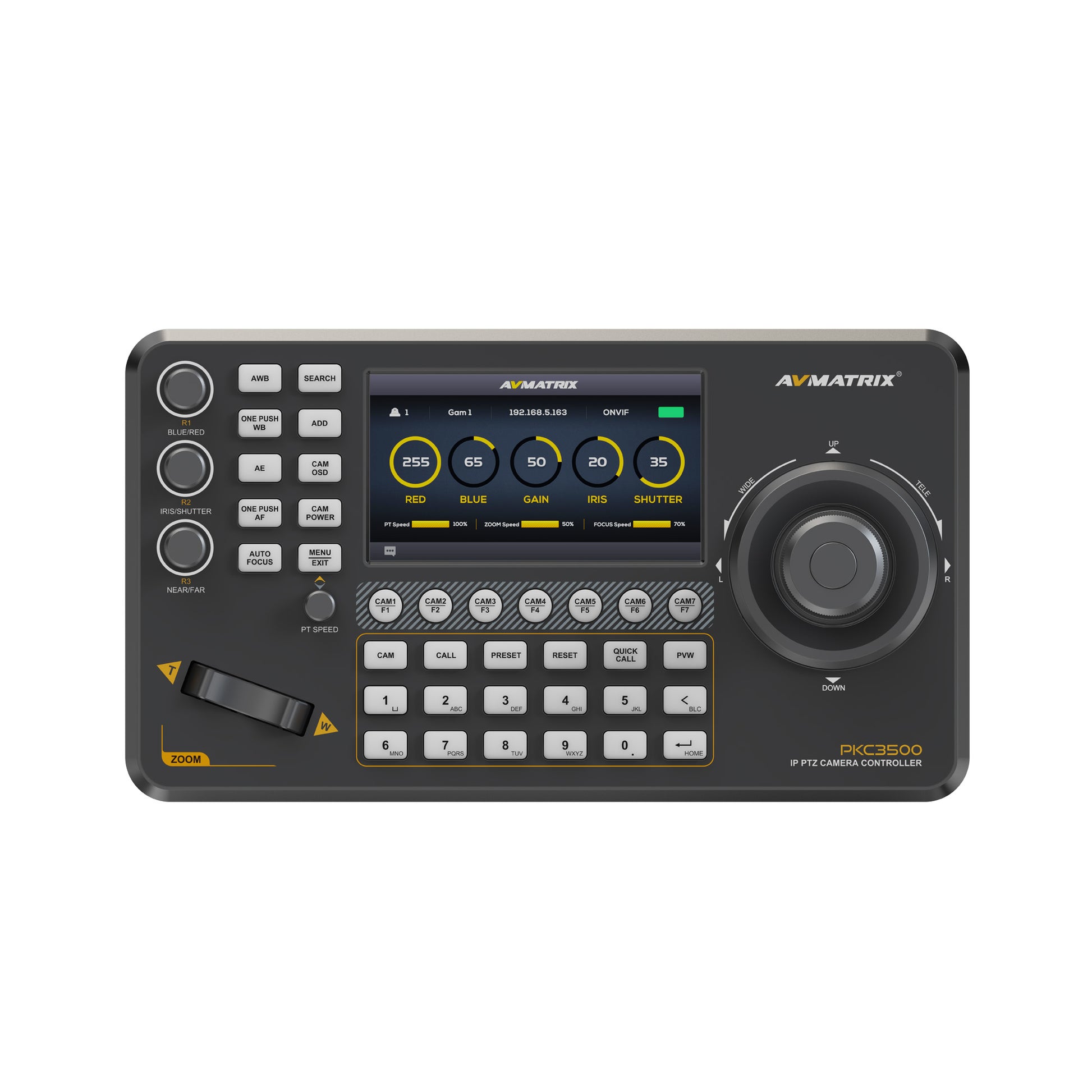

5-inch display with joystick and knob for PTZ, iris, shutter, gain, AE, WB ONVIF, VISCA, NDI®|HX2, PELCO-D, PELCO-P. Up to 255 camera addresses, 255 presets 1x IP(RJ45), 1x RS232, 1x RS-485/RS-422, 1x TALLY, USB 2.0 (for upgrade) 1000M LAN with PoE/PoE+ (IEEE802.3af/at). Serial baud 2400 to 115200 bps PoE+/DC 7 to 24V, <8 W. -20°C to 60°C operating, -20°C to 70°C storage 282 x 158 x 47 mm (without joystick), 282 x 158 x 100.5 mm (with joystick), 1089 g
Connections
Interfaces

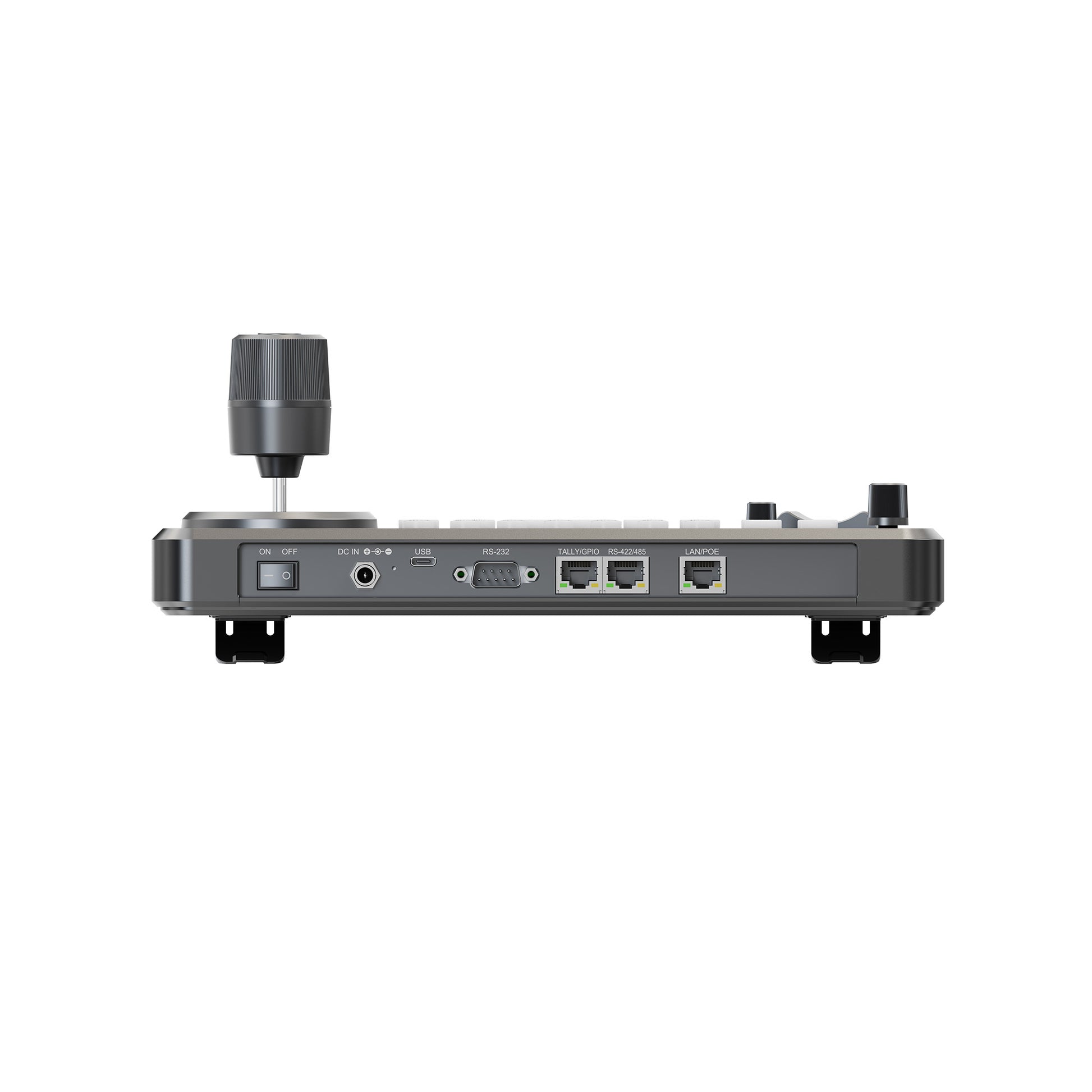

1x IP (RJ45), 1x RS232, 1x RS-485/RS-422, 1x TALLY, 1x USB 2.0 (for upgrade)
IP protocol
ONVIF, VISCA, NDI®|HX2 (optional)
Video inputs
IP (ONVIF, VISCA), NDI®|HX2 (optional)
Serial protocol
PELCO-D, PELCO-P, VISCA
Serial baud rate
2400, 4800, 9600, 19200, 38400, 115200 bps
LAN port
1x 1000M (PoE/PoE+: IEEE802.3af/at)
Power
Power input
PoE+/DC 7 to 24V
Power consumption
PoE+: <8 W, DC: <8 W
PoE
PoE+ IEEE 802.3at
Environmental
Operating temperature
-20°C to 60°C
Storage temperature
-20°C to 70°C
Mechanical
Dimensions
282 x 158 x 47 mm (without joystick), 282 x 158 x 100.5 mm (with joystick)
Weight
1089 g
Accessories
Included
12V 2A Power Adapter
User Interfaces
Knob
Iris, shutter speed, gain, auto exposure, white balance
Joystick
Pan, Tilt, Zoom
Camera address
Up to 255
Camera preset
Up to 255
